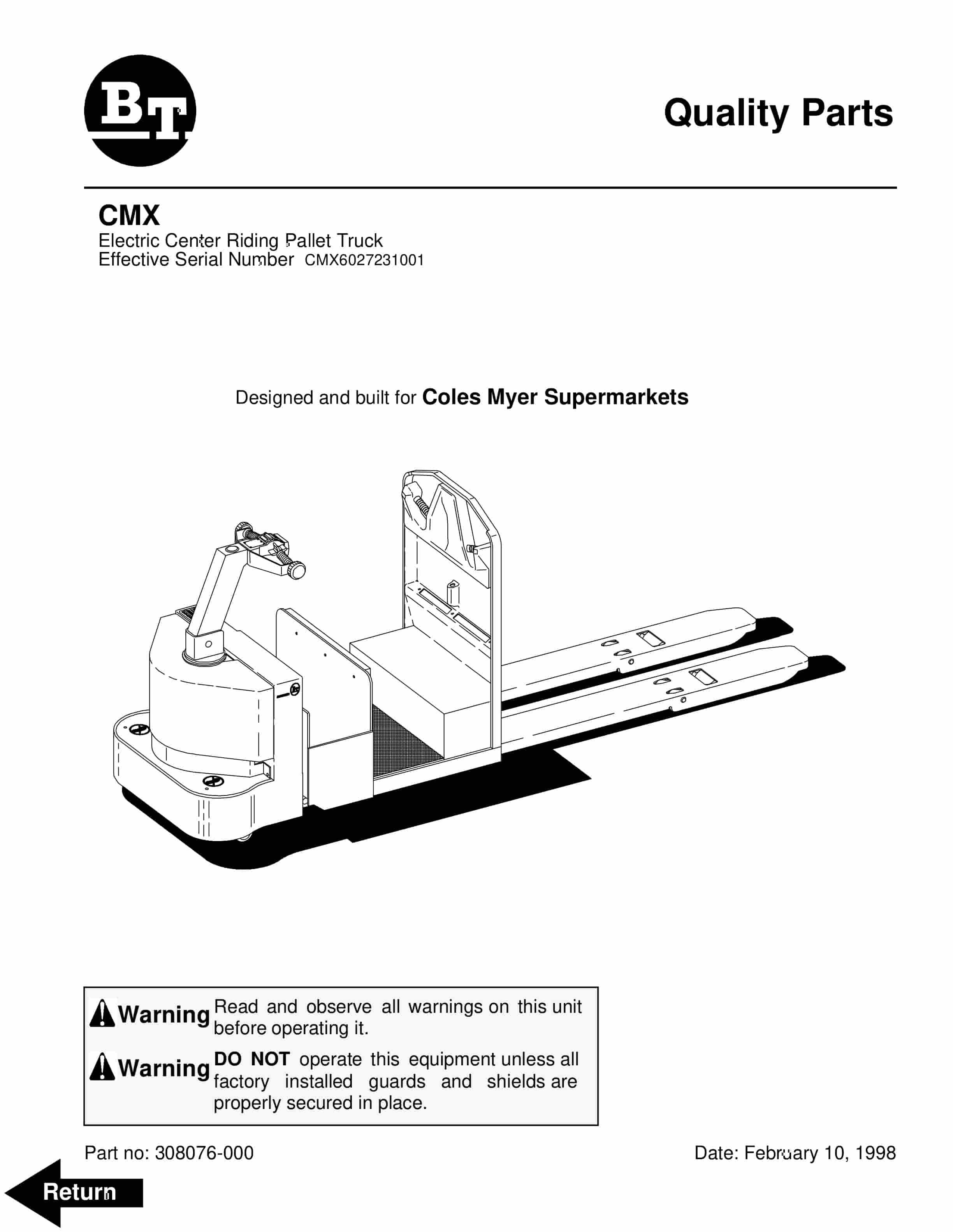

BT CMX Electric Center Riding Pallet Truck Parts Manual 308076-000

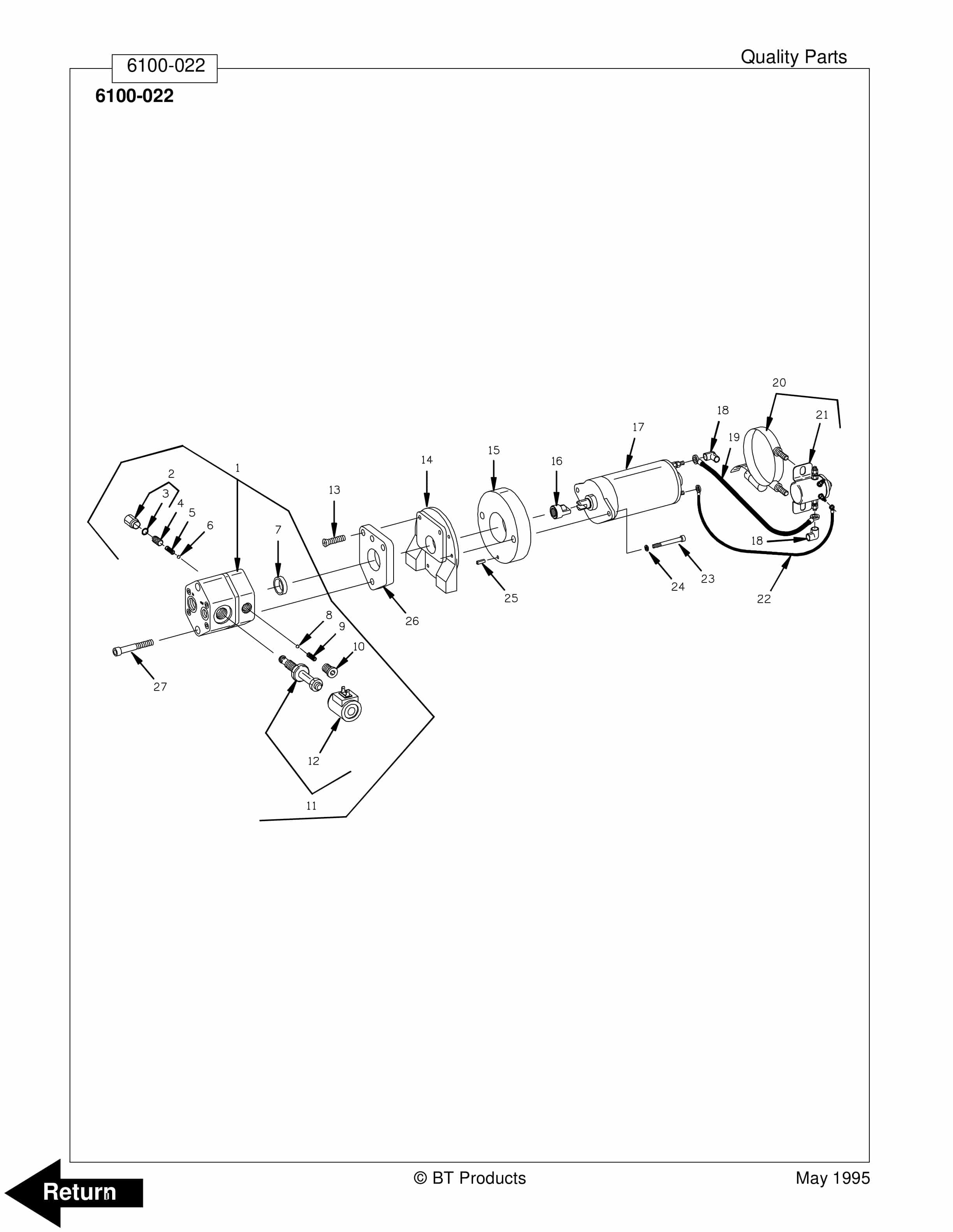

BT CMX Electric Center Riding Pallet Truck Parts Manual 308076-000 - Image 2

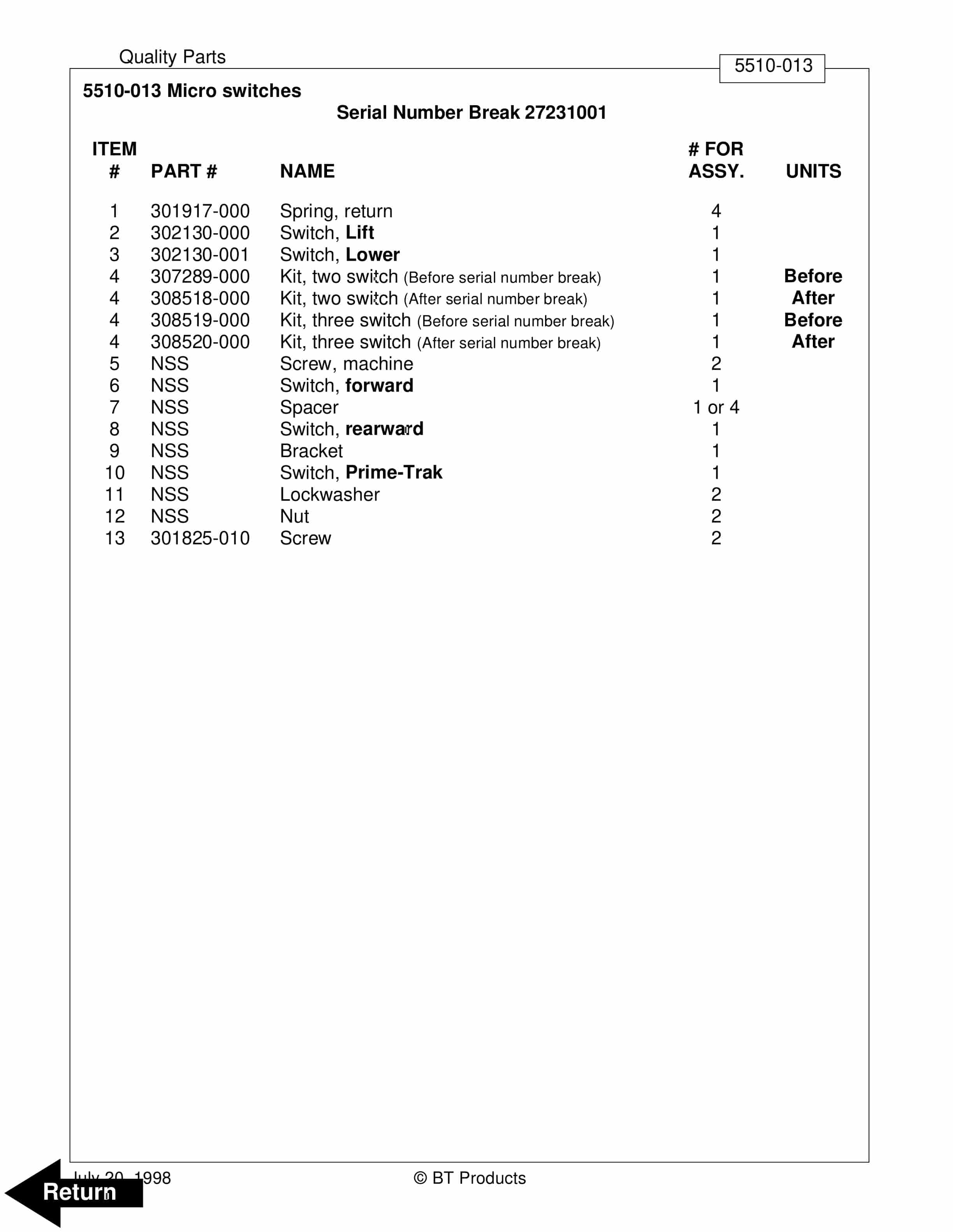

BT CMX Electric Center Riding Pallet Truck Parts Manual 308076-000 - Image 3

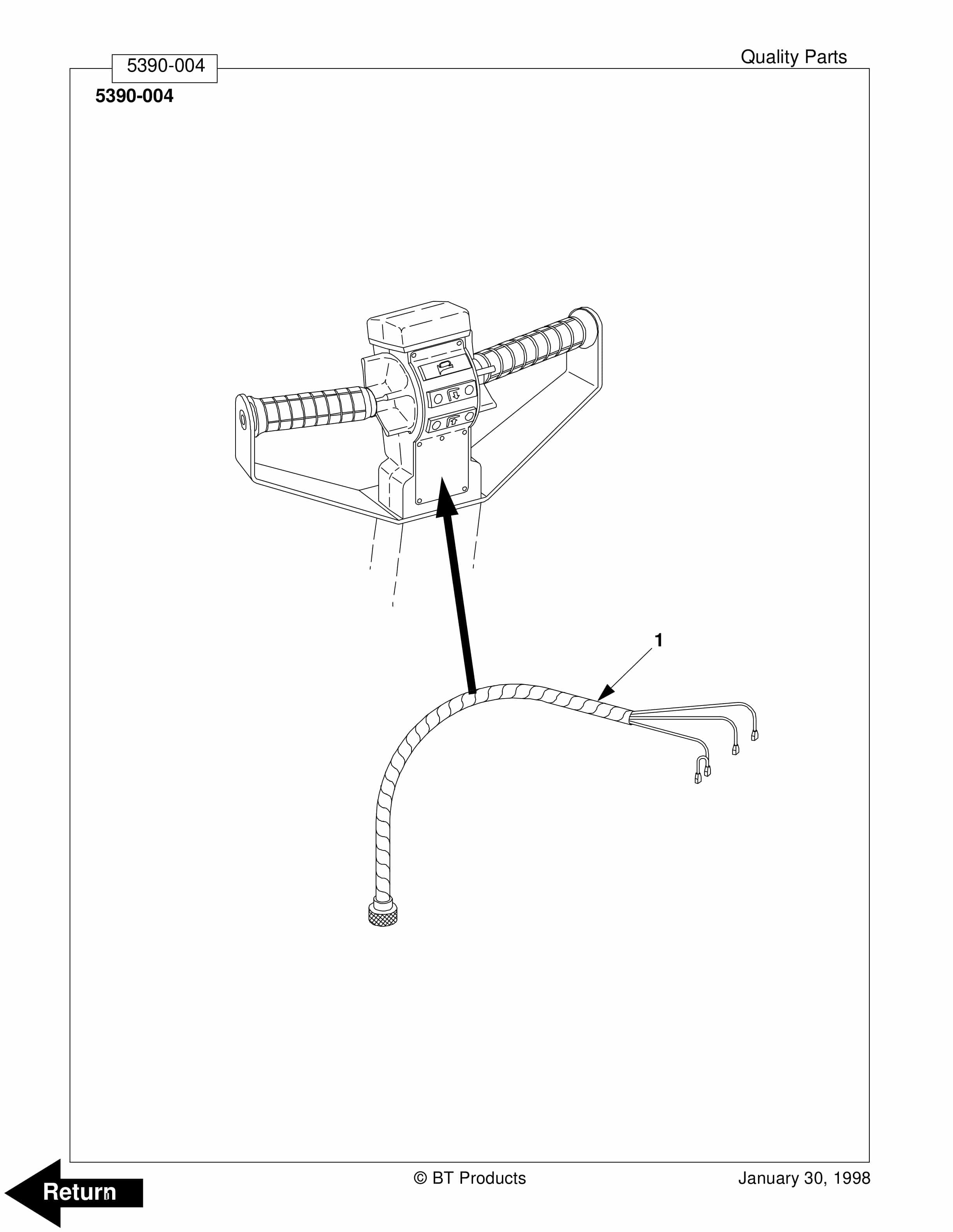

BT CMX Electric Center Riding Pallet Truck Parts Manual 308076-000 - Image 4
BT CMX Electric Center Riding Pallet Truck Parts Manual 308076-000 - Image 5

BT CMX Electric Center Riding Pallet Truck Parts Manual 308076-000

$30.00

  • Type Of Manual: Parts Manual
  • Manual ID: 308076-000
  • : Parts Manual PDF
  • Number of Pages: 104
  • Size: 1.7MB
  • Format: PDF
Category:

Product details

  • Model List:

    • CMX Electric Center Riding Pallet Truck
  • 1. Front Cover
  • 2. Parts Ordering Instructions
  • 3. General Information
  • 4. Chassis
  • 4.1. Frame / Chassis
  • 4.2. Inspection covers (Splash guard)
  • 4.3. Inspection covers (Side cover)
  • 4.4. Inspection covers (Shields guards)
  • 4.5. Battery compartment parts
  • 4.6. Bumpers, shock absorbers
  • 4.7. Drivers controls (speed direction)
  • 4.8. Signs, warnings
  • 5. Motors
  • 5.1. Electrical drive motor (24 Volt 300/400 A…
  • 6. Transmission/Drive Gear
  • 6.1. Mechanical drive gear unit
  • 7. Brake/Wheel System
  • 7.1. Parking brake system
  • 7.2. Brake drum/disc assembly
  • 7.3. Drive wheel
  • 7.4. Support / swivel wheel (Pivot)
  • 7.5. Support / swivel wheel
  • 7.6. Fork / support arm / outrigger wheels
  • 7.7. Stabilizer wheel
  • 7.8. Guide wheels
  • 8. Steering System
  • 8.1. Steering arm / wheel (Handle stem)
  • 8.2. Steering arm / wheel
  • 8.3. Steering / radial bearing
  • 9. Electrical System
  • 9.1. General alarm signal
  • 9.2. Battery cut out contactor / plug (Line co…
  • 9.3. Battery cut out contactor / plug (battery…
  • 9.4. Voltage / battery indicator
  • 9.5. Hourmeter / speedometer
  • 9.6. Start / stop switch
  • 9.7. Start / stop switch (Prime-Trak cylinder …
  • 9.8. Speed controls
  • 9.9. Relay, electrical modules (Relay)
  • 9.10. Relay, electrical modules (Time delay)
  • 9.11. Control cables / harness (Handle head)
  • 9.12. Control cables / harness (Control wire)
  • 9.13. Motor cables, resistors (24 Volt, 400 Amp…
  • 9.14. Transistor panel (24V, 400 amp system) Ef…
  • 9.15. Micro switches
  • 9.16. Pump motor (24 Volt)
  • 10. Hydraulic System
  • 10.1. Hydraulic pump
  • 10.2. Hydraulic pump (Prime-Trak)
  • 10.3. Hoses, pipes, connections, mounting point…
  • 10.4. Hoses, pipes, connections, mounting point…
  • 11. Operating Functions – Lifting Device
  • 11.1. Lift cylinder
  • 11.2. Lift cylinder (With grease fitting)
  • 11.3. Lift and carrying devices (Package guard)…
  • 12. Options/Attachments
  • 12.1. Electrical heater
  • 12.2. Electrical heater (24 Volt)
  • 12.3. Electrical controllers (Handset)
  • 12.4. Special tools and lubrications
  • 13. Back Cover
