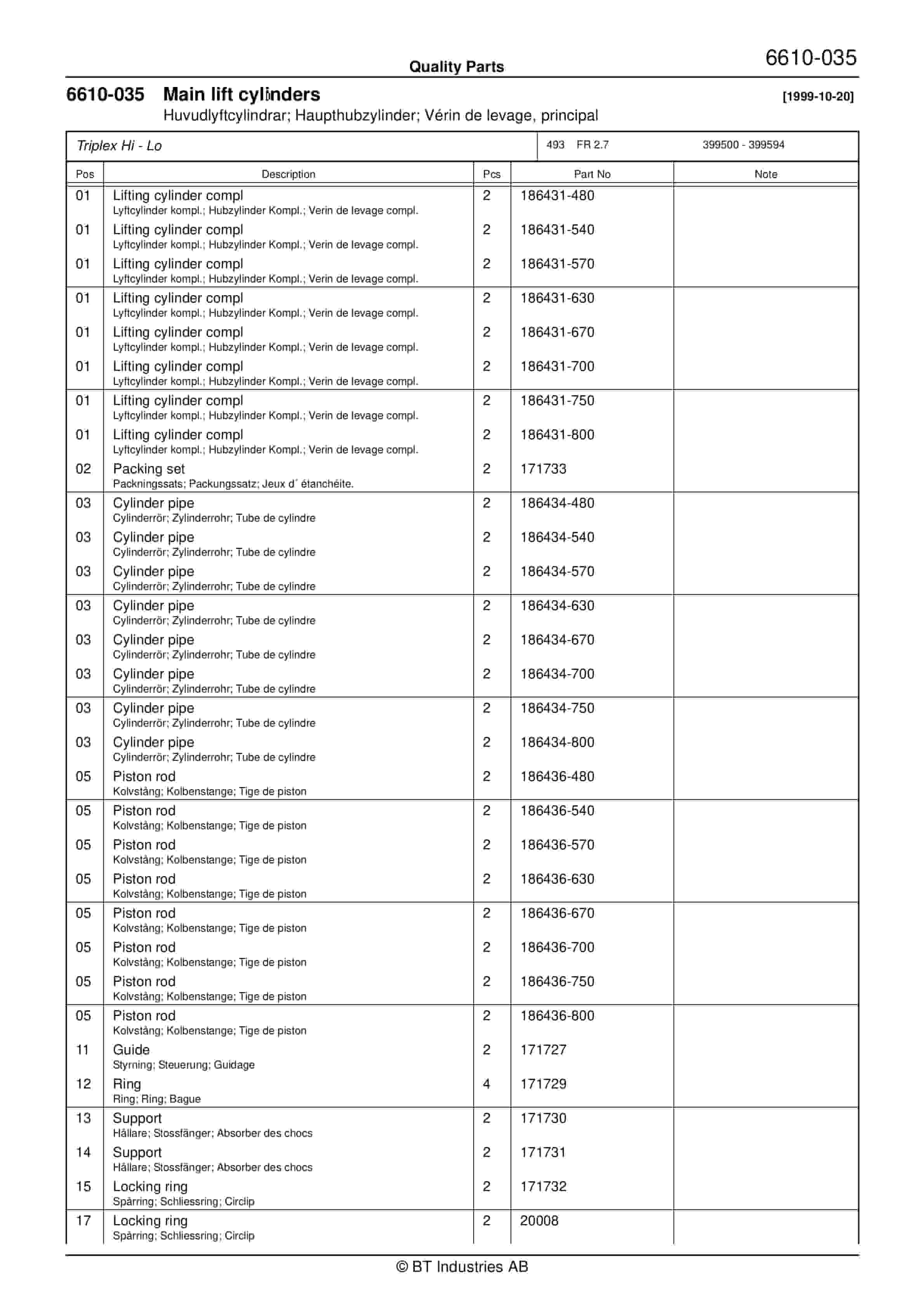

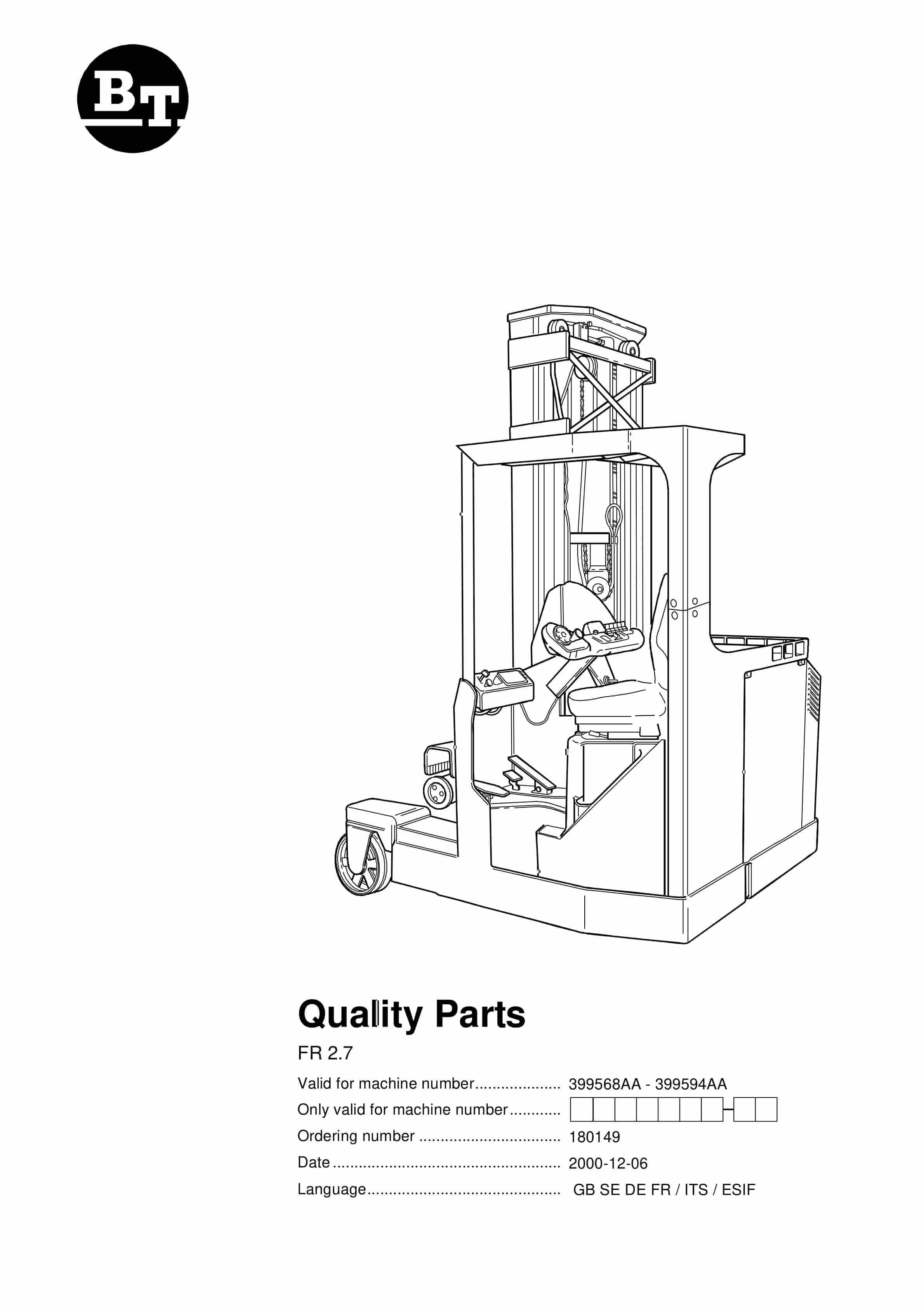

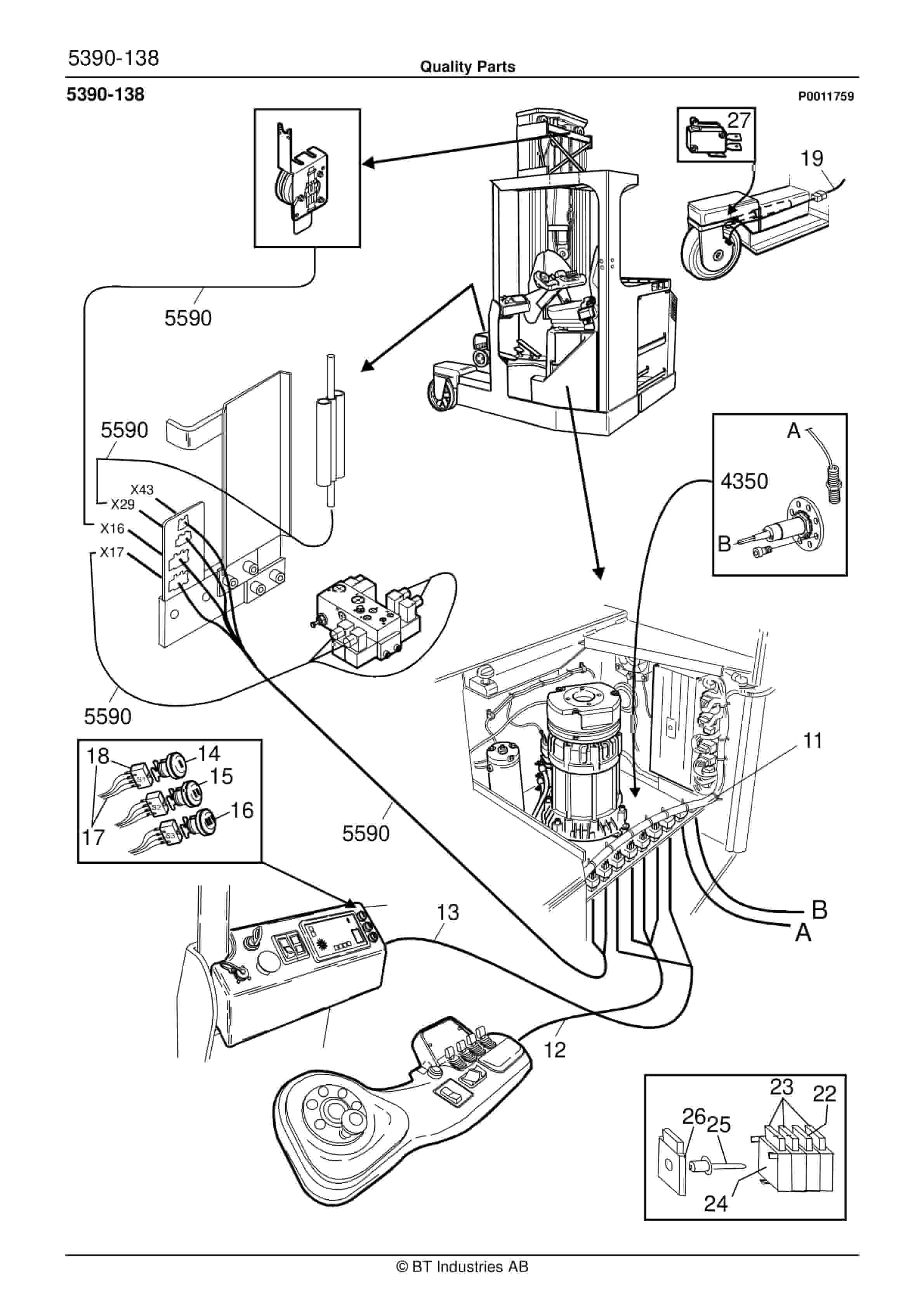

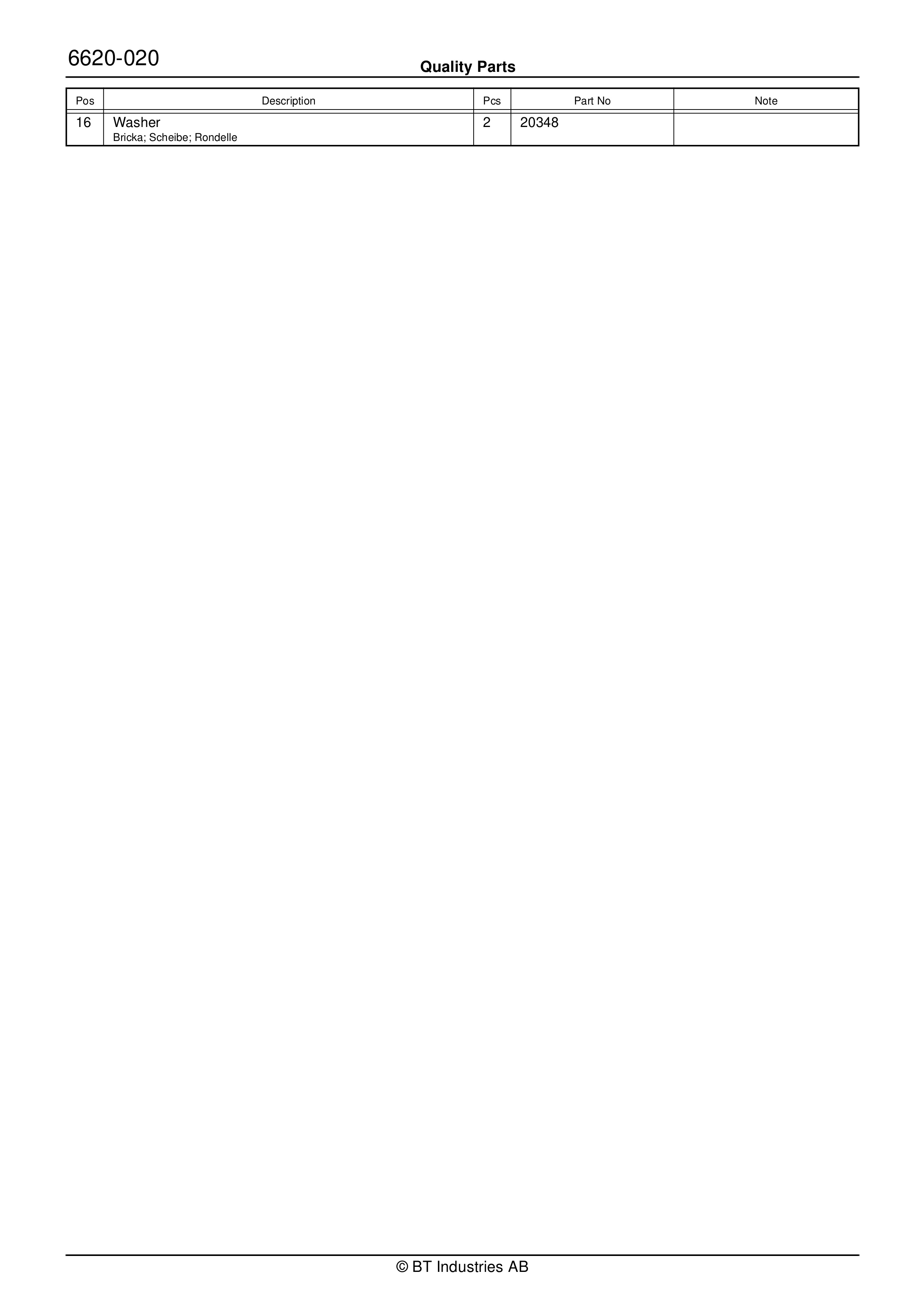

BT FR 2.7 Quality Parts 180149

$30.00

Type Of Manual: Quality Parts
Manual ID: 180149
: Parts Manual PDF
Number of Pages: 139
Size: 4.5MB
Format: PDF

Category: BT Parts Manual PDF

Product details

Model List:
- FR 2.7

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/ Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. P0011617
10. Inspection covers 2000-01-12
11. P0011709
12. Battery compartment parts 2000-02-01
13. P0011768
14. Gearbox fixing points 2000-02-17
15. P0009691
16. Motor fixing points 2001-02-01
17. P0009746
18. Seat, cushions 2001-02-01
19. P0007590
20. Driver controls ( mechanical ) 1997-12-15
21. P0011770
22. Internal fittings 2000-02-17
23. P0010970
24. Overhead guard/roof 1999-09-14
25. P0011755
26. Overhead guard/roof 2000-02-14
27. P0011754
28. Finger/foot guards 2001-03-29
29. P0011702
30. Signs, warnings, decals 2000-01-31
31. P0012893
32. Electric pump motor 2001-04-04
33. P0012074
34. Electric steering motor 2000-04-26
35. P0009593
36. Electric fan motor, electric fan 1999-02-23
37. P0011293
38. Electric fan motor, electric fan 1999-11-03
39. P0010440
40. Electric drive motor 1999-06-08
41. P0011618
42. Mechanical drive gear unit 2000-01-12
43. P0007232
44. Travel brake controls 1997-10-28
45. P0009607
46. Electrically controlled travel brake 1999-02-24
47. P0012895
48. Electrically controlled travel brake 2001-04-04
49. P0000249
50. Drive wheel 1997-10-07
51. P0010928
52. Support/castor wheels 1999-09-10
53. P0010929
54. Fork/support arm wheels 2001-04-03
55. P0010930
56. Fork/support arm wheels 2000-08-15
57. P0012896
58. Electric steering wheel/lever 2001-04-04
59. P0011762
60. Steering angle sensor 2000-02-16
61. P0010863
62. Steering bearings 1999-09-02
63. P0010287
64. General alarm signals (audible/visual) 1999-12-20
65. P0006443
66. Battery cut out connector/contactor 1997-09-09
67. P0007136
68. Instrument panel, display 1997-10-14
69. P0011703
70. Level/position transducers/lamps 2000-01-31
71. P0011767
72. Level/position transducers/lamps 2000-02-16
73. P0000151
74. Start/stop switch 1996-05-21
75. P0000257
76. Travel direction switch (separate) 1997-11-20
77. P0007232
78. Speed control 1997-10-28
79. P0011759
80. Driving function harnesses/ fuse 2000-08-09
81. P0011010
82. Drive motor cables/resistors/fuses 1999-09-21
83. P0011011
84. Transistor panel 2000-10-09
85. P0010377
86. Work function micro switches, potentiometers 1999-11-30
87. P0011760
88. Work function harnesses/ fuse 2000-02-15
89. P0011009
90. Battery/motor cables, fuse 1999-09-21
91. P0011207
92. Drive/multi-function PCBs 1999-10-25
93. P0007058
94. Safely electronics harnesses, fuse 1997-09-24
95. P0011764
96. Lift/lowering/reach movment probes/sensors 2000-02-16
97. P0009651
98. Safety probes/ sensors 2001-03-21
99. P0009652
100. Safety probes/ sensors 1999-03-03
101. P0010910
102. Safety probes/ sensors 1999-09-08
103. P0011756
104. Safety probes/ sensors 2000-02-14
105. P0012976
106. Hydraulic unit 2001-04-04
107. P0010441
108. Hydraulic tank 1999-06-08
109. P0011719
110. Hydraulic tank lines 2000-02-03
111. P0010610
112. Filters and housing 1999-06-21
113. P0012974
114. Hydraulic pump 2001-04-04
115. P0011704
116. Control valve 2000-01-31
117. P0004679
118. Main valve unit lift/reach/tilt 1996-09-24
119. P0011181
120. Control valve (Other functions) 2001-03-28

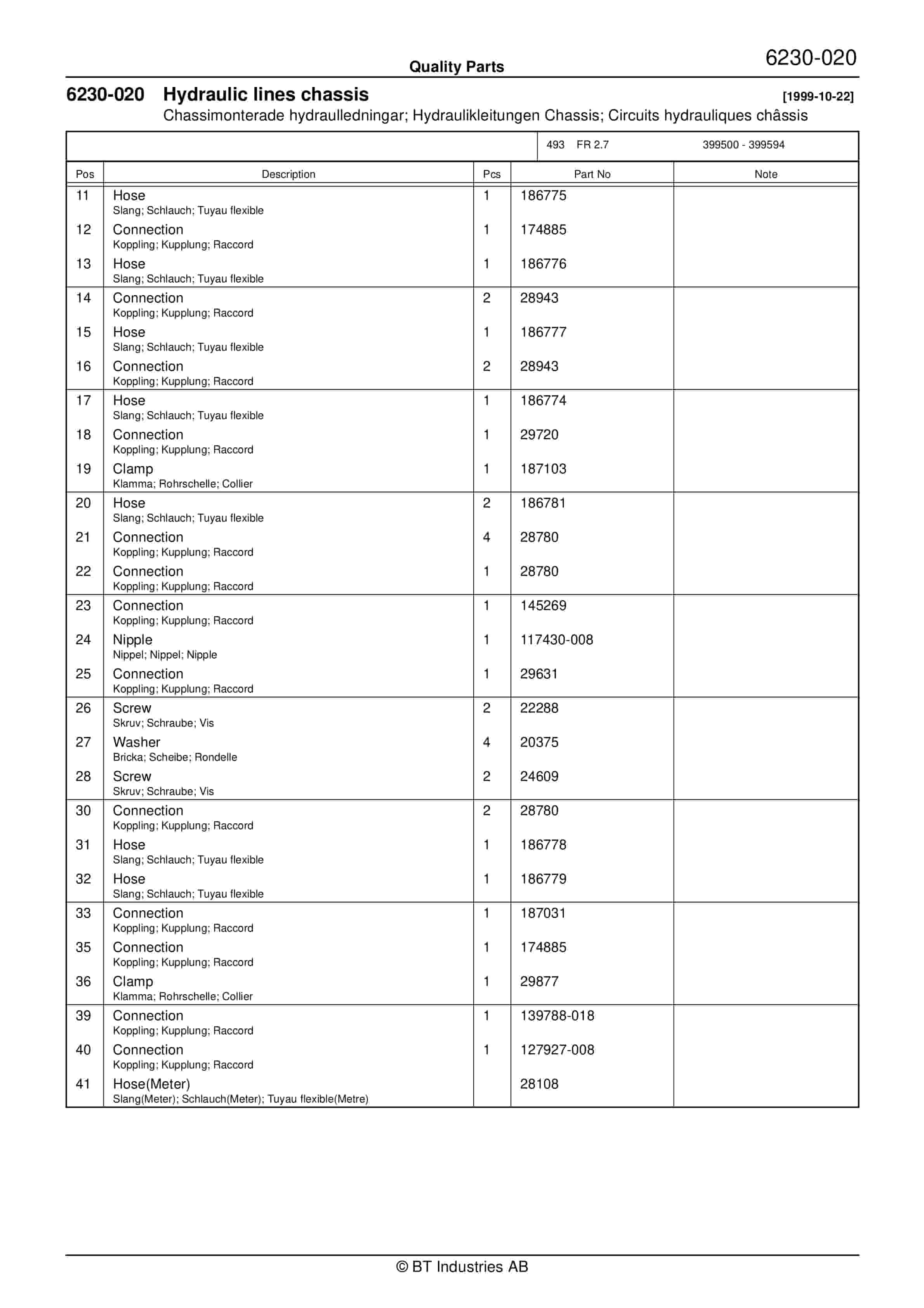

121. P0011195
122. Hydraulic lines chassis 1999-10-22
123. P0011616
124. Mast hydraulic lines 2000-01-12
125. P0011712
126. Mast hydraulic lines 2001-02-14
127. P0011715
128. Mast hydraulic lines 2001-03-29
129. P0011716
130. Mast hydraulic lines 2001-03-29
131. P0011833
132. Mast hydraulic lines 2000-03-08
133. P0011179
134. Main lift cylinders 1999-10-20
135. P0011752
136. Main lift cylinders 2000-02-14
137. P0011180
138. Free lift cylinder 1999-10-20
139. P0011714
140. Free lift cylinder 2000-02-02
141. P0011210
142. Reach/telescopic cylinders 1999-10-25
143. P0011717
144. Tilt cylinders 2000-02-02
145. P0011208
146. Other hydraulic cylinders 1999-10-25
147. P0011713
148. Main mast 2000-02-02
149. P0011610
150. Main lift chain system 2001-03-29
151. P0011710
152. Main lift chain system 2000-02-01
153. P0011706
154. Main mast fork carriage 2000-02-01
155. P0011708
156. Main mast fork carriage 2000-02-01
157. P0011026
158. Main mast guidance/ dampers 2001-02-14
159. P0011801
160. Main mast suspension 2000-03-01
161. P0011763
162. Forkcarriage unit,integ.sideshift,fork spread 2000-03-01
163. P0011834
164. Forkcarriage unit,integ.sideshift,fork spread 2000-03-08
165. P0011758
166. Other load carriers 2000-02-14
167. P0011757
168. Other load carriers 2000-02-14
