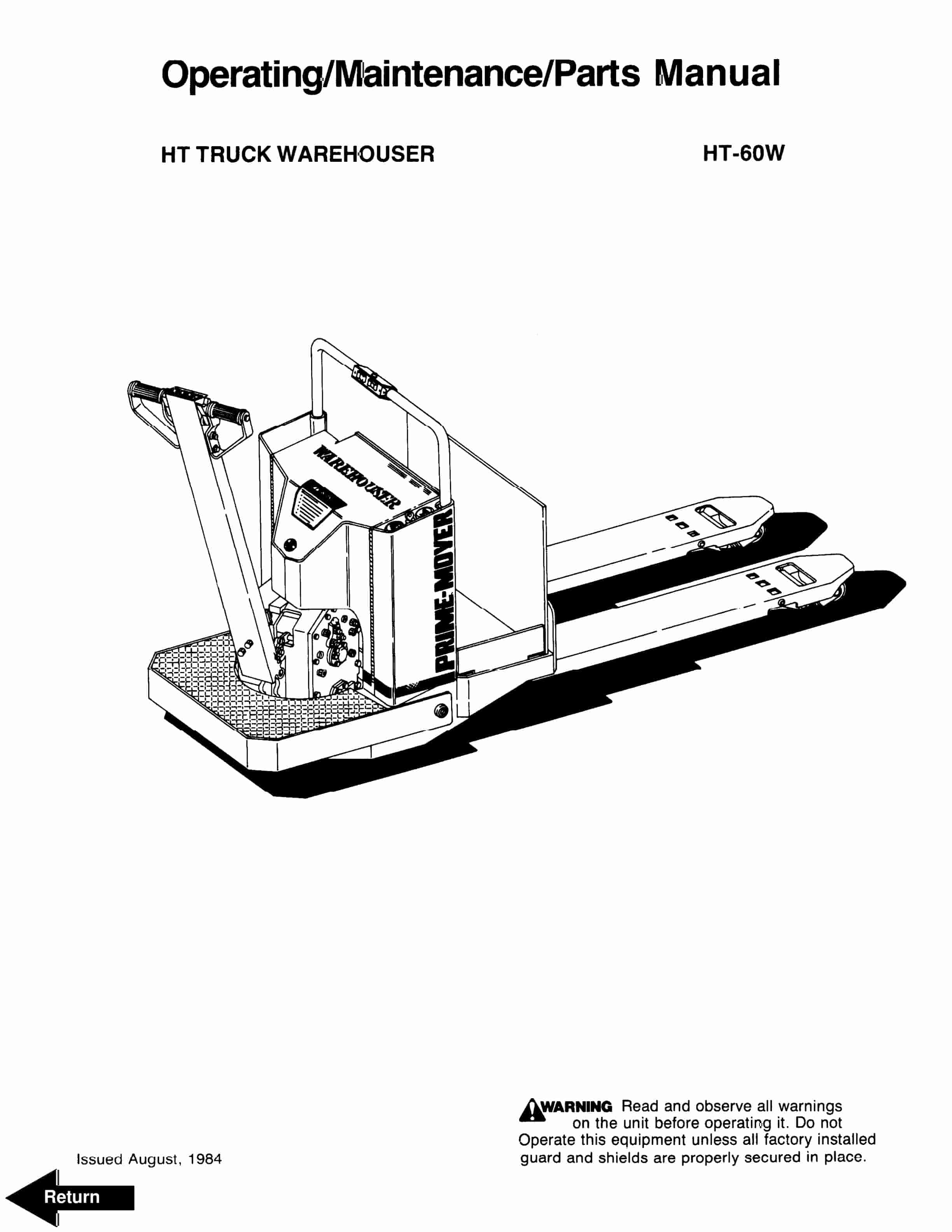

BT HT-60W HT Truck Warehouser Operating - Maintenance - Parts Manual 301063-000
BT HT-60W HT Truck Warehouser Operating - Maintenance - Parts Manual 301063-000 - Image 2
BT HT-60W HT Truck Warehouser Operating - Maintenance - Parts Manual 301063-000 - Image 3
BT HT-60W HT Truck Warehouser Operating - Maintenance - Parts Manual 301063-000 - Image 4
BT HT-60W HT Truck Warehouser Operating - Maintenance - Parts Manual 301063-000 - Image 5

BT HT-60W HT Truck Warehouser Operating – Maintenance – Parts Manual 301063-000

$30.00

  • Type Of Manual: Operating – Maintenance – Parts Manual
  • Manual ID: 301063-000
  • : Parts Manual PDF
  • Number of Pages: 81
  • Size: 4.3MB
  • Format: PDF
Category:

Product details

  • Model List:

    • HT-60W HT Truck Warehouser
  • 1. Front Cover
  • 2. Warranty
  • 3. New Owners
  • 4. Contents
  • 5. PrelimInary Service
  • 6. Operation
  • 7. Warning
  • 8. Operating Rules and Instructions
  • 9. Lubrication Chart
  • 10. Maintenance Instructions
  • 11. Service and Disassembly Instructions
  • 12. Parts Ordering Instructions
  • 13. Truck Specifications
  • 14. Figure 1 Decal and Parts Assembly
  • 15. Figure 2 Parts List and Service Reference Index
  • 16. Figure 3 Shield Assembly
  • 17. Figure 4 Carrier Frame Assembly
  • 18. Figure 5 141 Transmission and Handle Assembly
  • 19. Figure 6 141 Transmission Assembly
  • 20. Figure 7 141 Motor Assembly
  • 21. Figure 8 Handle Assembly
  • 22. Figure 9 Master Control Switch Assembly
  • 23. Figure 10 Master Control Switch Assembly
  • 24. Figure 11 Spring Loaded Caster Assembly
  • 25. Figure 12 Electrical Schematic Symbols
  • 26. Figure 13 Resistor Truck Electrical Schematic

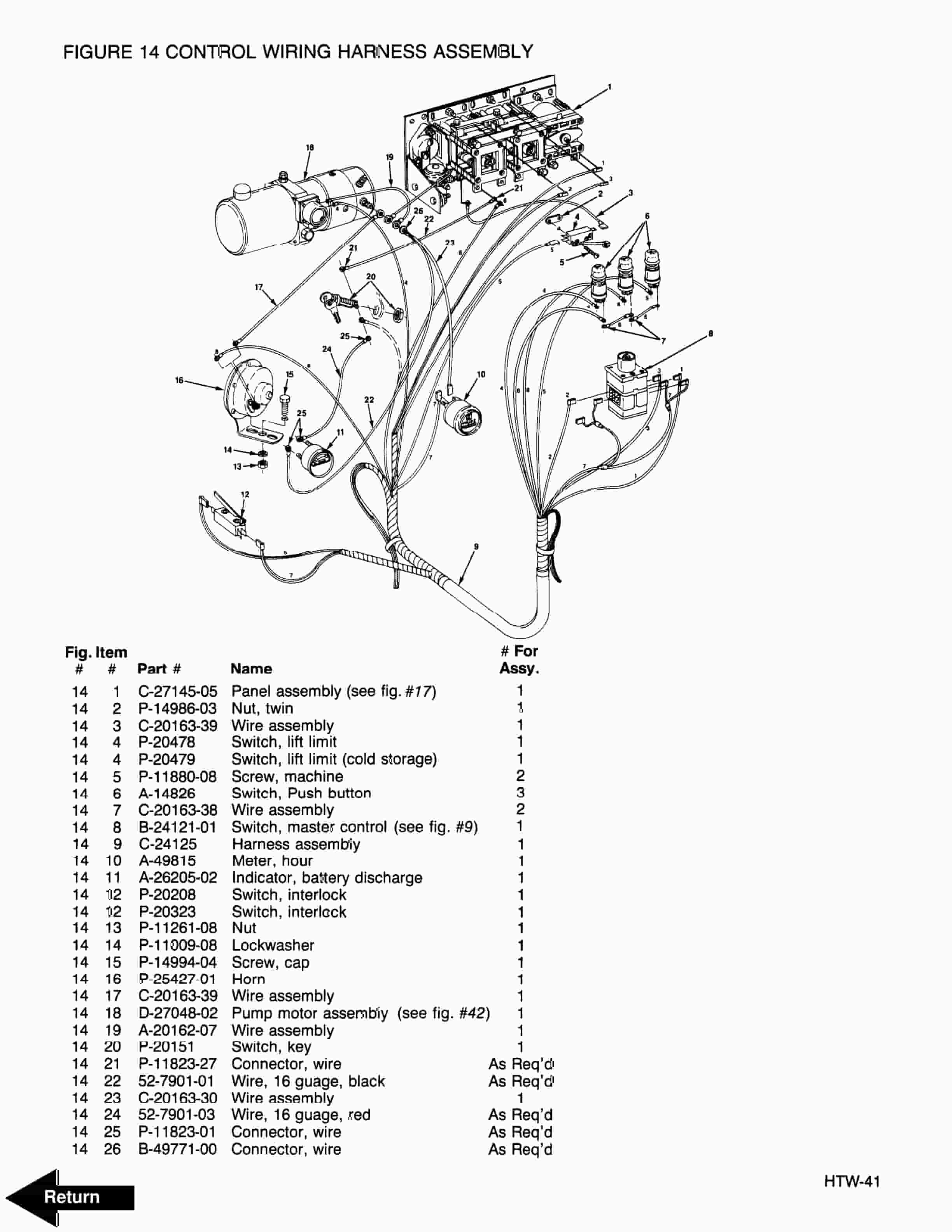

  • 27. Figure 14 Control Wiring Harness Assembly
  • 28. Figure 15 Third Speed Riding Control Wiring
  • 29. Figure 16 Third Speed Power Component Wiring
  • 30. Figure 17 Control Panel Assembly
  • 31. Figure 18 GE Contactor Assembly
  • 32. Figure 19 GE Contactor Assembly
  • 33. Figure 20 Third Speed Panel Assembly
  • 34. Figure 21 Fourth Speed Control Wiring
  • 35. Figure 22 Fourth Speed Power Component Wiring
  • 36. Figure 23 Fourth Speed Contactor Panel Assembly
  • 37. Figure 24 Contactor Assembly
  • 38. Figure 25 EV-1 SCR Electrical Schematic
  • 39. Figure 26 Control Wiring Harness Assembly
  • 40. Figure 27 EV-1 Bracket Assembly

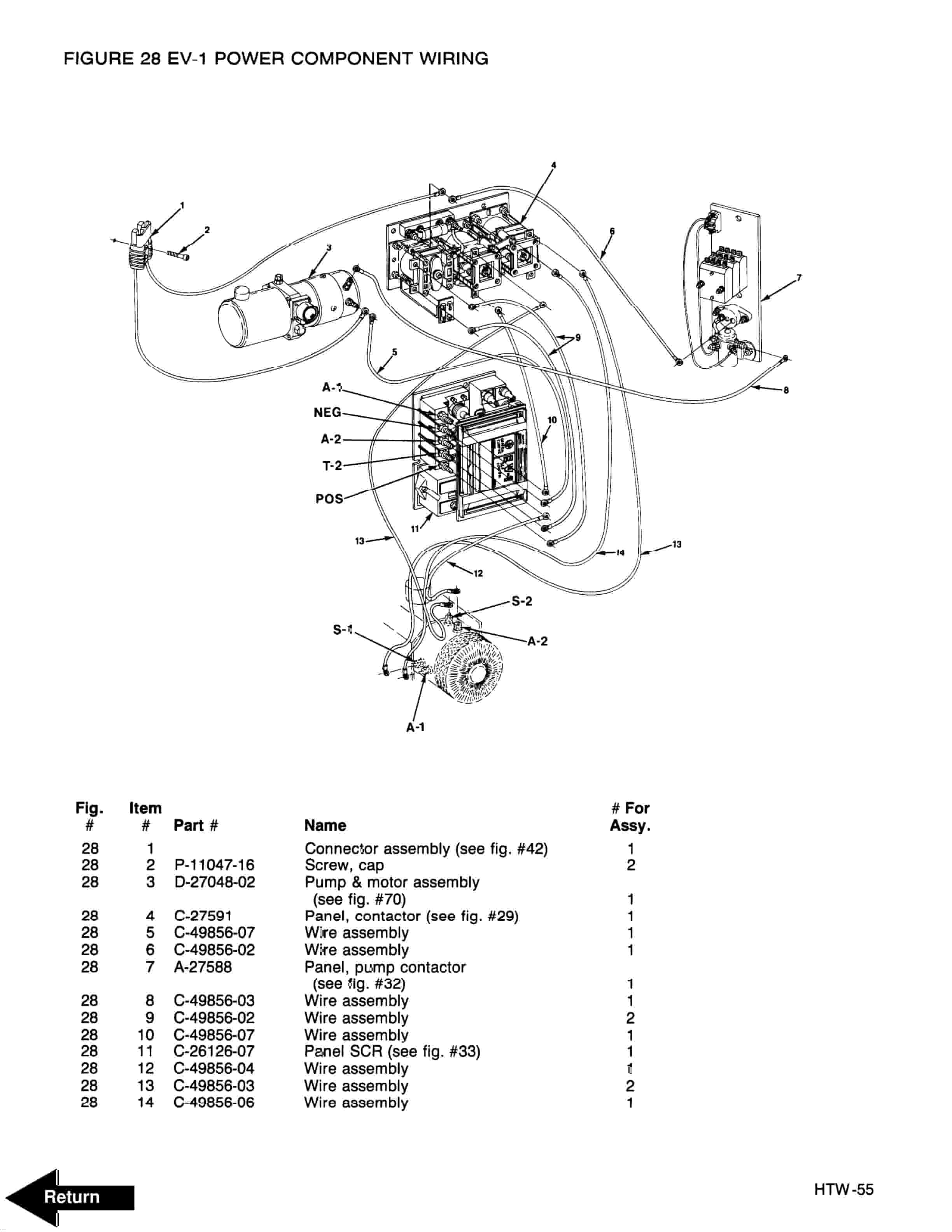

  • 41. Figure 28 EV-1 Power Component Wiring
  • 42. Figure 29 EV-1 Contactor Panel Assembly
  • 43. Figure 30 GE Contactor Assembly
  • 44. Figure 31 GE Contactor Assembly
  • 45. Figure 32 EV-1 Pump Contactor Panel
  • 46. Figure 33 EV-1 SCR Control

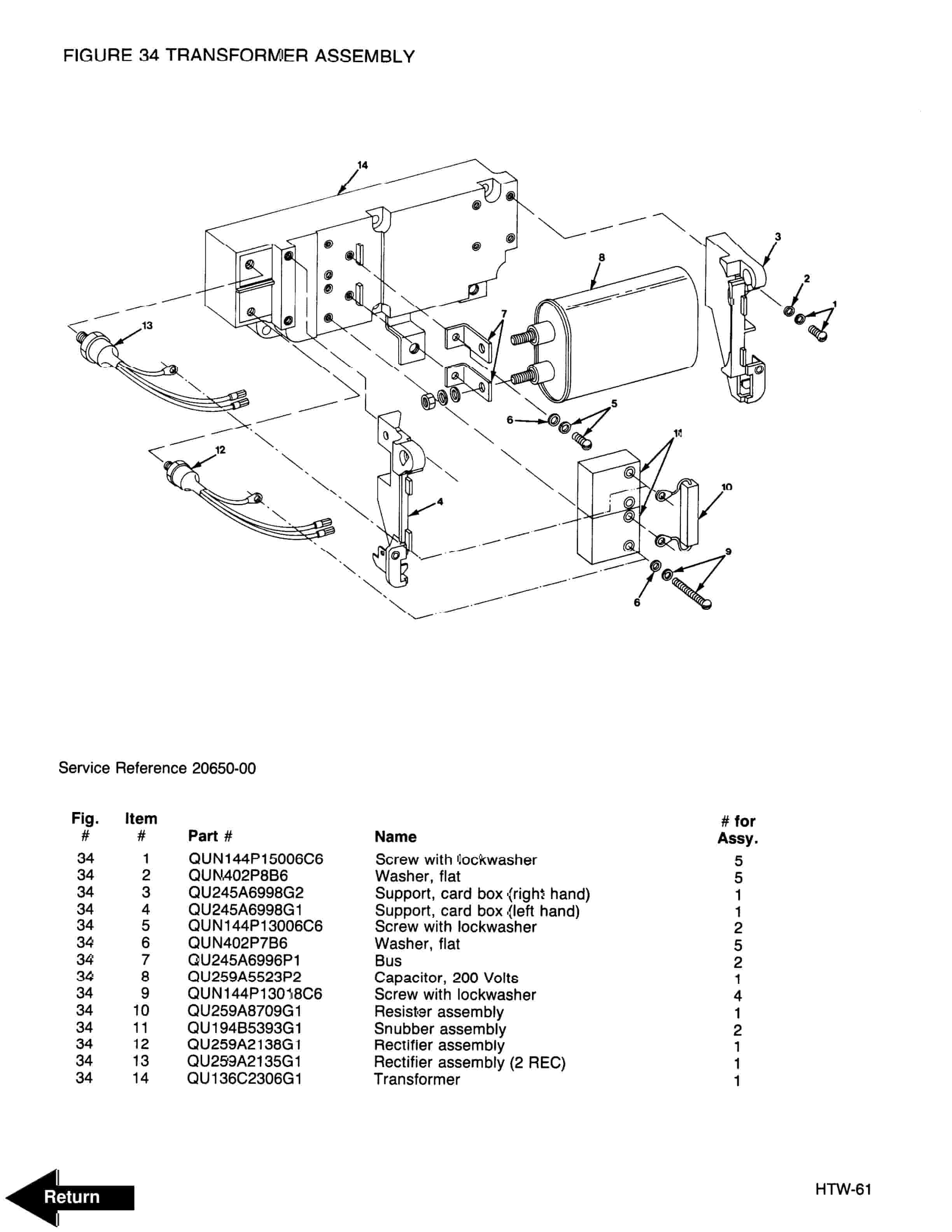

  • 47. Figure 34 Transformer Assembly
  • 48. Figure 35 Rectifier Heat Sink Assembly
  • 49. Figure 36 Power Connector Assembly
  • 50. Figure 37 Cold Storage of Master Control Switch

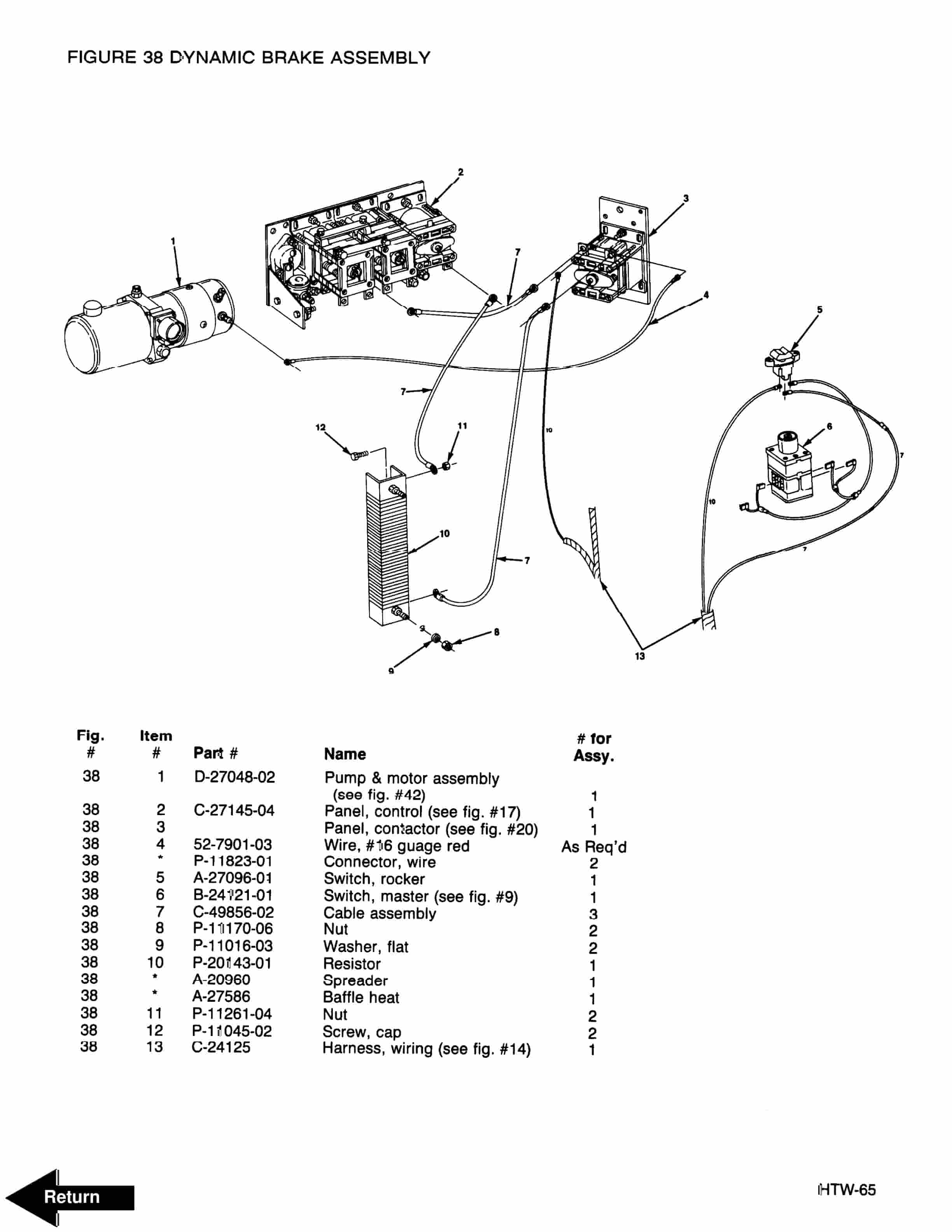

  • 51. Figure 38 Dynamic Brake Assembly
  • 52. Figure 39 Hydraulic Schematic
  • 53. Figure 40 Hydraulic Schematic Symbols
  • 54. Figure 41 Hydraulic System
  • 55. Figure 42 Hydraulic Pump and Motor Assembly
  • 56. Figure 43 Motor Assembly
  • 57. Figure 44 Cylinder Assembly
  • 58. Figure 45 Lift Frame Assembly
  • 59. Figure 46 Pallet Entry Rollers
  • 60. Figure 47 Skid Adapter and Package Guard Assembly
  • 61. Figure 48 Removable Load Backrest
  • 62. Service Guide
  • 63. Back Cover
