  • Type Of Manual: Quality Parts
  • Manual ID: 7522477
  • : Parts Manual PDF
  • Number of Pages: 83
  • Size: 3.7MB
  • Format: PDF
Category:

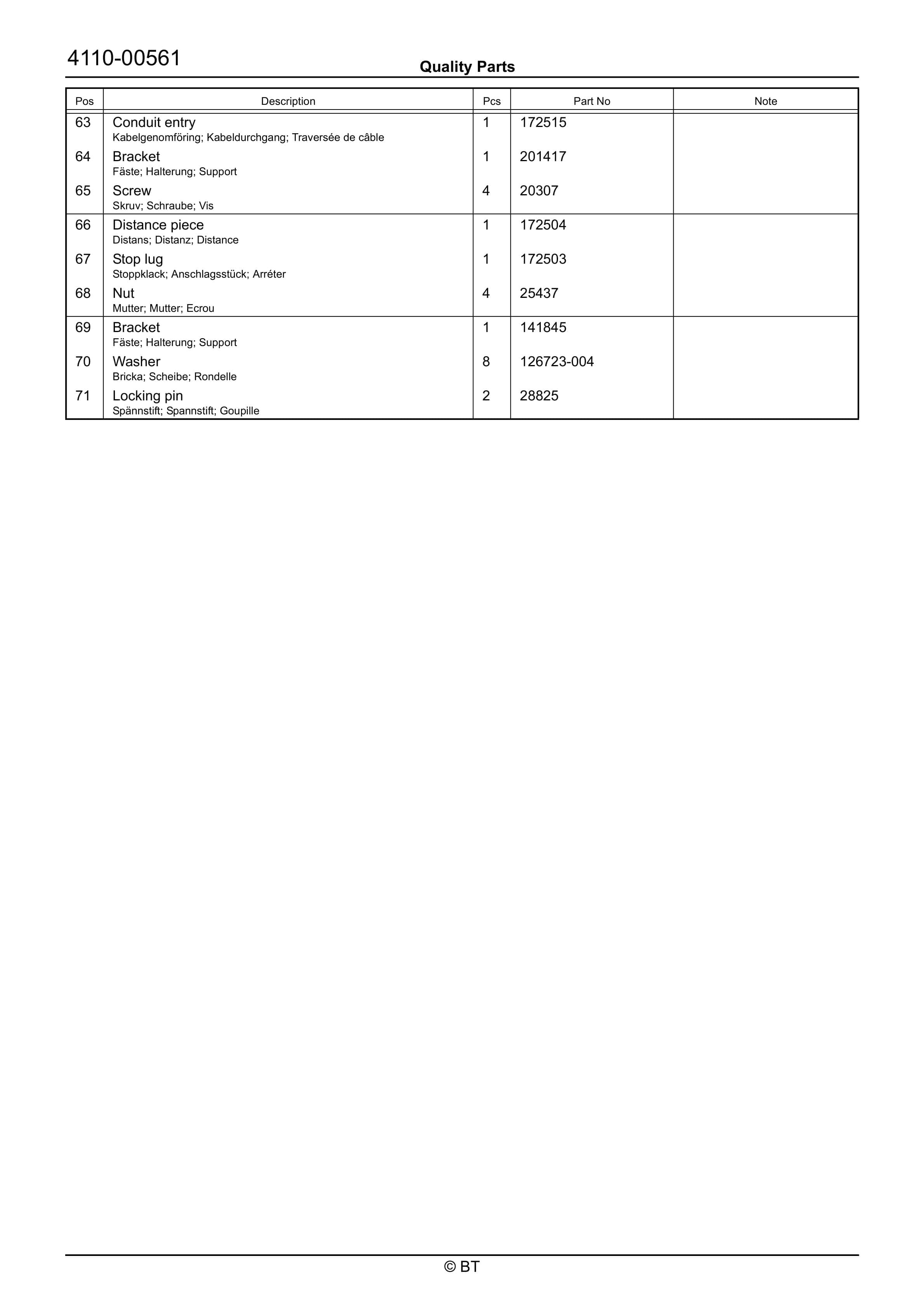

Product details

  • Model List:

    • HWE100S
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0033547
  • 11. Inspection covers 2008-12-11
  • 12. P0037325
  • 13. Support arms, stabilizers 2010-07-16
  • 14. P0027602
  • 15. Battery compartment parts 2010-01-19
  • 16. P0027613
  • 17. Frame/chassis components 2010-01-20
  • 18. P0027615
  • 19. Finger/foot guards 2010-01-20
  • 20. P0035365
  • 21. Signs, warnings, decals 2010-06-16
  • 22. P0035366
  • 23. Signs, warnings, decals 2009-09-16
  • 24. P0036712
  • 25. Signs, warnings, decals 2010-06-16
  • 26. P0023890
  • 27. Electric pump motor 2010-01-20
  • 28. P0016212
  • 29. Electric drive motor 2010-01-20
  • 30. P0024334
  • 31. Mechanical drive gear unit 2010-01-20
  • 32. P0024337
  • 33. Electromagnetic parking brake 2010-01-20
  • 34. P0016209
  • 35. Drive wheel 2010-01-20
  • 36. P0023844
  • 37. Support/castor wheels 2010-01-20
  • 38. P0023846
  • 39. Fork/support arm wheels 2010-01-20
  • 40. P0031727
  • 41. Steering arm/wheel/lever 2010-01-20
  • 42. P0031750
  • 43. Steering arm/wheel/lever 2010-01-20
  • 44. P0013246
  • 45. Steering bearings, radial bearing 2010-01-20
  • 46. P0027624
  • 47. General alarm signals (audible/visual) 2010-01-20
  • 48. P0027672

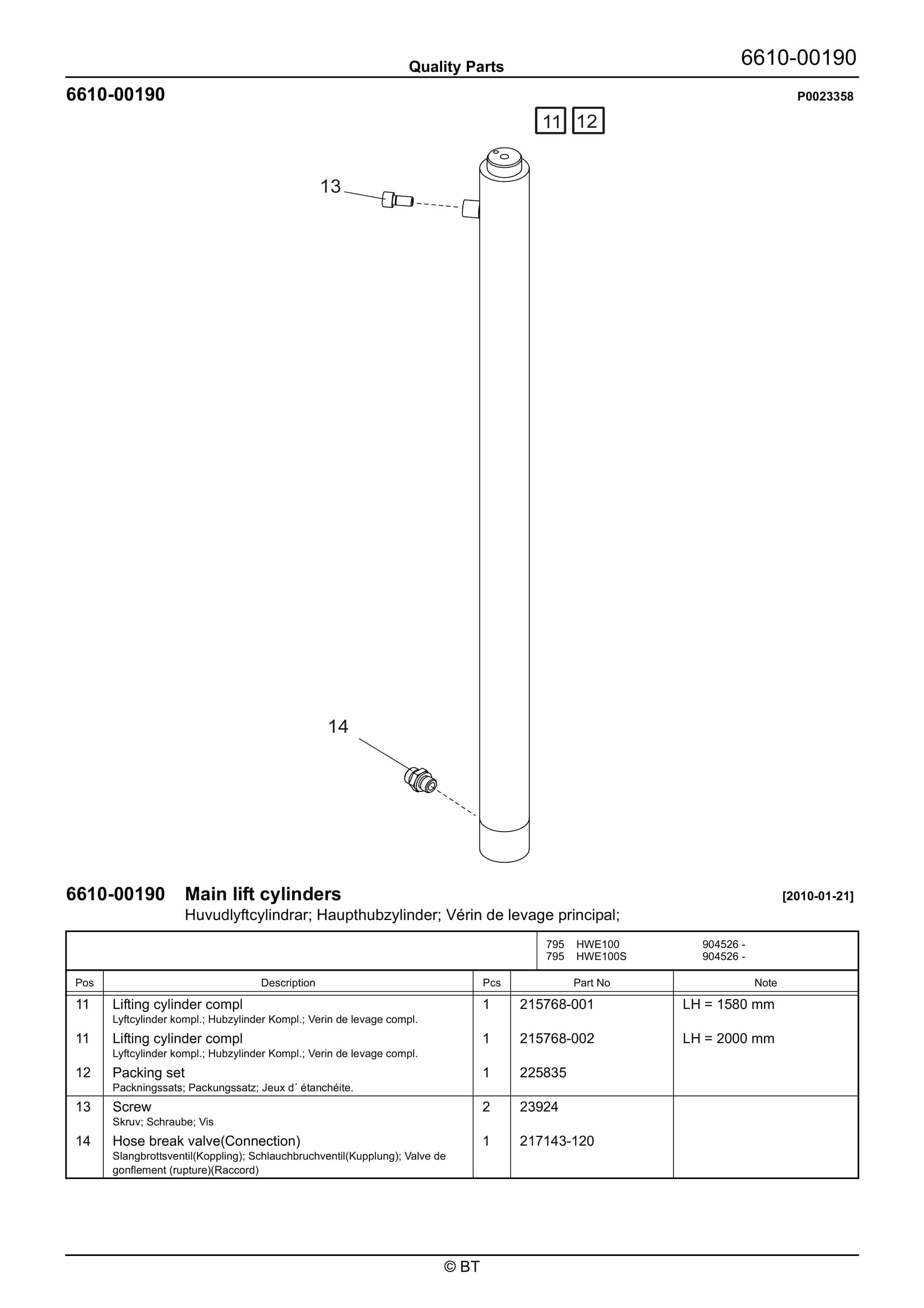

  • 49. Battery charger (on board) 2010-01-20
  • 50. P0027673
  • 51. Battery charger (on board) 2010-01-20
  • 52. P0027674
  • 53. Battery charger (on board) 2010-01-20
  • 54. P0028765
  • 55. Battery charger (on board) 2010-01-20
  • 56. P0027670
  • 57. Battery cut out connector/contactor 2010-01-20
  • 58. P0013163

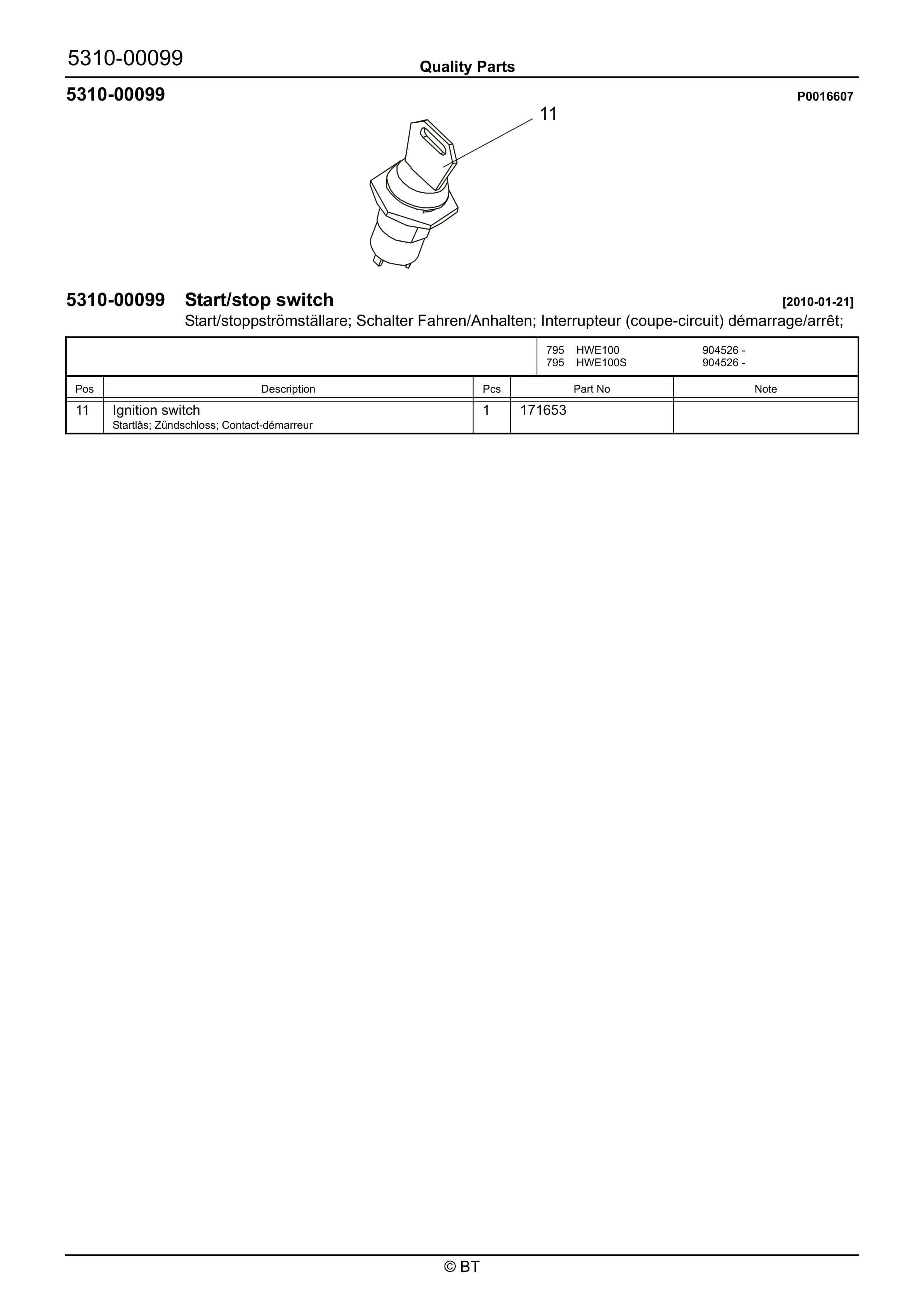

  • 59. Start/stop switch 2010-01-20
  • 60. P0016607
  • 61. Start/stop switch 2010-01-21
  • 62. P0016587
  • 63. Transistor panel 2010-01-21
  • 64. P0027682
  • 65. Work function harnesses/fuse 2010-01-21
  • 66. P0027671
  • 67. Pump contactor 2010-01-21
  • 68. P0027686

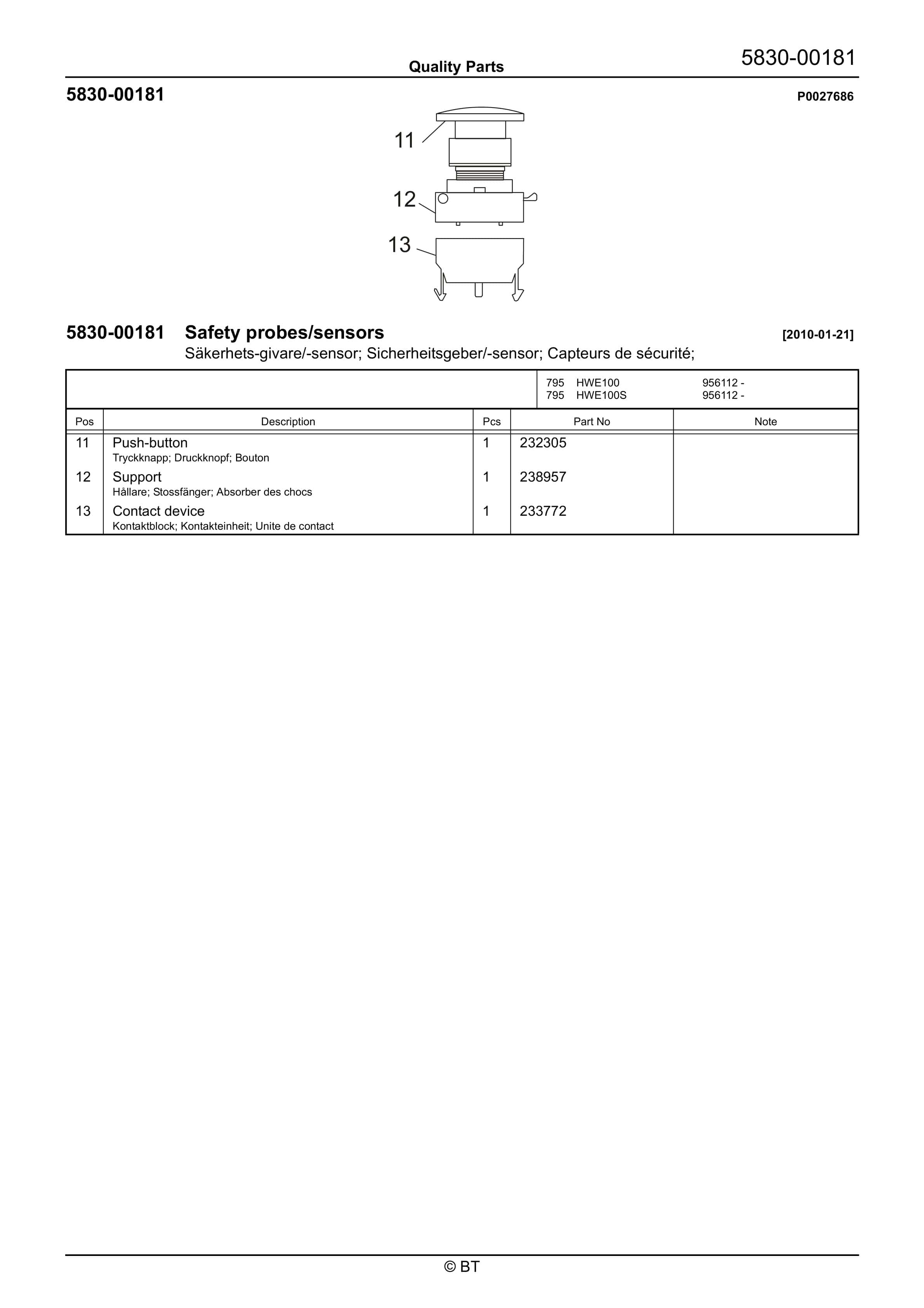

  • 69. Safety probes/sensors 2010-01-21
  • 70. P0031777
  • 71. Hydraulic unit 2010-01-21
  • 72. P0023988
  • 73. Hydraulic tank lines 2010-01-21
  • 74. P0023358
  • 75. Main lift cylinders 2010-01-21
  • 76. P0027616
  • 77. Main mast 2010-01-21
  • 78. P0033375
  • 79. Main lift chain system 2010-01-21
  • 80. P0033387
  • 81. Main mast fork carriage 2010-01-21
  • 82. P0037326
  • 83. Fork, carpet boom, lift hook 2010-07-16
  • 84. P0024353
  • 85. Extra electrical equipment 2010-01-21
  • 86. P0034614
  • 87. Extra electrical equipment 2010-06-16
  • 88. P0036769
  • 89. Extra electrical equipment 2010-06-16
