BT LSV 1600 Quality Parts 180659
BT LSV 1600 Quality Parts 180659 - Image 2
BT LSV 1600 Quality Parts 180659 - Image 3
BT LSV 1600 Quality Parts 180659 - Image 4
BT LSV 1600 Quality Parts 180659 - Image 5

BT LSV 1600 Quality Parts 180659

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 180659
  • : Parts Manual PDF
  • Number of Pages: 129
  • Size: 4.3MB
  • Format: PDF
Category:

Product details

  • Model List:

    • LSV 1600
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/ Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör /Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0008067
  • 11. Inspection covers 2001-01-31
  • 12. P0008076
  • 13. Battery compartment parts 1998-03-24
  • 14. P0007761
  • 15. Motor fixing points 1998-03-24
  • 16. P0008075
  • 17. Platform incl. fixing points 1998-03-24
  • 18. P0007768
  • 19. Driver controls ( mechanical ) 1998-08-05
  • 20. P0013707
  • 21. Finger/foot guards 2001-02-14
  • 22. P0008634
  • 23. Collision bumper/guards 1998-07-29
  • 24. P0008636
  • 25. Driver protection 2001-01-18
  • 26. P0008656
  • 27. Signs, warnings, decals 1999-08-27
  • 28. P0008051
  • 29. Electric pump motor 1999-01-27
  • 30. P0012069
  • 31. Electric drive motor 2000-04-19
  • 32. P0013629
  • 33. Mechanical drive gear unit 2001-02-14
  • 34. P0011711
  • 35. Electromagnetic parking brake 2000-02-02
  • 36. P0008453
  • 37. Wheels 1998-06-04
  • 38. P0008454
  • 39. Wheels 1998-06-04
  • 40. P0008089
  • 41. Drive wheel 1998-07-29
  • 42. P0007779
  • 43. Support/castor wheels 1998-03-14
  • 44. P0008469
  • 45. Steering arm / wheel / lever 1999-05-07
  • 46. P0008470
  • 47. Steering arm / wheel / lever 1999-05-07
  • 48. P0013736
  • 49. General alarm signals (audible/visual) 2001-02-14
  • 50. P0013777
  • 51. Battery cut out connector/contactor 2001-02-14
  • 52. P0007830
  • 53. Instrument panel, display 1998-07-31
  • 54. P0007800
  • 55. Start/stop switch 1998-02-03
  • 56. P0009078
  • 57. Speed control 1998-11-20
  • 58. P0008630
  • 59. Driving function harnesses/ fuse 1998-07-28
  • 60. P0013774
  • 61. Drive motor cables/resistors/fuses 2001-02-14
  • 62. P0008943
  • 63. Direction contactors 1999-05-31
  • 64. P0007811
  • 65. Work function micro switches, potentiometers 1998-07-30
  • 66. P0008632
  • 67. Work function micro switches, potentiometers 1998-07-28
  • 68. P0008945
  • 69. Pump contactor 1999-05-31
  • 70. P0008480
  • 71. Drive/multi-function PCBs 1998-08-10
  • 72. P0007825
  • 73. Positioning probes/ sensors 1998-02-07
  • 74. P0007987
  • 75. Hydraulic unit 1998-03-17
  • 76. P0007993
  • 77. Hydraulic system chassi mounted 1998-03-17
  • 78. P0013645
  • 79. Hydraulic system chassi mounted 2001-02-14
  • 80. P0013644
  • 81. Hydraulic system mast mounted 2001-02-14

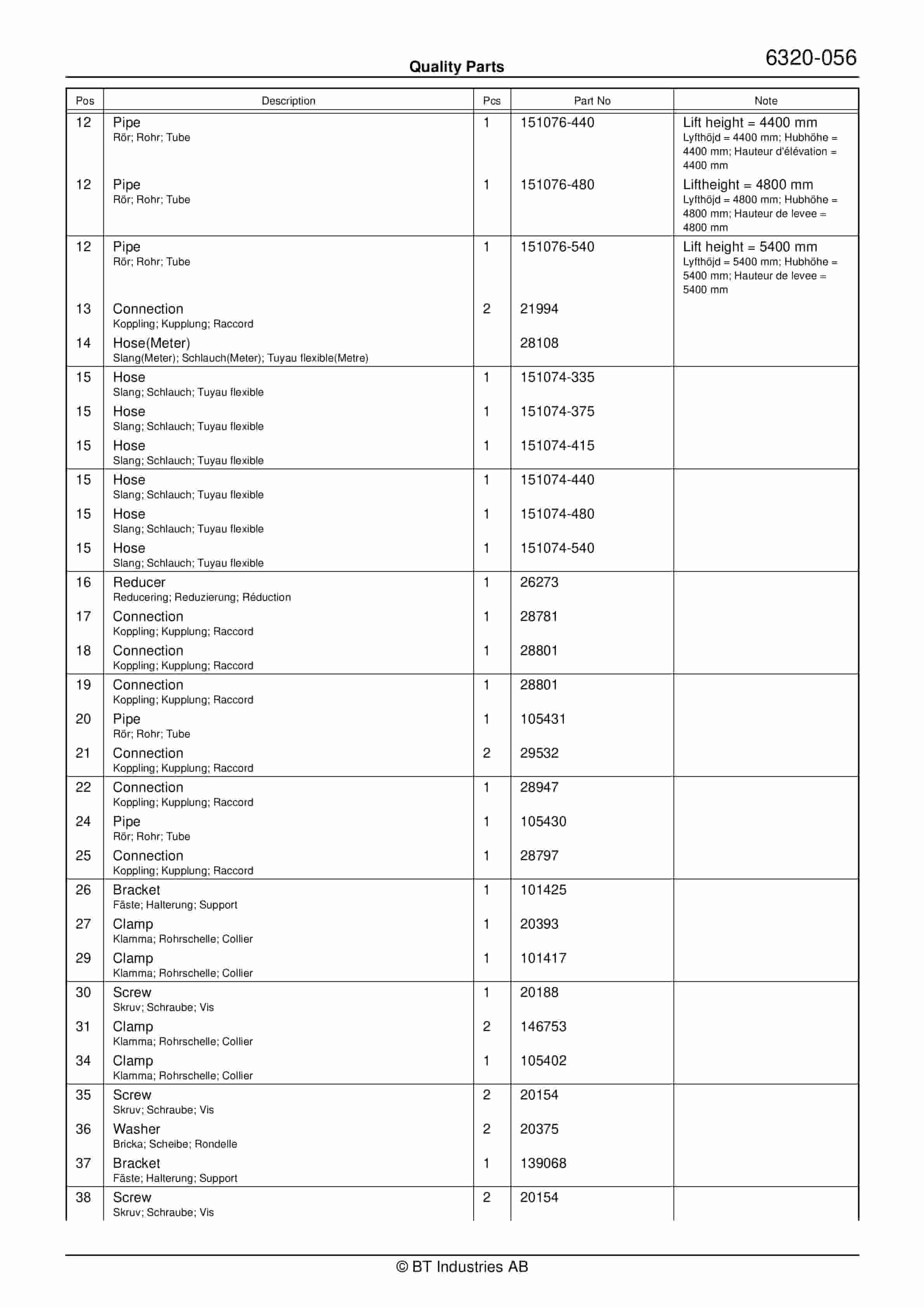

  • 82. P0008426
  • 83. Mast hydraulic lines 1998-05-25
  • 84. P0008430
  • 85. Mast hydraulic lines 1998-05-25
  • 86. P0008434
  • 87. Mast hydraulic lines 2000-01-27
  • 88. P0008406
  • 89. Main lift cylinders 1998-05-16

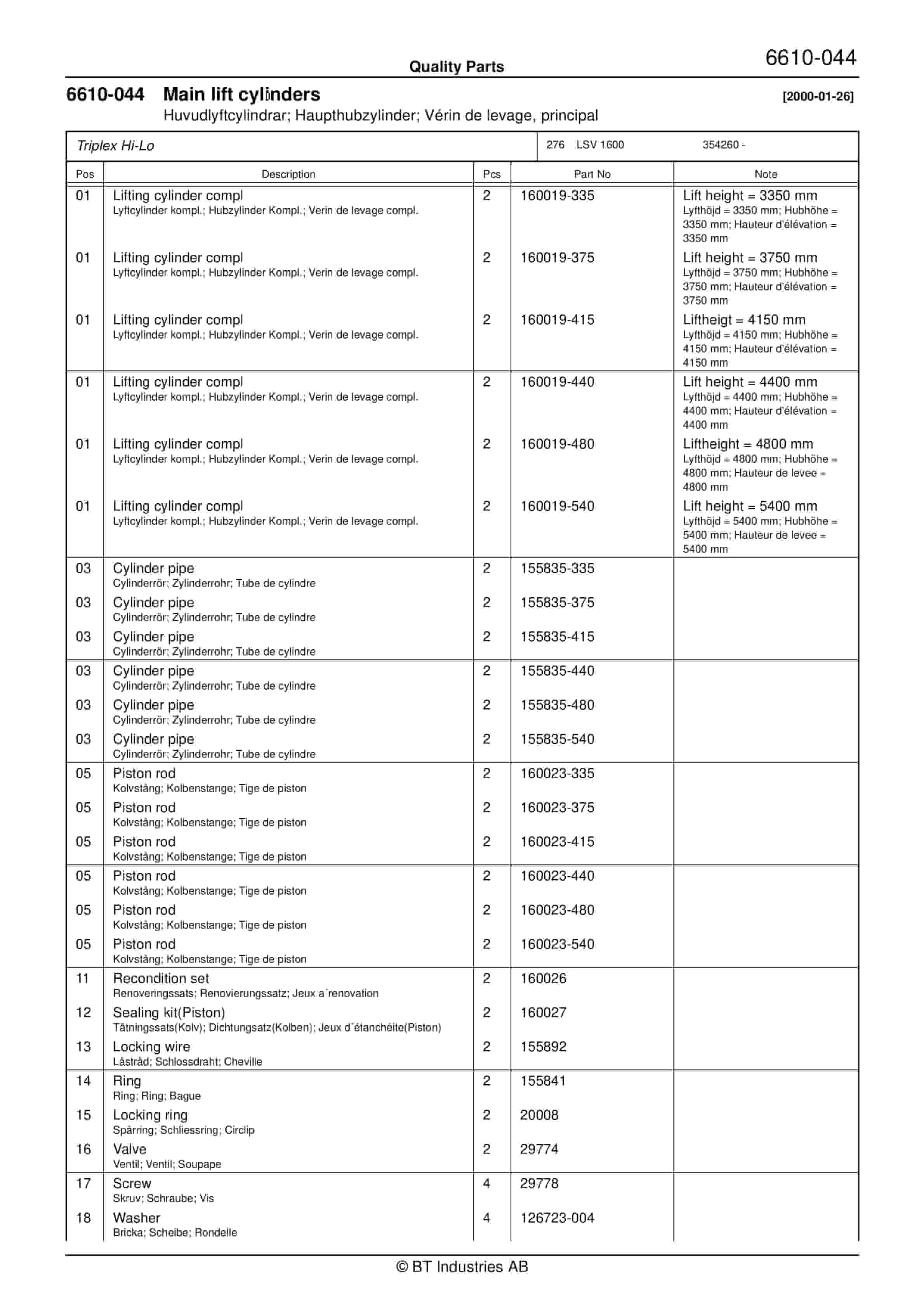

  • 90. P0008676
  • 91. Main lift cylinders 1998-08-11
  • 92. P0011051
  • 93. Main lift cylinders 2000-01-26
  • 94. P0008410
  • 95. Free lift cylinder 1998-05-18
  • 96. P0011052
  • 97. Free lift cylinder 2000-01-26
  • 98. P0007827
  • 99. Powertrak cylinder 1998-02-07

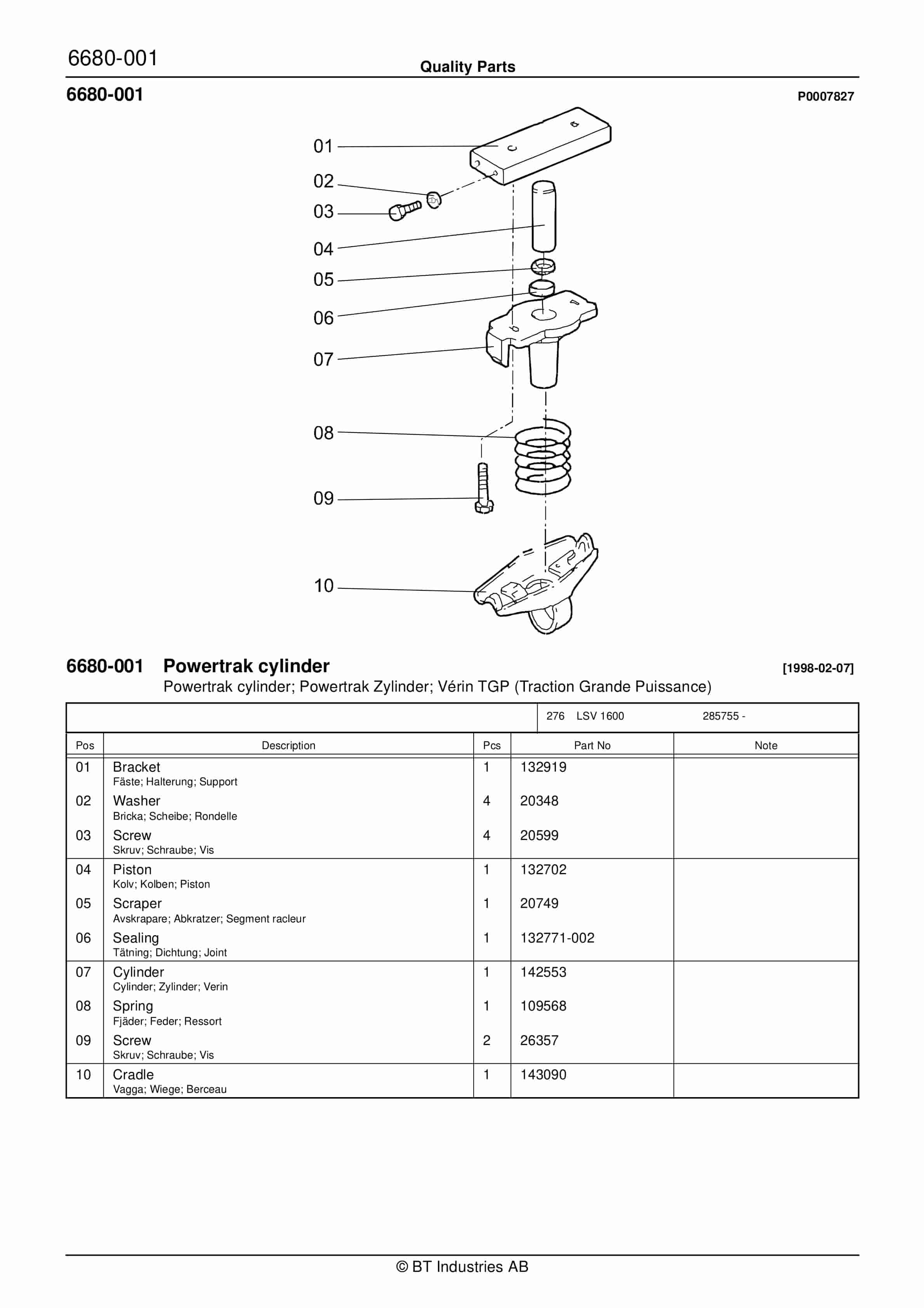

  • 100. P0008407
  • 101. Main mast 1998-05-18
  • 102. P0011680
  • 103. Main mast 2000-03-29
  • 104. P0011721
  • 105. Main mast 2000-02-03
  • 106. P0008455
  • 107. Main mast suspension 1998-06-05
  • 108. P0008458
  • 109. Forkcarriage unit,integ.sideshift,fork spread 2000-01-28
  • 110. P0013773
  • 111. Extra electrical equipment 2001-02-14
  • 112. P0008642
  • 113. Other extra equipment 1998-08-11
  • 114. P0012318
  • 115. Other extra equipment 2001-02-14
  • 116. P0013729
  • 117. Other extra equipment 2001-02-14
  • 118. P0007837
  • 119. Battery changing equipment 1998-02-09
  • 120. P0013725
  • 121. Information 2001-02-14
