BT LT 2200 Quality Parts 170833

$30.00

Type Of Manual: Quality Parts
Manual ID: 170833
: Parts Manual PDF
Number of Pages: 107
Size: 5.5MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- LT 2200

1. Return To HomePage
2. Chassis
2.1. Chassi Rahmen Chassis
3. Drive motor
3.1. Motorprimär Antriebsmotor Moteur de traction
4. Drive gear/Transmission
4.1. Kraftöverföring/drivväxel Kraftubertragung/Antriebsbetriebe Groupe de traction/Transmission
5. Brake/Wheel system
5.1. Broms/hjul/band Bremse/Räder/Band Frein/Roues
6. Steering system
6.1. Styrning Steuerung Systeme de direction
7. Electrical system
7.1. Elsystem Elektroanlage Systeme electrique
8. Hydraulic / pneumatic system
8.1. Hydraulik/pneumatik Hydraulikanlage / pneumatik Systeme hydraulique / pneumatique
9. Optionals / attachments
9.1. Tillbehör/extra utrustning Zubehör / zusatsausrüstung Options
10.
11. Inspection covers 1998-01-29
12.
13. Fork frame 1998-05-12
14.
15. Battery compartment parts 1998-01-30
16.
17. Motor fixation points 1998-01-28
18.
19. Platform and fixation 1998-01-30
20.
21. Platform and fixation 1999-05-25
22.
23. Driver controls ( mechanical ) 1998-01-30
24.
25. Collision bumpers 1998-01-30
26.
27. Driver protection 1998-01-30
28.
29. Signs, warnings 1998-02-11
30.
31. Pump motor 1998-02-13
32.
33. Electrical drive motor 1998-08-10
34.
35. Mechanical drive gear units 1999-05-25
36.
37. Drum/disc brake assembly 1998-02-02
38.
39. Wheels 1998-02-09
40.
41. Drive wheel 1998-02-09
42.
43. Support/Swivel wheels 1998-03-14
44.
45. Fork / support arm wheels 1998-10-19
46.
47. Fork / support arm wheels 1998-10-19
48.
49. Guide wheels 1998-02-02
50.
51. Steering arm / wheel / lever 1998-06-16
52.
53. Steering arm / wheel / lever 1998-06-16
54.
55. General alarm signal 1998-02-07
56.
57. Battery cut out contactor / plug 1998-02-03
58.
59. Instrument panel 1998-02-09
60.
61. Start/stop switch 1998-02-03
62.
63. Speed controls 1998-02-04
64.
65. Speed controls 1998-08-21
66.
67. Speed controls 1998-11-20
68.
69. Control cables / harnesses 1998-05-12
70.
71. Control cables / harnesses 1998-08-10
72.

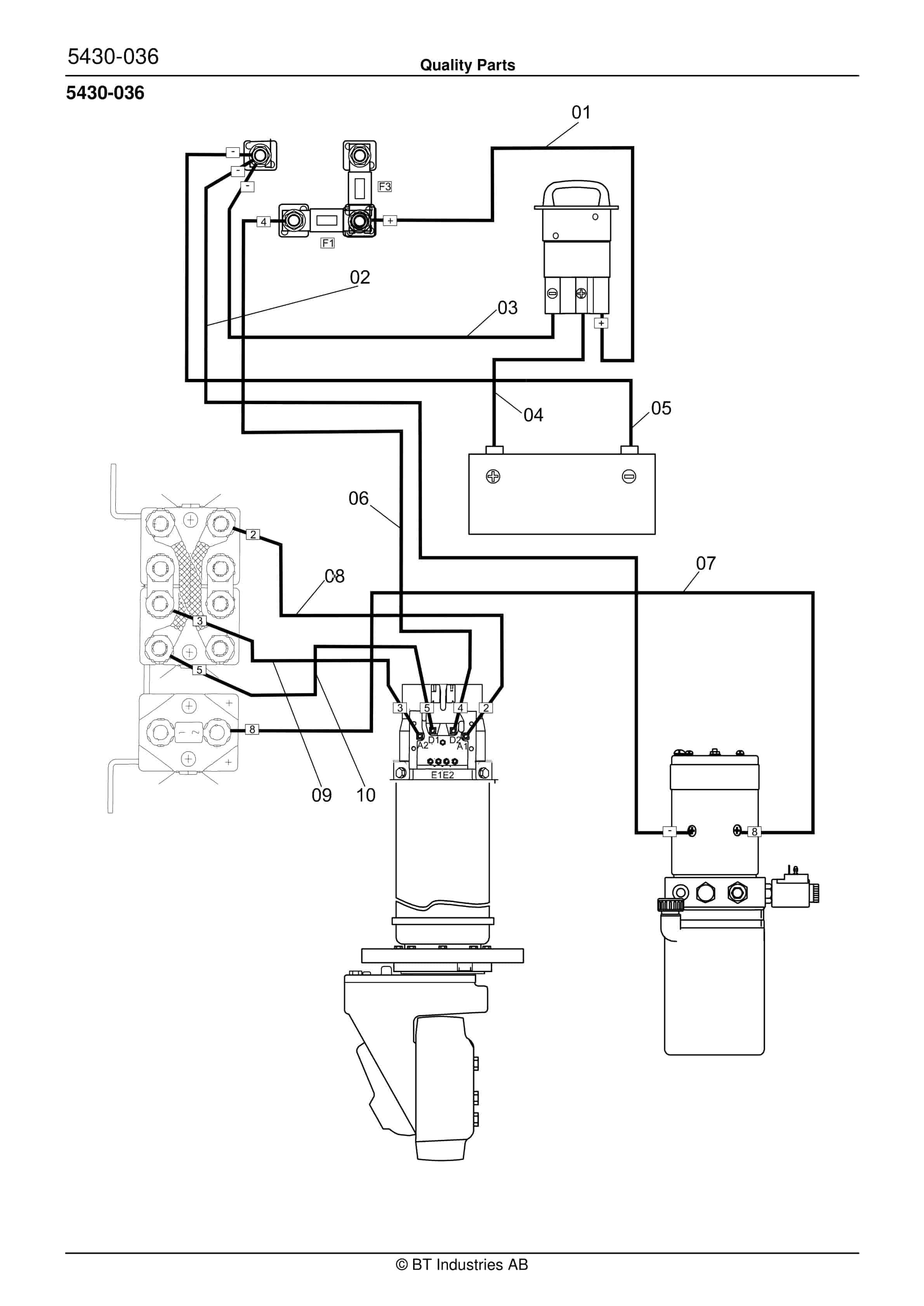

73. Drive motor cables/resistors/fuse 1998-08-29
74.
75. Drive motor cables/resistors/fuse 1998-03-09
76.
77. Direction contactors 1999-05-31
78.
79. Speed contactors 1999-05-31
80.
81. Micro switches 1998-02-05
82.
83. Micro switches 1998-02-05
84.
85. Pump contactor 1999-05-31
86.

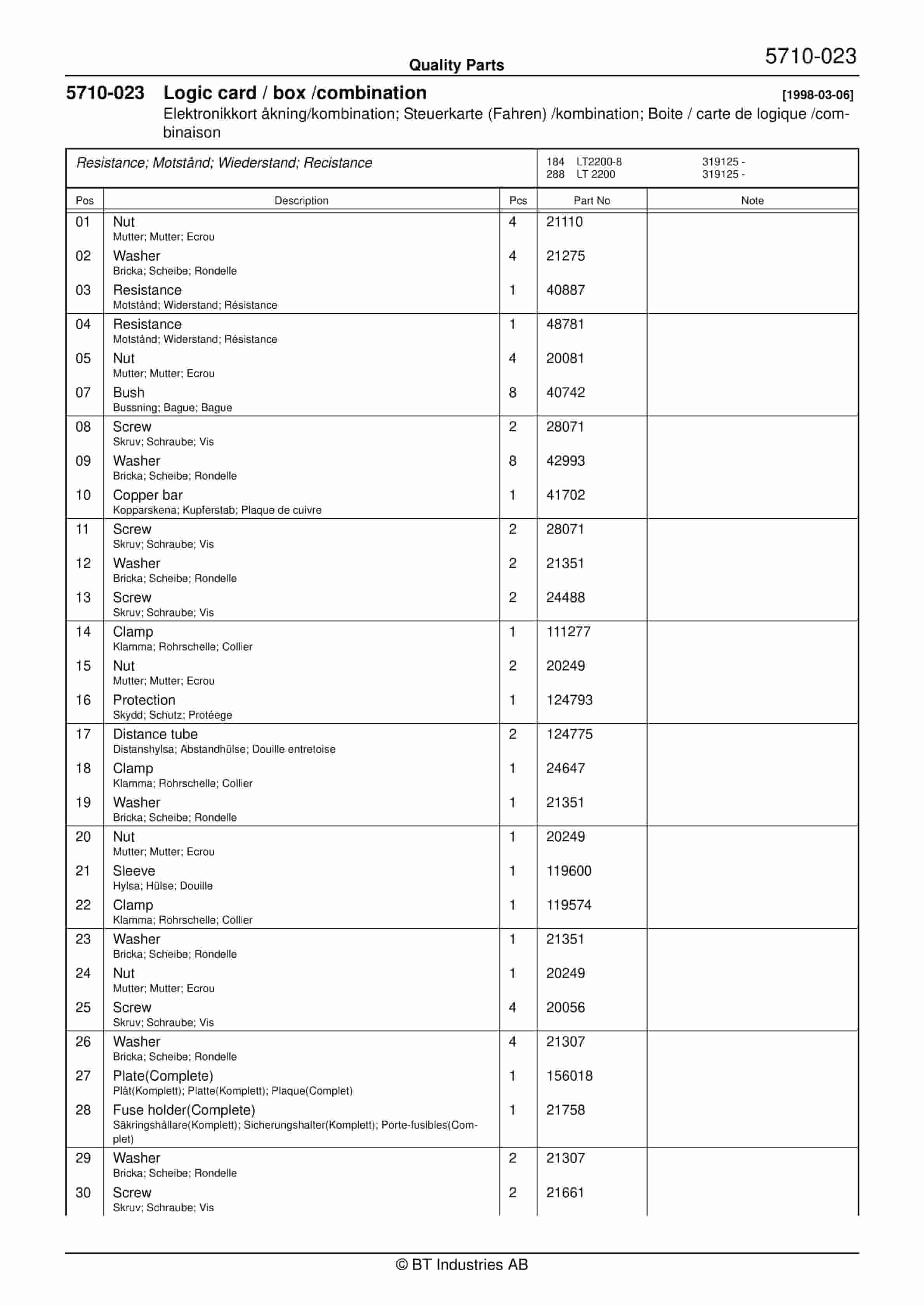

87. Logic card / box /combination 1998-03-06
88.
89. Logic card / box /combination 1998-03-06
90.

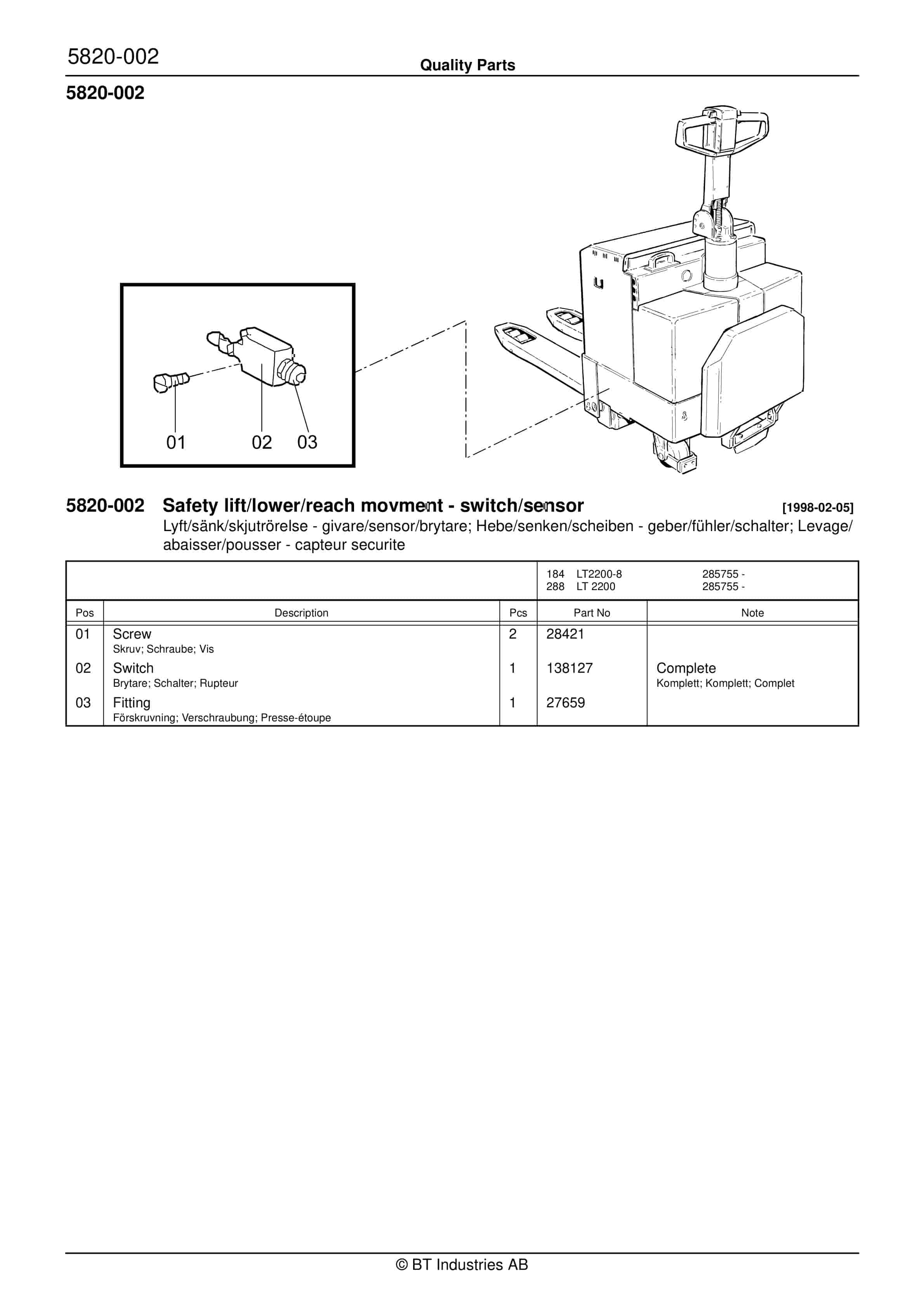

91. Safety lift/lower/reach movment – switch/sensor 1998-02-05
92.
93. Safety switches / sensors 1998-03-12
94.
95. Safety switches / sensors 1998-03-11
96.
97. Safety switches / sensors 1999-05-25
98.
99. Position switches / sensors 1998-02-07
100.
101. Hydraulic unit 1999-05-25
102.
103. Chassis mounted hoses and pipes 1998-02-12
104.
105. Main lift cylinder 1998-02-07
106.
107. Direction cylinder, power trac 1998-10-21
108.
109. Extra electrical equipment 1999-02-03
110.
111. Extra mechanical equipment 1998-03-12
112.
113. Extra mechanical equipment 1998-02-11
114.
115. Extra mechanical equipment 1999-05-25
116.
117. Battery changing equipment 1998-02-09
