BT LT 2200 Quality Parts 170883
BT LT 2200 Quality Parts 170883 - Image 2
BT LT 2200 Quality Parts 170883 - Image 3
BT LT 2200 Quality Parts 170883 - Image 4
BT LT 2200 Quality Parts 170883 - Image 5

BT LT 2200 Quality Parts 170883

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 170883
  • : Parts Manual PDF
  • Number of Pages: 107
  • Size: 5.1MB
  • Format: PDF
Category:

Product details

  • Model List:

    • LT 2200
  • 1. Chassis
  • 1.1. Chassi Rahmen Chassis
  • 2. Drive motor
  • 2.1. Motorprimär Antriebsmotor Moteur de traction
  • 3. Drive gear/Transmission
  • 3.1. Kraftöverföring/drivväxel Kraftubertragung/Antriebsbetriebe Groupe de traction/Transmission
  • 4. Brake/Wheel system
  • 4.1. Broms/hjul/band Bremse/Räder/Band Frein/Roues
  • 5. Steering system
  • 5.1. Styrning Steuerung Systeme de direction
  • 6. Electrical system
  • 6.1. Elsystem Elektroanlage Systeme electrique
  • 7. Hydraulic / pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage / pneumatik Systeme hydraulique / pneumatique
  • 8. Optionals / attachments
  • 8.1. Tillbehör/extra utrustning Zubehör / zusatsausrüstung Options
  • 9.
  • 10. Inspection covers 1998-01-29
  • 11.
  • 12. Fork frame 1998-05-12
  • 13.
  • 14. Battery compartment parts 1998-01-30
  • 15.
  • 16. Motor fixation points 1998-01-28
  • 17.
  • 18. Platform and fixation 1998-01-30
  • 19.
  • 20. Platform and fixation 1999-05-25
  • 21.
  • 22. Driver controls ( mechanical ) 1998-01-30
  • 23.
  • 24. Collision bumpers 1998-01-30
  • 25.
  • 26. Driver protection 1998-01-30
  • 27.
  • 28. Signs, warnings 1998-02-11
  • 29.
  • 30. Pump motor 1998-02-13
  • 31.
  • 32. Electrical drive motor 1998-08-10
  • 33.
  • 34. Mechanical drive gear units 1999-05-25
  • 35.
  • 36. Drum/disc brake assembly 1998-02-02
  • 37.
  • 38. Wheels 1998-02-09
  • 39.
  • 40. Drive wheel 1998-02-09
  • 41.
  • 42. Support/Swivel wheels 1998-03-14
  • 43.
  • 44. Fork / support arm wheels 1998-10-19
  • 45.
  • 46. Fork / support arm wheels 1998-10-19
  • 47.
  • 48. Guide wheels 1998-02-02
  • 49.
  • 50. Steering arm / wheel / lever 1998-06-16
  • 51.
  • 52. Steering arm / wheel / lever 1998-06-16
  • 53.
  • 54. General alarm signal 1998-02-07
  • 55.
  • 56. Battery cut out contactor / plug 1998-02-03
  • 57.
  • 58. Instrument panel 1998-02-09
  • 59.
  • 60. Start/stop switch 1998-02-03
  • 61.
  • 62. Speed controls 1998-02-04
  • 63.
  • 64. Speed controls 1998-08-21
  • 65.
  • 66. Speed controls 1998-11-20
  • 67.
  • 68. Control cables / harnesses 1998-05-12
  • 69.
  • 70. Control cables / harnesses 1998-08-10
  • 71.

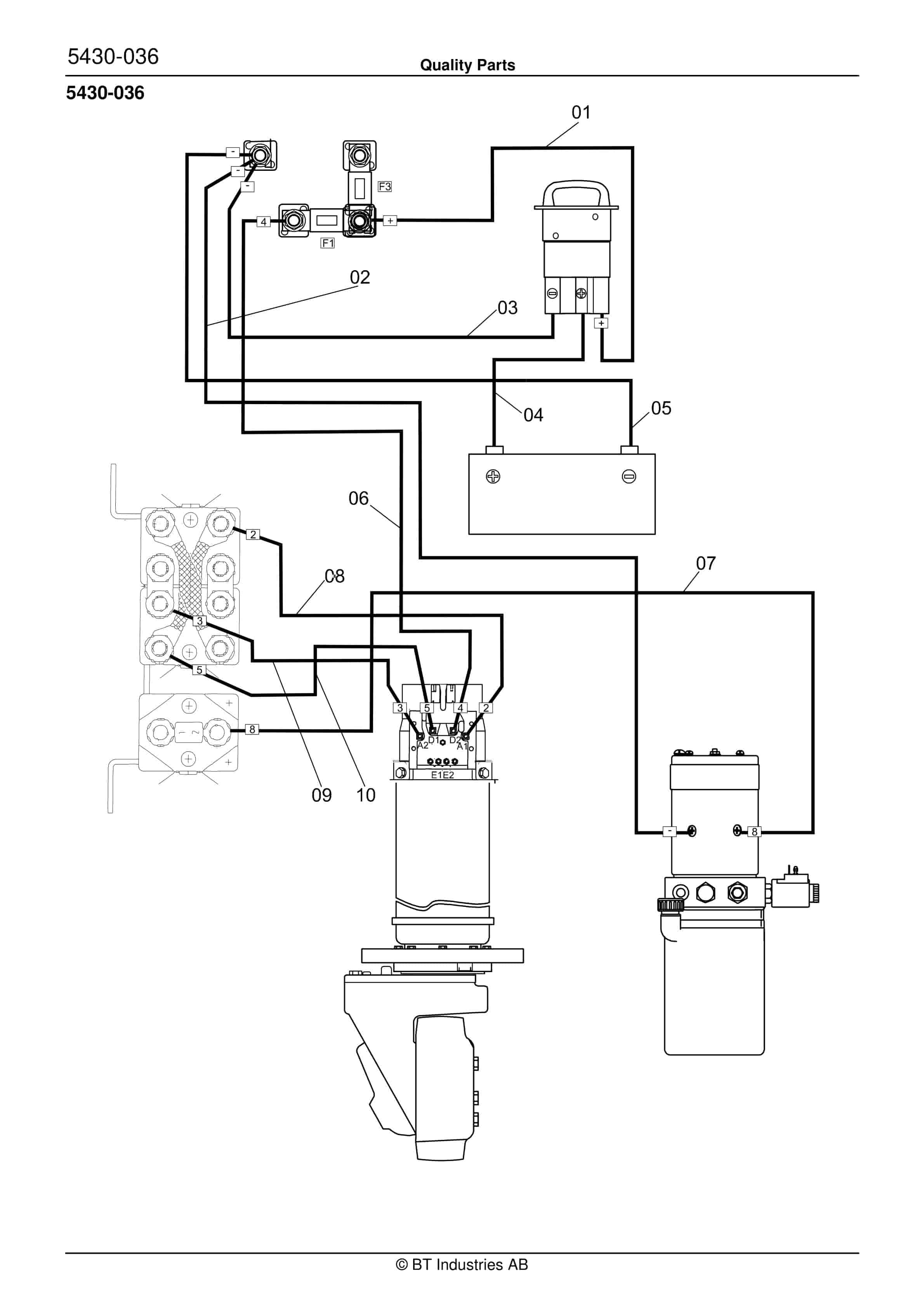

  • 72. Drive motor cables/resistors/fuse 1998-08-29
  • 73.
  • 74. Drive motor cables/resistors/fuse 1998-03-09
  • 75.
  • 76. Direction contactors 1999-05-31
  • 77.
  • 78. Speed contactors 1999-05-31
  • 79.
  • 80. Micro switches 1998-02-05
  • 81.
  • 82. Micro switches 1998-02-05
  • 83.
  • 84. Pump contactor 1999-05-31
  • 85.

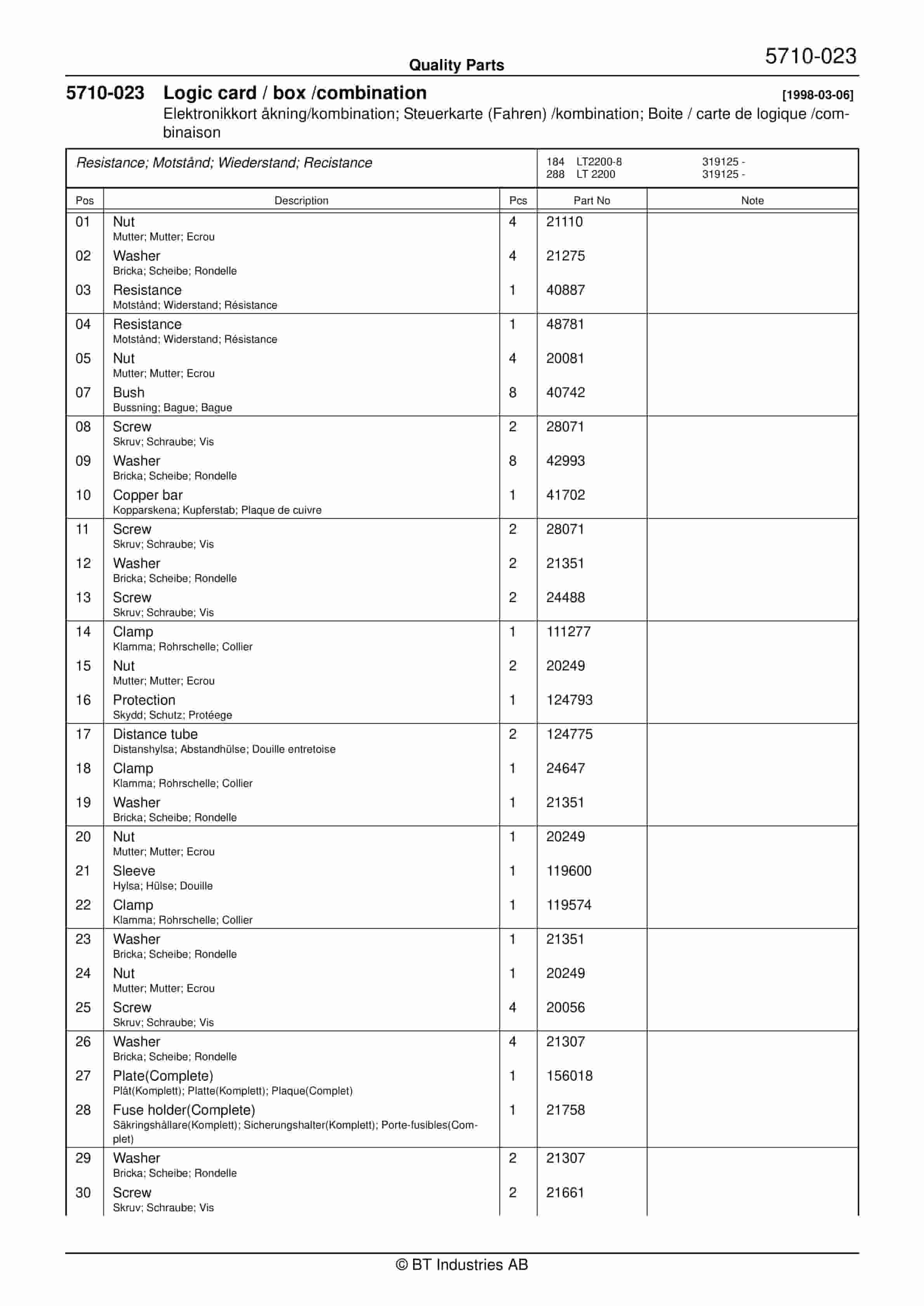

  • 86. Logic card / box /combination 1998-03-06
  • 87.
  • 88. Logic card / box /combination 1998-03-06
  • 89.

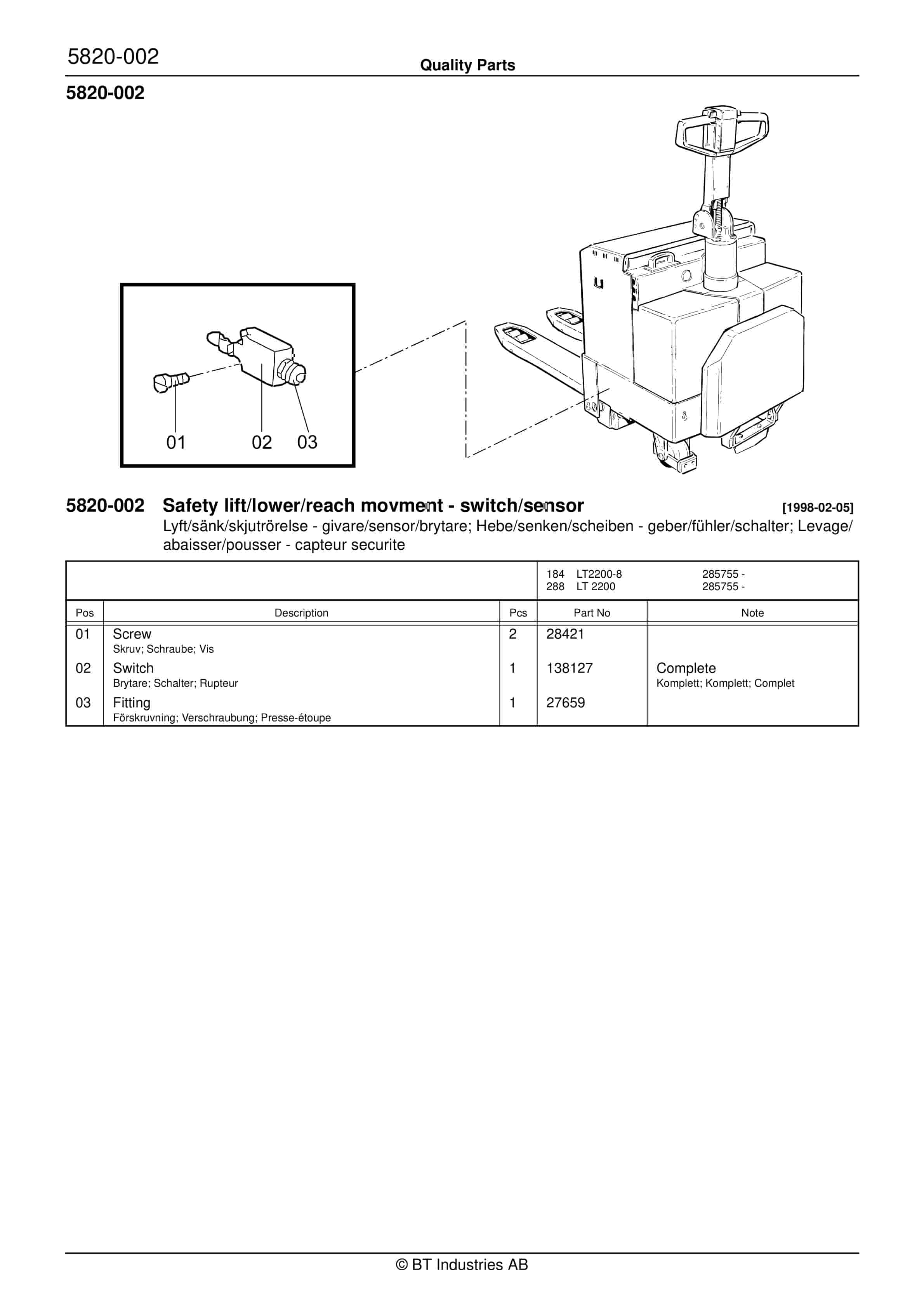

  • 90. Safety lift/lower/reach movment – switch/sensor 1998-02-05
  • 91.
  • 92. Safety switches / sensors 1998-03-12
  • 93.
  • 94. Safety switches / sensors 1998-03-11
  • 95.
  • 96. Safety switches / sensors 1999-05-25
  • 97.
  • 98. Position switches / sensors 1998-02-07
  • 99.
  • 100. Hydraulic unit 1999-05-25
  • 101.
  • 102. Chassis mounted hoses and pipes 1998-02-12
  • 103.
  • 104. Main lift cylinder 1998-02-07
  • 105.
  • 106. Direction cylinder, power trac 1998-10-21
  • 107.
  • 108. Extra electrical equipment 1999-02-03
  • 109.
  • 110. Extra mechanical equipment 1998-03-12
  • 111.
  • 112. Extra mechanical equipment 1998-02-11
  • 113.
  • 114. Extra mechanical equipment 1999-05-25
  • 115.
  • 116. Battery changing equipment 1998-02-09
