BT MX-50, RX-50 Electric Low Lift Pallet Truck Parts Manual 301443-001
BT MX-50, RX-50 Electric Low Lift Pallet Truck Parts Manual 301443-001 - Image 2
BT MX-50, RX-50 Electric Low Lift Pallet Truck Parts Manual 301443-001 - Image 3
BT MX-50, RX-50 Electric Low Lift Pallet Truck Parts Manual 301443-001 - Image 4
BT MX-50, RX-50 Electric Low Lift Pallet Truck Parts Manual 301443-001 - Image 5

BT MX-50, RX-50 Electric Low Lift Pallet Truck Parts Manual 301443-001

$30.00

  • Type Of Manual: Parts Manual
  • Manual ID: 301443-001
  • : Parts Manual PDF
  • Number of Pages: 138
  • Size: 4.1MB
  • Format: PDF
Category:

Product details

  • Model List:

    • MX-50, RX-50 Electric Low Lift Pallet Truck
  • 1. Front Cover
  • 2. Parts Ordering Instructions
  • 3. Field Mofications
  • 4. General Information
  • 5. Alphabetical Index
  • 6. Figure 0.1 Decals and Parts Assembly
  • 7. Figure 0.2 Parts List Index
  • 8. Figure 1.1 Transmission and Handle Assembly
  • 9. Figure 1.2 Twist Grip Resistor/Transistor Control Handle Assembly
  • 10. Figure 1.3 Thumb Control Resistor/Transistor Control Handle Assembly
  • 11. Figure 1.4 Transmission Assembly Part 1
  • 12. Figure 1.5 Transmission Assembly Part 2
  • 13. Figure 1.6 Drive Motor Assembly
  • 14. Figure 2.1 MX/RX 2 3 Speed Resistor Electrical Schematic
  • 15. Figure 2.2 MX/RX 2 3 Speed Resistor Electrical Schematic Symbols
  • 16. Figure 2.3 MX/RX 2 3 Speed Resistor Control Wiring Harness Assembly
  • 17. Figure 2.4 MX/RX 2 3 Speed Resistor Control Wiring
  • 18. Figure 2.5 MX/RX 2 3 Speed Resistor Power Component Wiring
  • 19. Figure 2.6 MX/RX 2 Speed Resistor Control Panel Assembly
  • 20. Figure 2.7 MX/RX 2 3 Speed Second Speed Contactor Assembly
  • 21. Figure 2.8 MX/RX 2 3 Speed Forward Rearward Contactor Assembly
  • 22. Figure 2.9 RX 3 Speed Third Speed Contactor Panel Assembly
  • 23. Figure 2.10 MX/RX 2 3 Speed Resistor Contactor Assembly
  • 24. Figure 2.11 MX/RX 3 Speed Walkie/4 Speed Rider Resistor Electrical Schematic
  • 25. Figure 2.12 Resistor Electrical Schematic Symbols
  • 26. Figure 2.13 MX 3 Speed Walkie Resistor Control Wiring Harness Assembly
  • 27. Figure 2.14 MX 3 Speed Walkie Resistor Third Speed Control Wiring
  • 28. Figure 2.15 MX 3 Speed Walkie Resistor Third Speed Power Component Wiring
  • 29. Figure 2.16 MX 3 Speed Walkie Third Speed Contactor Panel Assembly
  • 30. Figure 2.17 RX 4 Speed Resistor Fourth Speed Control Wiring
  • 31. Figure 2.18 RX 4 Speed Resistor Fourth Speed Power Component Wiring
  • 32. Figure 2.19 MX/RX 3 Speed Walkie/4 Speed Rider Resistor Control Panel Assembly
  • 33. Figure 2.20 MX/RX 3 4 Speed Second Speed Contactor Assembly
  • 34. Figure 2.21 MX/RX 3 4 Speed Forward Rearward Contactor Assembly
  • 35. Figure 2.22 RX 4 Speed Fourth Speed Contactor Panel Assembly
  • 36. Figure 2.23 RX 4 Speed Fourth Speed Contactor Assembly
  • 37. Figure 2.24 MX/RX Resistor Power Connector Assembly
  • 38. Figure 2.25 MX-50 Transistor Electrical Schematic
  • 39. Figure 2.26 MX-50 Transistor Electrical Schematic Symbols
  • 40. Figure 2.27 RX-50 Transistor Electrical Schematic
  • 41. Figure 2.28 RX-50 Transistor Electrical Schematic Symbols
  • 42. Figure 2.29 Transistor Control Wiring Harness Assembly
  • 43. Figure 2.30 Transistor Power Component Wiring
  • 44. Figure 2.31 Transistor Control Panel Assembly, 24 Volt
  • 45. Figure 2.32 Forward Rearward Contactor Assembly
  • 46. Figure 2.33 High Speed Contactor Assembly
  • 47. Figure 2.34 Transistor Power Connector Assembly
  • 48. Figure 2.35 Pump Motor Assembly
  • 49. Figure 2.36 MX/RX-50, 12 Volt Drive Motor Assembly
  • 50. Figure 2.37 MX-50, 24 Volt Drive Motor Assembly
  • 51. Figure 2.38 RX-50, 24 Volt Drive Motor Assembly

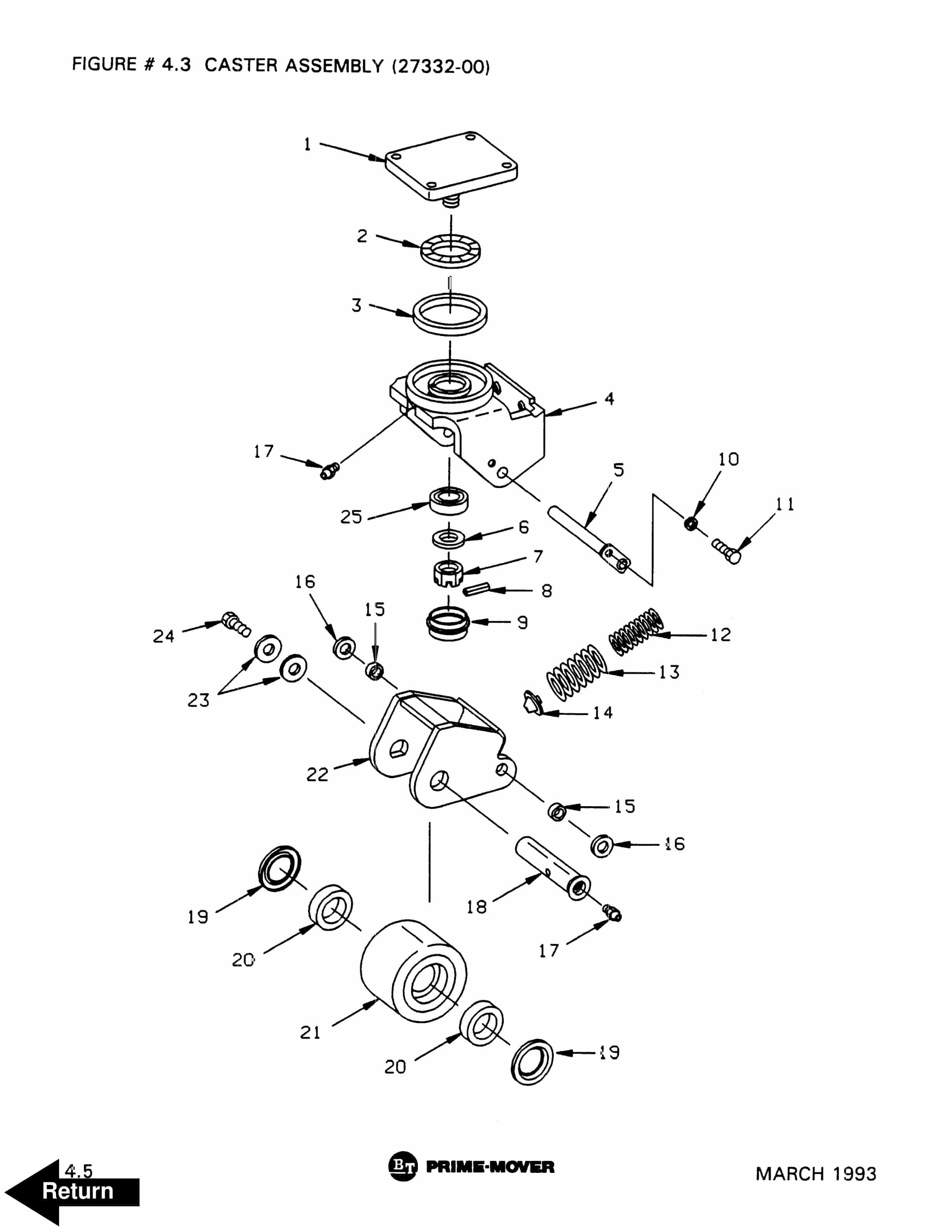

  • 52. Figure 3.1 Hydraulic Schematic
  • 53. Figure 3.2 Hydraulic Schematic Symbols

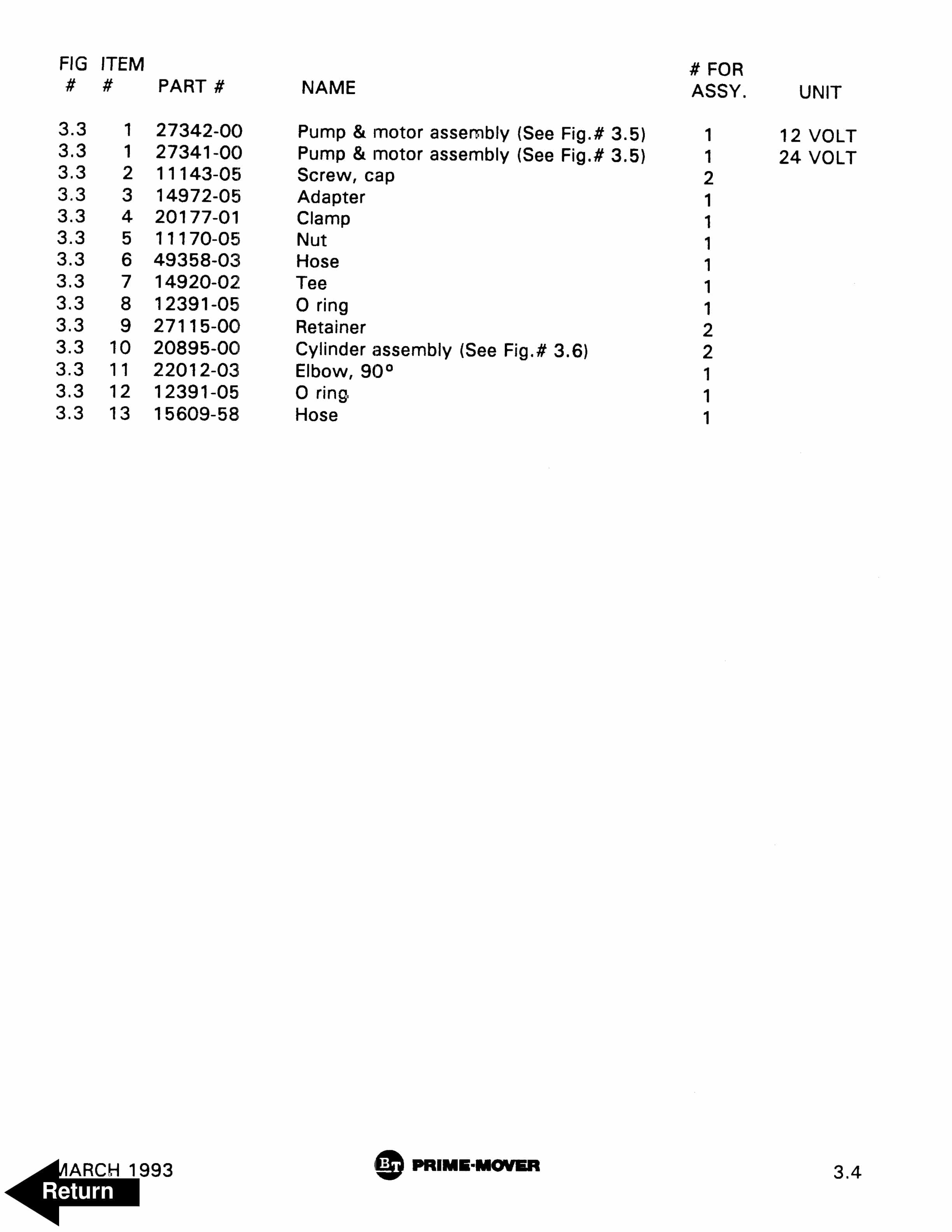

  • 54. Figure 3.3 Resistor Hydraulic System
  • 55. Figure 3.4 Transistor Hydraulic System
  • 56. Figure 3.5 Pump and Motor Assembly
  • 57. Figure 3.6 Lift Cylinder Assembly
  • 58. Figure 4.1 Shielding Assembly
  • 59. Figure 4.2 Carrier Frame Assembly
  • 60. Figure 4.3 Caster Assembly
  • 61. Figure 4.4 Lift Frame Assembly

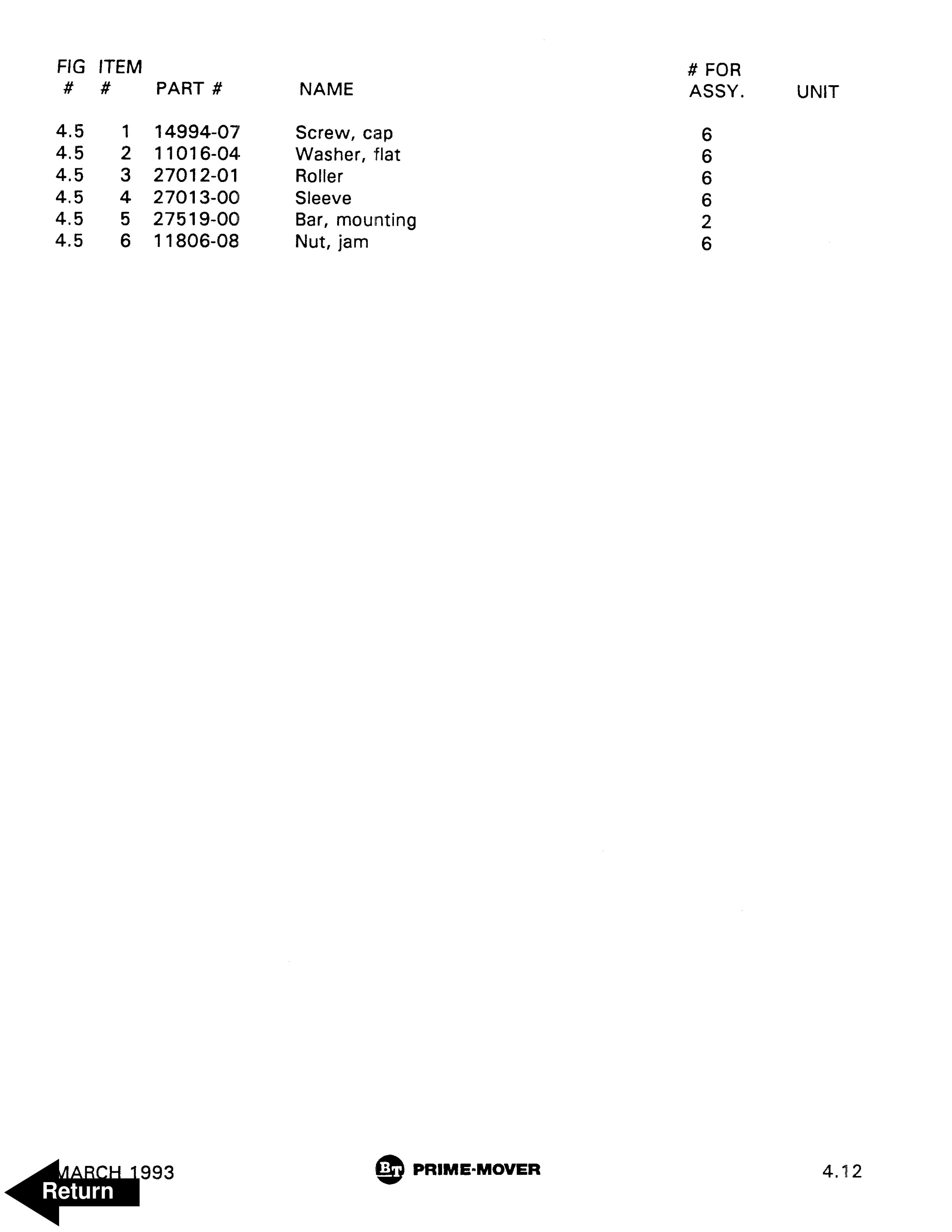

  • 62. Figure 4.5 Pallet Entry Rollers
  • 63. Figure 4.6 Skid Adapter and Package Guard Assembly
  • 64. Figure 4.7 Removable Load Backrest
  • 65. Figure 5.1 Battery Pack
  • 66. Figure 5.2 Battery Pack Cable Assembly
  • 67. Figure 5.3 Battery Pack Connector Assembly
  • 68. Figure 10.1 Special Tools and Lubrications
  • 69. Numerical Index
  • 70. Back Cover
