BT MX-65, RX-65 Electric Low Lift Pallet Truck Parts Manual 301444-000
BT MX-65, RX-65 Electric Low Lift Pallet Truck Parts Manual 301444-000 - Image 2
BT MX-65, RX-65 Electric Low Lift Pallet Truck Parts Manual 301444-000 - Image 3
BT MX-65, RX-65 Electric Low Lift Pallet Truck Parts Manual 301444-000 - Image 4
BT MX-65, RX-65 Electric Low Lift Pallet Truck Parts Manual 301444-000 - Image 5

BT MX-65, RX-65 Electric Low Lift Pallet Truck Parts Manual 301444-000

$30.00

  • Type Of Manual: Parts Manual
  • Manual ID: 301444-000
  • : Parts Manual PDF
  • Number of Pages: 98
  • Size: 2.5MB
  • Format: PDF
Category:

Product details

  • Model List:

    • MX-65, RX-65 Electric Low Lift Pallet Truck
  • 1. Front Cover
  • 2. Parts Ordering Instructions
  • 3. General Information
  • 4. Alphabetical Index
  • 5. Figure 0.1 Decals and Parts Assembly
  • 6. Figure 0.2 Parts List Index
  • 7. Figure 1.1 Transmission and Handle Assembly
  • 8. Figure 1.2 Twist Grip Resistor and Transistor Control Handle Assembly
  • 9. Figure 1.3 Thumb Control Resistor and Transistor Control Handle Assembly
  • 10. Figure 1.4 Transmission Assembly, Part I
  • 11. Figure 1.5 Transmission Assembly, Part II
  • 12. Figure 1.6 Drive Motor Assembly
  • 13. Figure 2.1 Resistor Electrical Schematic
  • 14. Figure 2.2 Resistor Electrical Schematic Symbols
  • 15. Figure 2.3 Resistor Control Wiring Harness Assembly
  • 16. Figure 2.5 Resistor Third Speed Power Component Wiring
  • 17. Figure 2.6 Resistor Control Panel Assembly
  • 18. Figure 2.7 Contactor Assembly
  • 19. Figure 2.8 Forward and Rearward Contactor Assembly
  • 20. Figure 2.9 Third Speed Contactor Panel Assembly
  • 21. Figure 2.10 Resistor Fourth Speed Control Wiring
  • 22. Figure 2.11 Resistor Fourth Speed Power Component Wiring
  • 23. Figure 2.12 Fourth Speed Contactor Panel Assembly
  • 24. Figure 2.13 Contactor Assembly
  • 25. Figure 2.14 Resistor Power Connector Assembly
  • 26. Figure 2.15 MX-65 Transistor Electrical Schematic
  • 27. Figure 2.16 MX-65 Transistor Electrical Schematic Symbols
  • 28. Figure 2.17 RX-65 Transistor Electrical Schematic
  • 29. Figure 2.18 RX-65 Transistor Electrical Schematic Symbols
  • 30. Figure 2.19 Transistor Control Wiring Harness Assembly
  • 31. Figure 2.20 Transistor Power Component Wiring
  • 32. Figure 2.21 Control Panel Assembly, 24 Volt
  • 33. Figure 2.22 Forward Rearward Contactor Assembly, 24 Volt
  • 34. Figure 2.23 High Speed Contactor Assembly, 24 Volt
  • 35. Figure 2.24 Transistor Power Connector Assembly
  • 36. Figure 2.25 Hydraulic Pump Motor Assembly
  • 37. Figure 2.26 MX-65, 12 Volt Drive Motor Assembly

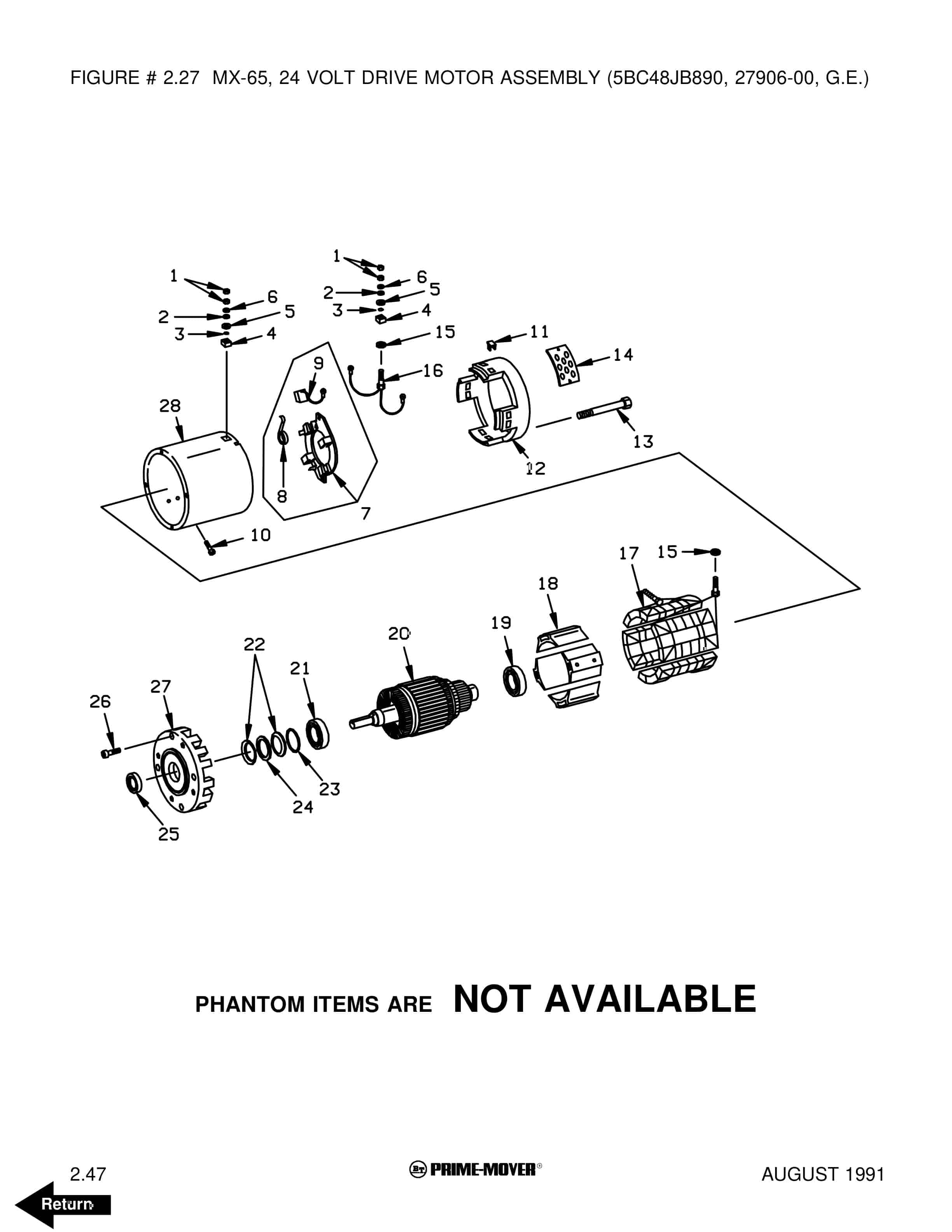

  • 38. Figure 2.27 MX-65, 24 Volt Drive Motor Assembly
  • 39. Figure 2.28 RX-65, 12 Volt Drive Motor Assembly
  • 40. Figure 2.29 RX-65, 24 Volt Drive Motor Assembly
  • 41. Figure 3.1 Hydraulic Schematic
  • 42. Figure 3.2 Hydraulic Schematic Symbols

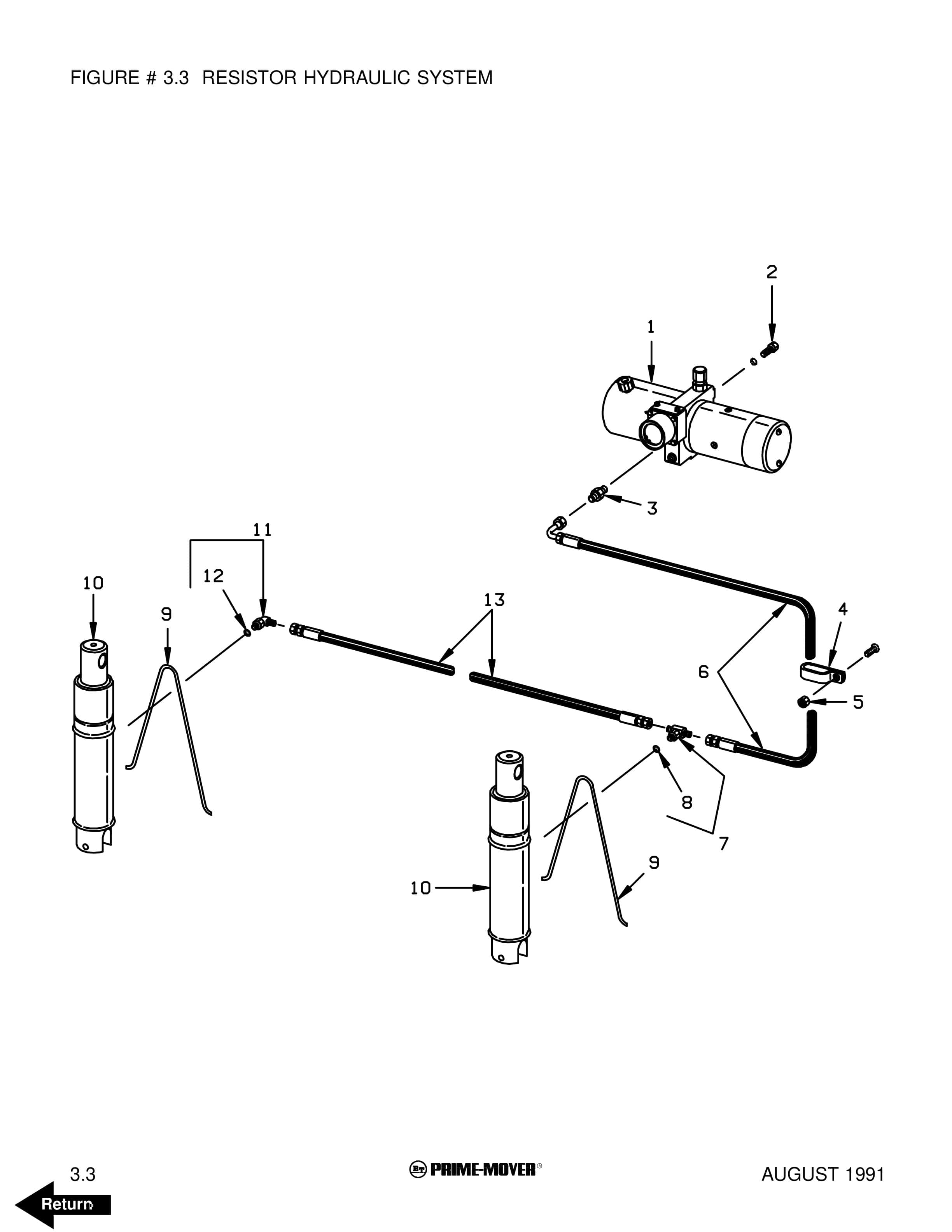

  • 43. Figure 3.3 Resistor Hydraulic System
  • 44. Figure 3.4 Transistor Hydraulic System

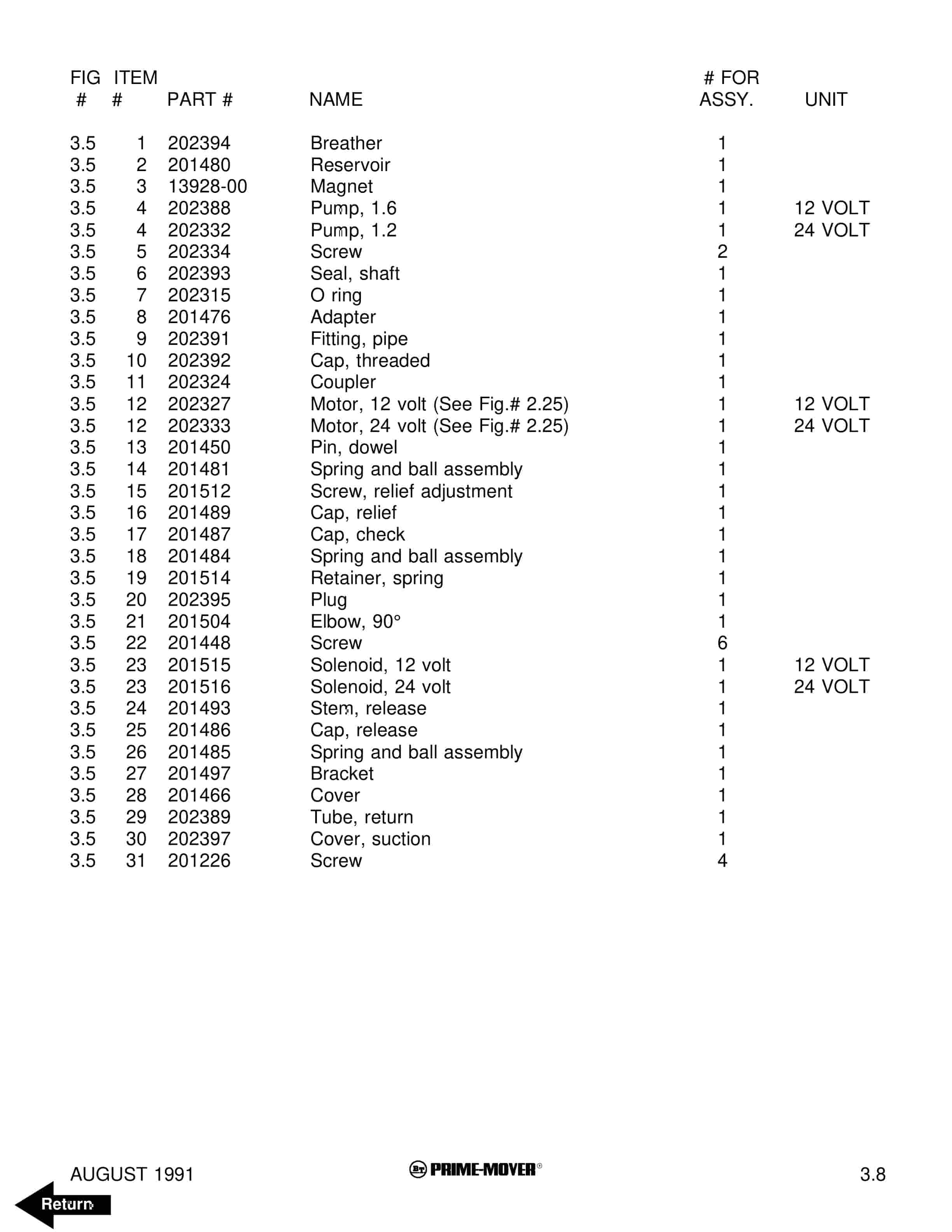

  • 45. Figure 3.5 Pump and Motor Assembly
  • 46. Figure 3.6 Lift Cylinder Assembly
  • 47. Figure 4.1 Shielding Assembly
  • 48. Figure 4.2 Carrier Frame Assembly
  • 49. Figure 4.3 Caster Assembly
  • 50. Figure 4.4 HX-65 Lift Frame Assembly
  • 51. Figure 4.5 Pallet Entry Rollers
  • 52. Figure 4.6 Skid Adapter and Package Guard Assembly
  • 53. Figure 4.7 Removable Load Backrest
  • 54. Figure 7.1 Special Tools and Lubrications
  • 55. Back Cover
