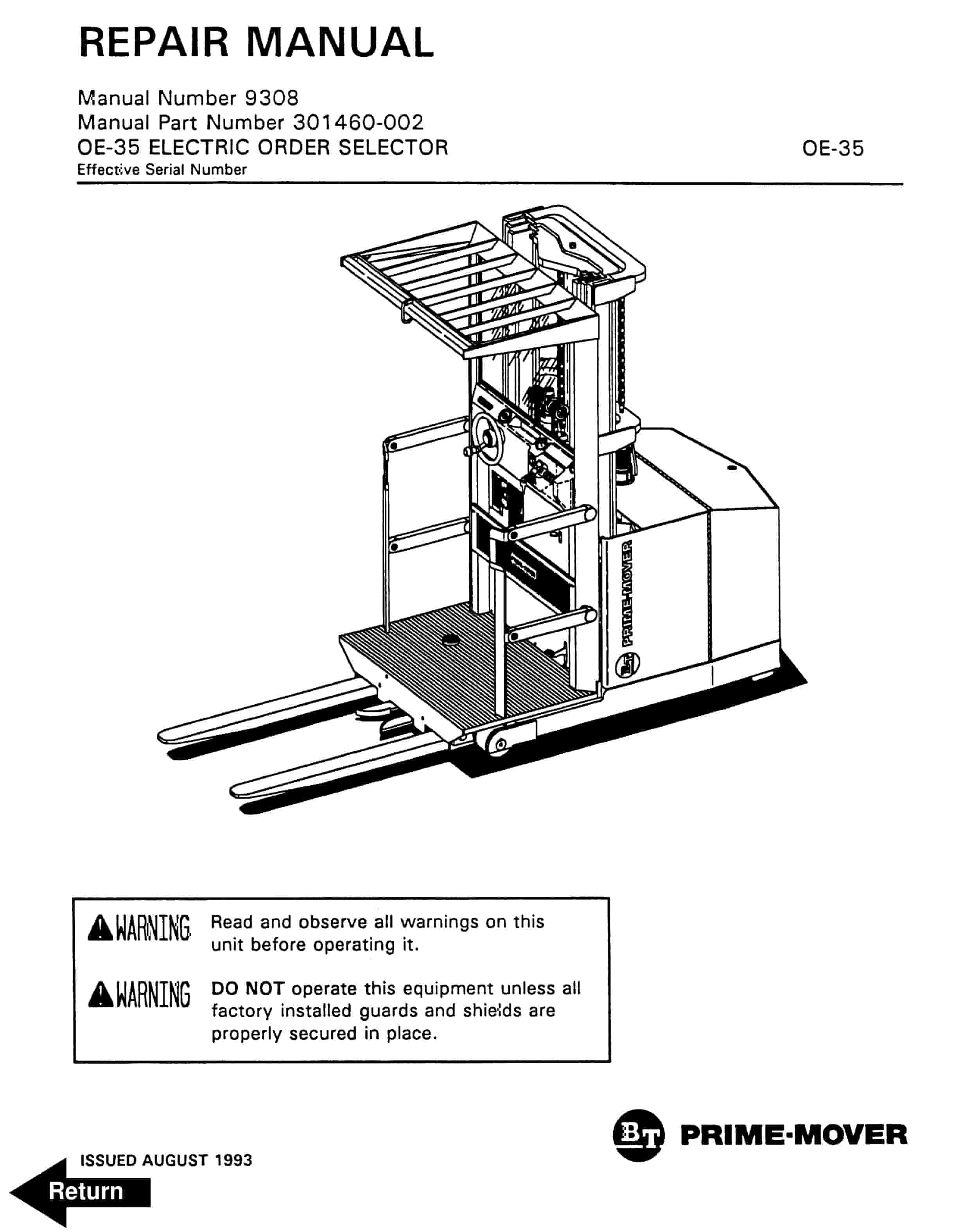

BT OE-35 Electric Order Selector Repair And Parts Manual 301460-002

$30.00

  • Type Of Manual: Repair And Parts Manual
  • Manual ID: 301460-002
  • : Parts Manual PDF
  • Number of Pages: 148
  • Size: 8.3MB
  • Format: PDF

Product details

  • Model List:

    • OE-35 Electric Order Selector
  • 1. Front Cover
  • 2. Specifications
  • 2.1. Electrical
  • 2.2. Speeds
  • 2.3. Hydraulics
  • 2.4. Tires and Wheels
  • 2.5. Fluids and Lubricants
  • 2.6. SCR Card Settings
  • 2.7. Torque
  • 3. Lubrication Chart
  • 4. Adjustments
  • 4.1. Brake
  • 4.2. Brake Interlock Switch
  • 4.3. Steering
  • 4.4. Lift Chains
  • 4.5. Speed Limiting Switch
  • 4.6. SCR Card Trimpots
  • 4.7. Gate Switch
  • 4.8. Potentiometer
  • 5. Load Wheel Replacement
  • 6. Drive Tire Replacement
  • 7. Removal of Plastic Dash Panel
  • 8. Motor Service Instructions
  • 8.1. Cleaning
  • 8.2. Visual Inspection
  • 8.3. Testing
  • 8.4. Armature
  • 8.5. Frame and Field Service Notes
  • 8.6. Field Coil Installation
  • 8.7. Assembly and Testing
  • 8.8. Troubleshooting
  • 8.9. Drive Motor Assembly
  • 8.10. Lift Motor Assembly
  • 8.11. Steering Pump Motor Assembly
  • 9. Electric Motor Specification
  • 9.1. Drive Motor
  • 9.2. Lift Motor
  • 9.3. Steering Motor
  • 9.4. OE-35 EV-100 with LX Card
  • 9.5. OE-35 with EV-100 LX Card and Dash Display
  • 9.6. OE35 with EV-100 LX Card and Curtis Lift Interrupt
  • 10. Instructions EV-100 LX/LXT SCR Controls
  • 11. Basics of Circuit Operation
  • 11.1. Control Features
  • 11.1.1. Oscillator
  • 11.1.2. Current Limit
  • 11.1.3. Plugging
  • 11.1.4. Pedal Position Plug
  • 11.1.5. Ramp Start
  • 11.1.6. Full Power Transition
  • 11.1.7. Control Acceleration and 1A Time
  • 11.1.8. Current Drop Out
  • 11.1.9. Static Return to Off
  • 11.1.10. Accelerator Volts Hold-Off
  • 11.1.11. Coil Driver Modules
  • 11.1.12. Thermal Hold-Off
  • 11.1.13. Must Pulse to Time
  • 11.1.14. Pulse Monitor Trip (PMT)
  • 11.1.15. Thermal Protector (TP)
  • 11.1.16. Low Voltage
  • 11.1.17. Field Weakening
  • 11.1.18. Regenerative Braking
  • 11.1.19. Dual Motor Operation
  • 12. Electrical System Troubleshooting
  • 12.1. Control Circuits and Power Circuits
  • 12.2. Terminal Connection for LX/LXT Logic Cards
  • 12.3. EV100 Dash Display
  • 12.3.1. Application
  • 12.3.2. Display Sequence
  • 12.3.3. Description and Location
  • 12.3.4. Operation
  • 12.3.5. Function Set-Up Procedures
  • 12.3.6. Description of Function Numbers

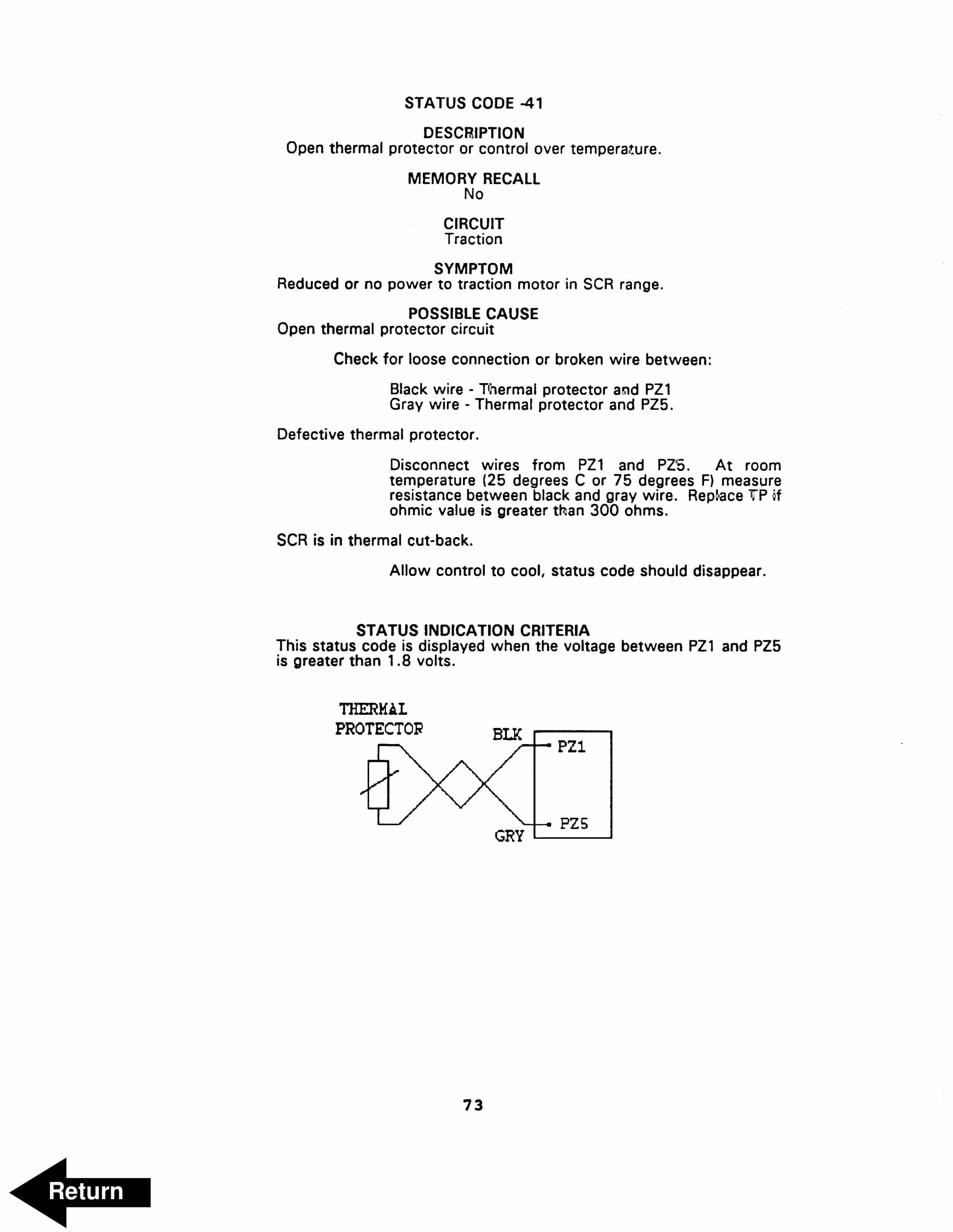

  • 12.3.7. Status Codes
  • 12.4. Checking Components
  • 12.4.1. Main Logic Card
  • 12.4.2. Capacitor 1C
  • 12.4.3. Potentiometer in Accelerator
  • 12.4.4. SCRs (1 Rec, 2 Rec, 5 Rec)
  • 12.4.5. Rectifiers (3 Rec, 4 Rec, Diode Blocks)
  • 12.4.6. Thermal Protector (TP)
  • 12.4.7. Filter Blocks
  • 12.4.8. Choke and Reactor T3 – T4
  • 12.5. Replacement of EV-100 Components
  • 12.5.1. Capacitor
  • 12.5.2. Rec, 23 Rec and 25 Rec
  • 12.6. Instructions – EV100 Plugs
  • 12.6.1. General
  • 12.6.2. Procedures

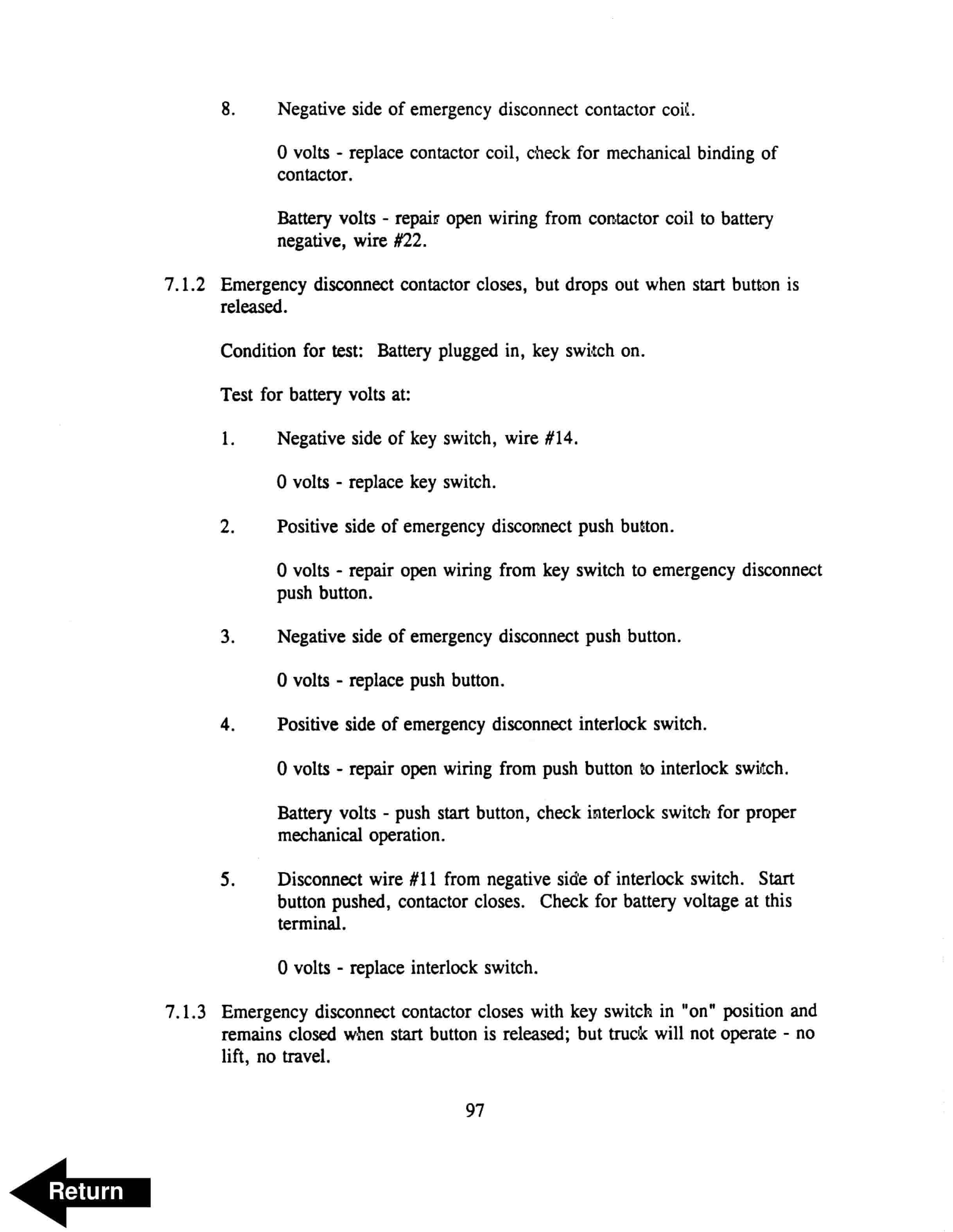

  • 12.7. Troubleshooting Chart – Electrical
  • 12.7.1. Emergency Disconnect Contactor
  • 12.7.2. Steering and Brake Release Pump
  • 12.7.3. Travel
  • 12.7.4. Lift
  • 12.7.5. Lowering
  • 13. Hydraulic
  • 13.1. Lift System Pump

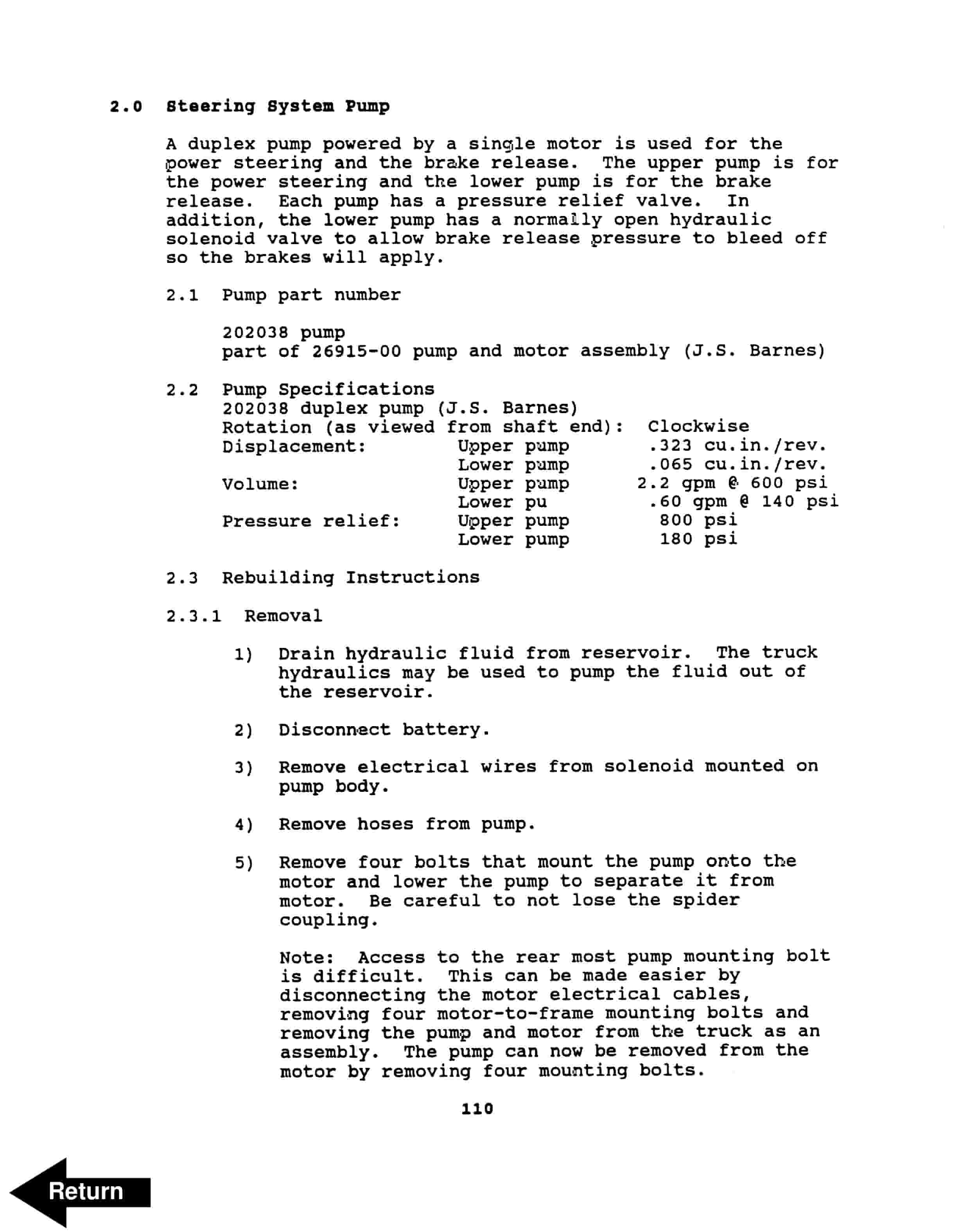

  • 13.2. Steering System Pump
  • 13.3. Solenoid Valves
  • 13.4. Hydraulic System Troubleshooting
  • 13.4.1. Theory of Operation – Lift/Lower
  • 13.4.2. Theory of Operation – Power Steering

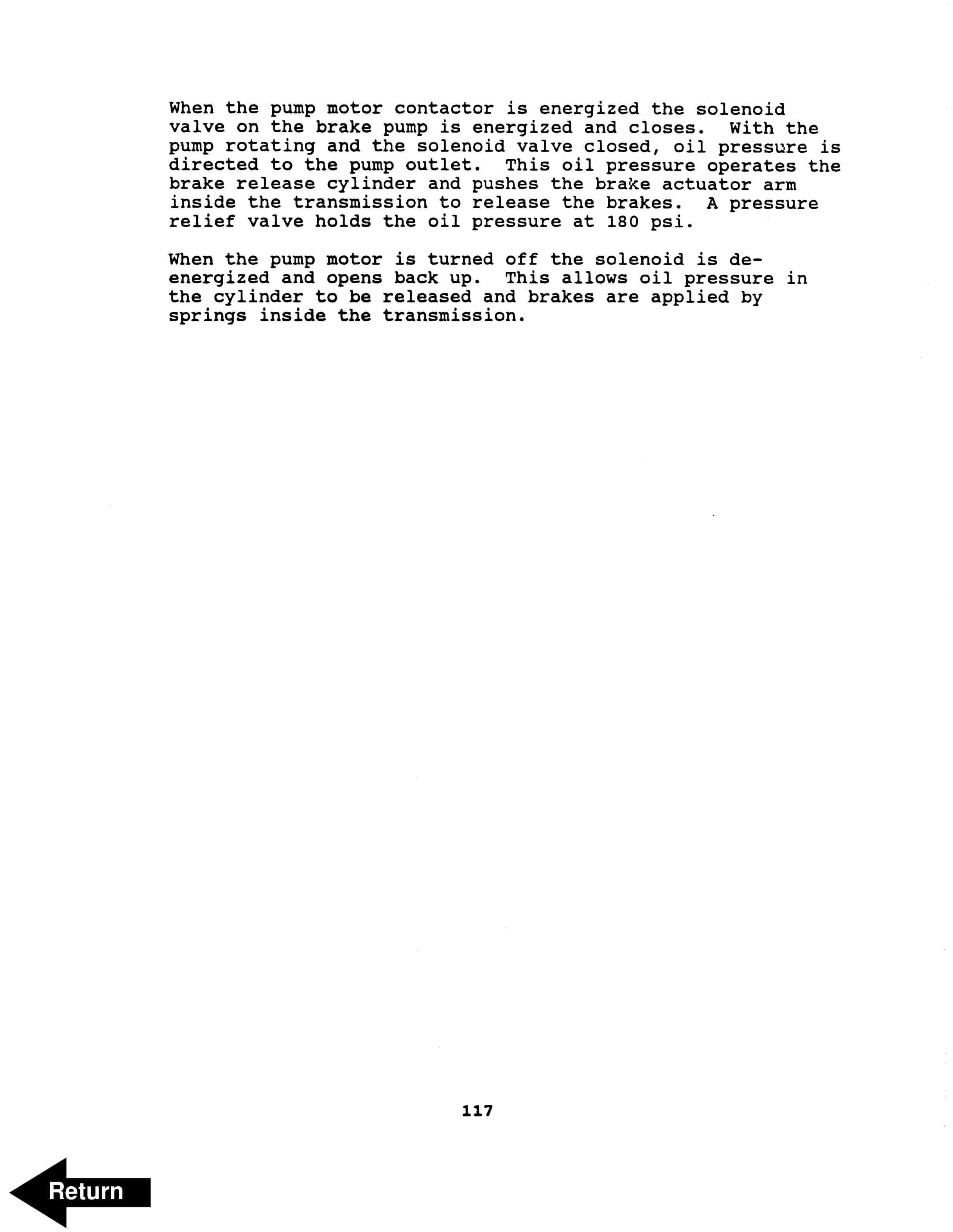

  • 13.4.3. Theory of Operation – Brake Release
  • 13.5. Shimming
  • 13.6. Mast Removal, Installation, Disassembly and Assembly
  • 14. Jacking and Hoisting
  • 15. Transmission
  • 15.1. Removal
  • 15.2. Disassembly and Repair
  • 15.3. Installation
  • 16. Back Cover
