BT OME100, OME100W Quality Parts 7513343

BT OME100, OME100W Quality Parts 7513343 - Image 2

BT OME100, OME100W Quality Parts 7513343 - Image 3

BT OME100, OME100W Quality Parts 7513343 - Image 4

BT OME100, OME100W Quality Parts 7513343 - Image 5

bt ome100 ome100w quality parts 7513343 2

bt ome100 ome100w quality parts 7513343 3

BT OME100, OME100W Quality Parts 7513343

$30.00

Type Of Manual: Quality Parts
Manual ID: 7513343
: Parts Manual PDF
Number of Pages: 133
Size: 8.2MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- OME100, OME100W

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0032911
11. Inspection covers 2009-10-16
12. P0005125
13. Battery compartment parts 2009-04-15
14. P0010641
15. Motor fixing points 2009-09-29
16. P0018108
17. Motor fixing points 2009-09-29
18. P0007168
19. Cabin windows 2006-06-08
20. P0033564
21. Platform incl. fixing points 2008-12-12
22. P0007171
23. Wall/floor covering 2006-06-08
24. P0007450
25. Wall/floor covering 2006-06-08
26. P0007237
27. Internal fittings 2009-09-29
28. P0007237
29. Internal fittings 2006-06-08
30. P0019968
31. Driver protection 2009-09-29
32. P0011850
33. Signs, warnings, decals 2009-04-15
34. P0018111
35. Signs, warnings, decals 2009-04-06
36. P0032204
37. Electric pump motor 2009-09-29
38. P0032590
39. Electric steering motor 2009-09-29
40. P0007182
41. Electric fan motor, electric fan 2006-06-08
42. P0017045
43. Electric drive motor 2009-04-15
44. P0010594
45. Mechanical drive gear unit 2009-04-15
46. P0011612
47. Electromagnetic parking brake 2009-09-29
48. P0005304
49. Drive wheel 2009-04-15
50. P0005142
51. Fork/support arm wheels 2009-04-15
52. P0035635
53. Steering arm/wheel/lever 2009-05-08
54. P0033683
55. Steering arm/wheel/lever 2009-05-08
56. P0010599
57. Steering chain/linkage/wire 2009-04-15
58. P0011613
59. Steering bearings, radial bearing 2009-09-29
60. P0018122
61. General alarm signals (audible/visual) 2006-06-08
62. P0026746
63. Battery cut out connector/contactor 2009-04-15
64. P0011615
65. Instrument panel, display 2009-04-15
66. P0012442
67. Level/position transducers/lamps 2009-09-29
68. P0009386
69. Level/position transducers/lamps 2009-05-11
70. P0000151
71. Start/stop switch 2009-04-15

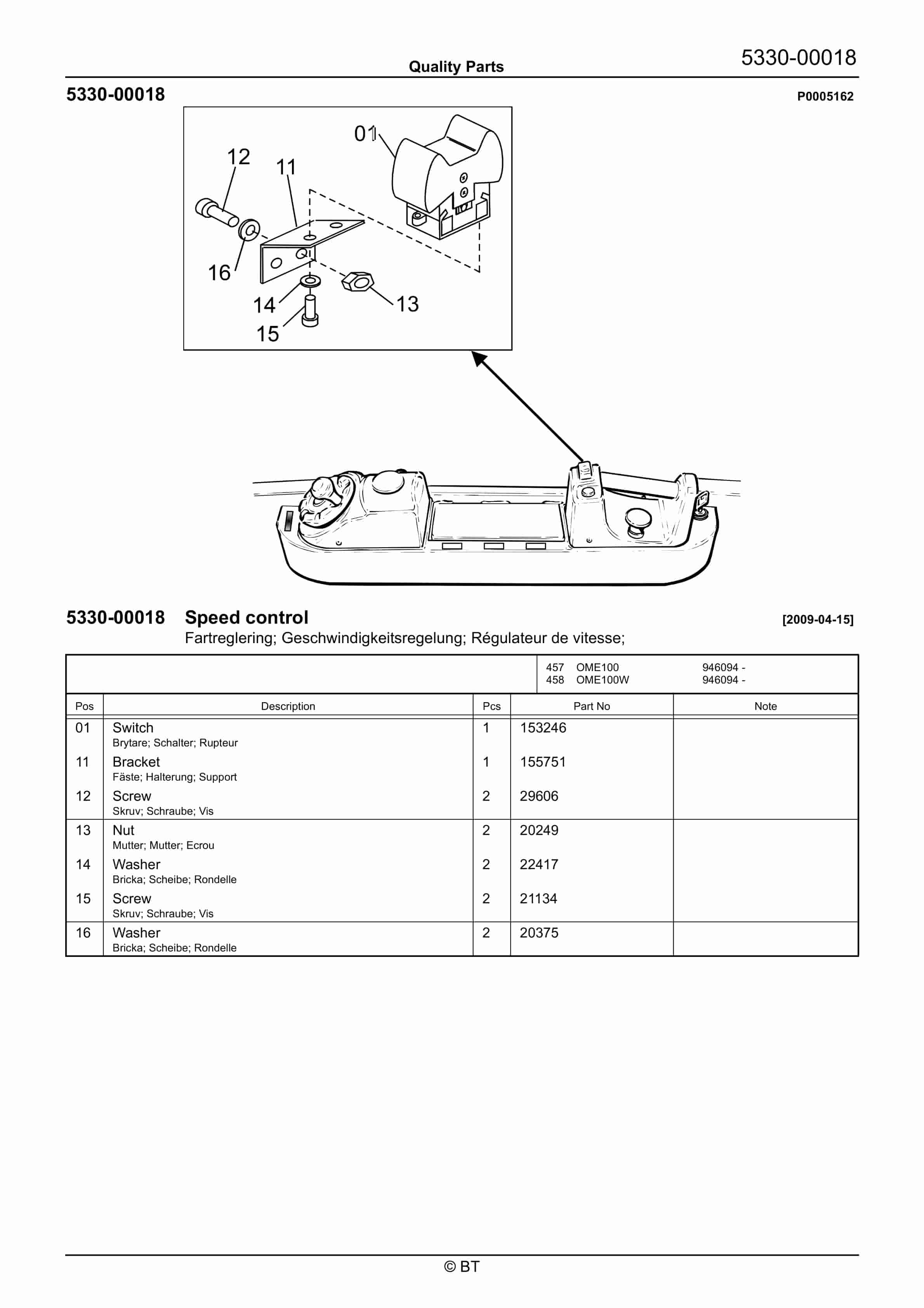

72. P0005162
73. Speed control 2009-04-15
74. P0032404
75. Driving function harnesses/fuse 2009-09-29
76. P0021636
77. Drive motor cables/resistors/fuses 2009-09-29
78. P0026532
79. Direction contactors 2009-04-15
80. P0002977
81. Transistor panel 2009-04-15
82. P0009662
83. Work function micro switches, potentiometers 2009-04-15
84. P0009663
85. Work function micro switches, potentiometers 2009-04-15
86. P0018128
87. Work function harnesses/fuse 2008-09-12
88. P0032421
89. Pump contactor 2009-04-15
90. P0011634
91. Battery/motor cables, fuse 2009-04-15
92. P0005171
93. Drive/multi-function PCBs 2009-04-15
94. P0006016
95. Drive/multi-function PCBs 2009-09-16
96. P0035430
97. Safety/ position probes/ sensors 2009-09-29
98. P0007678
99. Safety/ position probes/ sensors 2009-04-15
100. P0005161

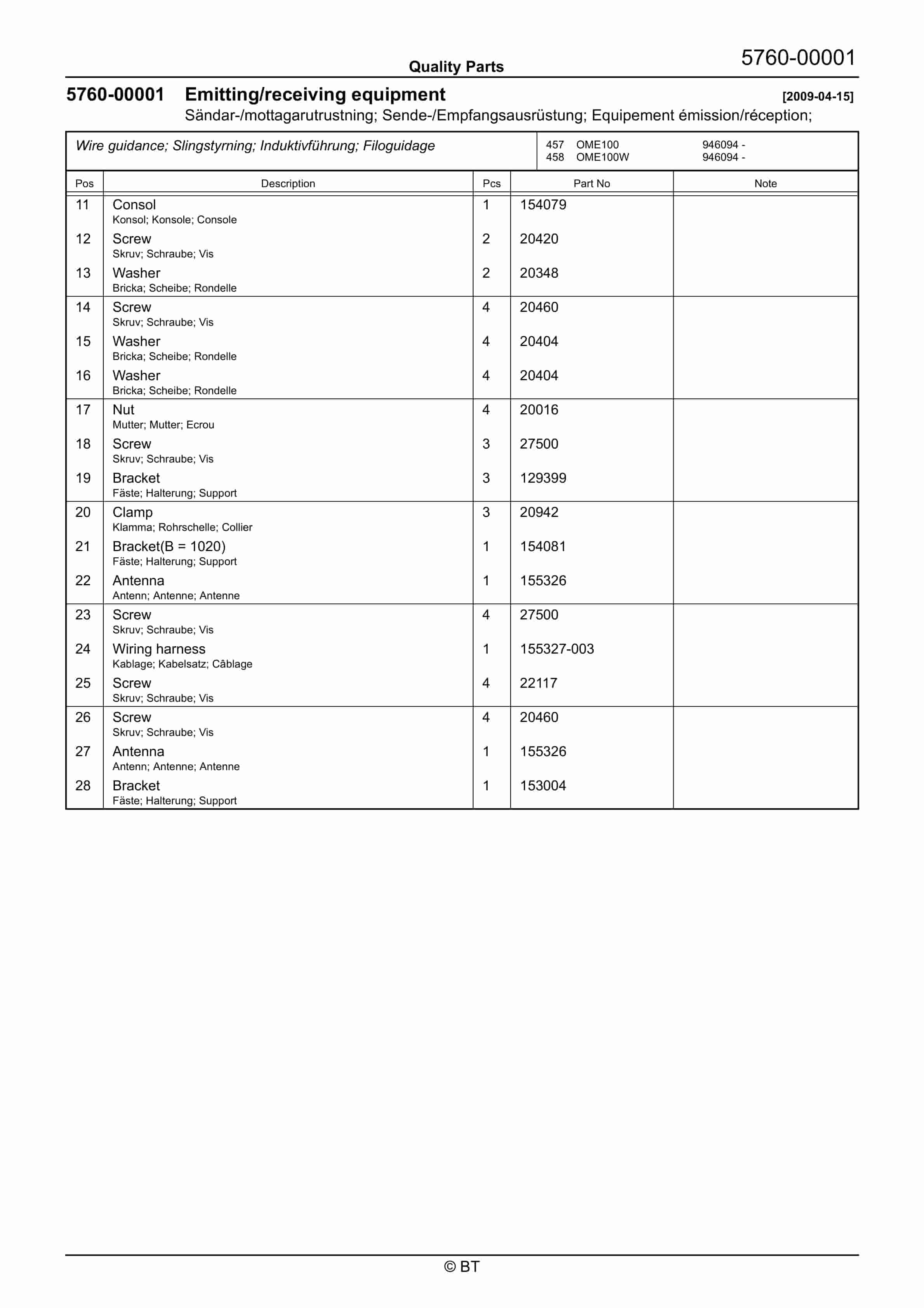

101. Emitting/receiving equipment 2009-04-15
102. P0020033
103. Safety electronics harnesses, fuse 2009-05-11
104. P0034665
105. Safety probes/sensors 2009-05-12
106. P0031458
107. Aisle probes/sensors 2009-09-29
108. P0005163
109. Hydraulic tank 2009-04-15
110. P0016102

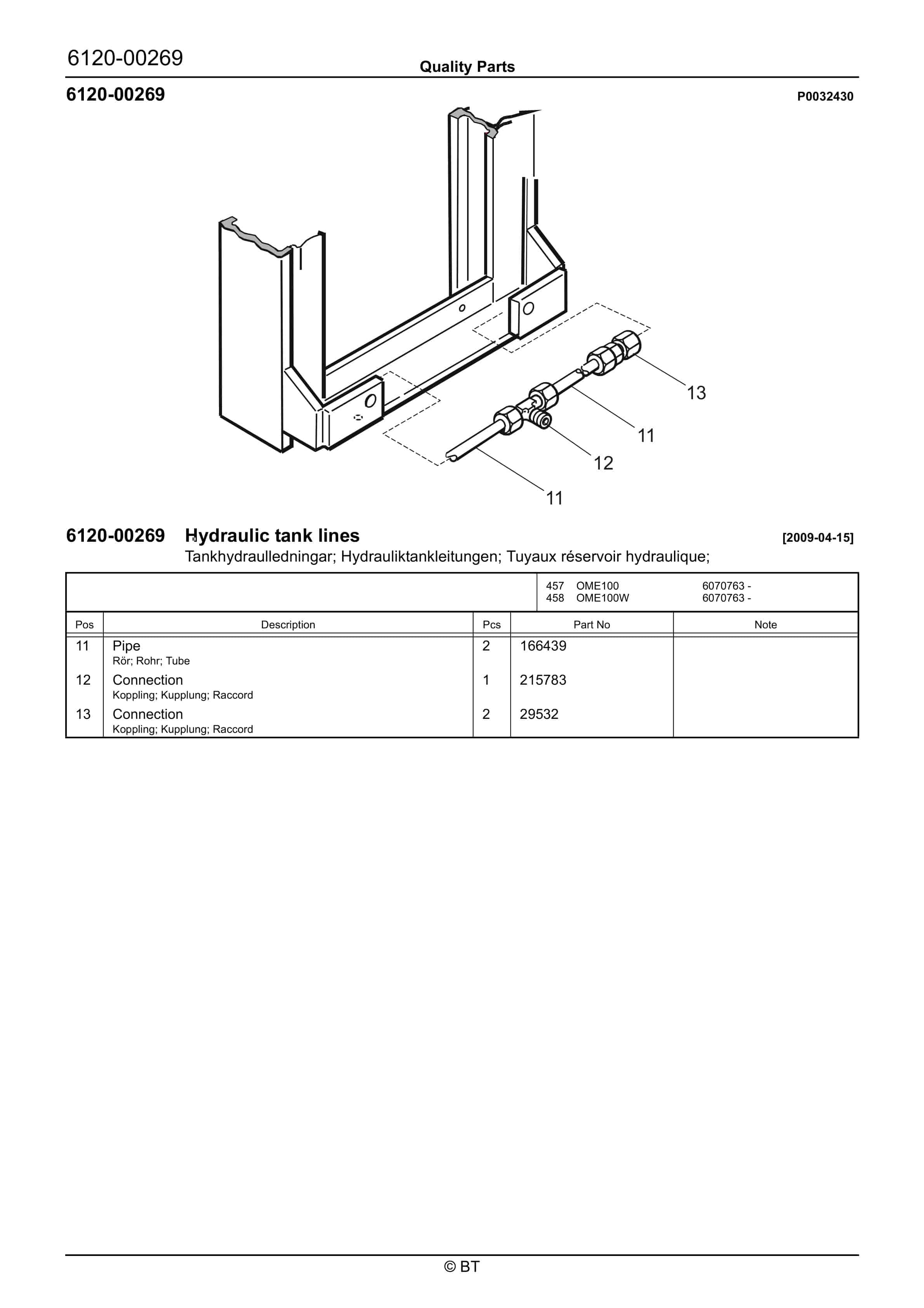

111. Hydraulic tank lines 2009-04-15
112. P0032430
113. Hydraulic tank lines 2009-04-15
114. P0011629
115. Filters and housing 2009-04-15
116. P0033896
117. Hydraulic pump 2009-04-15
118. P0012475
119. Main valve unit lift/reach/tilt 2009-04-15
120. P0007682

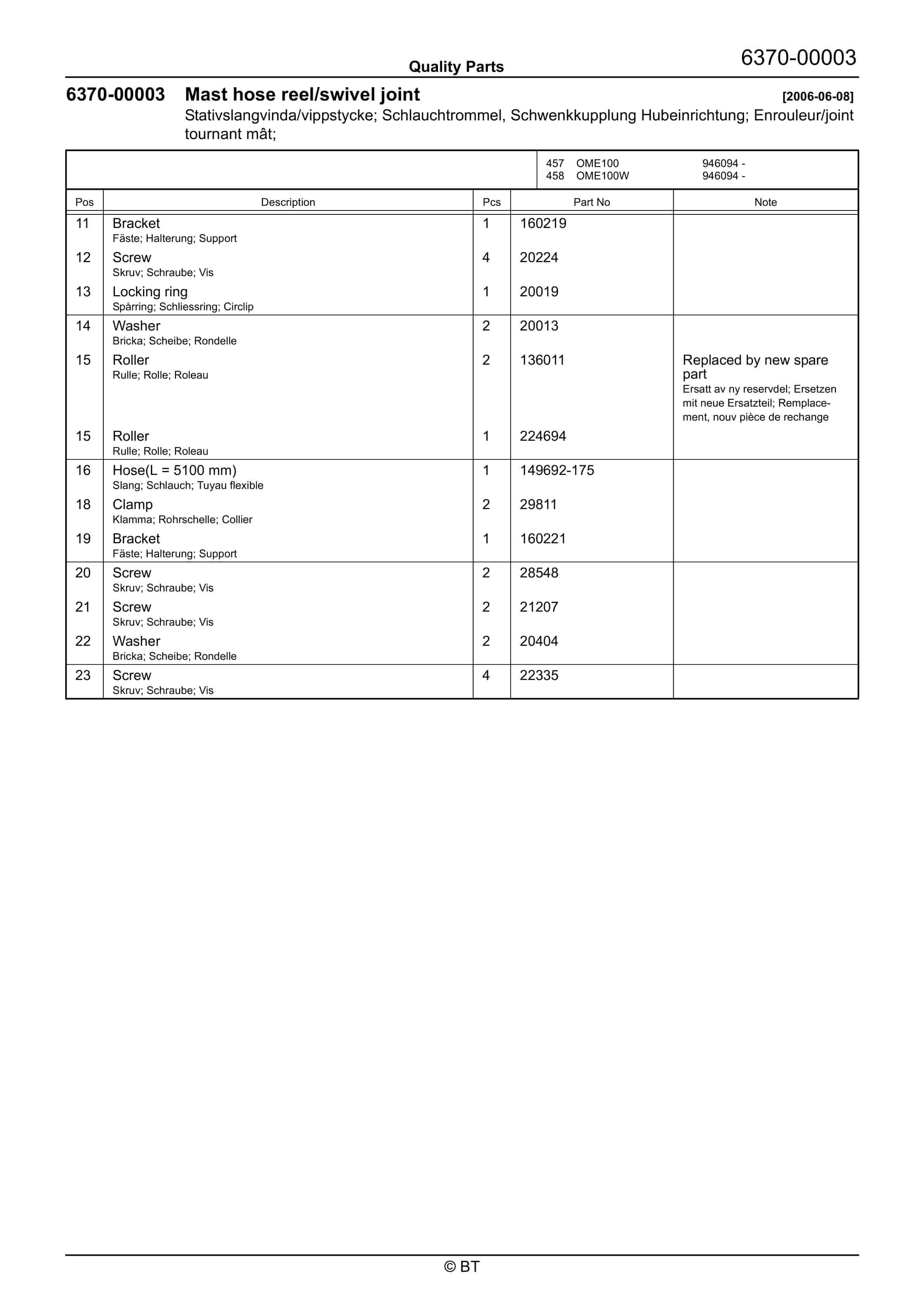

121. Mast hose reel/swivel joint 2006-06-08
122. P0012590
123. Main lift cylinders 2006-06-08
124. P0005178
125. Free lift cylinders 2009-04-15
126. P0005178
127. Support arm/initial lift cylinders 2009-04-15
128. P0005172
129. Main lift chain system 2006-06-08
130. P0032577
131. Main lift chain system 2008-12-12
132. P0005174
133. Main mast fork carriage 2009-04-15
134. P0007184
135. Main mast guidance/dampers 2006-06-08
136. P0005176
137. Main mast suspension 2009-04-15
138. P0006011
139. Main mast suspension 2009-04-15
140. P0005212
141. Fork, carpet boom, lift hook 2009-04-15
142. P0005180
143. Fork carriage unit, integrated sideshift, fork spread 2009-04-15
144. P0007684
145. Other load carriers 2006-06-08
146. P0019044
147. Charger attachment 2009-10-13
148. P0031447
149. Extra electrical equipment 2009-04-15
150. P0023658
151. Other extra equipment 2009-04-15
