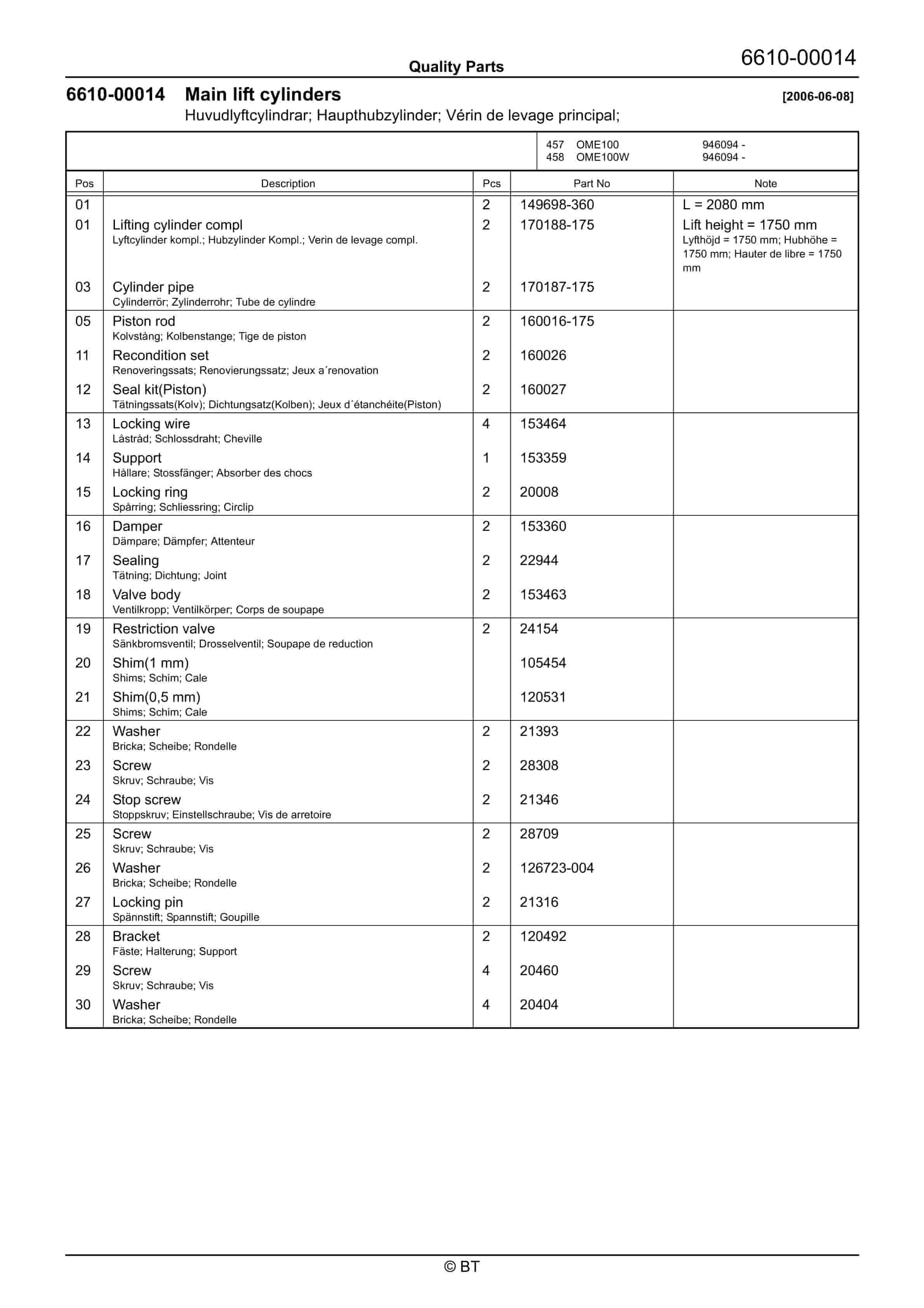

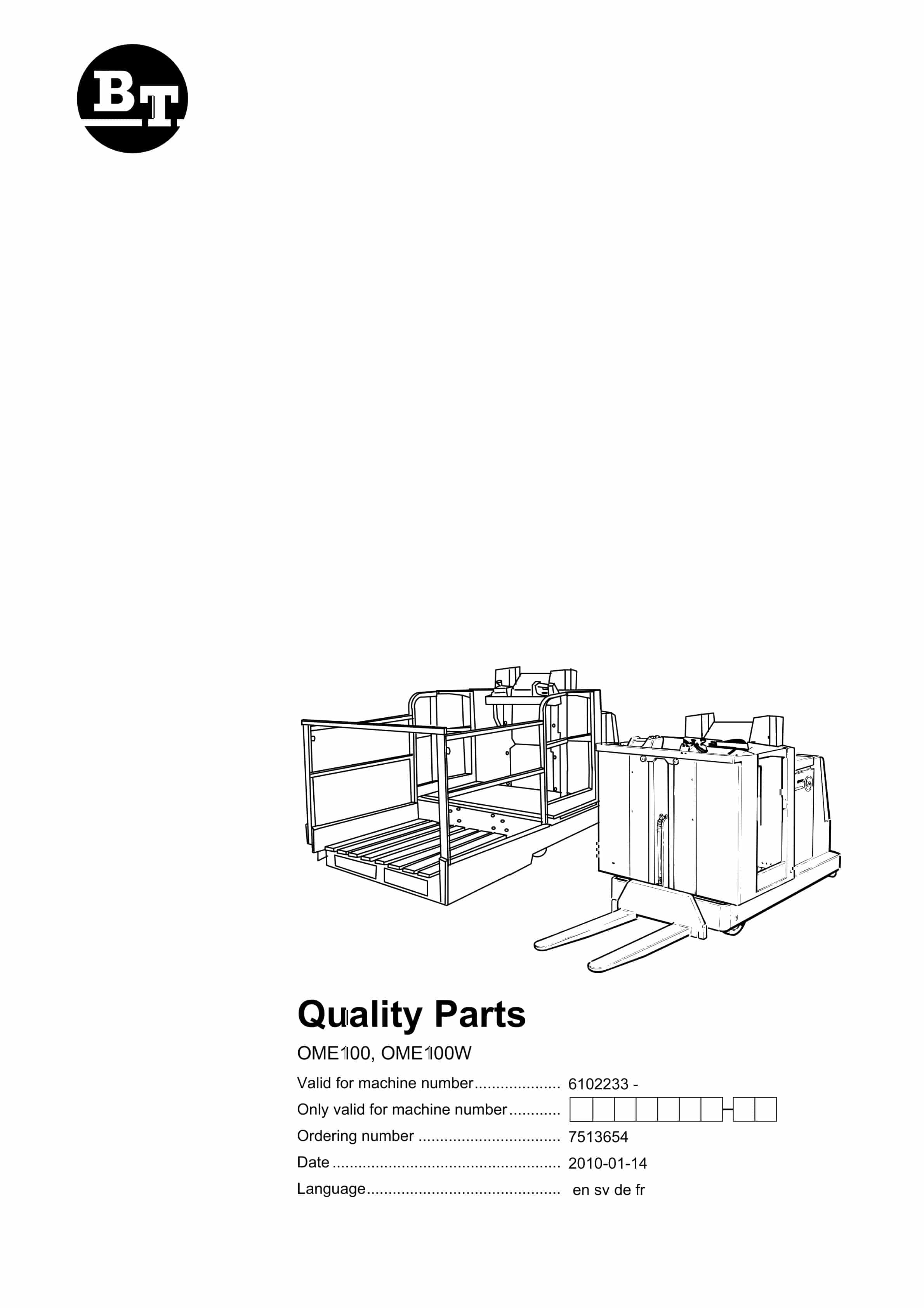

BT OME100, OME100W Quality Parts 7513654

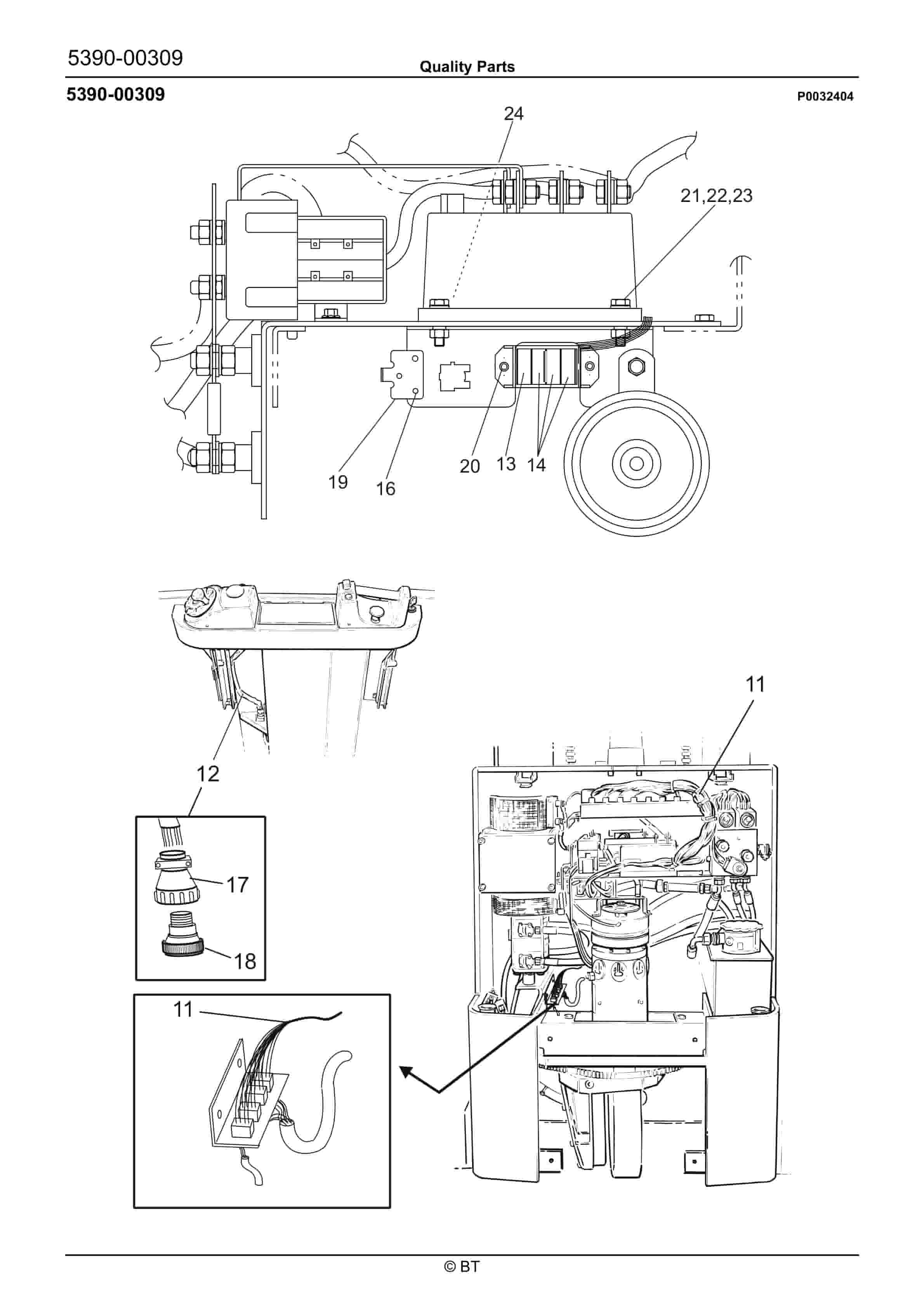

BT OME100, OME100W Quality Parts 7513654 - Image 2

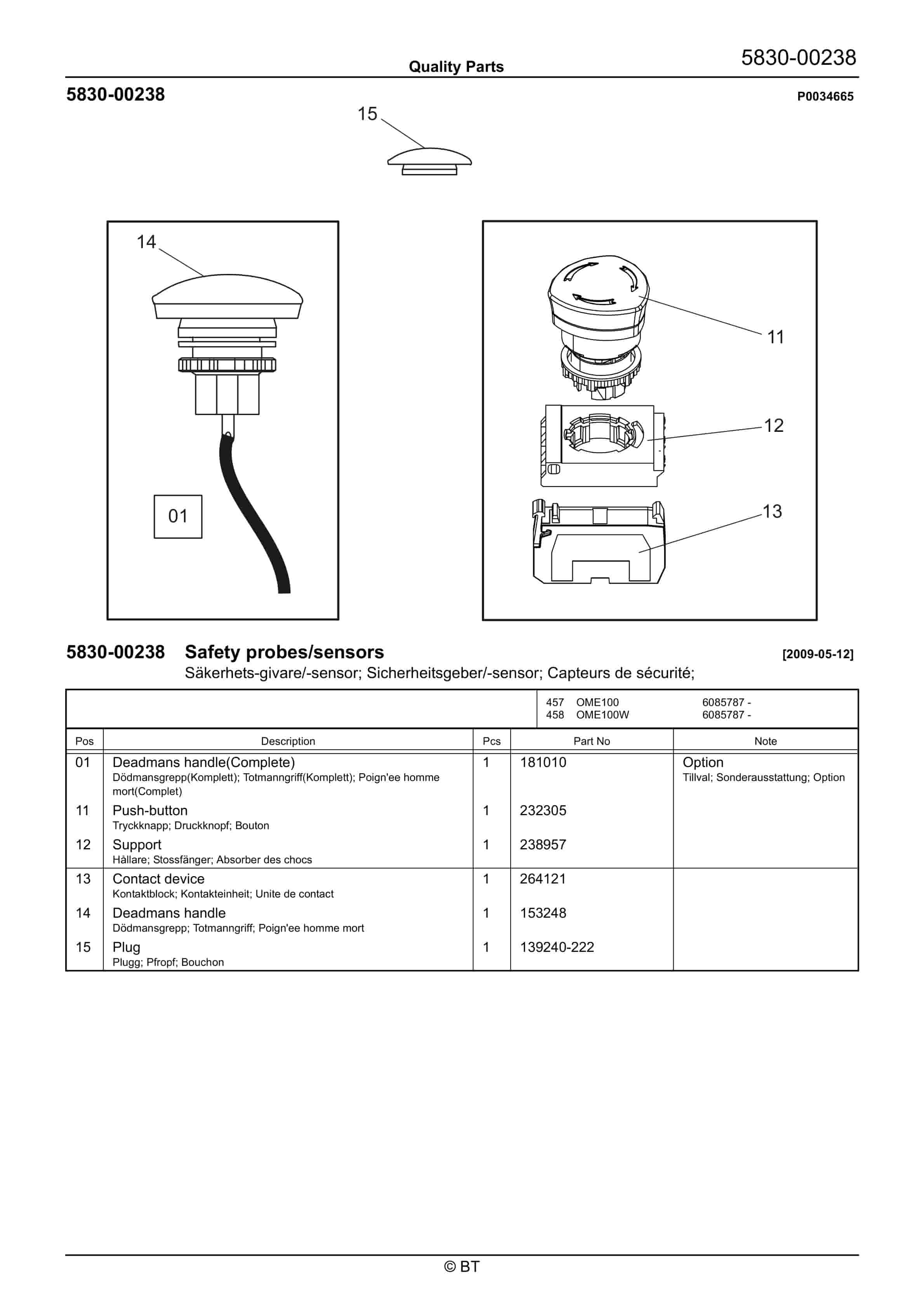

BT OME100, OME100W Quality Parts 7513654 - Image 3

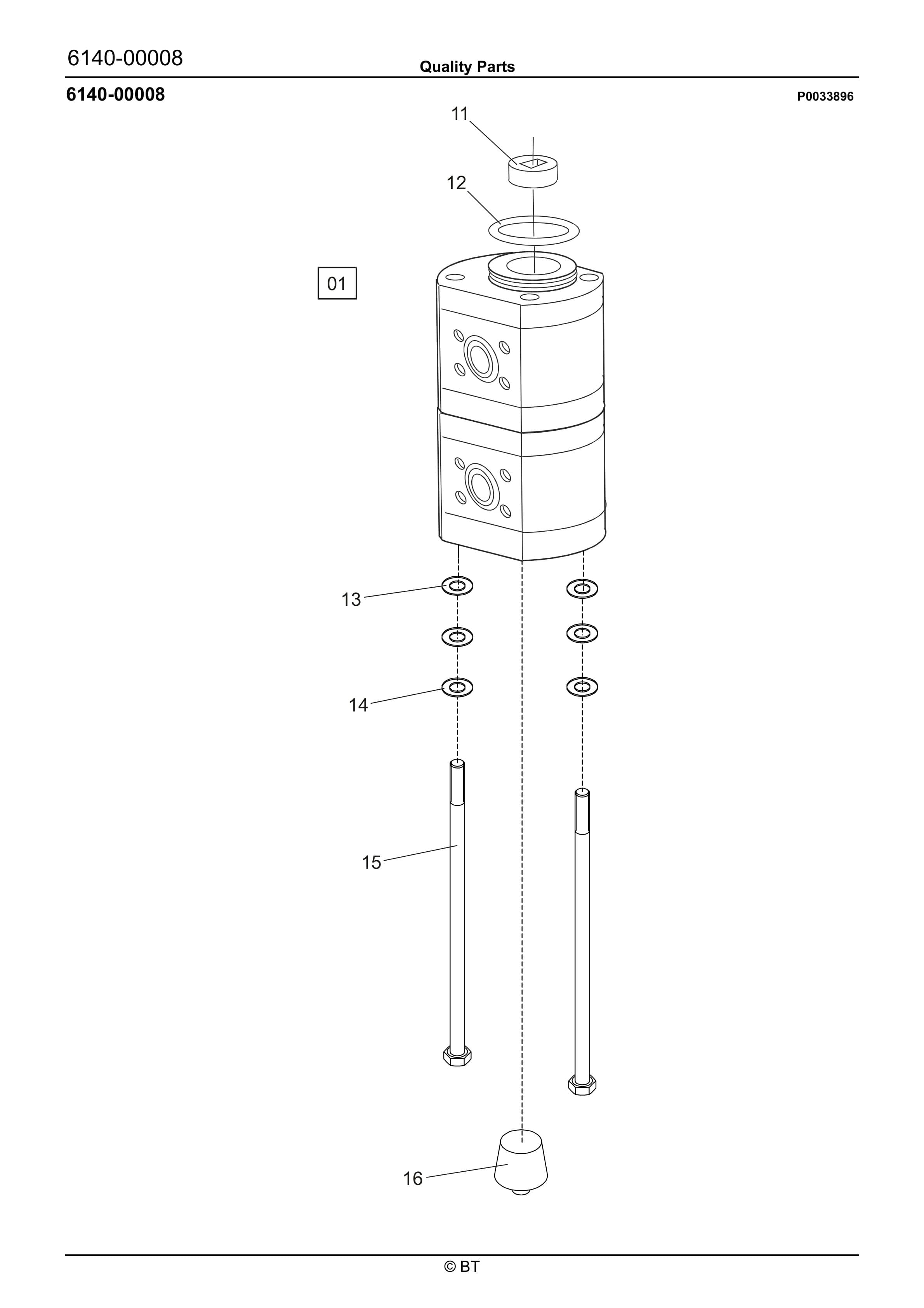

BT OME100, OME100W Quality Parts 7513654 - Image 4

BT OME100, OME100W Quality Parts 7513654 - Image 5

bt ome100 ome100w quality parts 7513654 2

bt ome100 ome100w quality parts 7513654 3

BT OME100, OME100W Quality Parts 7513654

$30.00

Type Of Manual: Quality Parts
Manual ID: 7513654
: Parts Manual PDF
Number of Pages: 135
Size: 8.3MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- OME100, OME100W

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0035599
11. Inspection covers 2009-11-23
12. P0005125
13. Battery compartment parts 2009-04-15
14. P0010641
15. Motor fixing points 2009-09-29
16. P0018108
17. Motor fixing points 2009-09-29
18. P0007168
19. Cabin windows 2006-06-08
20. P0033564
21. Platform incl. fixing points 2008-12-12
22. P0007171
23. Wall/floor covering 2006-06-08
24. P0007450
25. Wall/floor covering 2006-06-08
26. P0035822
27. Internal fittings 2009-11-23
28. P0019968
29. Driver protection 2009-09-29
30. P0011850
31. Signs, warnings, decals 2009-04-15
32. P0018111
33. Signs, warnings, decals 2009-04-06
34. P0032204
35. Electric pump motor 2009-09-29
36. P0032590
37. Electric steering motor 2009-09-29
38. P0007182
39. Electric fan motor, electric fan 2006-06-08
40. P0017045
41. Electric drive motor 2009-04-15
42. P0010594
43. Mechanical drive gear unit 2009-04-15
44. P0011612
45. Electromagnetic parking brake 2009-09-29
46. P0005304
47. Drive wheel 2009-04-15
48. P0005142
49. Fork/support arm wheels 2009-04-15
50. P0035635
51. Steering arm/wheel/lever 2009-10-22
52. P0033683
53. Steering arm/wheel/lever 2009-05-08
54. P0010599
55. Steering chain/linkage/wire 2009-04-15
56. P0011613
57. Steering bearings, radial bearing 2009-09-29
58. P0018122
59. General alarm signals (audible/visual) 2006-06-08
60. P0026746
61. Battery cut out connector/contactor 2009-04-15
62. P0011615
63. Instrument panel, display 2009-04-15
64. P0012442
65. Level/position transducers/lamps 2009-09-29
66. P0009386
67. Level/position transducers/lamps 2009-05-11
68. P0000151
69. Start/stop switch 2009-04-15
70. P0005162
71. Speed control 2009-04-15
72. P0032404
73. Driving function harnesses/fuse 2009-09-29
74. P0021636
75. Drive motor cables/resistors/fuses 2009-09-29
76. P0026532
77. Direction contactors 2009-04-15
78. P0002977
79. Transistor panel 2009-04-15
80. P0009662
81. Work function micro switches, potentiometers 2009-04-15
82. P0009663
83. Work function micro switches, potentiometers 2009-04-15
84. P0018128
85. Work function harnesses/fuse 2008-09-12
86. P0032421
87. Pump contactor 2009-04-15
88. P0011634
89. Battery/motor cables, fuse 2009-04-15
90. P0005171
91. Drive/multi-function PCBs 2009-04-15
92. P0006016
93. Drive/multi-function PCBs 2009-09-16
94. P0035430
95. Safety/ position probes/ sensors 2009-09-29
96. P0007678
97. Safety/ position probes/ sensors 2009-04-15
98. P0005161
99. Emitting/receiving equipment 2009-04-15
100. P0020033
101. Safety electronics harnesses, fuse 2009-05-11
102. P0034665
103. Safety probes/sensors 2009-05-12
104. P0031458
105. Aisle probes/sensors 2009-09-29
106. P0005163
107. Hydraulic tank 2009-04-15
108. P0016102
109. Hydraulic tank lines 2009-04-15
110. P0032430
111. Hydraulic tank lines 2009-04-15
112. P0011629
113. Filters and housing 2009-04-15
114. P0033896
115. Hydraulic pump 2009-04-15
116. P0012475
117. Main valve unit lift/reach/tilt 2009-04-15
118. P0007682
119. Mast hose reel/swivel joint 2006-06-08
120. P0012590
121. Main lift cylinders 2006-06-08
122. P0005178
123. Free lift cylinders 2009-04-15
124. P0005178
125. Support arm/initial lift cylinders 2009-04-15
126. P0005172
127. Main lift chain system 2006-06-08
128. P0032577
129. Main lift chain system 2008-12-12
130. P0005174
131. Main mast fork carriage 2009-04-15
132. P0007184
133. Main mast guidance/dampers 2006-06-08
134. P0005176
135. Main mast suspension 2009-04-15
136. P0006011
137. Main mast suspension 2009-04-15
138. P0005212
139. Fork, carpet boom, lift hook 2009-04-15
140. P0005180
141. Fork carriage unit, integrated sideshift, fork spread 2009-04-15
142. P0007684
143. Other load carriers 2006-06-08
144. P0019044
145. Charger attachment 2009-10-13
146. P0031447
147. Extra electrical equipment 2009-04-15
148. P0035990
149. Truck log device, code locking device 2010-01-14
150. P0023658
151. Other extra equipment 2009-04-15
