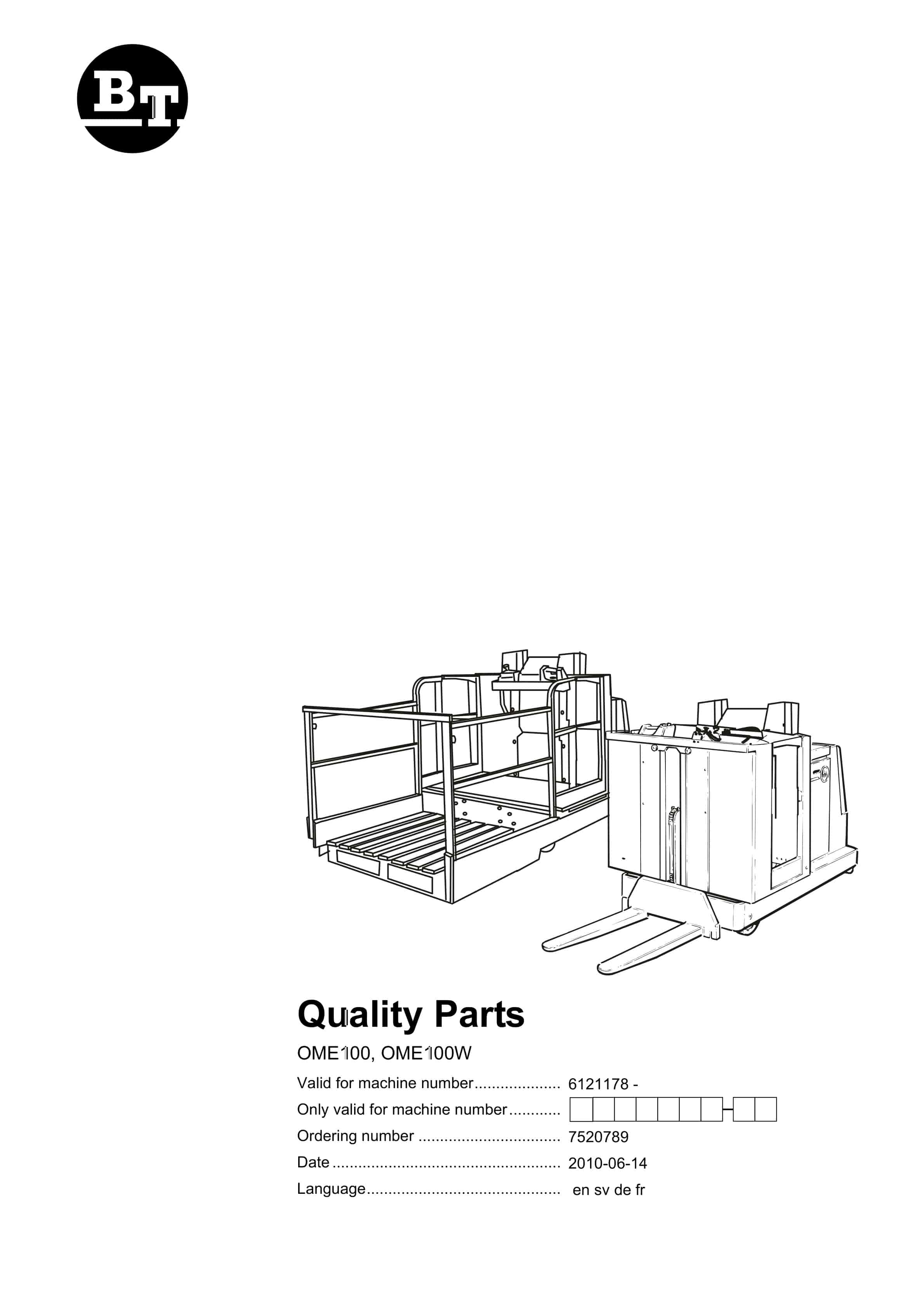

BT OME100, OME100W Quality Parts 7520789

$30.00

Type Of Manual: Quality Parts
Manual ID: 7520789
: Parts Manual PDF
Number of Pages: 139
Size: 8.1MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- OME100, OME100W

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0036530
11. Inspection covers 2010-04-23
12. P0005125
13. Battery compartment parts 2009-04-15
14. P0010641
15. Motor fixing points 2009-09-29
16. P0018108
17. Motor fixing points 2009-09-29
18. P0007168
19. Cabin windows 2006-06-08
20. P0036575
21. Platform incl. fixing points 2010-04-22
22. P0036951
23. Platform incl. fixing points 2010-06-14
24. P0036952
25. Platform incl. fixing points 2010-06-14
26. P0007171
27. Wall/floor covering 2010-06-08
28. P0007450
29. Wall/floor covering 2006-06-08
30. P0035822
31. Internal fittings 2009-11-23
32. P0036953
33. Driver protection 2010-06-14
34. P0036963
35. Signs, warnings, decals 2010-06-14
36. P0036970
37. Signs, warnings, decals 2010-06-14
38. P0032204
39. Electric pump motor 2009-09-29
40. P0032590
41. Electric steering motor 2009-09-29
42. P0007182
43. Electric fan motor, electric fan 2006-06-08
44. P0036596
45. Electric drive motor 2010-04-22
46. P0036594
47. Mechanical drive gear unit 2010-04-23
48. P0011612
49. Electromagnetic parking brake 2009-09-29
50. P0005304
51. Drive wheel 2009-04-15
52. P0005142
53. Fork/support arm wheels 2009-04-15
54. P0035635
55. Steering arm/wheel/lever 2009-10-22
56. P0036593
57. Steering arm/wheel/lever 2010-04-22
58. P0010599
59. Steering chain/linkage/wire 2009-04-15
60. P0011613
61. Steering bearings, radial bearing 2009-09-29
62. P0018122
63. General alarm signals (audible/visual) 2006-06-08
64. P0026746
65. Battery cut out connector/contactor 2010-02-23
66. P0011615
67. Instrument panel, display 2009-04-15
68. P0012442
69. Level/position transducers/lamps 2009-09-29
70. P0036447
71. Level/position transducers/lamps 2010-06-03
72. P0000151

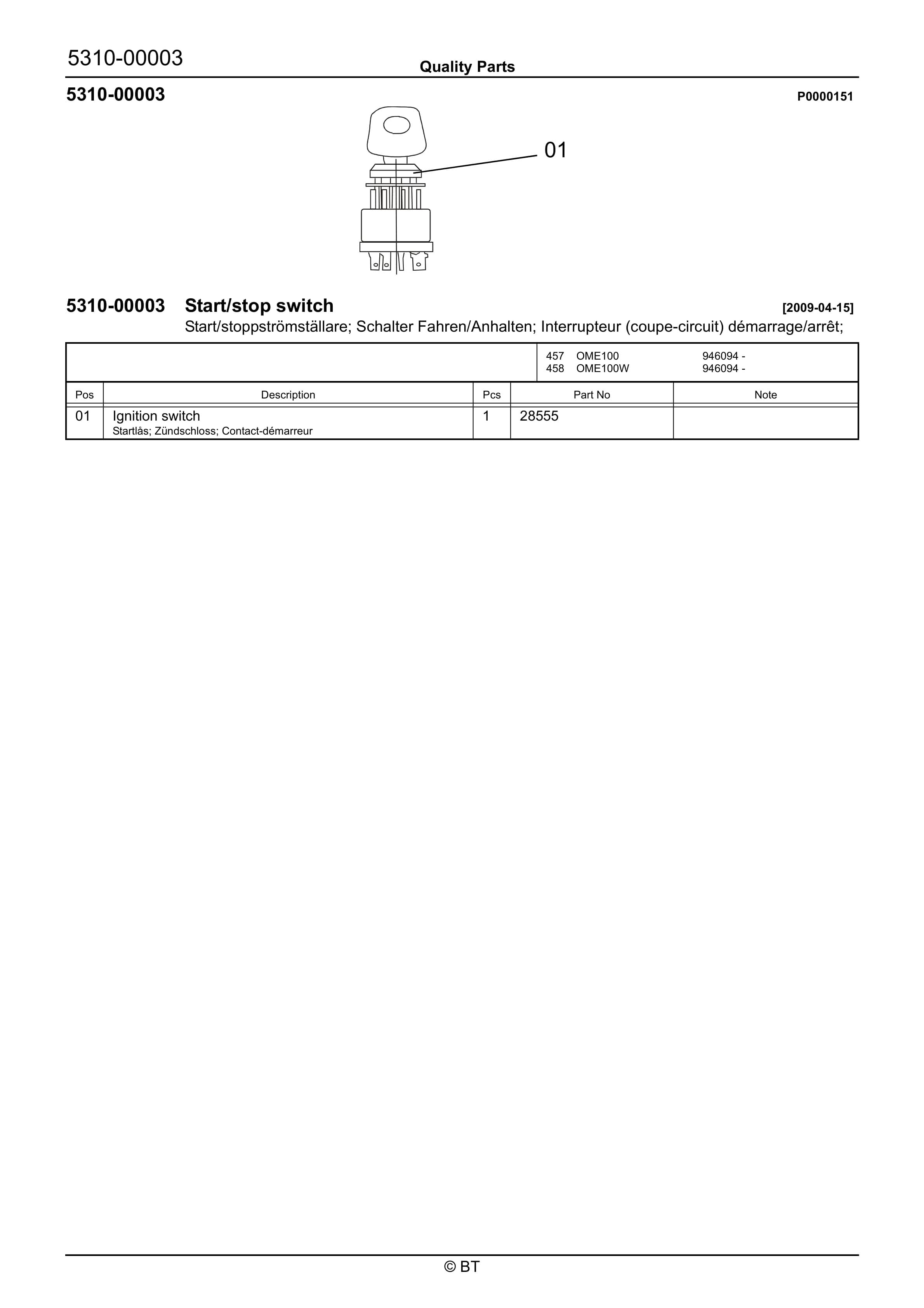

73. Start/stop switch 2009-04-15
74. P0005162
75. Speed control 2009-04-15
76. P0032404
77. Driving function harnesses/fuse 2009-09-29
78. P0021636
79. Drive motor cables/resistors/fuses 2009-09-29
80. P0026532
81. Direction contactors 2009-04-15
82. P0002977
83. Transistor panel 2009-04-15
84. P0009662
85. Work function micro switches, potentiometers 2009-04-15
86. P0009663
87. Work function micro switches, potentiometers 2009-04-15
88. P0036591
89. Work function harnesses/fuse 2010-04-22
90. P0032421
91. Pump contactor 2009-04-15
92. P0036592
93. Battery/motor cables, fuse 2010-04-22
94. P0005171
95. Drive/multi-function PCBs 2009-04-15
96. P0006016
97. Drive/multi-function PCBs 2009-09-16
98. P0035430
99. Safety/ position probes/ sensors 2009-09-29
100. P0007678
101. Safety/ position probes/ sensors 2009-04-15

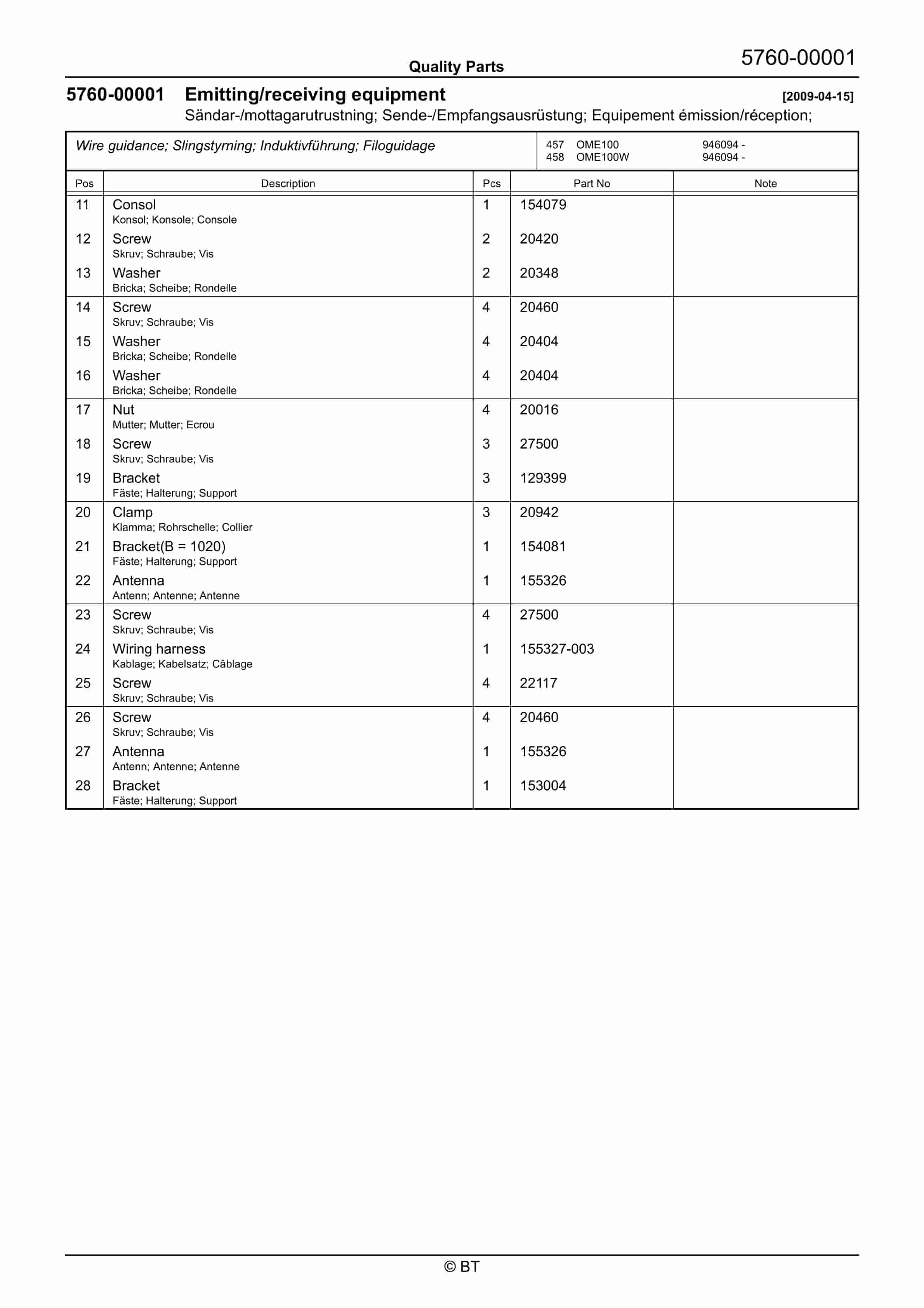

102. P0005161
103. Emitting/receiving equipment 2009-04-15
104. P0020033
105. Safety electronics harnesses, fuse 2009-05-11
106. P0034665
107. Safety probes/sensors 2009-05-12
108. P0031458
109. Aisle probes/sensors 2009-09-29
110. P0005163
111. Hydraulic tank 2009-04-15
112. P0016102
113. Hydraulic tank lines 2009-04-15
114. P0032430
115. Hydraulic tank lines 2009-04-15
116. P0011629

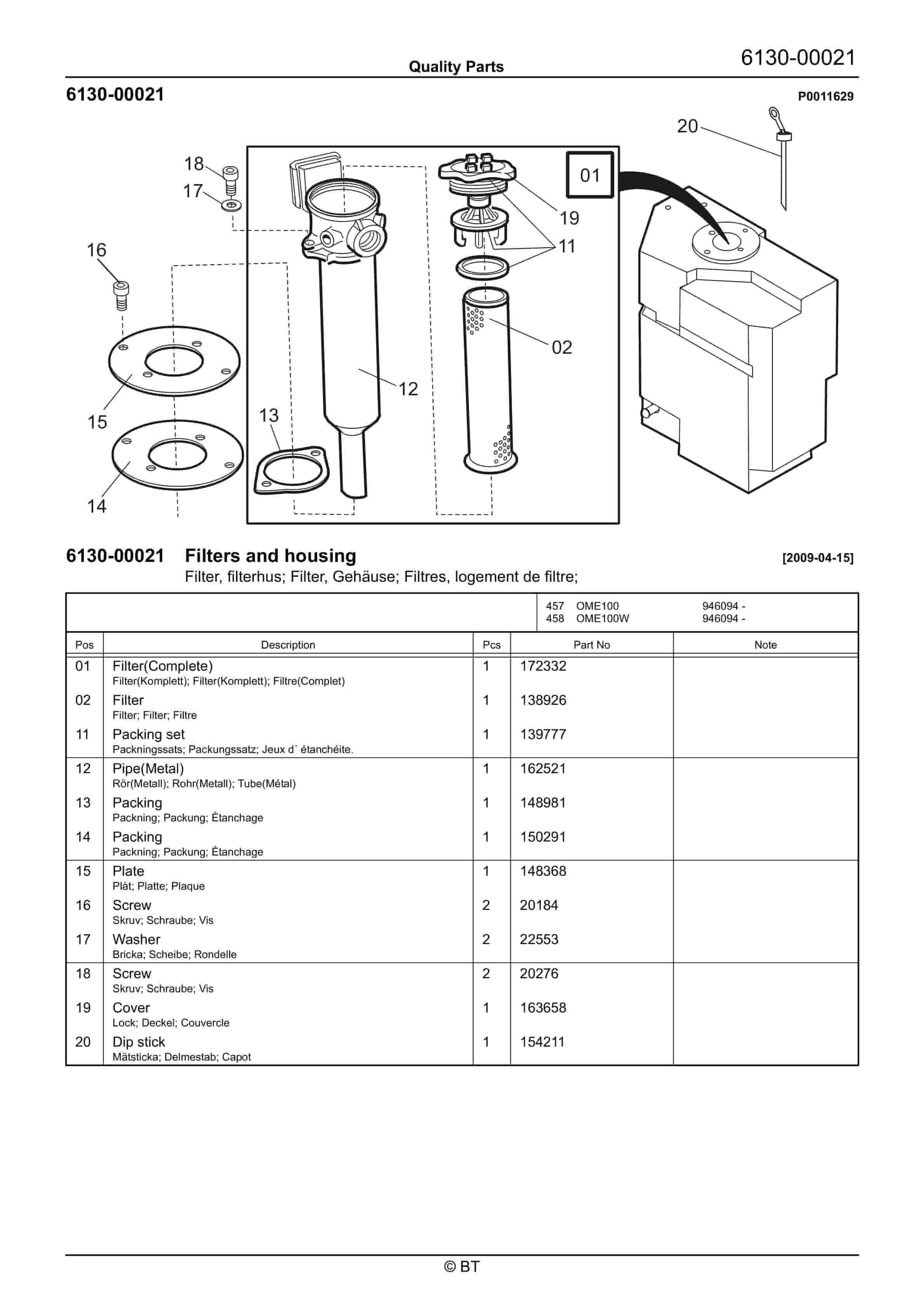

117. Filters and housing 2009-04-15
118. P0033896
119. Hydraulic pump 2009-04-15
120. P0012475
121. Main valve unit lift/reach/tilt 2009-04-15
122. P0036589
123. Mast hose reel/swivel joint 2010-04-22
124. P0012590

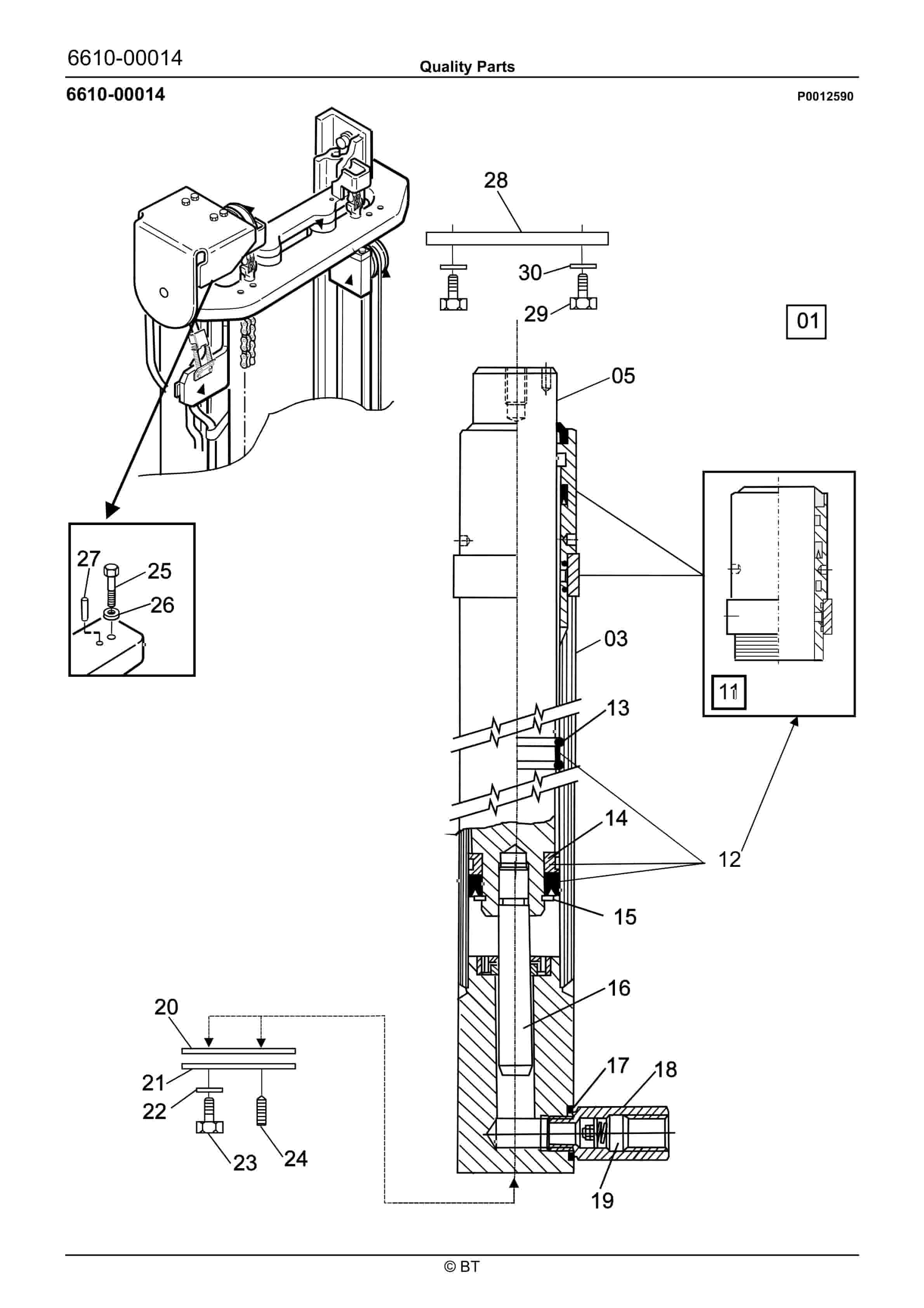

125. Main lift cylinders 2006-06-08
126. P0005178
127. Free lift cylinders 2009-04-15
128. P0005178
129. Support arm/initial lift cylinders 2009-04-15
130. P0036587
131. Main lift chain system 2010-04-22
132. P0036588
133. Main lift chain system 2010-04-22
134. P0005174
135. Main mast fork carriage 2009-04-15
136. P0007184
137. Main mast guidance/dampers 2006-06-08
138. P0005176
139. Main mast suspension 2009-04-15
140. P0006011
141. Main mast suspension 2009-04-15
142. P0005212
143. Fork, carpet boom, lift hook 2009-04-15
144. P0005180
145. Fork carriage unit, integrated sideshift, fork spread 2009-04-15
146. P0007684
147. Other load carriers 2006-06-08
148. P0019044
149. Charger attachment 2009-10-13
150. P0036945
151. Extra electrical equipment 2010-06-14
152. P0035990
153. Truck log device, code locking device 2010-01-14
154. P0023658
155. Other extra equipment 2009-04-15
