  • Type Of Manual: Quality Parts
  • Manual ID: 7519409
  • : Parts Manual PDF
  • Number of Pages: 133
  • Size: 7.9MB
  • Format: PDF
Category:

Product details

  • Model List:

    • OME100
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0036530
  • 11. Inspection covers 2010-04-23
  • 12. P0005125
  • 13. Battery compartment parts 2009-04-15
  • 14. P0010641
  • 15. Motor fixing points 2009-09-29
  • 16. P0018108
  • 17. Motor fixing points 2009-09-29
  • 18. P0007168
  • 19. Cabin windows 2006-06-08
  • 20. P0033564
  • 21. Platform incl. fixing points 2008-12-12
  • 22. P0036575
  • 23. Platform incl. fixing points 2010-04-22
  • 24. P0007171
  • 25. Wall/floor covering 2006-06-08
  • 26. P0035822
  • 27. Internal fittings 2009-11-23
  • 28. P0019968
  • 29. Driver protection 2009-09-29
  • 30. P0036597
  • 31. Signs, warnings, decals 2010-04-22
  • 32. P0036598
  • 33. Signs, warnings, decals 2010-04-22
  • 34. P0032204
  • 35. Electric pump motor 2009-09-29
  • 36. P0032590
  • 37. Electric steering motor 2009-09-29
  • 38. P0007182
  • 39. Electric fan motor, electric fan 2006-06-08
  • 40. P0036596
  • 41. Electric drive motor 2010-04-22
  • 42. P0036594
  • 43. Mechanical drive gear unit 2010-04-23
  • 44. P0011612
  • 45. Electromagnetic parking brake 2009-09-29
  • 46. P0005304
  • 47. Drive wheel 2009-04-15
  • 48. P0005142
  • 49. Fork/support arm wheels 2009-04-15
  • 50. P0035635
  • 51. Steering arm/wheel/lever 2009-10-22
  • 52. P0010599
  • 53. Steering chain/linkage/wire 2009-04-15
  • 54. P0011613
  • 55. Steering bearings, radial bearing 2009-09-29
  • 56. P0018122
  • 57. General alarm signals (audible/visual) 2006-06-08
  • 58. P0036455
  • 59. General alarm signals (audible/visual) 2010-04-01
  • 60. P0026746
  • 61. Battery cut out connector/contactor 2010-02-23
  • 62. P0036474
  • 63. Battery cut out connector/contactor 2010-04-13
  • 64. P0011615
  • 65. Instrument panel, display 2009-04-15
  • 66. P0012442
  • 67. Level/position transducers/lamps 2009-09-29
  • 68. P0036447
  • 69. Level/position transducers/lamps 2010-06-03
  • 70. P0000151
  • 71. Start/stop switch 2009-04-15
  • 72. P0005162
  • 73. Speed control 2009-04-15
  • 74. P0032404
  • 75. Driving function harnesses/fuse 2009-09-29
  • 76. P0021636

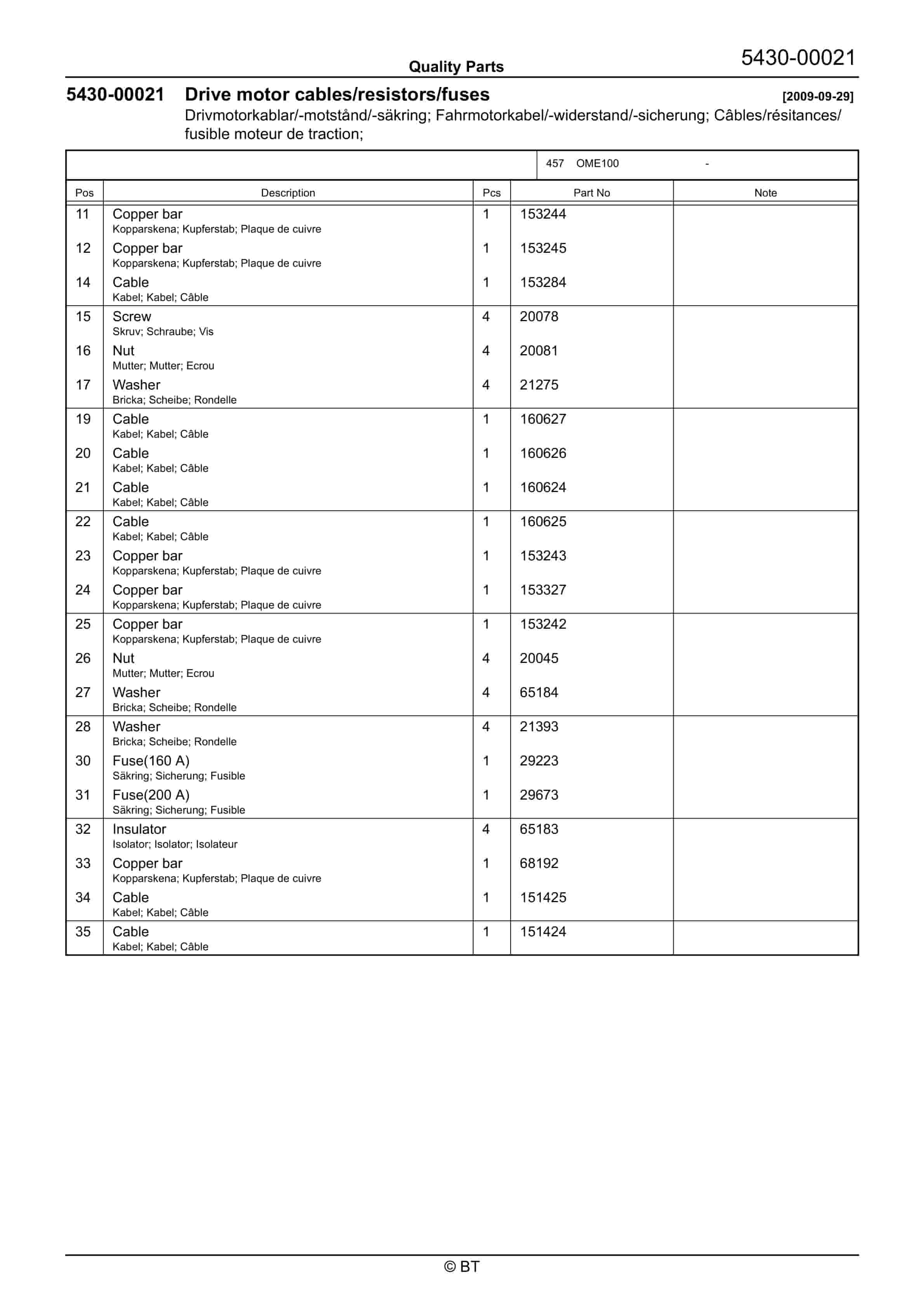

  • 77. Drive motor cables/resistors/fuses 2009-09-29
  • 78. P0026532
  • 79. Direction contactors 2009-04-15
  • 80. P0002977
  • 81. Transistor panel 2009-04-15
  • 82. P0009662
  • 83. Work function micro switches, potentiometers 2009-04-15
  • 84. P0036591
  • 85. Work function harnesses/fuse 2010-04-22
  • 86. P0032421
  • 87. Pump contactor 2009-04-15
  • 88. P0036592
  • 89. Battery/motor cables, fuse 2010-04-22
  • 90. P0005171
  • 91. Drive/multi-function PCBs 2009-04-15

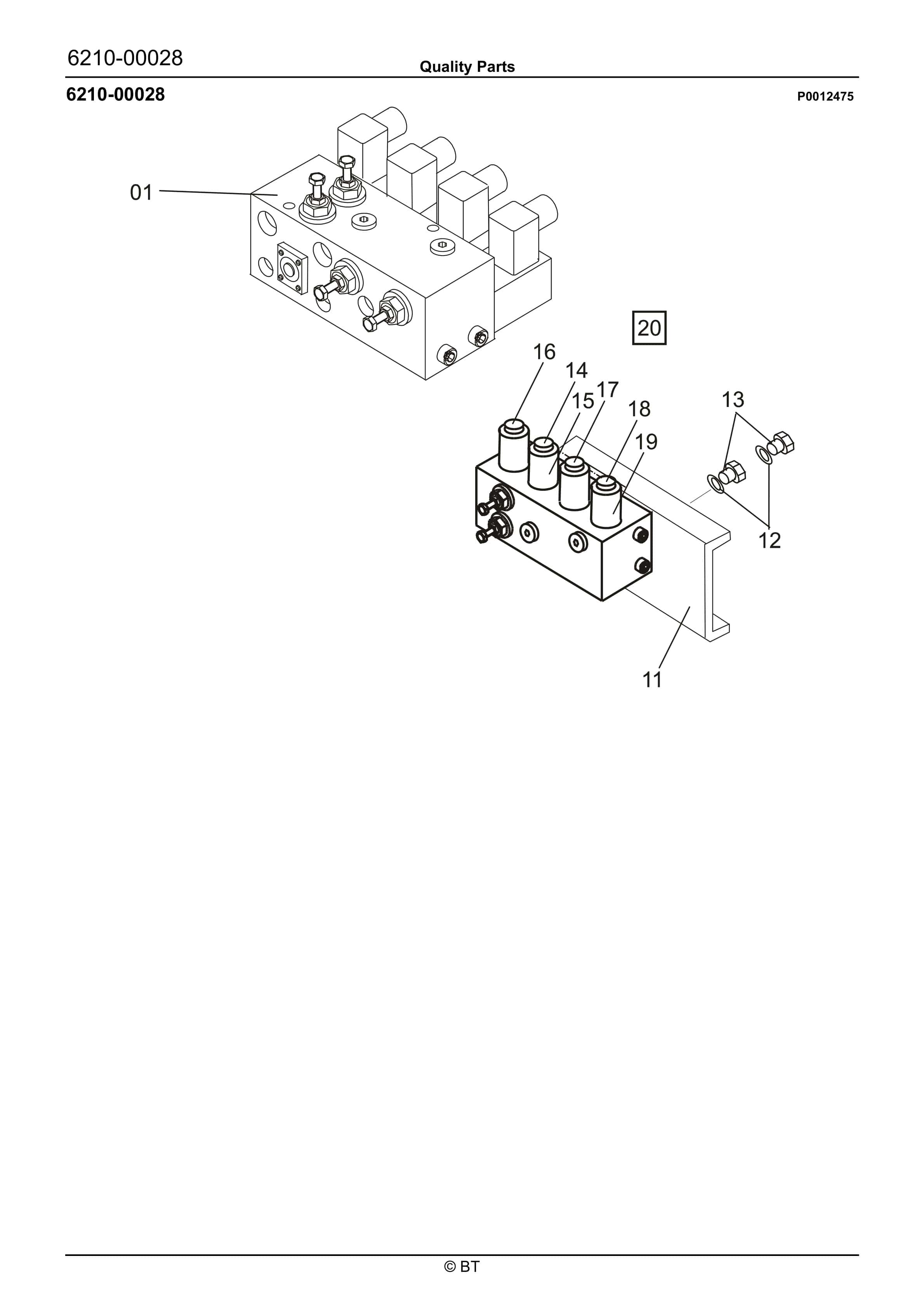

  • 92. P0006016
  • 93. Drive/multi-function PCBs 2009-09-16
  • 94. P0035430
  • 95. Safety/ position probes/ sensors 2009-09-29
  • 96. P0007678
  • 97. Safety/ position probes/ sensors 2009-04-15
  • 98. P0005161
  • 99. Emitting/receiving equipment 2009-04-15
  • 100. P0020033
  • 101. Safety electronics harnesses, fuse 2009-05-11
  • 102. P0034665
  • 103. Safety probes/sensors 2009-05-12
  • 104. P0031458

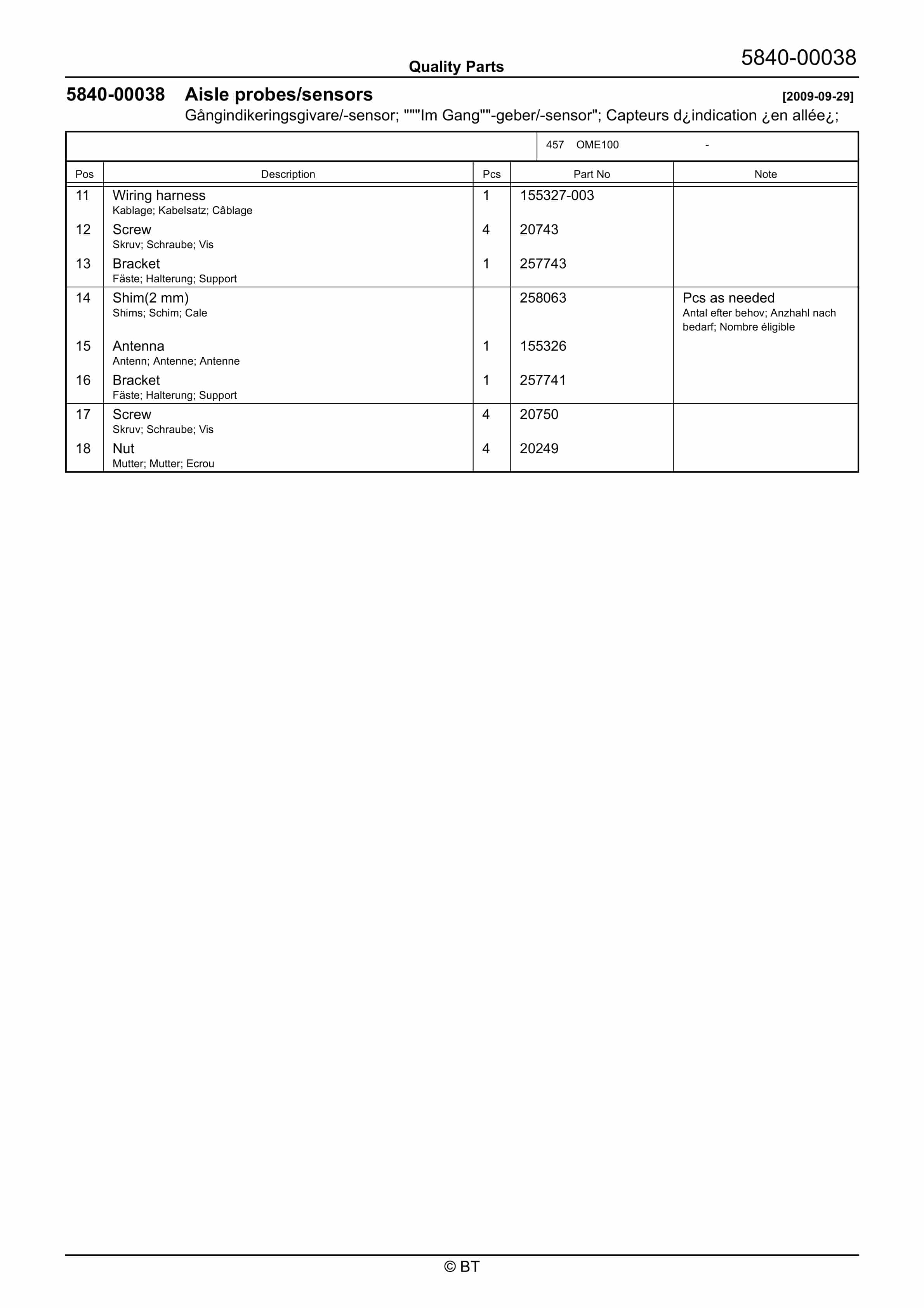

  • 105. Aisle probes/sensors 2009-09-29
  • 106. P0005163
  • 107. Hydraulic tank 2009-04-15
  • 108. P0016102
  • 109. Hydraulic tank lines 2009-04-15
  • 110. P0032430
  • 111. Hydraulic tank lines 2009-04-15
  • 112. P0011629
  • 113. Filters and housing 2009-04-15
  • 114. P0033896
  • 115. Hydraulic pump 2009-04-15
  • 116. P0012475
  • 117. Main valve unit lift/reach/tilt 2009-04-15
  • 118. P0036589
  • 119. Mast hose reel/swivel joint 2010-04-22
  • 120. P0012590
  • 121. Main lift cylinders 2006-06-08
  • 122. P0005178

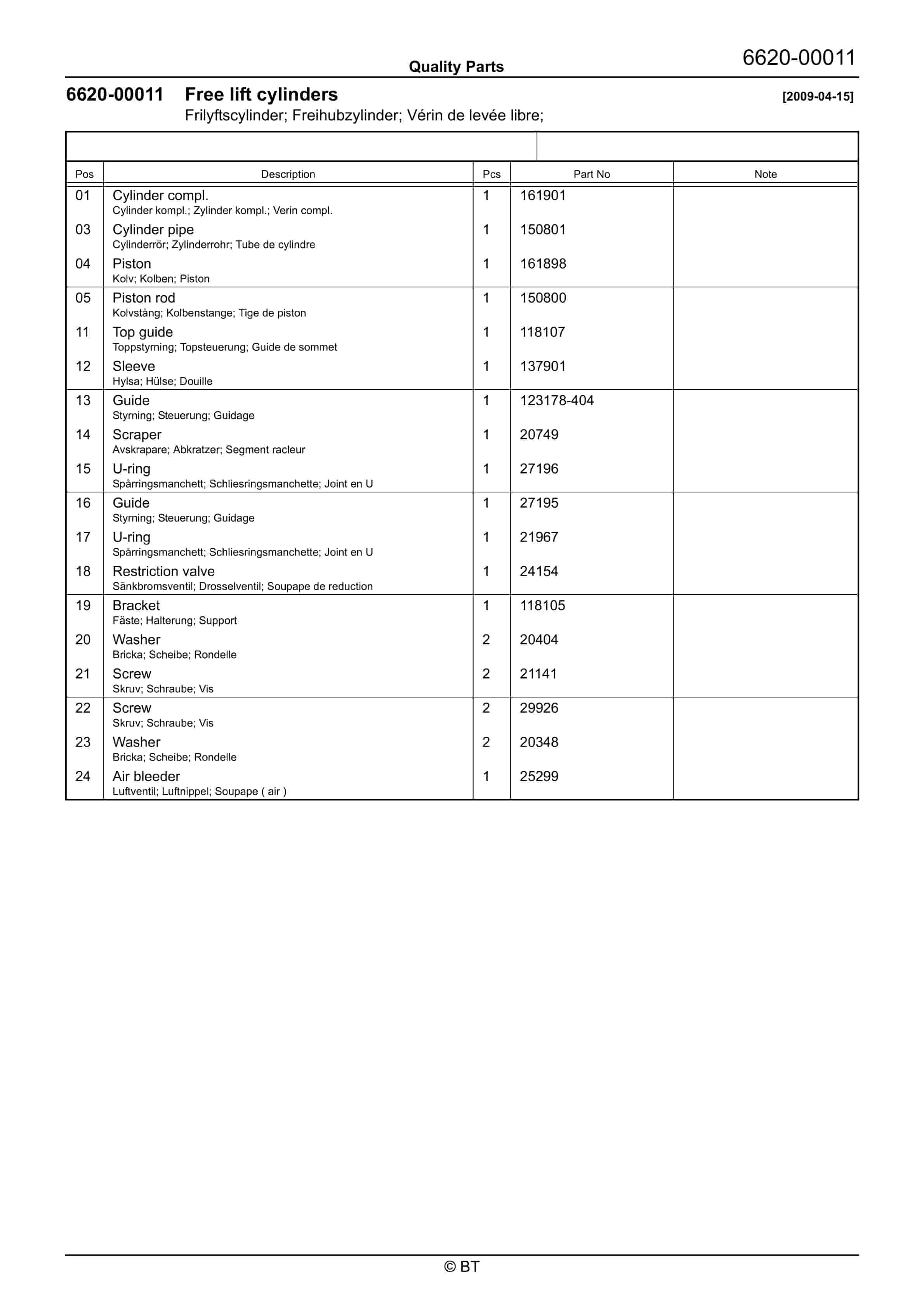

  • 123. Free lift cylinders 2009-04-15
  • 124. P0005178
  • 125. Support arm/initial lift cylinders 2009-04-15
  • 126. P0036587
  • 127. Main lift chain system 2010-04-22
  • 128. P0036588
  • 129. Main lift chain system 2010-04-22
  • 130. P0005174
  • 131. Main mast fork carriage 2009-04-15
  • 132. P0007184
  • 133. Main mast guidance/dampers 2006-06-08
  • 134. P0005176
  • 135. Main mast suspension 2009-04-15
  • 136. P0005212
  • 137. Fork, carpet boom, lift hook 2009-04-15
  • 138. P0036452
  • 139. Fork carriage unit, integrated sideshift, fork spread 2010-04-01
  • 140. P0019044
  • 141. Charger attachment 2009-10-13
  • 142. P0031447
  • 143. Extra electrical equipment 2009-04-15
  • 144. P0036459
  • 145. Extra electrical equipment 2010-04-01
  • 146. P0035990
  • 147. Truck log device, code locking device 2010-01-14
  • 148. P0023658
  • 149. Other extra equipment 2009-04-15
