BT OME100 Quality Parts 7530708

$30.00

Type Of Manual: Quality Parts
Manual ID: 7530708
: Parts Manual PDF
Number of Pages: 143
Size: 8.4MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- OME100

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0036530
11. Inspection covers 2010-04-23
12. P0005125
13. Battery compartment parts 2009-04-15
14. P0010641
15. Motor fixing points 2009-09-29
16. P0018108
17. Motor fixing points 2009-09-29
18. P0039134
19. Driver compartment, cabin 2011-03-23
20. P0007168
21. Cabin windows 2006-06-08
22. P0036575
23. Platform incl. fixing points 2010-04-22
24. P0036951
25. Platform incl. fixing points 2010-06-14
26. P0036952
27. Platform incl. fixing points 2010-06-14
28. P0039132
29. Wall/floor covering 2011-03-23
30. P0035822
31. Internal fittings 2009-11-23
32. P0036953
33. Driver protection 2010-06-14
34. P0038883
35. Driver protection 2011-02-17
36. P0038884
37. Driver protection 2011-02-17
38. P0036963
39. Signs, warnings, decals 2010-06-14
40. P0036970
41. Signs, warnings, decals 2011-03-02
42. P0032204
43. Electric pump motor 2009-09-29
44. P0037428
45. Electric steering motor 2010-09-21
46. P0007182
47. Electric fan motor, electric fan 2006-06-08
48. P0036596
49. Electric drive motor 2010-04-22
50. P0036594
51. Mechanical drive gear unit 2010-04-23
52. P0011612
53. Electromagnetic parking brake 2010-12-08
54. P0005304
55. Drive wheel 2009-04-15
56. P0005142
57. Fork/support arm wheels 2009-04-15
58. P0035635
59. Steering arm/wheel/lever 2009-10-22
60. P0010599
61. Steering chain/linkage/wire 2009-04-15
62. P0011613
63. Steering bearings, radial bearing 2009-09-29
64. P0037375
65. General alarm signals (audible/visual) 2010-09-21
66. P0026746
67. Battery cut out connector/contactor 2010-12-02
68. P0011615
69. Instrument panel, display 2009-04-15
70. P0036447
71. Level/position transducers/lamps 2010-06-03
72. P0038165
73. Level/position transducers/lamps 2010-11-11

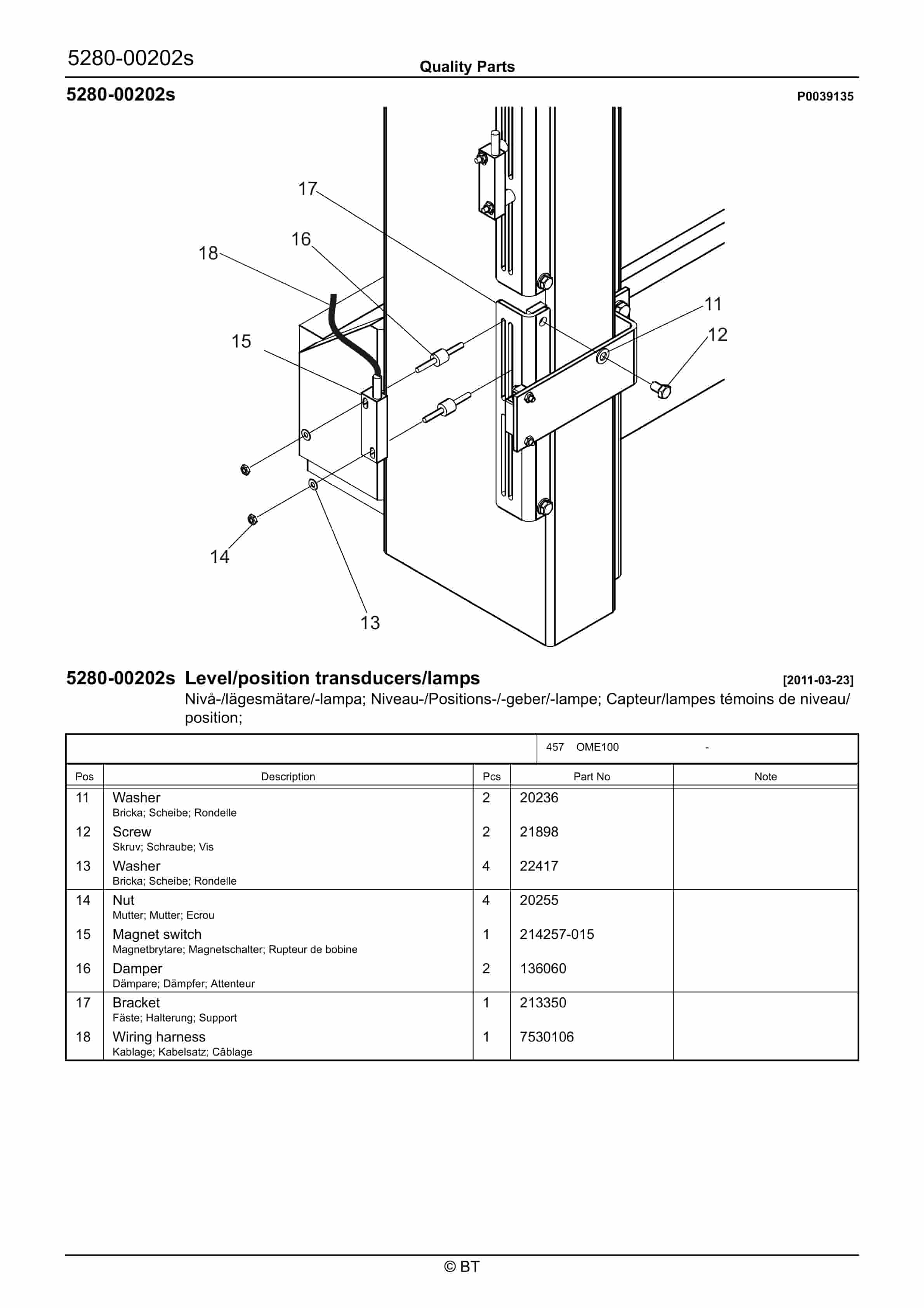

74. P0039135
75. Level/position transducers/lamps 2011-03-23
76. P0000151
77. Start/stop switch 2009-04-15
78. P0005162
79. Speed control 2009-04-15
80. P0037376
81. Driving function harnesses/fuse 2010-09-21
82. P0021636
83. Drive motor cables/resistors/fuses 2009-09-29
84. P0026532
85. Direction contactors 2009-04-15
86. P0002977
87. Transistor panel 2009-04-15
88. P0009662
89. Work function micro switches, potentiometers 2009-04-15
90. P0036591
91. Work function harnesses/fuse 2010-04-22
92. P0032421
93. Pump contactor 2009-04-15
94. P0036592
95. Battery/motor cables, fuse 2010-04-22
96. P0005171
97. Drive/multi-function PCBs 2009-04-15
98. P0006016
99. Drive/multi-function PCBs 2011-02-14
100. P0035430
101. Safety/ position probes/ sensors 2009-09-29
102. P0007678
103. Safety/ position probes/ sensors 2009-04-15

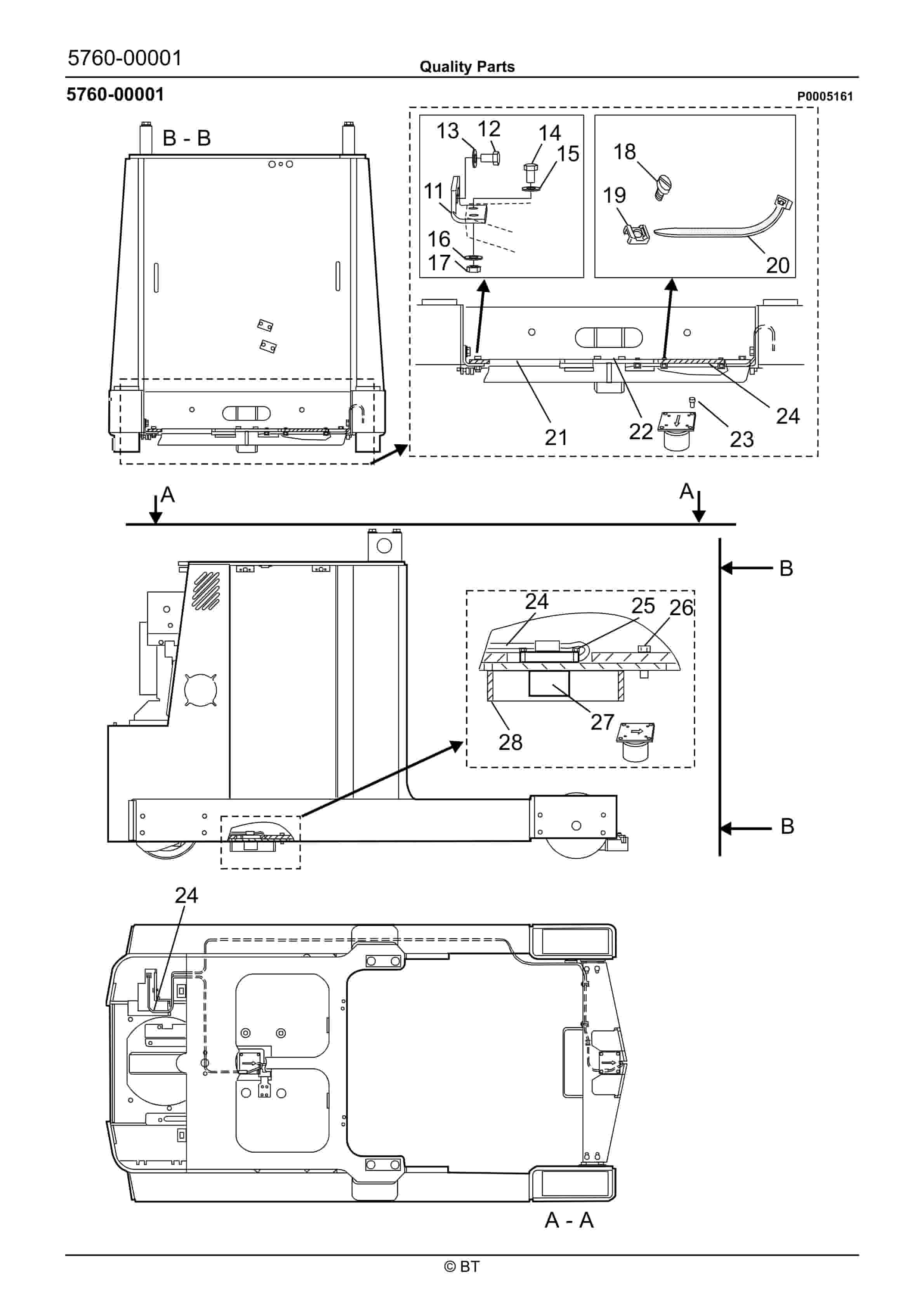

104. P0005161
105. Emitting/receiving equipment 2009-04-15
106. P0020033
107. Safety electronics harnesses, fuse 2009-05-11
108. P0034665
109. Safety probes/sensors 2009-05-12
110. P0031458
111. Aisle probes/sensors 2009-09-29
112. P0005163
113. Hydraulic tank 2009-04-15
114. P0016102
115. Hydraulic tank lines 2010-12-09

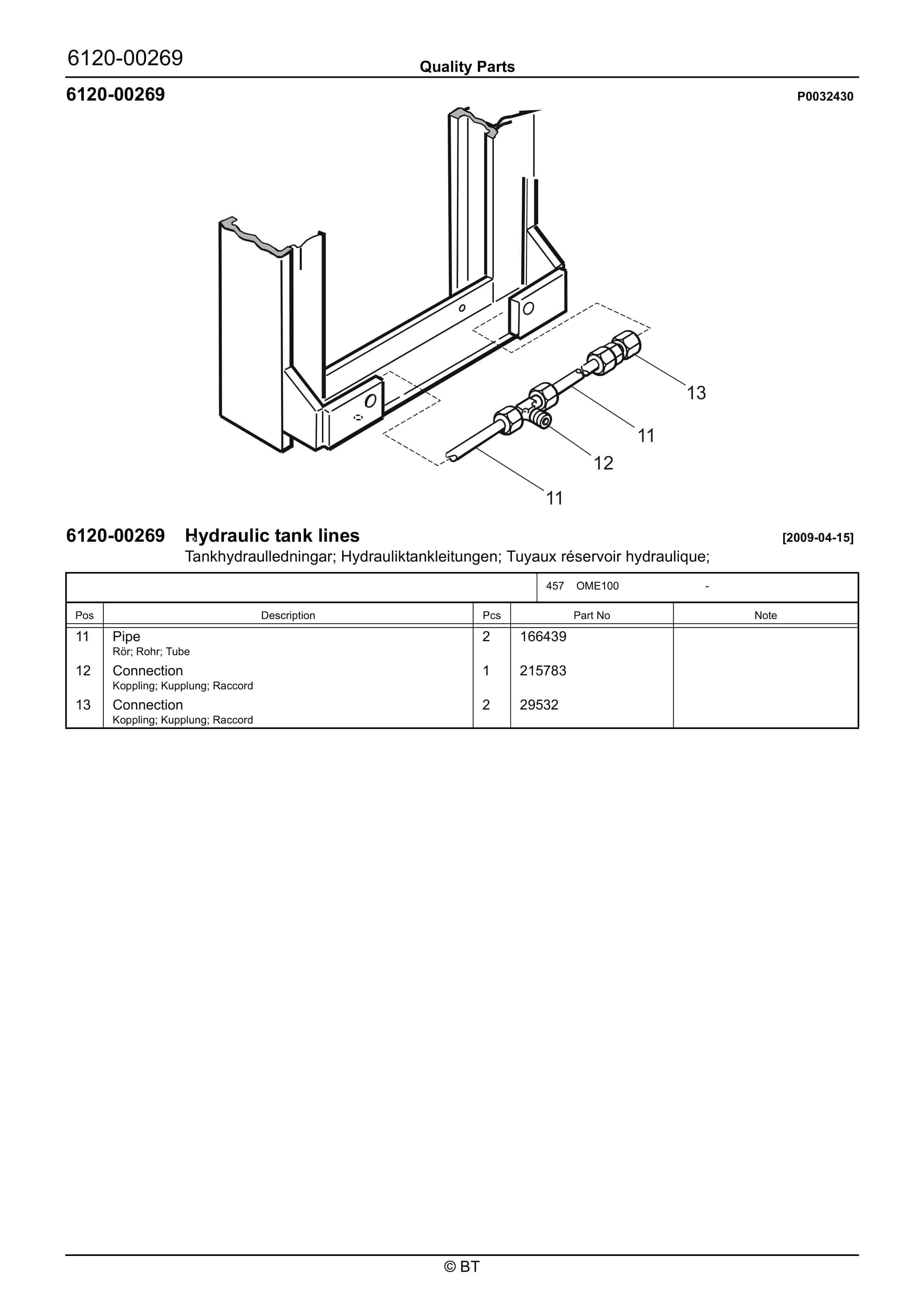

116. P0032430
117. Hydraulic tank lines 2009-04-15
118. P0011629
119. Filters and housing 2009-04-15
120. P0033896
121. Hydraulic pump 2009-04-15
122. P0012475
123. Main valve unit lift/reach/tilt 2009-04-15
124. P0036589

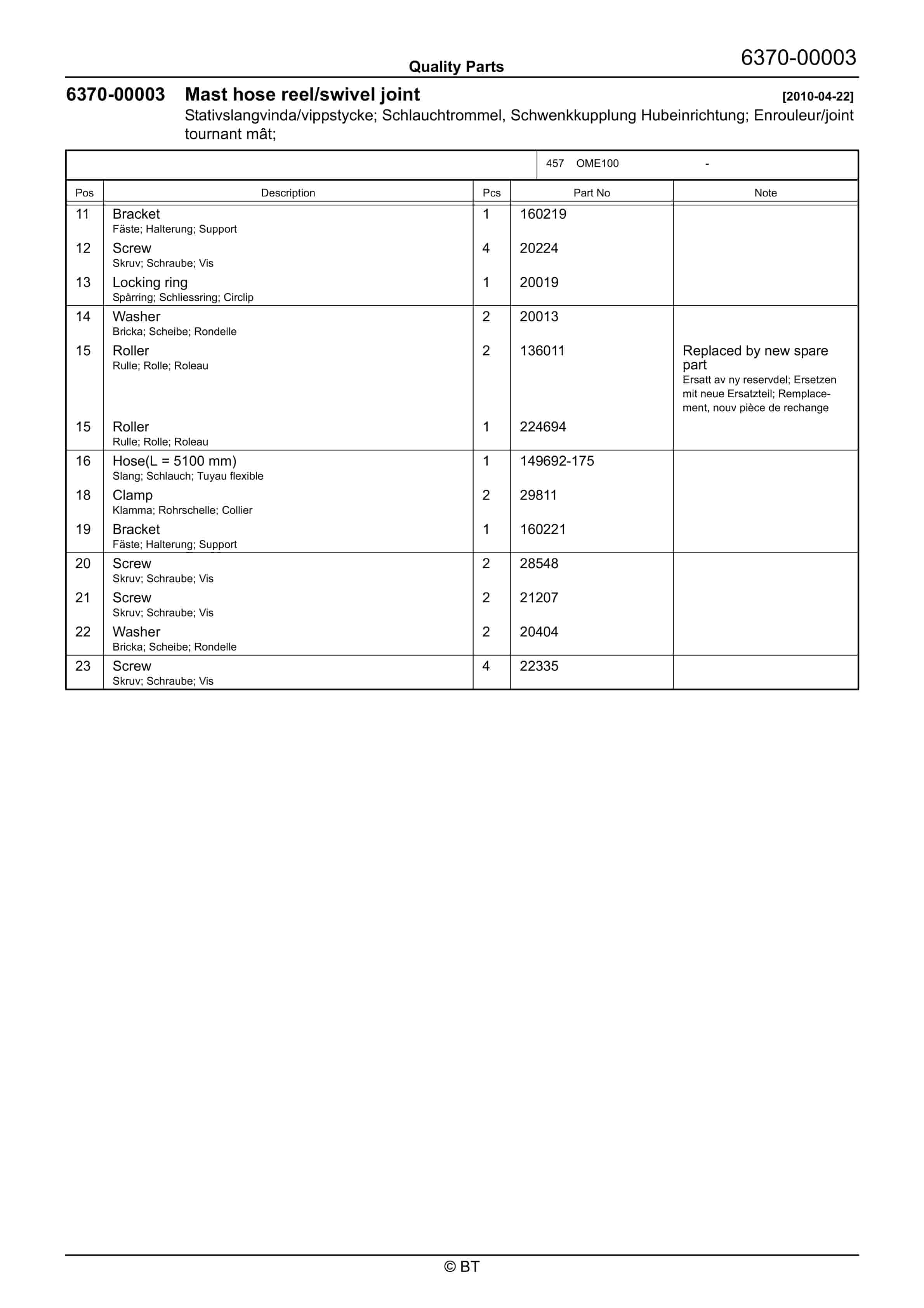

125. Mast hose reel/swivel joint 2010-04-22
126. P0012590
127. Main lift cylinders 2006-06-08
128. P0005178
129. Free lift cylinders 2009-04-15
130. P0005178
131. Support arm/initial lift cylinders 2009-04-15
132. P0036587
133. Main lift chain system 2010-04-22
134. P0036588
135. Main lift chain system 2010-04-22
136. P0005174
137. Main mast fork carriage 2009-04-15
138. P0007184
139. Main mast guidance/dampers 2006-06-08
140. P0005176
141. Main mast suspension 2009-04-15
142. P0005212
143. Fork, carpet boom, lift hook 2009-04-15
144. P0005180
145. Fork carriage unit, integrated sideshift, fork spread 2009-04-15
146. P0019044
147. Charger attachment 2010-12-29
148. P0036945
149. Extra electrical equipment 2010-06-14
150. P0035990
151. Truck log device, code locking device 2010-01-14
152. P0023658
153. Other extra equipment 2009-04-15
154. P0036425
155. Other extra equipment 2010-07-09
