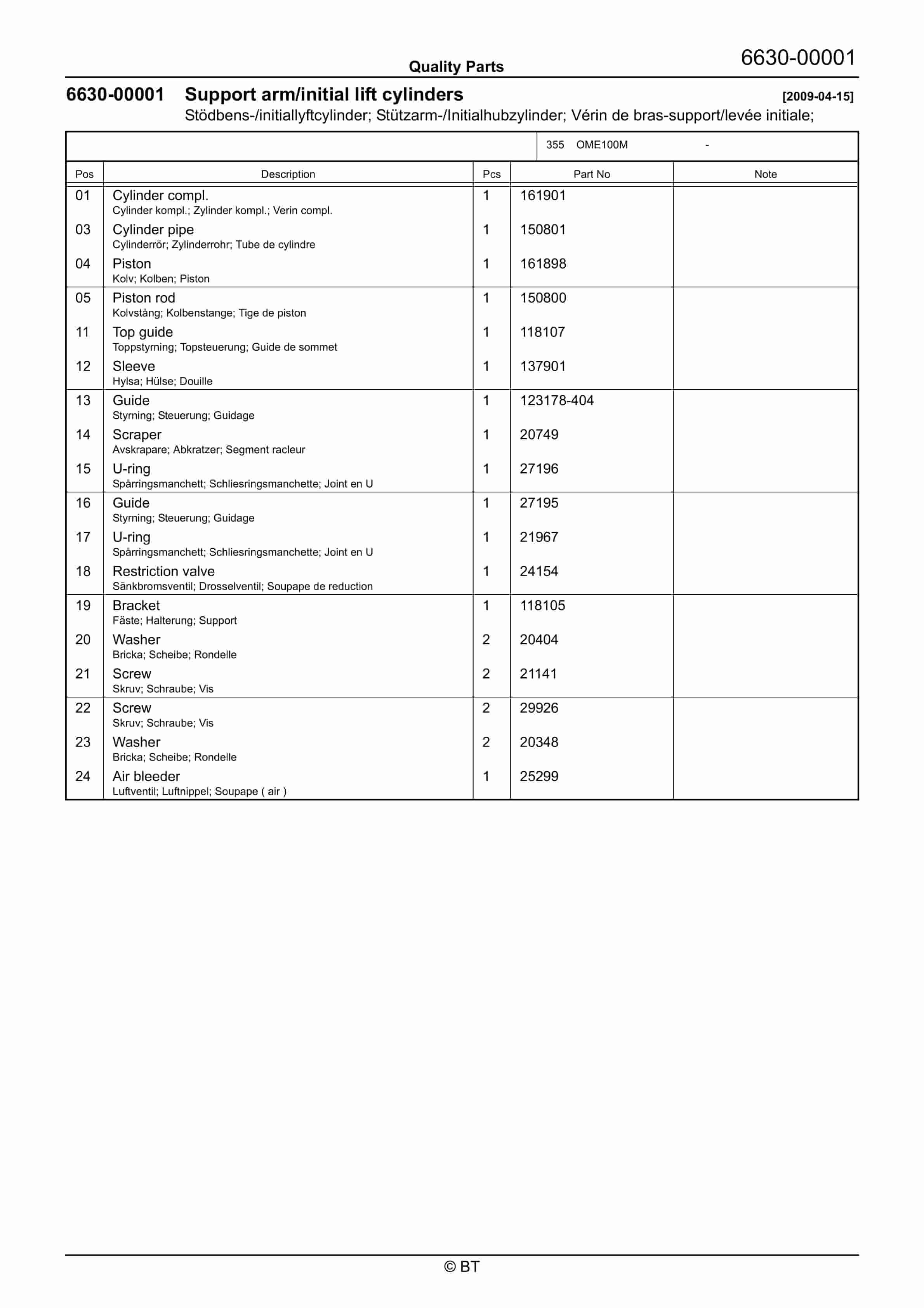

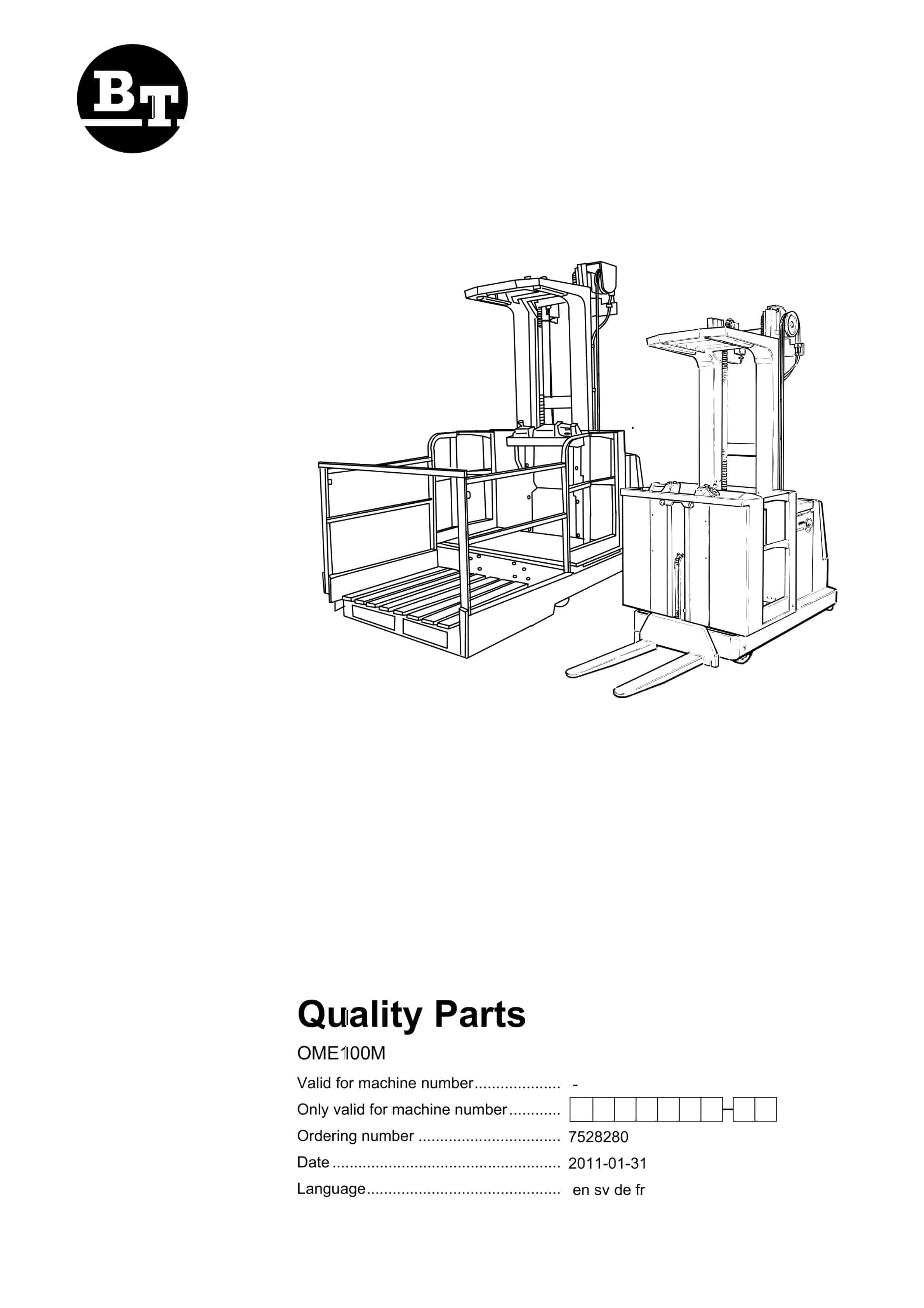

BT OME100M Quality Parts 7528280

$30.00

Type Of Manual: Quality Parts
Manual ID: 7528280
: Parts Manual PDF
Number of Pages: 145
Size: 9.9MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- OME100M

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0035604
11. Inspection covers 2010-04-22
12. P0005125
13. Battery compartment parts 2009-04-15
14. P0010641
15. Motor fixing points 2009-09-29
16. P0018108
17. Motor fixing points 2009-09-29
18. P0005137
19. Cabin windows 2009-04-15
20. P0036575
21. Platform incl. fixing points 2010-04-22
22. P0005133
23. Wall/floor covering 2009-04-15
24. P0005129
25. Internal fittings 2009-04-15
26. P0005130
27. Safety equipment 2009-04-15
28. P0036953
29. Driver protection 2010-06-14
30. P0036963
31. Signs, warnings, decals 2010-06-14
32. P0036972
33. Signs, warnings, decals 2010-06-14
34. P0032204
35. Electric pump motor 2009-09-29
36. P0037428
37. Electric steering motor 2010-09-21
38. P0005160
39. Electric fan motor, electric fan 2009-04-15
40. P0036596
41. Electric drive motor 2010-04-22
42. P0036594
43. Mechanical drive gear unit 2010-04-23
44. P0011612
45. Electromagnetic parking brake 2010-12-08
46. P0005304
47. Drive wheel 2009-04-15
48. P0005142
49. Fork/support arm wheels 2009-04-15
50. P0036605
51. Steering arm/wheel/lever 2010-04-23
52. P0010599
53. Steering chain/linkage/wire 2009-04-15
54. P0011613
55. Steering bearings, radial bearing 2009-09-29
56. P0029029
57. Lighting 2009-04-15
58. P0028402
59. General alarm signals (audible/visual) 2009-04-15
60. P0037375
61. General alarm signals (audible/visual) 2010-09-21
62. P0026746
63. Battery cut out connector/contactor 2010-12-02
64. P0011615
65. Instrument panel, display 2009-04-15
66. P0036447
67. Level/position transducers/lamps 2010-06-03
68. P0038164
69. Level/position transducers/lamps 2010-11-11
70. P0000151
71. Start/stop switch 2009-04-15
72. P0005162
73. Speed control 2009-04-15
74. P0037377
75. Driving function harnesses/fuse 2010-09-21
76. P0038708
77. Driving function harnesses/fuse 2011-01-31
78. P0021636

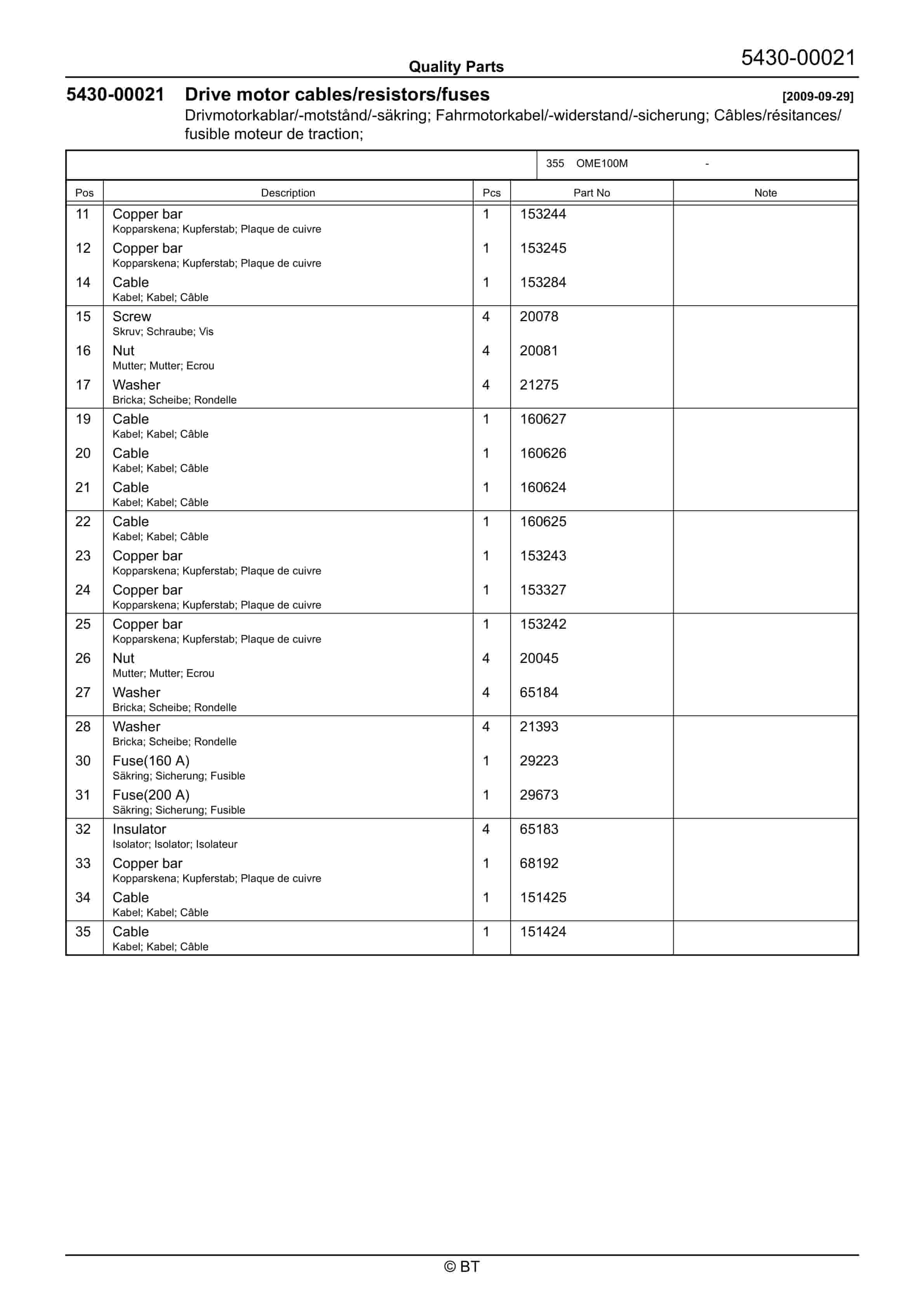

79. Drive motor cables/resistors/fuses 2009-09-29
80. P0026532
81. Direction contactors 2009-04-15
82. P0002977
83. Transistor panel 2009-04-15
84. P0009662
85. Work function micro switches, potentiometers 2009-04-15
86. P0038709
87. Work function harnesses/fuse 2011-01-31
88. P0032421
89. Pump contactor 2009-04-15
90. P0036592
91. Battery/motor cables, fuse 2010-04-22
92. P0005171
93. Drive/multi-function PCBs 2009-04-15
94. P0006016
95. Drive/multi-function PCBs 2009-09-16
96. P0035430
97. Safety/ position probes/ sensors 2009-09-29
98. P0007678
99. Safety/ position probes/ sensors 2009-04-15
100. P0005161
101. Emitting/receiving equipment 2009-04-15
102. P0020033
103. Safety electronics harnesses, fuse 2009-05-11
104. P0034665
105. Safety probes/sensors 2009-05-12
106. P0035417
107. Safety probes/sensors 2009-10-22
108. P0031458
109. Aisle probes/sensors 2009-09-29
110. P0005163
111. Hydraulic tank 2009-04-15
112. P0016102
113. Hydraulic tank lines 2010-12-09
114. P0032430
115. Hydraulic tank lines 2009-04-15
116. P0011629
117. Filters and housing 2009-04-15
118. P0033896
119. Hydraulic pump 2009-04-15
120. P0012475

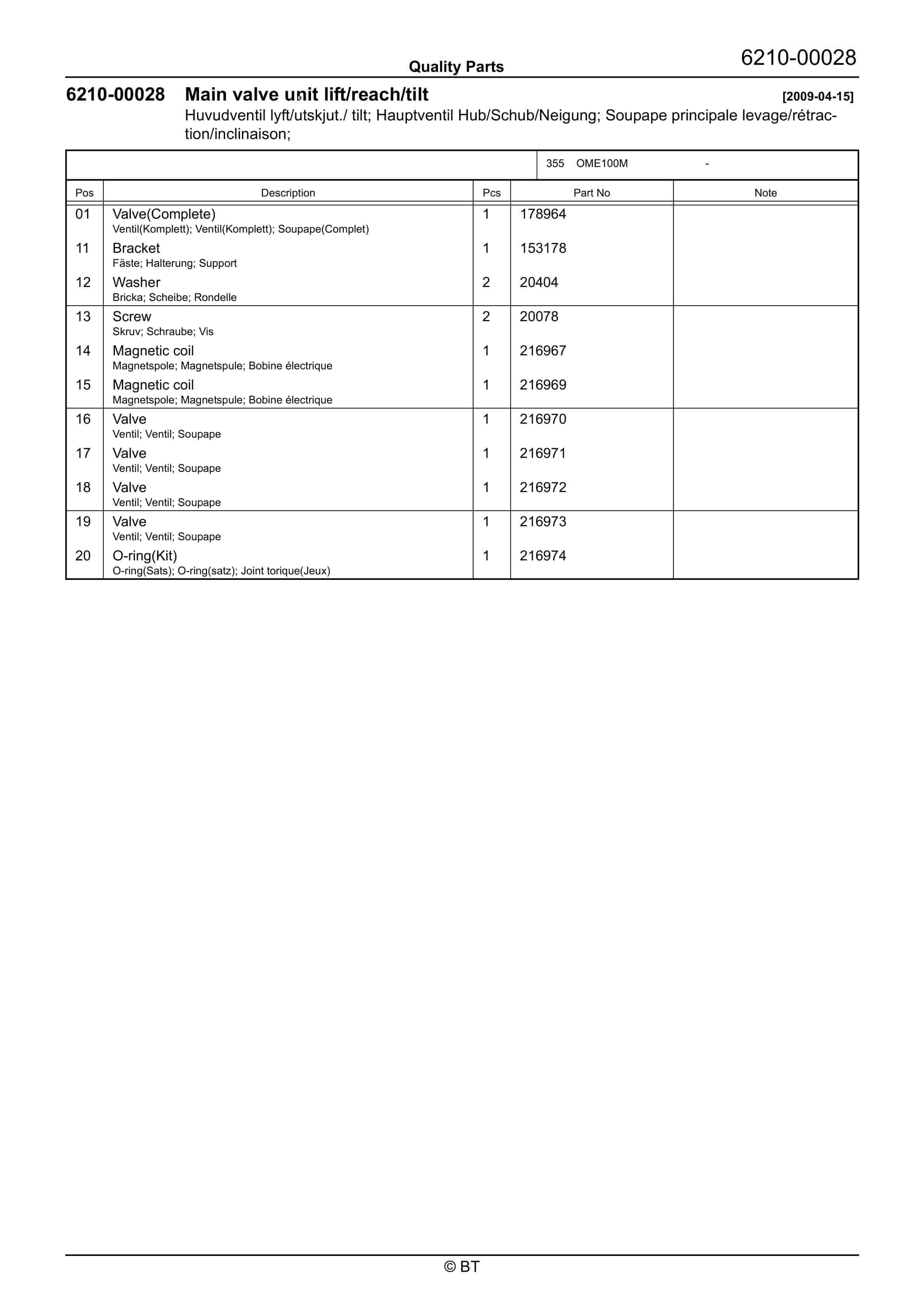

121. Main valve unit lift/reach/tilt 2009-04-15
122. P0016103
123. Mast hose reel/swivel joint 2009-04-15
124. P0016104
125. Main lift cylinders 2009-04-15
126. P0005178
127. Free lift cylinders 2009-04-15
128. P0005178
129. Support arm/initial lift cylinders 2009-04-15
130. P0036603
131. Main lift chain system 2010-04-23
132. P0032569
133. Main lift chain system 2009-04-15
134. P0005174
135. Main mast fork carriage 2009-04-15
136. P0016106
137. Main mast guidance/dampers 2009-04-15
138. P0005176
139. Main mast suspension 2009-04-15
140. P0005212
141. Fork, carpet boom, lift hook 2009-04-15
142. P0005180
143. Fork carriage unit, integrated sideshift, fork spread 2009-04-15
144. P0019044
145. Charger attachment 2010-12-29
146. P0036945
147. Extra electrical equipment 2010-06-14
148. P0035989
149. Truck log device, code locking device 2010-01-14
150. P0023658
151. Other extra equipment 2009-04-15
152. P0030917
153. Other extra equipment 2010-01-19
154. P0031441
155. Other extra equipment 2009-04-15
156. P0031625
157. Other extra equipment 2009-04-15
158. P0036425
159. Other extra equipment 2010-07-09
160. P0038710
161. Other extra equipment 2011-01-31
