BT OME100M Quality Parts 7528822

$30.00

Type Of Manual: Quality Parts
Manual ID: 7528822
: Parts Manual PDF
Number of Pages: 149
Size: 9.6MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- OME100M

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0035604
11. Inspection covers 2010-04-22
12. P0037821
13. Inspection covers 2010-10-11
14. P0005125
15. Battery compartment parts 2009-04-15
16. P0010641
17. Motor fixing points 2009-09-29
18. P0018108
19. Motor fixing points 2009-09-29
20. P0005137
21. Cabin windows 2009-04-15
22. P0036575
23. Platform incl. fixing points 2010-04-22
24. P0005133
25. Wall/floor covering 2009-04-15
26. P0005129
27. Internal fittings 2009-04-15
28. P0005130
29. Safety equipment 2009-04-15
30. P0036953
31. Driver protection 2010-06-14
32. P0036963
33. Signs, warnings, decals 2010-06-14
34. P0036972
35. Signs, warnings, decals 2010-06-14
36. P0032204
37. Electric pump motor 2009-09-29
38. P0037428
39. Electric steering motor 2010-09-21
40. P0005160
41. Electric fan motor, electric fan 2009-04-15
42. P0036596
43. Electric drive motor 2010-04-22
44. P0036594
45. Mechanical drive gear unit 2010-04-23
46. P0011612
47. Electromagnetic parking brake 2010-12-08
48. P0005304
49. Drive wheel 2009-04-15
50. P0037822
51. Fork/support arm wheels 2010-10-11
52. P0036605
53. Steering arm/wheel/lever 2010-04-23
54. P0037819
55. Steering arm/wheel/lever 2010-10-11
56. P0010599
57. Steering chain/linkage/wire 2009-04-15
58. P0011613
59. Steering bearings, radial bearing 2009-09-29
60. P0029029
61. Lighting 2009-04-15
62. P0028402
63. General alarm signals (audible/visual) 2009-04-15
64. P0037375
65. General alarm signals (audible/visual) 2010-09-21
66. P0026746
67. Battery cut out connector/contactor 2010-12-02
68. P0011615
69. Instrument panel, display 2009-04-15
70. P0036447
71. Level/position transducers/lamps 2010-06-03
72. P0038164
73. Level/position transducers/lamps 2010-11-11
74. P0000151
75. Start/stop switch 2009-04-15
76. P0005162
77. Speed control 2009-04-15
78. P0037377
79. Driving function harnesses/fuse 2010-09-21
80. P0021636

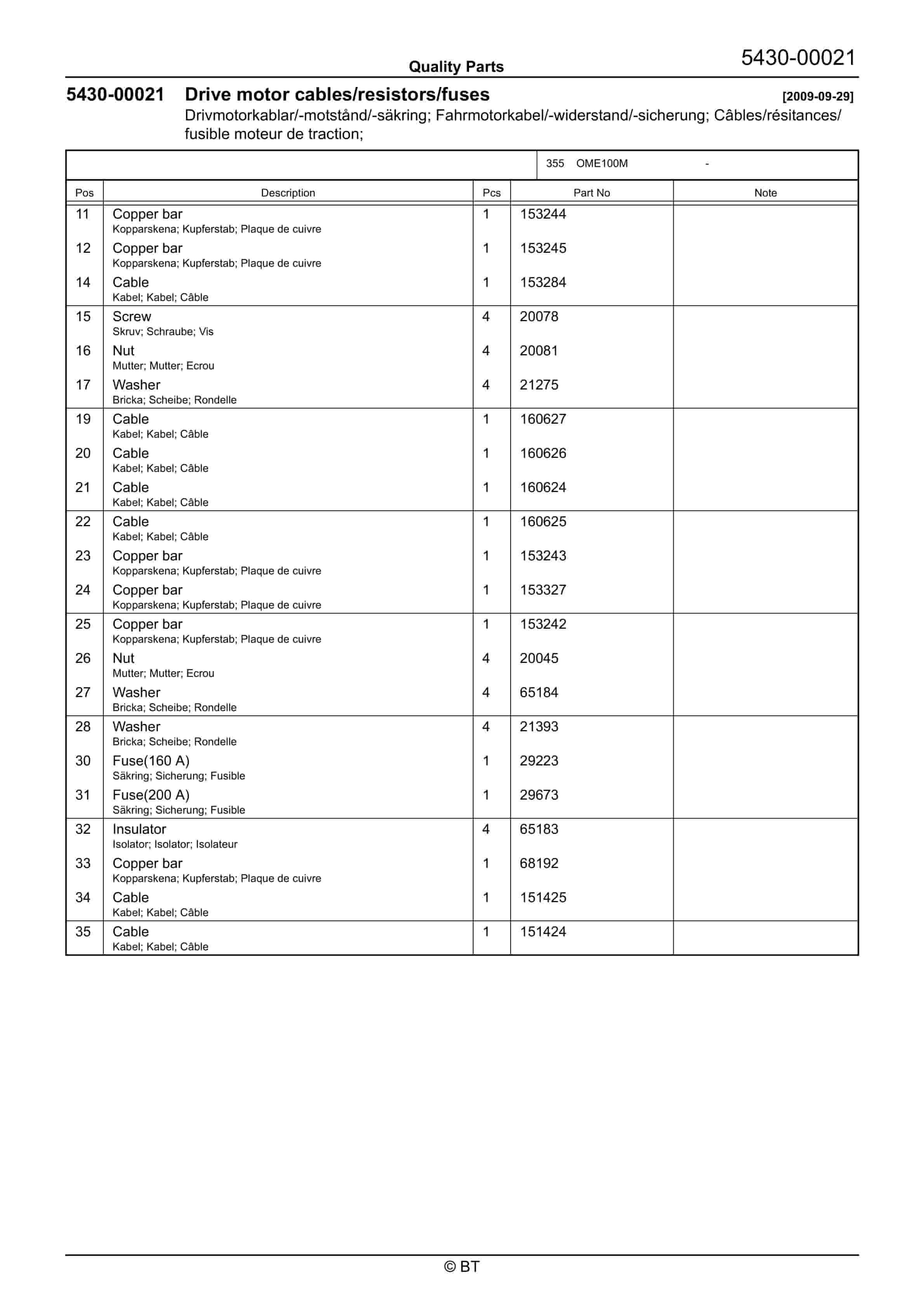

81. Drive motor cables/resistors/fuses 2009-09-29
82. P0026532
83. Direction contactors 2009-04-15
84. P0002977
85. Transistor panel 2009-04-15
86. P0009662
87. Work function micro switches, potentiometers 2009-04-15
88. P0035419
89. Work function harnesses/fuse 2009-10-22
90. P0032421
91. Pump contactor 2009-04-15
92. P0036592
93. Battery/motor cables, fuse 2010-04-22
94. P0005171
95. Drive/multi-function PCBs 2009-04-15
96. P0006016
97. Drive/multi-function PCBs 2011-02-14
98. P0035430
99. Safety/ position probes/ sensors 2009-09-29
100. P0007678
101. Safety/ position probes/ sensors 2009-04-15
102. P0005161
103. Emitting/receiving equipment 2009-04-15
104. P0020033
105. Safety electronics harnesses, fuse 2009-05-11
106. P0034665
107. Safety probes/sensors 2009-05-12
108. P0035417
109. Safety probes/sensors 2009-10-22
110. P0031458
111. Aisle probes/sensors 2009-09-29
112. P0005163
113. Hydraulic tank 2009-04-15
114. P0016102
115. Hydraulic tank lines 2010-12-09
116. P0032430
117. Hydraulic tank lines 2009-04-15
118. P0011629
119. Filters and housing 2009-04-15
120. P0037823
121. Filters and housing 2010-10-11
122. P0033896

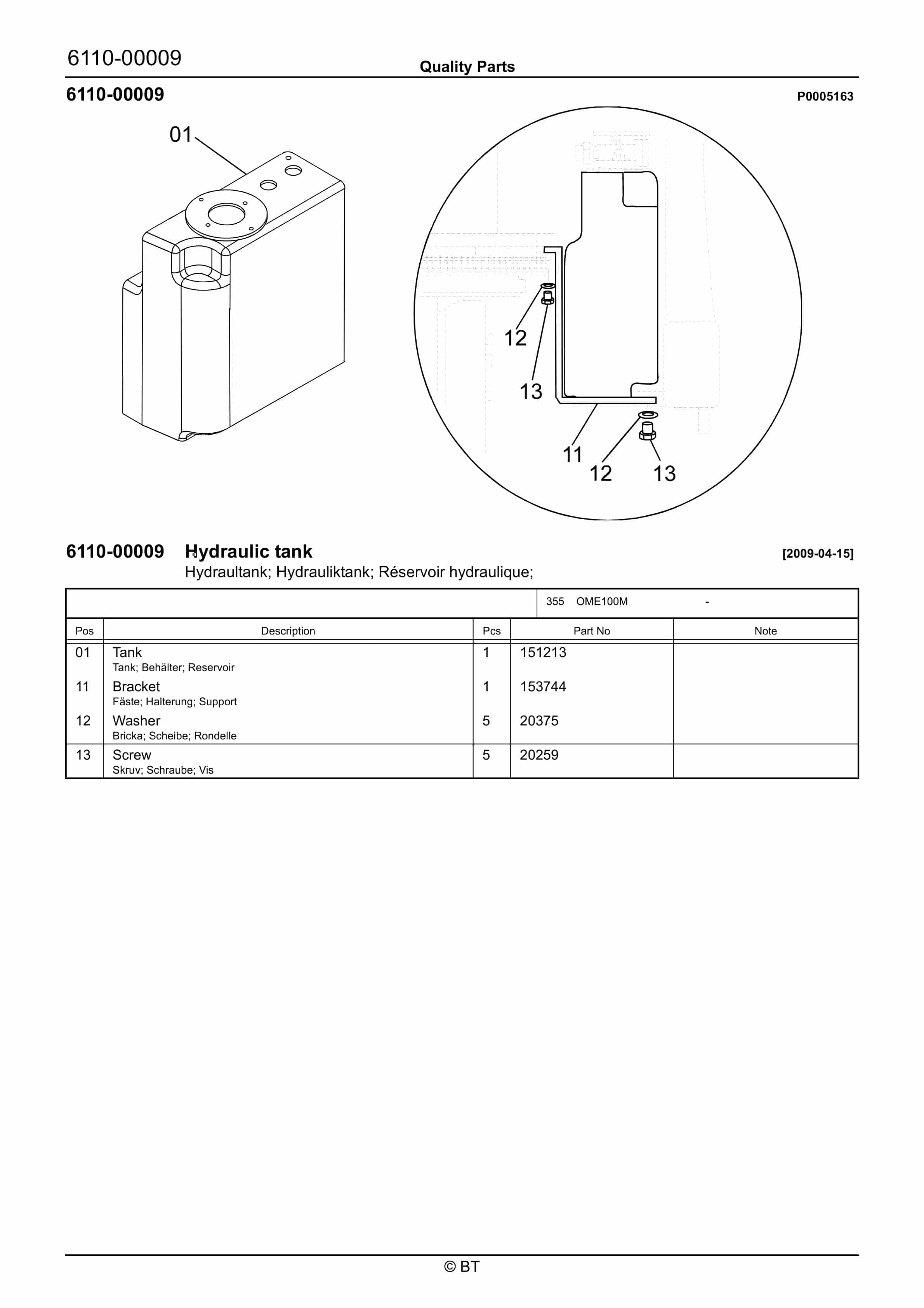

123. Hydraulic pump 2009-04-15
124. P0012475

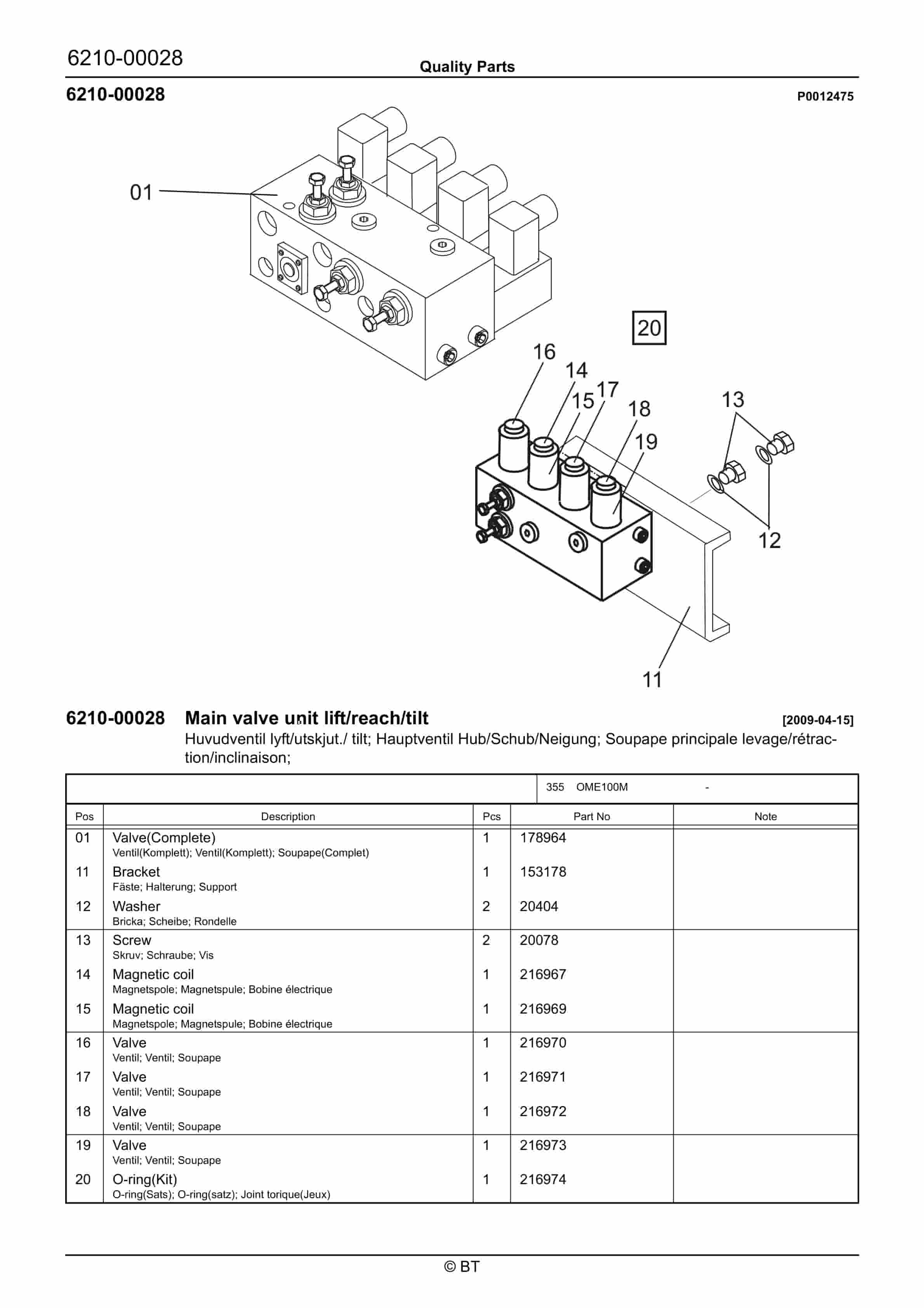

125. Main valve unit lift/reach/tilt 2009-04-15
126. P0016103
127. Mast hose reel/swivel joint 2009-04-15
128. P0016104
129. Main lift cylinders 2009-04-15

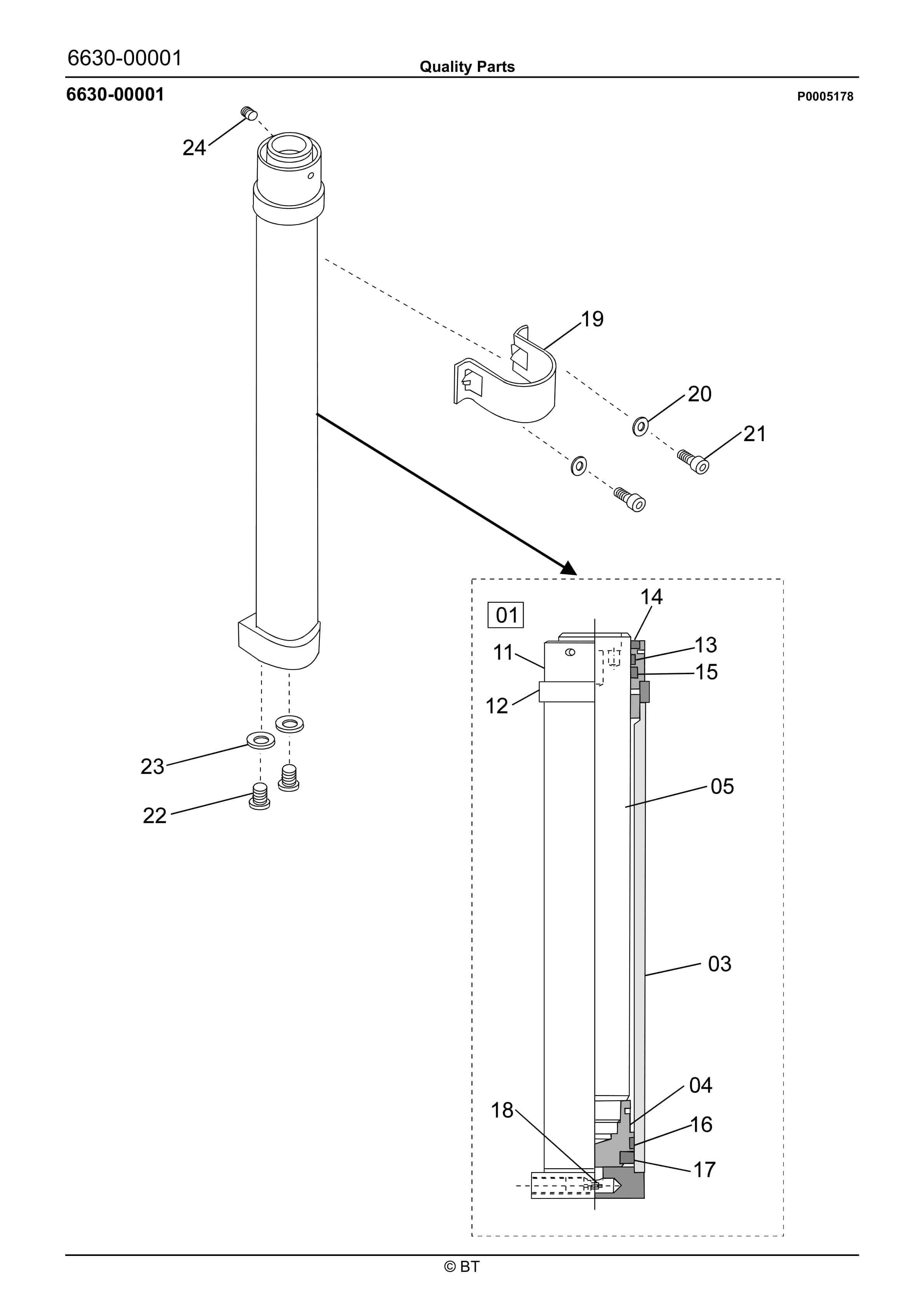

130. P0005178
131. Free lift cylinders 2009-04-15
132. P0005178
133. Support arm/initial lift cylinders 2009-04-15
134. P0036603
135. Main lift chain system 2010-04-23
136. P0032569
137. Main lift chain system 2009-04-15
138. P0005174
139. Main mast fork carriage 2009-04-15
140. P0016106
141. Main mast guidance/dampers 2009-04-15
142. P0005176
143. Main mast suspension 2009-04-15
144. P0005212
145. Fork, carpet boom, lift hook 2009-04-15
146. P0005180
147. Fork carriage unit, integrated sideshift, fork spread 2009-04-15
148. P0019044
149. Charger attachment 2010-12-29
150. P0036945
151. Extra electrical equipment 2010-06-14
152. P0037824
153. Extra electrical equipment 2010-10-11
154. P0035989
155. Truck log device, code locking device 2010-01-14
156. P0023658
157. Other extra equipment 2009-04-15
158. P0030917
159. Other extra equipment 2010-01-19
160. P0031441
161. Other extra equipment 2009-04-15
162. P0031625
163. Other extra equipment 2009-04-15
164. P0036425
165. Other extra equipment 2010-07-09
