  • Type Of Manual: Quality Parts
  • Manual ID: 7531901
  • : Parts Manual PDF
  • Number of Pages: 145
  • Size: 9.7MB
  • Format: PDF
Category:

Product details

  • Model List:

    • OME100M
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0035604
  • 11. Inspection covers 2011-04-29
  • 12. P0005125
  • 13. Battery compartment parts 2011-04-29
  • 14. P0010641
  • 15. Motor fixing points 2011-04-29
  • 16. P0018108
  • 17. Motor fixing points 2011-04-29
  • 18. P0005137
  • 19. Cabin windows 2009-04-15
  • 20. P0005999
  • 21. Cabin windows 2009-04-15
  • 22. P0036575
  • 23. Platform incl. fixing points 2011-04-29
  • 24. P0005133
  • 25. Wall/floor covering 2011-04-29
  • 26. P0005129
  • 27. Internal fittings 2011-04-29
  • 28. P0005130
  • 29. Safety equipment 2009-04-15
  • 30. P0036953
  • 31. Driver protection 2011-04-29
  • 32. P0036963
  • 33. Signs, warnings, decals 2011-04-29
  • 34. P0036972
  • 35. Signs, warnings, decals 2011-04-29
  • 36. P0032204
  • 37. Electric pump motor 2011-04-29
  • 38. P0037428
  • 39. Electric steering motor 2011-04-29
  • 40. P0005160
  • 41. Electric fan motor, electric fan 2011-04-29
  • 42. P0036596
  • 43. Electric drive motor 2011-04-29
  • 44. P0036594
  • 45. Mechanical drive gear unit 2011-04-29
  • 46. P0011612
  • 47. Electromagnetic parking brake 2011-04-29
  • 48. P0005304
  • 49. Drive wheel 2011-04-29
  • 50. P0005142
  • 51. Fork/support arm wheels 2011-04-29
  • 52. P0036605
  • 53. Steering arm/wheel/lever 2011-04-29
  • 54. P0010599
  • 55. Steering chain/linkage/wire 2011-04-29
  • 56. P0011613
  • 57. Steering bearings, radial bearing 2011-04-29
  • 58. P0029029
  • 59. Lighting 2011-04-29
  • 60. P0028402
  • 61. General alarm signals (audible/visual) 2011-04-29
  • 62. P0037375
  • 63. General alarm signals (audible/visual) 2011-04-29
  • 64. P0026746
  • 65. Battery cut out connector/contactor 2011-04-29
  • 66. P0011615
  • 67. Instrument panel, display 2011-04-29
  • 68. P0036447
  • 69. Level/position transducers/lamps 2011-04-29
  • 70. P0038164
  • 71. Level/position transducers/lamps 2011-04-29
  • 72. P0000151
  • 73. Start/stop switch 2011-04-29
  • 74. P0005162
  • 75. Speed control 2011-04-29
  • 76. P0037377
  • 77. Driving function harnesses/fuse 2011-04-29
  • 78. P0021636
  • 79. Drive motor cables/resistors/fuses 2011-04-29
  • 80. P0026532
  • 81. Direction contactors 2011-04-29
  • 82. P0002977

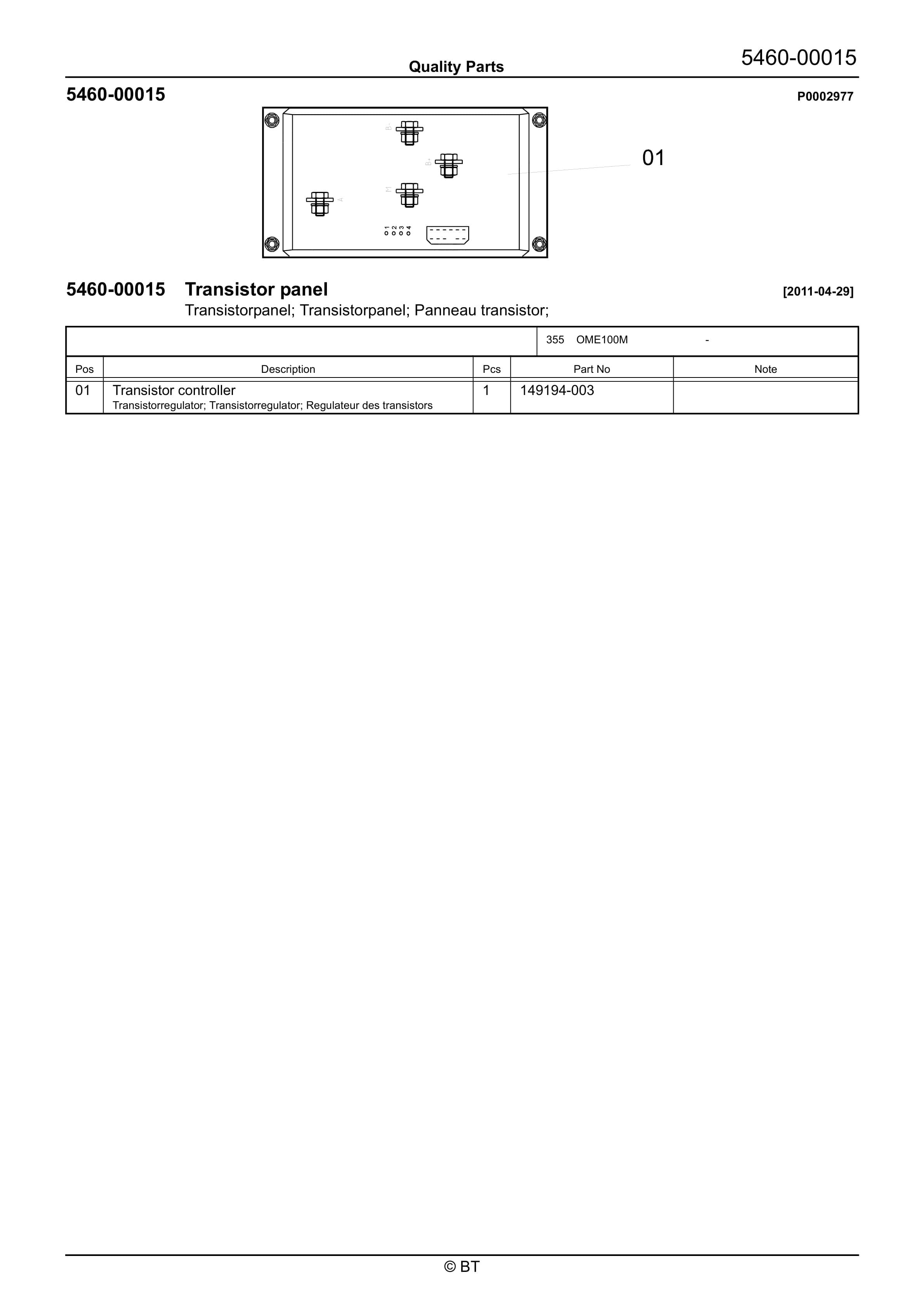

  • 83. Transistor panel 2011-04-29
  • 84. P0009662
  • 85. Work function micro switches, potentiometers 2011-04-29
  • 86. P0035419
  • 87. Work function harnesses/fuse 2011-04-29
  • 88. P0032421
  • 89. Pump contactor 2011-04-29
  • 90. P0036592
  • 91. Battery/motor cables, fuse 2011-04-29
  • 92. P0005171
  • 93. Drive/multi-function PCBs 2011-04-29
  • 94. P0006016
  • 95. Drive/multi-function PCBs 2011-04-29
  • 96. P0035430
  • 97. Safety/ position probes/ sensors 2011-04-29
  • 98. P0007678
  • 99. Safety/ position probes/ sensors 2011-04-29
  • 100. P0005161
  • 101. Emitting/receiving equipment 2011-04-29
  • 102. P0020033
  • 103. Safety electronics harnesses, fuse 2011-04-29
  • 104. P0034665
  • 105. Safety probes/sensors 2011-04-29
  • 106. P0035417
  • 107. Safety probes/sensors 2011-04-29
  • 108. P0031458
  • 109. Aisle probes/sensors 2011-04-29
  • 110. P0005163
  • 111. Hydraulic tank 2011-04-29
  • 112. P0016102
  • 113. Hydraulic tank lines 2011-04-29
  • 114. P0032430
  • 115. Hydraulic tank lines 2011-04-29
  • 116. P0011629
  • 117. Filters and housing 2011-04-29
  • 118. P0033896
  • 119. Hydraulic pump 2011-04-29
  • 120. P0012475
  • 121. Main valve unit lift/reach/tilt 2011-04-29
  • 122. P0016103

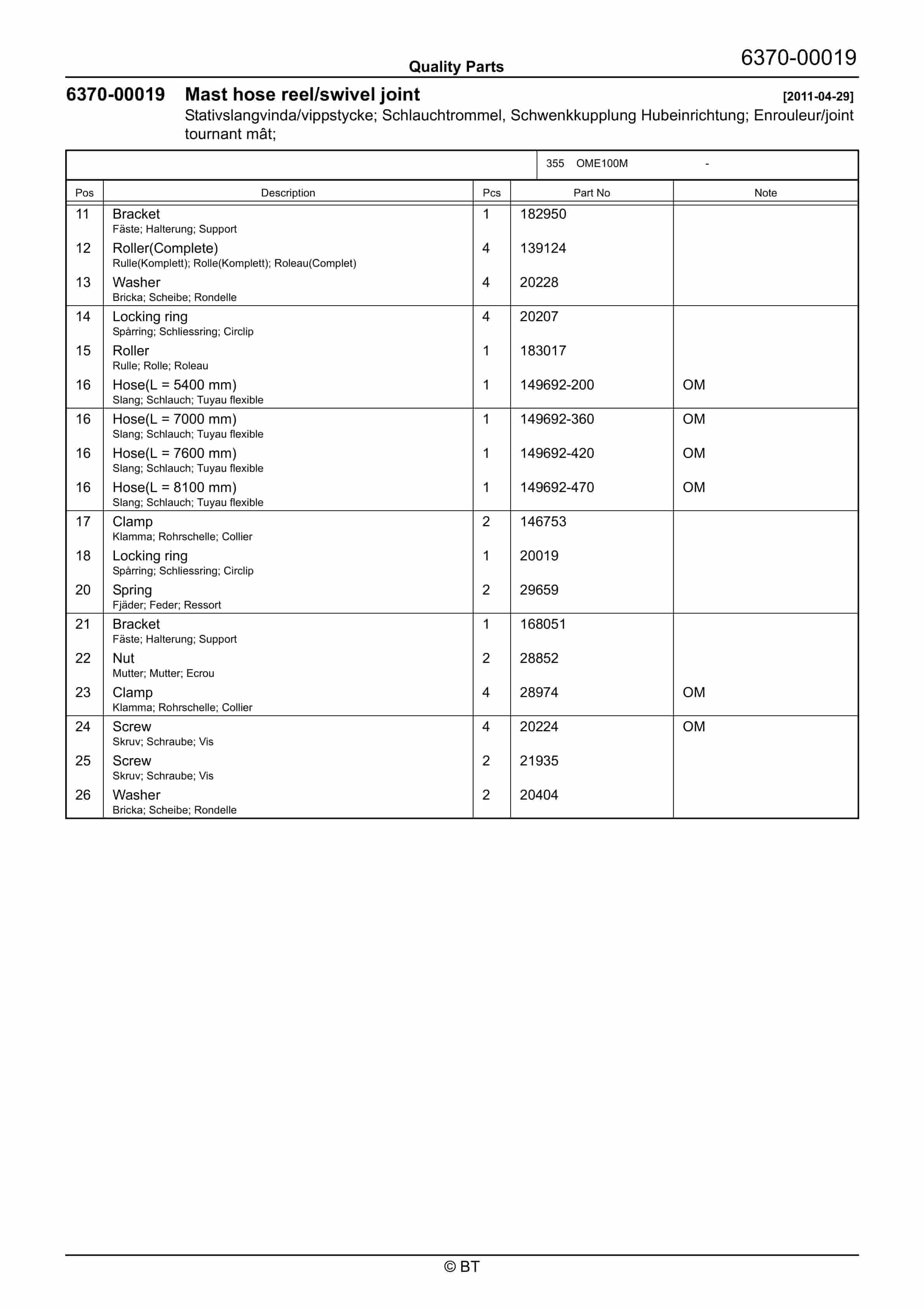

  • 123. Mast hose reel/swivel joint 2011-04-29
  • 124. P0016104
  • 125. Main lift cylinders 2011-04-29
  • 126. P0005178
  • 127. Free lift cylinders 2011-04-29
  • 128. P0005178
  • 129. Support arm/initial lift cylinders 2011-04-29
  • 130. P0036603

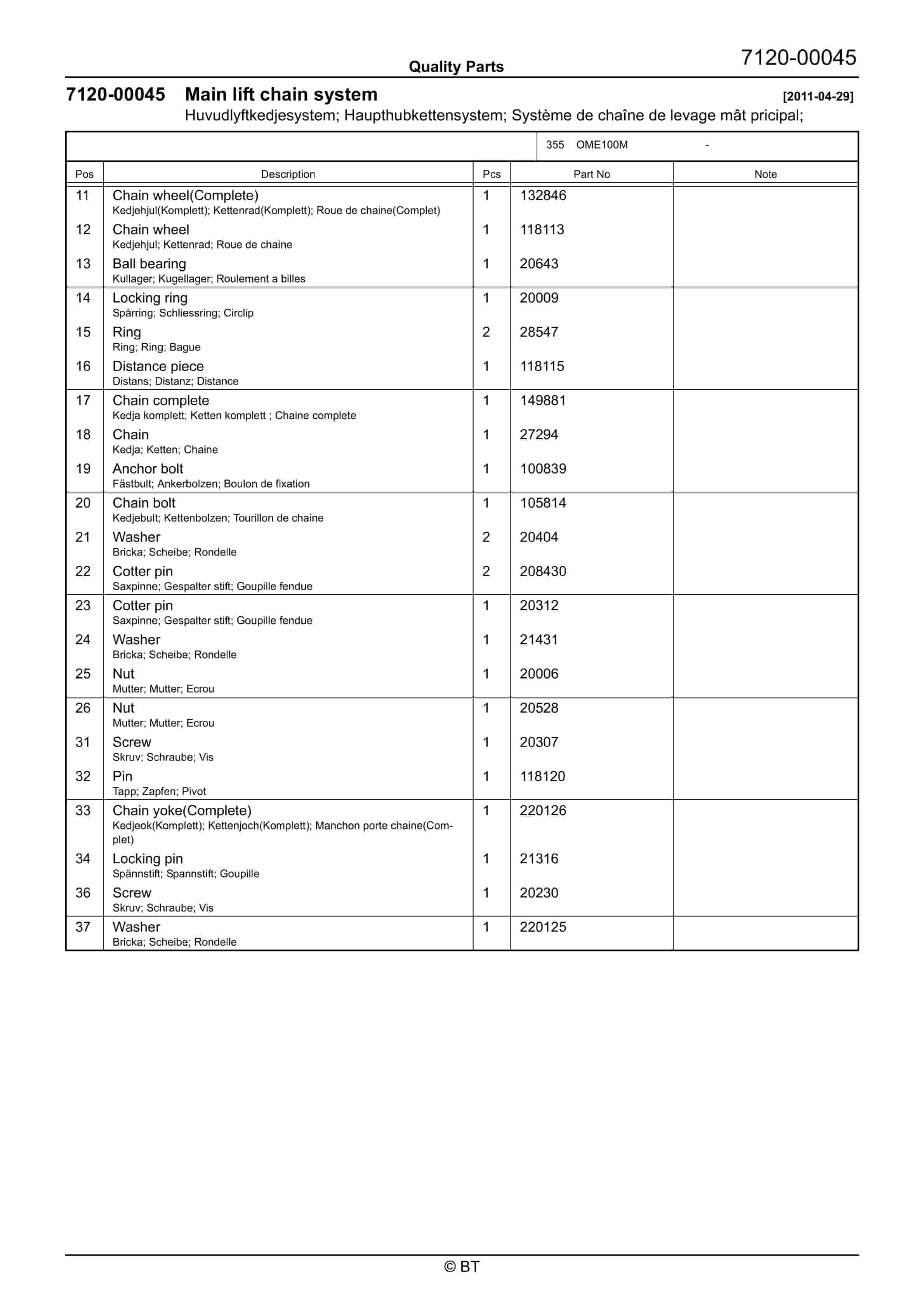

  • 131. Main lift chain system 2011-04-29
  • 132. P0032569
  • 133. Main lift chain system 2011-04-29
  • 134. P0005174
  • 135. Main mast fork carriage 2011-04-29
  • 136. P0016106
  • 137. Main mast guidance/dampers 2011-04-29
  • 138. P0005176
  • 139. Main mast suspension 2011-04-29
  • 140. P0005212
  • 141. Fork, carpet boom, lift hook 2011-04-29
  • 142. P0005180
  • 143. Fork carriage unit, integrated sideshift, fork spread 2011-04-29
  • 144. P0019044
  • 145. Charger attachment 2011-04-29
  • 146. P0036945
  • 147. Extra electrical equipment 2011-04-29
  • 148. P0035989
  • 149. Truck log device, code locking device 2011-04-29
  • 150. P0023658
  • 151. Other extra equipment 2011-04-29
  • 152. P0030917
  • 153. Other extra equipment 2011-04-29
  • 154. P0031441
  • 155. Other extra equipment 2011-04-29
  • 156. P0031625
  • 157. Other extra equipment 2011-04-29
  • 158. P0036425
  • 159. Other extra equipment 2011-04-29
  • 160. P0039457
  • 161. Other extra equipment 2011-04-28
