BT OME100M Quality Parts 7533747 - Image 2

BT OME100M Quality Parts 7533747 - Image 3

BT OME100M Quality Parts 7533747 - Image 4

BT OME100M Quality Parts 7533747 - Image 5

BT OME100M Quality Parts 7533747

$30.00

Type Of Manual: Quality Parts
Manual ID: 7533747
: Parts Manual PDF
Number of Pages: 149
Size: 9.9MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- OME100M

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0035604
11. Inspection covers 2011-04-29
12. P0037821
13. Inspection covers 2010-10-11

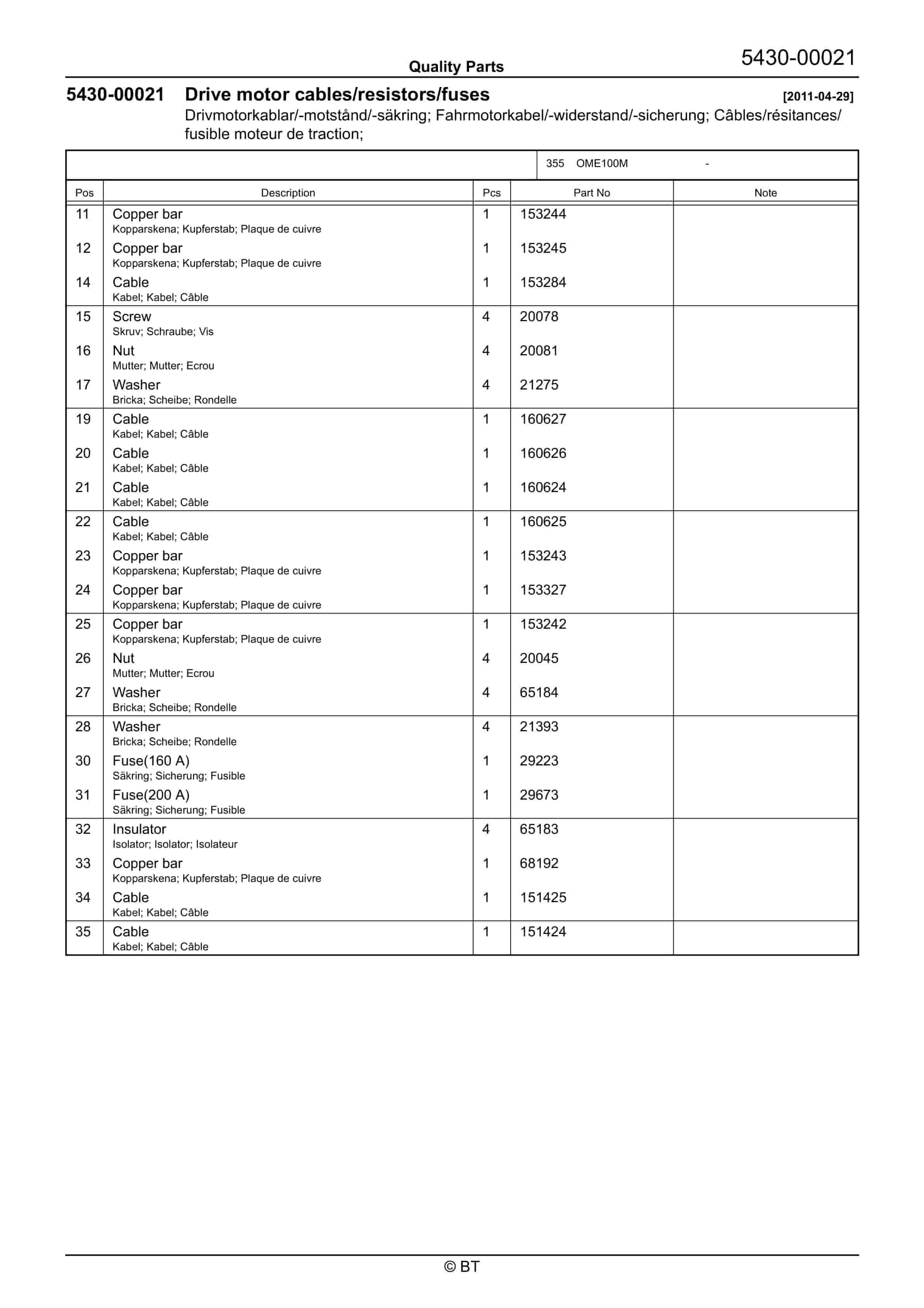

14. P0005125
15. Battery compartment parts 2011-04-29
16. P0010641
17. Motor fixing points 2011-04-29
18. P0018108
19. Motor fixing points 2011-04-29
20. P0005137
21. Cabin windows 2009-04-15
22. P0005999
23. Cabin windows 2009-04-15
24. P0036575
25. Platform incl. fixing points 2011-04-29
26. P0005133
27. Wall/floor covering 2011-04-29
28. P0005129
29. Internal fittings 2011-04-29
30. P0005130
31. Safety equipment 2009-04-15
32. P0036953
33. Driver protection 2011-04-29
34. P0036963
35. Signs, warnings, decals 2011-04-29
36. P0037820
37. Signs, warnings, decals 2010-10-11
38. P0032204
39. Electric pump motor 2011-04-29
40. P0037428
41. Electric steering motor 2011-04-29
42. P0005160
43. Electric fan motor, electric fan 2011-04-29
44. P0036596
45. Electric drive motor 2011-04-29
46. P0036594
47. Mechanical drive gear unit 2011-04-29
48. P0011612
49. Electromagnetic parking brake 2011-04-29
50. P0005304
51. Drive wheel 2011-04-29
52. P0037822
53. Fork/support arm wheels 2010-10-11
54. P0036605
55. Steering arm/wheel/lever 2011-04-29
56. P0037819
57. Steering arm/wheel/lever 2010-10-11
58. P0010599
59. Steering chain/linkage/wire 2011-04-29
60. P0011613
61. Steering bearings, radial bearing 2011-04-29
62. P0029029
63. Lighting 2011-04-29
64. P0028402
65. General alarm signals (audible/visual) 2011-04-29
66. P0037375
67. General alarm signals (audible/visual) 2011-04-29
68. P0026746
69. Battery cut out connector/contactor 2011-04-29
70. P0011615
71. Instrument panel, display 2011-04-29
72. P0036447
73. Level/position transducers/lamps 2011-04-29
74. P0038164
75. Level/position transducers/lamps 2011-04-29
76. P0000151
77. Start/stop switch 2011-04-29
78. P0005162
79. Speed control 2011-04-29
80. P0037377
81. Driving function harnesses/fuse 2011-04-29
82. P0021636
83. Drive motor cables/resistors/fuses 2011-04-29
84. P0026532
85. Direction contactors 2011-04-29
86. P0002977
87. Transistor panel 2011-04-29
88. P0009662
89. Work function micro switches, potentiometers 2011-04-29
90. P0035419
91. Work function harnesses/fuse 2011-04-29
92. P0032421
93. Pump contactor 2011-04-29
94. P0036592
95. Battery/motor cables, fuse 2011-04-29
96. P0005171
97. Drive/multi-function PCBs 2011-04-29
98. P0006016
99. Drive/multi-function PCBs 2011-04-29
100. P0035430
101. Safety/ position probes/ sensors 2011-04-29
102. P0007678
103. Safety/ position probes/ sensors 2011-04-29
104. P0005161
105. Emitting/receiving equipment 2011-04-29
106. P0020033
107. Safety electronics harnesses, fuse 2011-04-29
108. P0034665
109. Safety probes/sensors 2011-04-29
110. P0035417
111. Safety probes/sensors 2011-04-29
112. P0031458
113. Aisle probes/sensors 2011-04-29
114. P0005163

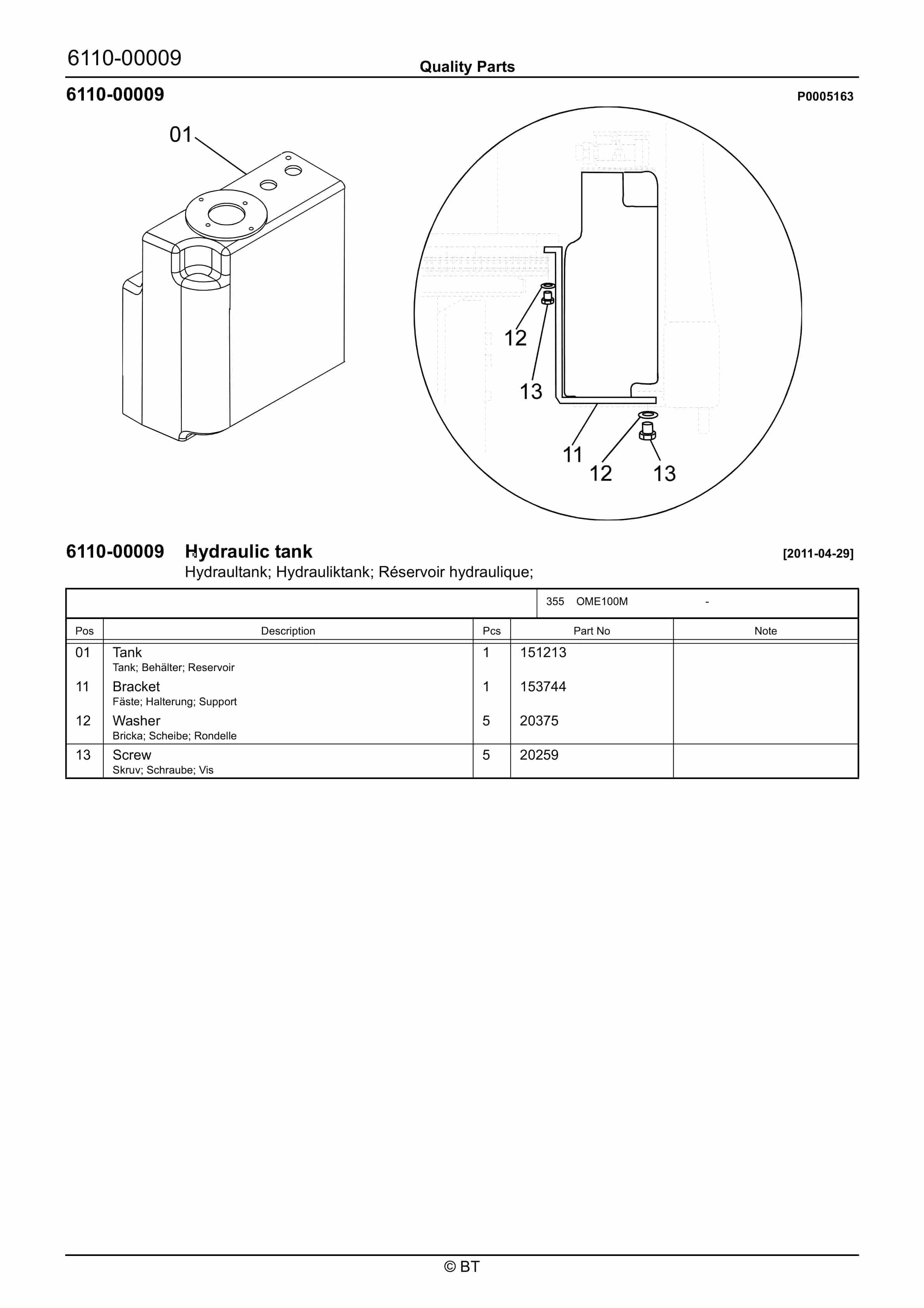

115. Hydraulic tank 2011-04-29
116. P0016102
117. Hydraulic tank lines 2011-04-29
118. P0032430
119. Hydraulic tank lines 2011-04-29
120. P0011629
121. Filters and housing 2011-04-29
122. P0037823
123. Filters and housing 2010-10-11
124. P0033896
125. Hydraulic pump 2011-04-29
126. P0012475

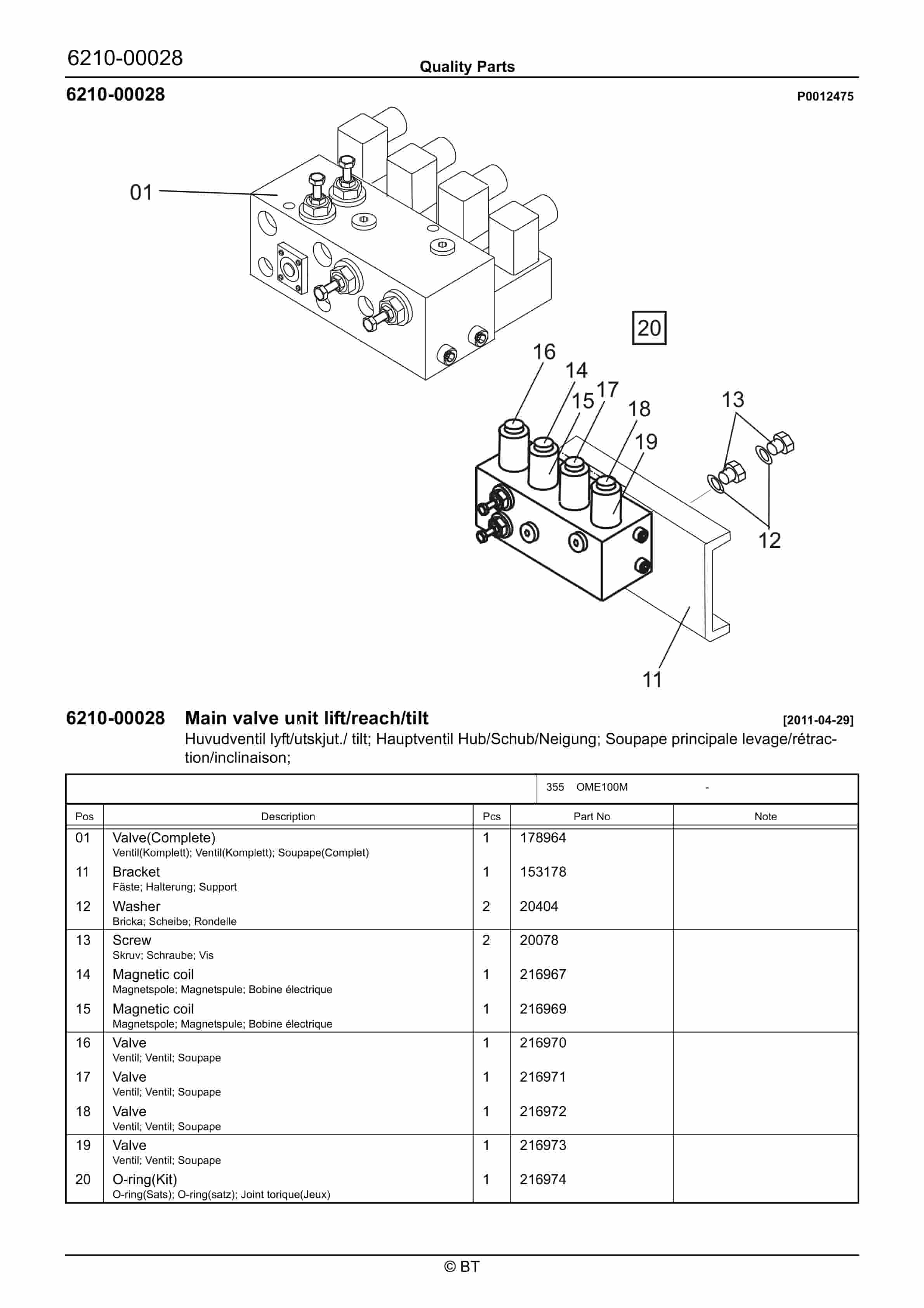

127. Main valve unit lift/reach/tilt 2011-04-29
128. P0016103
129. Mast hose reel/swivel joint 2011-04-29
130. P0016104

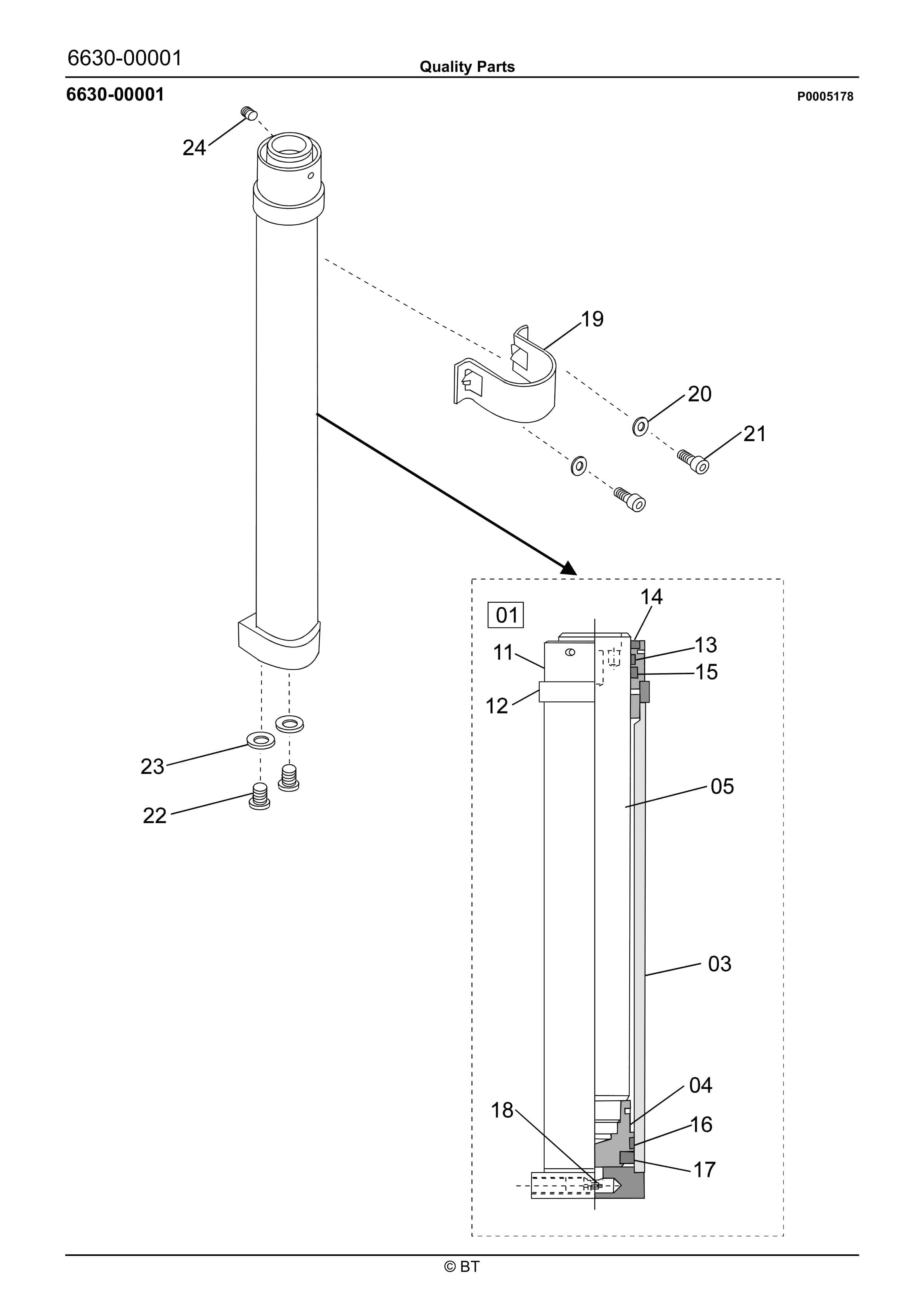

131. Main lift cylinders 2011-04-29
132. P0005178
133. Free lift cylinders 2011-04-29
134. P0005178
135. Support arm/initial lift cylinders 2011-04-29
136. P0036603
137. Main lift chain system 2011-04-29
138. P0032569
139. Main lift chain system 2011-04-29
140. P0005174
141. Main mast fork carriage 2011-04-29
142. P0016106
143. Main mast guidance/dampers 2011-04-29
144. P0005176
145. Main mast suspension 2011-04-29
146. P0005212
147. Fork, carpet boom, lift hook 2011-04-29
148. P0005180
149. Fork carriage unit, integrated sideshift, fork spread 2011-04-29
150. P0019044
151. Charger attachment 2011-04-29
152. P0036945
153. Extra electrical equipment 2011-04-29
154. P0037824
155. Extra electrical equipment 2010-10-11
156. P0035989
157. Truck log device, code locking device 2011-04-29
158. P0023658
159. Other extra equipment 2011-04-29
160. P0030917
161. Other extra equipment 2011-04-29
162. P0031441
163. Other extra equipment 2011-04-29
164. P0031625
165. Other extra equipment 2011-04-29
166. P0036425
167. Other extra equipment 2011-04-29
