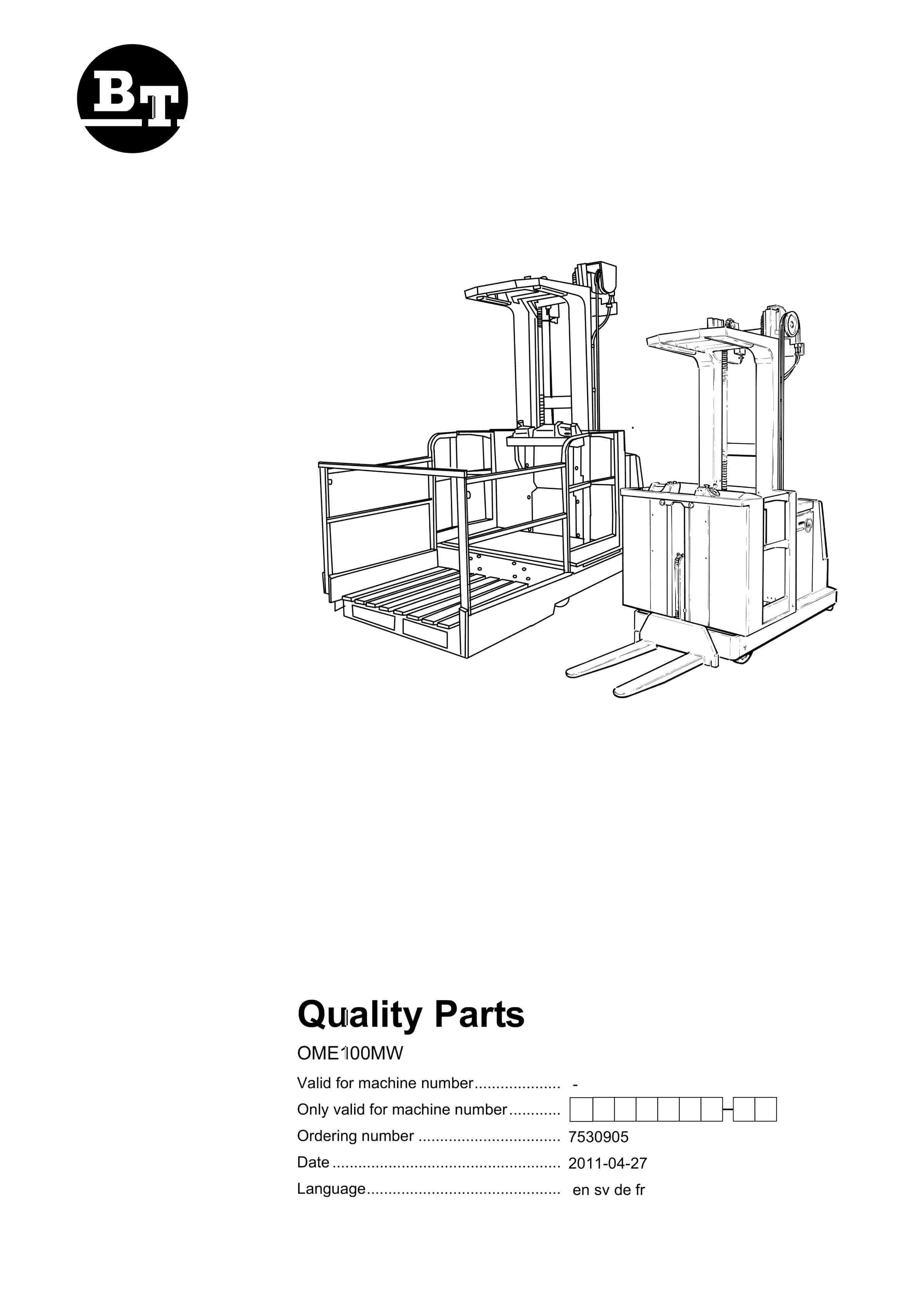

BT OME100MW Quality Parts 7530905

$30.00

Type Of Manual: Quality Parts
Manual ID: 7530905
: Parts Manual PDF
Number of Pages: 137
Size: 11.1MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- OME100MW

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0035604
11. Inspection covers 2010-04-22
12. P0005125
13. Battery compartment parts 2009-04-15
14. P0010641
15. Motor fixing points 2009-09-29
16. P0018108
17. Motor fixing points 2009-09-29
18. P0005999
19. Cabin windows 2009-04-15
20. P0036575
21. Platform incl. fixing points 2010-04-22
22. P0006001
23. Wall/floor covering 2009-04-15
24. P0039440
25. Wall/floor covering 2011-04-27
26. P0006002
27. Internal fittings 2009-04-15
28. P0006003
29. Safety equipment 2009-04-15
30. P0036953
31. Driver protection 2010-06-14
32. P0036963
33. Signs, warnings, decals 2010-06-14
34. P0036972
35. Signs, warnings, decals 2010-06-14
36. P0032204
37. Electric pump motor 2009-09-29
38. P0037428
39. Electric steering motor 2010-09-21
40. P0005160
41. Electric fan motor, electric fan 2009-04-15
42. P0036596
43. Electric drive motor 2010-04-22
44. P0036594
45. Mechanical drive gear unit 2010-04-23
46. P0011612
47. Electromagnetic parking brake 2010-12-08
48. P0005304
49. Drive wheel 2009-04-15
50. P0005142
51. Fork/support arm wheels 2009-04-15
52. P0036606
53. Steering arm/wheel/lever 2010-04-23
54. P0010599
55. Steering chain/linkage/wire 2009-04-15
56. P0011613
57. Steering bearings, radial bearing 2009-09-29
58. P0029029
59. Lighting 2009-04-15
60. P0028402
61. General alarm signals (audible/visual) 2009-04-15
62. P0037375
63. General alarm signals (audible/visual) 2010-09-21
64. P0026746
65. Battery cut out connector/contactor 2010-12-02
66. P0011615
67. Instrument panel, display 2009-04-15
68. P0036447
69. Level/position transducers/lamps 2010-06-03
70. P0038164
71. Level/position transducers/lamps 2010-11-11
72. P0000151
73. Start/stop switch 2009-04-15
74. P0005162
75. Speed control 2009-04-15
76. P0037377

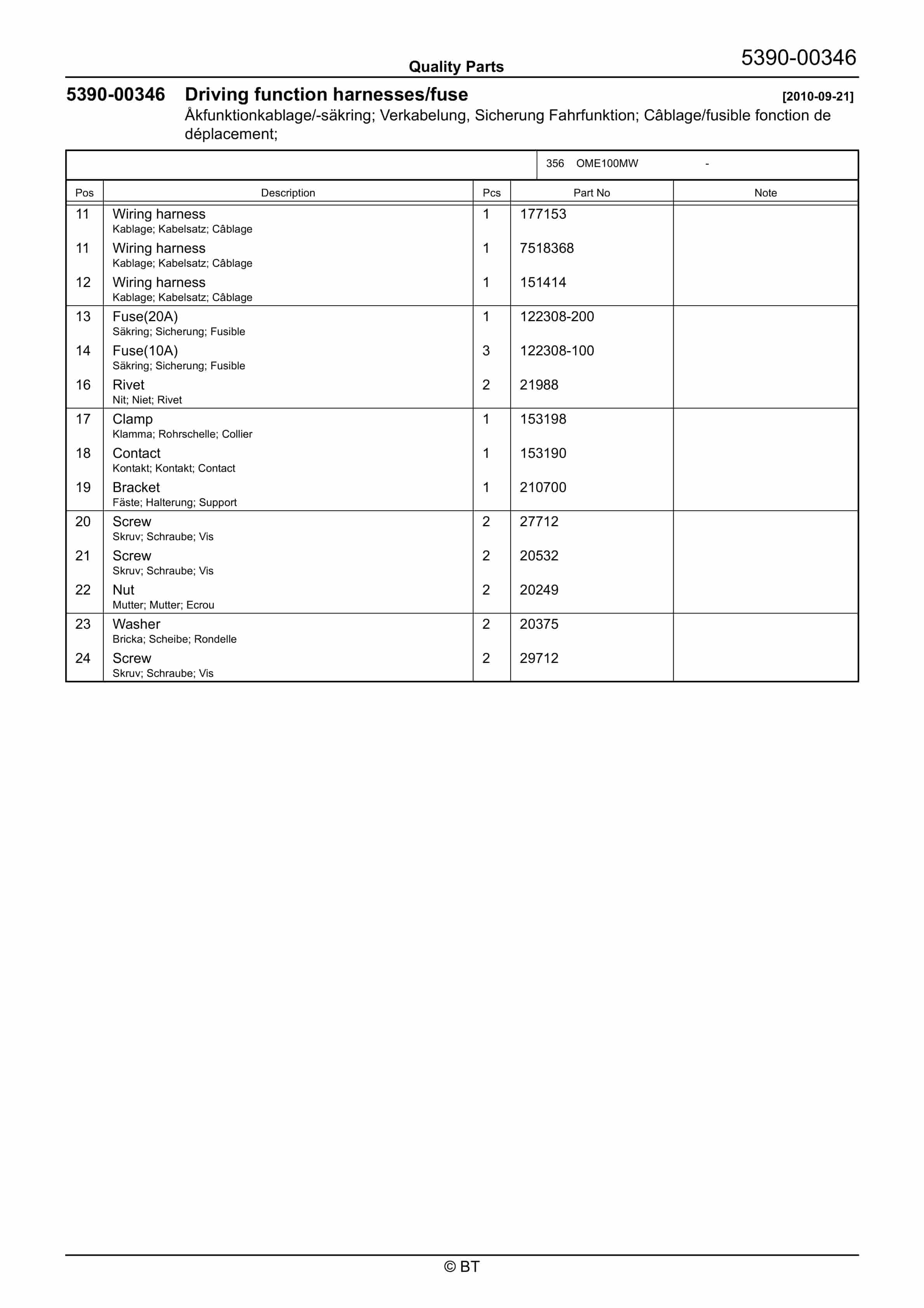

77. Driving function harnesses/fuse 2010-09-21
78. P0021636
79. Drive motor cables/resistors/fuses 2009-09-29
80. P0026532
81. Direction contactors 2009-04-15
82. P0002977
83. Transistor panel 2009-04-15
84. P0009663
85. Work function micro switches, potentiometers 2009-04-15
86. P0035419
87. Work function harnesses/fuse 2009-10-22
88. P0039439
89. Work function harnesses/fuse 2011-04-27
90. P0032421
91. Pump contactor 2009-04-15
92. P0036592
93. Battery/motor cables, fuse 2010-04-22
94. P0005171
95. Drive/multi-function PCBs 2009-04-15
96. P0006016
97. Drive/multi-function PCBs 2011-04-11
98. P0035430
99. Safety/ position probes/ sensors 2009-09-29
100. P0007678
101. Safety/ position probes/ sensors 2009-04-15
102. P0005161
103. Emitting/receiving equipment 2009-04-15
104. P0020033
105. Safety electronics harnesses, fuse 2009-05-11
106. P0034665
107. Safety probes/sensors 2009-05-12
108. P0035417
109. Safety probes/sensors 2009-10-22
110. P0039435
111. Safety probes/sensors 2011-04-27
112. P0039436
113. Safety probes/sensors 2011-04-27
114. P0031458
115. Aisle probes/sensors 2009-09-29
116. P0005163
117. Hydraulic tank 2009-04-15
118. P0016102

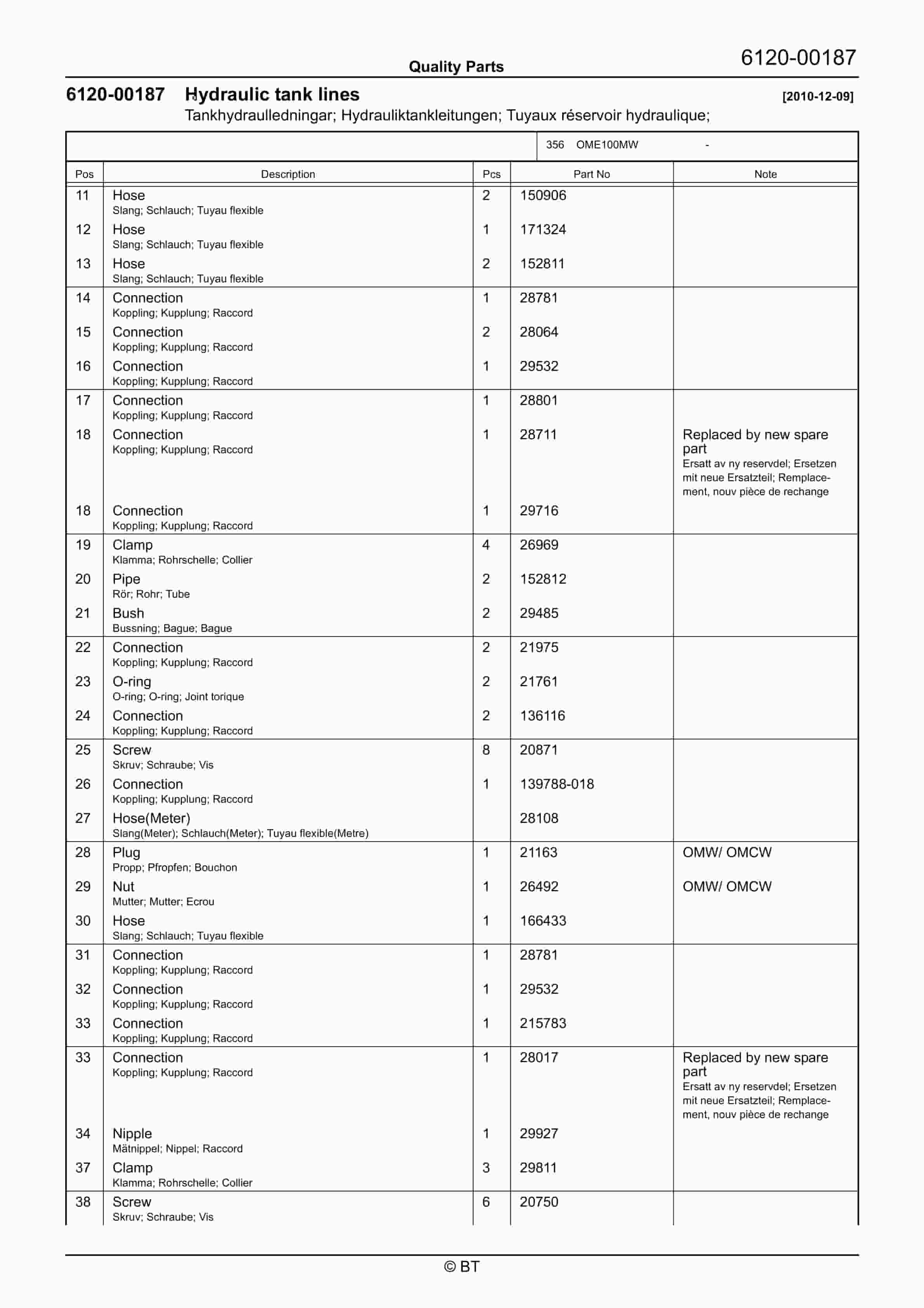

119. Hydraulic tank lines 2010-12-09
120. P0032430
121. Hydraulic tank lines 2009-04-15
122. P0011629
123. Filters and housing 2009-04-15
124. P0033896
125. Hydraulic pump 2009-04-15
126. P0012475

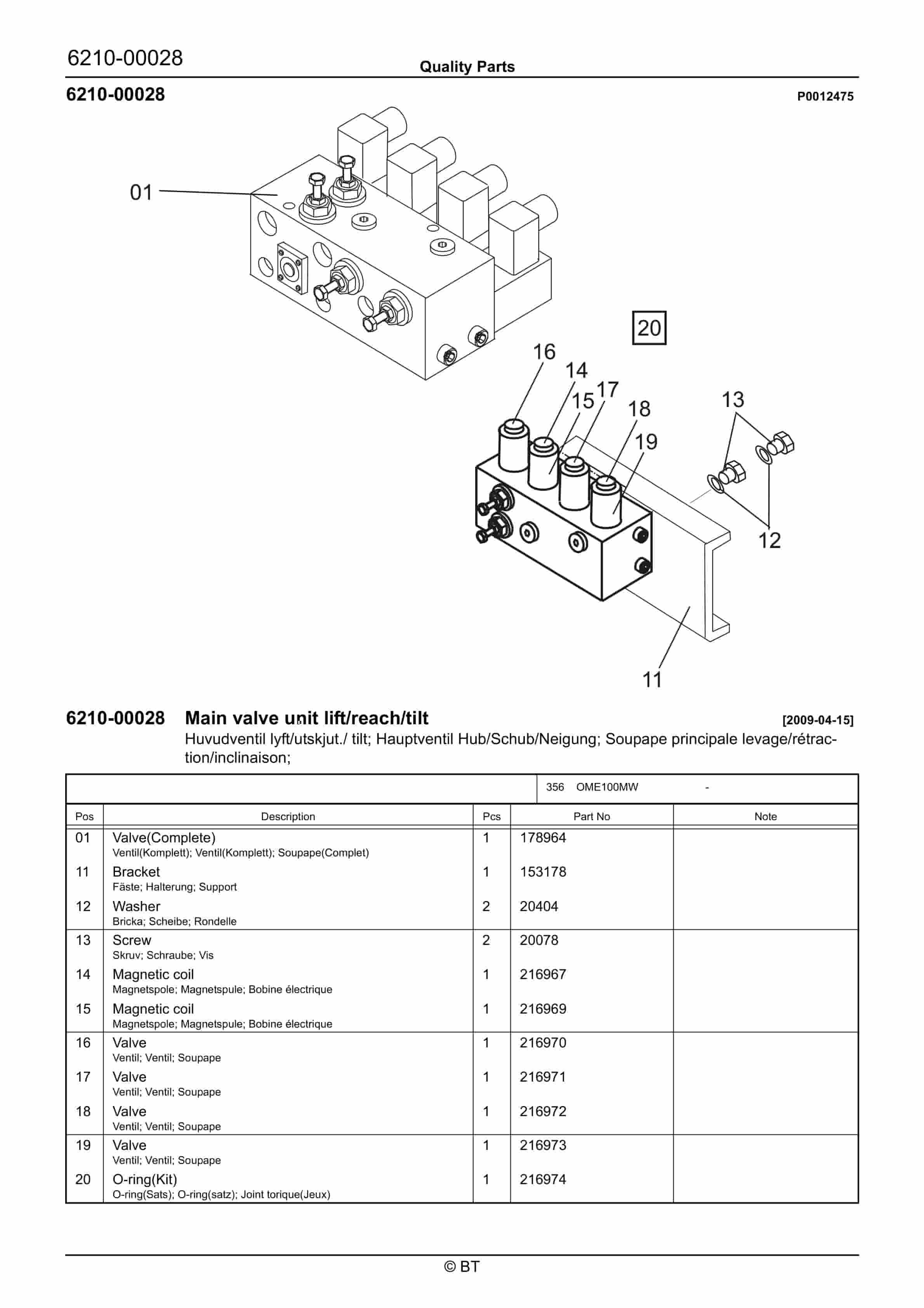

127. Main valve unit lift/reach/tilt 2009-04-15
128. P0016103
129. Mast hose reel/swivel joint 2009-04-15
130. P0016104
131. Main lift cylinders 2009-04-15
132. P0005178
133. Free lift cylinders 2009-04-15
134. P0032569
135. Main lift chain system 2009-04-15
136. P0016106
137. Main mast guidance/dampers 2009-04-15
138. P0006011
139. Main mast suspension 2009-04-15
140. P0039444

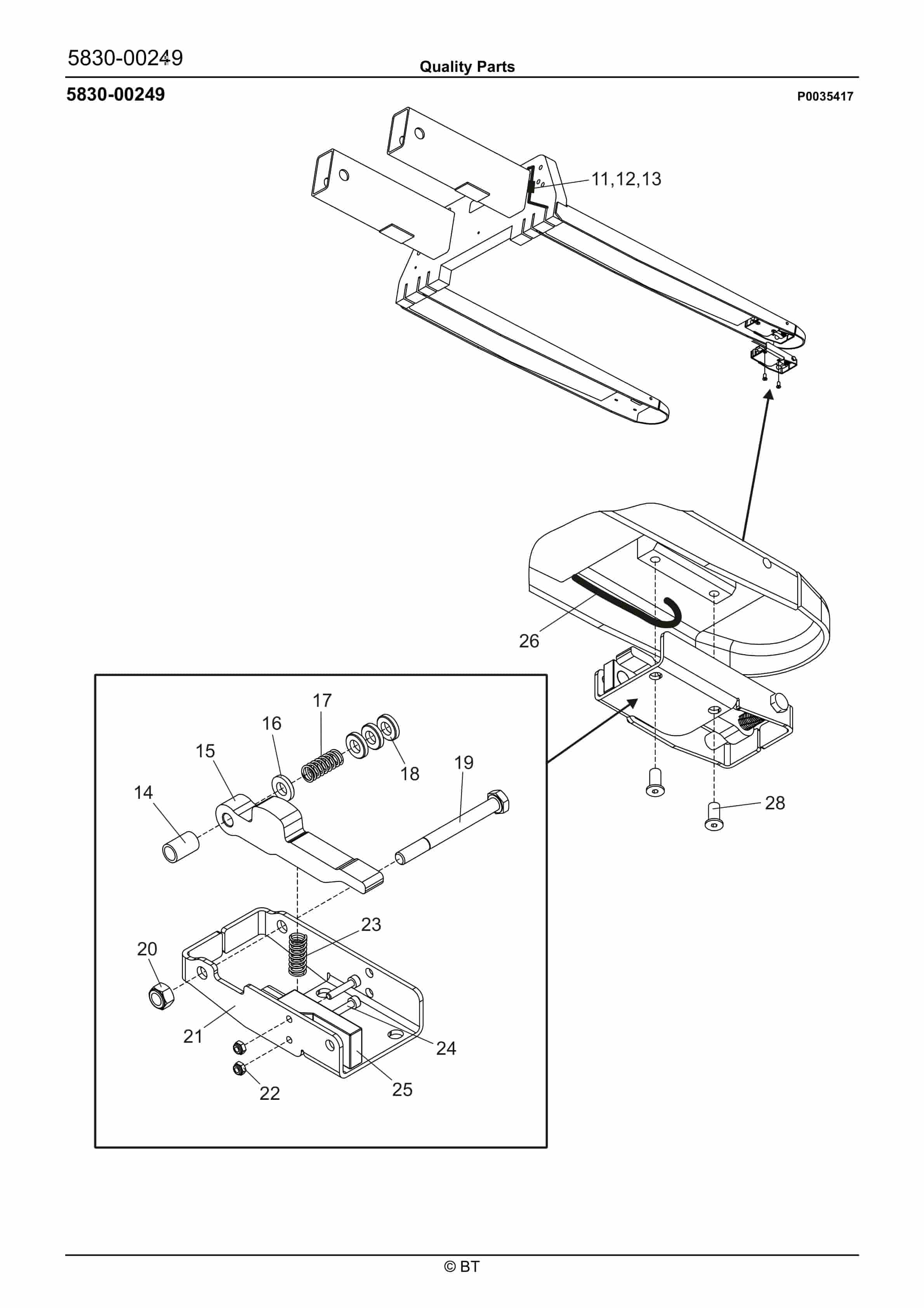

141. Fork carriage unit, integrated sideshift, fork spread 2011-04-27
142. P0007513
143. Other load carriers 2009-04-15
144. P0019044
145. Charger attachment 2010-12-29
146. P0036945
147. Extra electrical equipment 2010-06-14
148. P0035989
149. Truck log device, code locking device 2010-01-14
150. P0023658
151. Other extra equipment 2009-04-15
152. P0036425
153. Other extra equipment 2010-07-09
