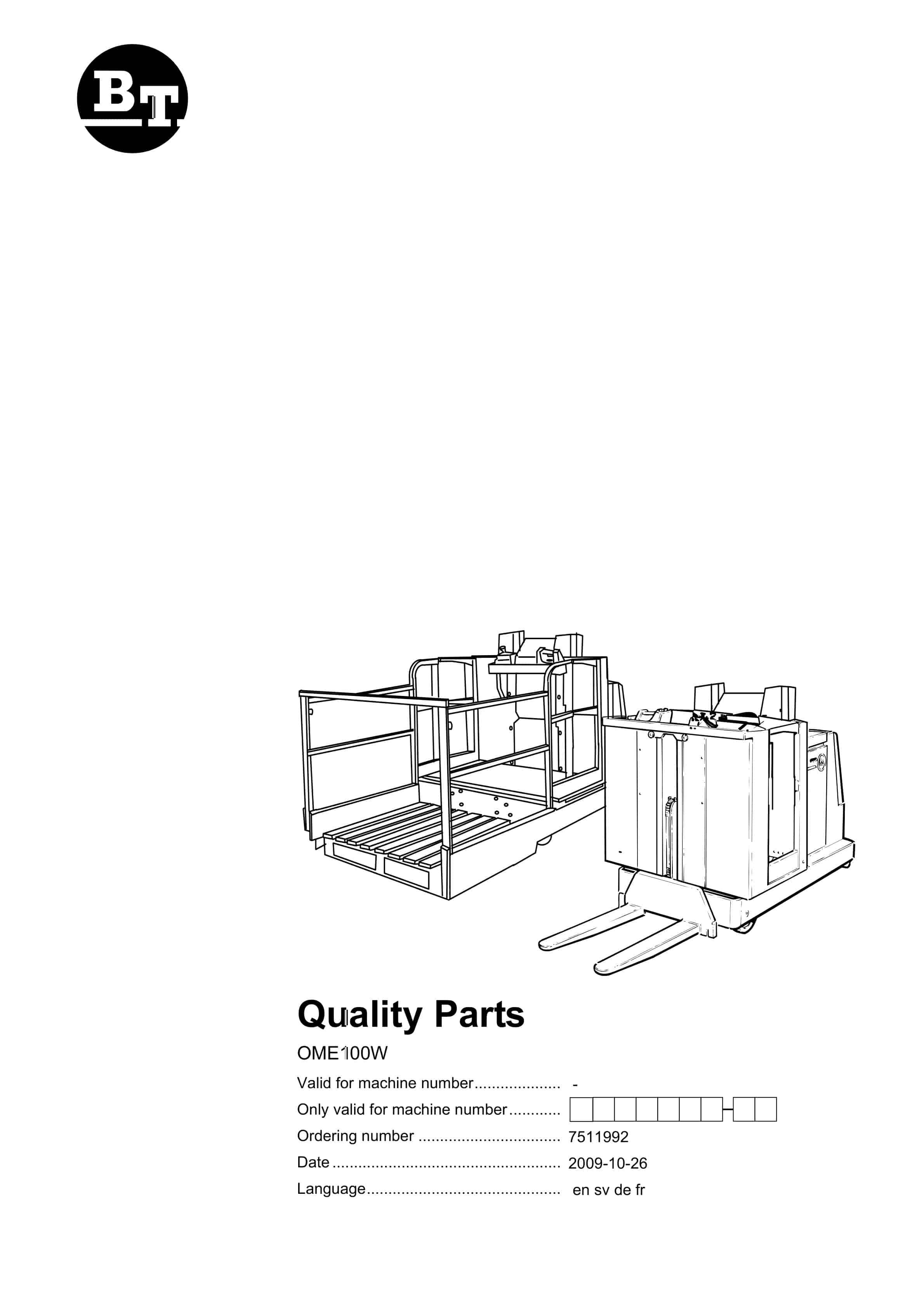

BT OME100W Quality Parts 7511992

$30.00

Type Of Manual: Quality Parts
Manual ID: 7511992
: Parts Manual PDF
Number of Pages: 123
Size: 7.6MB
Format: PDF

Category: BT Parts Manual PDF

Model List:
- OME100W

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0032911
11. Inspection covers 2009-10-16
12. P0005125
13. Battery compartment parts 2009-04-15
14. P0010641
15. Motor fixing points 2009-09-29
16. P0018108
17. Motor fixing points 2009-09-29
18. P0007168
19. Cabin windows 2006-06-08
20. P0022269
21. Wall/floor covering 2004-10-08
22. P0007237
23. Internal fittings 2009-09-29
24. P0007237
25. Internal fittings 2006-06-08
26. P0019968
27. Driver protection 2009-09-29
28. P0011850
29. Signs, warnings, decals 2009-04-15
30. P0018111
31. Signs, warnings, decals 2009-04-06
32. P0032204
33. Electric pump motor 2009-09-29
34. P0032590
35. Electric steering motor 2009-09-29
36. P0007182
37. Electric fan motor, electric fan 2006-06-08
38. P0017045
39. Electric drive motor 2009-04-15
40. P0010594
41. Mechanical drive gear unit 2009-04-15
42. P0011612
43. Electromagnetic parking brake 2009-09-29
44. P0005304
45. Drive wheel 2009-04-15
46. P0005142
47. Fork/support arm wheels 2009-04-15
48. P0033683
49. Steering arm/wheel/lever 2009-05-08
50. P0010599
51. Steering chain/linkage/wire 2009-04-15
52. P0011613
53. Steering bearings, radial bearing 2009-09-29
54. P0018122
55. General alarm signals (audible/visual) 2006-06-08
56. P0026746
57. Battery cut out connector/contactor 2009-04-15
58. P0011615
59. Instrument panel, display 2009-04-15
60. P0012442
61. Level/position transducers/lamps 2009-09-29
62. P0009386
63. Level/position transducers/lamps 2009-05-11
64. P0035656
65. Level/position transducers/lamps 2009-10-26
66. P0000151
67. Start/stop switch 2009-04-15
68. P0005162
69. Speed control 2009-04-15
70. P0032404
71. Driving function harnesses/fuse 2009-09-29
72. P0021636

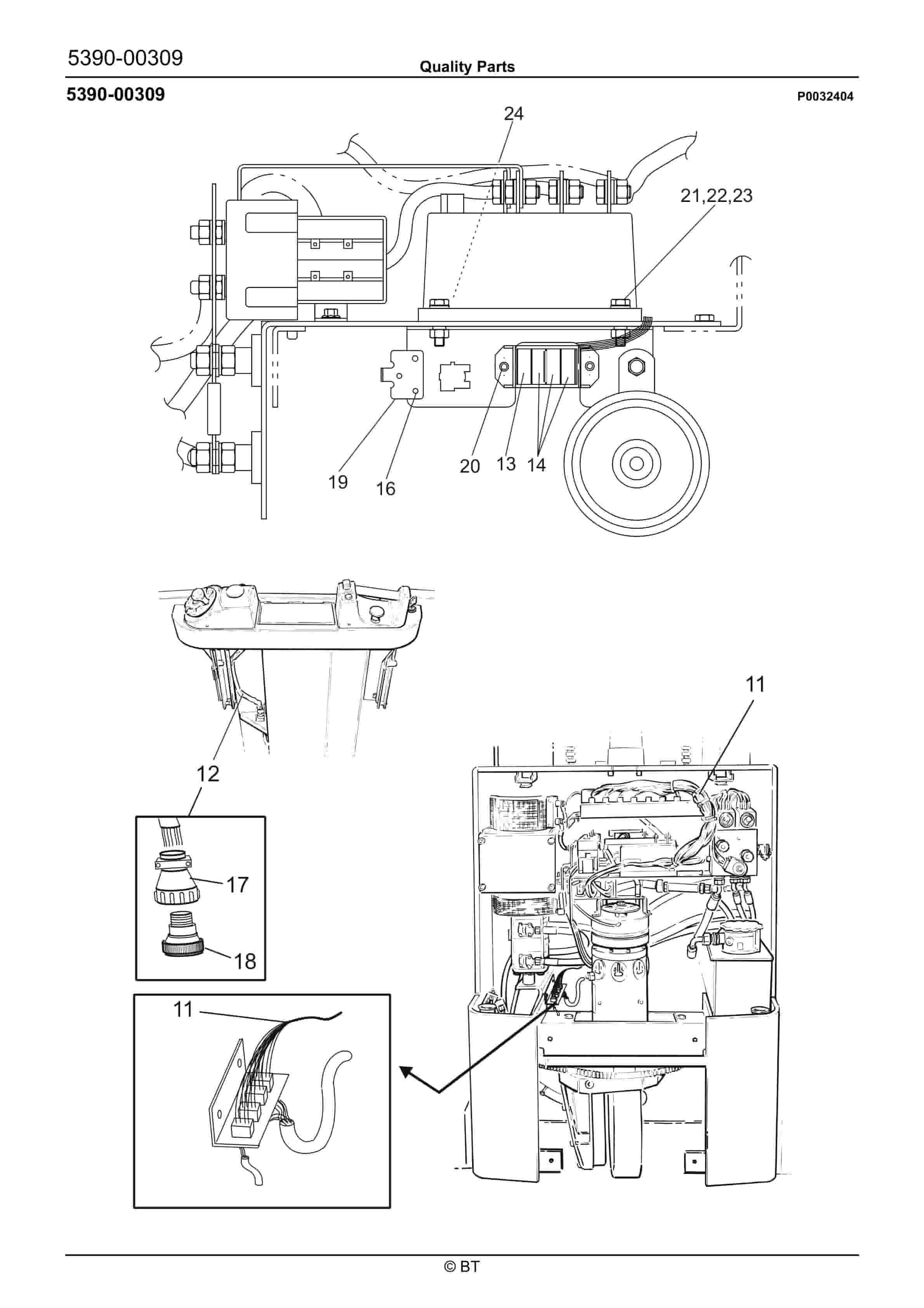

73. Drive motor cables/resistors/fuses 2009-09-29
74. P0026532
75. Direction contactors 2009-04-15
76. P0002977
77. Transistor panel 2009-04-15
78. P0009663
79. Work function micro switches, potentiometers 2009-04-15
80. P0018128
81. Work function harnesses/fuse 2008-09-12
82. P0032421
83. Pump contactor 2009-04-15
84. P0011634
85. Battery/motor cables, fuse 2009-04-15
86. P0005171
87. Drive/multi-function PCBs 2009-04-15
88. P0006016
89. Drive/multi-function PCBs 2009-09-16
90. P0035430
91. Safety/ position probes/ sensors 2009-09-29
92. P0007678
93. Safety/ position probes/ sensors 2009-04-15
94. P0005161

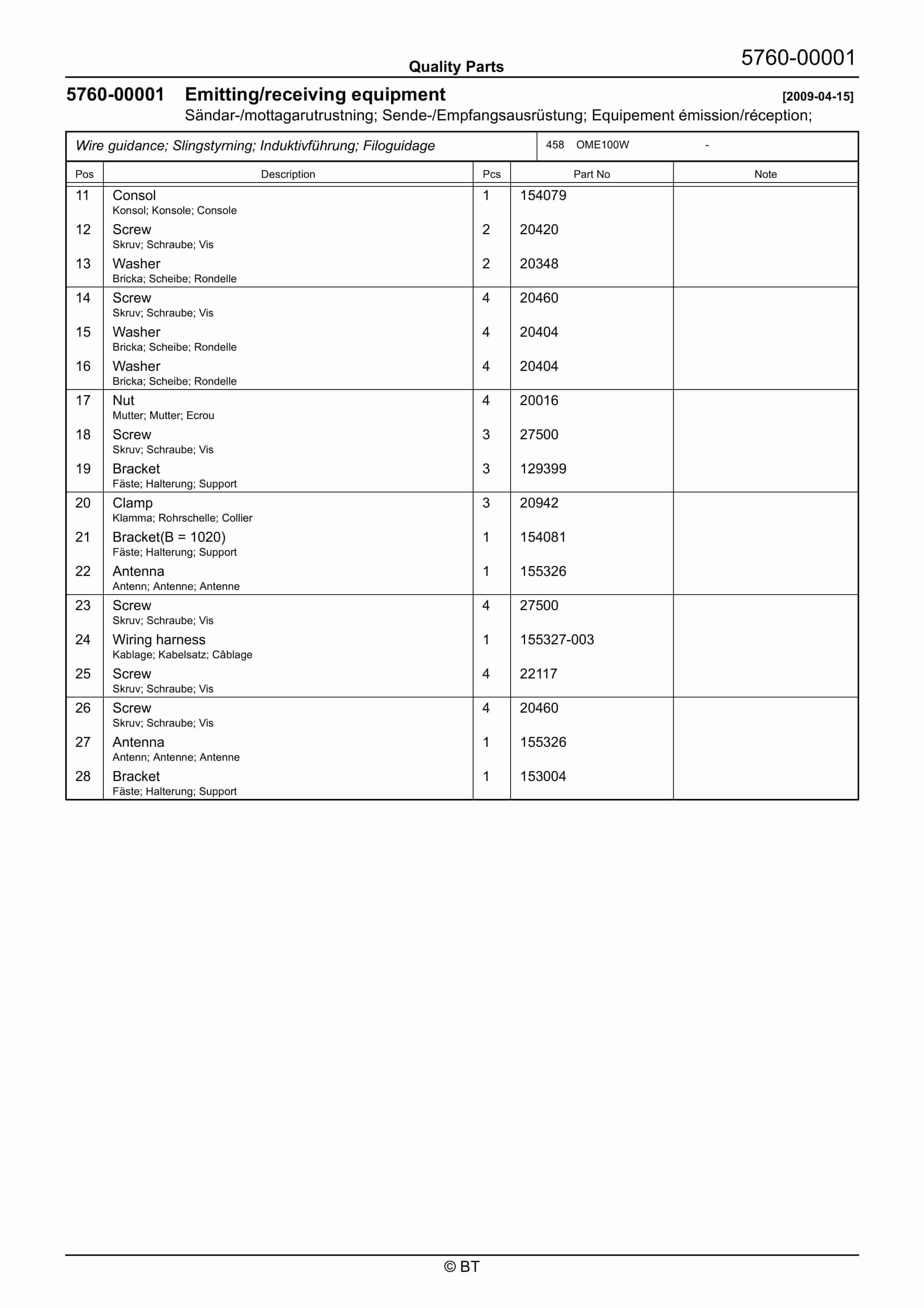

95. Emitting/receiving equipment 2009-04-15
96. P0020033
97. Safety electronics harnesses, fuse 2009-05-11
98. P0035659
99. Drive movement probes/sensors 2009-10-26
100. P0034665
101. Safety probes/sensors 2009-05-12
102. P0035658
103. Safety probes/sensors 2009-10-26
104. P0031458
105. Aisle probes/sensors 2009-09-29

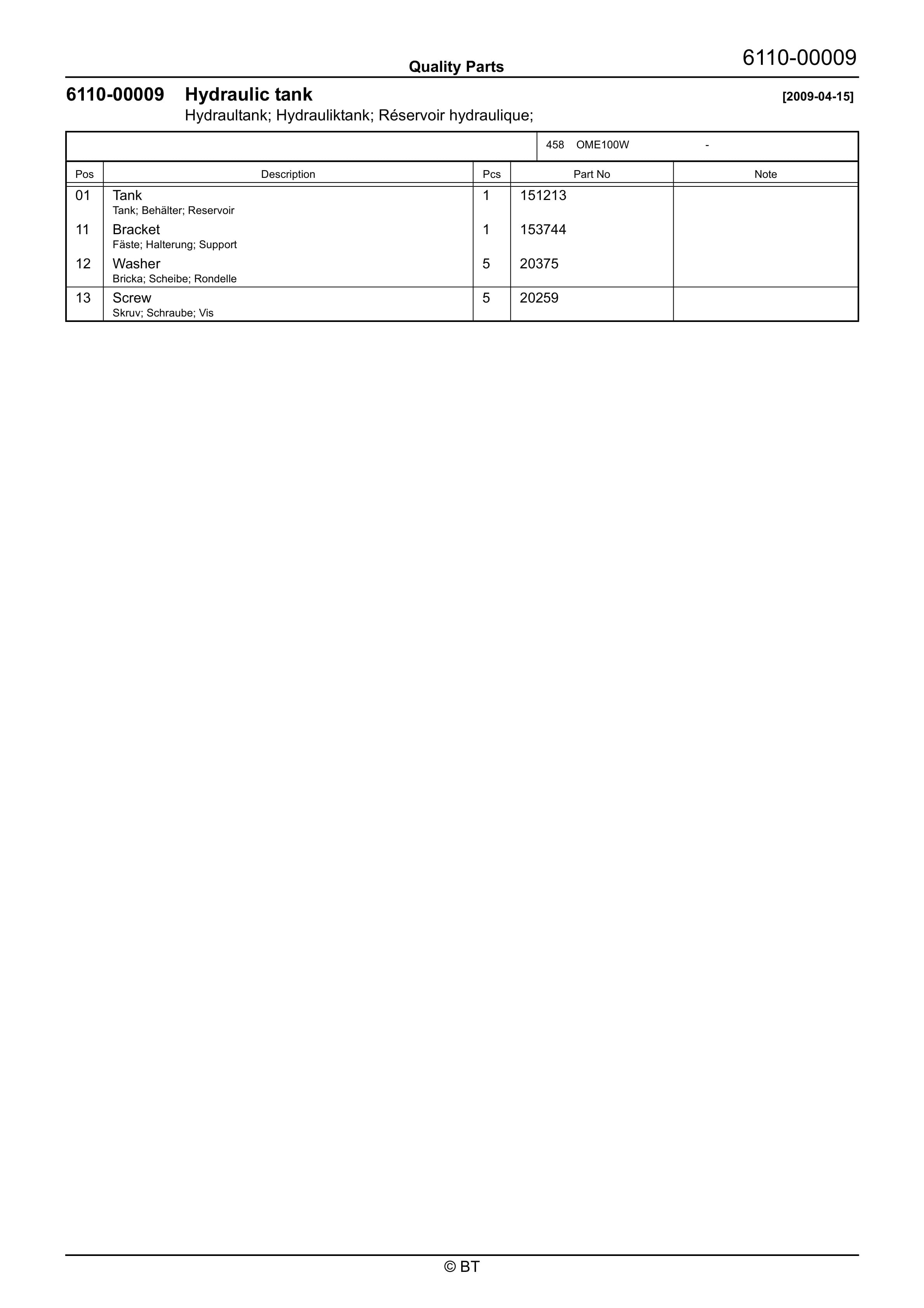

106. P0005163
107. Hydraulic tank 2009-04-15
108. P0016102
109. Hydraulic tank lines 2009-04-15
110. P0032430
111. Hydraulic tank lines 2009-04-15
112. P0011629

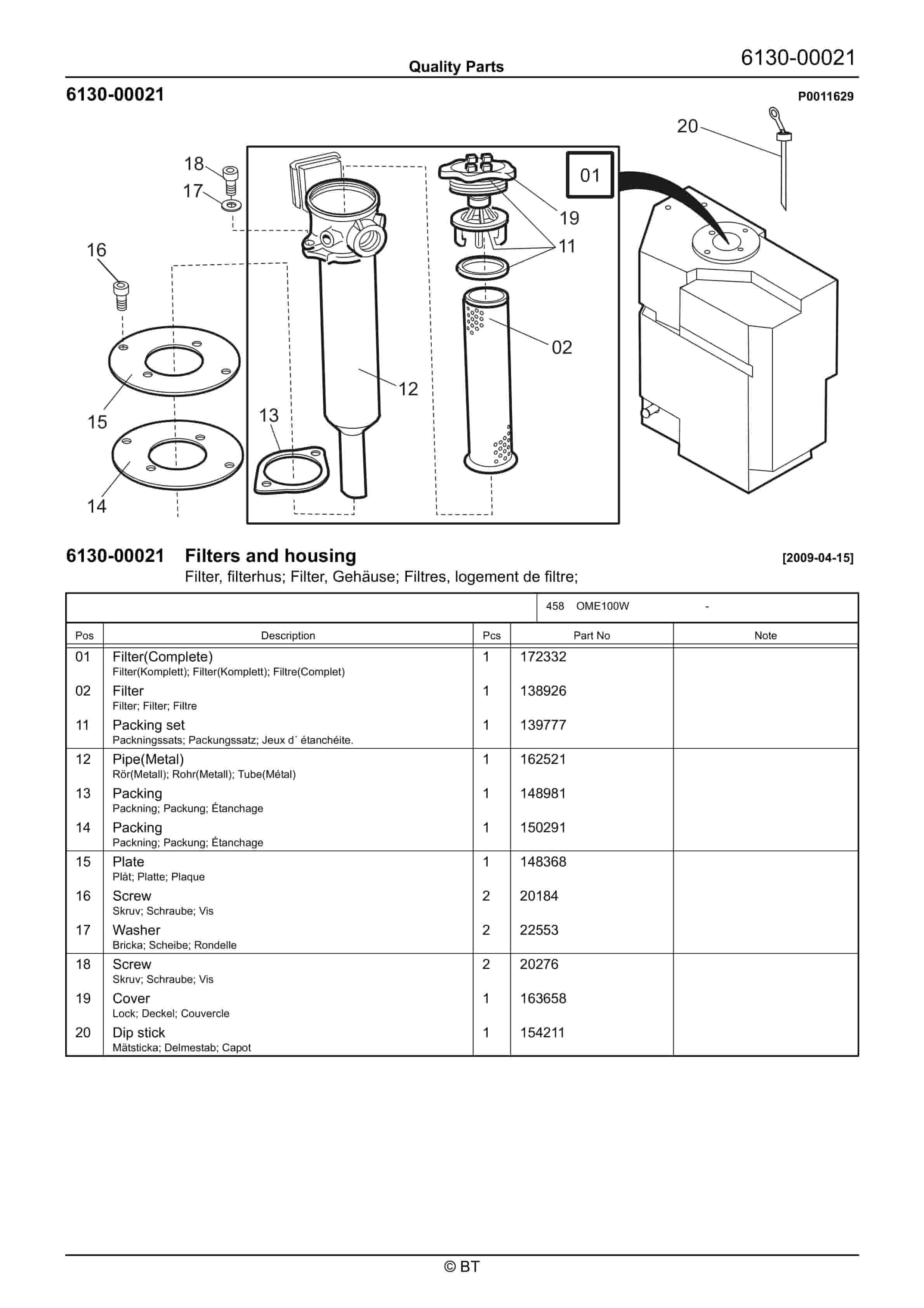

113. Filters and housing 2009-04-15
114. P0033896
115. Hydraulic pump 2009-04-15
116. P0012475
117. Main valve unit lift/reach/tilt 2009-04-15
118. P0007682
119. Mast hose reel/swivel joint 2006-06-08
120. P0012590
121. Main lift cylinders 2006-06-08
122. P0005178
123. Free lift cylinders 2009-04-15
124. P0032577
125. Main lift chain system 2008-12-12
126. P0007184
127. Main mast guidance/dampers 2006-06-08
128. P0006011
129. Main mast suspension 2009-04-15
130. P0035657
131. Fork carriage unit, integrated sideshift, fork spread 2009-10-26
132. P0007684
133. Other load carriers 2006-06-08
134. P0019044
135. Charger attachment 2009-10-13
136. P0031447
137. Extra electrical equipment 2009-04-15
138. P0023658
139. Other extra equipment 2009-04-15
