BT OS 1.0 Quality Parts 182533

$30.00

Type Of Manual: Quality Parts
Manual ID: 182533
: Parts Manual PDF
Number of Pages: 138
Size: 5.6MB
Format: PDF

Category: BT Parts Manual PDF

Product details

Model List:
- OS 1.0

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/ Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör /Zusatzausrüstung Equipement supplémentaire/Options
10. P0013931
11. Inspection covers 2001-05-02
12. P0014174
13. Inspection covers 2001-05-02
14. P0012207
15. Battery compartment parts 2000-05-16
16. P0008728
17. Motor fixing points 1999-03-30
18. P0008727
19. Motor fixing points 1999-03-30
20. P0008726
21. Motor fixing points 1999-03-30
22. P0000003
23. Driver controls ( mechanical ) 1996-09-03
24. P0002413
25. Wall/floor covering 1998-08-12
26. P0006208
27. Internal fittings 1997-08-14
28. P0003857
29. Driver protection 1996-09-04
30. P0003884
31. Driver protection 1996-09-10
32. P0004562
33. Signs, warnings, decals 1996-09-05
34. P0014212
35. Electric pump motor 2001-05-02
36. P0009919
37. Electric steering motor 1999-04-07
38. P0009920
39. Electric steering motor 1999-04-07
40. P0009940
41. Electric drive motor 1999-04-07
42. P0010832
43. Mechanical drive gear unit 1999-08-25
44. P0010833
45. Mechanical drive gear unit 1999-08-25
46. P0004556
47. Travel brake controls 1996-09-05
48. P0012116
49. Electrically controlled travel brake 2000-05-08
50. P0005258
51. Wheels 1997-01-14
52. P0007922
53. Drive wheel 1998-03-24
54. P0009913
55. Support/castor wheels 2000-05-18
56. P0004559
57. Steering arm / wheel / lever 1998-09-09
58. P0009880
59. Steering column/gear 1999-03-30
60. P0009886
61. Steering column/gear 1999-03-31
62. P0000085
63. Steering Chain / linkage / wire 1998-08-20
64. P0000089
65. Steering Chain / linkage / wire 1998-08-20
66. P0008732
67. Steering bearings, radial bearing 1998-08-25
68. P0009877
69. Steering bearings, radial bearing 2000-05-18
70. P0014042

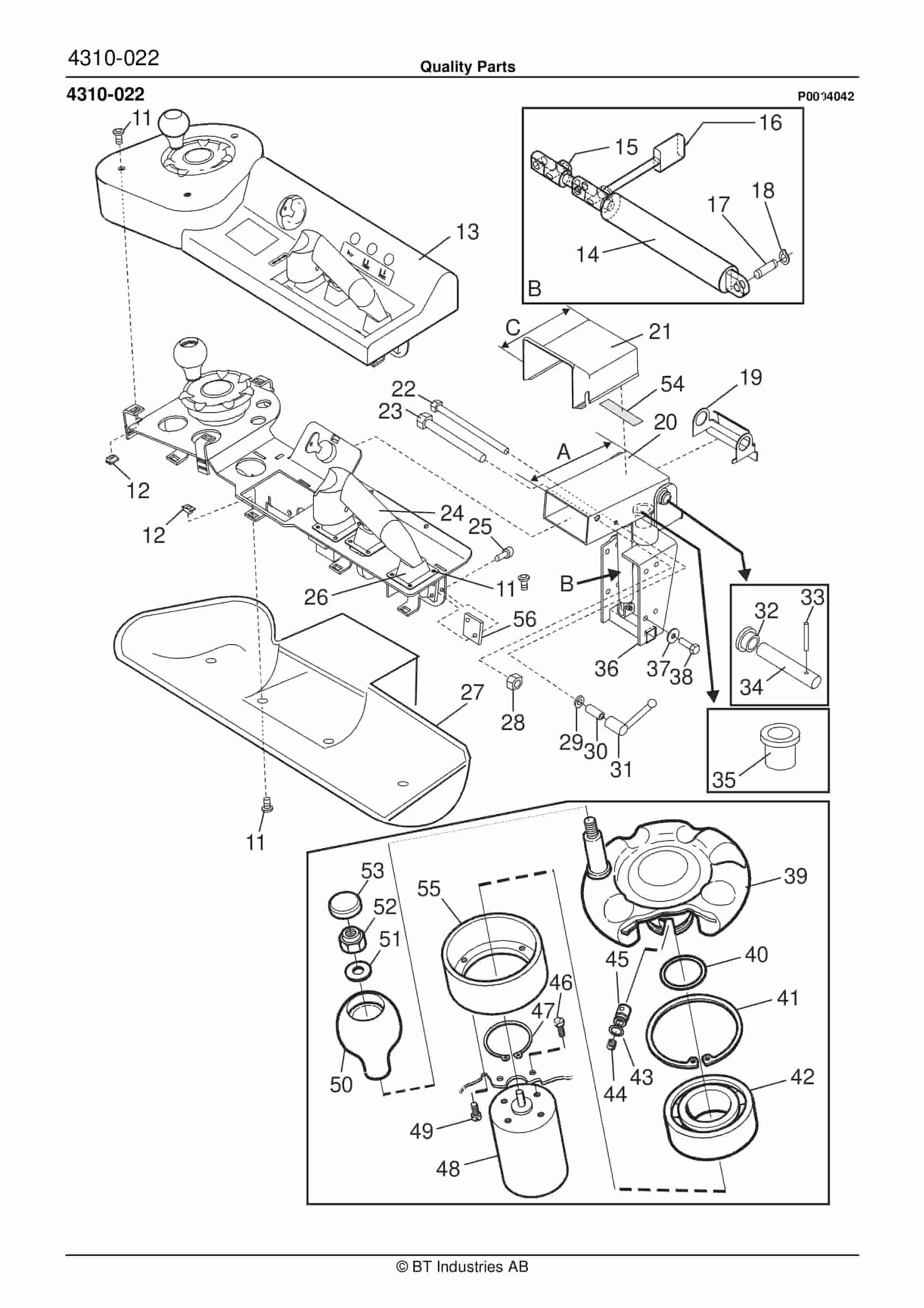

71. Electric steering wheel/lever 2001-05-02
72. P0009917
73. Steering angle sensor 1999-04-06
74. P0013939
75. General alarm signals (audible/visual) 2001-05-02
76. P0013940
77. General alarm signals (audible/visual) 2001-05-02
78. P0013941
79. General alarm signals (audible/visual) 2001-05-02
80. P0006286
81. Battery cut out connector/contactor 1997-08-18
82. P0005259
83. Instrument panel, display 1997-01-14
84. P0006339
85. Instrument panel, display 1997-08-27
86. P0000033
87. Voltage/battery indicator/control 1996-06-11
88. P0004560
89. Level/position transducers/lamps 1996-09-05
90. P0000151
91. Start/stop switch 1996-05-21
92. P0000072
93. Start/stop switch 1996-09-09
94. P0002133
95. Start/stop switch 1997-01-09
96. P0004557
97. Start/stop switch 1996-09-05
98. P0004611
99. Start/stop switch 1996-09-11
100. P0005261
101. Start/stop switch 1997-01-15
102. P0004610
103. Speed control 1996-09-10
104. P0008737
105. Speed control 1998-08-26
106. P0013934
107. Driving function harnesses/ fuse 2001-05-02
108. P0006297

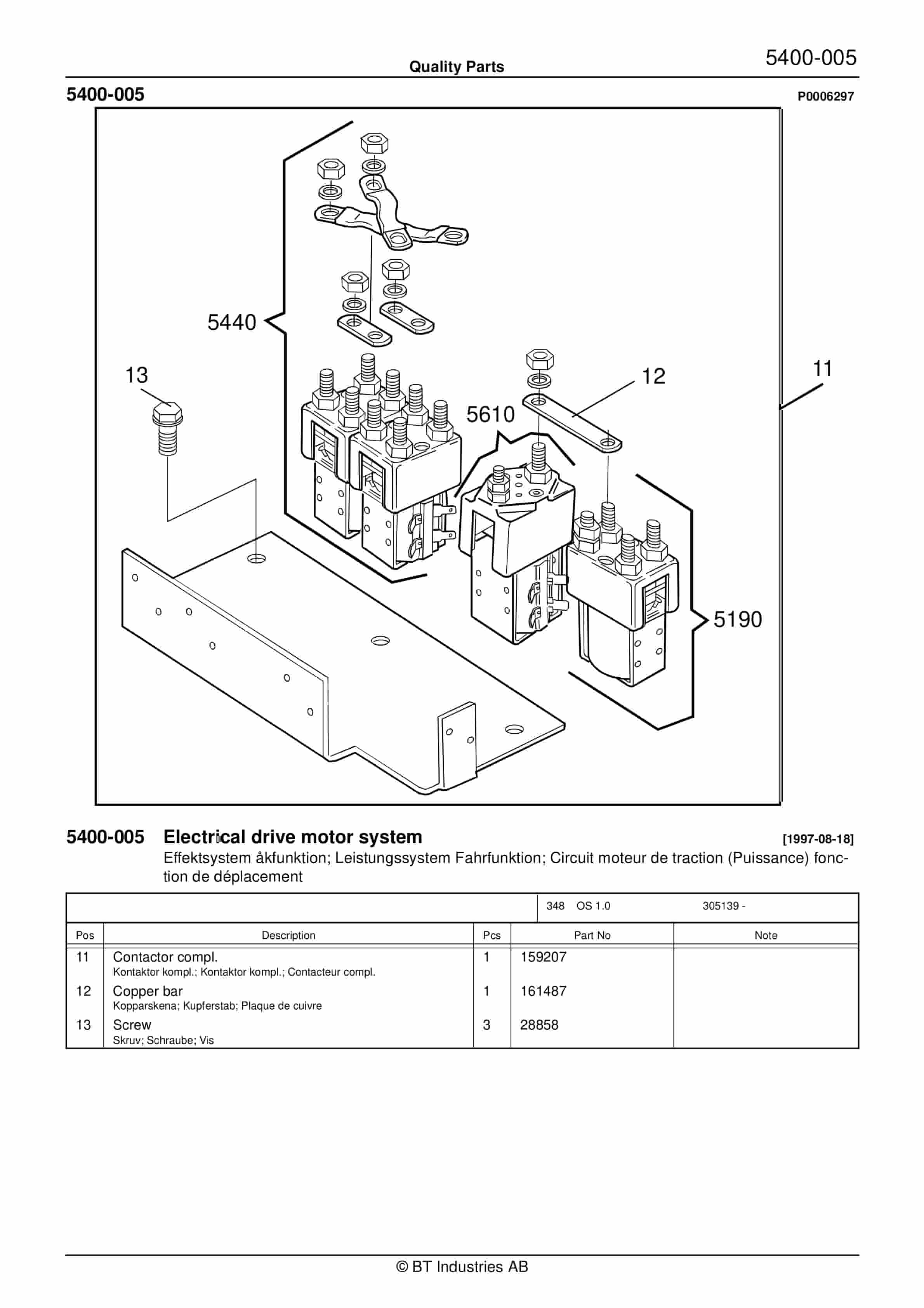

109. Electrical drive motor system 1997-08-18
110. P0012127
111. Drive motor cables/resistors/fuses 2000-05-09
112. P0006287
113. Direction contactors 1997-08-18
114. P0002977
115. Transistor panel 1996-08-12
116. P0004595
117. Work function micro switches, potentiometers 1996-09-10
118. P0004608
119. Work function micro switches, potentiometers 1996-09-10
120. P0005218
121. Work function micro switches, potentiometers 1997-01-09
122. P0006289
123. Pump contactor 1997-08-18
124. P0012117
125. Battery/motor cables, fuse 2000-05-09
126. P0012120
127. Battery/motor cables, fuse 2000-05-09
128. P0005219

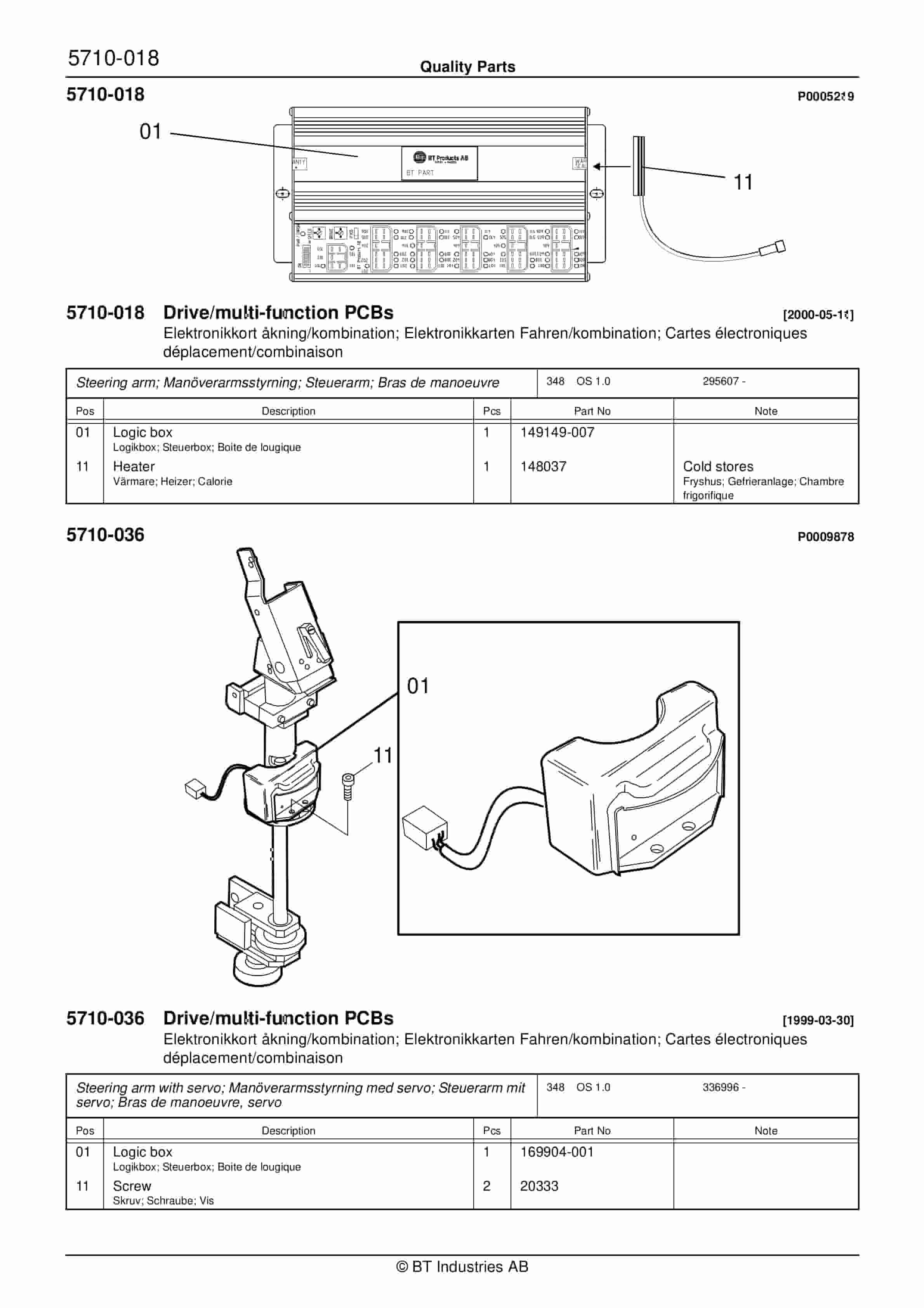

129. Drive/multi-function PCBs 2000-05-11
130. P0009878
131. Drive/multi-function PCBs 1999-03-30
132. P0014043
133. Drive/multi-function PCBs 2001-05-02
134. P0009887
135. Drive movement probes/sensors 2000-05-08
136. P0009929
137. Lift/lowering/reach movment probes/sensors 1999-04-07
138. P0009928
139. Safety probes/ sensors 1999-04-07
140. P0014185

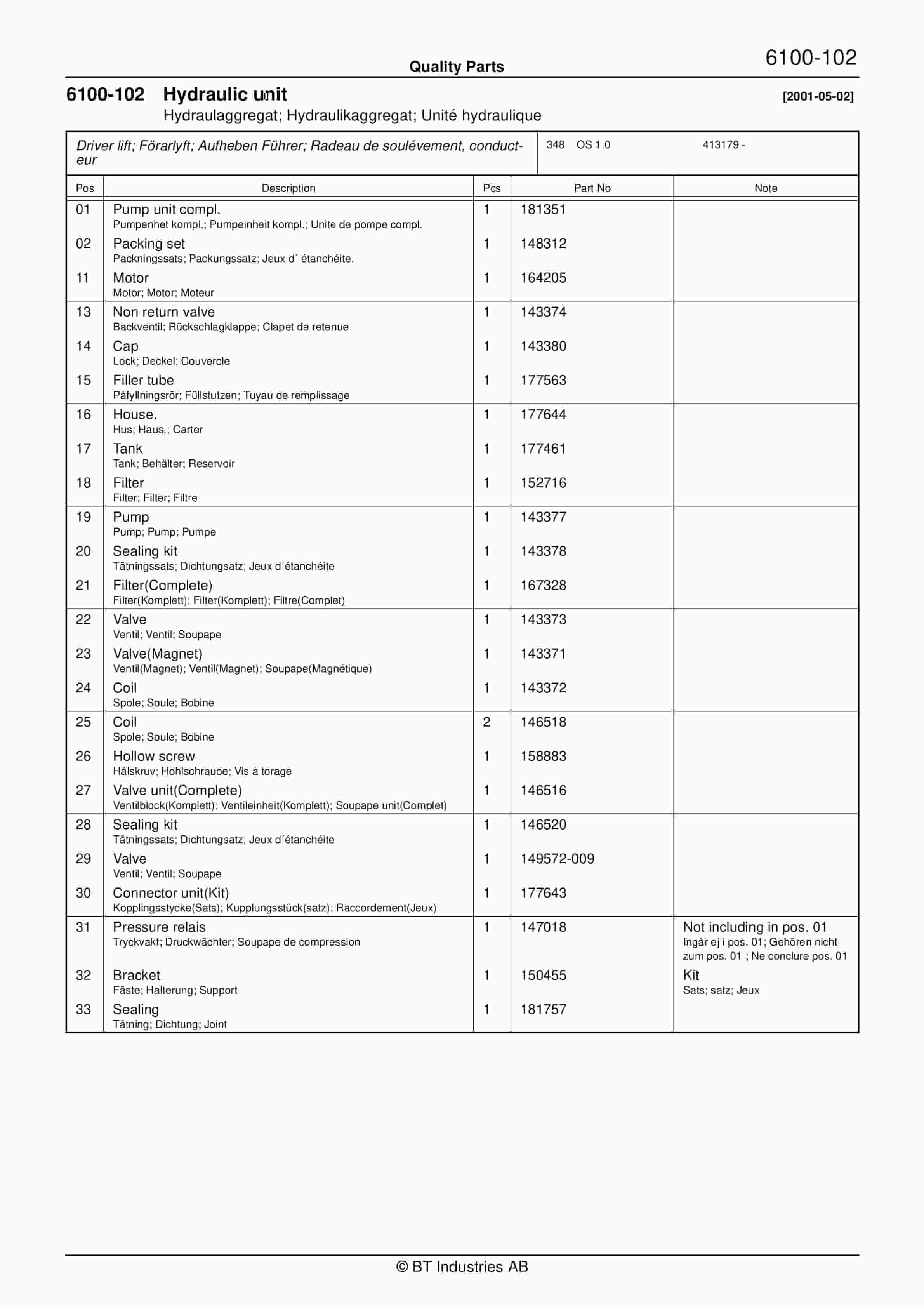

141. Hydraulic unit 2001-05-03
142. P0014186
143. Hydraulic unit 2001-05-02
144. P0014192
145. Hydraulic lines chassis 2001-05-02
146. P0009937
147. Main lift cylinders 1999-04-07
148. P0009935
149. Main mast 1999-04-07
150. P0009934
151. Main lift chain system 1999-04-07
152. P0002415
153. Forkcarriage unit,integ.sideshift,fork spread 1996-09-10
154. P0013942
155. Working cage 2001-05-02
156. P0012865
157. Truck log device, code locking device 2000-10-03
158. P0012864
159. Truck log device, code locking device 2000-10-03
160. P0003849
161. Other extra equipment 1996-09-10
162. P0007921
163. Other extra equipment 1998-03-05
164. P0009876
165. Other extra equipment 1999-03-30
166. P0012906
167. Other extra equipment 2000-10-10
168. P0013206
169. Other extra equipment 2000-11-15
170. P0002974
171. Battery changing equipment 1996-09-09
