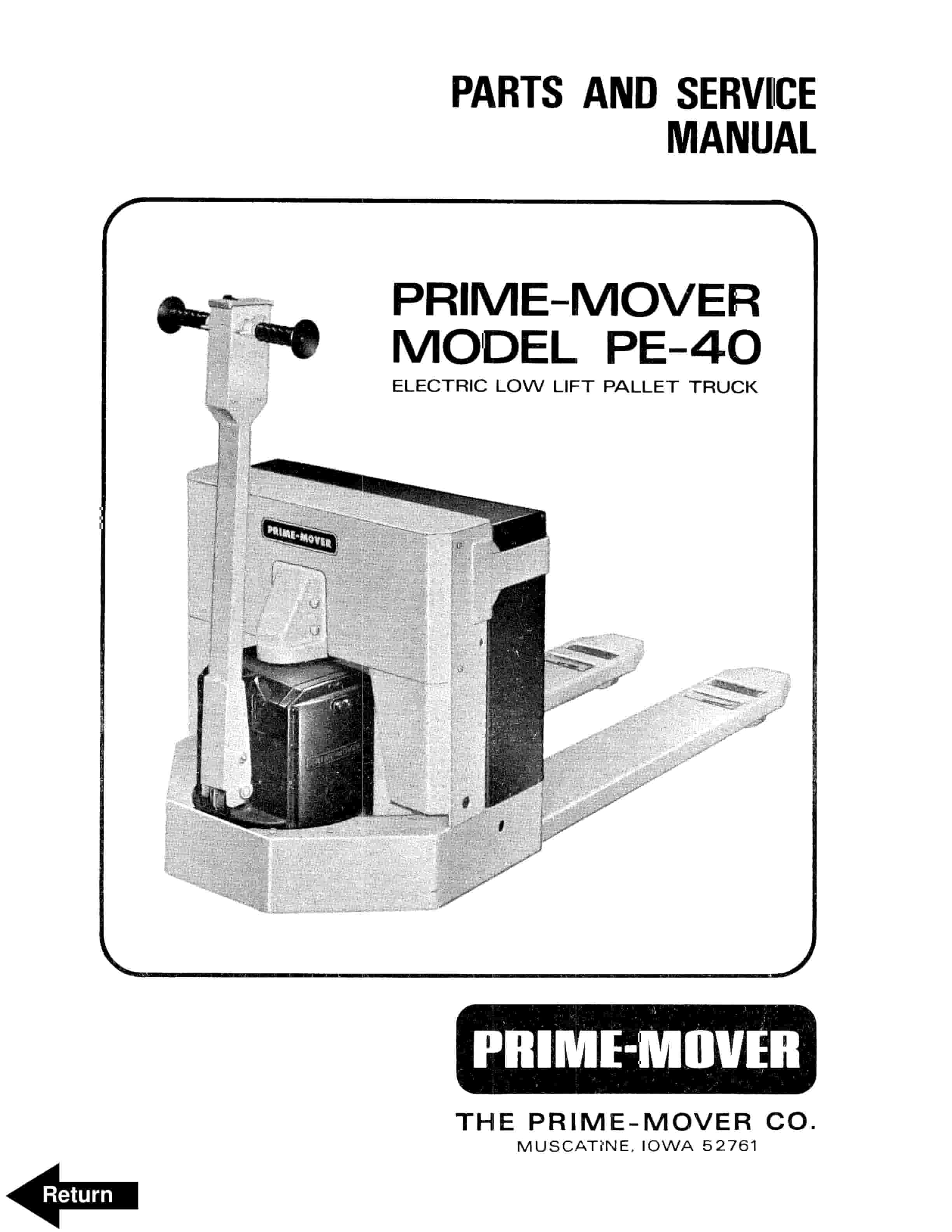

BT PE-40 Electric Low Lift Pallet Truck Parts And Service Manual 310508-000
$30.00
- Type Of Manual: Parts And Service Manual
- Manual ID: 310508-000
- : Parts Manual PDF
- Number of Pages: 28
- Size: 2.0MB
- Format: PDF
Product details
-
Model List:
- PE-40 Electric Low Lift Pallet Truck
- 1. Front Cover
- 2. Prime-Mover Warranty
- 3. Contents
- 4. To New Prime-Mover Owners
- 5. Operating Instructions
- 5.1. Preliminary Service
- 5.2. Controls
- 5.2.1. Safety Interlock
- 5.2.2. Direction Control
- 5.2.3. Deadman Brake
- 5.2.4. Key Switch (Optional)
- 5.2.5. Horn (Optional)
- 5.2.6. Dynamic Brake (Optional)
- 5.3. Operator Maintenance
- 5.4. Battery Care
- 6. Maintenance Instructions
- 6.1. Battery
- 6.2. Power Wiring
- 6.3. Control Wiring
- 6.4. Control Switches (Handle)
- 6.5. Limit Switch Adjustment (Lift)
- 6.6. Mechanical Brake
- 6.7. Interlock Switch
- 6.8. Transmission Rollers
- 6.9. Contactor Points
- 6.10. Motor Commutator
- 6.11. Hydraulic System
- 7. Service Instructions
- 8. Parts Ordering Instructions
- 9. Parts List Index
- 10. Control Handle
- 11. Drive Motor and Transmission Mounting
- 12. Motor Service Parts
- 13. Transmission Assembly
- 14. Carrier Frame
- 15. Lift Frame and Linkage
- 16. Electrical Control Panel

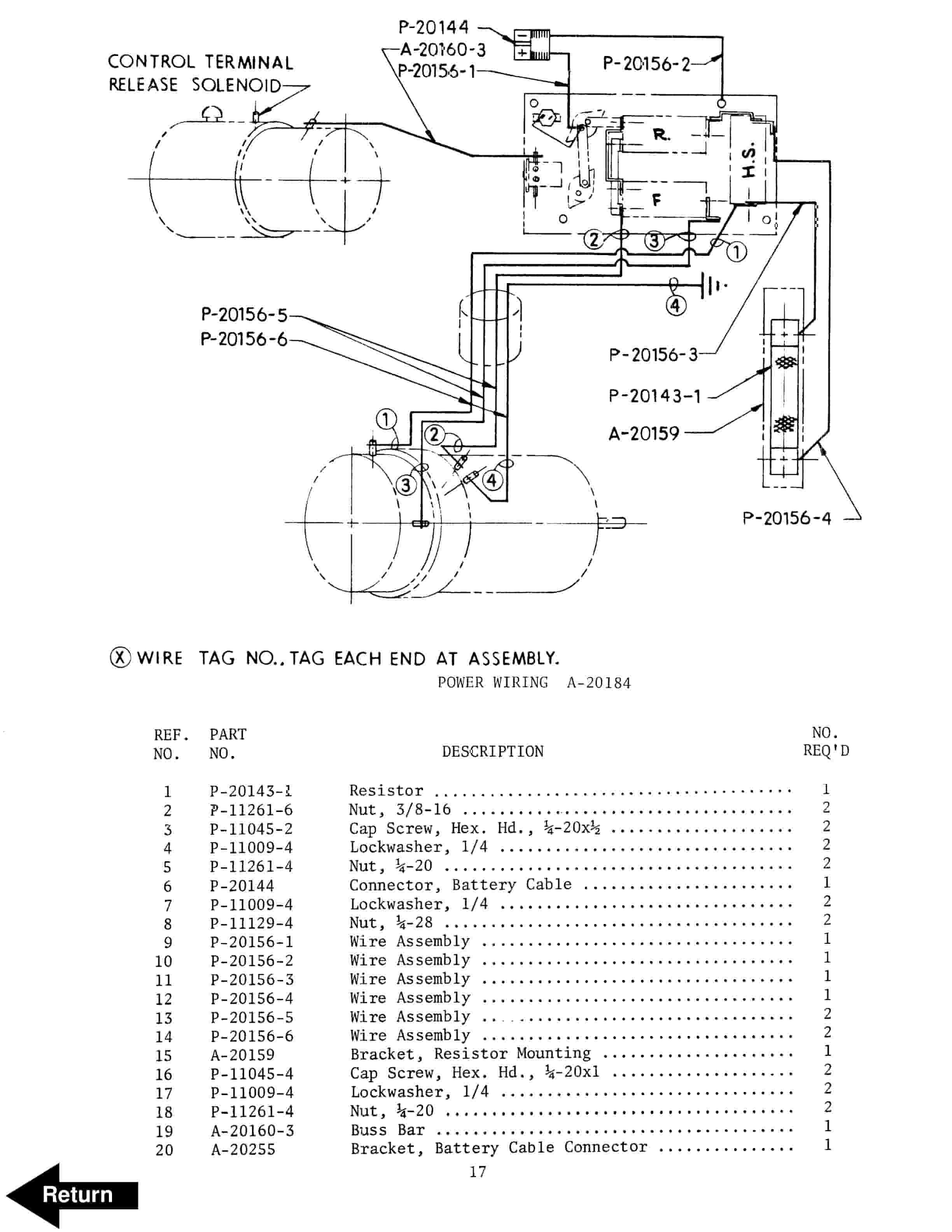

- 17. Power Wiring
- 18. Hydraulic Piping Diagram
- 19. Hydraulic Cylinder Assembly
- 20. Hydraulic Pump Parts List

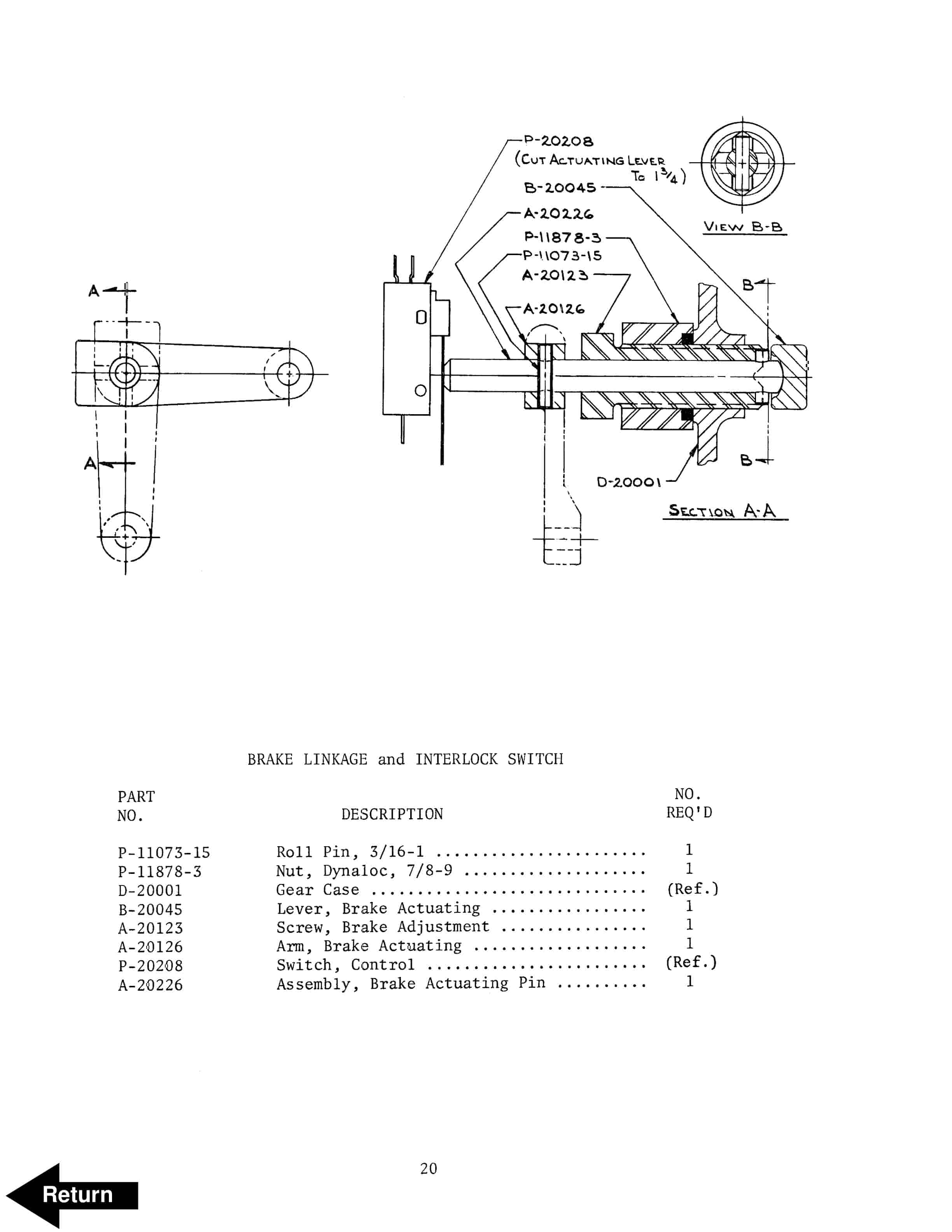

- 21. Brake Linkage and Interlock Switch

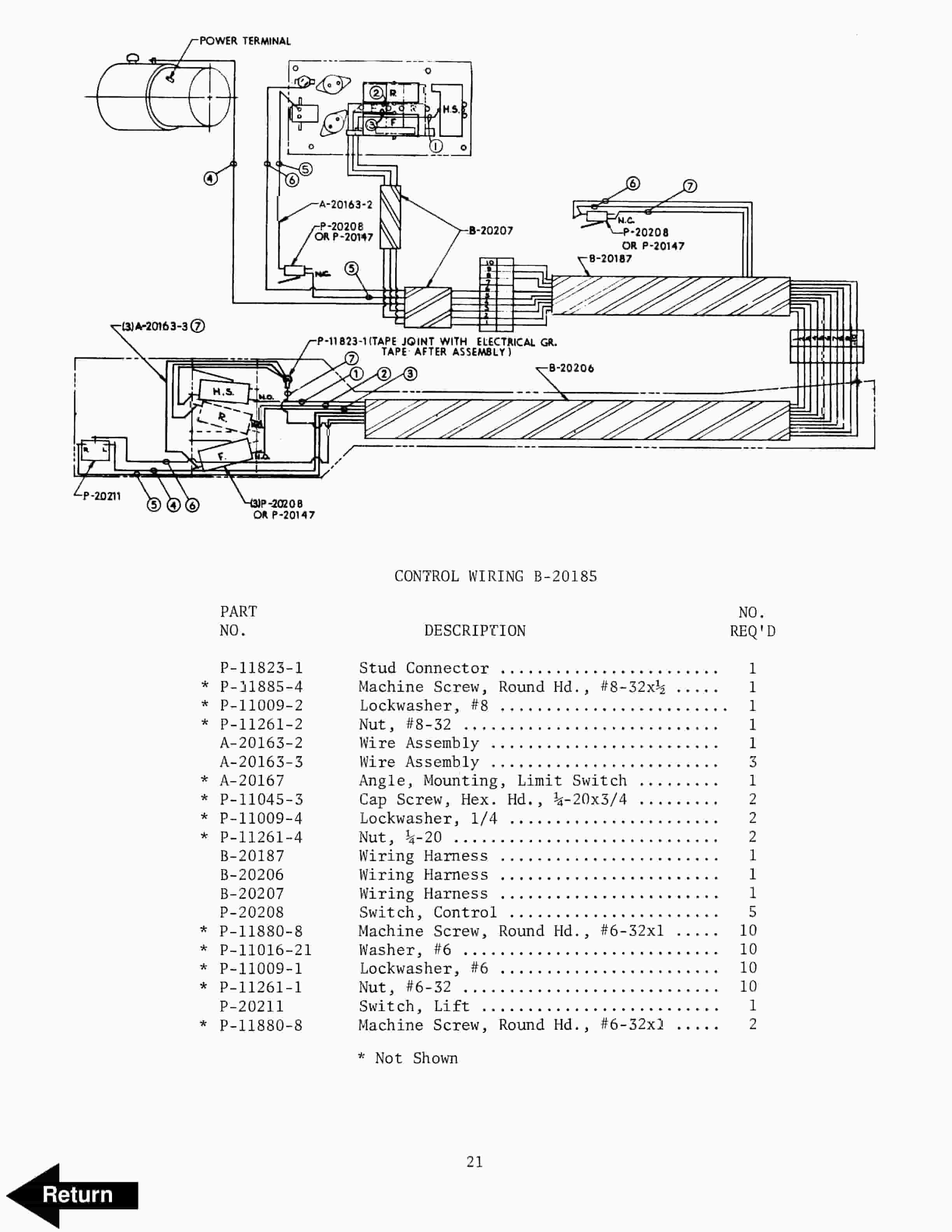

- 22. Control Wiring
- 23. Control Switch Installation
- 24. Service Guide
