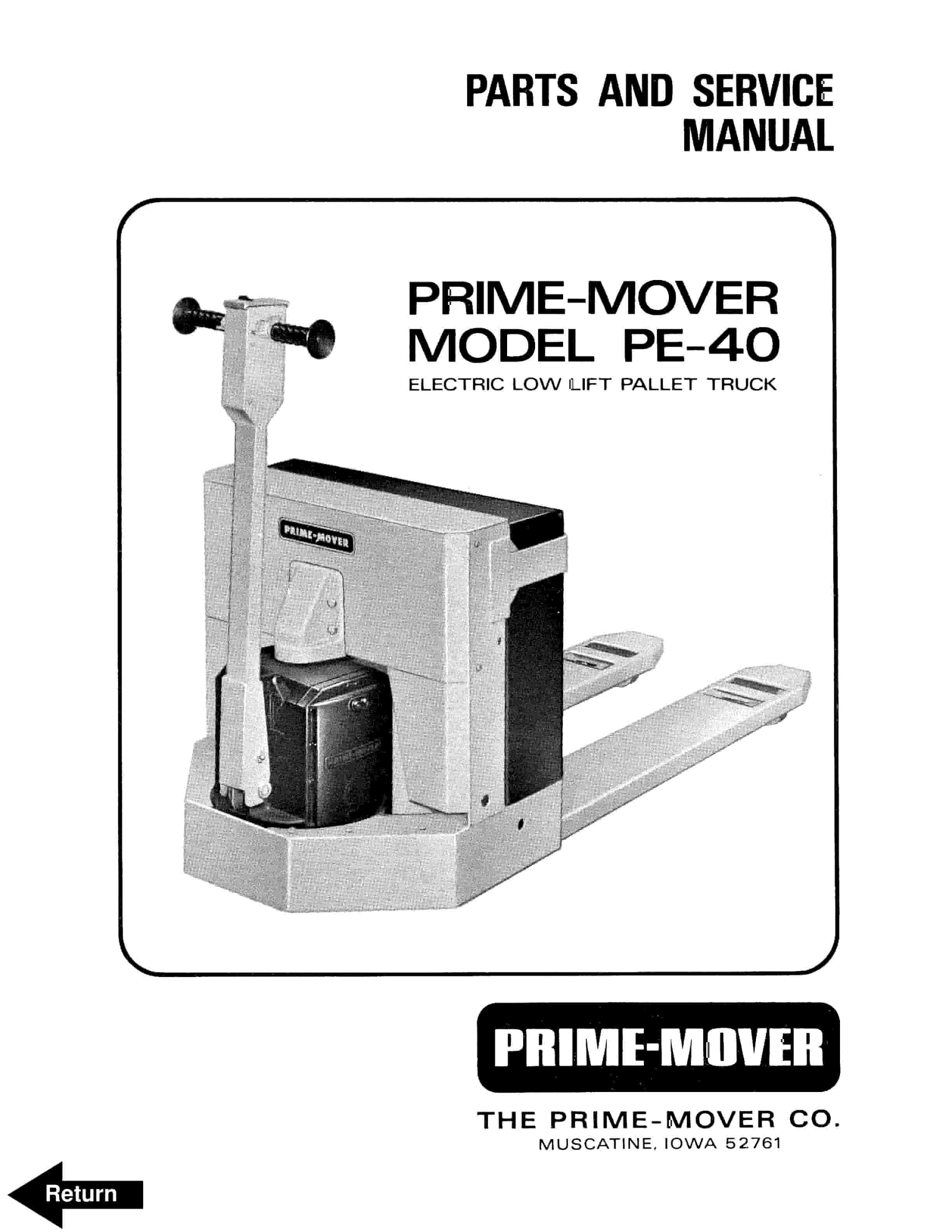

BT PE-40 Electric Low Lift Pallet Truck Parts And Service Manual 310519-000
BT PE-40 Electric Low Lift Pallet Truck Parts And Service Manual 310519-000 - Image 2
BT PE-40 Electric Low Lift Pallet Truck Parts And Service Manual 310519-000 - Image 3
BT PE-40 Electric Low Lift Pallet Truck Parts And Service Manual 310519-000 - Image 4
BT PE-40 Electric Low Lift Pallet Truck Parts And Service Manual 310519-000 - Image 5
bt pe 40 electric low lift pallet truck parts and service manual 310519 000 2
bt pe 40 electric low lift pallet truck parts and service manual 310519 000 3
bt pe 40 electric low lift pallet truck parts and service manual 310519 000 4
bt pe 40 electric low lift pallet truck parts and service manual 310519 000 5

BT PE-40 Electric Low Lift Pallet Truck Parts And Service Manual 310519-000

$30.00

  • Type Of Manual: Parts And Service Manual
  • Manual ID: 310519-000
  • : Parts Manual PDF
  • Number of Pages: 28
  • Size: 2.0MB
  • Format: PDF
Category:
  • Model List:

    • PE-40 Electric Low Lift Pallet Truck
  • 1. Front Cover
  • 2. Prime-Mover Warranty
  • 3. Contents
  • 4. To New Prime-Mover Owners
  • 5. Operating Instructions
  • 5.1. Preliminary Service
  • 5.2. Controls
  • 5.2.1. Safety Interlock
  • 5.2.2. Lift/Lower
  • 5.2.3. Direction Control
  • 5.2.4. Deadman Brake
  • 5.2.5. Key Switch (Optional)
  • 5.2.6. Horn (Optional)
  • 5.2.7. Dynamic Brake (Optional)
  • 5.3. Operator Maintenance
  • 5.4. Battery Care
  • 6. Maintenance Instructions
  • 6.1. Battery
  • 6.2. Power Wiring
  • 6.3. Control Wiring
  • 6.4. Control Switches (Handle)
  • 6.5. Limit Switch Adjustment (Lift)
  • 6.6. Mechanical Brake
  • 6.7. Interlock Switch
  • 6.8. Transmission Rollers
  • 6.9. Contactor Points
  • 6.10. Motor Commutator
  • 6.11. Hydraulic System
  • 7. Service Instructions
  • 8. Parts Ordering Instructions
  • 9. Parts List Index
  • 10. Control Handle
  • 11. Drive Motor and Transmission Mounting

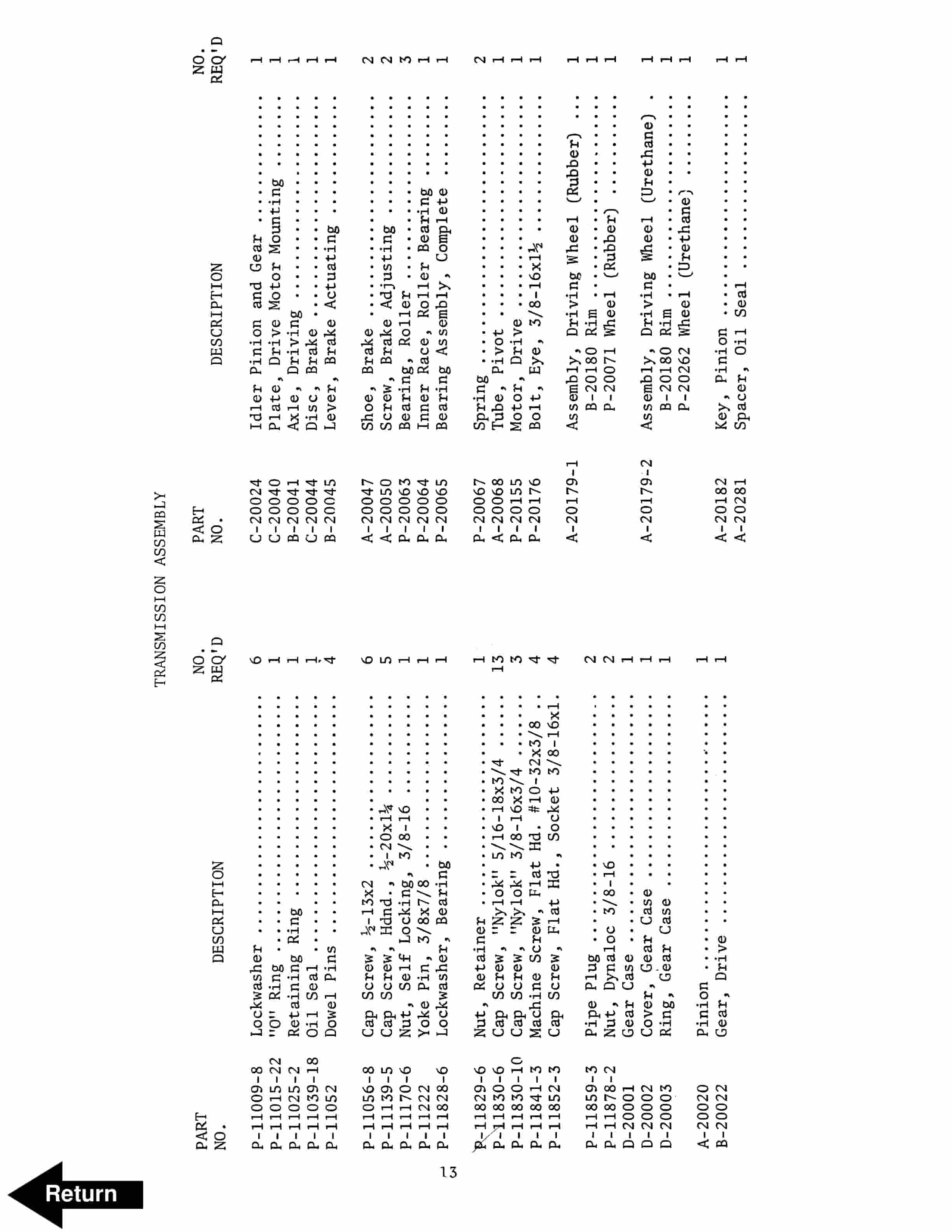

  • 12. Transmission Assembly
  • 13. Carrier Frame
  • 14. Lift Frame and Linkage

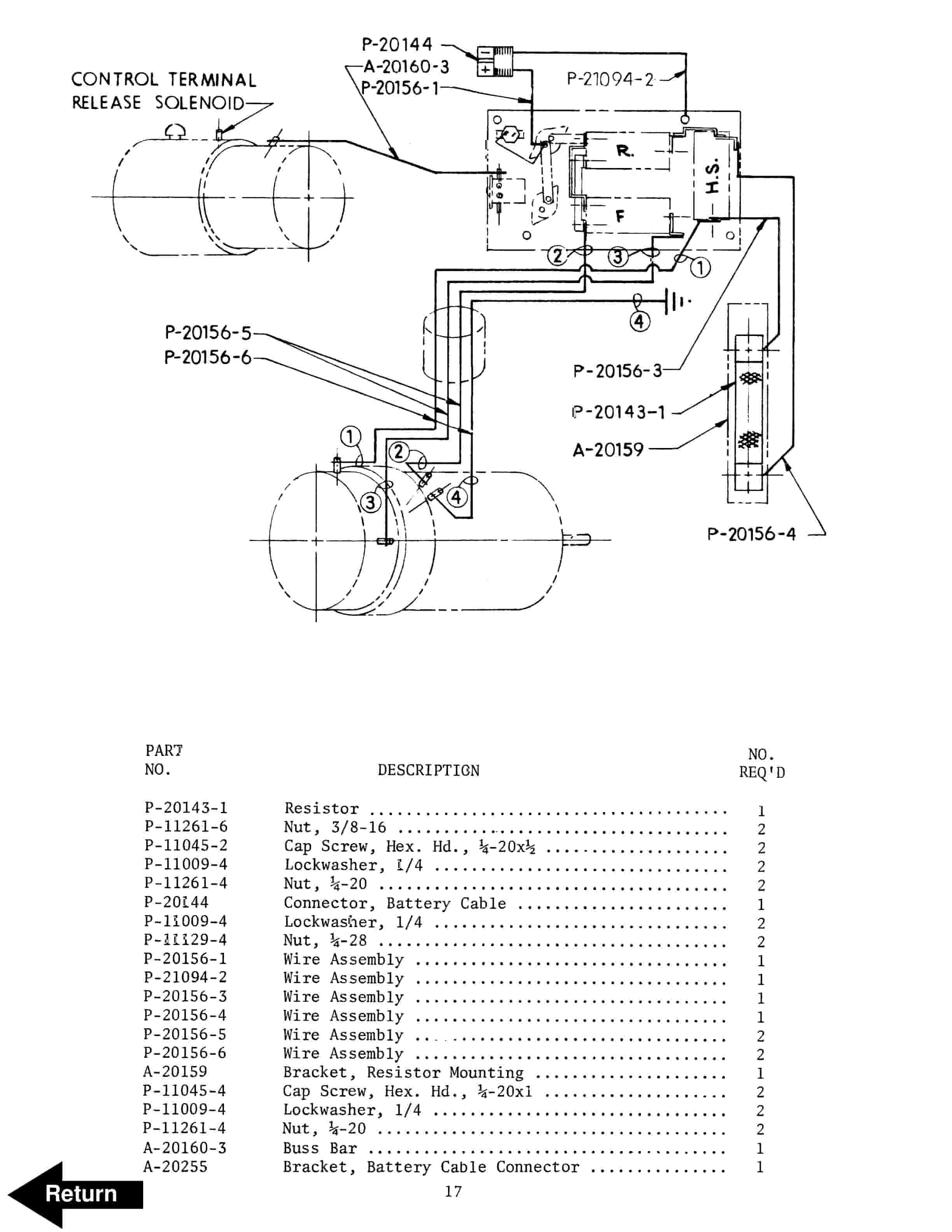

  • 15. Electrical Control Panel
  • 16. Control Terminal Release Solenoid
  • 17. Hydraulic Piping Diagram
  • 18. Hydraulic Cylinder Assembly
  • 19. Hydraulic Pump Parts List

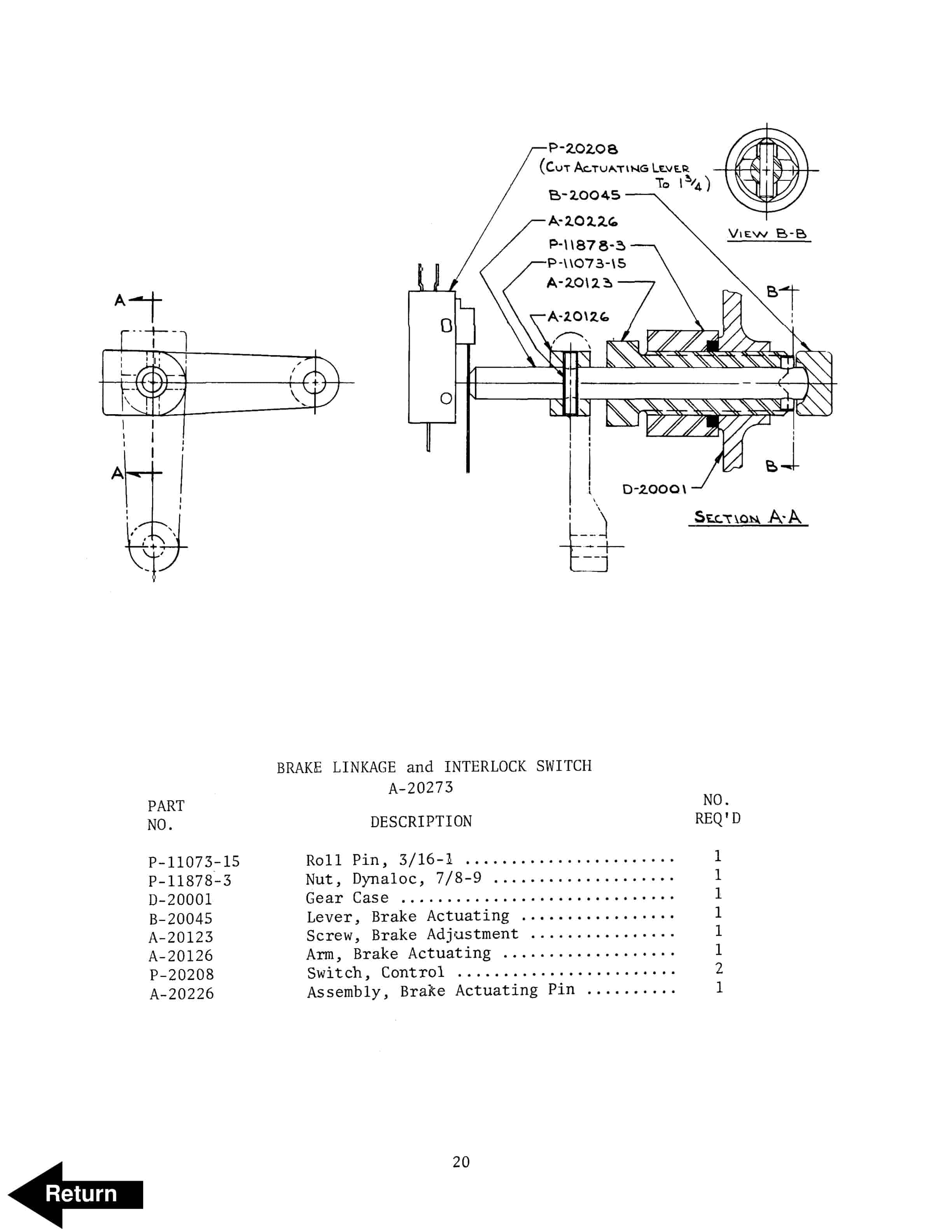

  • 20. Brake Linkage and Interlock Switch

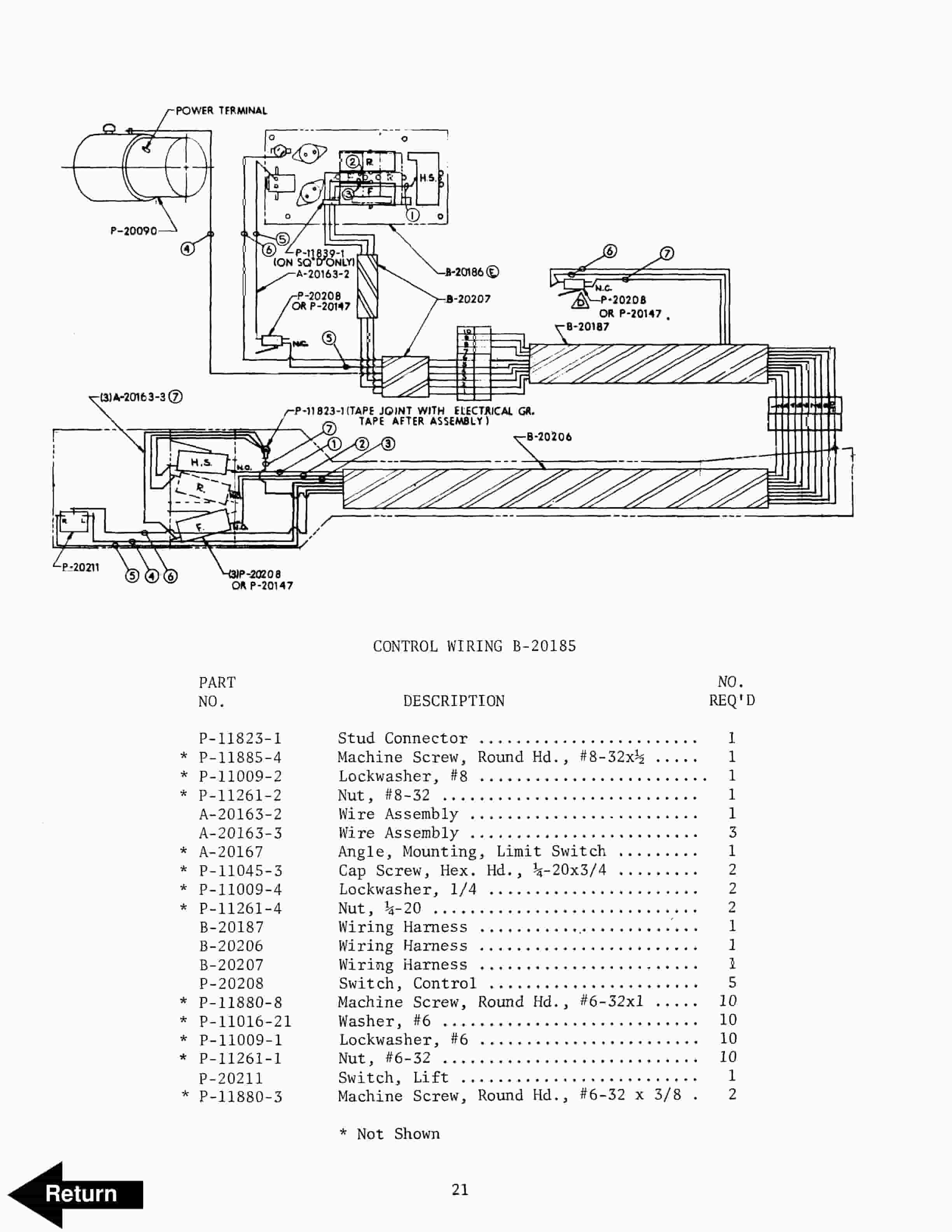

  • 21. Control Wiring
  • 22. Control Switch Installation
  • 23. Service Guide
