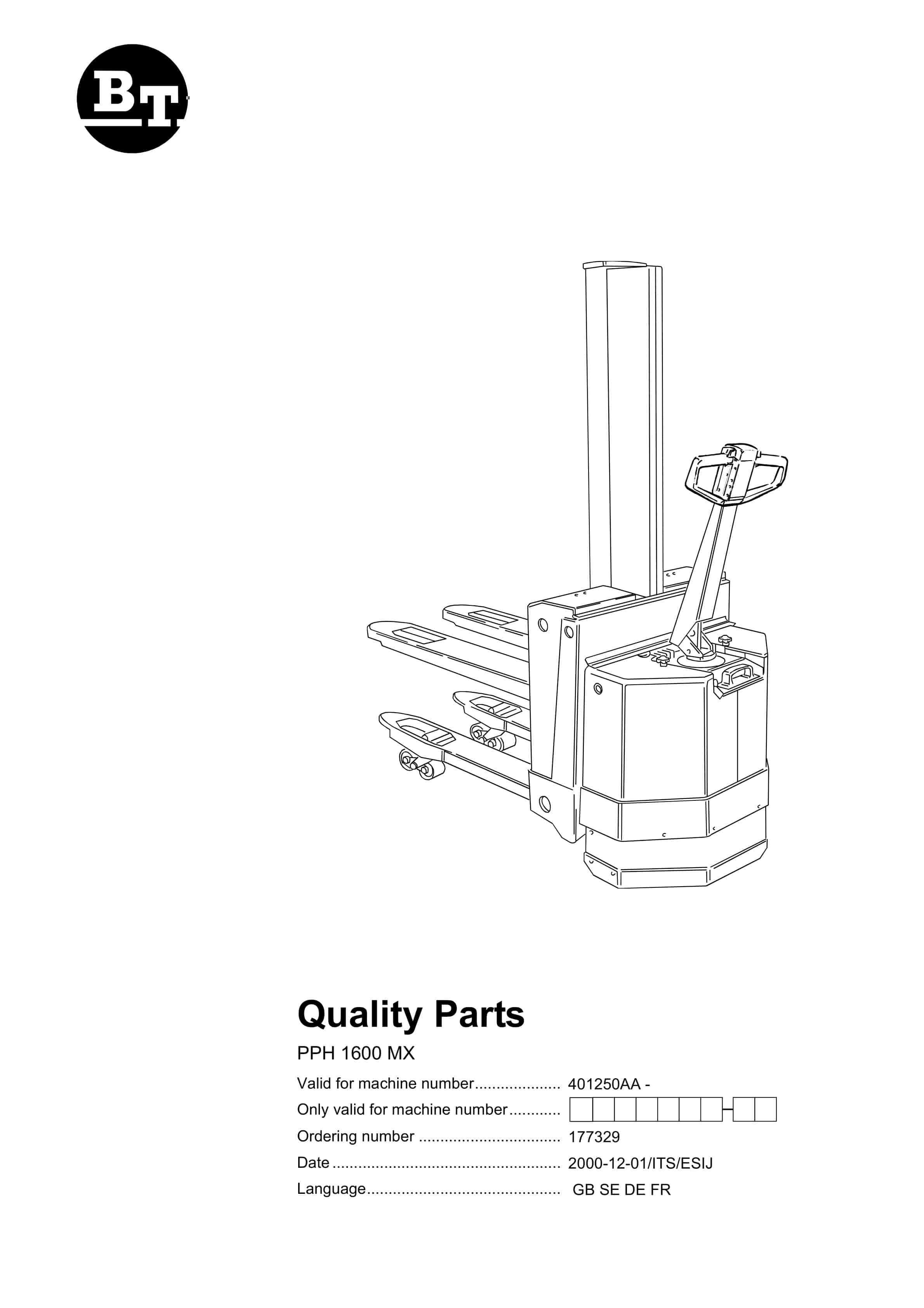

BT PPH 1600 MX Quality Parts 177329
BT PPH 1600 MX Quality Parts 177329 - Image 2
BT PPH 1600 MX Quality Parts 177329 - Image 3
BT PPH 1600 MX Quality Parts 177329 - Image 4
BT PPH 1600 MX Quality Parts 177329 - Image 5

BT PPH 1600 MX Quality Parts 177329

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 177329
  • : Parts Manual PDF
  • Number of Pages: 73
  • Size: 3.0MB
  • Format: PDF
Category:

Product details

  • Model List:

    • PPH 1600 MX

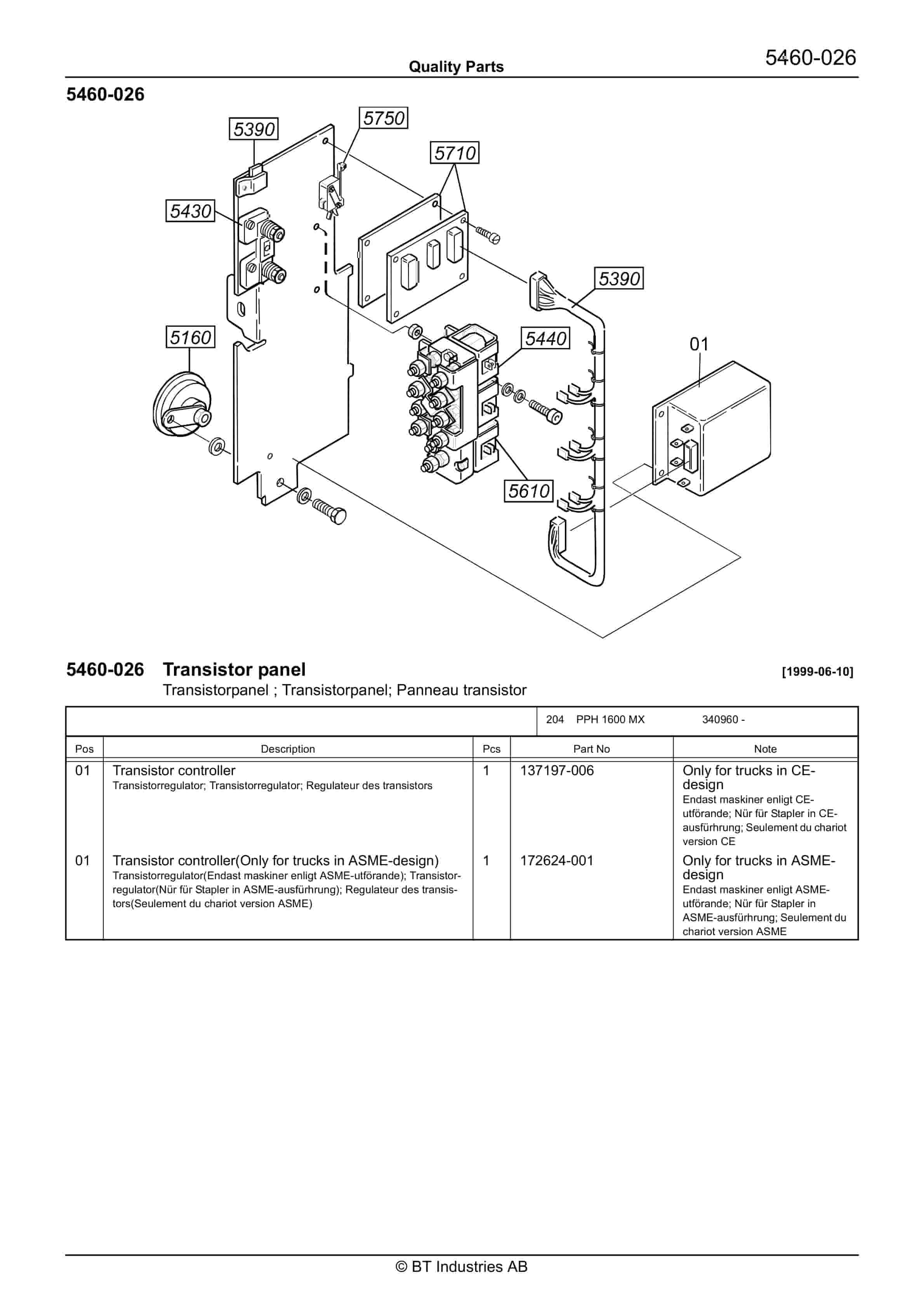

  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Drive motor
  • 2.1. Motorprimär Antriebsmotor Moteur de traction
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/ Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Operating funktion – lifting mast/cylinder
  • 8.1. Arbetsfunktion – lyftstativ/cylindrar Arbeitsfunktion – Hubgerüst / zylinder Fonction de travai…
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör /Zusatzausrüstung Equipement supplémentaire/Options
  • 10.
  • 11. Inspection covers 1996-12-12
  • 12.
  • 13. Fork frame (low lifters) 1997-12-11
  • 14.
  • 15. Frame/chassis components 1996-05-20
  • 16.
  • 17. Motor fixing points 1996-05-20
  • 18.
  • 19. Spring, housing 1996-12-12
  • 20.
  • 21. Driver controls ( mechanical ) 1996-08-08
  • 22.
  • 23. Finger/foot guards 1996-12-12
  • 24.
  • 25. Driver protection 1996-11-18
  • 26.
  • 27. Signs, warnings, decals 1997-11-05
  • 28.
  • 29. Electric drive motor 1998-11-19
  • 30.
  • 31. Mechanical drive gear unit 1999-03-14
  • 32.
  • 33. Parking brake drum/disc assembly 1998-09-04
  • 34.
  • 35. Wheels 1997-11-05
  • 36.
  • 37. Drive wheel 1996-12-12
  • 38.
  • 39. Support/castor wheels 1996-11-19
  • 40.
  • 41. Wheel locating points 1996-05-20
  • 42.

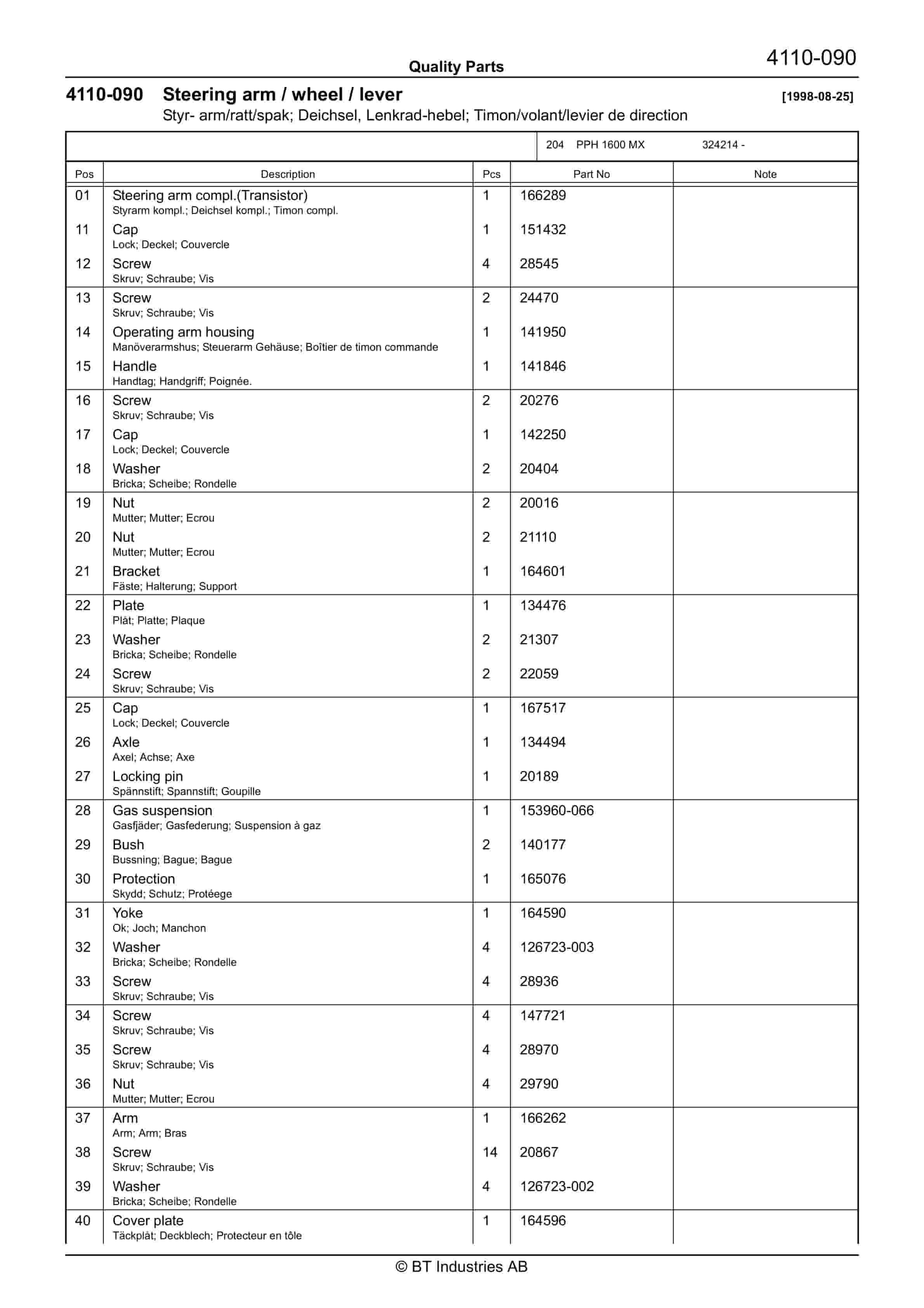

  • 43. Steering arm / wheel / lever 1998-08-25
  • 44.
  • 45. Steering bearings, radial bearing 1996-05-20
  • 46.
  • 47. General alarm signals (audible/visual) 1997-04-15
  • 48.
  • 49. Battery cut out connector/contactor 1996-05-20
  • 50.
  • 51. Hour meter, speed recorder 1996-05-20
  • 52.
  • 53. Start/stop switch 1999-03-14
  • 54.
  • 55. Speed control 1998-11-20
  • 56.
  • 57. Driving function harnesses/ fuse 1998-09-15
  • 58.
  • 59. Motor cables, resistors 1996-05-20
  • 60.
  • 61. Direction contactors 1996-11-20
  • 62.
  • 63. Transistor panel 1999-06-10
  • 64.
  • 65. Work function micro switches, potentiometers 1997-11-05
  • 66.
  • 67. Pump contactor 1996-11-20
  • 68.
  • 69. PCBs logic card / box 1996-12-12
  • 70.
  • 71. Safety/ position probes/ sensors 1999-03-22
  • 72.
  • 73. Safely electronics harnesses, fuse 1997-04-09
  • 74.

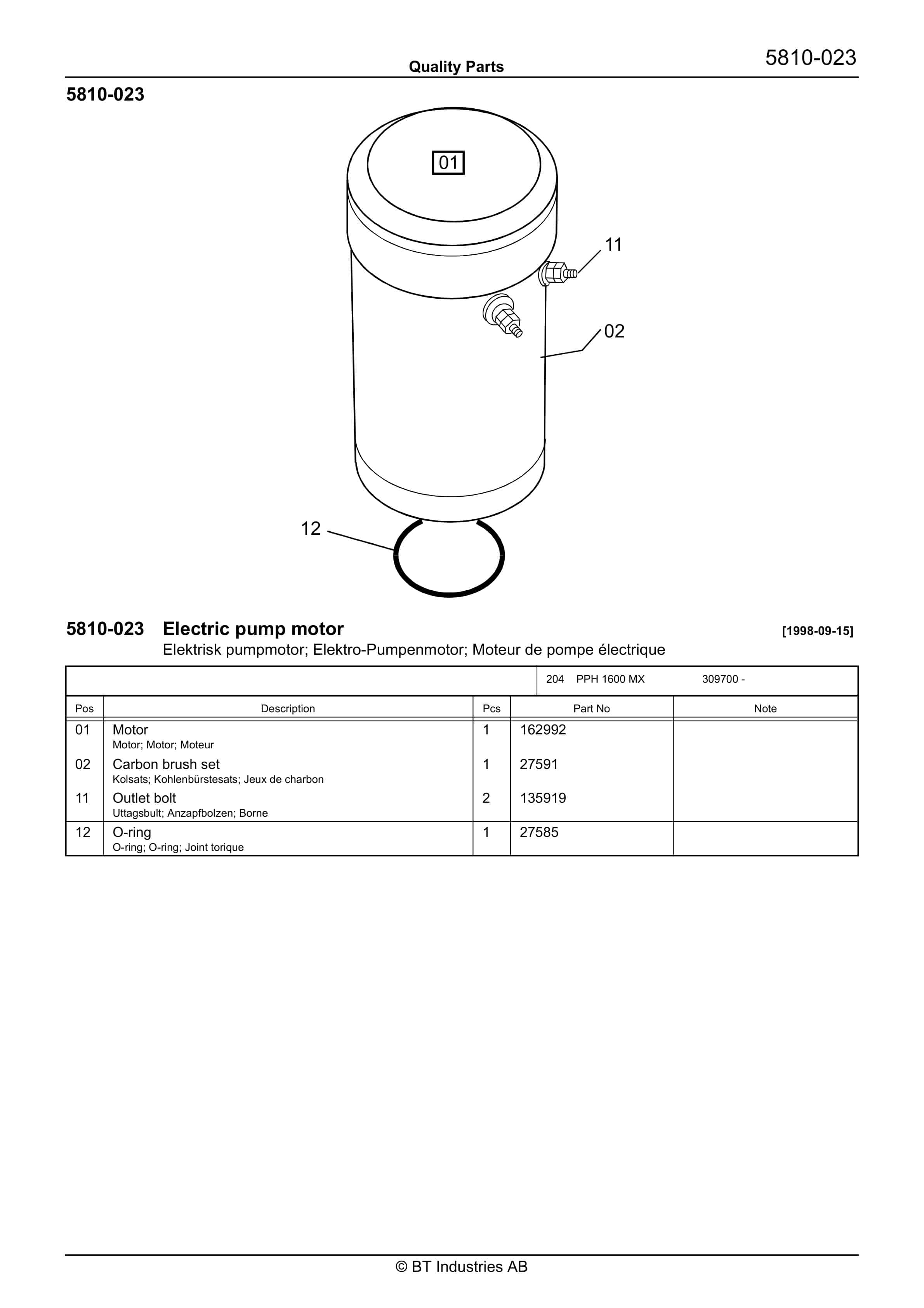

  • 75. Electric pump motor 1998-09-15
  • 76.
  • 77. Hydraulic unit 1996-05-20
  • 78.

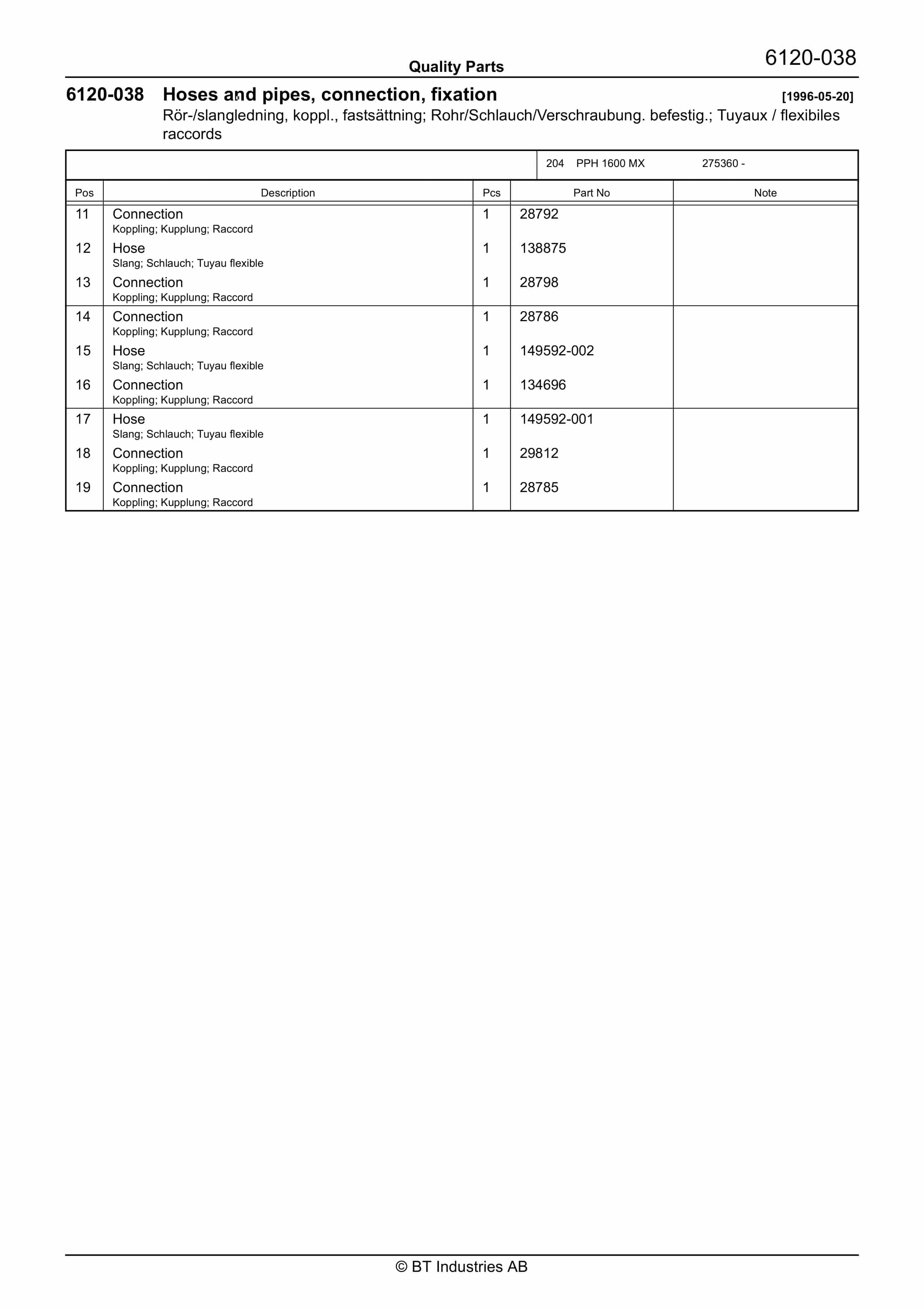

  • 79. Hoses and pipes, connection, fixation 1996-05-20
  • 80.
  • 81. Chains / yokes / rollers 1996-05-20
  • 82.
  • 83. Lift cylinders 1999-09-06
  • 84.
  • 85. Lift cylinders 1996-05-20
  • 86.
  • 87. Fork carriage unit 1999-03-19
  • 88.
  • 89. Extra electrical equipment 1998-11-23
  • 90.
  • 91. Extra electrical equipment 1999-09-10
  • 92.
  • 93. Extra electrical equipment 1999-09-10
  • 94.
  • 95. Truck log device, code locking device 2000-11-26
