BT RC-30, RC-40 Electric Counterbalanced Rider Truck Parts Manual 300636-000
BT RC-30, RC-40 Electric Counterbalanced Rider Truck Parts Manual 300636-000 - Image 2
BT RC-30, RC-40 Electric Counterbalanced Rider Truck Parts Manual 300636-000 - Image 3
BT RC-30, RC-40 Electric Counterbalanced Rider Truck Parts Manual 300636-000 - Image 4
BT RC-30, RC-40 Electric Counterbalanced Rider Truck Parts Manual 300636-000 - Image 5

BT RC-30, RC-40 Electric Counterbalanced Rider Truck Parts Manual 300636-000

$30.00

  • Type Of Manual: Parts Manual
  • Manual ID: 300636-000
  • : Parts Manual PDF
  • Number of Pages: 160
  • Size: 3.7MB
  • Format: PDF
Category:

Product details

  • Model List:

    • RC-30, RC-40 Electric Counterbalanced Rider Truck

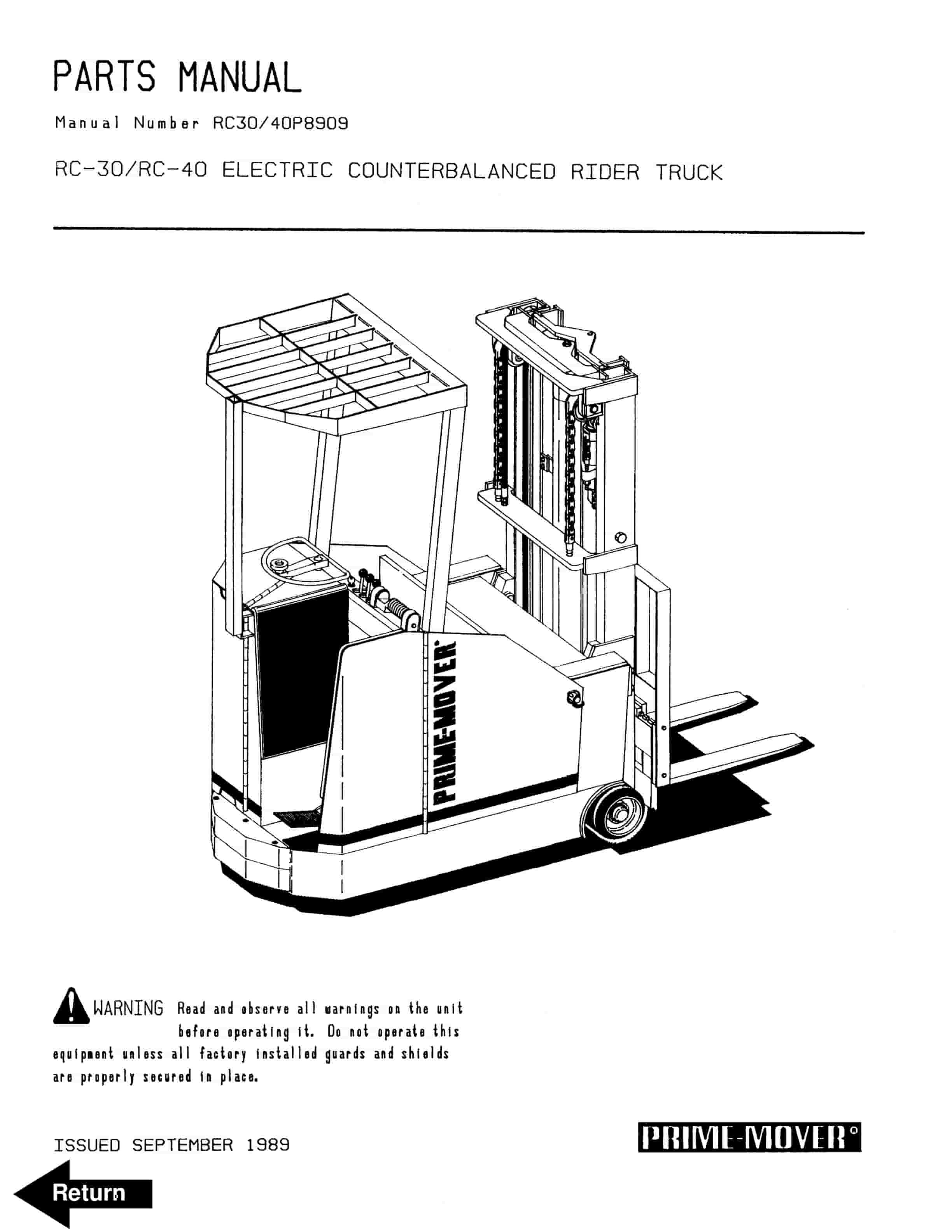

  • 1. Front Cover
  • 2. Parts Ordering Instructions
  • 3. General Information
  • 4. Alphabetical Index
  • 5. Figure 0.1 Decals and Parts Assembly
  • 6. Figure 0.2 Parts List and Service Reference Index
  • 7. Figure 1.1 Articulating Plate Assembly
  • 8. Figure 1.2 Steering Linkage
  • 9. Figure 1.3 Steering Assembly
  • 10. Figure 1.4 Power Steering Gear Box
  • 11. Figure 1.5 Forward Gear Reduction Steering Gear Box
  • 12. Figure 1.6 Reverse Chain Reduction Steering Gear Box
  • 13. Figure 1.7 Part 1 141 Transmission Assembly
  • 14. Figure 1.8 Part 2 141 Transmission Assembly
  • 15. Figure 1.9 Brake Linkage
  • 16. Figure 1.10 Slave Cylinder Assembly
  • 17. Figure 1.11 Master Cylinder Assembly
  • 18. Figure 1.12 Master Control Switch Handle Assembly
  • 19. Figure 2.1 EV-100/EV-1 SCR Master Control Switch
  • 20. Figure 2.2 EV-100 Electrical Schematic
  • 21. Figure 2.3 Electrical Schematic Symbols
  • 22. Figure 2.4 EV-100 Control Wiring
  • 23. Figure 2.5 EV-100 Power Component Wiring
  • 24. Figure 2.6 EV-100 SCR Contactor Panel Assembly
  • 25. Figure 2.7 EV-100 SCR Control Panel
  • 26. Figure 2.8 EV-100 SCR Forward Rearward Contactor Assembly
  • 27. Figure 2.9 EV-100 1A Contactor Assembly
  • 28. Figure 2.10 EV-100 SCR Power Steering Contactor Assembly
  • 29. Figure 2.11 Power Connector Assembly
  • 30. Figure 2.12 Pump Motor Assembly
  • 31. Figure 2.13 Drive Motor Assembly
  • 32. Figure 2.14 Power Steering Motor Assembly
  • 33. Figure 2.15 Limit Switch Wiring Harness Assembly
  • 34. Figure 2.16 Warning Light Assembly
  • 35. Figure 2.17 Wiring Assembly for Cold Storage
  • 36. Figure 3.1 Hydraulic Schematic
  • 37. Figure 3.2 Hydraulic Schematic Symbols
  • 38. Figure 3.3 Lift Pump and Related Parts
  • 39. Figure 3.4 Two/Three Spool Control Valve Assembly
  • 40. Figure 3.5 24 Volt Lift Pump and Motor Assembly
  • 41. Figure 3.6 Lift Pump Assembly
  • 42. Figure 3.7 Two Stage Full Freelift Cylinders and Related Parts
  • 43. Figure 3.8 Cylinder Assembly

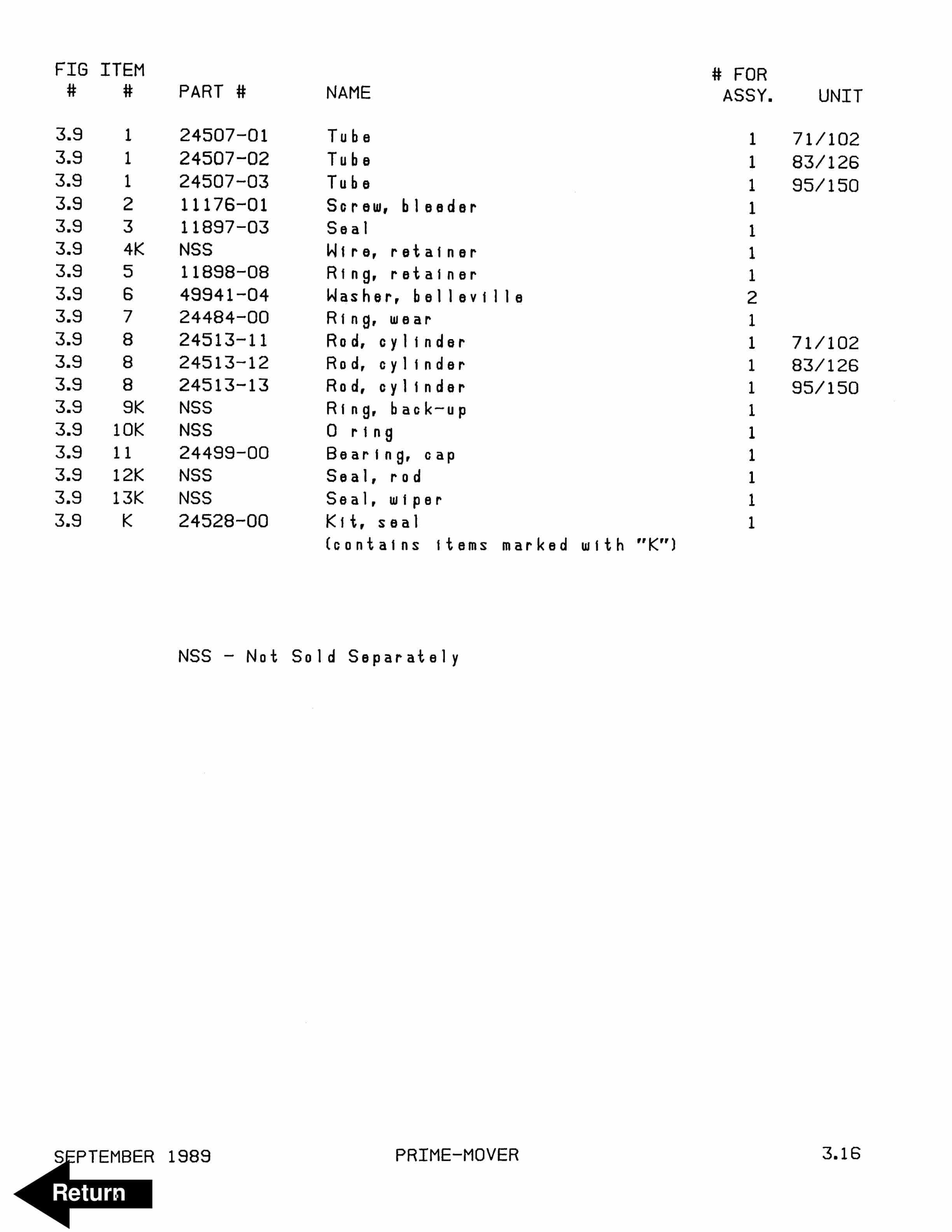

  • 44. Figure 3.9 Cylinder Assembly
  • 45. Figure 3.10 Two Stage Cylinder and Related Parts
  • 46. Figure 3.11 Two Stage Lift Cylinder Assembly
  • 47. Figure 3.12 Three Stage Cylinder and Related Parts
  • 48. Figure 3.13 Three Stage Staging Cylinder Assembly
  • 49. Figure 3.14 Three Stage Freelift Cylinder Assembly
  • 50. Figure 3.15 Tilt Cylinder and Related Parts
  • 51. Figure 3.16 Tilt Cylinder Assembly
  • 52. Figure 3.17 Two Stage Full Freelift Sideshifter Hydraulic Assembly
  • 53. Figure 3.18 Hose Reel and Related Parts
  • 54. Figure 3.19 Dual Elbow Swivel Assembly
  • 55. Figure 3.20 Gleason Hose Reel Assembly
  • 56. Figure 3.21 Power Steering Hydraulic Assembly

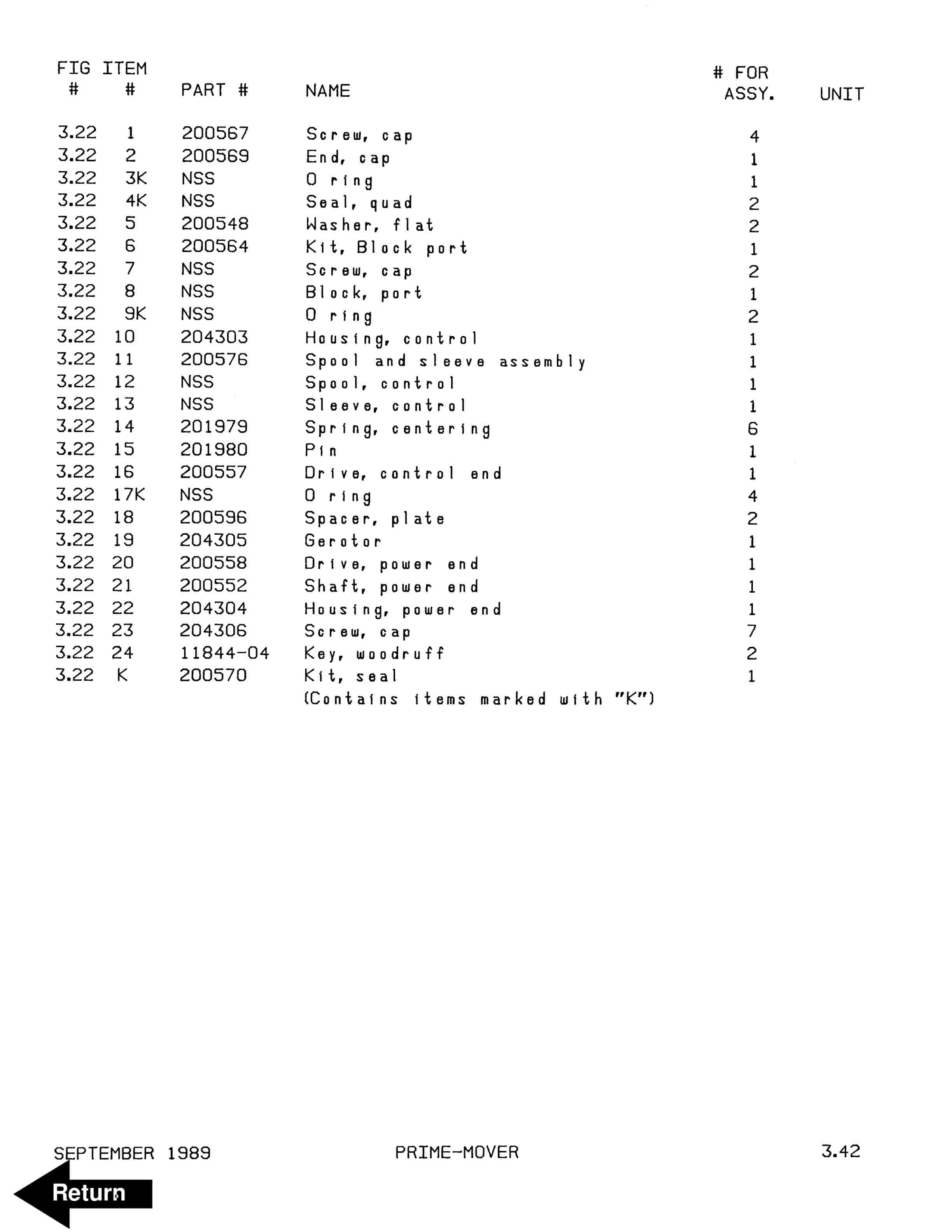

  • 57. Figure 3.22 Torque Generator Assembly
  • 58. Figure 3.23 Power Steering Pump and Motor Assembly
  • 59. Figure 3.24 Power Steering Pump Assembly
  • 60. Figure 3.25 Remote Lift/Lower Control Installation
  • 61. Figure 4.1 Shielding and Frame Assembly
  • 62. Figure 4.2 Control Valve Mounting Assembly
  • 63. Figure 4.3 Slide Link Installation

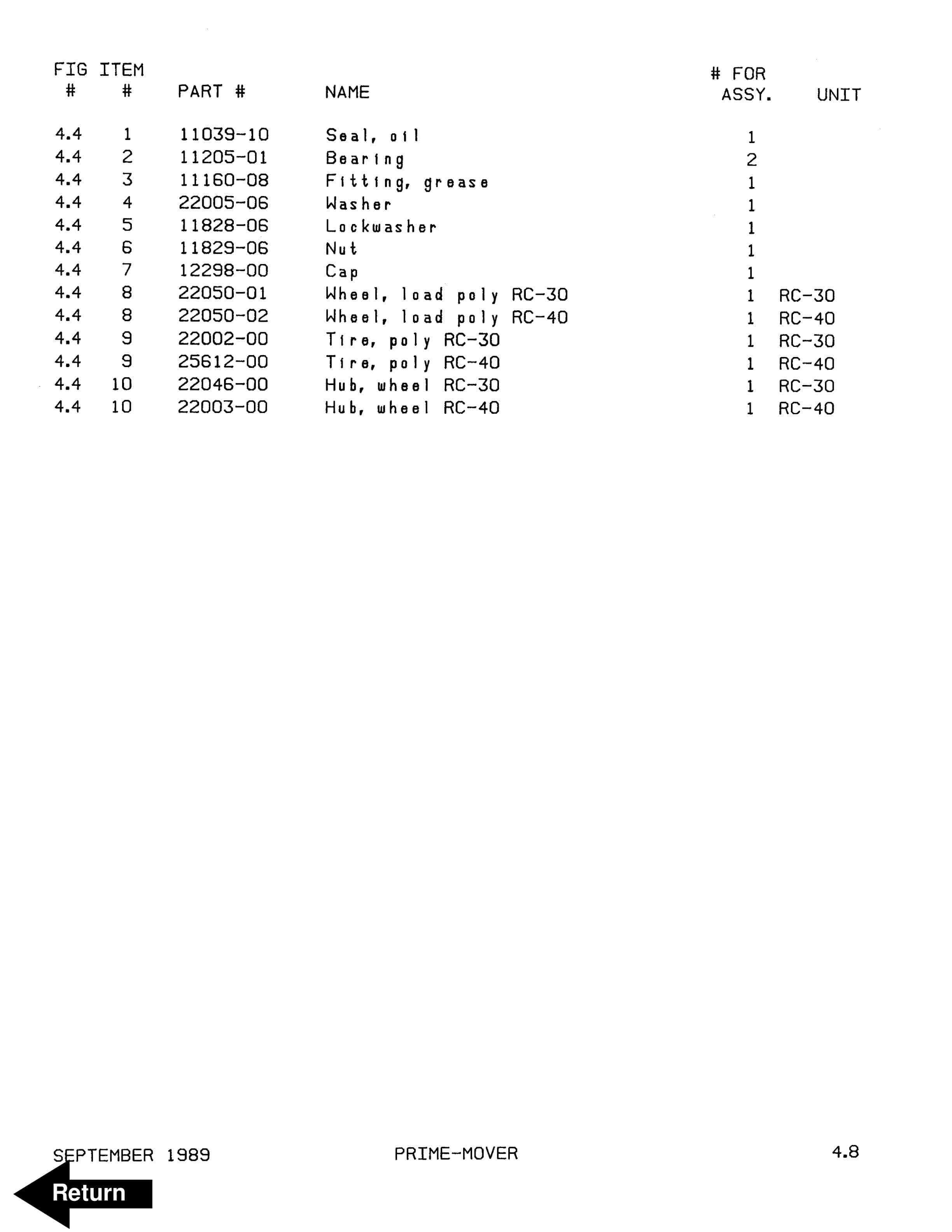

  • 64. Figure 4.4 Load Wheel Assembly
  • 65. Figure 5.1 RC-30 Two Stage Full Freelift Mast Installation
  • 66. Figure 5.2 RC-30 Two Stage Full Freelift Outer Column Assembly
  • 67. Figure 5.3 RC-30 Two Stage Full Lift Inner Column Assembly

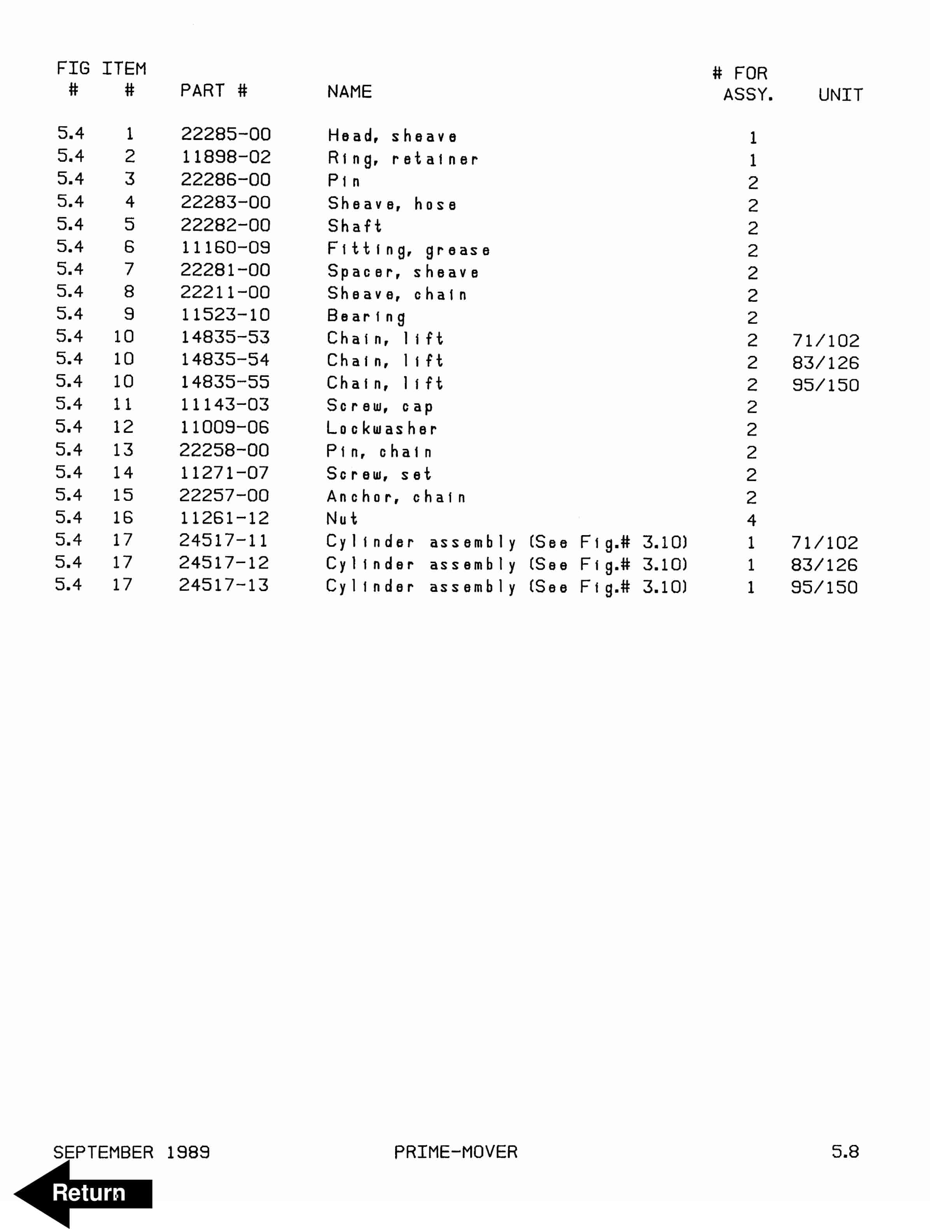

  • 68. Figure 5.4 RC-30 Two Stage Freelift Cylinder Assembly and Related Parts
  • 69. Figure 5.5 RC-30 Two Stage Lift Frame and Load Backrest Assembly
  • 70. Figure 5.6 Sideshifter Assembly
  • 71. Figure 5.7 Fork Assembly
  • 72. Figure 5.8 Two Stage Mast Installation
  • 73. Figure 5.9 Two Stage Outer Column Assembly
  • 74. Figure 5.10 Two Stage Inner Column Assembly
  • 75. Figure 5.11 Two Stage Cylinder Assembly and Related Parts
  • 76. Figure 5.12 Two Stage Lift Frame and Load Backrest Assembly
  • 77. Figure 5.13 Three Stage Mast Installation
  • 78. Figure 5.14 Three Stage Outer Column Assembly
  • 79. Figure 5.15 Three Stage Intermediate Column Assembly
  • 80. Figure 5.16 Three Stage Inner Column Assembly
  • 81. Figure 5.17 Three Stage Freelift Cylinder Installation
  • 82. Figure 5.18 Three Stage Lift Frame and Load Backrest Assembly
  • 83. Figure 6.1 Special Tools and Lubrications
  • 84. Back Cover
