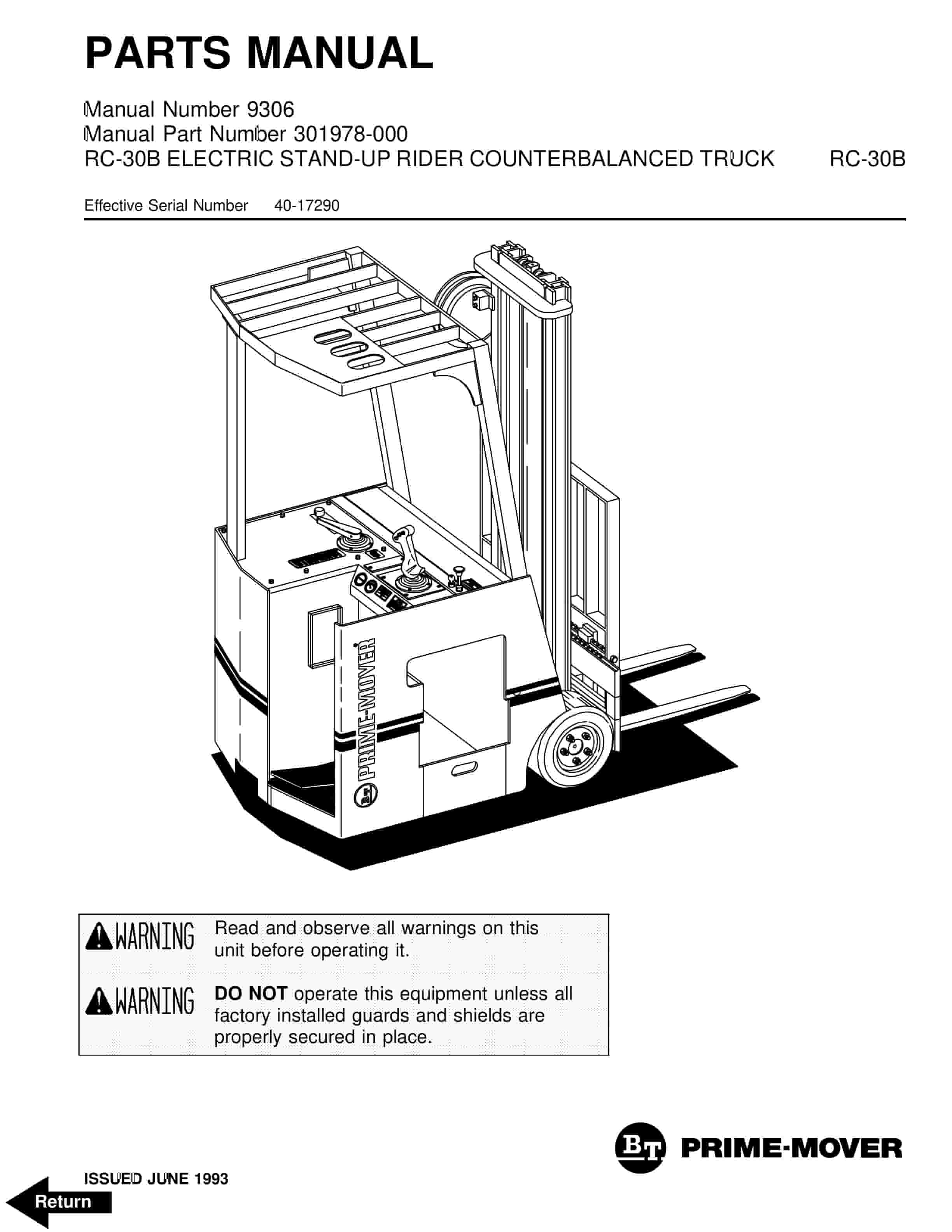

BT RC-30B Electric Stand-Up Rider Counterbalanced Truck Parts Manual 9306 301978-000
BT RC-30B Electric Stand-Up Rider Counterbalanced Truck Parts Manual 9306 301978-000 - Image 2
BT RC-30B Electric Stand-Up Rider Counterbalanced Truck Parts Manual 9306 301978-000 - Image 3
BT RC-30B Electric Stand-Up Rider Counterbalanced Truck Parts Manual 9306 301978-000 - Image 4
BT RC-30B Electric Stand-Up Rider Counterbalanced Truck Parts Manual 9306 301978-000 - Image 5

BT RC-30B Electric Stand-Up Rider Counterbalanced Truck Parts Manual 9306 301978-000

$30.00

  • Type Of Manual: Parts Manual
  • Manual ID: 9306 301978-000
  • : Parts Manual PDF
  • Number of Pages: 234
  • Size: 3.0MB
  • Format: PDF
Category:

Product details

  • Model List:

    • RC-30B Electric Stand-Up Rider Counterbalanced Truck
  • 1. Front Cover
  • 2. Parts Ordering Instructions
  • 3. General Information
  • 4. Contents
  • 5. Frame Group
  • 5.1. Multi Lever Frame (Optional)
  • 5.2. Multi Function Frame (Standard)
  • 5.3. Overhead Guard
  • 5.4. Battery Service Tray
  • 6. Control Group
  • 6.1. Multi Lever Control Linkage (Optional)
  • 6.2. Multi Function Control Linkage (Standard)
  • 6.3. Battery Disconnect – Controls
  • 6.4. Multi Function Control Linkage Handle Assembly
  • 7. Steering Group
  • 7.1. Steering Assembly
  • 7.2. Power Steering Pump Assembly
  • 7.3. Torque Generator Assembly
  • 8. Tires/Wheels Group
  • 8.1. Drive Tire/Axle
  • 8.2. Steer Tire
  • 9. Motor Group
  • 9.1. Drive Motor Assembly
  • 9.2. Drive Motor Assembly (Advanced)
  • 9.3. Lift Pump Motor Assembly
  • 9.4. Pump Motor Assembly (P90-4001, Advanced)
  • 9.5. Power Steering Pump Motor Assembly
  • 10. Transmission Group
  • 10.1. Transmission Assembly
  • 10.2. Transmission Assembly
  • 11. Brakes Group
  • 11.1. Brake Pedal Assembly
  • 11.2. Master Cylinder Assembly
  • 11.3. Brake Pedal Assembly
  • 11.4. Slave Cylinder Brake Bracket

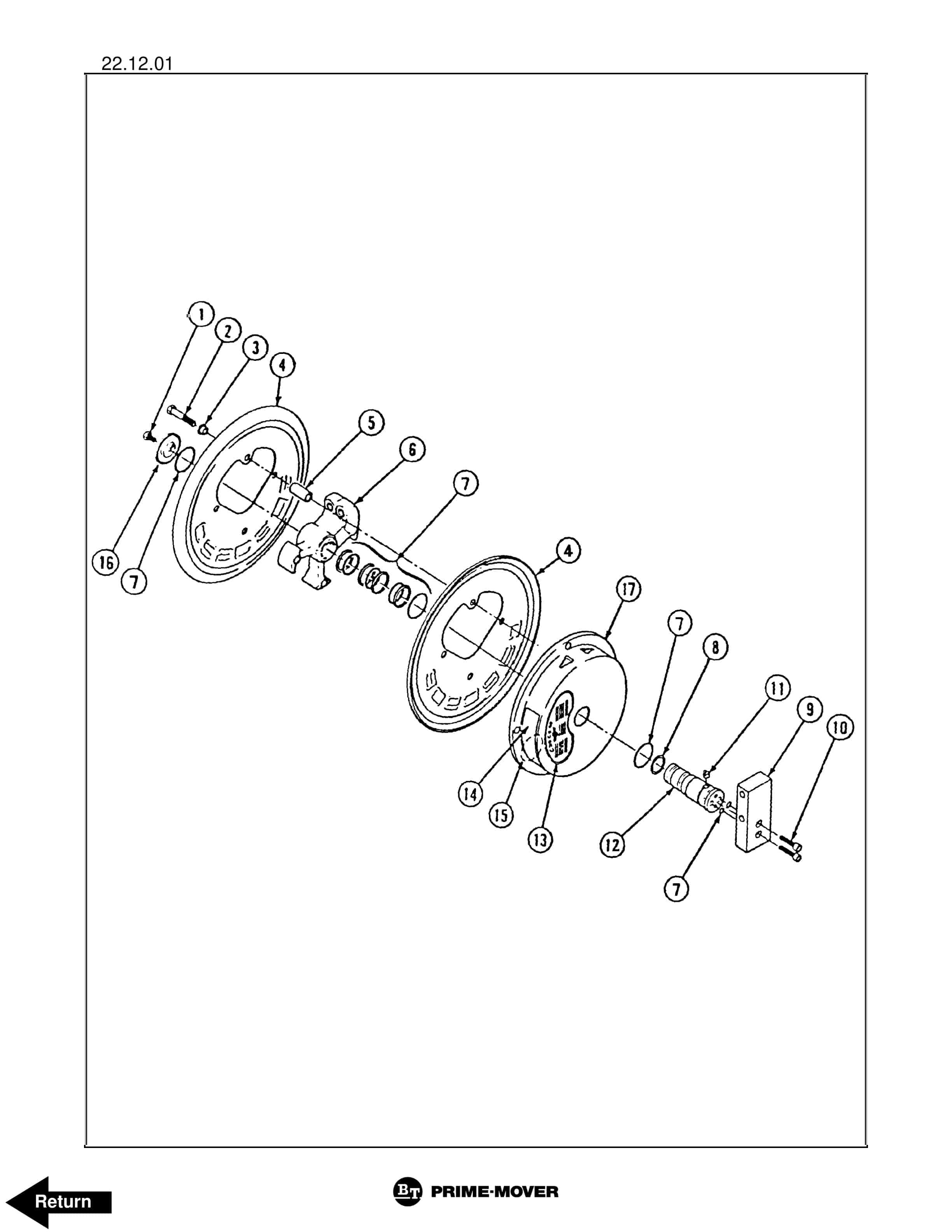

  • 11.5. Wheel Brake Assembly
  • 11.6. Disc Brake Assembly
  • 12. Mast Group
  • 12.1. Simplex Mast
  • 12.2. Triplex Mast
  • 12.3. Carriage – Simplex
  • 12.4. Carriage – Triplex
  • 12.5. Forks – ITA Class II Hook Type
  • 12.6. Load Backrest
  • 12.7. Hydraulic Connections – Simplex
  • 12.8. Hydraulic Connections – Triplex
  • 13. Hydraulic Group
  • 13.1. Multi Lever Hydraulic System (Optional)
  • 13.2. Multi Function Hydraulics (Standard)
  • 13.3. Multi Function Hydraulics (Standard)
  • 13.4. Tilt Cylinder Assembly – Simplex
  • 13.5. Tilt Cylinder Assembly – Triplex

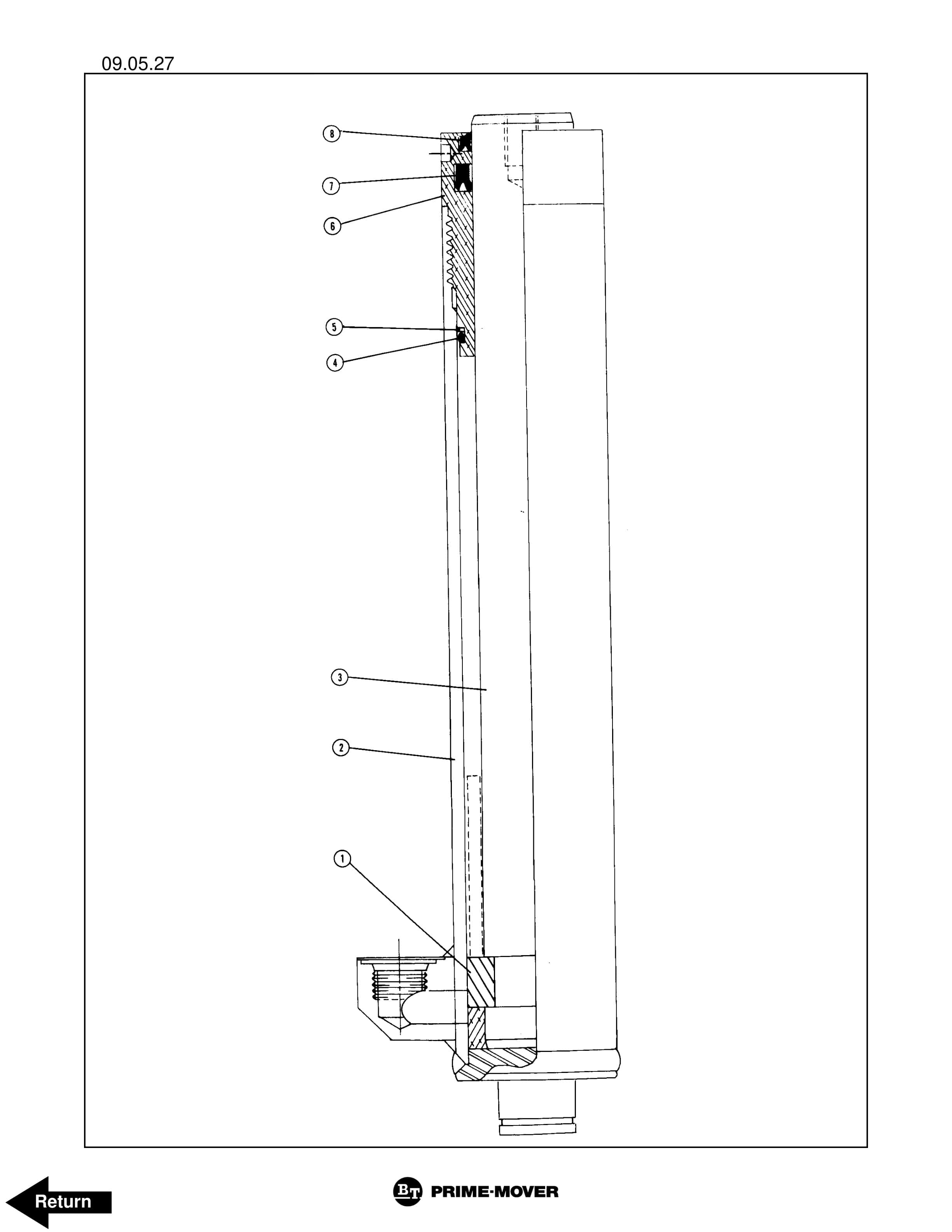

  • 13.6. Lift Cylinder Assembly – Simplex
  • 13.7. Triplex Lift Cylinder Assembly – Center
  • 13.8. Triplex Lift Cylinder Assembly – Outer
  • 13.9. Control Valve Assembly – 1 Spool
  • 13.10. Control Valve Assembly – 2 Spool
  • 13.11. Control Valve Assembly – 3 Spool
  • 13.12. Control Valve Assembly – 4 Spool
  • 14. Electrical Group
  • 14.1. Electrical Assembly
  • 14.2. Solenoid Selector Valve
  • 14.3. Multi Function Control Handle Assembly
  • 14.4. SCR Panel – EV 100
  • 14.5. SCR Panel Hardware
  • 14.6. Accelerator Switch
  • 14.7. Contactor Assembly – D – Dual Motor Control
  • 14.8. Contactor Assembly – 1A and Pump
  • 14.9. Steer Pump Contactor Assembly
  • 14.10. Contactor Assembly – Forward/Reverse
  • 14.11. Contactor Panel Assembly
  • 14.12. EV-100LX Contactor Assembly – Forward/Reverse

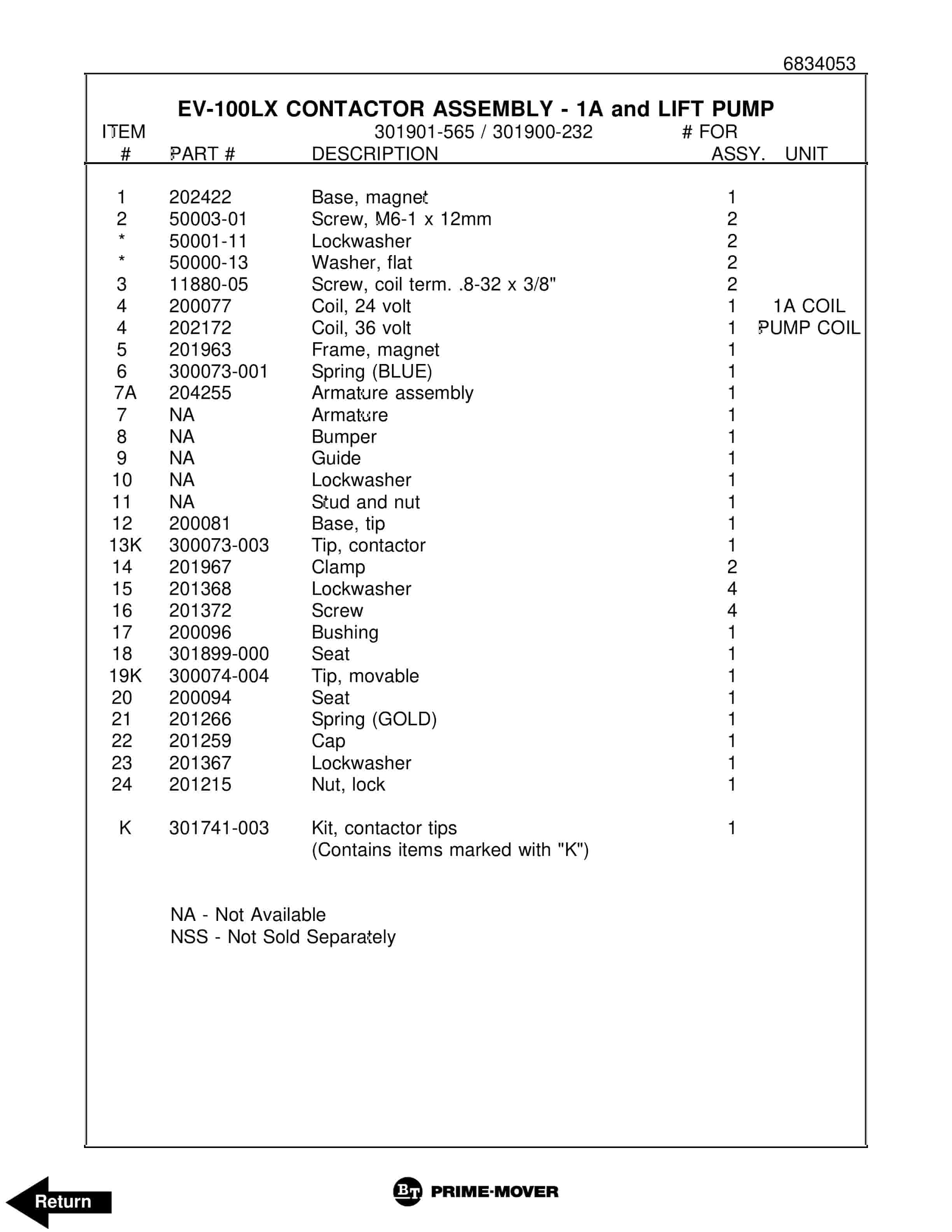

  • 14.13. EV-100LX Contactor Assembly – 1A and Lift Pump
  • 14.14. EV-100LX Electrical Contactor Panel Assembly
  • 14.15. EV-100LX SCR Control Panel Assembly
  • 14.16. EV-100LX Contactor Assembly – D and Steer Pump
  • 14.17. Multi Lever Power Cable Diagram (Optional)
  • 14.18. Multi Function Control Wire Diagram (Standard)
  • 15. Miscellaneous Group
  • 15.1. Decals/Transfers
  • 15.2. Recommended Spare Parts List
  • 16. Optional Group
  • 16.1. Headlight
  • 16.2. Accessory Controls
  • 16.3. Single/Double Hydraulic Control
  • 16.4. Single Auxiliary Hydraulic Control
  • 16.5. Single/Double Function Accessory Mast
  • 16.6. Hose Reel Assembly
  • 16.7. Side Shifter Assembly – 36
  • 16.8. Static Battery Rollers
  • 16.9. Static Battery Roller Table
  • 17. Quad Mast Group
  • 17.1. Quad Mast Hydraulics System
  • 17.2. Quad Mast Primary Cylinder Assembly
  • 17.3. Quad Mast Primary Chain System
  • 17.4. Quad Mast Rail System
  • 17.5. Quad Mast Carriage
  • 18. Special Tools and Lubrications Group
  • 18.1. Special Tools and Lubrications
  • 19. Numerical Index Group
  • 20. Back Cover
