BT RR B4(C)(AC)(ACi) to RR E6(C)(AC)(ACi) Quality Parts 211647

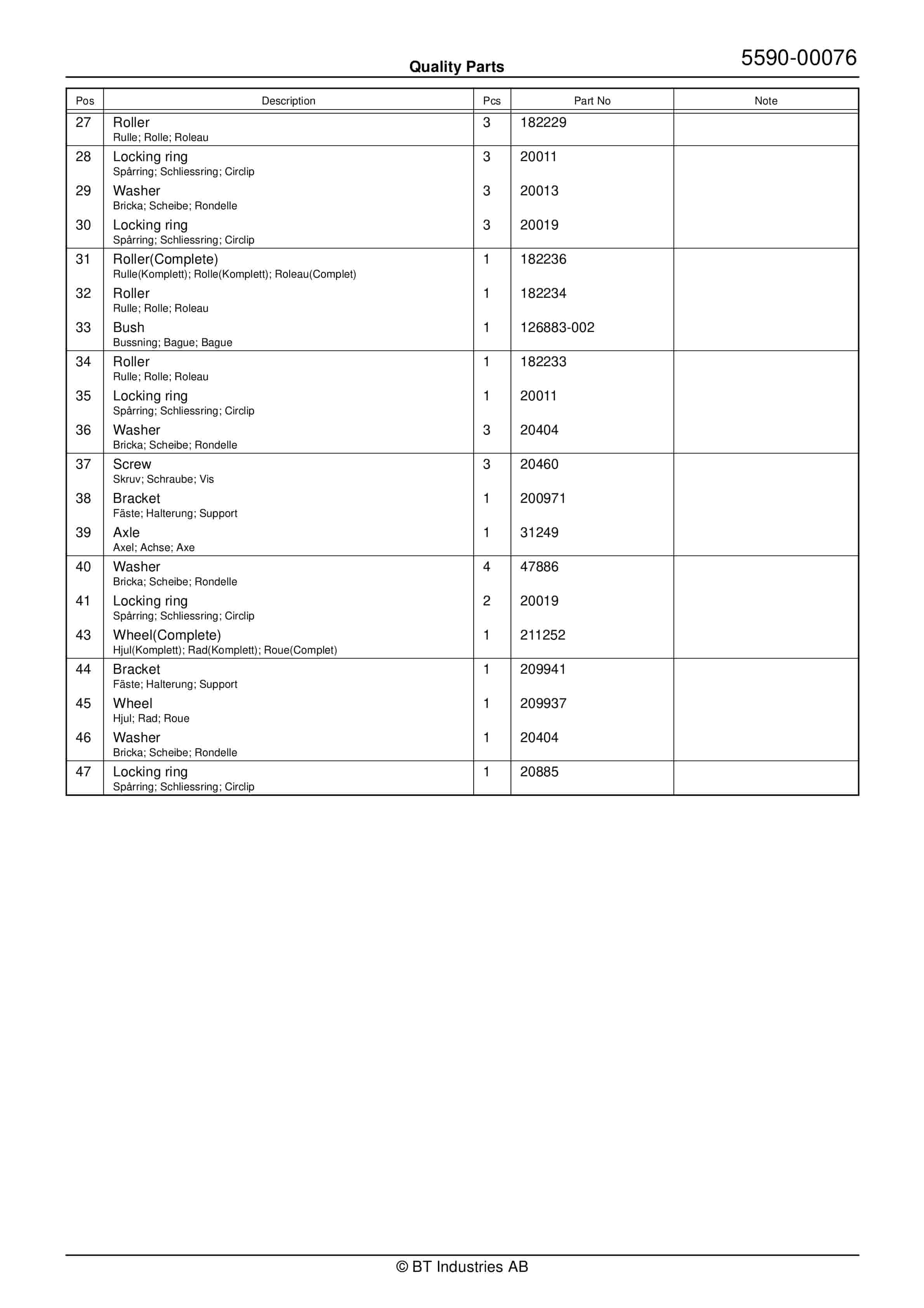

BT RR B4(C)(AC)(ACi) to RR E6(C)(AC)(ACi) Quality Parts 211647 - Image 2
BT RR B4(C)(AC)(ACi) to RR E6(C)(AC)(ACi) Quality Parts 211647 - Image 3
BT RR B4(C)(AC)(ACi) to RR E6(C)(AC)(ACi) Quality Parts 211647 - Image 4
BT RR B4(C)(AC)(ACi) to RR E6(C)(AC)(ACi) Quality Parts 211647 - Image 5

BT RR B4(C)(AC)(ACi) to RR E6(C)(AC)(ACi) Quality Parts 211647

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 211647
  • : Parts Manual PDF
  • Number of Pages: 233
  • Size: 7.6MB
  • Format: PDF
Category:

Product details

  • Model List:

    • RR B4(C)(AC)(ACi), RR B5(C)(AC)(ACi), RR B6(C)(AC)(ACi), RR E4(C)(AC)(ACi), RR E5(C)(AC)(ACi), RR E6(C)(AC)(ACi)
  • 1. Return To HomePage
  • 2. Chassis
  • 3. Motors
  • 4. Transmission/Drive gear
  • 5. Brake/Wheel/Caterpillar system
  • 6. Steering system
  • 7. Electrical system
  • 8. Hydraulic/pneumatic system
  • 9. Work function – lifting masts
  • 10. Options/attachments
  • 11. P0000288
  • 12. Inspection covers 2003-04-01
  • 13. P0008951
  • 14. Inspection covers 2002-08-20
  • 15. P0018132
  • 16. Inspection covers 2003-04-01
  • 17. P0017919
  • 18. Support arms, stabilizers 2003-04-01
  • 19. P0015342
  • 20. Battery compartment parts 2003-04-01
  • 21. P0015343
  • 22. Battery compartment parts 2002-05-29
  • 23. P0009691
  • 24. Motor fixing points 2003-04-01
  • 25. P0009747
  • 26. Cabin fixing points 2002-08-20
  • 27. P0018013
  • 28. Cabin fixing points 2003-04-15
  • 29. P0009746
  • 30. Seat, cushions 2002-08-20
  • 31. P0013365
  • 32. Seat, cushions 2003-04-01
  • 33. P0006502
  • 34. Driver controls ( mechanical ) 2003-06-10
  • 35. P0006552
  • 36. Driver controls ( mechanical ) 2003-04-01
  • 37. P0007717
  • 38. Internal fittings 2003-04-01
  • 39. P0017759
  • 40. Internal fittings 2003-04-01
  • 41. P0009591
  • 42. Mirrors 2002-08-20
  • 43. P0013345
  • 44. Overhead guard/roof 2003-04-01
  • 45. P0013362
  • 46. Overhead guard/roof 2002-08-20
  • 47. P0018005
  • 48. Overhead guard/roof 2003-04-09
  • 49. P0018006
  • 50. Overhead guard/roof 2003-04-09
  • 51. P0000297
  • 52. Finger/foot guards 2003-03-18
  • 53. P0005319
  • 54. Finger/foot guards 2003-04-01
  • 55. P0005320
  • 56. Finger/foot guards 2003-04-01
  • 57. P0013347
  • 58. Finger/foot guards 2003-04-01
  • 59. P0004156
  • 60. Driver protection 2002-08-20
  • 61. P0004981
  • 62. Driver protection 2003-04-01
  • 63. P0017762
  • 64. Signs, warnings, decals 2003-04-01
  • 65. P0016810
  • 66. Electric pump motor 2003-04-01
  • 67. P0015374
  • 68. Electric steering motor 2003-04-01
  • 69. P0009593
  • 70. Electric fan motor, electric fan 2003-04-01
  • 71. P0011293
  • 72. Electric fan motor, electric fan 2003-04-01
  • 73. P0016809
  • 74. Electric drive motor 2003-04-01
  • 75. P0015709
  • 76. Mechanical drive gear unit 2003-04-02
  • 77. P0007232
  • 78. Travel brake controls 2003-04-01
  • 79. P0009607
  • 80. Electrically controlled travel brake 2003-04-01
  • 81. P0012895
  • 82. Electrically controlled travel brake 2003-04-01
  • 83. P0000249
  • 84. Drive wheel 2003-04-01
  • 85. P0006505
  • 86. Fork/support arm wheels 2003-04-01
  • 87. P0012093
  • 88. Fork/support arm wheels 2003-04-01
  • 89. P0012891
  • 90. Electric steering wheel/lever 2003-04-01
  • 91. P0009627
  • 92. Steering angle sensor 2003-04-01
  • 93. P0016555
  • 94. Steering bearings 2003-04-01
  • 95. P0010287
  • 96. General alarm signals (audible/visual) 2003-03-25
  • 97. P0007571
  • 98. Battery cut out connector/contactor 2003-04-01
  • 99. P0007136
  • 100. Instrument panel, display 2003-04-01
  • 101. P0011098
  • 102. Level/position transducers/lamps 2002-10-28
  • 103. P0000151
  • 104. Start/stop switch 2003-04-01
  • 105. P0004631
  • 106. Start/stop switch 2002-08-20
  • 107. P0000257
  • 108. Travel direction switch (separate) 2003-04-01
  • 109. P0002924
  • 110. Travel direction switch (separate) 2003-04-01
  • 111. P0004694
  • 112. Travel direction switch (separate) 2002-08-20
  • 113. P0006458
  • 114. Travel direction switch (separate) 2003-04-01
  • 115. P0007232
  • 116. Speed control 2003-04-01
  • 117. P0013366
  • 118. Driving function harnesses/ fuse 2003-04-15
  • 119. P0014003
  • 120. Drive motor cables/resistors/fuses 2003-04-01
  • 121. P0008122
  • 122. Transistor panel 2003-04-01
  • 123. P0002932
  • 124. Work function micro switches, potentiometers 2002-08-20
  • 125. P0005070
  • 126. Work function micro switches, potentiometers 2003-04-01
  • 127. P0006520
  • 128. Work function micro switches, potentiometers 2003-04-01
  • 129. P0015571
  • 130. Work function micro switches, potentiometers 2003-04-01
  • 131. P0006472
  • 132. Work function harnesses/ fuse 2003-04-01
  • 133. P0016883
  • 134. Work function harnesses/ fuse 2003-06-10
  • 135. P0014004
  • 136. Battery/motor cables, fuse 2003-04-01
  • 137. P0018285
  • 138. Drive/multi-function PCBs 2003-04-01
  • 139. P0003334
  • 140. Safely electronics harnesses, fuse 2003-04-01
  • 141. P0007058
  • 142. Safely electronics harnesses, fuse 2002-08-20
  • 143. P0009635
  • 144. Lift/lowering/reach movment probes/sensors 2003-04-01
  • 145. P0009598
  • 146. Safety probes/ sensors 2003-04-01
  • 147. P0009634
  • 148. Safety probes/ sensors 2003-04-01
  • 149. P0009651
  • 150. Safety probes/ sensors 2003-04-01
  • 151. P0009652
  • 152. Safety probes/ sensors 2002-08-20
  • 153. P0010441
  • 154. Hydraulic tank 2003-04-01
  • 155. P0008950
  • 156. Hydraulic tank lines 2003-04-01
  • 157. P0010609
  • 158. Hydraulic tank lines 2003-04-01
  • 159. P0010610
  • 160. Filters and housing 2003-04-01
  • 161. P0013872
  • 162. Hydraulic pump 2003-04-01
  • 163. P0004679
  • 164. Main valve unit lift/reach/tilt 2003-04-01
  • 165. P0004680
  • 166. Main valve unit lift/reach/tilt 2003-04-01
  • 167. P0017229
  • 168. Main valve unit lift/reach/tilt 2003-04-01
  • 169. P0004689
  • 170. Control valve (Other functions) 2003-04-01
  • 171. P0015280
  • 172. Control valve (Other functions) 2003-04-01
  • 173. P0009643
  • 174. Hydraulic lines chassis 2003-04-01
  • 175. P0015339
  • 176. Hydraulic lines chassis 2003-04-01
  • 177. P0009636

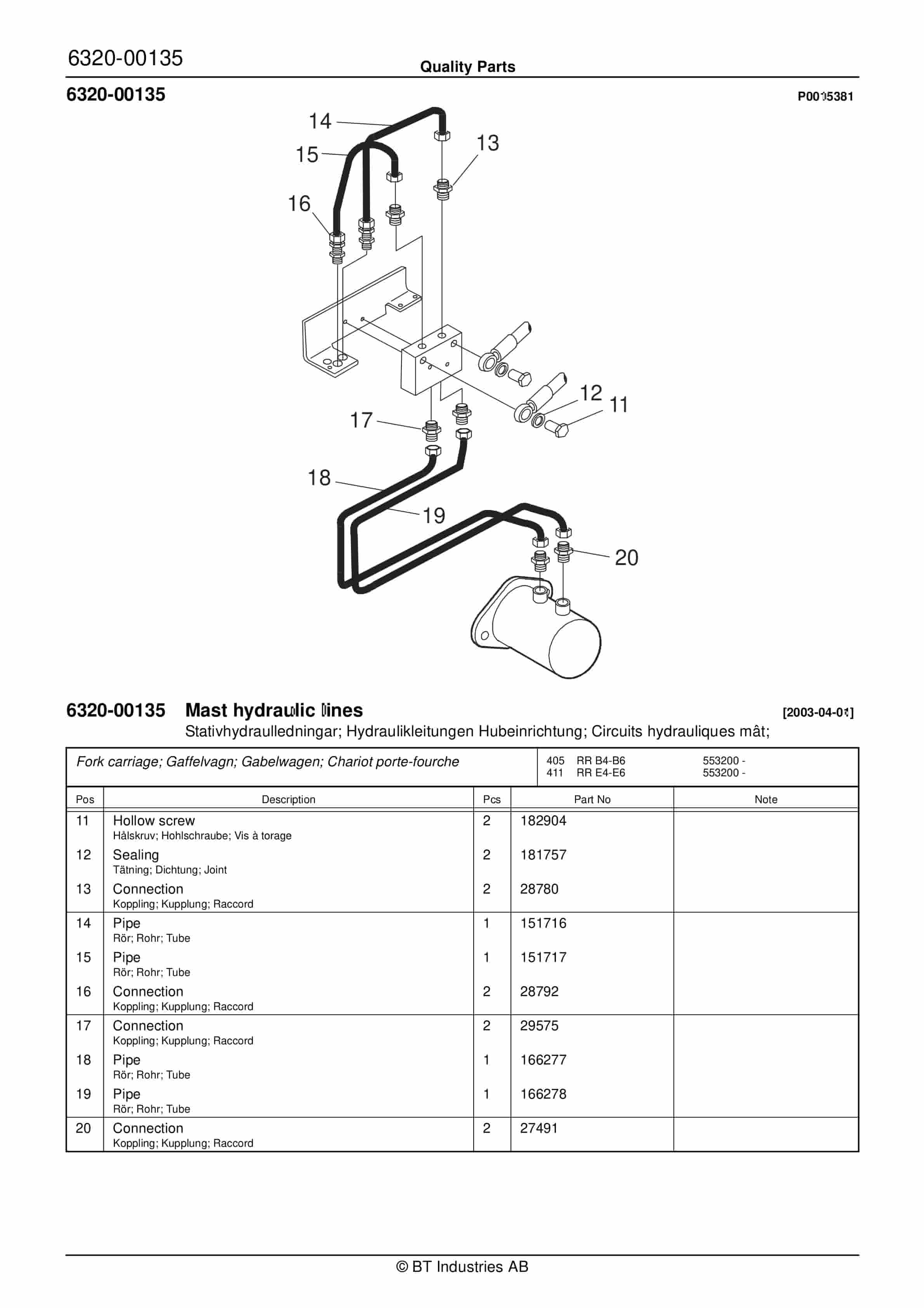

  • 178. Mast hydraulic lines 2003-04-01
  • 179. P0009638
  • 180. Mast hydraulic lines 2003-04-01
  • 181. P0009646
  • 182. Mast hydraulic lines 2003-04-01
  • 183. P0015315
  • 184. Mast hydraulic lines 2003-04-01
  • 185. P0015381
  • 186. Mast hydraulic lines 2003-04-01
  • 187. P0015383
  • 188. Mast hydraulic lines 2003-04-01
  • 189. P0015384
  • 190. Mast hydraulic lines 2003-04-01
  • 191. P0016869
  • 192. Mast hydraulic lines 2003-04-01
  • 193. P0017215
  • 194. Mast hydraulic lines 2003-04-01
  • 195. P0009803
  • 196. Mast hose reel/ swivel joint 2003-04-01
  • 197. P0009630
  • 198. Mast hose reel/ swivel joint 2003-04-01
  • 199. P0017802
  • 200. Main lift cylinders 2003-04-01
  • 201. P0016136
  • 202. Free lift cylinder 2003-04-01
  • 203. P0017806
  • 204. Free lift cylinder 2003-04-01
  • 205. P0009604

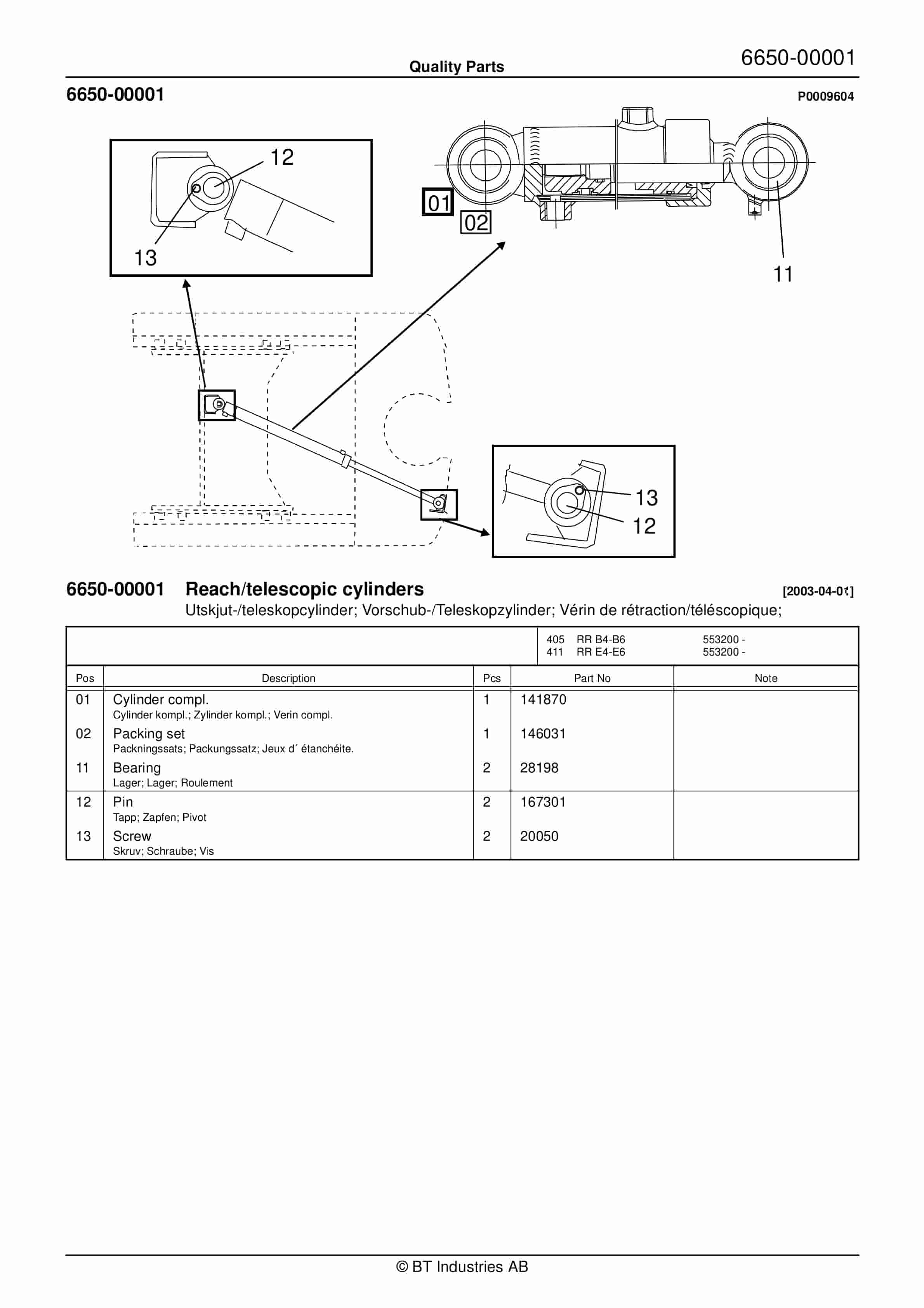

  • 206. Reach/telescopic cylinders 2003-04-01
  • 207. P0009605
  • 208. Tilt cylinders 2003-04-01
  • 209. P0009633
  • 210. Tilt cylinders 2003-04-01
  • 211. P0009657
  • 212. Tilt cylinders 2003-04-01
  • 213. P0009711
  • 214. Other hydraulic cylinders 2003-04-01
  • 215. P0009820
  • 216. Main mast 2003-04-01
  • 217. P0016137
  • 218. Main lift chain system 2003-04-01
  • 219. P0005419
  • 220. Main mast fork carriage 2003-04-01
  • 221. P0013033
  • 222. Main mast fork carriage 2003-04-01
  • 223. P0000171
  • 224. Main mast guidance/ dampers 2003-04-01
  • 225. P0015208
  • 226. Main mast guidance/ dampers 2003-04-01
  • 227. P0013841
  • 228. Main mast suspension 2003-04-01
  • 229. P0009796
  • 230. Fork, carpet boom, lift hook 2003-04-01
  • 231. P0013021
  • 232. Separate sideshift/forkspread 2003-04-01
  • 233. P0002900
  • 234. Fork extensions 2003-04-01
  • 235. P0015291
  • 236. Radio/recorder 2003-03-25
  • 237. P0006506
  • 238. Extra lighting 2003-02-25
  • 239. P0018009
  • 240. Extra lighting 2003-04-01
  • 241. P0013217
  • 242. Extra warning lights/alarm 2002-08-20
  • 243. P0011102
  • 244. Charger attachment 2003-04-01
  • 245. P0015612
  • 246. Positioning/TV equip., height preselector 2003-03-26
  • 247. P0011315
  • 248. Extra electrical equipment 2003-04-01
  • 249. P0012876
  • 250. Truck log device, code locking device 2002-08-20
  • 251. P0016873
  • 252. Truck log device, code locking device 2002-12-05
  • 253. P0008971
  • 254. Other extra equipment 2003-04-01
  • 255. P0013043
  • 256. Other extra equipment 2003-04-01
  • 257. P0017242
  • 258. Other extra equipment 2003-04-01
  • 259. P0018045
  • 260. Battery changing equipment 2003-04-01
