BT RR M12, RR M12C Quality Parts 218897 - Image 2

BT RR M12, RR M12C Quality Parts 218897 - Image 3

BT RR M12, RR M12C Quality Parts 218897

$30.00

Type Of Manual: Quality Parts
Manual ID: 218897
: Parts Manual PDF
Number of Pages: 163
Size: 8.0MB
Format: PDF

Category: BT Parts Manual PDF

Product details

Model List:
- RR M12, RR M12C

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0008951
11. Inspection covers 2004-04-15
12. P0010775
13. Inspection covers 2004-04-15
14. P0010985
15. Support arms, stabilizers 2004-04-15
16. P0015346
17. Battery compartment parts 2004-04-15
18. P0011450
19. Motor fixing points 2004-04-15
20. P0009747
21. Cabin fixing points 2004-05-06
22. P0020514
23. Seat, cushions 2004-04-20
24. P0007590
25. Driver controls ( mechanical ) 2004-04-15
26. P0007591
27. Driver controls ( mechanical ) 2004-04-15
28. P0020446
29. Internal fittings 2004-04-20
30. P0011555
31. Mirrors 2004-04-15
32. P0013344
33. Overhead guard/roof 2004-04-15
34. P0013362
35. Overhead guard/roof 2004-06-03
36. P0018010
37. Overhead guard/roof 2004-04-15
38. P0000297
39. Finger/foot guards 2004-04-22
40. P0004156
41. Driver protection 2004-04-15
42. P0011572
43. Driver protection 2004-04-15
44. P0018399
45. Signs, warnings, decals 2004-04-15
46. P0012991
47. Electric pump motor 2004-06-22
48. P0019556
49. Electric steering motor 2004-04-15
50. P0009593
51. Electric fan motor, electric fan 2004-04-15
52. P0011293
53. Electric fan motor, electric fan 2004-04-15
54. P0020720
55. Electric drive motor 2004-05-12
56. P0015708
57. Mechanical drive gear unit 2004-04-15
58. P0007232
59. Travel brake controls 2004-04-15
60. P0009607
61. Electrically controlled travel brake 2004-04-15
62. P0005710
63. Drive wheel 2004-04-15
64. P0020405
65. Fork/support arm wheels 2004-04-15
66. P0012891
67. Electric steering wheel/lever 2004-04-15
68. P0009627
69. Steering angle sensor 2004-04-15
70. P0016555
71. Steering bearings 2004-04-15
72. P0019213
73. General alarm signals (audible/visual) 2004-06-08
74. P0007571
75. Battery cut out connector/contactor 2004-04-15
76. P0007136
77. Instrument panel, display 2004-04-15
78. P0000151
79. Start/stop switch 2004-06-15
80. P0004631
81. Start/stop switch 2004-04-15
82. P0000257
83. Travel direction switch (separate) 2004-04-15
84. P0004694
85. Travel direction switch (separate) 2004-04-15
86. P0006458
87. Travel direction switch (separate) 2004-04-15
88. P0007232
89. Speed control 2004-04-15
90. P0019660
91. Driving function harnesses/fuse 2004-04-15
92. P0014005
93. Drive motor cables/resistors/fuses 2004-04-15
94. P0019649

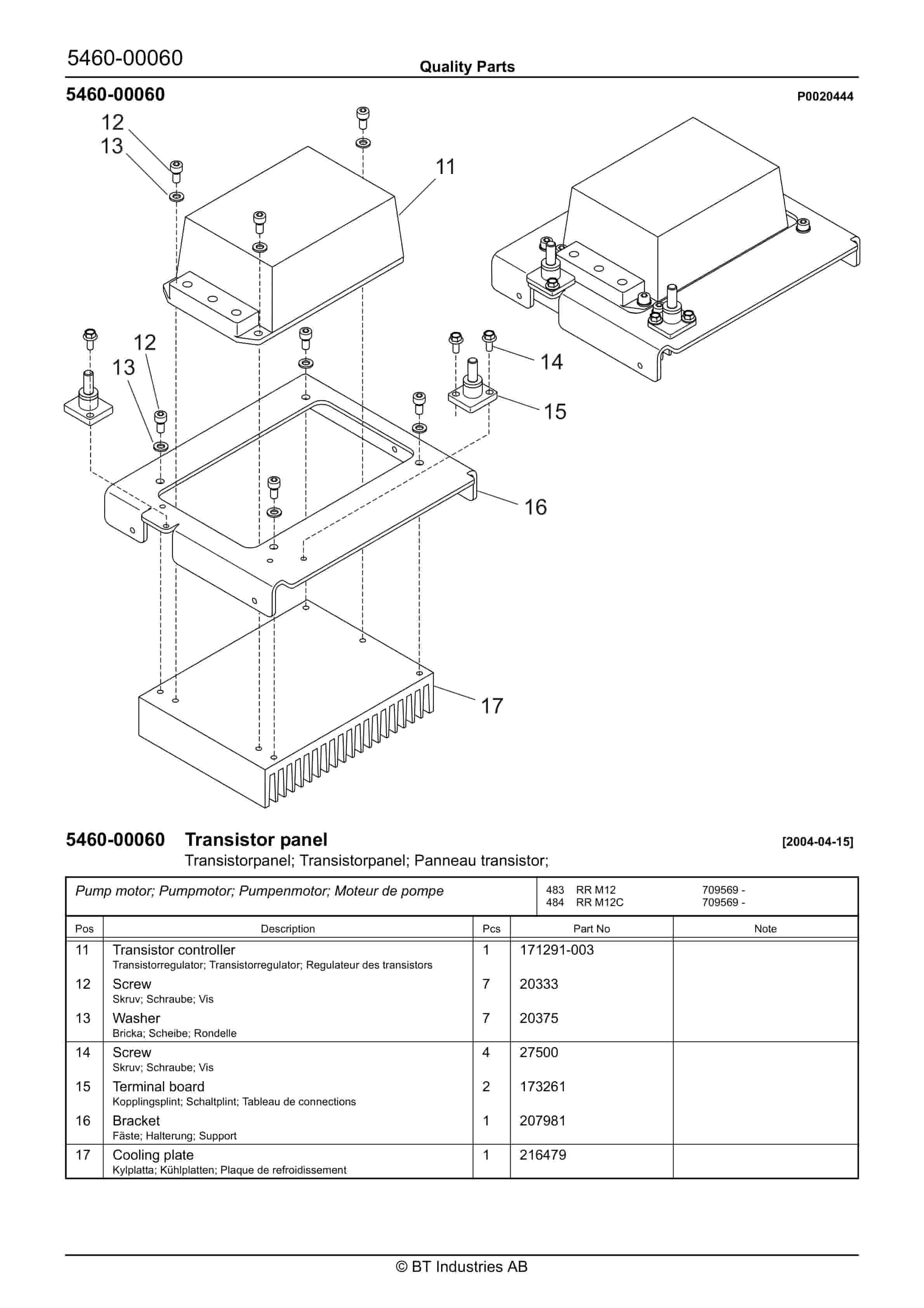

95. Transistor panel 2004-04-15
96. P0020444
97. Transistor panel 2004-04-15
98. P0002932
99. Work function micro switches, potentiometers 2004-04-15
100. P0015571
101. Work function micro switches, potentiometers 2004-04-15
102. P0011566
103. Work function harnesses/fuse 2004-04-15
104. P0020522
105. Battery/motor cables, fuse 2004-04-15
106. P0020524
107. Drive/multi-function PCBs 2004-04-15
108. P0007058
109. Safety electronics harnesses, fuse 2004-04-15
110. P0019367
111. Lift/lowering/reach movement probes/sensors 2003-12-03
112. P0019368
113. Lift/lowering/reach movement probes/sensors 2004-04-15
114. P0009598
115. Safety probes/sensors 2004-04-15
116. P0009634
117. Safety probes/sensors 2004-04-15
118. P0009651
119. Safety probes/sensors 2004-05-05
120. P0010770
121. Hydraulic tank 2004-04-15
122. P0008950
123. Hydraulic tank lines 2004-04-15
124. P0011482
125. Hydraulic tank lines 2004-04-15
126. P0010610
127. Filters and housing 2004-04-15
128. P0019207
129. Hydraulic pump 2004-04-15
130. P0004679
131. Main valve unit lift/reach/tilt 2004-04-15
132. P0004680
133. Main valve unit lift/reach/tilt 2004-04-15
134. P0011483
135. Hydraulic lines chassis 2004-03-04
136. P0011541
137. Mast hydraulic lines 2003-11-25
138. P0021178
139. Mast hydraulic lines 2004-05-14
140. P0021477
141. Mast hydraulic lines 2004-06-22
142. P0021478
143. Mast hydraulic lines 2004-06-22

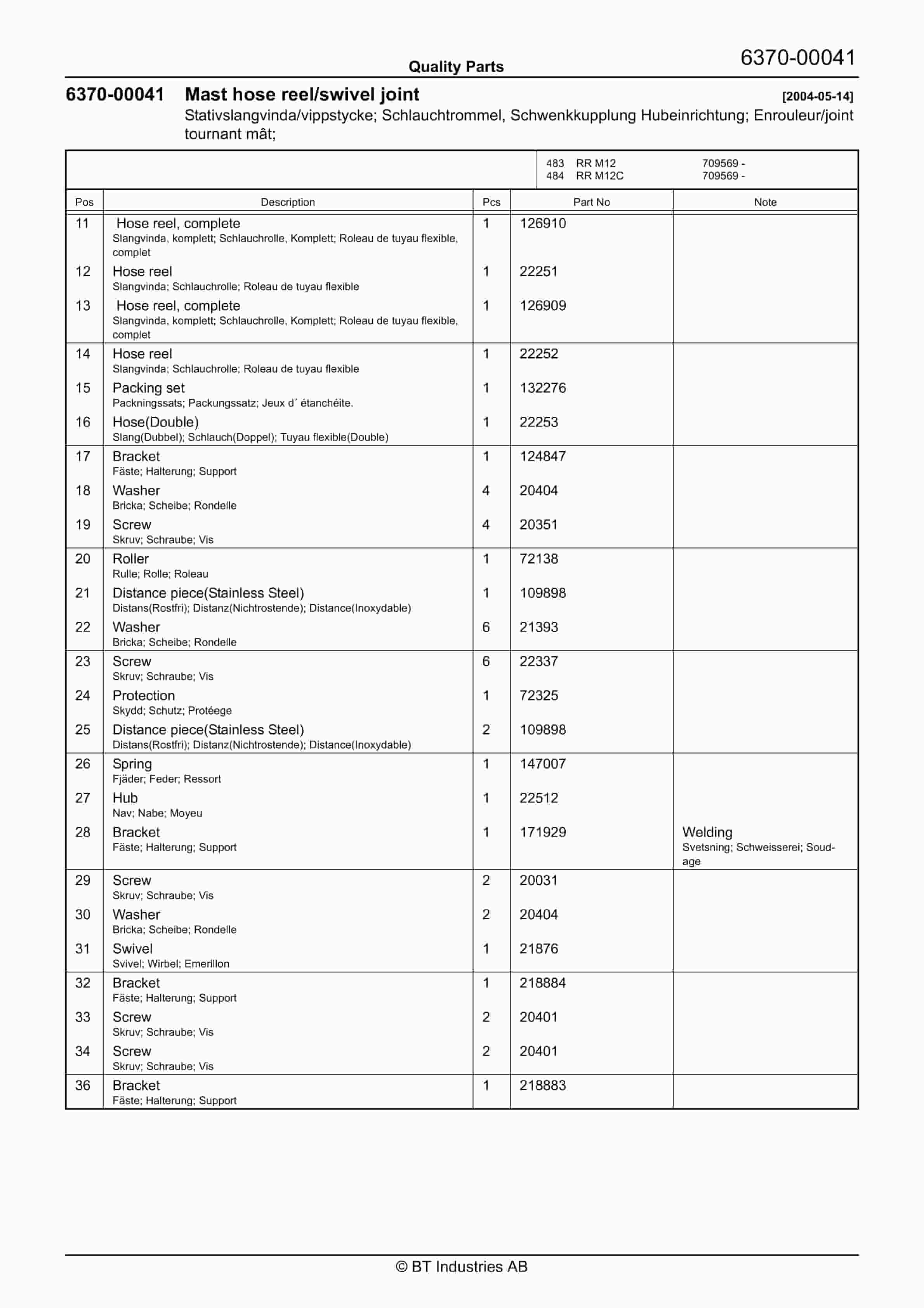

144. P0021177
145. Mast hose reel/swivel joint 2004-05-14
146. P0011503
147. Main lift cylinders 2003-11-25
148. P0011505
149. Main lift cylinders 2003-11-25
150. P0011513
151. Main lift cylinders 2003-11-25
152. P0011506
153. Free lift cylinders 2003-11-25
154. P0011515
155. Free lift cylinders 2003-11-25
156. P0016867
157. Reach/telescopic cylinders 2003-11-25
158. P0010988
159. Tilt cylinders 2003-11-25
160. P0011586
161. Main mast 2003-11-25
162. P0012100
163. Main lift chain system 2003-11-25
164. P0012101
165. Main lift chain system 2003-11-25
166. P0012102
167. Main lift chain system 2003-11-25
168. P0011548
169. Main mast fork carriage 2003-11-25
170. P0011549
171. Main mast fork carriage 2003-11-25
172. P0011550
173. Main mast fork carriage 2003-11-25
174. P0021480
175. Main mast guidance/dampers 2004-06-22
176. P0020443
177. Main mast suspension 2004-04-15
178. P0000186
179. Fork, carpet boom, lift hook 2004-05-27
180. P0011561
181. Separate sideshift/forkspread 2003-11-25
182. P0002899
183. Fork extensions 2004-04-15
184. P0006506
185. Extra lighting 2004-06-08
186. P0018310
187. Extra lighting 2004-04-15
188. P0019573
189. Extra warning lights/alarm 2004-04-15
190. P0011102
191. Charger attachment 2004-05-12
192. P0002886
193. Other extra equipment 2003-11-25
194. P0008971
195. Other extra equipment 2004-04-15
196. P0017239
197. Other extra equipment 2004-04-15
198. P0019863
199. Other extra equipment 2003-12-03
200. P0018045
201. Battery changing equipment 2004-04-15
