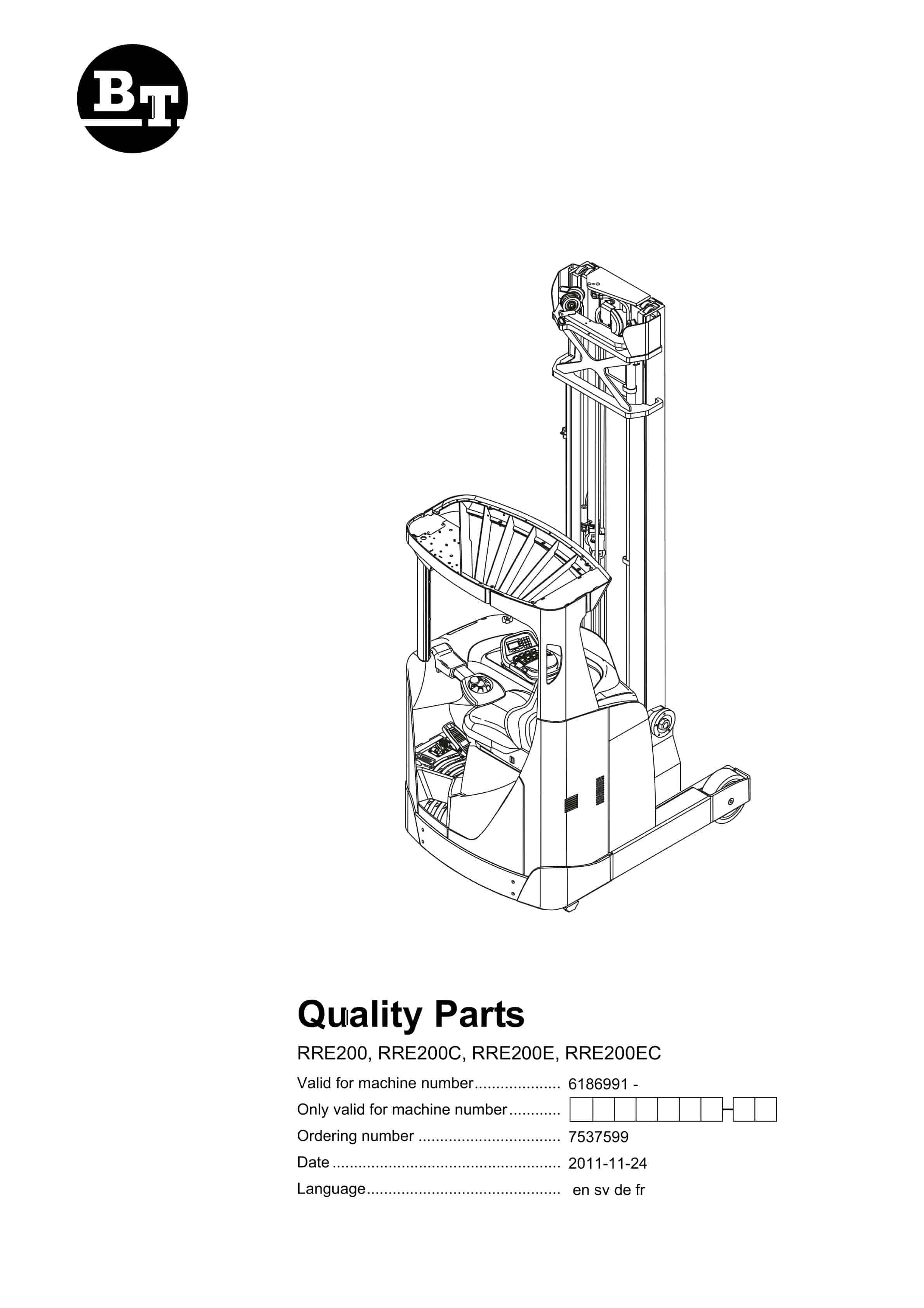

BT RRE200, RRE200C, RRE200E, RRE200EC Quality Parts 7537599

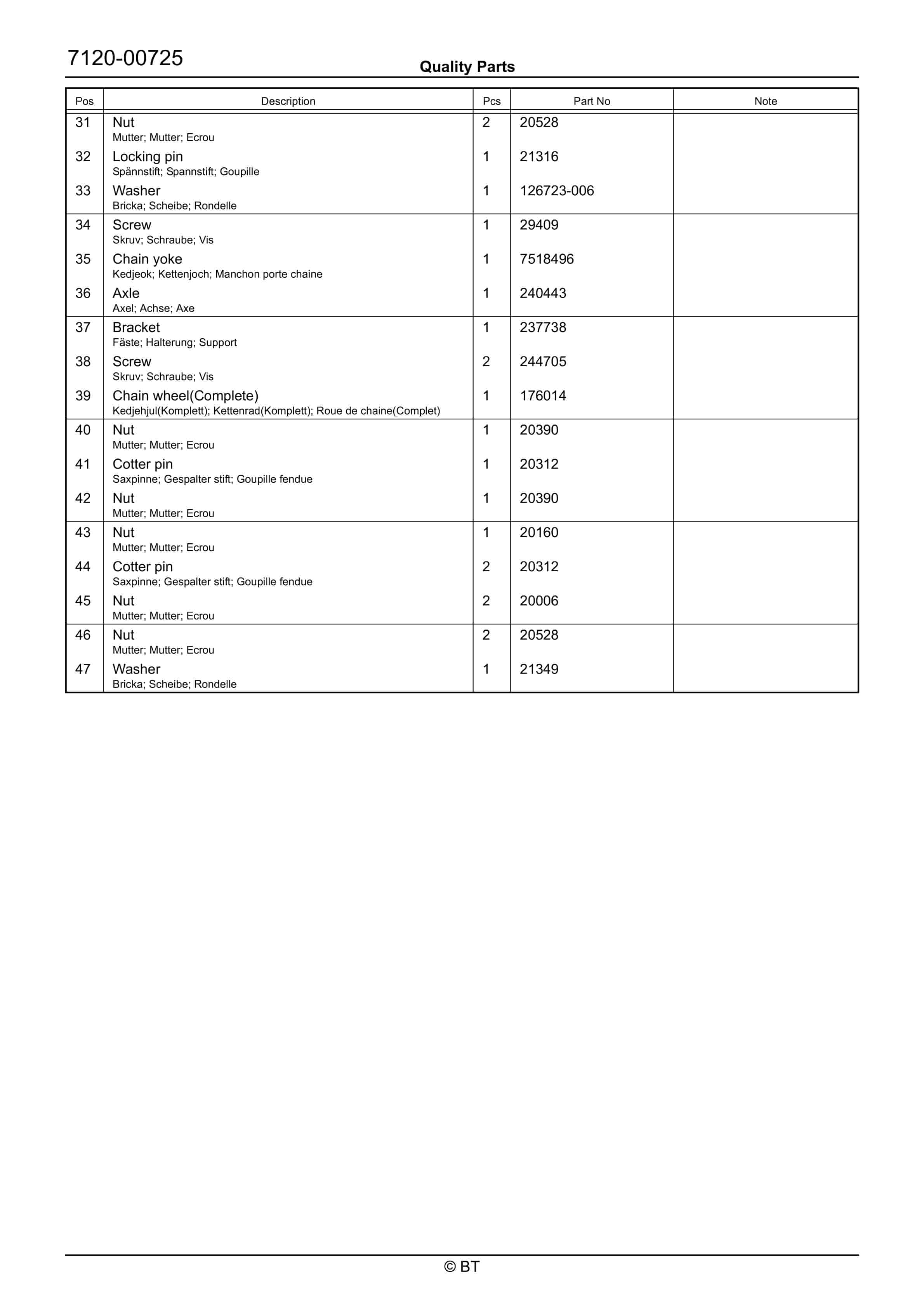

BT RRE200, RRE200C, RRE200E, RRE200EC Quality Parts 7537599 - Image 2

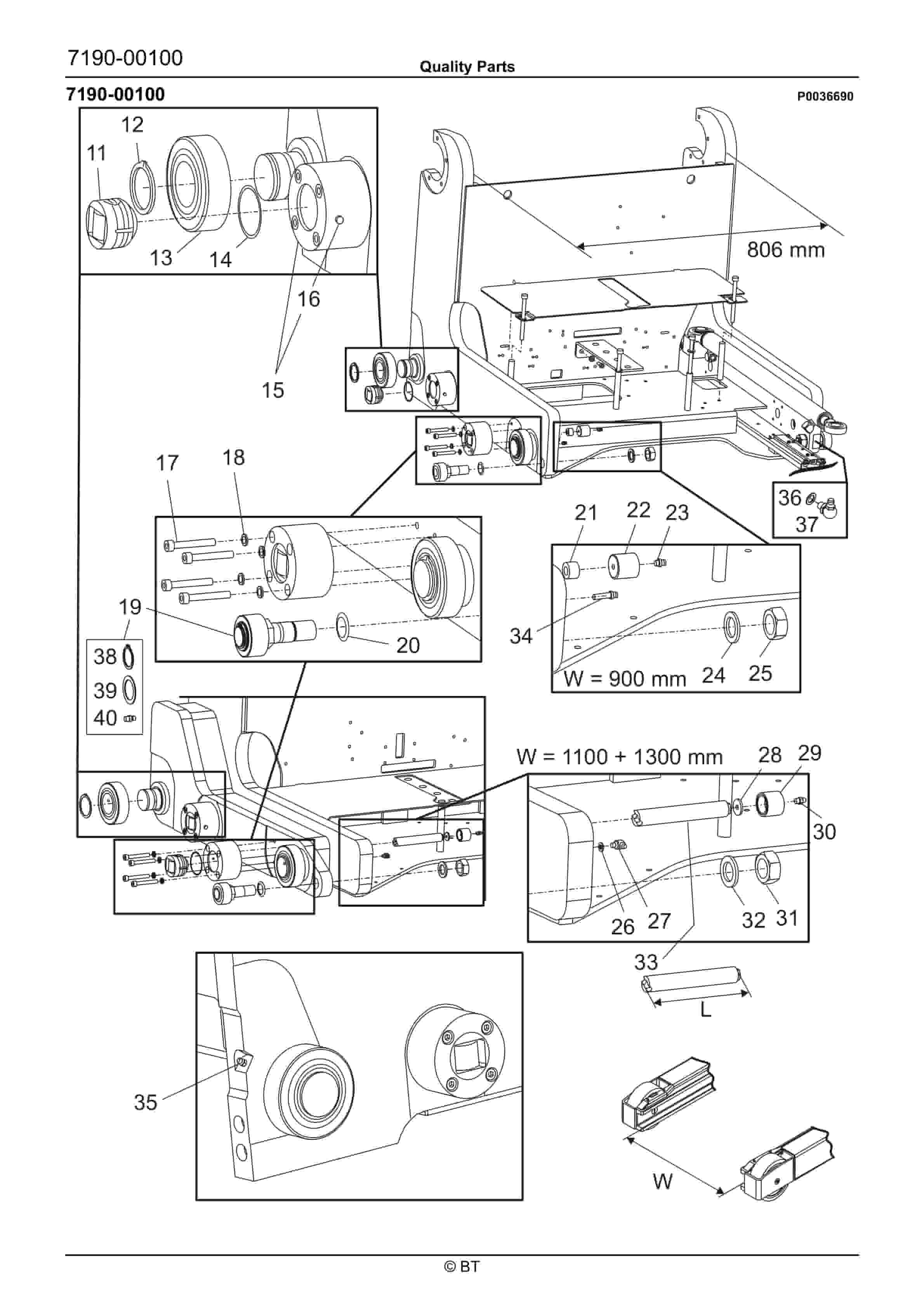

BT RRE200, RRE200C, RRE200E, RRE200EC Quality Parts 7537599 - Image 3

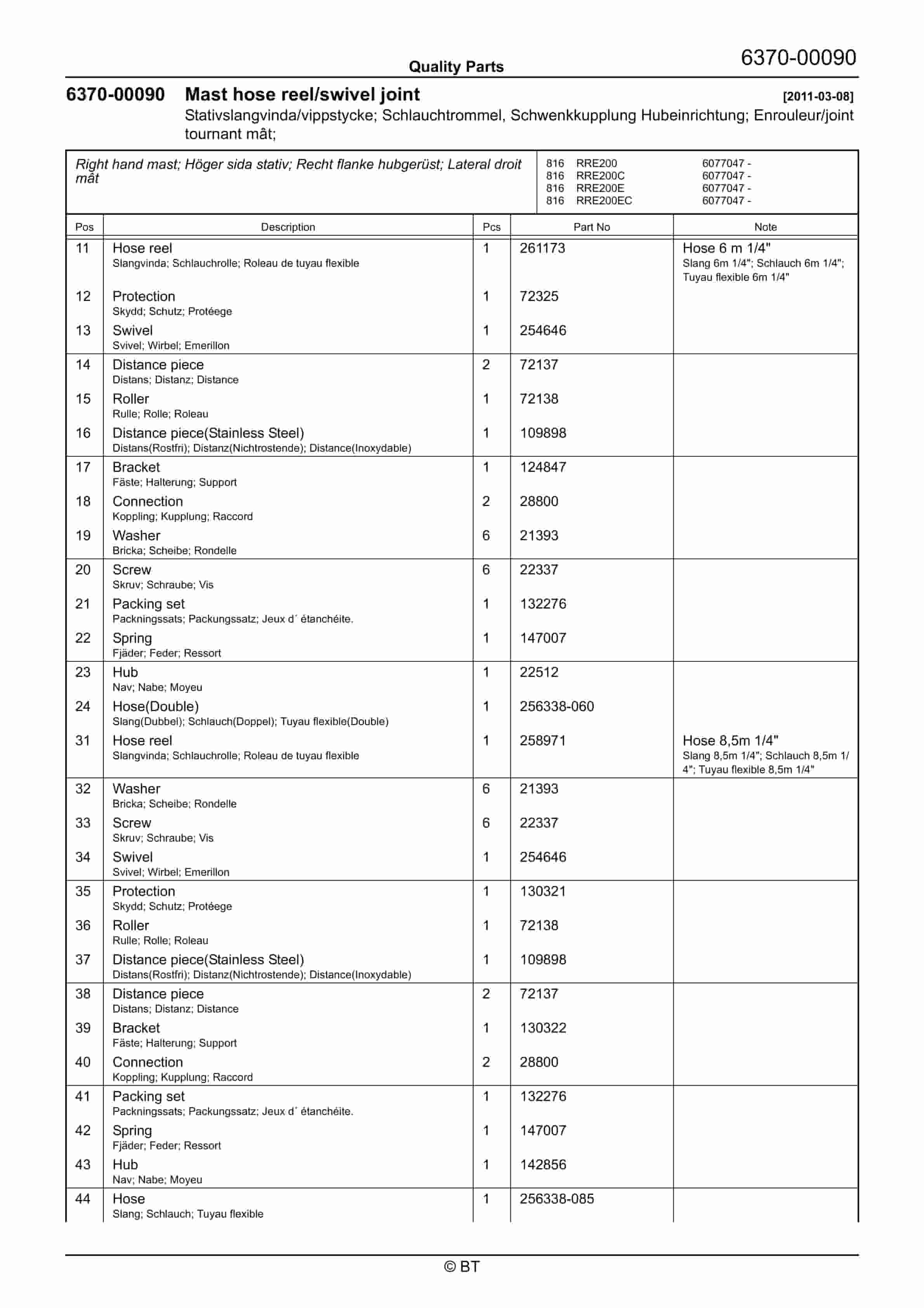

BT RRE200, RRE200C, RRE200E, RRE200EC Quality Parts 7537599 - Image 4
BT RRE200, RRE200C, RRE200E, RRE200EC Quality Parts 7537599 - Image 5

BT RRE200, RRE200C, RRE200E, RRE200EC Quality Parts 7537599

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 7537599
  • : Parts Manual PDF
  • Number of Pages: 372
  • Size: 20.7MB
  • Format: PDF
Category:

Product details

  • Model List:

    • RRE200, RRE200C, RRE200E, RRE200EC
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0032308
  • 11. Inspection covers 2011-03-08
  • 12. P0037271
  • 13. Inspection covers 2010-09-14
  • 14. P0040050
  • 15. Inspection covers 2011-10-06
  • 16. P0032306
  • 17. Support arms, stabilizers 2011-03-09
  • 18. P0035633
  • 19. Battery compartment parts 2010-09-08
  • 20. P0036778
  • 21. Battery compartment parts 2011-03-08
  • 22. P0036805
  • 23. Battery compartment parts 2011-04-14
  • 24. P0036807
  • 25. Battery compartment parts 2011-03-08
  • 26. P0036809
  • 27. Battery compartment parts 2011-03-08
  • 28. P0037387
  • 29. Battery compartment parts 2011-10-31
  • 30. P0037388
  • 31. Battery compartment parts 2010-09-14
  • 32. P0037391
  • 33. Battery compartment parts 2010-09-14
  • 34. P0040249
  • 35. Battery compartment parts 2011-11-24
  • 36. P0040250
  • 37. Battery compartment parts 2011-11-24
  • 38. P0040254
  • 39. Battery compartment parts 2011-11-24
  • 40. P0032258
  • 41. Motor fixing points 2011-03-08
  • 42. P0032690
  • 43. Cabin fixing points 2011-03-08
  • 44. P0037272
  • 45. Cabin fixing points 2011-10-04
  • 46. P0040240
  • 47. Seat, cushions 2011-11-24
  • 48. P0039594
  • 49. Driver controls ( mechanical ) 2011-10-12
  • 50. P0039595
  • 51. Driver controls ( mechanical ) 2011-10-06
  • 52. P0034642
  • 53. Internal fittings 2011-09-26
  • 54. P0034644
  • 55. Internal fittings 2011-09-26
  • 56. P0034822
  • 57. Mirrors 2011-03-08
  • 58. P0032310
  • 59. Overhead guard/roof 2011-03-08
  • 60. P0034641
  • 61. Overhead guard/roof 2011-07-07
  • 62. P0035140
  • 63. Overhead guard/roof 2011-03-08
  • 64. P0035141
  • 65. Overhead guard/roof 2011-03-08
  • 66. P0035651
  • 67. Overhead guard/roof 2011-11-09
  • 68. P0032356
  • 69. Finger/foot guards 2011-03-08
  • 70. P0036708
  • 71. Finger/foot guards 2011-03-08
  • 72. P0032149
  • 73. Driver protection 2011-03-08
  • 74. P0037238
  • 75. Driver protection 2011-03-08
  • 76. P0032594
  • 77. Signs, warnings, decals 2011-09-23
  • 78. P0032596
  • 79. Signs, warnings, decals 2009-09-09
  • 80. P0031307
  • 81. Electric pump motor 2011-10-18
  • 82. P0037564
  • 83. Electric steering motor 2011-03-08
  • 84. P0034022
  • 85. Electric fan motor, electric fan 2011-09-20
  • 86. P0037263
  • 87. Electric fan motor, electric fan 2010-09-14
  • 88. P0037264
  • 89. Electric fan motor, electric fan 2011-03-08
  • 90. P0032399
  • 91. Electric drive motor 2011-08-05
  • 92. P0030289
  • 93. Mechanical drive gear unit 2011-03-08
  • 94. P0032955
  • 95. Electrically controlled travel brake 2011-03-08
  • 96. P0038685
  • 97. Electrically controlled travel brake 2011-03-08
  • 98. P0031609
  • 99. Drive wheel 2011-03-08
  • 100. P0033138
  • 101. Fork/support arm wheels 2011-03-08
  • 102. P0031370
  • 103. Electric steering wheel/lever 2011-10-31
  • 104. P0032654
  • 105. Electric steering wheel/lever 2009-09-09
  • 106. P0031638
  • 107. Steering angle sensor 2011-05-10
  • 108. P0036566
  • 109. General alarm signals (audible/visual) 2011-03-08
  • 110. P0031508
  • 111. Battery cut out connector/contactor 2011-03-08
  • 112. P0032073
  • 113. Battery cut out connector/contactor 2011-03-08
  • 114. P0031314
  • 115. Instrument panel, display 2011-03-08
  • 116. P0031398
  • 117. Instrument panel, display 2011-03-08
  • 118. P0040082
  • 119. Instrument panel, display 2011-10-06
  • 120. P0032634
  • 121. Level/position transducers/lamps 2011-10-04
  • 122. P0035153
  • 123. Level/position transducers/lamps 2011-04-20
  • 124. P0035190
  • 125. Level/position transducers/lamps 2011-03-08
  • 126. P0035571
  • 127. Level/position transducers/lamps 2011-03-08
  • 128. P0035577
  • 129. Level/position transducers/lamps 2011-03-08
  • 130. P0032660
  • 131. Driving function harnesses/fuse 2011-03-08
  • 132. P0033744
  • 133. Driving function harnesses/fuse 2009-09-09
  • 134. P0033756
  • 135. Driving function harnesses/fuse 2011-03-08
  • 136. P0036570
  • 137. Driving function harnesses/fuse 2011-03-08
  • 138. P0037258
  • 139. Drive motor cables/resistors/fuses 2011-03-08
  • 140. P0039383
  • 141. Transistor panel 2011-05-09
  • 142. P0031270
  • 143. Work function harnesses/fuse 2011-03-08
  • 144. P0032163
  • 145. Work function harnesses/fuse 2011-03-08
  • 146. P0032380
  • 147. Work function harnesses/fuse 2009-09-09
  • 148. P0032527
  • 149. Work function harnesses/fuse 2011-03-08
  • 150. P0032534
  • 151. Work function harnesses/fuse 2011-03-08
  • 152. P0032656
  • 153. Work function harnesses/fuse 2011-03-08
  • 154. P0033524
  • 155. Work function harnesses/fuse 2011-03-08
  • 156. P0033523
  • 157. Work function harnesses/fuse 2011-03-08
  • 158. P0033738
  • 159. Work function harnesses/fuse 2011-03-08
  • 160. P0036108
  • 161. Work function harnesses/fuse 2011-03-08
  • 162. P0039883
  • 163. Work function harnesses/fuse 2011-10-06
  • 164. P0040246
  • 165. Work function harnesses/fuse 2011-11-24
  • 166. P0033449
  • 167. Battery/motor cables, fuse 2009-09-09
  • 168. P0035191
  • 169. Battery/motor cables, fuse 2011-03-09
  • 170. P0039913
  • 171. Battery/motor cables, fuse 2011-11-24
  • 172. P0039914
  • 173. Battery/motor cables, fuse 2011-11-24
  • 174. P0039915
  • 175. Battery/motor cables, fuse 2011-11-24
  • 176. P0039916
  • 177. Battery/motor cables, fuse 2011-11-24
  • 178. P0033840
  • 179. Drive/multi-function PCBs 2011-09-08
  • 180. P0033854
  • 181. Drive/multi-function PCBs 2011-08-23
  • 182. P0032034
  • 183. Lift/lowering/reach movement probes/sensors 2010-02-08
  • 184. P0034077
  • 185. Safety probes/sensors 2011-03-08
  • 186. P0035192
  • 187. Safety probes/sensors 2009-12-03
  • 188. P0033526
  • 189. Positioning probes/sensors 2011-03-30
  • 190. P0035579
  • 191. Positioning probes/sensors 2011-03-08
  • 192. P0037412
  • 193. Positioning probes/sensors 2011-03-08
  • 194. P0031616
  • 195. Hydraulic tank 2011-11-16
  • 196. P0032255
  • 197. Hydraulic tank lines 2011-03-08
  • 198. P0033522
  • 199. Hydraulic tank lines 2011-03-08
  • 200. P0032253
  • 201. Filters and housing 2011-03-08
  • 202. P0032249
  • 203. Hydraulic pump 2011-03-08
  • 204. P0037514
  • 205. Main valve unit lift/reach/tilt 2011-03-08
  • 206. P0037515
  • 207. Main valve unit lift/reach/tilt 2010-09-14
  • 208. P0032549
  • 209. Control valve ( Other functions ) 2011-03-08
  • 210. P0032546
  • 211. Control valve ( Other functions ) 2011-03-08
  • 212. P0032663
  • 213. Control valve ( Other functions ) 2011-09-21
  • 214. P0033047
  • 215. Control valve ( Other functions ) 2011-09-21
  • 216. P0032682
  • 217. Hydraulic lines chassis 2011-03-08
  • 218. P0032683
  • 219. Hydraulic lines chassis 2011-03-08
  • 220. P0035193
  • 221. Hydraulic lines chassis 2011-03-08
  • 222. P0032543
  • 223. Mast hydraulic lines 2011-03-08
  • 224. P0032552
  • 225. Mast hydraulic lines 2011-03-08
  • 226. P0033496
  • 227. Mast hydraulic lines 2011-03-08
  • 228. P0033497
  • 229. Mast hydraulic lines 2011-03-08
  • 230. P0033680
  • 231. Mast hydraulic lines 2011-03-08
  • 232. P0034858
  • 233. Mast hydraulic lines 2011-03-08
  • 234. P0037362
  • 235. Mast hydraulic lines 2011-03-08
  • 236. P0037506
  • 237. Mast hydraulic lines 2011-04-20
  • 238. P0038002
  • 239. Mast hydraulic lines 2011-03-08
  • 240. P0040036
  • 241. Mast hydraulic lines 2011-10-06
  • 242. P0040233
  • 243. Mast hydraulic lines 2011-10-06
  • 244. P0033381
  • 245. Mast hose reel/swivel joint 2011-03-08
  • 246. P0033384
  • 247. Mast hose reel/swivel joint 2011-03-08
  • 248. P0033390
  • 249. Mast hose reel/swivel joint 2011-08-16
  • 250. P0035617
  • 251. Mast hose reel/swivel joint 2011-03-08
  • 252. P0035546
  • 253. Main lift cylinders 2011-03-08
  • 254. P0035547
  • 255. Main lift cylinders 2010-04-20
  • 256. P0032508
  • 257. Free lift cylinders 2011-03-08
  • 258. P0039382
  • 259. Reach/telescopic cylinders 2011-05-09
  • 260. P0024168
  • 261. Tilt cylinders 2011-03-08
  • 262. P0032555
  • 263. Tilt cylinders 2011-01-18
  • 264. P0036761
  • 265. Tilt cylinders 2011-03-08
  • 266. P0040037
  • 267. Other hydraulic cylinders 2011-10-06
  • 268. P0031147
  • 269. Main mast 2011-03-08
  • 270. P0032536
  • 271. Main mast 2010-10-13
  • 272. P0031136
  • 273. Main lift chain system 2011-03-08
  • 274. P0037512
  • 275. Main lift chain system 2011-03-08
  • 276. P0032539
  • 277. Main mast fork carriage 2011-03-08
  • 278. P0032547
  • 279. Main mast fork carriage 2011-03-08
  • 280. P0040032
  • 281. Main mast fork carriage 2011-11-10
  • 282. P0032511
  • 283. Main mast guidance/dampers 2011-03-08
  • 284. P0032512
  • 285. Main mast guidance/dampers 2011-03-08
  • 286. P0033650
  • 287. Main mast suspension 2011-10-04
  • 288. P0033835
  • 289. Main mast suspension 2011-10-04
  • 290. P0036688
  • 291. Main mast suspension 2011-03-08
  • 292. P0036690
  • 293. Main mast suspension 2011-03-08
  • 294. P0033674
  • 295. Fork, carpet boom, lift hook 2011-03-08
  • 296. P0034859
  • 297. Fork, carpet boom, lift hook 2011-03-08
  • 298. P0035456
  • 299. Fork, carpet boom, lift hook 2011-03-08
  • 300. P0035759
  • 301. Fork, carpet boom, lift hook 2011-03-08
  • 302. P0037526
  • 303. Fork, carpet boom, lift hook 2011-03-08
  • 304. P0040435
  • 305. Fork, carpet boom, lift hook 2011-11-24
  • 306. P0040603
  • 307. Fork, carpet boom, lift hook 2011-11-24
  • 308. P0035201
  • 309. Separate sideshift/forkspread 2011-10-04
  • 310. P0035202
  • 311. Separate sideshift/forkspread 2011-10-04
  • 312. P0035203
  • 313. Separate sideshift/forkspread 2011-10-04
  • 314. P0040612
  • 315. Separate sideshift/forkspread 2011-11-24
  • 316. P0040613
  • 317. Separate sideshift/forkspread 2011-11-24
  • 318. P0036813
  • 319. Fork extensions 2011-03-09
  • 320. P0033340
  • 321. Extra electrical equipment 2011-03-09
  • 322. P0035614
  • 323. Extra electrical equipment 2011-03-09
  • 324. P0033572
  • 325. Radio/recorder 2011-03-09
  • 326. P0032084
  • 327. Extra lighting 2011-09-29
  • 328. P0030370
  • 329. Extra warning lights/alarm 2011-03-09
  • 330. P0032235
  • 331. Extra warning lights/alarm 2011-03-09
  • 332. P0036628
  • 333. Extra warning lights/alarm 2011-03-09
  • 334. P0032673
  • 335. Charger attachment 2011-03-09
  • 336. P0040524
  • 337. Charger attachment 2011-11-24
  • 338. P0036637
  • 339. Positioning/TV equip., height preselector 2011-03-09
  • 340. P0037985
  • 341. Extra electrical equipment 2011-05-13
  • 342. P0040501
  • 343. Extra electrical equipment 2011-11-24
  • 344. P0033808
  • 345. Truck log device, code locking device 2011-02-16
  • 346. P0034496
  • 347. Truck log device, code locking device 2011-03-09
  • 348. P0038854
  • 349. Truck log device, code locking device 2011-03-01
  • 350. P0017242
  • 351. Other extra equipment 2011-03-09
  • 352. P0027876
  • 353. Other extra equipment 2011-03-09
  • 354. P0031109
  • 355. Other extra equipment 2011-11-24
  • 356. P0032556
  • 357. Other extra equipment 2011-03-09
  • 358. P0034821
  • 359. Other extra equipment 2011-03-09
  • 360. P0034860
  • 361. Other extra equipment 2011-03-09
  • 362. P0036107
  • 363. Other extra equipment 2011-03-09
  • 364. P0036879
  • 365. Other extra equipment 2011-11-07
  • 366. P0037269
  • 367. Other extra equipment 2011-03-09
  • 368. P0037224
  • 369. Other extra equipment 2011-03-09
  • 370. P0037268
  • 371. Other extra equipment 2011-03-09
  • 372. P0037922
  • 373. Other extra equipment 2011-03-09
  • 374. P0040235
  • 375. Other extra equipment 2011-11-24
  • 376. P0037989
  • 377. Battery changing equipment 2011-03-09
  • 378. P0038245
  • 379. Battery changing equipment 2011-03-09
Rate this product

Related products
