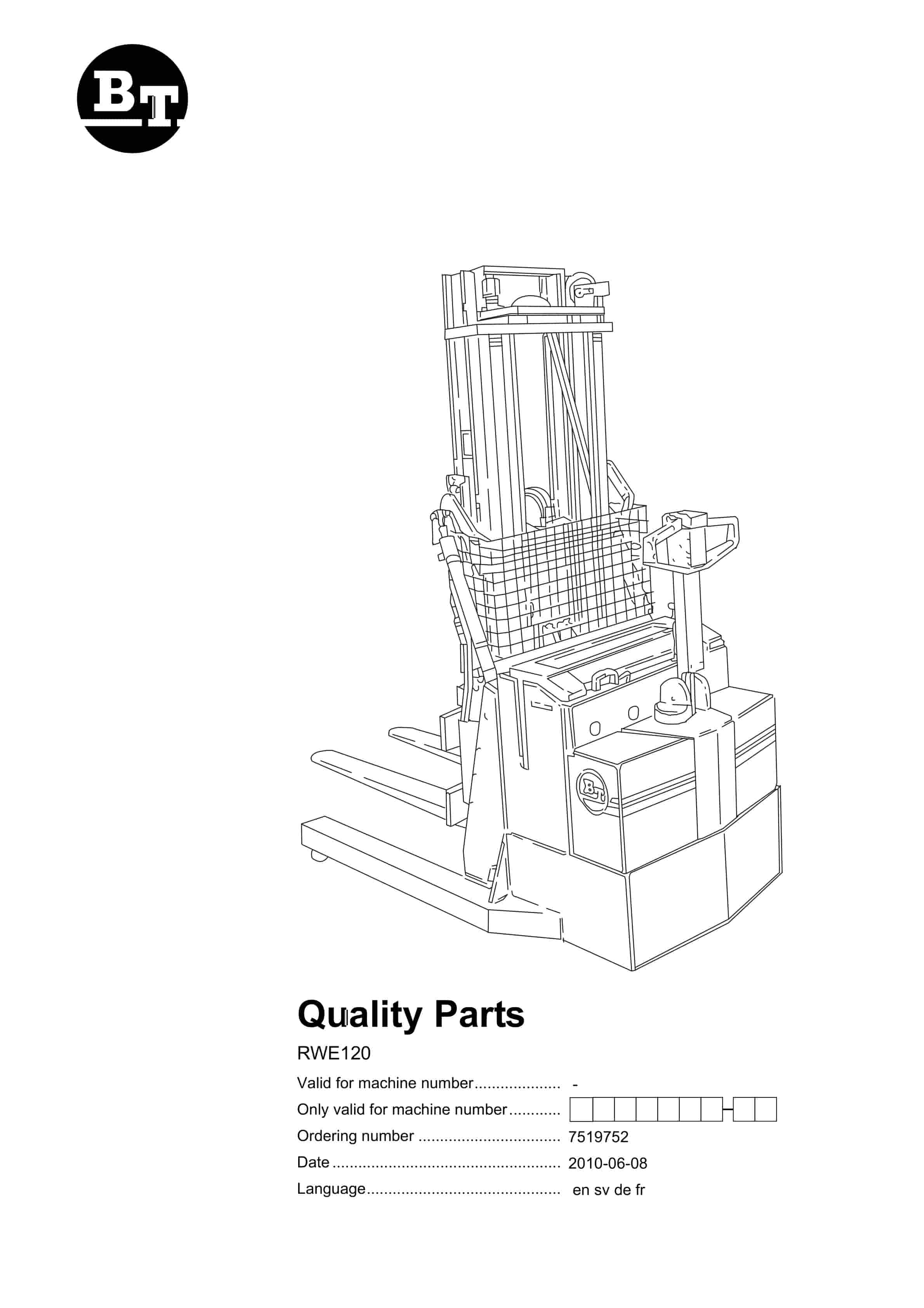

BT RWE120 Quality Parts 7519752
BT RWE120 Quality Parts 7519752 - Image 2
BT RWE120 Quality Parts 7519752 - Image 3
BT RWE120 Quality Parts 7519752 - Image 4
BT RWE120 Quality Parts 7519752 - Image 5

BT RWE120 Quality Parts 7519752

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 7519752
  • : Parts Manual PDF
  • Number of Pages: 145
  • Size: 5.9MB
  • Format: PDF
Category:

Product details

  • Model List:

    • RWE120
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0034001
  • 11. Frame, chassis 2009-05-05
  • 12. P0033598

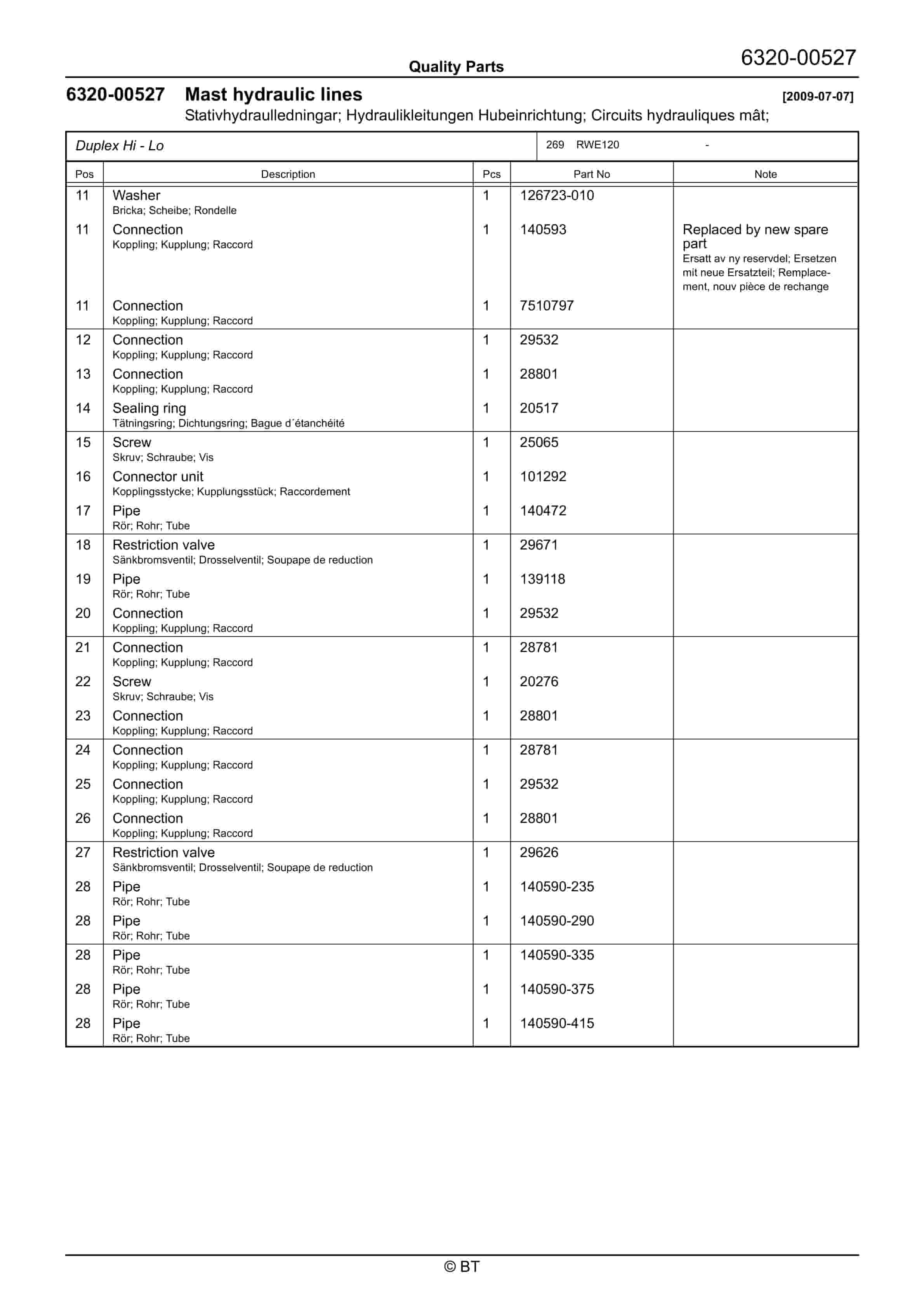

  • 13. Inspection covers 2009-12-02
  • 14. P0036816
  • 15. Inspection covers 2010-05-19
  • 16. P0036814
  • 17. Battery compartment parts 2010-05-19
  • 18. P0036815
  • 19. Battery compartment parts 2010-05-19
  • 20. P0034234
  • 21. Platform incl. fixing points 2009-11-04
  • 22. P0034005
  • 23. Driver controls ( mechanical ) 2009-05-05
  • 24. P0034042
  • 25. Driver controls ( mechanical ) 2009-05-05
  • 26. P0033989
  • 27. Finger/foot guards 2009-05-05
  • 28. P0036932
  • 29. Finger/foot guards 2010-06-04
  • 30. P0000231
  • 31. Driver protection 2009-05-05
  • 32. P0034228
  • 33. Driver protection 2009-05-05
  • 34. P0026936
  • 35. Signs, warnings, decals 2009-05-05
  • 36. P0033268
  • 37. Electric pump motor 2009-05-05
  • 38. P0034278
  • 39. Electric drive motor 2009-05-06
  • 40. P0027375
  • 41. Mechanical drive gear unit 2009-12-03
  • 42. P0011711
  • 43. Electromagnetic parking brake 2009-05-05
  • 44. P0034209
  • 45. Drive wheel 2009-05-05
  • 46. P0034424
  • 47. Fork/support arm wheels 2009-11-25
  • 48. P0034028
  • 49. Steering arm/wheel/lever 2009-05-05
  • 50. P0034029
  • 51. Steering arm/wheel/lever 2009-05-05
  • 52. P0034223

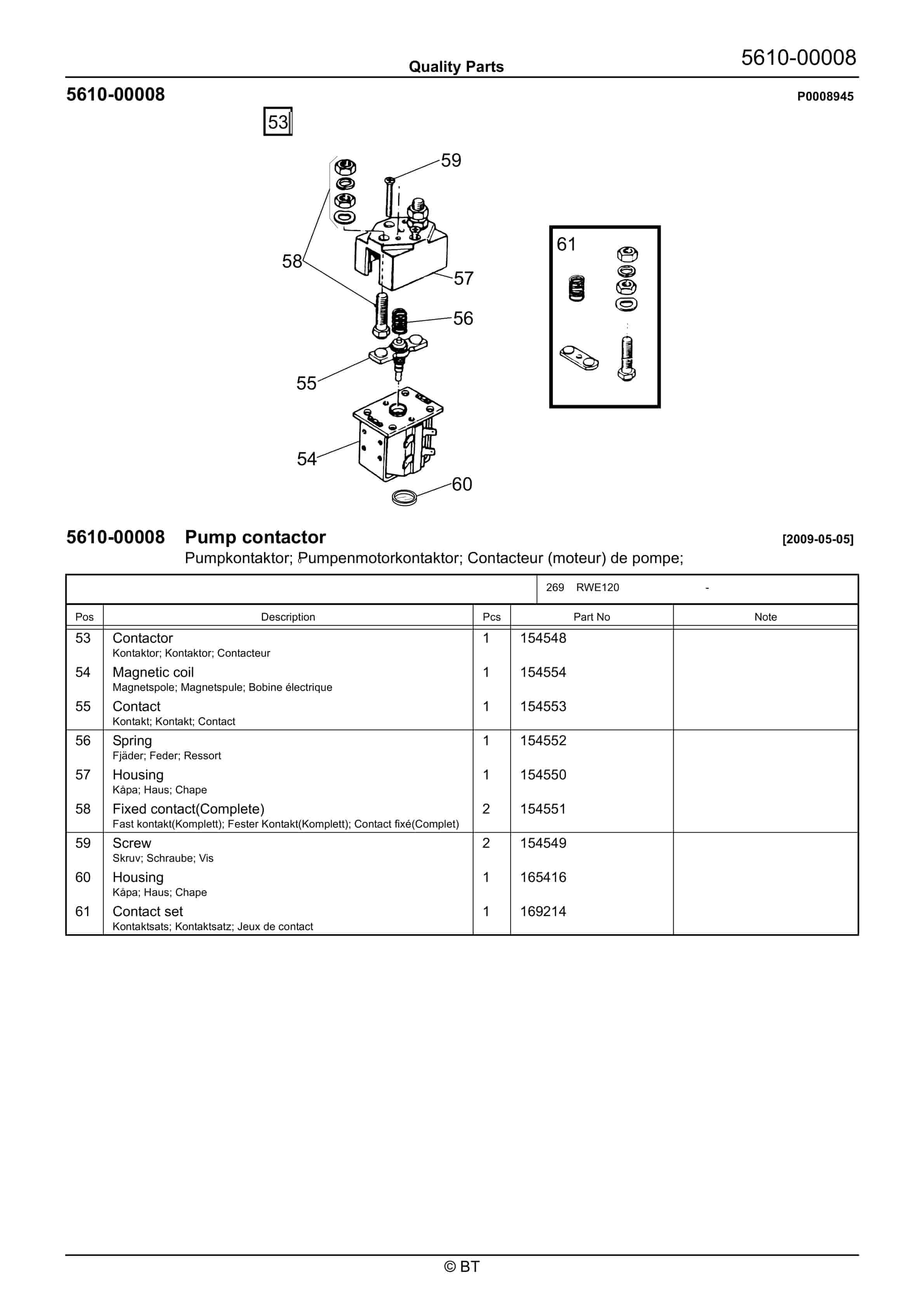

  • 53. Steering arm/wheel/lever 2009-05-05
  • 54. P0034224
  • 55. Steering arm/wheel/lever 2009-05-05
  • 56. P0034279
  • 57. Electric steering system 2009-10-15
  • 58. P0013736
  • 59. General alarm signals (audible/visual) 2009-05-05
  • 60. P0013777
  • 61. Battery cut out connector/contactor 2009-05-05
  • 62. P0007830
  • 63. Instrument panel, display 2009-05-05
  • 64. P0007800
  • 65. Start/stop switch 2009-05-05
  • 66. P0033602
  • 67. Start/stop switch 2009-05-05
  • 68. P0034048
  • 69. Speed control 2009-05-05
  • 70. P0034280
  • 71. Driving function harnesses/fuse 2009-05-05
  • 72. P0008943
  • 73. Direction contactors 2009-05-05
  • 74. P0034040
  • 75. Work function micro switches, potentiometers 2009-05-05
  • 76. P0034217
  • 77. Work function micro switches, potentiometers 2009-05-05
  • 78. P0008945

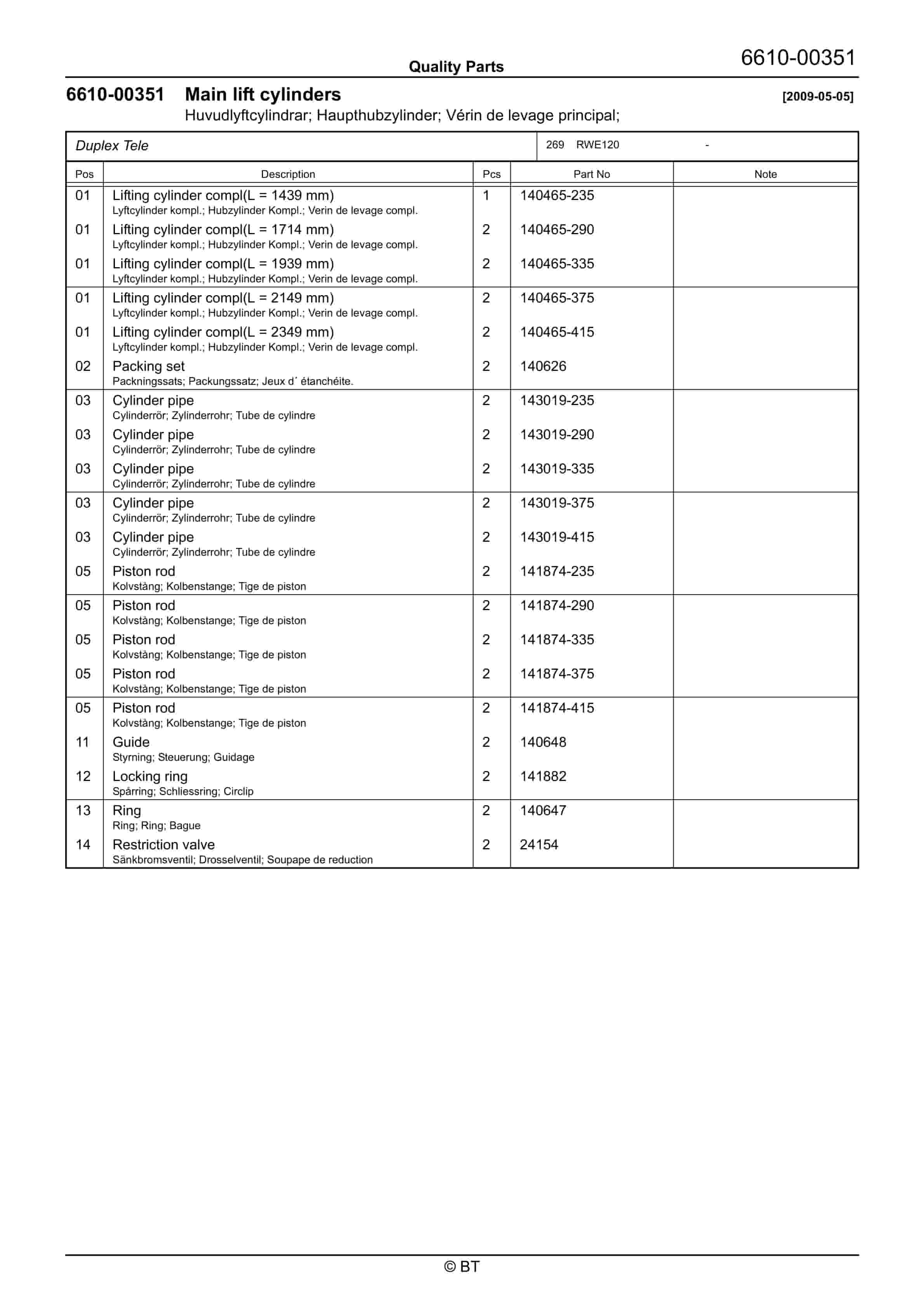

  • 79. Pump contactor 2009-05-05
  • 80. P0033606
  • 81. Drive/multi-function PCBs 2009-05-05
  • 82. P0034233
  • 83. Work function PCBs 2009-05-05
  • 84. P0034227
  • 85. Safety probes/sensors 2009-05-05
  • 86. P0034232
  • 87. Safety probes/sensors 2009-05-05
  • 88. P0034013
  • 89. Hydraulic unit 2009-05-05
  • 90. P0033685
  • 91. Hydraulic lines chassis 2009-05-05
  • 92. P0034008
  • 93. Hydraulic lines chassis 2009-05-05
  • 94. P0008028
  • 95. Hydraulic system mast mounted 2003-04-30
  • 96. P0033604
  • 97. Mast hydraulic lines 2009-05-05
  • 98. P0034251
  • 99. Mast hydraulic lines 2009-07-07
  • 100. P0034260
  • 101. Mast hydraulic lines 2009-05-05
  • 102. P0034274
  • 103. Mast hydraulic lines 2009-05-05
  • 104. P0033761
  • 105. Main lift cylinders 2009-07-10
  • 106. P0033763
  • 107. Main lift cylinders 2009-05-05
  • 108. P0034257
  • 109. Main lift cylinders 2009-05-05
  • 110. P0033765
  • 111. Free lift cylinders 2009-05-05
  • 112. P0034250
  • 113. Free lift cylinders 2009-05-05
  • 114. P0034033
  • 115. Reach/telescopic cylinders 2009-09-21
  • 116. P0034221
  • 117. Tilt cylinders 2009-05-05
  • 118. P0033601

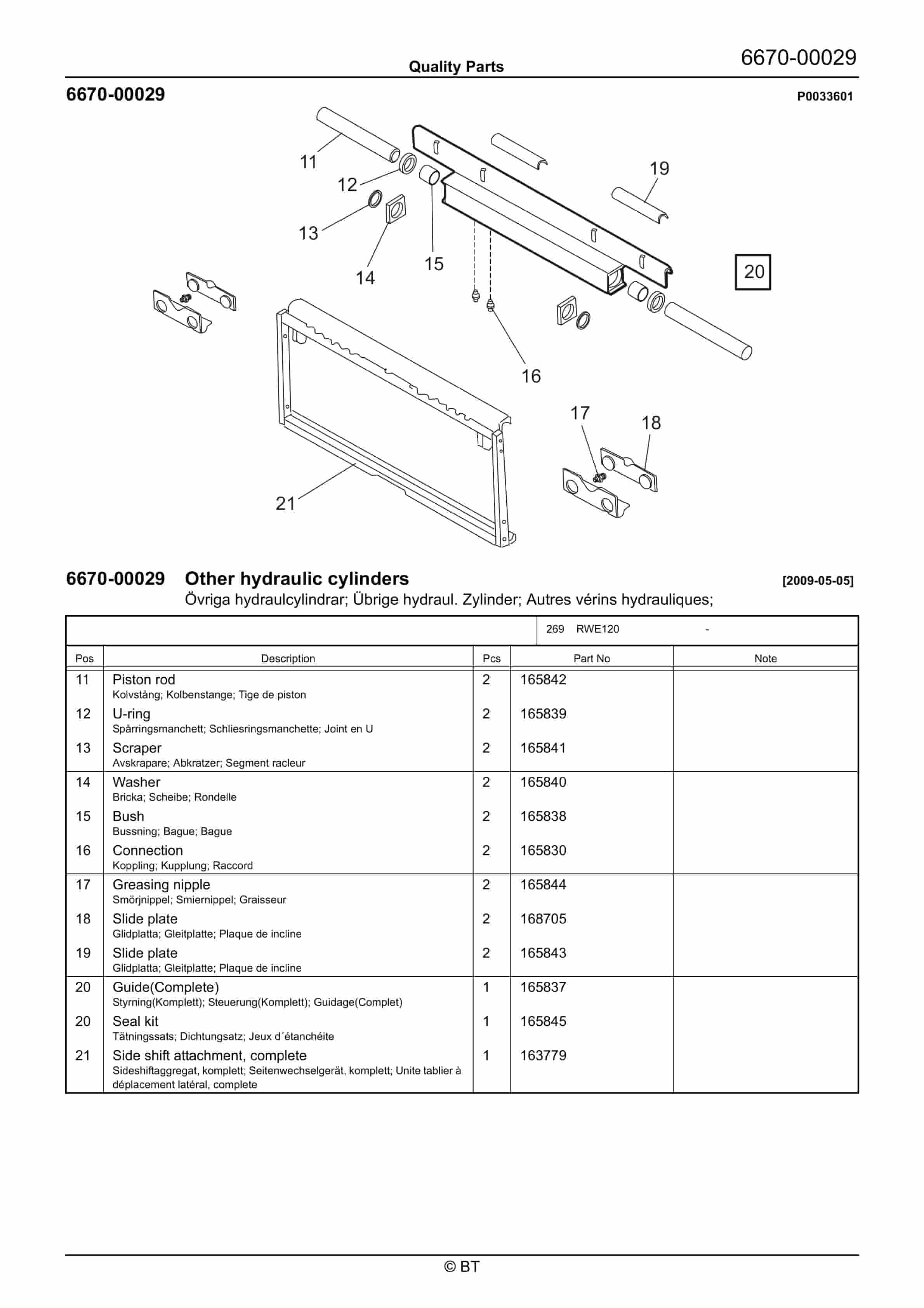

  • 119. Other hydraulic cylinders 2009-05-05
  • 120. P0034249
  • 121. Main mast 2009-07-07
  • 122. P0034256
  • 123. Main mast 2009-05-05
  • 124. P0034272
  • 125. Main mast 2009-05-05
  • 126. P0034037
  • 127. Main mast fork carriage 2009-05-05
  • 128. P0034038
  • 129. Main mast fork carriage 2009-05-05
  • 130. P0034000
  • 131. Main mast suspension 2009-05-05
  • 132. P0000126
  • 133. Tilt cylinders 2009-05-05
  • 134. P0034034
  • 135. Fork, carpet boom, lift hook 2010-06-01
  • 136. P0036937
  • 137. Extra electrical equipment 2010-06-07
  • 138. P0019044
  • 139. Charger attachment 2009-10-13
  • 140. P0021526
  • 141. Extra electrical equipment 2009-05-05
  • 142. P0034215
  • 143. Other extra equipment 2009-05-05
  • 144. P0007837
  • 145. Battery changing equipment 2009-05-05
  • 146. P0034283
  • 147. Battery changing equipment 2009-05-05
