BT S 10, S12 Quality Parts 210499

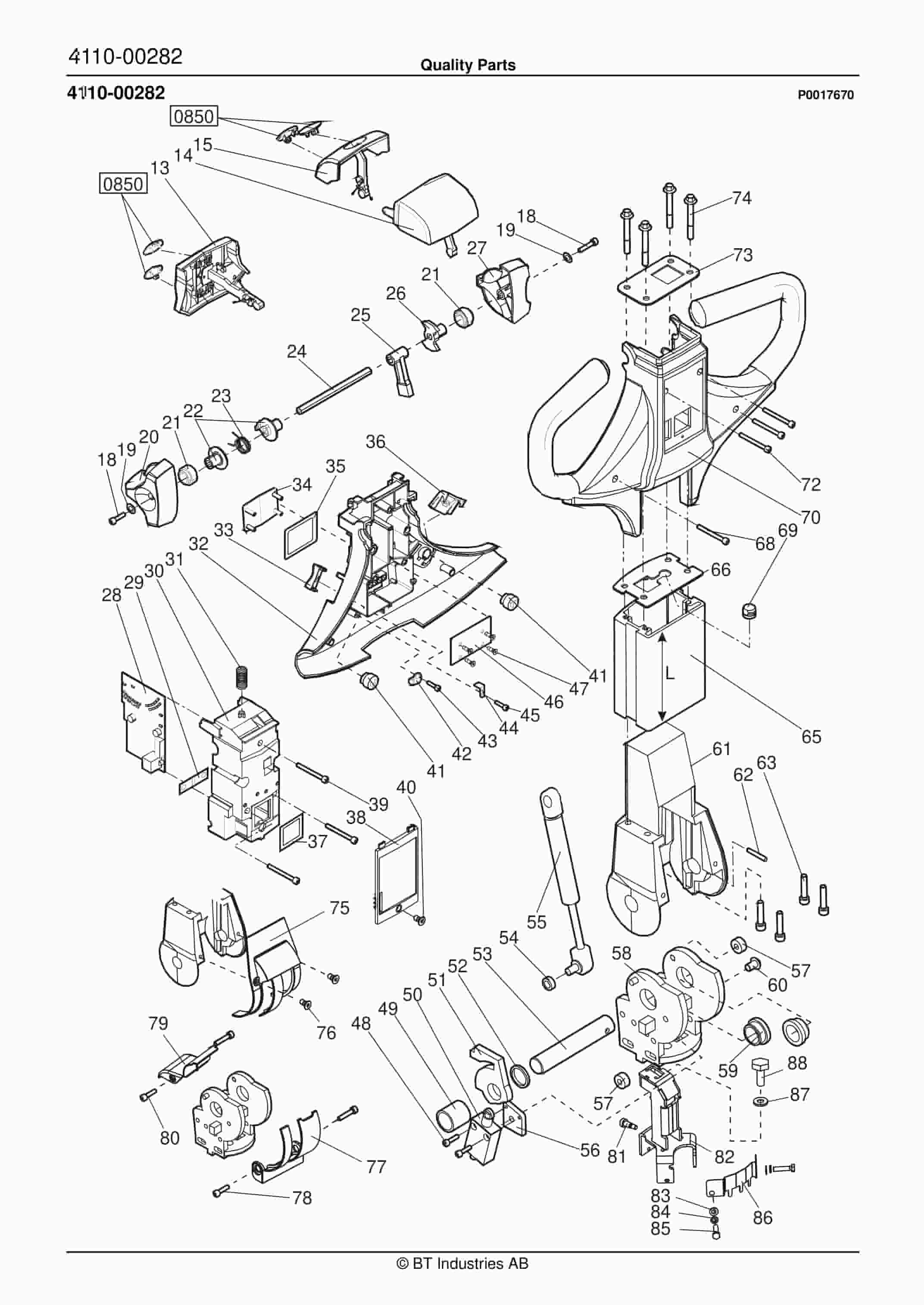

BT S 10, S12 Quality Parts 210499 - Image 2

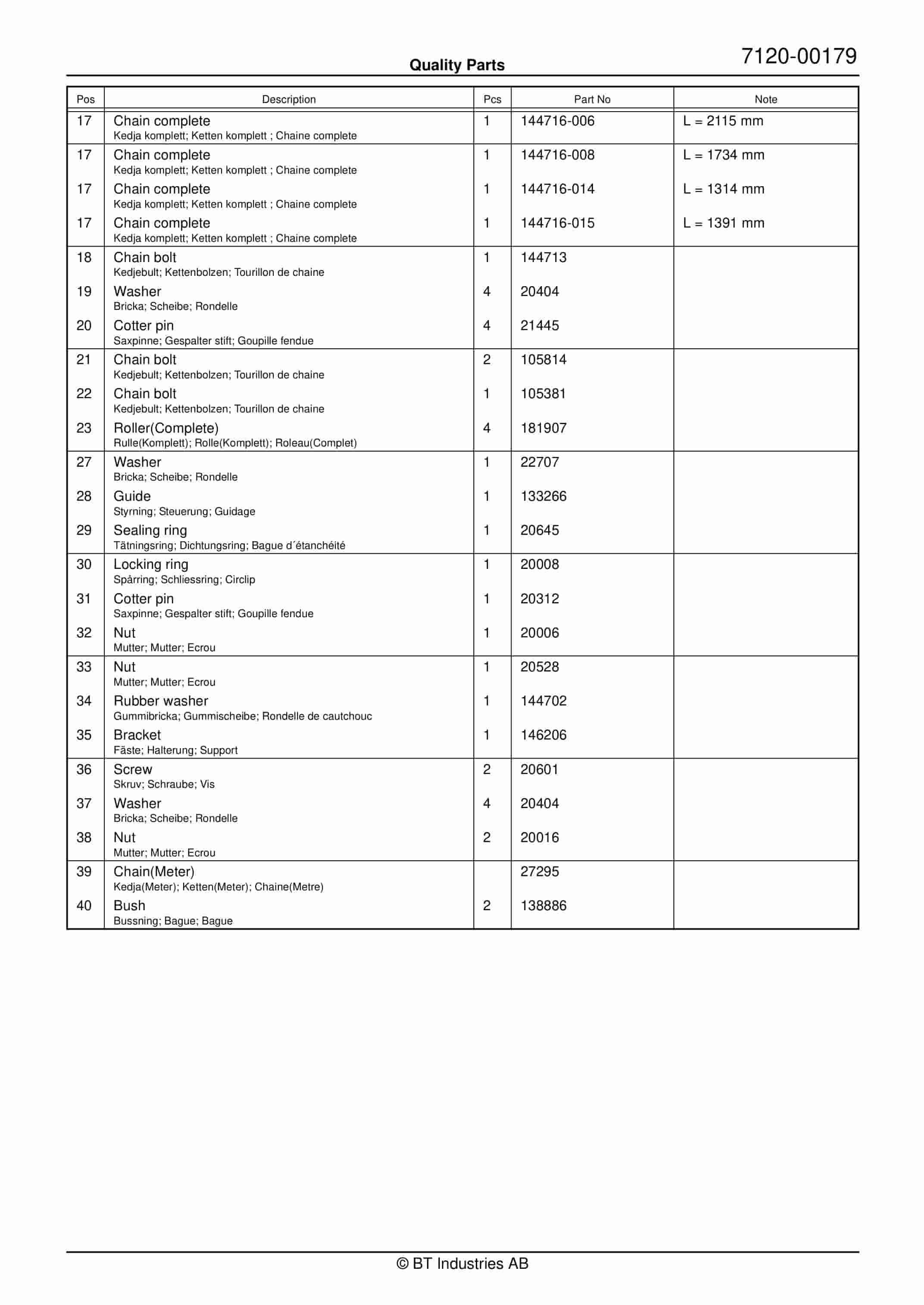

BT S 10, S12 Quality Parts 210499 - Image 3

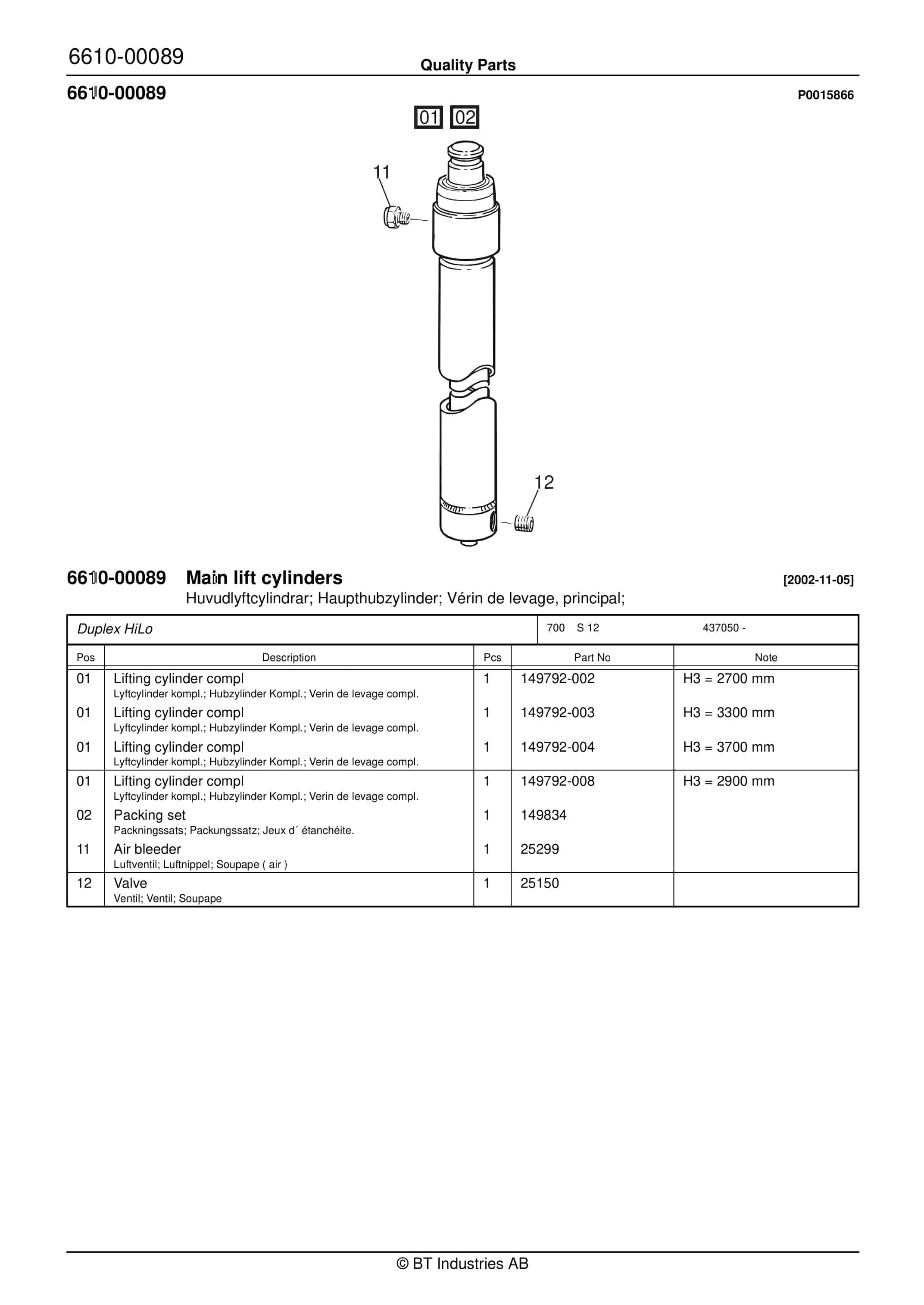

BT S 10, S12 Quality Parts 210499 - Image 4

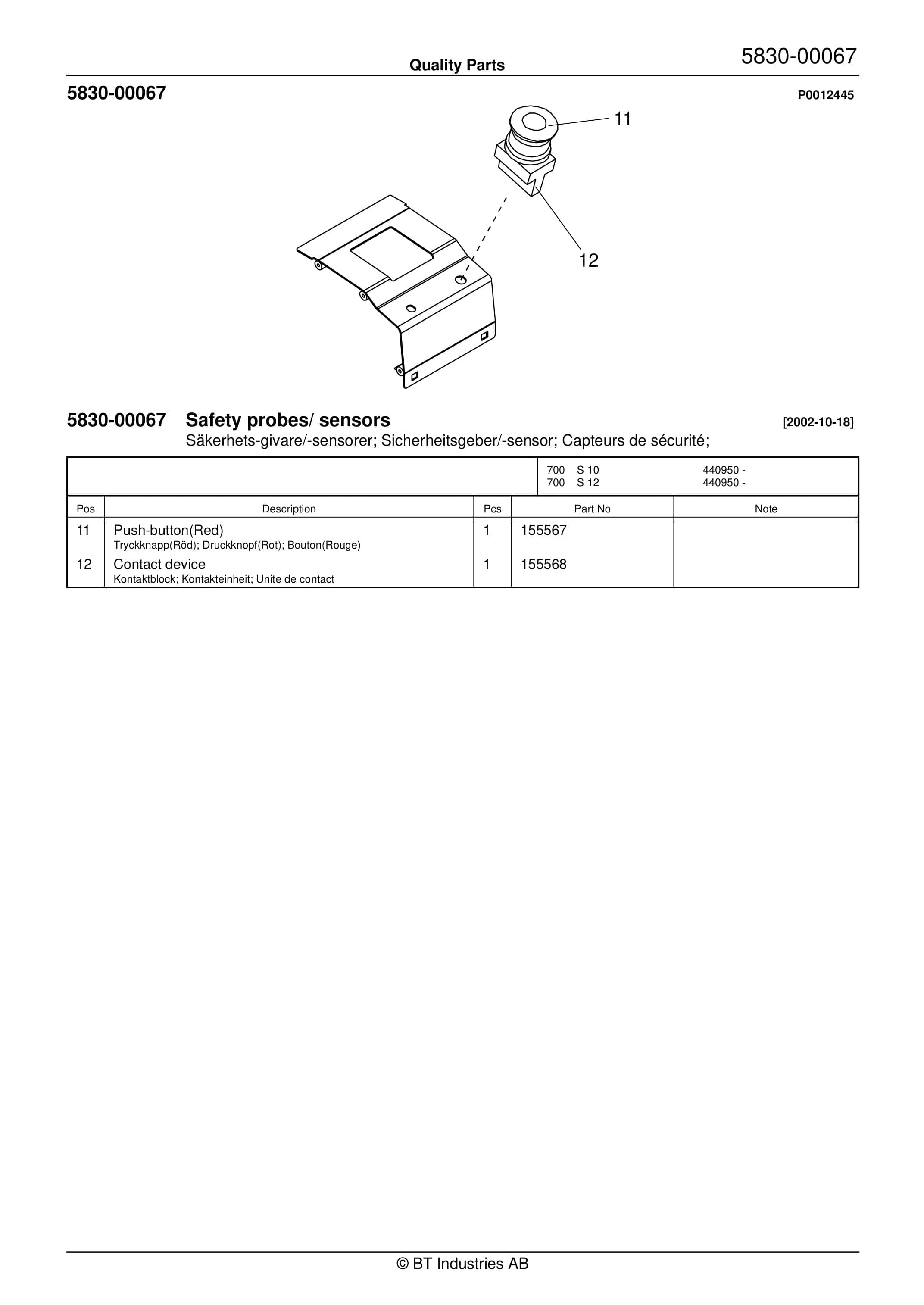

BT S 10, S12 Quality Parts 210499 - Image 5

BT S 10, S12 Quality Parts 210499

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 210499
  • : Parts Manual PDF
  • Number of Pages: 103
  • Size: 3.8MB
  • Format: PDF
Category:

Product details

  • Model List:

    • S 10, S12
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör /Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0015800
  • 11. Inspection covers 2002-10-18
  • 12. P0015789
  • 13. Battery compartment parts 2002-10-18
  • 14. P0015790
  • 15. Battery compartment parts 2002-10-18
  • 16. P0017714
  • 17. Battery compartment parts 2003-01-29
  • 18. P0015771
  • 19. Frame/chassis components 2002-10-18
  • 20. P0015642
  • 21. Motor fixing points 2002-10-18
  • 22. P0016115
  • 23. Platform incl. fixing points 2002-10-18
  • 24. P0015760
  • 25. Driver controls ( mechanical ) 2002-10-18
  • 26. P0015757
  • 27. Finger/foot guards 2002-10-18
  • 28. P0015884
  • 29. Finger/foot guards 2002-10-18
  • 30. P0015885
  • 31. Finger/foot guards 2002-10-18
  • 32. P0017728
  • 33. Finger/foot guards 2003-01-29
  • 34. P0017695
  • 35. Signs, warnings, decals 2003-01-29
  • 36. P0015822
  • 37. Electric pump motor 2002-10-18
  • 38. P0017663
  • 39. Electric drive motor 2003-01-30
  • 40. P0015644
  • 41. Mechanical drive gear unit 2002-10-18
  • 42. P0017735
  • 43. Electromagnetic parking brake 2003-01-29
  • 44. P0015649
  • 45. Drive wheel 2002-10-18
  • 46. P0015650
  • 47. Support/castor wheels 2002-10-18
  • 48. P0015656
  • 49. Fork/support arm wheels 2002-10-18
  • 50. P0015906
  • 51. Fork/support arm wheels 2002-10-18
  • 52. P0015907
  • 53. Fork/support arm wheels 2002-10-18
  • 54. P0017669
  • 55. Steering arm / wheel / lever 2003-01-30
  • 56. P0017670
  • 57. Steering arm / wheel / lever 2003-01-30
  • 58. P0013829
  • 59. Steering bearings, radial bearing 2002-10-18
  • 60. P0017660
  • 61. General alarm signals (audible/visual) 2003-01-30
  • 62. P0012438
  • 63. Battery cut out connector/contactor 2002-10-18
  • 64. P0015846
  • 65. Battery cut out connector/contactor 2002-10-18
  • 66. P0017732
  • 67. Battery cut out connector/contactor 2003-01-29
  • 68. P0015763
  • 69. Start/stop switch 2002-10-18
  • 70. P0015764
  • 71. Transistor panel 2002-10-18
  • 72. P0015847
  • 73. Work function harnesses/ fuse 2002-10-18
  • 74. P0016866
  • 75. Pump contactor 2002-11-26
  • 76. P0012445
  • 77. Safety probes/ sensors 2002-10-18
  • 78. P0015824
  • 79. Hydraulic unit 2002-10-18
  • 80. P0015858
  • 81. Hydraulic lines chassis 2002-10-18
  • 82. P0017755
  • 83. Hydraulic lines chassis 2003-01-28
  • 84. P0015861
  • 85. Main lift cylinders 2002-10-18
  • 86. P0015861
  • 87. Main lift cylinders 2002-10-18
  • 88. P0015866
  • 89. Main lift cylinders 2002-11-05
  • 90. P0015867
  • 91. Main lift cylinders 2002-10-18
  • 92. P0015887
  • 93. Main lift chain system 2002-10-18
  • 94. P0015888
  • 95. Main lift chain system 2002-10-18
  • 96. P0015890
  • 97. Main lift chain system 2002-10-18
  • 98. P0015870
  • 99. Main mast guidance/ dampers 2002-11-26
  • 100. P0015893
  • 101. Forkcarriage unit,integ.sideshift,fork spread 2002-10-18
  • 102. P0015894
  • 103. Forkcarriage unit,integ.sideshift,fork spread 2002-10-18
  • 104. P0015896
  • 105. Forkcarriage unit,integ.sideshift,fork spread 2002-10-18
  • 106. P0017729
  • 107. Charger attachment 2003-01-30
  • 108. P0017731
  • 109. Charger attachment 2003-01-30
  • 110. P0012485
  • 111. Extra electrical equipment 2002-10-18
  • 112. P0012486
  • 113. Extra electrical equipment 2002-10-18
  • 114. P0015420
  • 115. Extra electrical equipment 2002-10-18
  • 116. P0012396
  • 117. Truck log device, code locking device 2002-10-18
  • 118. P0015897
  • 119. Other extra equipment 2002-10-18
