  • Type Of Manual: Quality Parts
  • Manual ID: 7586293
  • : Parts Manual PDF
  • Number of Pages: 559
  • Size: 29.7MB
  • Format: PDF
Category:

Product details

  • Model List:

    • SPE120L, SPE140L, SPE160L, SPE200D, SPE200L, SWE145L, SWE160L, SWE200L
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0046301
  • 11. Inspection covers 2018-02-08
  • 12. P0046232
  • 13. Inspection covers 2018-04-16
  • 14. P0049391
  • 15. Inspection covers 2017-02-24
  • 16. P0055289
  • 17. Inspection covers 2018-04-16
  • 18. P0049959
  • 19. Fork frame (low lifters) 2015-10-09
  • 20. P0044923
  • 21. Battery compartment parts 2018-02-08
  • 22. P0045714
  • 23. Battery compartment parts 2018-02-08
  • 24. P0046685
  • 25. Battery compartment parts 2018-02-08
  • 26. P0047903
  • 27. Battery compartment parts 2016-06-27
  • 28. P0048177
  • 29. Battery compartment parts 2017-04-27
  • 30. P0051493
  • 31. Battery compartment parts 2017-01-27
  • 32. P0051976
  • 33. Battery compartment parts 2016-04-13
  • 34. P0052635
  • 35. Battery compartment parts 2017-11-23
  • 36. P0052658
  • 37. Battery compartment parts 2017-11-23
  • 38. P0054933
  • 39. Battery compartment parts 2017-04-04
  • 40. P0055288
  • 41. Battery compartment parts 2017-03-23
  • 42. P0055507
  • 43. Battery compartment parts 2017-03-27
  • 44. P0048930
  • 45. Frame/chassis components 2016-06-01
  • 46. P0051452
  • 47. Frame/chassis components 2017-08-25
  • 48. P0051969
  • 49. Frame/chassis components 2016-12-05
  • 50. P0047406
  • 51. Motor fixing points 2018-02-08
  • 52. P0047405
  • 53. Motor fixing points 2018-02-08
  • 54. P0049583
  • 55. Motor fixing points 2017-06-02
  • 56. P0049445
  • 57. Motor fixing points 2018-02-08
  • 58. P0055528
  • 59. Motor fixing points 2017-06-02
  • 60. P0056255
  • 61. Motor fixing points 2017-11-29
  • 62. P0056256
  • 63. Motor fixing points 2017-06-02
  • 64. P0056259
  • 65. Motor fixing points 2018-02-08
  • 66. P0045050
  • 67. Platform incl. fixing points 2018-02-08
  • 68. P0045946
  • 69. Platform incl. fixing points 2018-02-08
  • 70. P0048555
  • 71. Platform incl. fixing points 2018-02-08
  • 72. P0048558
  • 73. Platform incl. fixing points 2016-06-29
  • 74. P0049687
  • 75. Platform incl. fixing points 2018-02-08
  • 76. P0051905
  • 77. Platform incl. fixing points 2018-02-08
  • 78. P0051911
  • 79. Platform incl. fixing points 2018-02-08
  • 80. P0053838
  • 81. Platform incl. fixing points 2018-02-08
  • 82. P0049450
  • 83. Overhead guard/roof 2016-05-03
  • 84. P0051108
  • 85. Overhead guard/roof 2017-08-25
  • 86. P0056773
  • 87. Overhead guard/roof 2017-08-25
  • 88. P0051197
  • 89. Finger/foot guards 2017-10-31
  • 90. P0048029
  • 91. Finger/foot guards 2016-07-13
  • 92. P0048030
  • 93. Finger/foot guards 2017-04-26
  • 94. P0049371
  • 95. Finger/foot guards 2015-09-17
  • 96. P0045956
  • 97. Driver protection 2018-02-08
  • 98. P0048021
  • 99. Driver protection 2016-02-04
  • 100. P0049378
  • 101. Driver protection 2018-02-08
  • 102. P0049383
  • 103. Driver protection 2018-02-08
  • 104. P0051086
  • 105. Driver protection 2018-02-08
  • 106. P0052334
  • 107. Driver protection 2018-02-08
  • 108. P0053655
  • 109. Driver protection 2018-02-08
  • 110. P0055538
  • 111. Driver protection 2018-02-08
  • 112. P0056190
  • 113. Driver protection 2018-02-08
  • 114. P0056193
  • 115. Driver protection 2018-02-08
  • 116. P0049214
  • 117. Signs, warnings, decals 2018-02-08
  • 118. P0053514
  • 119. Signs, warnings, decals 2017-03-23
  • 120. P0053516
  • 121. Signs, warnings, decals 2016-11-24
  • 122. P0046682
  • 123. Electric steering motor 2018-02-09
  • 124. P0049937
  • 125. Electric steering motor 2018-02-09
  • 126. P0051140
  • 127. Electric steering motor 2018-02-09
  • 128. P0052624
  • 129. Electric steering motor 2018-02-08
  • 130. P0044710
  • 131. Electric fan motor, electric fan 2018-02-09
  • 132. P0046637
  • 133. Electric drive motor 2018-02-09
  • 134. P0046641
  • 135. Electric drive motor 2018-02-09
  • 136. P0046668
  • 137. Mechanical drive gear unit 2018-02-09
  • 138. P0046673
  • 139. Mechanical drive gear unit 2018-02-09
  • 140. P0048190
  • 141. Mechanical drive gear unit 2015-09-17
  • 142. P0049698
  • 143. Mechanical drive gear unit 2018-02-09
  • 144. P0045971
  • 145. Electromagnetic parking brake 2018-02-09
  • 146. P0049699
  • 147. Electromagnetic parking brake 2017-05-02
  • 148. P0051472
  • 149. Electromagnetic parking brake 2018-02-09
  • 150. P0055887
  • 151. Electromagnetic parking brake 2018-02-22
  • 152. P0058766
  • 153. Electromagnetic parking brake 2018-02-22
  • 154. P0044670
  • 155. Drive wheel 2016-09-16
  • 156. P0048709
  • 157. Drive wheel 2016-08-22
  • 158. P0049827
  • 159. Drive wheel 2018-04-19
  • 160. P0045388
  • 161. Support/castor wheels 2018-02-09
  • 162. P0045392
  • 163. Support/castor wheels 2018-02-09
  • 164. P0048160
  • 165. Support/castor wheels 2018-02-08
  • 166. P0058058
  • 167. Support/castor wheels 2018-02-08
  • 168. P0055399
  • 169. Fork/support arm wheels 2017-03-28
  • 170. P0046255
  • 171. Steering arm/wheel/lever 2018-02-09
  • 172. P0046258
  • 173. Steering arm/wheel/lever 2018-02-09
  • 174. P0046250
  • 175. Steering arm/wheel/lever 2018-02-09
  • 176. P0046630
  • 177. Steering arm/wheel/lever 2018-02-09
  • 178. P0048495
  • 179. Steering arm/wheel/lever 2018-02-09
  • 180. P0049240
  • 181. Steering arm/wheel/lever 2017-11-21
  • 182. P0049436
  • 183. Steering arm/wheel/lever 2018-01-04
  • 184. P0049440
  • 185. Steering arm/wheel/lever 2018-01-04
  • 186. P0052269
  • 187. Steering arm/wheel/lever 2018-02-08
  • 188. P0052326
  • 189. Steering arm/wheel/lever 2018-02-09
  • 190. P0053590
  • 191. Steering arm/wheel/lever 2017-03-27
  • 192. P0053701
  • 193. Steering arm/wheel/lever 2018-01-04
  • 194. P0053596
  • 195. Steering arm/wheel/lever 2017-03-27
  • 196. P0053600
  • 197. Steering arm/wheel/lever 2017-03-27
  • 198. P0055521
  • 199. Steering arm/wheel/lever 2017-03-27
  • 200. P0055522
  • 201. Steering arm/wheel/lever 2017-05-29
  • 202. P0055523
  • 203. Steering arm/wheel/lever 2017-05-29
  • 204. P0056197
  • 205. Steering arm/wheel/lever 2017-11-23
  • 206. P0056198
  • 207. Steering arm/wheel/lever 2017-11-23
  • 208. P0057438
  • 209. Steering arm/wheel/lever 2018-02-08
  • 210. P0057821
  • 211. Steering arm/wheel/lever 2018-02-08
  • 212. P0057820
  • 213. Steering arm/wheel/lever 2018-02-08
  • 214. P0058130
  • 215. Steering arm/wheel/lever 2018-01-04
  • 216. P0045382
  • 217. Steering angle sensor 2018-02-09
  • 218. P0046626
  • 219. Steering angle sensor 2018-02-09
  • 220. P0048677
  • 221. Steering angle sensor 2017-03-17
  • 222. P0057893
  • 223. Steering angle sensor 2017-11-24
  • 224. P0044906
  • 225. General alarm signals (audible/visual) 2018-02-09
  • 226. P0049085
  • 227. General alarm signals (audible/visual) 2016-09-12
  • 228. P0048809
  • 229. Work function harnesses/fuse 2016-06-03
  • 230. P0048810
  • 231. Work function harnesses/fuse 2016-09-09
  • 232. P0048825
  • 233. Work function harnesses/fuse 2016-09-12
  • 234. P0049475
  • 235. Work function harnesses/fuse 2016-08-25
  • 236. P0049476
  • 237. Work function harnesses/fuse 2016-08-25
  • 238. P0049555
  • 239. Work function harnesses/fuse 2015-09-17
  • 240. P0052659
  • 241. Work function harnesses/fuse 2016-09-09
  • 242. P0053542
  • 243. Work function harnesses/fuse 2016-09-09
  • 244. P0053543
  • 245. Work function harnesses/fuse 2017-11-23
  • 246. P0057795
  • 247. Work function harnesses/fuse 2017-11-24
  • 248. P0047354
  • 249. Battery/motor cables, fuse 2018-02-09

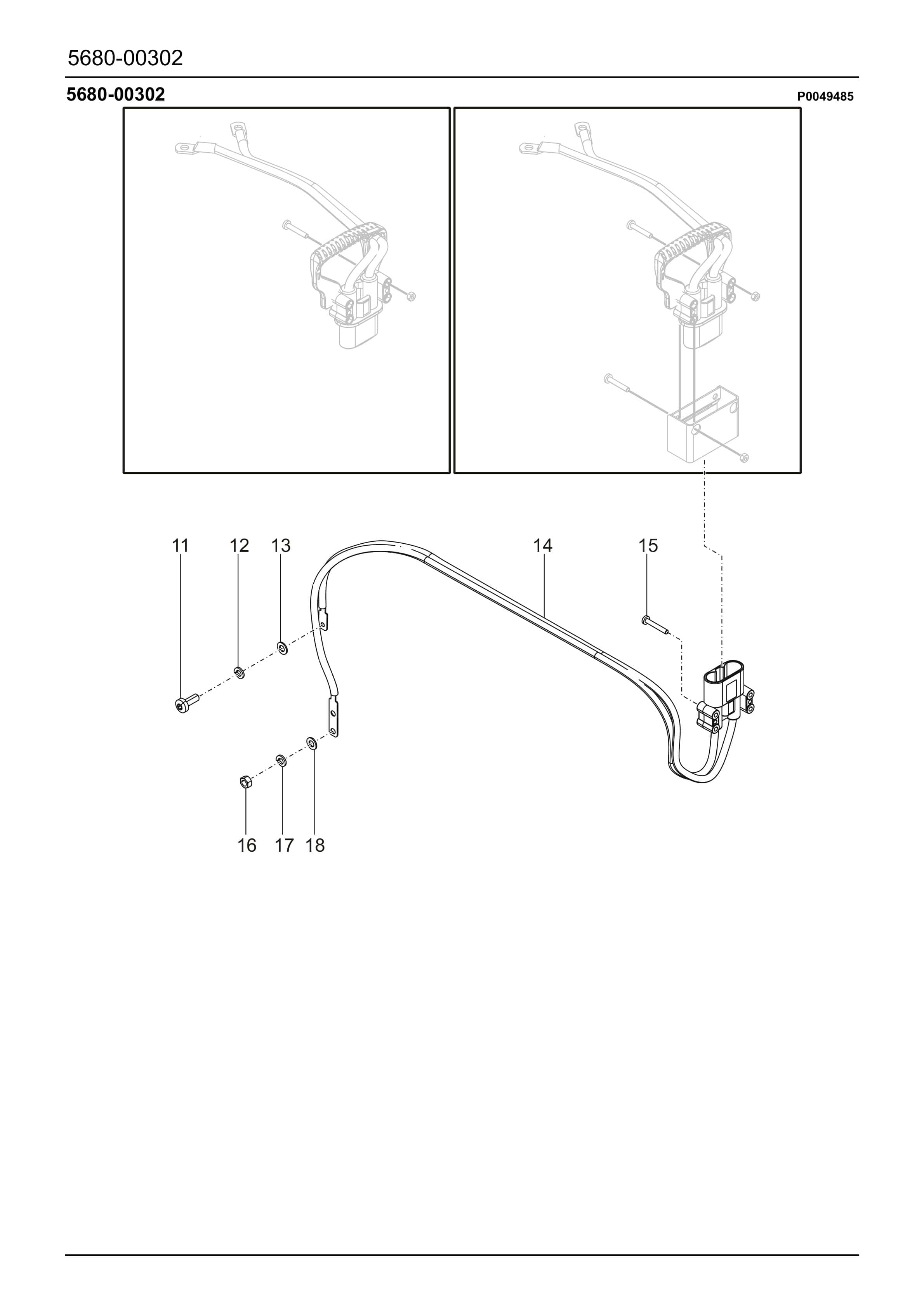

  • 250. P0049485
  • 251. Battery/motor cables, fuse 2016-09-06
  • 252. P0052643
  • 253. Battery/motor cables, fuse 2016-09-26
  • 254. P0052661
  • 255. Battery/motor cables, fuse 2016-09-21
  • 256. P0048707
  • 257. Control/safety electronics 2016-06-16
  • 258. P0051892
  • 259. Control/safety electronics 2016-09-05
  • 260. P0053271
  • 261. Control/safety electronics 2016-09-22
  • 262. P0053608
  • 263. Control/safety electronics 2018-02-07
  • 264. P0049610
  • 265. Lift/lowering/reach movement probes/sensors 2015-10-09
  • 266. P0051909
  • 267. Lift/lowering/reach movement probes/sensors 2016-04-11
  • 268. P0051912
  • 269. Lift/lowering/reach movement probes/sensors 2016-10-27
  • 270. P0051914
  • 271. Lift/lowering/reach movement probes/sensors 2016-06-23
  • 272. P0051915
  • 273. Lift/lowering/reach movement probes/sensors 2016-09-12
  • 274. P0051918
  • 275. Lift/lowering/reach movement probes/sensors 2016-10-27
  • 276. P0051921
  • 277. Lift/lowering/reach movement probes/sensors 2016-06-07
  • 278. P0051922
  • 279. Lift/lowering/reach movement probes/sensors 2016-06-07
  • 280. P0051926
  • 281. Lift/lowering/reach movement probes/sensors 2016-04-11
  • 282. P0051927
  • 283. Lift/lowering/reach movement probes/sensors 2016-04-11
  • 284. P0051929
  • 285. Lift/lowering/reach movement probes/sensors 2016-04-11
  • 286. P0051934
  • 287. Lift/lowering/reach movement probes/sensors 2016-04-11
  • 288. P0051938
  • 289. Lift/lowering/reach movement probes/sensors 2016-04-15
  • 290. P0052647
  • 291. Lift/lowering/reach movement probes/sensors 2016-06-02
  • 292. P0053844
  • 293. Lift/lowering/reach movement probes/sensors 2017-09-21
  • 294. P0053845
  • 295. Lift/lowering/reach movement probes/sensors 2017-09-21
  • 296. P0057136
  • 297. Lift/lowering/reach movement probes/sensors 2017-09-21
  • 298. P0041561
  • 299. Safety probes/sensors 2018-02-09
  • 300. P0045689
  • 301. Safety probes/sensors 2018-02-09
  • 302. P0045955
  • 303. Safety probes/sensors 2018-02-09
  • 304. P0049387
  • 305. Safety probes/sensors 2018-02-09
  • 306. P0049008
  • 307. Hydraulic unit 2016-09-12
  • 308. P0055413
  • 309. Hydraulic unit 2018-02-22
  • 310. P0055416
  • 311. Hydraulic unit 2018-02-22
  • 312. P0055420
  • 313. Hydraulic unit 2017-03-28
  • 314. P0055421
  • 315. Hydraulic unit 2017-03-08
  • 316. P0058761
  • 317. Hydraulic unit 2018-02-22
  • 318. P0058764
  • 319. Hydraulic unit 2018-02-22
  • 320. P0048836
  • 321. Filters and housing 2016-09-12
  • 322. P0047942
  • 323. Hydraulic lines chassis 2017-10-17
  • 324. P0048700
  • 325. Hydraulic lines chassis 2017-10-31
  • 326. P0047974
  • 327. Mast hydraulic lines 2015-09-22
  • 328. P0048110
  • 329. Mast hydraulic lines 2015-09-22
  • 330. P0048225
  • 331. Mast hydraulic lines 2015-09-22
  • 332. P0048244
  • 333. Mast hydraulic lines 2015-09-22
  • 334. P0048310
  • 335. Mast hydraulic lines 2016-11-24
  • 336. P0047939
  • 337. Main lift cylinders 2017-11-17
  • 338. P0047963
  • 339. Main lift cylinders 2015-09-22
  • 340. P0048207
  • 341. Main lift cylinders 2018-01-04
  • 342. P0048221
  • 343. Main lift cylinders 2017-03-16
  • 344. P0048256
  • 345. Main lift cylinders 2017-03-27
  • 346. P0048306
  • 347. Main lift cylinders 2017-03-27
  • 348. P0053633
  • 349. Main lift cylinders 2017-11-17
  • 350. P0055517
  • 351. Main lift cylinders 2017-04-10
  • 352. P0055518
  • 353. Main lift cylinders 2017-03-27
  • 354. P0047964
  • 355. Free lift cylinders 2015-09-22
  • 356. P0048250
  • 357. Free lift cylinders 2016-09-15
  • 358. P0048278
  • 359. Free lift cylinders 2016-09-15
  • 360. P0049612
  • 361. Support arm/initial lift cylinders 2015-10-09
  • 362. P0044705
  • 363. Powertrak cylinder 2018-02-08
  • 364. P0049508
  • 365. Powertrak cylinder 2016-05-25
  • 366. P0048222

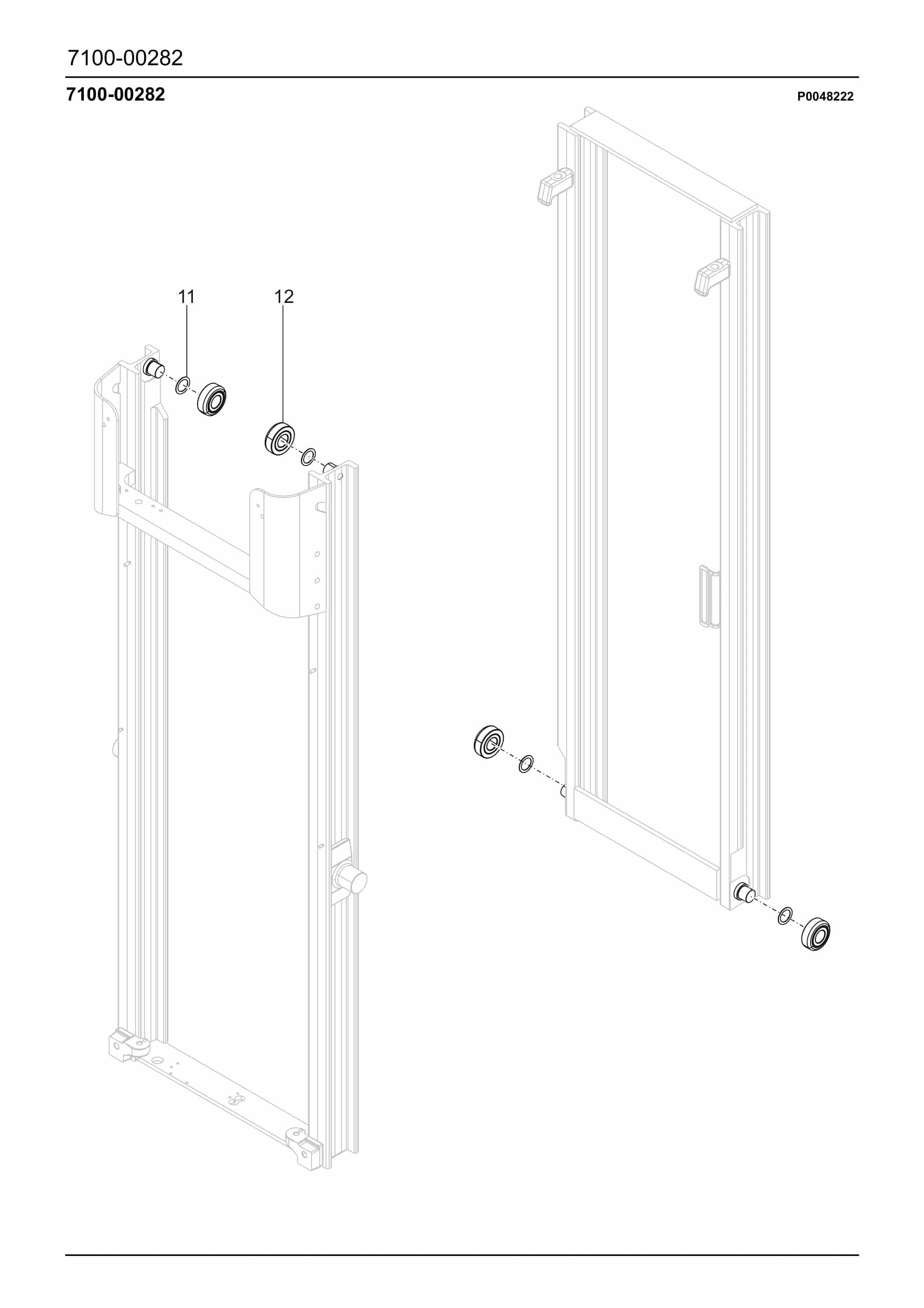

  • 367. Main mast 2016-09-19
  • 368. P0048251
  • 369. Main mast 2017-03-27
  • 370. P0055515
  • 371. Main mast 2017-03-27
  • 372. P0047969
  • 373. Main lift chain system 2017-04-07
  • 374. P0047970
  • 375. Main lift chain system 2018-01-15
  • 376. P0048152
  • 377. Main lift chain system 2016-05-09
  • 378. P0048218
  • 379. Main lift chain system 2016-07-12
  • 380. P0048246
  • 381. Main lift chain system 2018-01-15
  • 382. P0048274
  • 383. Main lift chain system 2015-09-22
  • 384. P0047953
  • 385. Main mast fork carriage 2016-06-07
  • 386. P0048779
  • 387. Main mast fork carriage 2016-09-19
  • 388. P0053636
  • 389. Main mast fork carriage 2016-09-19
  • 390. P0049611
  • 391. Main mast guidance/dampers 2017-11-27
  • 392. P0049361
  • 393. Main mast suspension 2016-11-23
  • 394. P0048776
  • 395. Fork, carpet boom, lift hook 2015-09-22

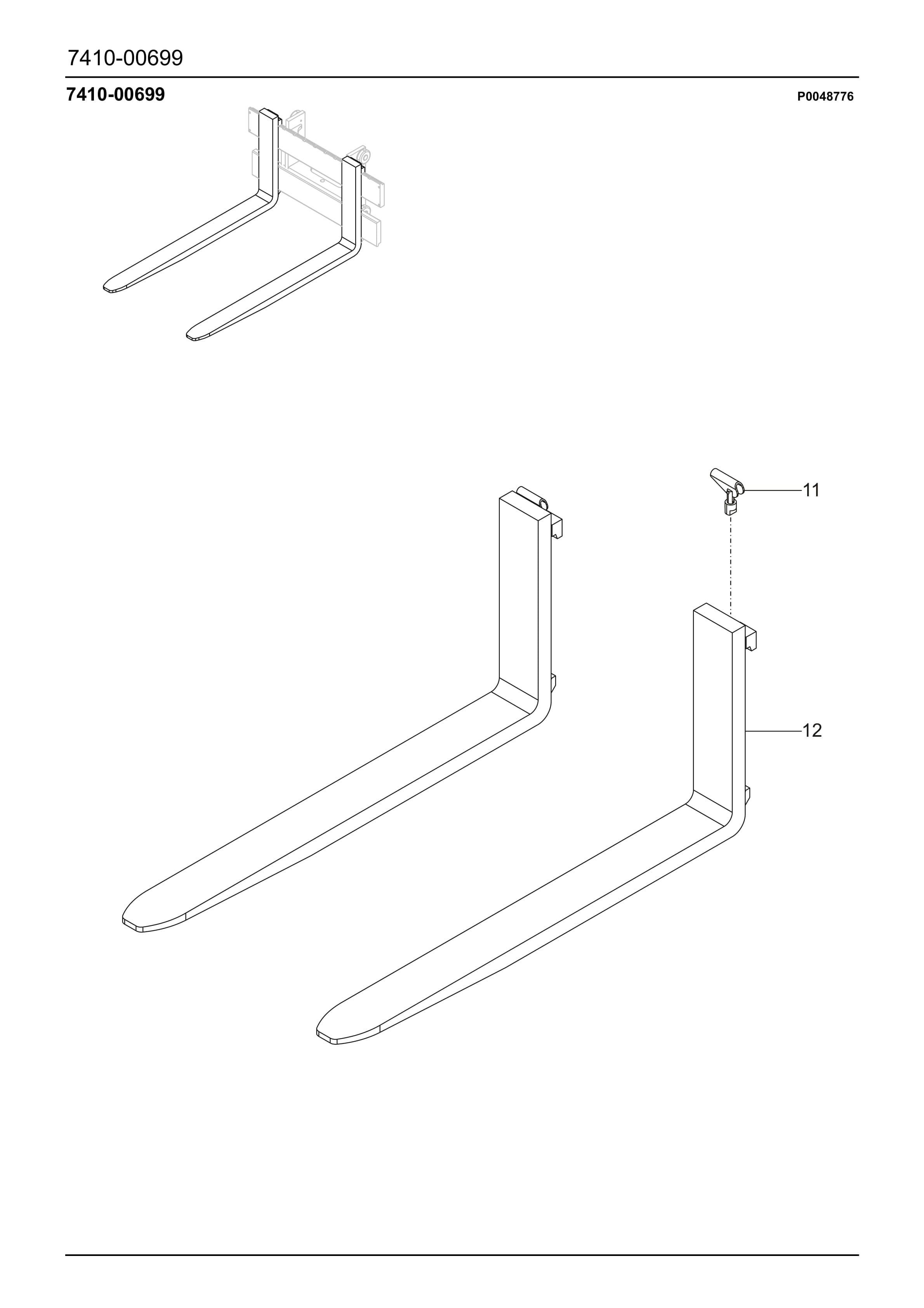

  • 396. P0049384
Rate this product

Related products
