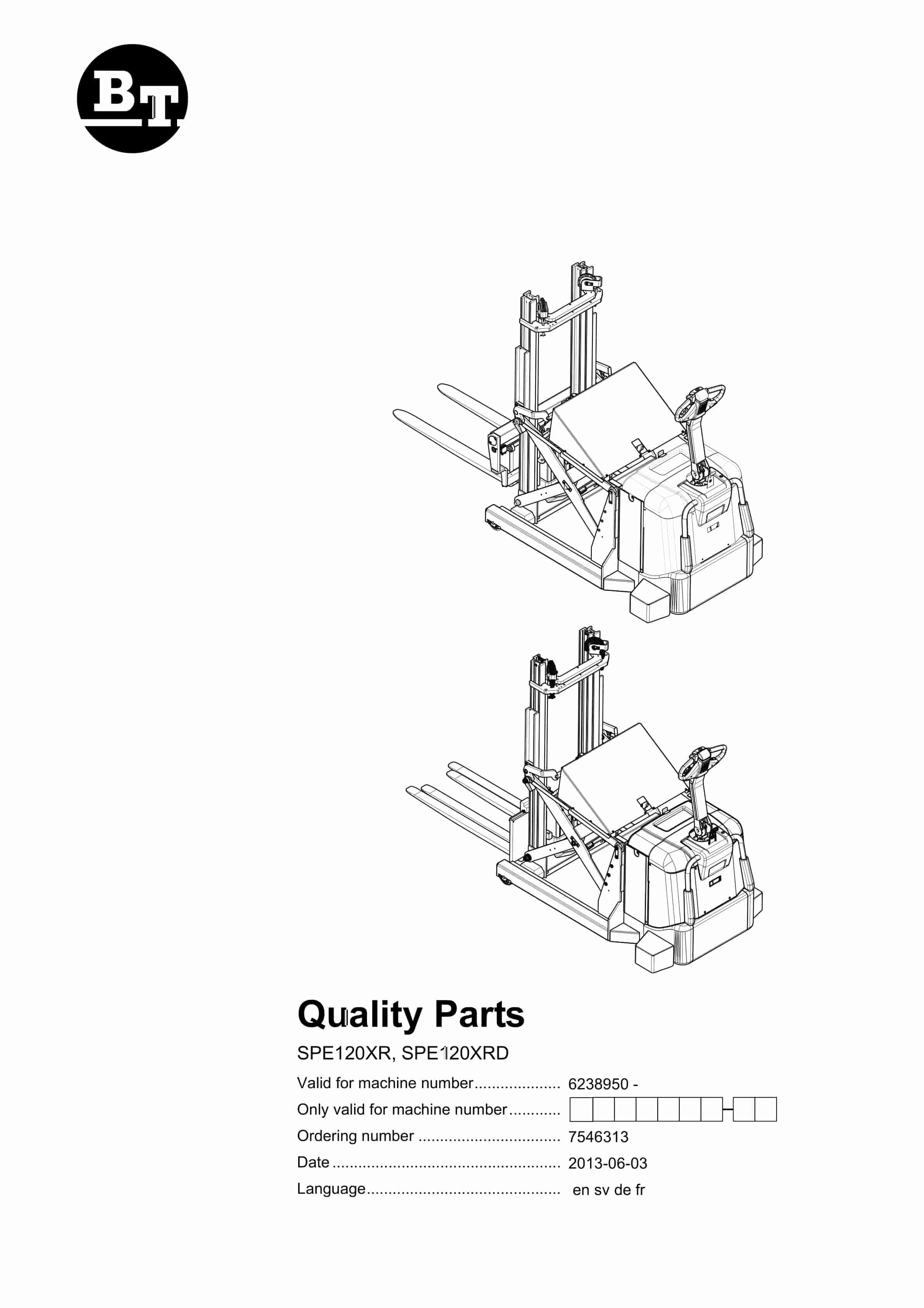

BT SPE120XR, SPE120XRD Quality Parts 7546313
BT SPE120XR, SPE120XRD Quality Parts 7546313 - Image 2
BT SPE120XR, SPE120XRD Quality Parts 7546313 - Image 3
BT SPE120XR, SPE120XRD Quality Parts 7546313 - Image 4
BT SPE120XR, SPE120XRD Quality Parts 7546313 - Image 5

BT SPE120XR, SPE120XRD Quality Parts 7546313

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 7546313
  • : Parts Manual PDF
  • Number of Pages: 197
  • Size: 11.7MB
  • Format: PDF
Category:

Product details

  • Model List:

    • SPE120XR, SPE120XRD
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0042797
  • 11. Frame, chassis 2013-02-28
  • 12. P0042801
  • 13. Frame, chassis 2013-03-21
  • 14. P0043869
  • 15. Frame, chassis 2013-03-21
  • 16. P0040798
  • 17. Inspection covers 2013-01-10
  • 18. P0042296
  • 19. Inspection covers 2013-01-10
  • 20. P0042788
  • 21. Battery compartment parts 2013-01-10
  • 22. P0036840
  • 23. Frame/chassis components 2013-01-10
  • 24. P0021127
  • 25. Motor fixing points 2013-05-21
  • 26. P0021139
  • 27. Motor fixing points 2013-01-10
  • 28. P0035183
  • 29. Motor fixing points 2013-05-13
  • 30. P0021075
  • 31. Platform incl. fixing points 2013-01-10
  • 32. P0022853
  • 33. Platform incl. fixing points 2013-01-10
  • 34. P0022860
  • 35. Platform incl. fixing points 2013-01-10
  • 36. P0036298
  • 37. Platform incl. fixing points 2013-01-10
  • 38. P0040797
  • 39. Platform incl. fixing points 2013-03-01
  • 40. P0040799
  • 41. Platform incl. fixing points 2013-01-10
  • 42. P0042802
  • 43. Finger/foot guards 2013-01-10
  • 44. P0042804
  • 45. Finger/foot guards 2013-01-10
  • 46. P0032925
  • 47. Driver protection 2013-01-10
  • 48. P0036834
  • 49. Driver protection 2013-04-16
  • 50. P0036836
  • 51. Driver protection 2013-01-10
  • 52. P0041064
  • 53. Driver protection 2013-01-10
  • 54. P0041496
  • 55. Driver protection 2013-02-20
  • 56. P0029222
  • 57. Electric pump motor 2013-02-20
  • 58. P0022155
  • 59. Electric steering motor 2013-01-10
  • 60. P0036897
  • 61. Electric drive motor 2013-01-10
  • 62. P0035207
  • 63. Mechanical drive gear unit 2013-05-03
  • 64. P0021460
  • 65. Electromagnetic parking brake 2013-01-10
  • 66. P0043631
  • 67. Drive wheel 2013-02-20
  • 68. P0021269
  • 69. Support/castor wheels 2013-02-20
  • 70. P0043308
  • 71. Support/castor wheels 2013-02-01
  • 72. P0043627
  • 73. Fork/support arm wheels 2013-02-20
  • 74. P0035003
  • 75. Steering arm/wheel/lever 2013-01-10
  • 76. P0042849
  • 77. Steering arm/wheel/lever 2013-01-10
  • 78. P0042850
  • 79. Steering arm/wheel/lever 2013-01-10
  • 80. P0021134
  • 81. Steering column/gear 2013-01-10
  • 82. P0022157
  • 83. Steering column/gear 2013-01-10
  • 84. P0036838
  • 85. Steering column/gear 2013-01-10
  • 86. P0022151
  • 87. Steering angle sensor 2013-01-10
  • 88. P0042808

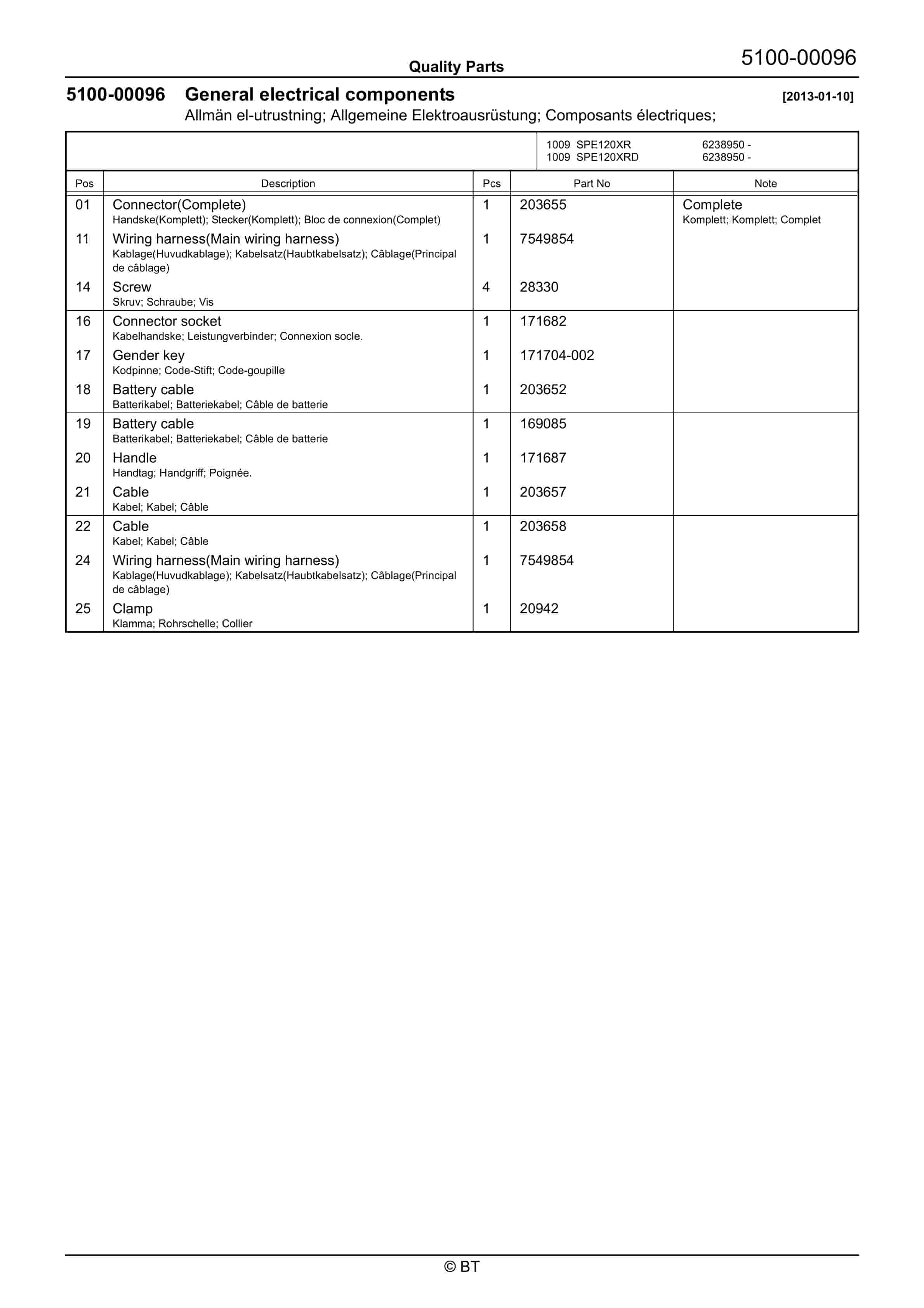

  • 89. General electrical components 2013-01-10
  • 90. P0036822
  • 91. General alarm signals (audible/visual) 2013-01-10
  • 92. P0043608
  • 93. Battery cut out connector/contactor 2013-02-19
  • 94. P0035017
  • 95. Driving function harnesses/fuse 2013-01-10
  • 96. P0042807
  • 97. Electrical drive motor system 2013-03-07
  • 98. P0042825
  • 99. Work function harnesses/fuse 2013-01-10
  • 100. P0042826
  • 101. Work function harnesses/fuse 2013-01-10
  • 102. P0042799
  • 103. Drive/multi-function PCBs 2013-02-19
  • 104. P0042855
  • 105. Lift/lowering/reach movement probes/sensors 2013-02-26
  • 106. P0042870
  • 107. Lift/lowering/reach movement probes/sensors 2013-02-26
  • 108. P0042902
  • 109. Lift/lowering/reach movement probes/sensors 2013-02-19
  • 110. P0034539
  • 111. Safety probes/sensors 2013-05-16
  • 112. P0042871
  • 113. Safety probes/sensors 2013-05-16
  • 114. P0044105
  • 115. Hydraulic unit 2013-05-03
  • 116. P0042930
  • 117. Hydraulic unit 2013-04-25
  • 118. P0042915
  • 119. Hydraulic lines chassis 2013-01-15

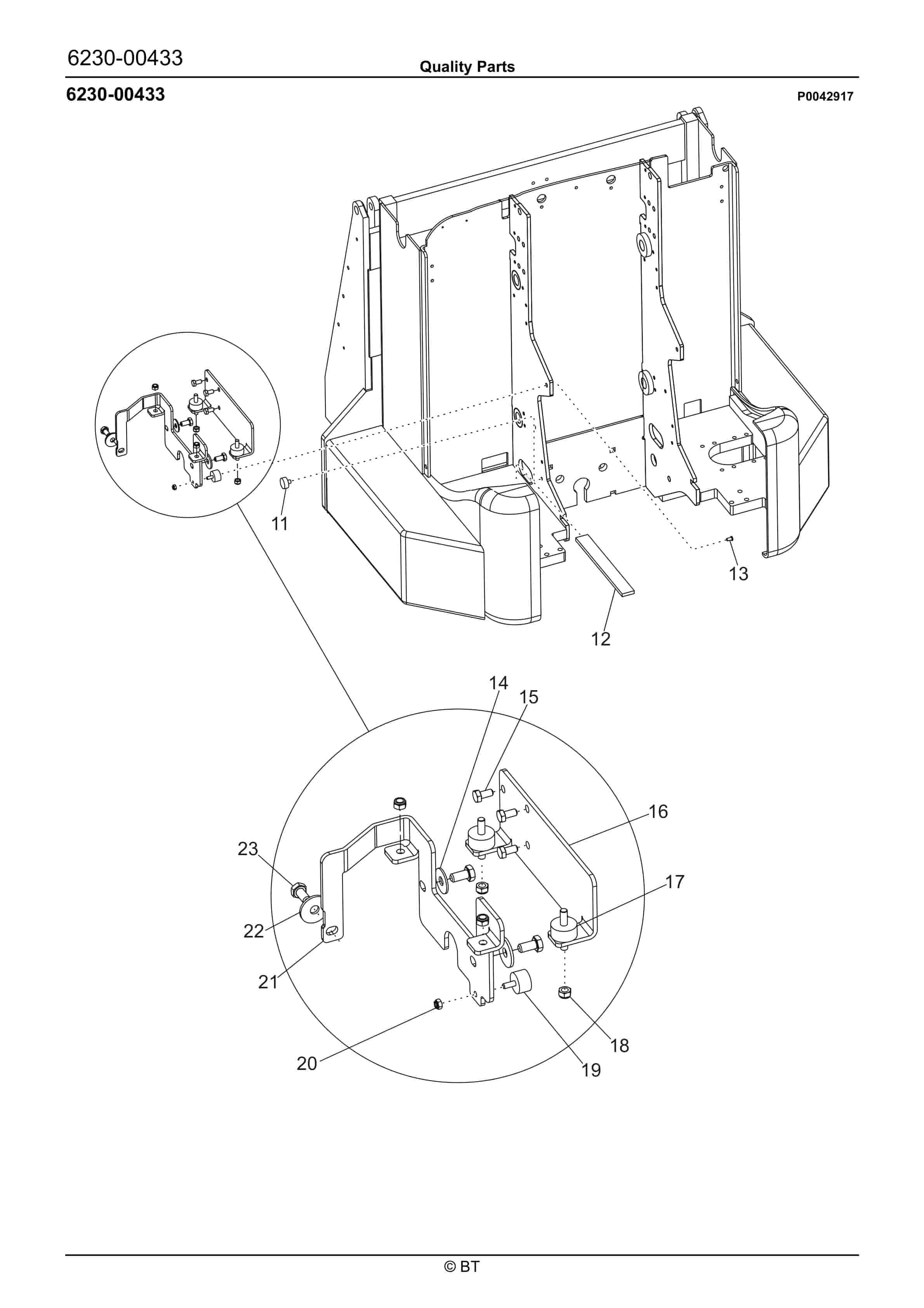

  • 120. P0042917
  • 121. Hydraulic lines chassis 2013-01-10
  • 122. P0042918
  • 123. Hydraulic lines chassis 2013-03-28
  • 124. P0042919
  • 125. Hydraulic lines chassis 2013-01-10
  • 126. P0042920
  • 127. Hydraulic lines chassis 2013-04-25
  • 128. P0042921
  • 129. Hydraulic lines chassis 2013-01-10
  • 130. P0042922
  • 131. Hydraulic lines chassis 2013-02-04
  • 132. P0042923
  • 133. Hydraulic lines chassis 2013-03-28

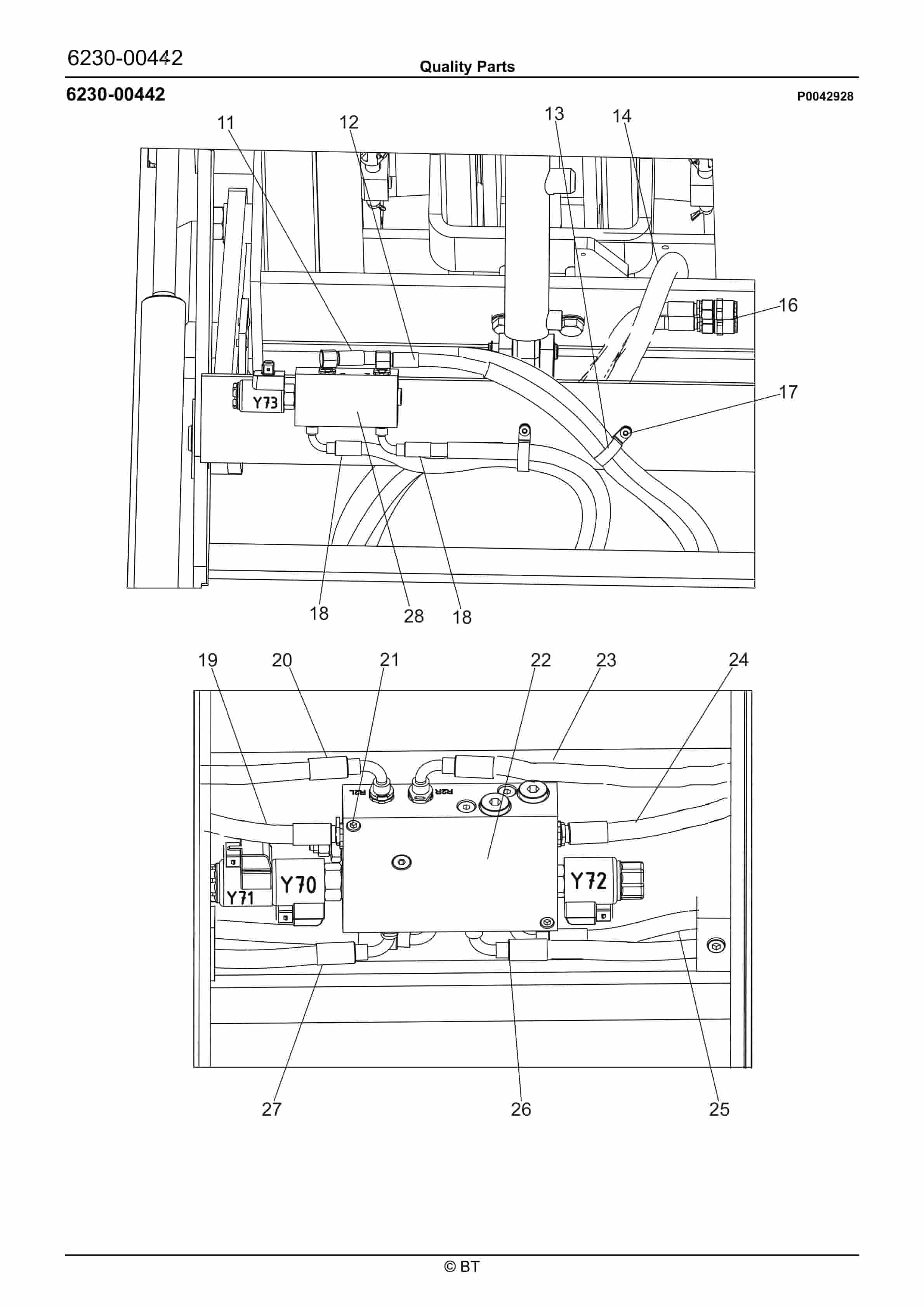

  • 134. P0042926
  • 135. Hydraulic lines chassis 2013-01-10
  • 136. P0042928
  • 137. Hydraulic lines chassis 2013-02-01
  • 138. P0042929
  • 139. Hydraulic lines chassis 2013-03-08
  • 140. P0043931
  • 141. Hydraulic lines chassis 2013-04-25
  • 142. P0042942
  • 143. Mast hydraulic lines 2013-04-25
  • 144. P0043947
  • 145. Mast hydraulic lines 2013-04-25

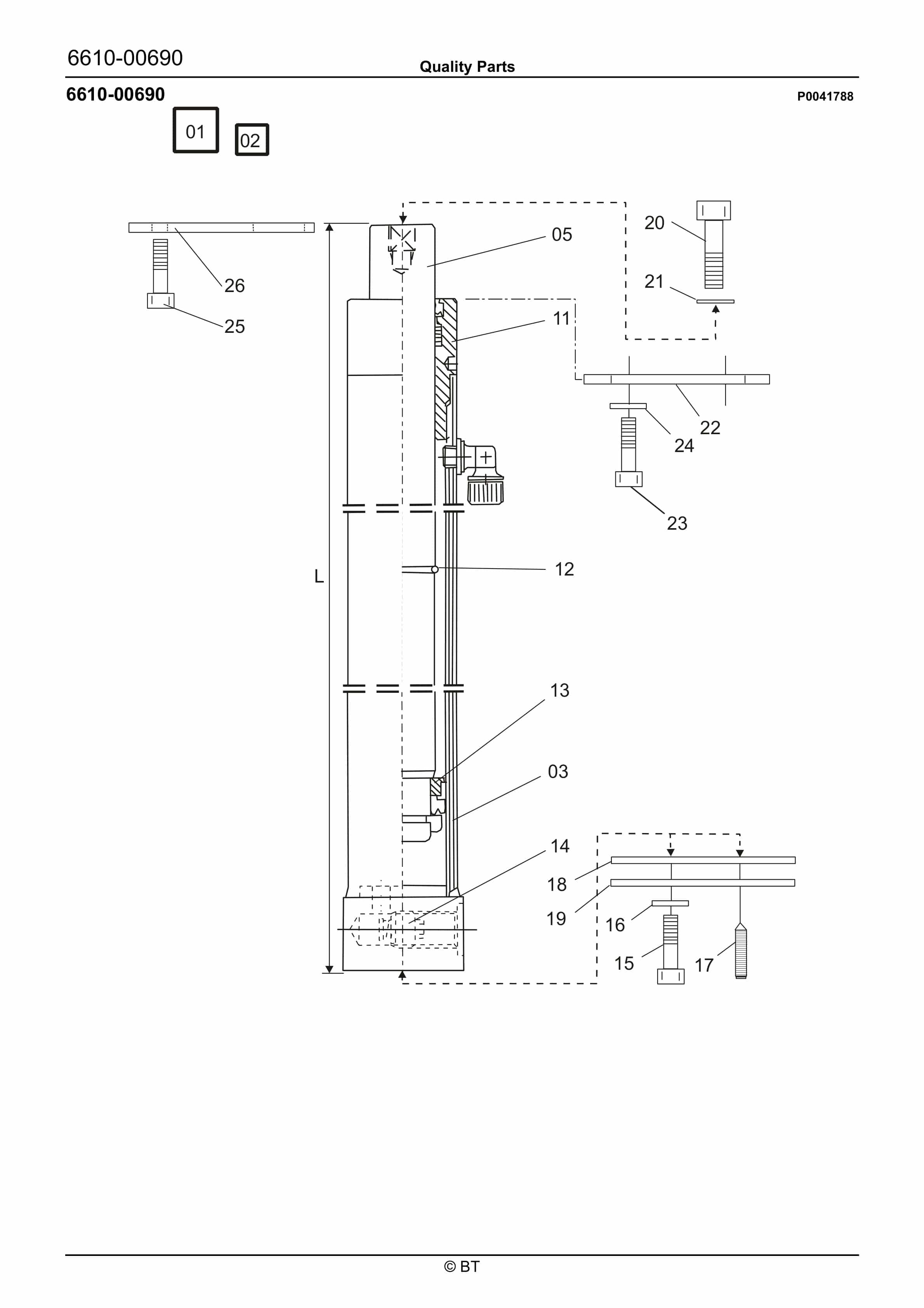

  • 146. P0041788
  • 147. Main lift cylinders 2013-01-31
  • 148. P0042822
  • 149. Main lift cylinders 2013-02-01
  • 150. P0042796
  • 151. Reach/telescopic cylinders 2013-02-04
  • 152. P0042856
  • 153. Tilt cylinders 2013-02-01
  • 154. P0042858
  • 155. Other hydraulic cylinders 2013-02-01
  • 156. P0043305
  • 157. Main mast 2013-01-31
  • 158. P0043306
  • 159. Main mast 2013-01-31
  • 160. P0042863
  • 161. Main mast fork carriage 2013-01-10
  • 162. P0044031
  • 163. Main mast suspension 2013-05-16
  • 164. P0042867
  • 165. Secondary mast 2013-01-31
  • 166. P0042865
  • 167. Secondary mast guidance/dampers 2013-01-31
  • 168. P0042866
  • 169. Fork, carpet boom, lift hook 2013-01-10
  • 170. P0042812
  • 171. Fork carriage unit, integrated sideshift, fork spread 2013-02-04
  • 172. P0042868
  • 173. Fork carriage unit, integrated sideshift, fork spread 2013-05-24
  • 174. P0044238
  • 175. Fork carriage unit, integrated sideshift, fork spread 2013-05-24
  • 176. P0042910
  • 177. Extra warning lights/alarm 2013-01-10
  • 178. P0012396
  • 179. Truck log device, code locking device 2013-02-07
  • 180. P0043594
  • 181. Other extra equipment 2013-02-15
