BT SWE100 Quality Parts 7518344
BT SWE100 Quality Parts 7518344 - Image 2
BT SWE100 Quality Parts 7518344 - Image 3
BT SWE100 Quality Parts 7518344 - Image 4
BT SWE100 Quality Parts 7518344 - Image 5

BT SWE100 Quality Parts 7518344

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 7518344
  • : Parts Manual PDF
  • Number of Pages: 129
  • Size: 12.4MB
  • Format: PDF
Category:

Product details

  • Model List:

    • SWE100
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0032962
  • 11. Inspection covers 2010-03-02
  • 12. P0034945
  • 13. Inspection covers 2010-03-02
  • 14. P0032352
  • 15. Battery compartment parts 2010-03-08
  • 16. P0032354
  • 17. Battery compartment parts 2010-03-03
  • 18. P0032355
  • 19. Battery compartment parts 2010-03-03
  • 20. P0034916
  • 21. Battery compartment parts 2010-03-09
  • 22. P0031523
  • 23. Boom/mast fixing points 2010-01-25
  • 24. P0034083
  • 25. Motor fixing points 2010-01-25
  • 26. P0035797
  • 27. Platform incl. fixing points 2010-01-25
  • 28. P0036113
  • 29. Finger/foot guards 2010-02-17
  • 30. P0036119
  • 31. Finger/foot guards 2010-02-17
  • 32. P0036120
  • 33. Finger/foot guards 2010-02-17
  • 34. P0036121
  • 35. Finger/foot guards 2010-02-17
  • 36. P0036122
  • 37. Finger/foot guards 2010-02-17
  • 38. P0033011
  • 39. Signs, warnings, decals 2010-03-09
  • 40. P0033994
  • 41. Electric pump motor 2010-01-25
  • 42. P0034035
  • 43. Electric drive motor 2010-01-25
  • 44. P0031391
  • 45. Mechanical drive gear unit 2010-01-25
  • 46. P0030567
  • 47. Electrically controlled travel brake 2010-01-25
  • 48. P0030540
  • 49. Drive wheel 2010-01-25
  • 50. P0035820
  • 51. Support/castor wheels 2010-01-25
  • 52. P0031383
  • 53. Fork/support arm wheels 2010-01-25
  • 54. P0031394
  • 55. Steering arm/wheel/lever 2010-01-25
  • 56. P0031395
  • 57. Steering arm/wheel/lever 2010-01-25
  • 58. P0032117
  • 59. Steering arm/wheel/lever 2010-01-25
  • 60. P0032963
  • 61. Steering arm/wheel/lever 2010-01-25
  • 62. P0032411
  • 63. General alarm signals (audible/visual) 2010-01-25
  • 64. P0030586
  • 65. Battery cut out connector/contactor 2010-01-25
  • 66. P0030580
  • 67. Driving function harnesses/fuse 2010-01-25
  • 68. P0032964
  • 69. Driving function harnesses/fuse 2010-01-25
  • 70. P0032391
  • 71. Transistor panel 2010-01-25
  • 72. P0034043
  • 73. Work function harnesses/fuse 2010-01-25
  • 74. P0030587
  • 75. Pump contactor 2010-01-25
  • 76. P0034081
  • 77. Battery/motor cables, fuse 2010-01-25
  • 78. P0030669
  • 79. Drive/multi-function PCBs 2010-03-08
  • 80. P0035403
  • 81. Lift/lowering/reach movement probes/sensors 2009-09-23
  • 82. P0036126
  • 83. Lift/lowering/reach movement probes/sensors 2010-02-17
  • 84. P0030581
  • 85. Safety probes/sensors 2010-01-25
  • 86. P0032079
  • 87. Safety probes/sensors 2010-01-25
  • 88. P0033995
  • 89. Hydraulic unit 2010-01-25
  • 90. P0031677

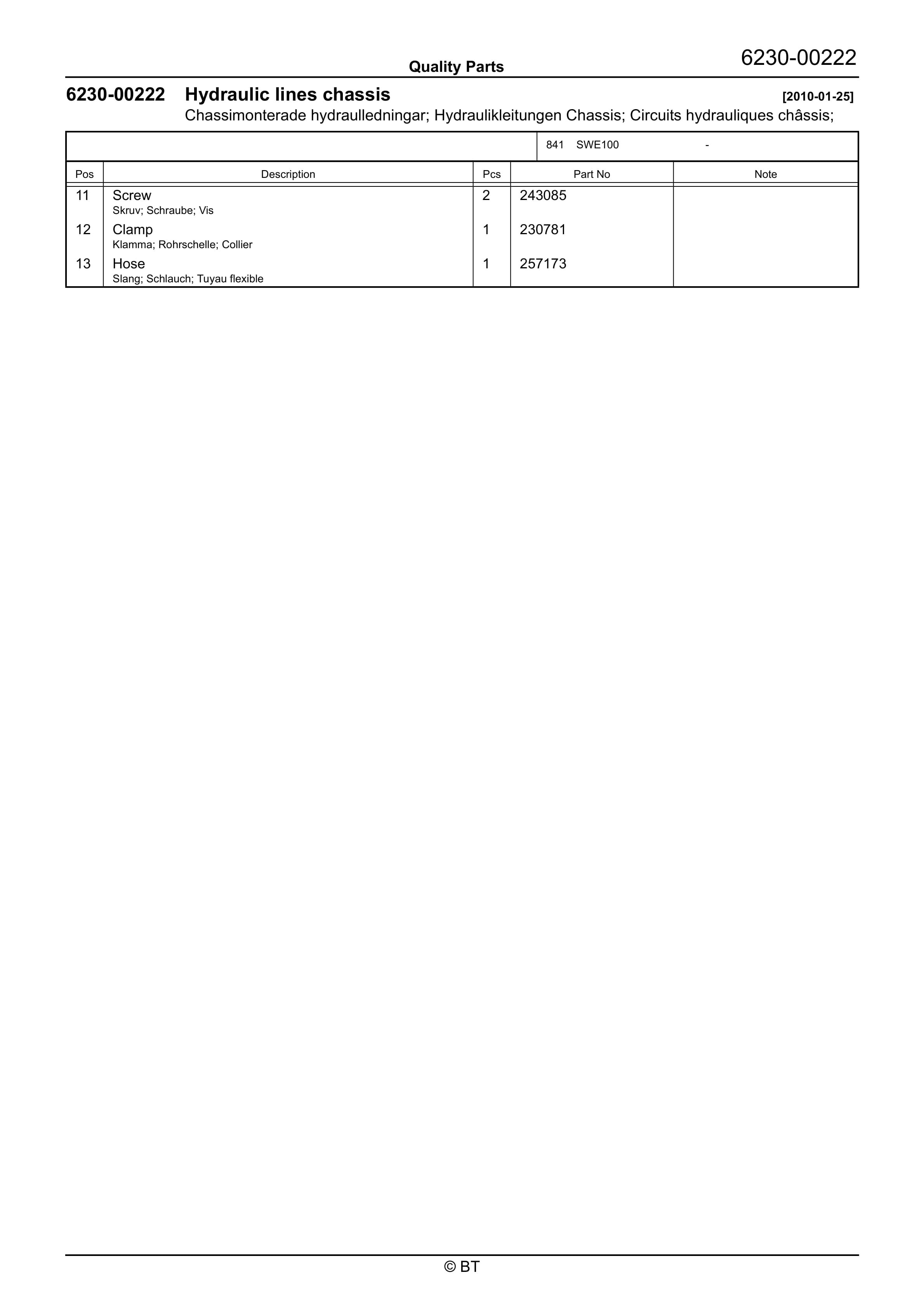

  • 91. Hydraulic lines chassis 2010-01-25
  • 92. P0031462
  • 93. Mast hydraulic lines 2010-01-25
  • 94. P0031454
  • 95. Main lift cylinders 2010-01-25
  • 96. P0031455
  • 97. Main lift cylinders 2010-01-25
  • 98. P0031477
  • 99. Main lift cylinders 2010-01-25
  • 100. P0031463

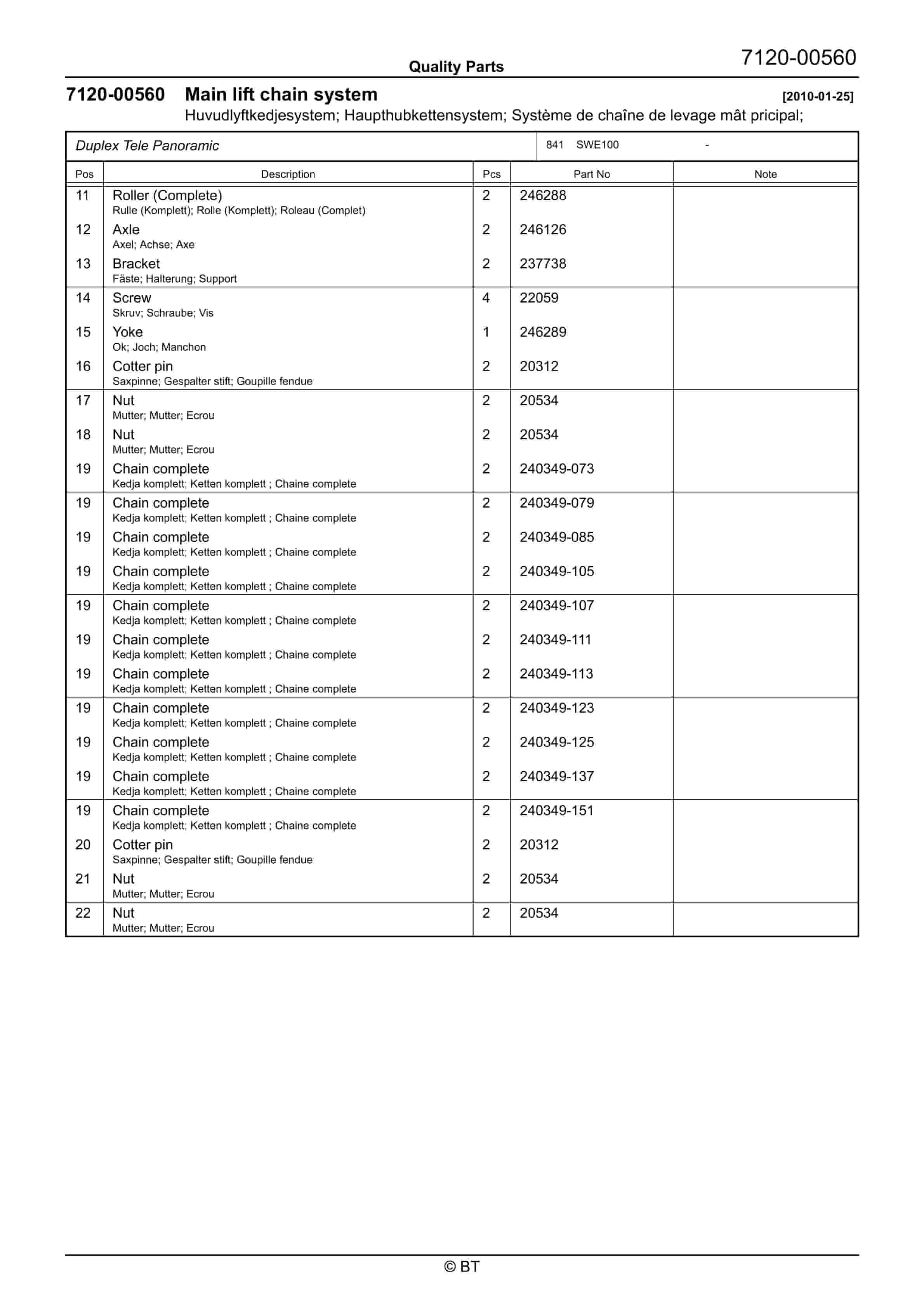

  • 101. Main lift chain system 2010-01-25
  • 102. P0031485
  • 103. Main lift chain system 2010-01-25
  • 104. P0036124
  • 105. Main lift chain system 2010-02-17
  • 106. P0031460
  • 107. Main mast guidance/dampers 2010-01-25
  • 108. P0031461
  • 109. Main mast guidance/dampers 2010-01-25

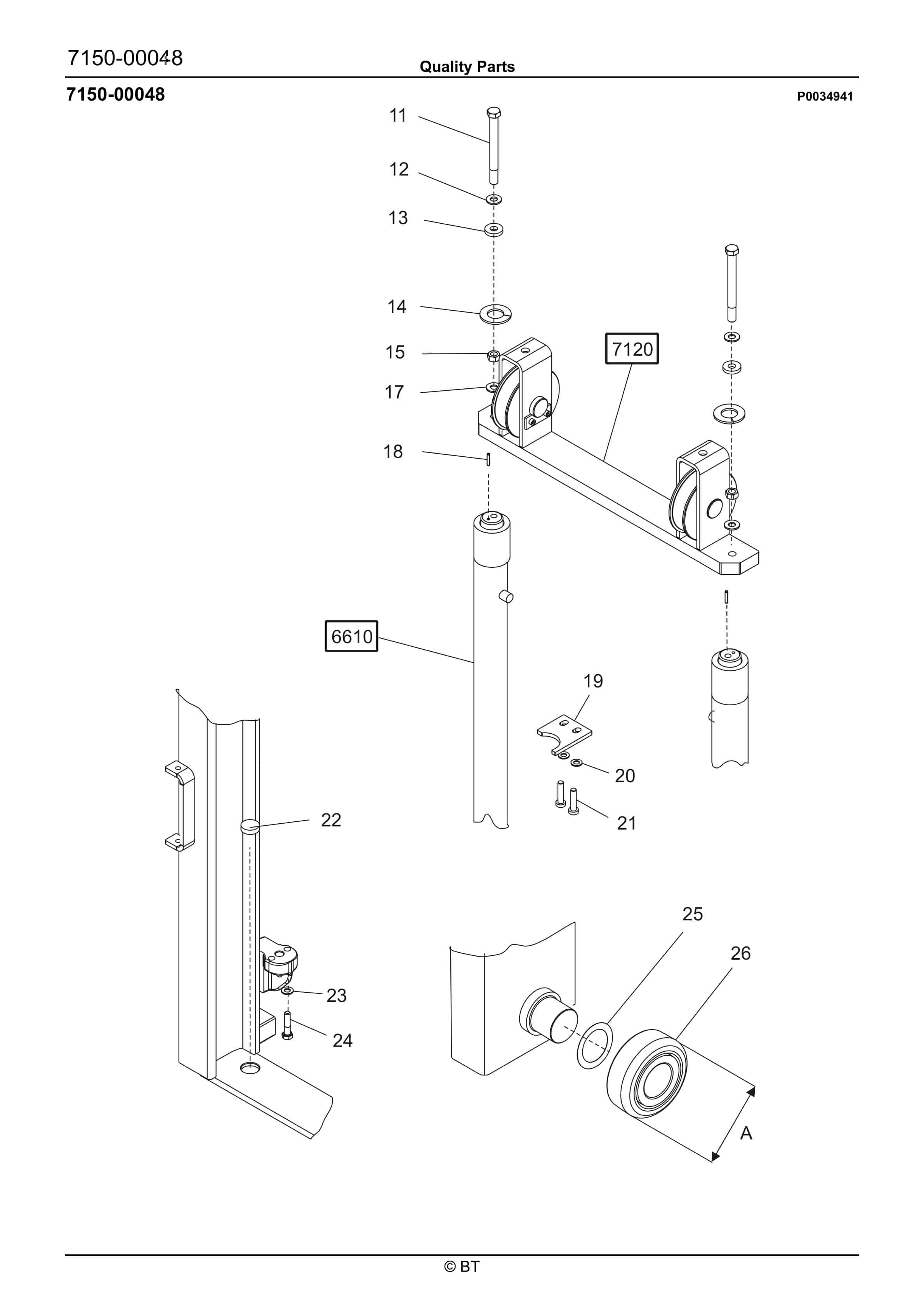

  • 110. P0034941
  • 111. Main mast guidance/dampers 2010-01-25
  • 112. P0031564
  • 113. Fork carriage unit, integrated sideshift, fork spread 2010-01-25
  • 114. P0031565
  • 115. Fork carriage unit, integrated sideshift, fork spread 2010-01-25
  • 116. P0031571
  • 117. Fork carriage unit, integrated sideshift, fork spread 2010-01-25
  • 118. P0035819
  • 119. Charger attachment 2010-03-09
  • 120. P0031234
  • 121. Extra electrical equipment 2010-01-25
  • 122. P0031243
  • 123. Extra electrical equipment 2010-03-08
  • 124. P0033489
  • 125. Extra electrical equipment 2009-03-31
  • 126. P0034924
  • 127. Extra electrical equipment 2010-02-03
  • 128. P0012396
  • 129. Truck log device, code locking device 2010-03-08
  • 130. P0026077
  • 131. Truck log device, code locking device 2010-03-09
  • 132. P0033140
  • 133. Truck log device, code locking device 2010-03-08
  • 134. P0033141
  • 135. Truck log device, code locking device 2010-03-08
  • 136. P0031110
  • 137. Other extra equipment 2010-03-08
  • 138. P0031111
  • 139. Other extra equipment 2010-01-25
  • 140. P0032686
  • 141. Other extra equipment 2010-01-25
  • 142. P0033429
  • 143. Other extra equipment 2010-01-25
  • 144. P0034762
  • 145. Other extra equipment 2010-01-25
