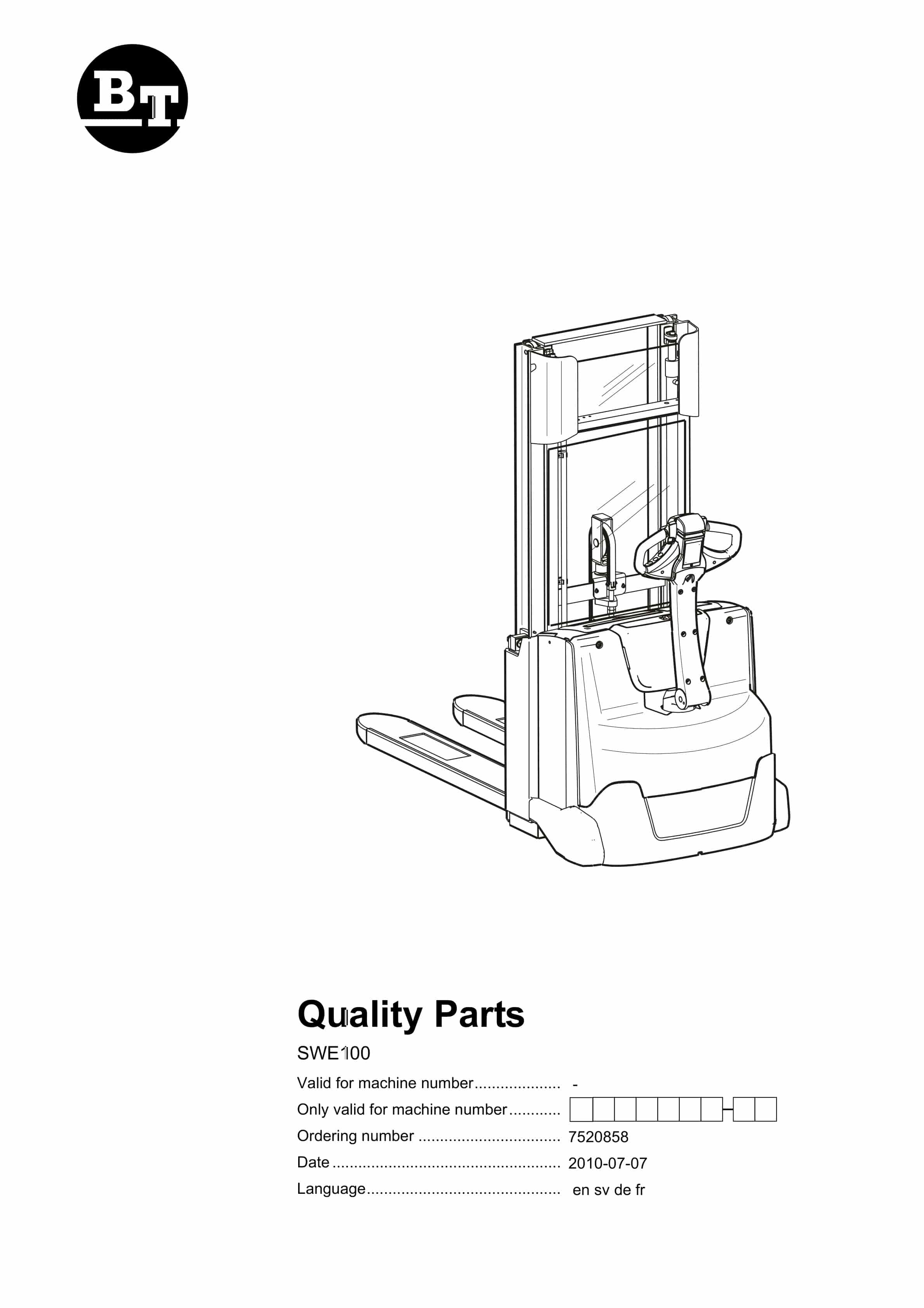

BT SWE100 Quality Parts 7520858
BT SWE100 Quality Parts 7520858 - Image 2
BT SWE100 Quality Parts 7520858 - Image 3
BT SWE100 Quality Parts 7520858 - Image 4
BT SWE100 Quality Parts 7520858 - Image 5

BT SWE100 Quality Parts 7520858

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 7520858
  • : Parts Manual PDF
  • Number of Pages: 129
  • Size: 14.4MB
  • Format: PDF
Category:

Product details

  • Model List:

    • SWE100
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0032962
  • 11. Inspection covers 2010-05-11
  • 12. P0034945
  • 13. Inspection covers 2010-05-11
  • 14. P0037284
  • 15. Inspection covers 2010-07-07
  • 16. P0032352
  • 17. Battery compartment parts 2010-03-08
  • 18. P0032354
  • 19. Battery compartment parts 2010-03-03
  • 20. P0032355
  • 21. Battery compartment parts 2010-03-03
  • 22. P0034916
  • 23. Battery compartment parts 2010-03-09
  • 24. P0031523
  • 25. Boom/mast fixing points 2010-01-25
  • 26. P0034083
  • 27. Motor fixing points 2010-01-25
  • 28. P0035797
  • 29. Platform incl. fixing points 2010-01-25
  • 30. P0036765
  • 31. Finger/foot guards 2010-06-03
  • 32. P0033011
  • 33. Signs, warnings, decals 2010-03-09
  • 34. P0037280
  • 35. Electric pump motor 2010-07-07
  • 36. P0034035
  • 37. Electric drive motor 2010-01-25
  • 38. P0031391
  • 39. Mechanical drive gear unit 2010-01-25
  • 40. P0030567
  • 41. Electrically controlled travel brake 2010-03-10
  • 42. P0036936
  • 43. Drive wheel 2010-06-07
  • 44. P0035820
  • 45. Support/castor wheels 2010-01-25
  • 46. P0037274
  • 47. Fork/support arm wheels 2010-07-07
  • 48. P0031394

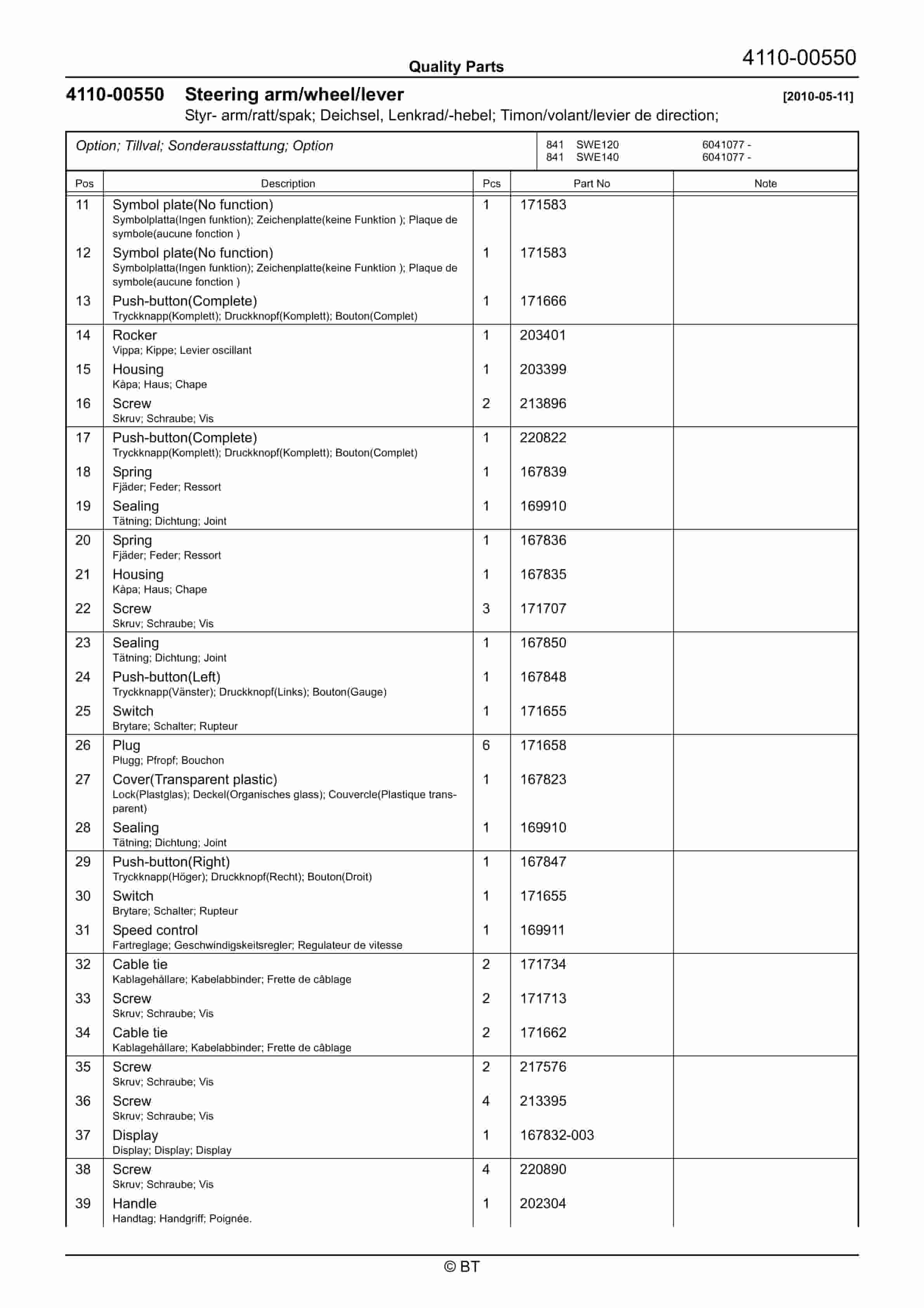

  • 49. Steering arm/wheel/lever 2010-05-11
  • 50. P0031395
  • 51. Steering arm/wheel/lever 2010-05-11
  • 52. P0031396
  • 53. Steering arm/wheel/lever 2010-05-11
  • 54. P0031397
  • 55. Steering arm/wheel/lever 2010-05-11
  • 56. P0031406
  • 57. Steering arm/wheel/lever 2010-05-11
  • 58. P0031407
  • 59. Steering arm/wheel/lever 2010-05-11
  • 60. P0032117
  • 61. Steering arm/wheel/lever 2010-01-25
  • 62. P0032963
  • 63. Steering arm/wheel/lever 2010-01-25
  • 64. P0036745
  • 65. General alarm signals (audible/visual) 2010-06-01
  • 66. P0030586
  • 67. Battery cut out connector/contactor 2010-01-25
  • 68. P0030580
  • 69. Driving function harnesses/fuse 2010-01-25
  • 70. P0032964
  • 71. Driving function harnesses/fuse 2010-01-25
  • 72. P0032391
  • 73. Transistor panel 2010-05-11
  • 74. P0037285
  • 75. Work function harnesses/fuse 2010-07-07
  • 76. P0037287
  • 77. Work function harnesses/fuse 2010-07-07
  • 78. P0030587
  • 79. Pump contactor 2010-01-25
  • 80. P0037288
  • 81. Battery/motor cables, fuse 2010-07-07
  • 82. P0030669
  • 83. Drive/multi-function PCBs 2010-03-08
  • 84. P0037286
  • 85. Lift/lowering/reach movement probes/sensors 2010-07-07
  • 86. P0030581

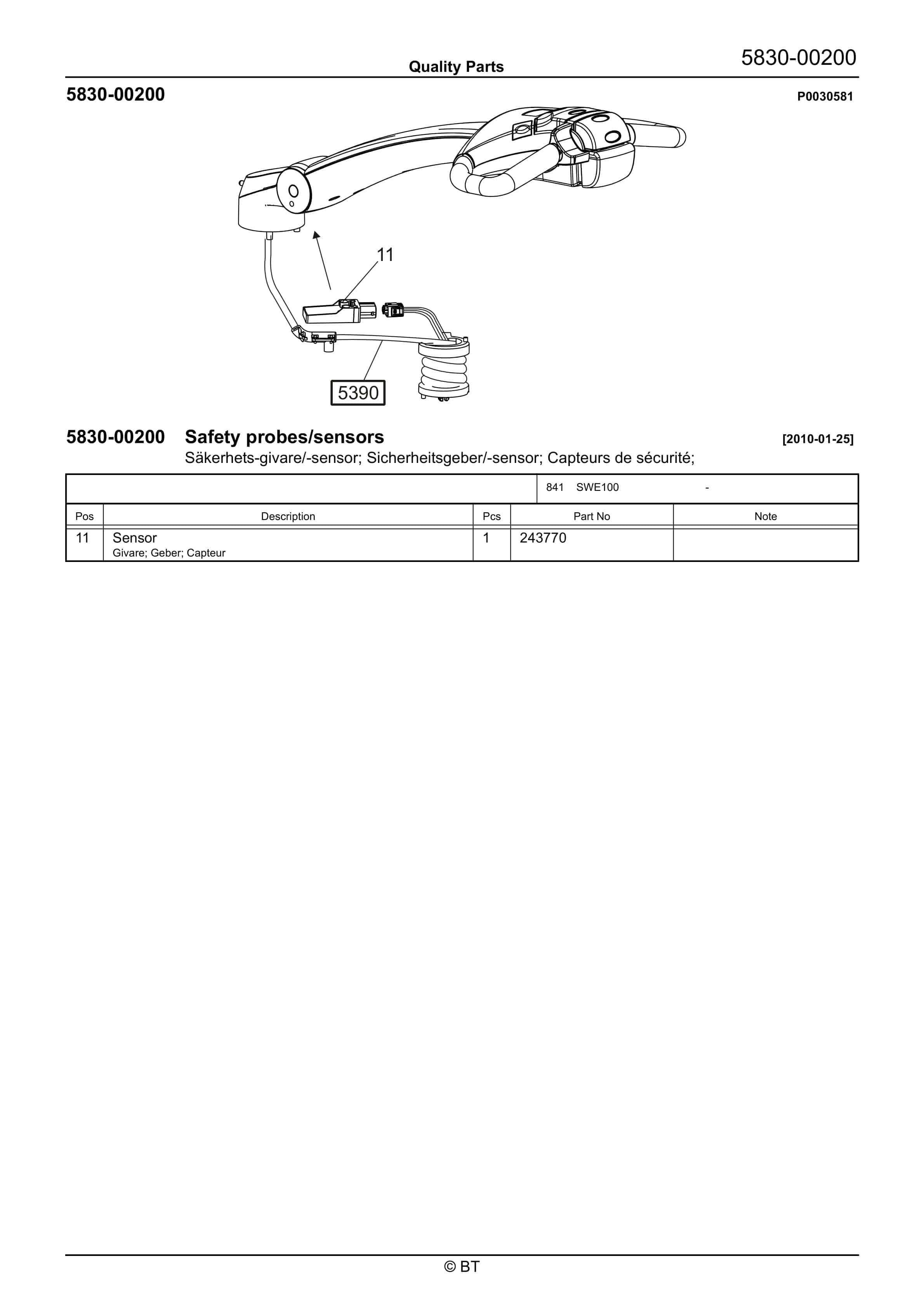

  • 87. Safety probes/sensors 2010-01-25
  • 88. P0032079
  • 89. Safety probes/sensors 2010-01-25
  • 90. P0037279
  • 91. Hydraulic unit 2010-07-07
  • 92. P0037282
  • 93. Hydraulic lines chassis 2010-07-07
  • 94. P0037281
  • 95. Main lift cylinders 2010-07-07
  • 96. P0037277
  • 97. Fork carriage unit, integrated sideshift, fork spread 2010-07-07
  • 98. P0033086

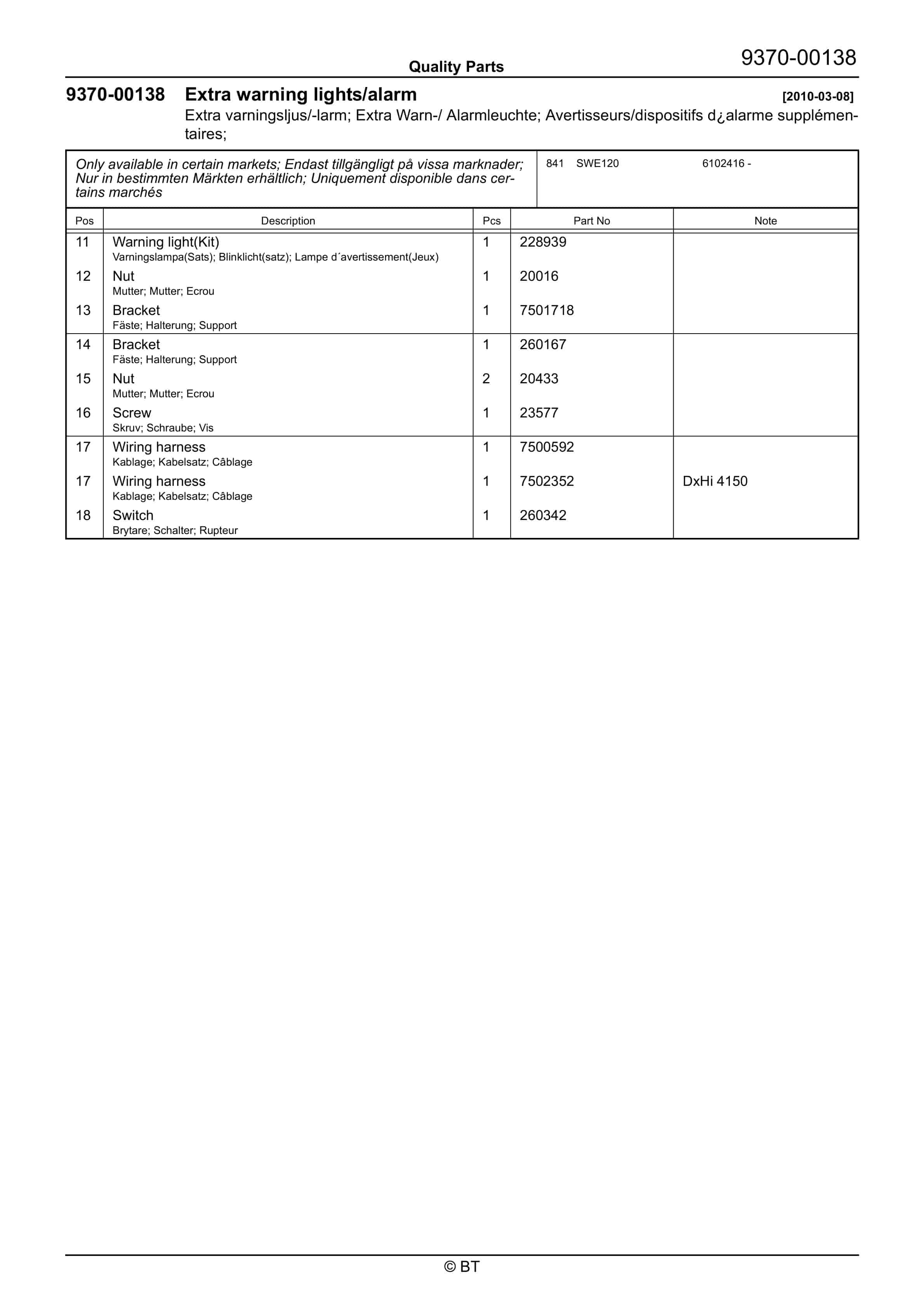

  • 99. Extra warning lights/alarm 2010-03-08
  • 100. P0033422
  • 101. Extra warning lights/alarm 2010-03-08
  • 102. P0035819
  • 103. Charger attachment 2010-03-09

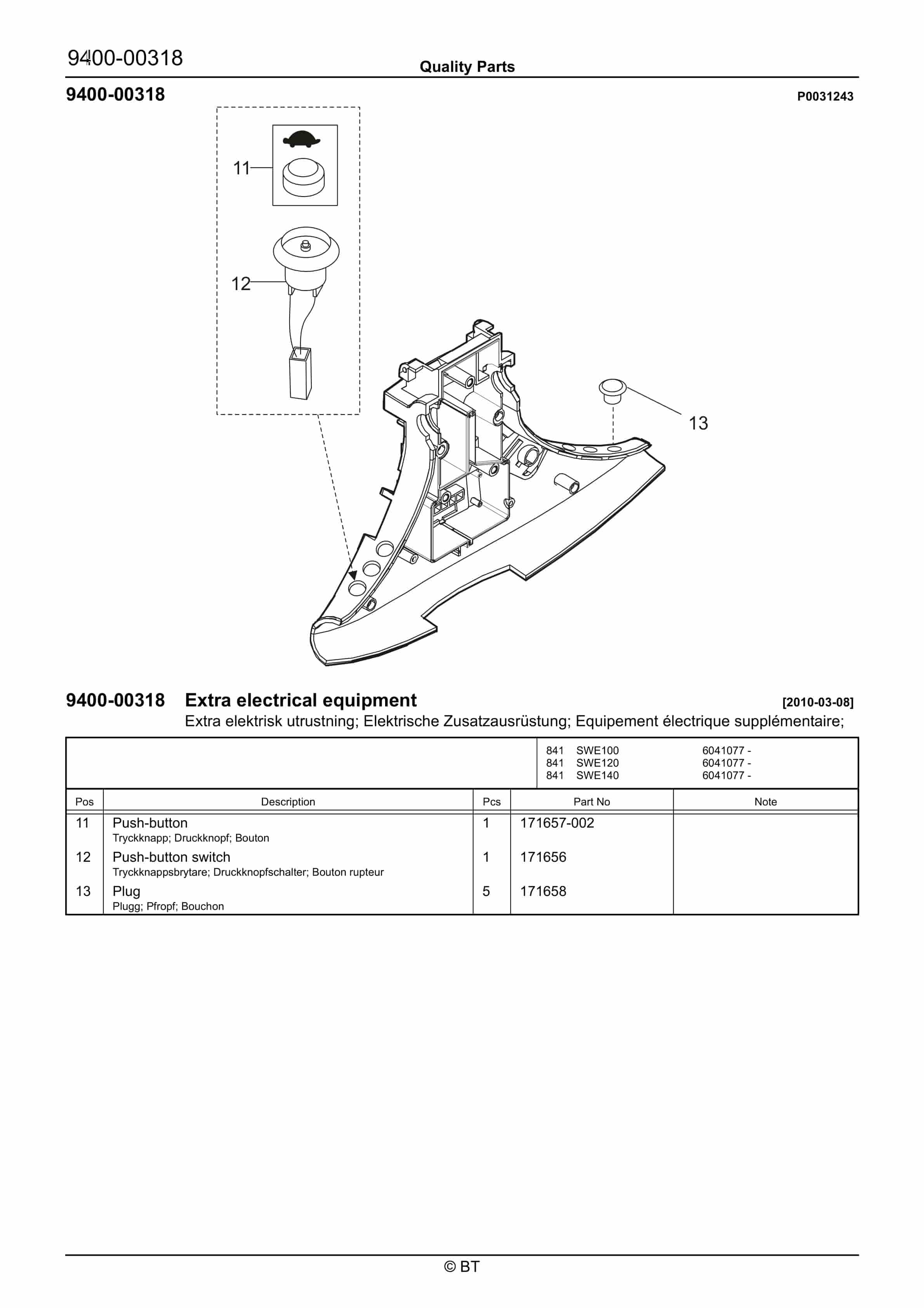

  • 104. P0031234
  • 105. Extra electrical equipment 2010-01-25
  • 106. P0031243
  • 107. Extra electrical equipment 2010-03-08
  • 108. P0034924
  • 109. Extra electrical equipment 2010-02-03
  • 110. P0012396
  • 111. Truck log device, code locking device 2010-03-08
  • 112. P0026077
  • 113. Truck log device, code locking device 2010-03-10
  • 114. P0033140
  • 115. Truck log device, code locking device 2010-03-08
  • 116. P0033141
  • 117. Truck log device, code locking device 2010-03-08
  • 118. P0031110
  • 119. Other extra equipment 2010-03-08
  • 120. P0031111
  • 121. Other extra equipment 2010-01-25
  • 122. P0032686
  • 123. Other extra equipment 2010-01-25
  • 124. P0033099
  • 125. Other extra equipment 2010-03-08
  • 126. P0033101
  • 127. Other extra equipment 2010-03-08
  • 128. P0033103
  • 129. Other extra equipment 2010-03-08
  • 130. P0033104
  • 131. Other extra equipment 2010-03-08
  • 132. P0033424
  • 133. Other extra equipment 2010-03-08
  • 134. P0033425
  • 135. Other extra equipment 2010-03-08
  • 136. P0033429
  • 137. Other extra equipment 2010-01-25
  • 138. P0034762
  • 139. Other extra equipment 2010-01-25
