BT SWE120I Quality Parts 241927
BT SWE120I Quality Parts 241927 - Image 2
BT SWE120I Quality Parts 241927 - Image 3
BT SWE120I Quality Parts 241927 - Image 4
BT SWE120I Quality Parts 241927 - Image 5

BT SWE120I Quality Parts 241927

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 241927
  • : Parts Manual PDF
  • Number of Pages: 75
  • Size: 5.5MB
  • Format: PDF
Category:

Product details

  • Model List:

    • SWE120I
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. P0019492
  • 10. Inspection covers 2004-12-07
  • 11. P0016774
  • 12. Fork frame (low lifters) 2004-12-07
  • 13. P0012644
  • 14. Battery compartment parts 2004-12-07
  • 15. P0016775
  • 16. Motor fixing points 2004-11-02
  • 17. P0016776
  • 18. Platform incl. fixing points 2004-12-07
  • 19. P0013487
  • 20. Finger/foot guards 2004-11-02
  • 21. P0016567
  • 22. Signs, warnings, decals 2004-11-02
  • 23. P0015822
  • 24. Electric pump motor 2006-10-27
  • 25. P0025308
  • 26. Electric drive motor 2006-05-02
  • 27. P0027441
  • 28. Mechanical drive gear unit 2006-09-04
  • 29. P0013495
  • 30. Electromagnetic parking brake 2004-12-07
  • 31. P0012028
  • 32. Drive wheel 2006-02-23
  • 33. P0012652

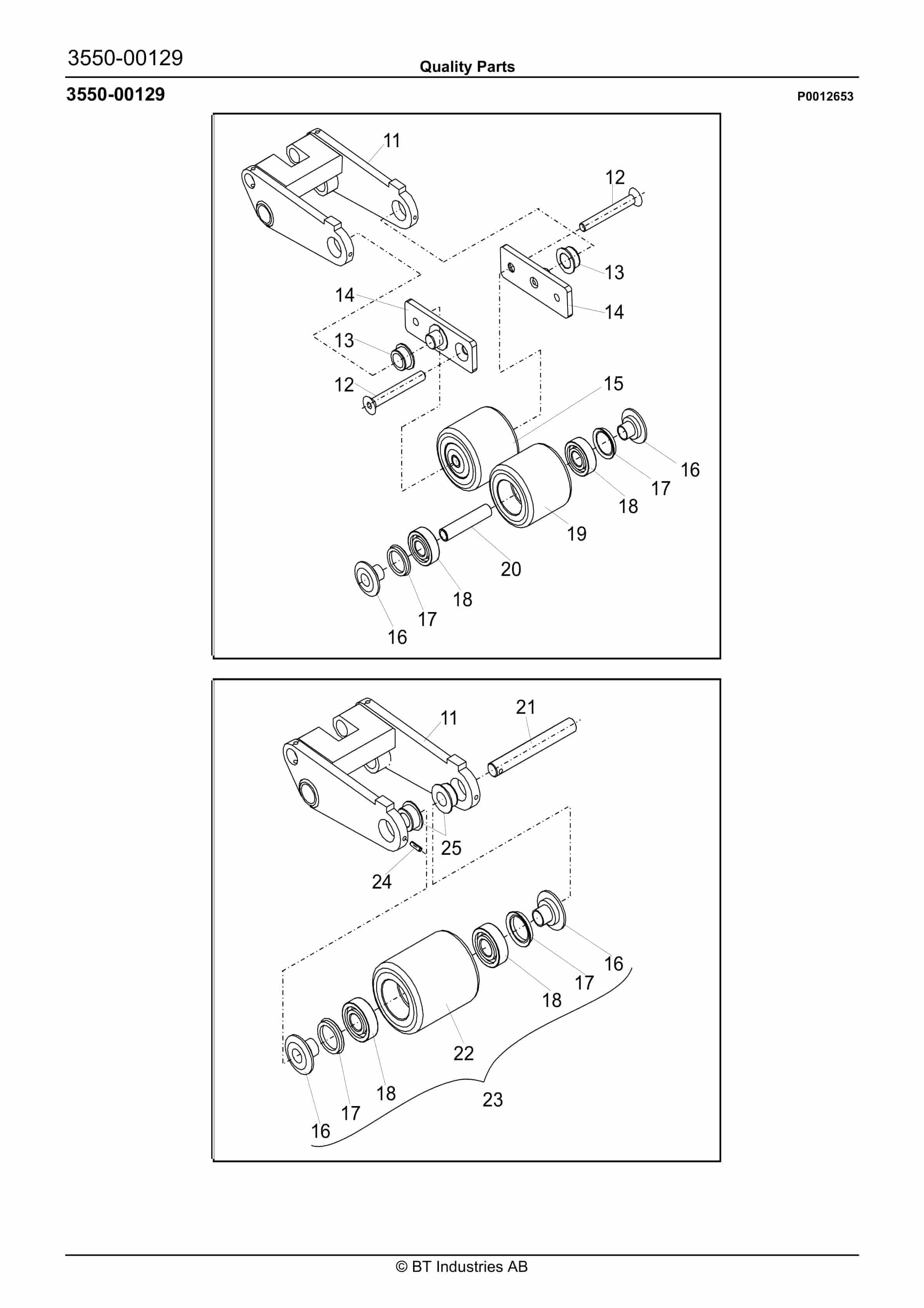

  • 34. Support/castor wheels 2004-12-07
  • 35. P0012653
  • 36. Fork/support arm wheels 2004-12-07
  • 37. P0012654
  • 38. Guide rollers/wheels 2004-12-07
  • 39. P0016777
  • 40. Steering arm/wheel/lever 2004-11-02
  • 41. P0016568
  • 42. General alarm signals (audible/visual) 2005-07-04
  • 43. P0012438
  • 44. Battery cut out connector/contactor 2006-04-10
  • 45. P0013497
  • 46. Battery cut out connector/contactor 2004-12-07
  • 47. P0014869

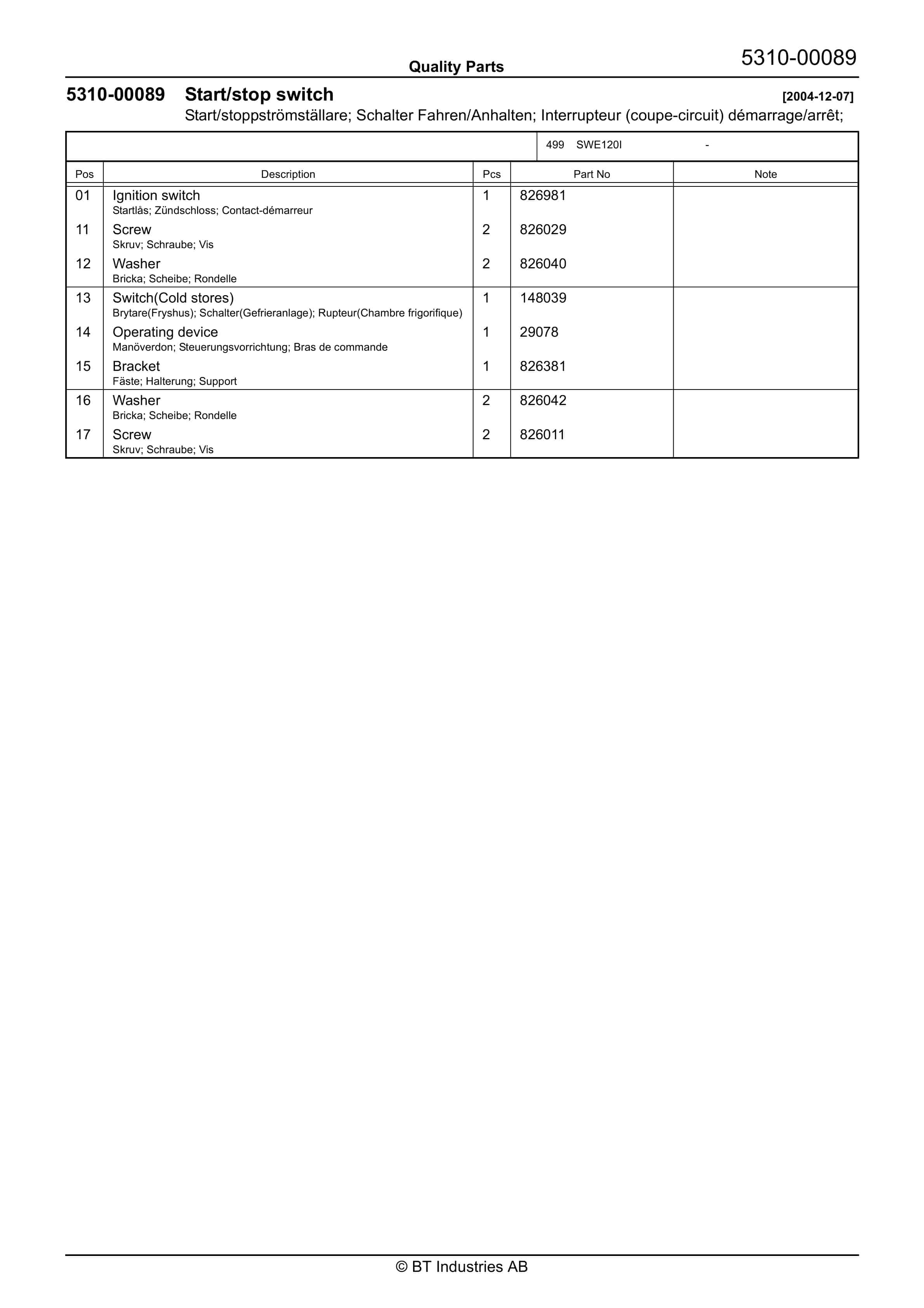

  • 48. Start/stop switch 2004-12-07
  • 49. P0014870
  • 50. Start/stop switch 2004-12-07
  • 51. P0013756
  • 52. Transistor panel 2004-12-07
  • 53. P0016779

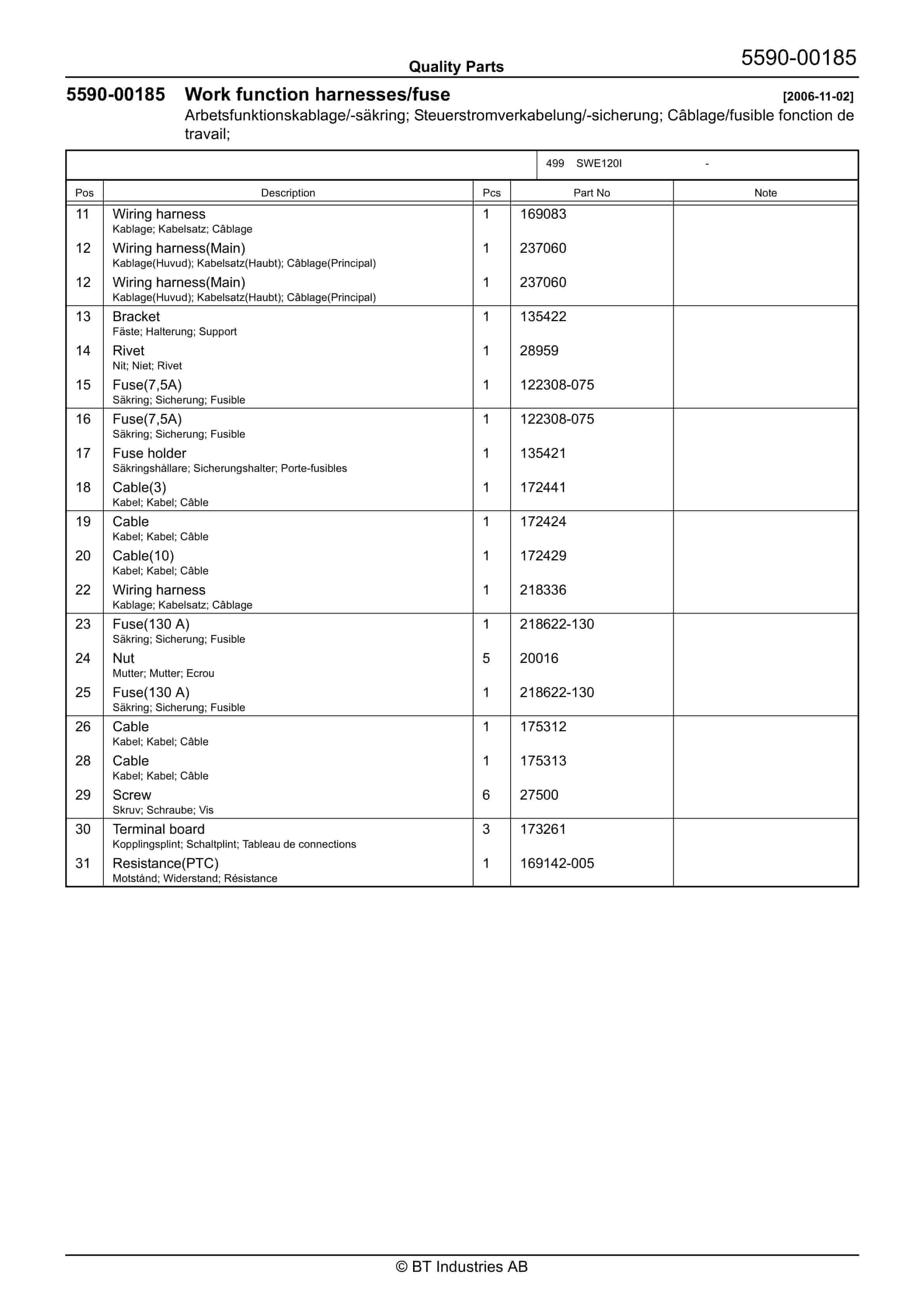

  • 54. Work function harnesses/fuse 2004-12-07
  • 55. P0021573
  • 56. Work function harnesses/fuse 2006-11-02
  • 57. P0011335
  • 58. Pump contactor 2004-12-07
  • 59. P0012667
  • 60. Safety/ position probes/ sensors 2006-04-21
  • 61. P0028344

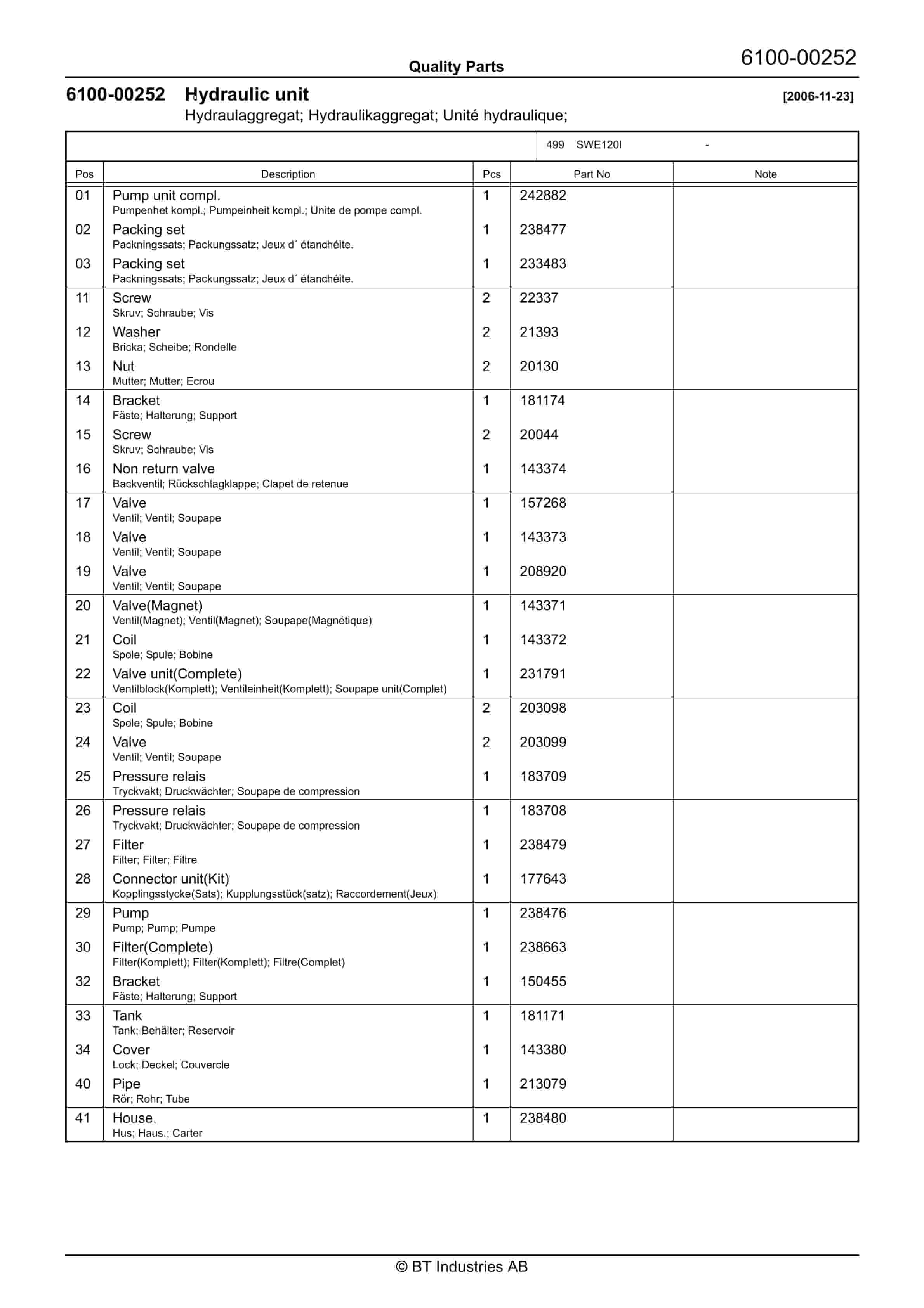

  • 62. Hydraulic unit 2006-11-23
  • 63. P0016780
  • 64. Hydraulic tank lines 2004-12-07
  • 65. P0017544
  • 66. Mast hydraulic lines 2004-11-02
  • 67. P0013501
  • 68. Main lift cylinders 2004-11-02
  • 69. P0015327
  • 70. Main mast 2004-11-02
  • 71. P0012642
  • 72. Free initial lift cylinder 2005-05-02
  • 73. P0025392
  • 74. Fork carriage unit, integrated sideshift, fork spread 2005-11-17
