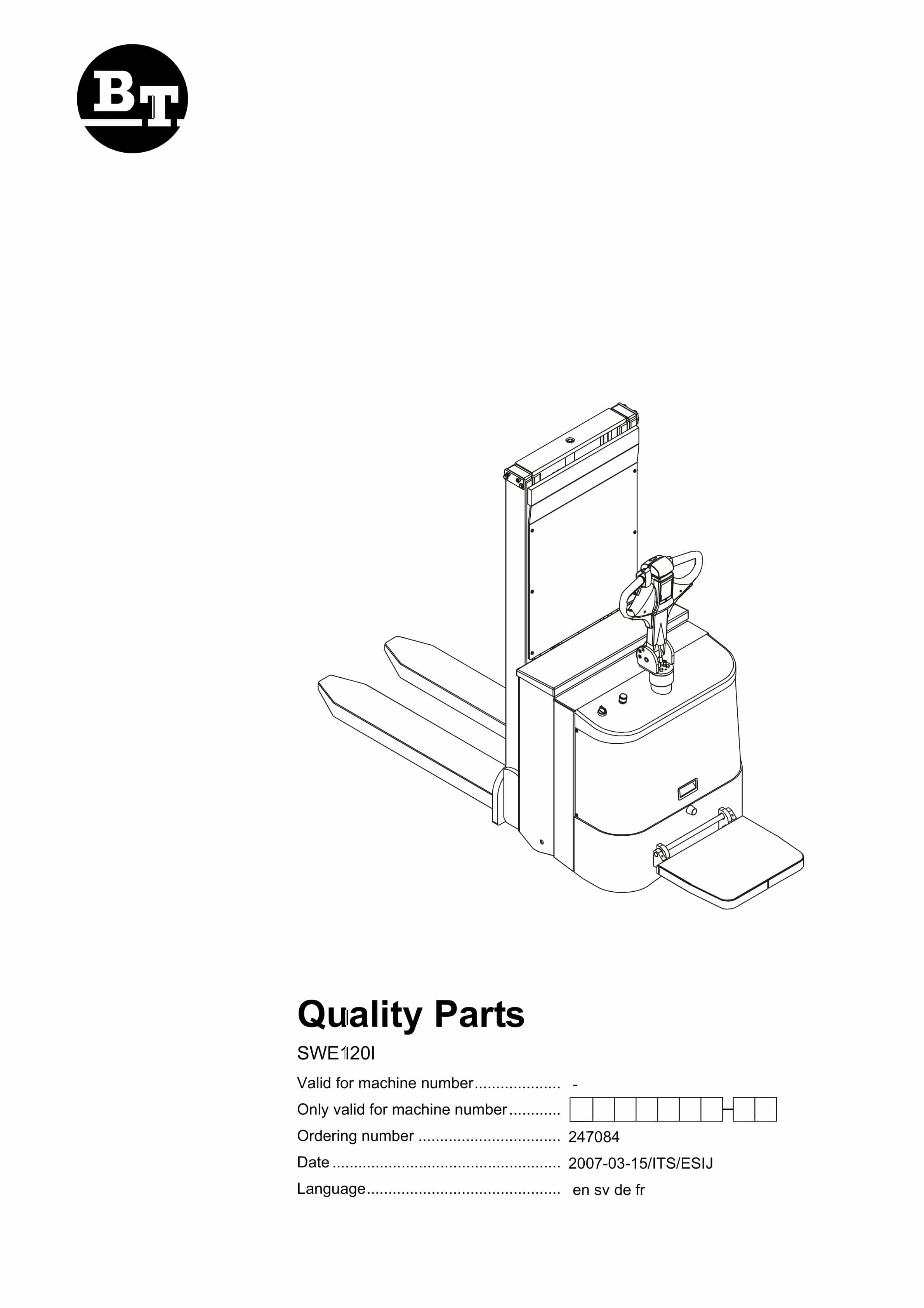

BT SWE120I Quality Parts 247084
BT SWE120I Quality Parts 247084 - Image 2
BT SWE120I Quality Parts 247084 - Image 3
BT SWE120I Quality Parts 247084 - Image 4
BT SWE120I Quality Parts 247084 - Image 5

BT SWE120I Quality Parts 247084

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 247084
  • : Parts Manual PDF
  • Number of Pages: 76
  • Size: 5.6MB
  • Format: PDF
Category:

Product details

  • Model List:

    • SWE120I
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0019492
  • 11. Inspection covers 2004-12-07
  • 12. P0016774
  • 13. Fork frame (low lifters) 2004-12-07
  • 14. P0012644
  • 15. Battery compartment parts 2004-12-07
  • 16. P0016775
  • 17. Motor fixing points 2004-11-02
  • 18. P0016776
  • 19. Platform incl. fixing points 2004-12-07
  • 20. P0013487
  • 21. Finger/foot guards 2004-11-02
  • 22. P0016567
  • 23. Signs, warnings, decals 2004-11-02
  • 24. P0015822
  • 25. Electric pump motor 2006-10-27
  • 26. P0025308
  • 27. Electric drive motor 2006-05-02
  • 28. P0027441
  • 29. Mechanical drive gear unit 2006-09-04
  • 30. P0013495
  • 31. Electromagnetic parking brake 2004-12-07
  • 32. P0012028
  • 33. Drive wheel 2006-02-23
  • 34. P0012652
  • 35. Support/castor wheels 2004-12-07
  • 36. P0012653
  • 37. Fork/support arm wheels 2004-12-07

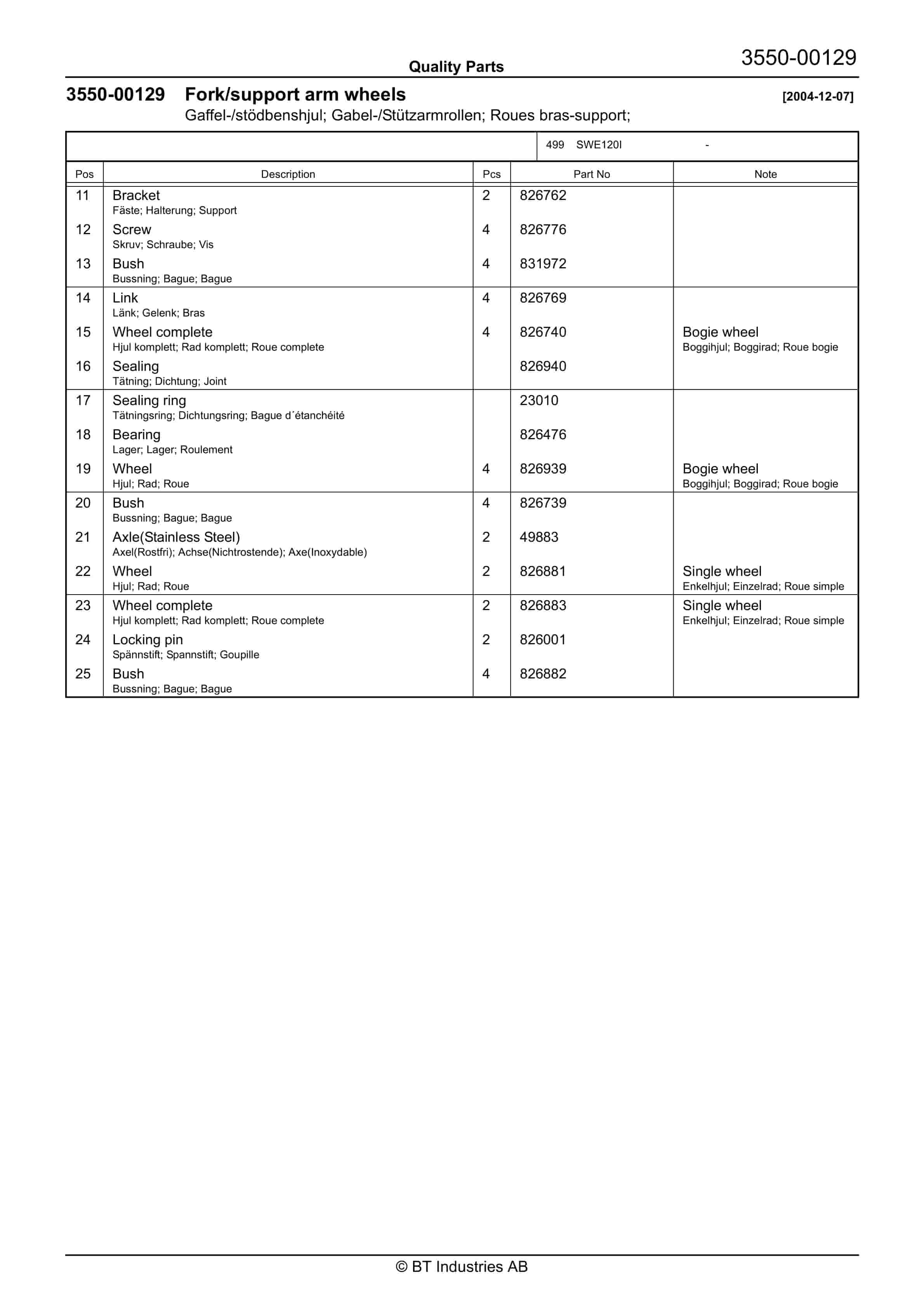

  • 38. P0012654
  • 39. Guide rollers/wheels 2004-12-07
  • 40. P0016777
  • 41. Steering arm/wheel/lever 2004-11-02
  • 42. P0016568
  • 43. General alarm signals (audible/visual) 2005-07-04
  • 44. P0012438
  • 45. Battery cut out connector/contactor 2006-04-10
  • 46. P0013497
  • 47. Battery cut out connector/contactor 2004-12-07
  • 48. P0014869

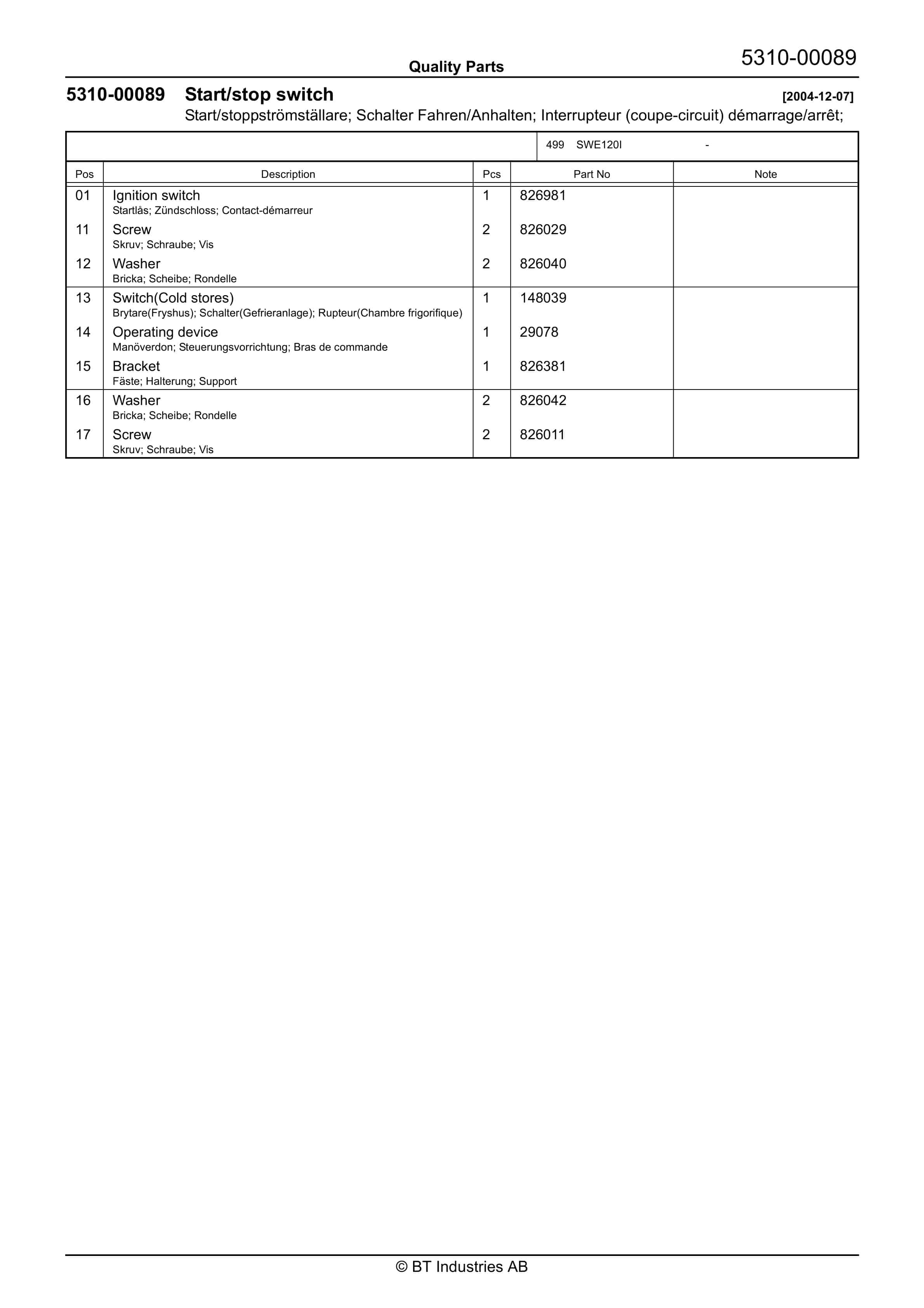

  • 49. Start/stop switch 2004-12-07
  • 50. P0014870
  • 51. Start/stop switch 2004-12-07
  • 52. P0013756
  • 53. Transistor panel 2004-12-07
  • 54. P0016779
  • 55. Work function harnesses/fuse 2004-12-07
  • 56. P0021573
  • 57. Work function harnesses/fuse 2006-11-02
  • 58. P0011335

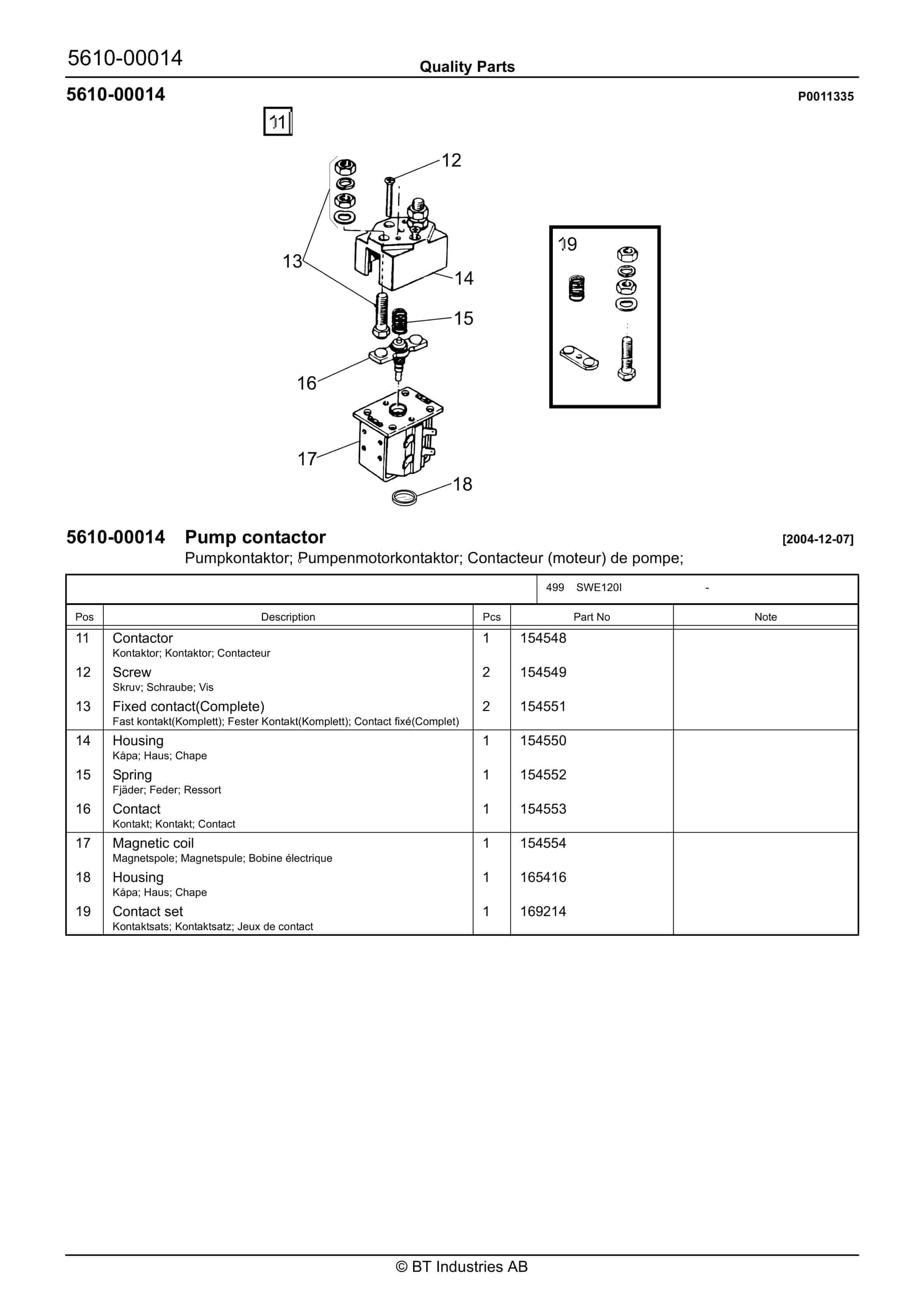

  • 59. Pump contactor 2004-12-07
  • 60. P0012667
  • 61. Safety/ position probes/ sensors 2006-04-21
  • 62. P0028344

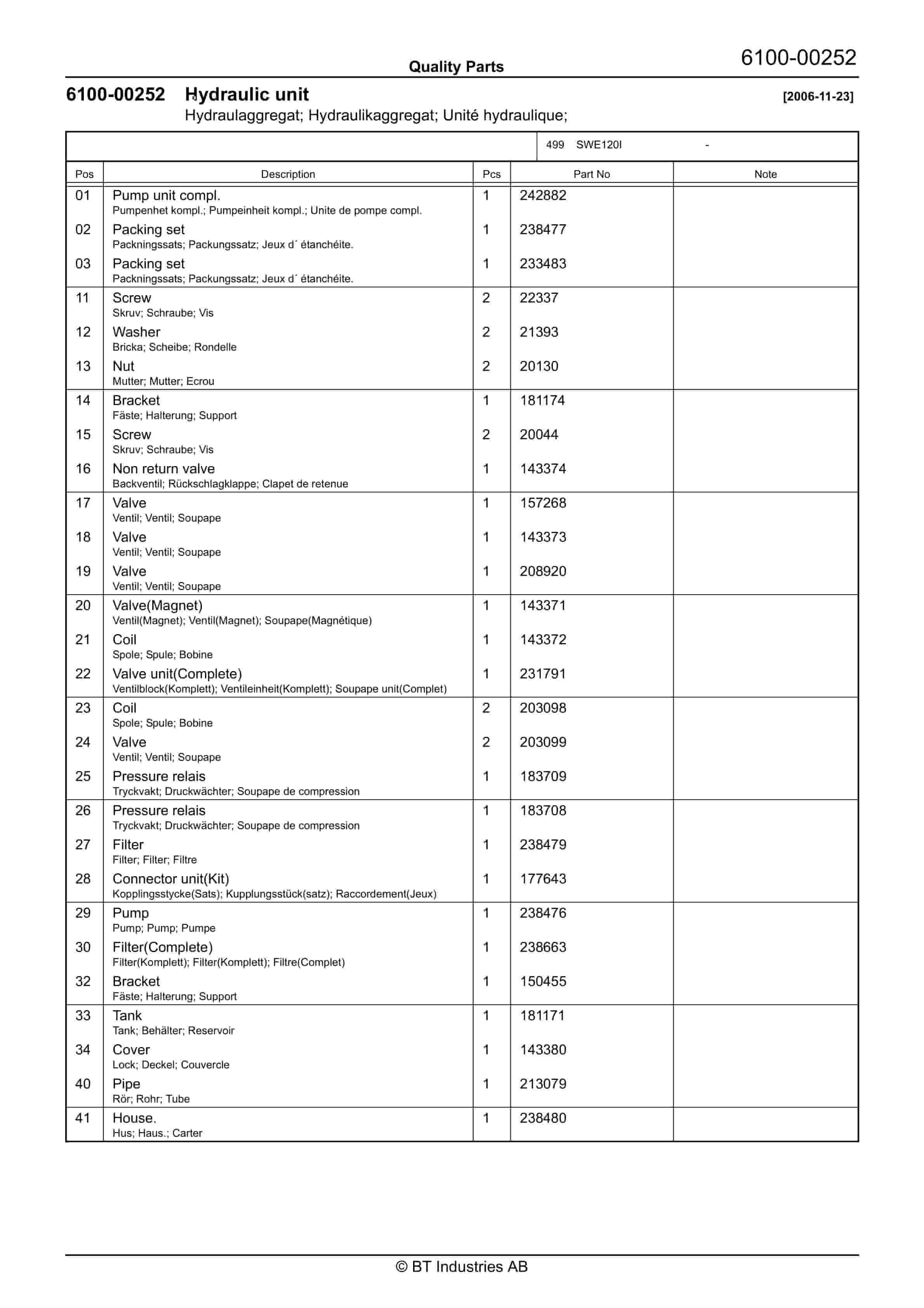

  • 63. Hydraulic unit 2006-11-23
  • 64. P0016780
  • 65. Hydraulic tank lines 2004-12-07
  • 66. P0017544
  • 67. Mast hydraulic lines 2004-11-02
  • 68. P0013501
  • 69. Main lift cylinders 2004-11-02
  • 70. P0015327
  • 71. Main mast 2004-11-02
  • 72. P0012642
  • 73. Free initial lift cylinder 2005-05-02
  • 74. P0025392
  • 75. Fork carriage unit, integrated sideshift, fork spread 2005-11-17
  • 76. P0028956
  • 77. Other extra equipment 2007-03-15
