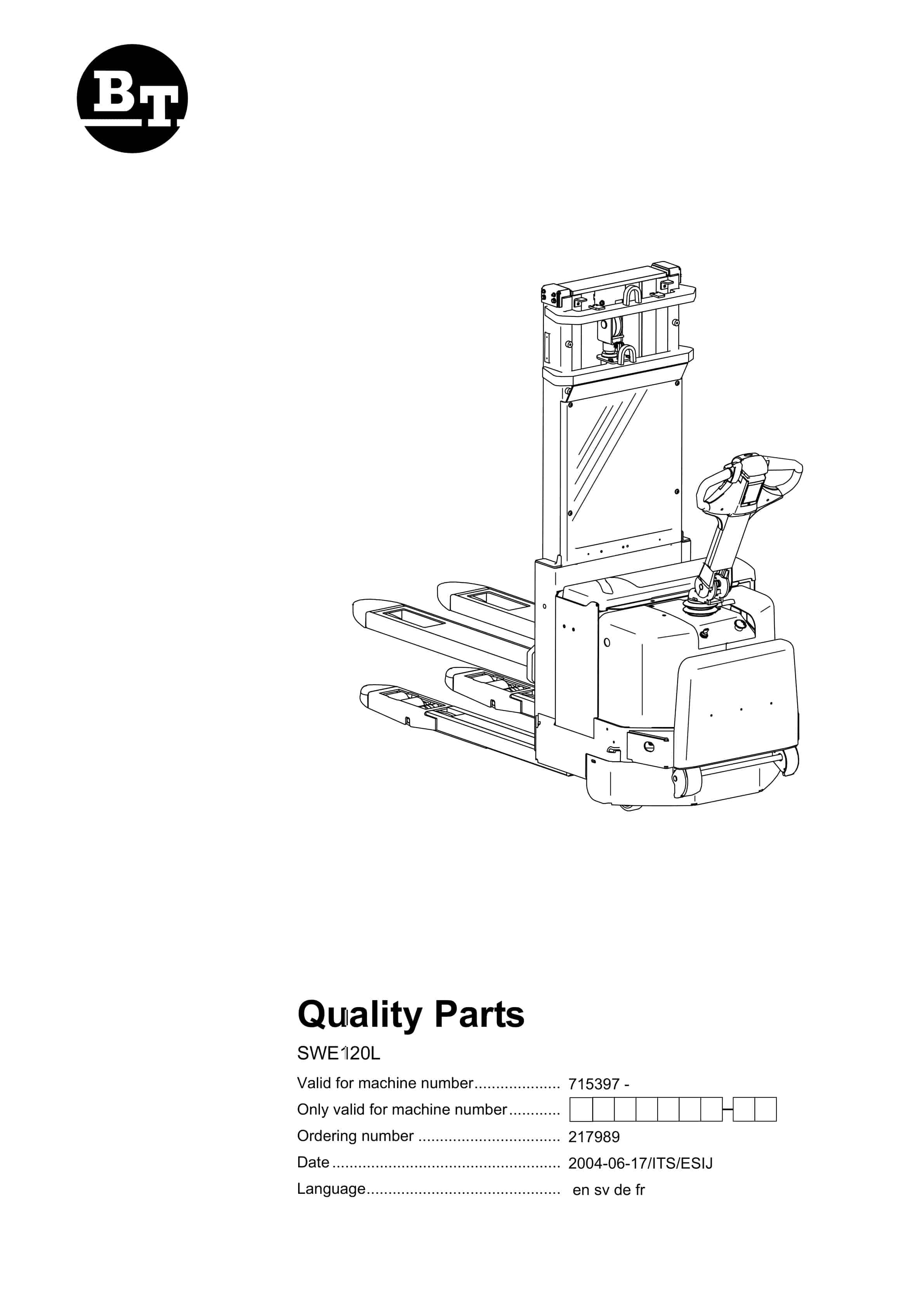

BT SWE120L Quality Parts 217989
BT SWE120L Quality Parts 217989 - Image 2
BT SWE120L Quality Parts 217989 - Image 3
BT SWE120L Quality Parts 217989 - Image 4
BT SWE120L Quality Parts 217989 - Image 5

BT SWE120L Quality Parts 217989

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 217989
  • : Parts Manual PDF
  • Number of Pages: 99
  • Size: 4.3MB
  • Format: PDF
Category:

Product details

  • Model List:

    • SWE120L
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0015809
  • 11. Inspection covers 2004-06-16
  • 12. P0020789
  • 13. Support arms, stabilizers 2004-06-16
  • 14. P0015902
  • 15. Battery compartment parts 2004-06-16
  • 16. P0017724
  • 17. Battery compartment parts 2004-06-16
  • 18. P0015771
  • 19. Frame/chassis components 2004-06-16
  • 20. P0015642
  • 21. Motor fixing points 2004-06-16
  • 22. P0020780
  • 23. Motor fixing points 2004-06-16
  • 24. P0020456
  • 25. Platform incl. fixing points 2004-06-16
  • 26. P0015760
  • 27. Driver controls ( mechanical ) 2004-06-16
  • 28. P0015757
  • 29. Finger/foot guards 2004-06-16
  • 30. P0015879
  • 31. Finger/foot guards 2004-06-16
  • 32. P0015880
  • 33. Finger/foot guards 2004-06-16
  • 34. P0017702
  • 35. Signs, warnings, decals 2004-06-16
  • 36. P0015822
  • 37. Electric pump motor 2004-06-16
  • 38. P0020441
  • 39. Electric drive motor 2004-06-16
  • 40. P0015644
  • 41. Mechanical drive gear unit 2004-06-16
  • 42. P0017735
  • 43. Electromagnetic parking brake 2004-06-16
  • 44. P0020790
  • 45. Drive wheel 2004-06-16
  • 46. P0015651
  • 47. Support/castor wheels 2004-06-16
  • 48. P0015729
  • 49. Fork/support arm wheels 2004-06-16
  • 50. P0015730
  • 51. Fork/support arm wheels 2004-06-16
  • 52. P0017676
  • 53. Steering arm/wheel/lever 2004-06-16

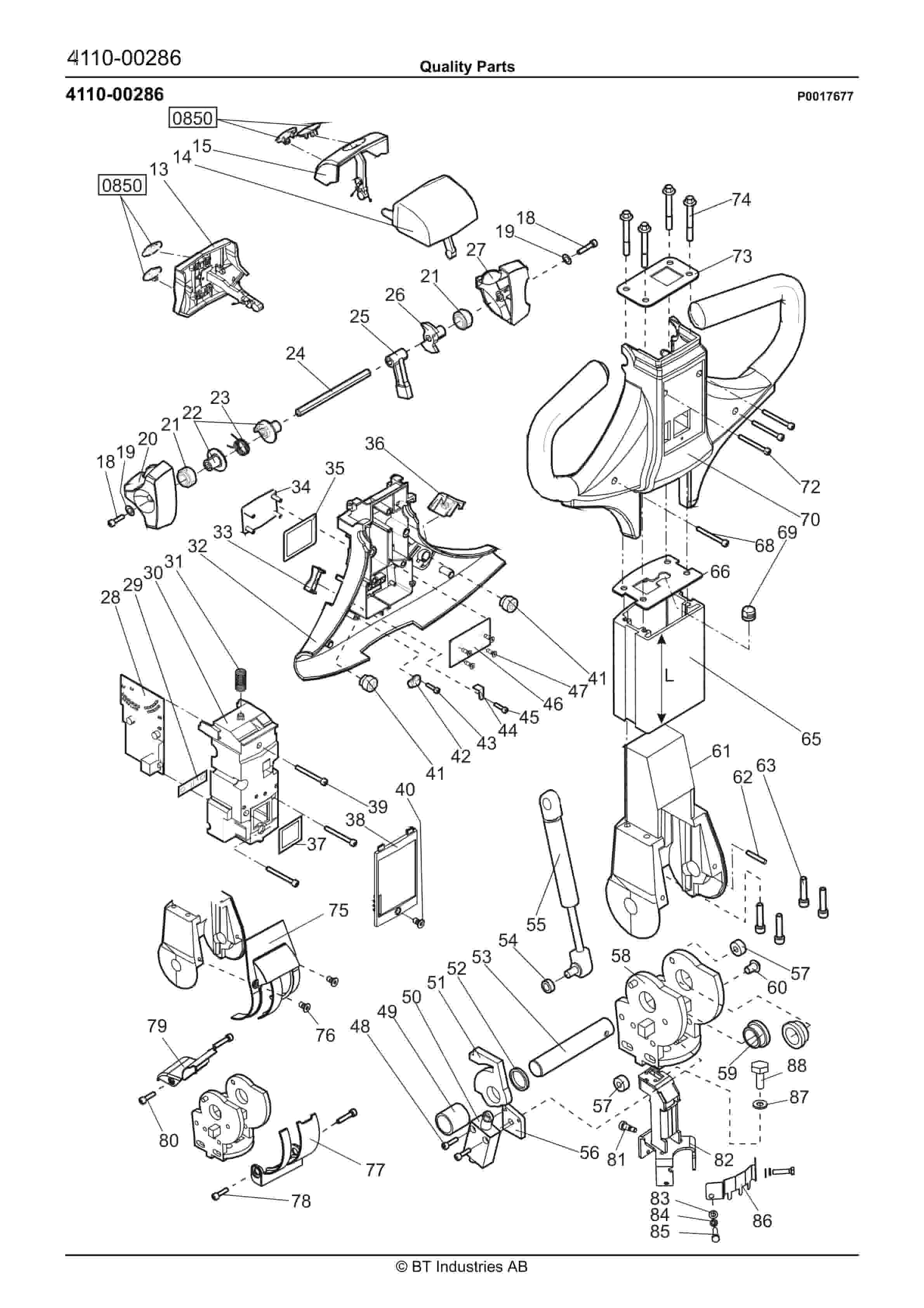

  • 54. P0017677

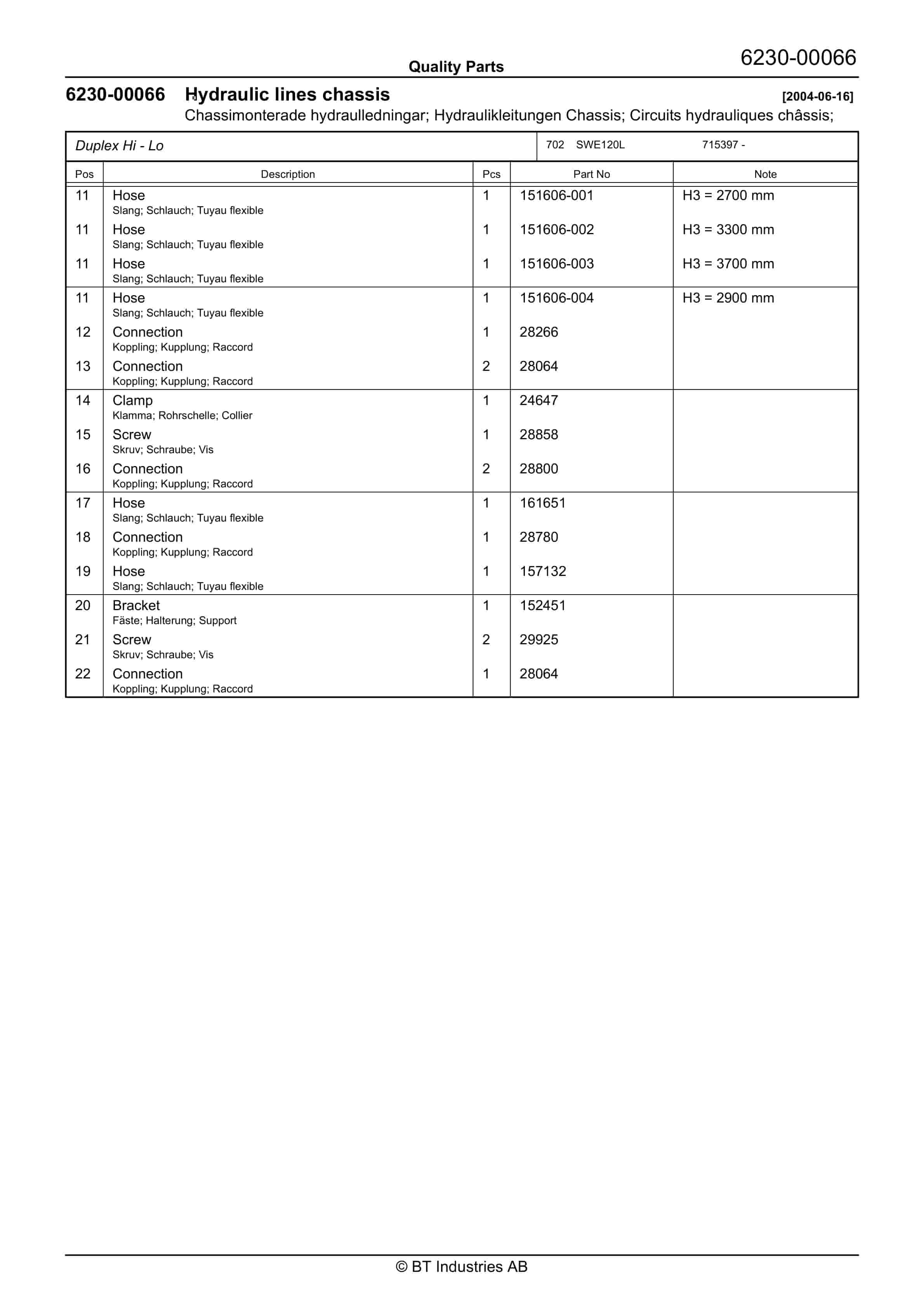

  • 55. Steering arm/wheel/lever 2004-06-16
  • 56. P0013829
  • 57. Steering bearings, radial bearing 2004-06-16
  • 58. P0017660
  • 59. General alarm signals (audible/visual) 2004-06-16
  • 60. P0012438
  • 61. Battery cut out connector/contactor 2004-06-16
  • 62. P0015846
  • 63. Battery cut out connector/contactor 2004-06-16
  • 64. P0017732
  • 65. Battery cut out connector/contactor 2004-06-16
  • 66. P0015763
  • 67. Start/stop switch 2004-06-16
  • 68. P0015764
  • 69. Transistor panel 2004-06-16
  • 70. P0015849
  • 71. Work function harnesses/fuse 2004-06-16
  • 72. P0016866
  • 73. Pump contactor 2004-06-16
  • 74. P0015851

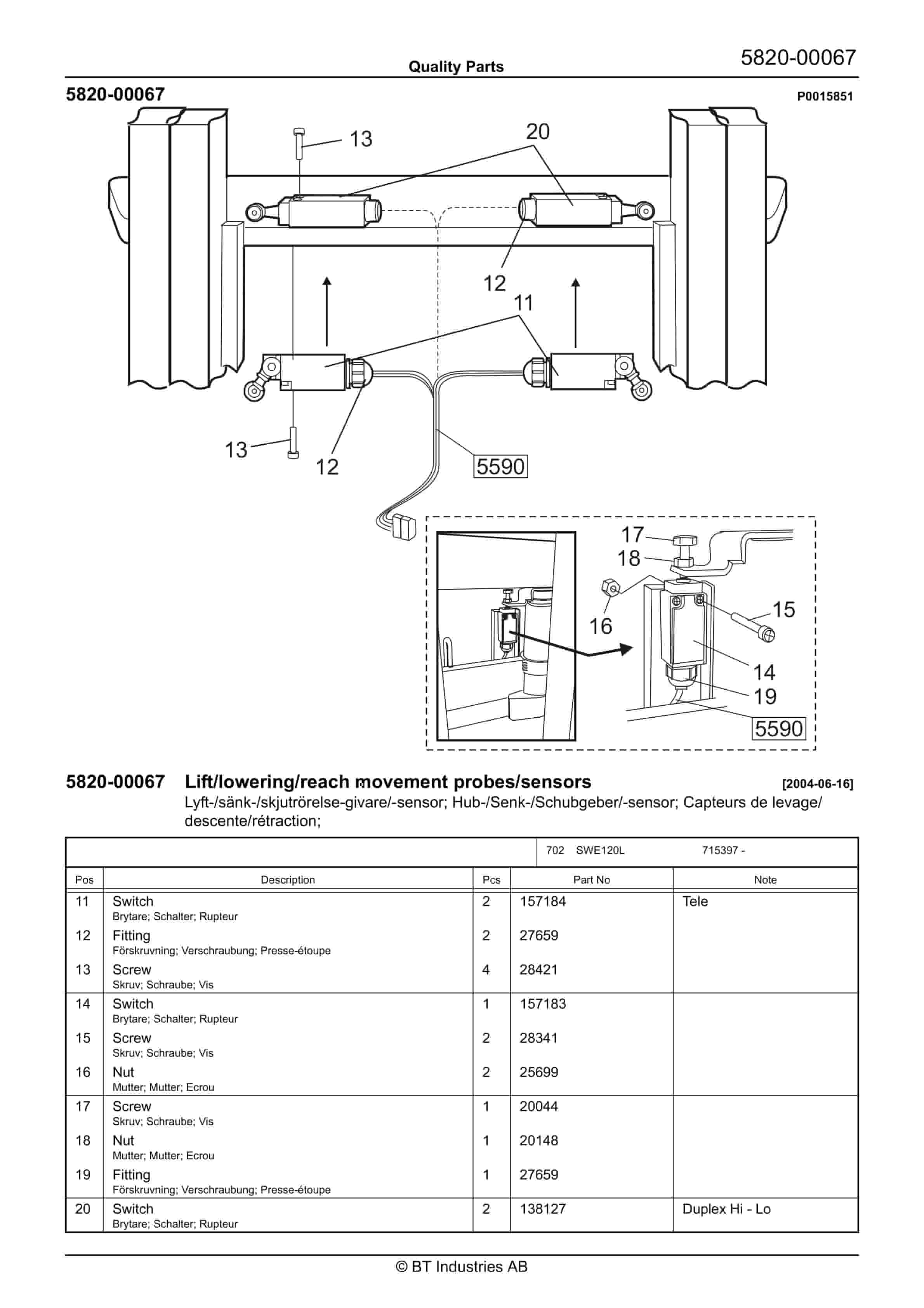

  • 75. Lift/lowering/reach movement probes/sensors 2004-06-16
  • 76. P0012445
  • 77. Safety probes/sensors 2004-06-16
  • 78. P0020819
  • 79. Hydraulic unit 2004-06-16
  • 80. P0015856
  • 81. Hydraulic lines chassis 2004-06-16
  • 82. P0015857
  • 83. Hydraulic lines chassis 2004-06-16
  • 84. P0015861
  • 85. Main lift cylinders 2004-06-16
  • 86. P0015861
  • 87. Main lift cylinders 2004-06-16
  • 88. P0015866
  • 89. Main lift cylinders 2004-06-16
  • 90. P0015833
  • 91. Support arm/initial lift cylinders 2004-06-16
  • 92. P0015881

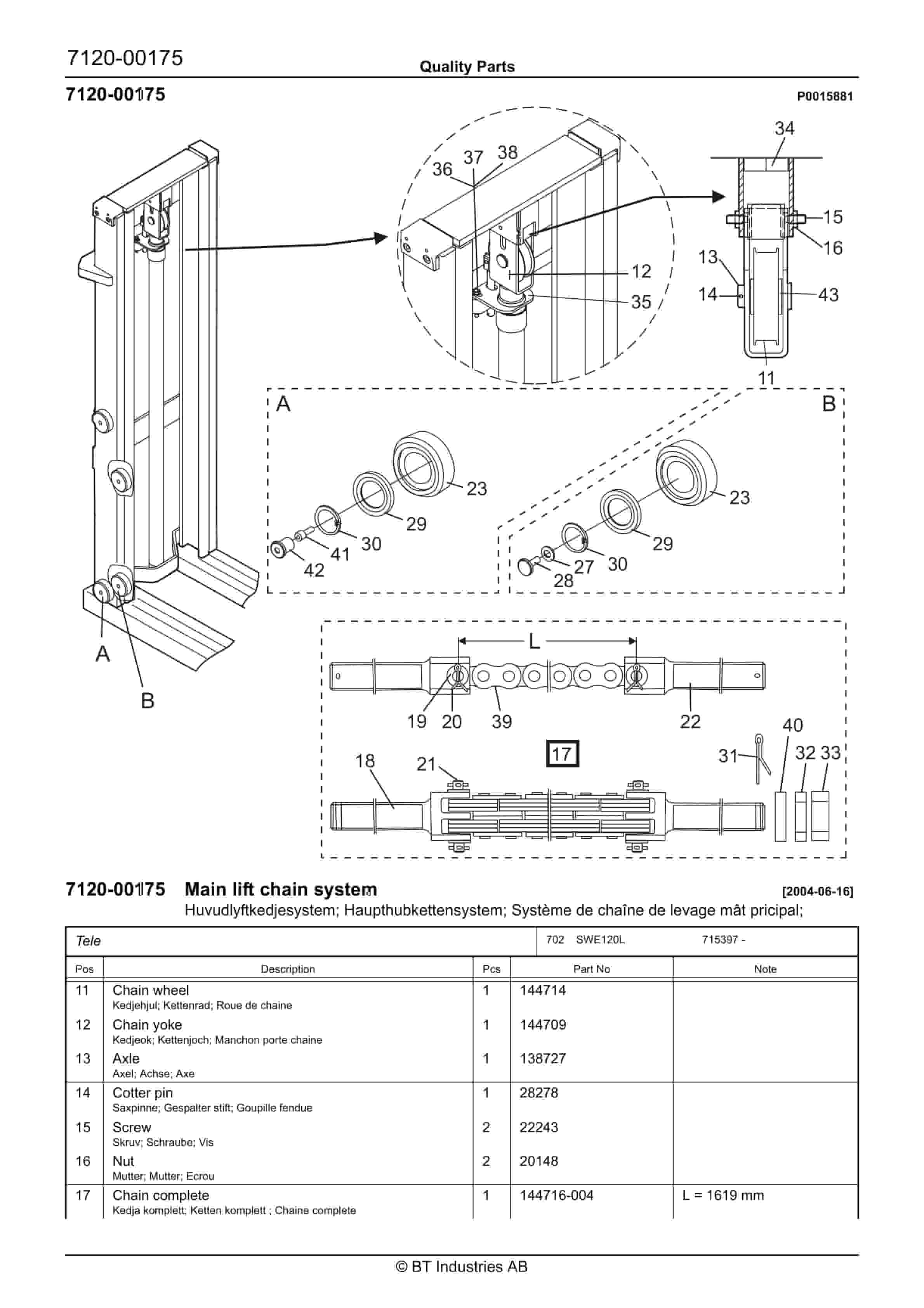

  • 93. Main lift chain system 2004-06-16
  • 94. P0015882
  • 95. Main lift chain system 2004-06-16
  • 96. P0015883
  • 97. Main lift chain system 2004-06-16
  • 98. P0015870
  • 99. Main mast guidance/dampers 2004-06-16
  • 100. P0020834
  • 101. Fork carriage unit, integrated sideshift, fork spread 2004-06-16
  • 102. P0017729
  • 103. Charger attachment 2004-06-16
  • 104. P0017731
  • 105. Charger attachment 2004-06-16
  • 106. P0020457
  • 107. Charger attachment 2004-06-16
  • 108. P0012485
  • 109. Extra electrical equipment 2004-06-16
  • 110. P0012486
  • 111. Extra electrical equipment 2004-06-16
  • 112. P0015420
  • 113. Extra electrical equipment 2004-06-16
  • 114. P0012396
  • 115. Truck log device, code locking device 2004-06-16
  • 116. P0015897
  • 117. Other extra equipment 2004-06-16
