BT SWE120L Quality Parts 7520235 - Image 2

BT SWE120L Quality Parts 7520235 - Image 3

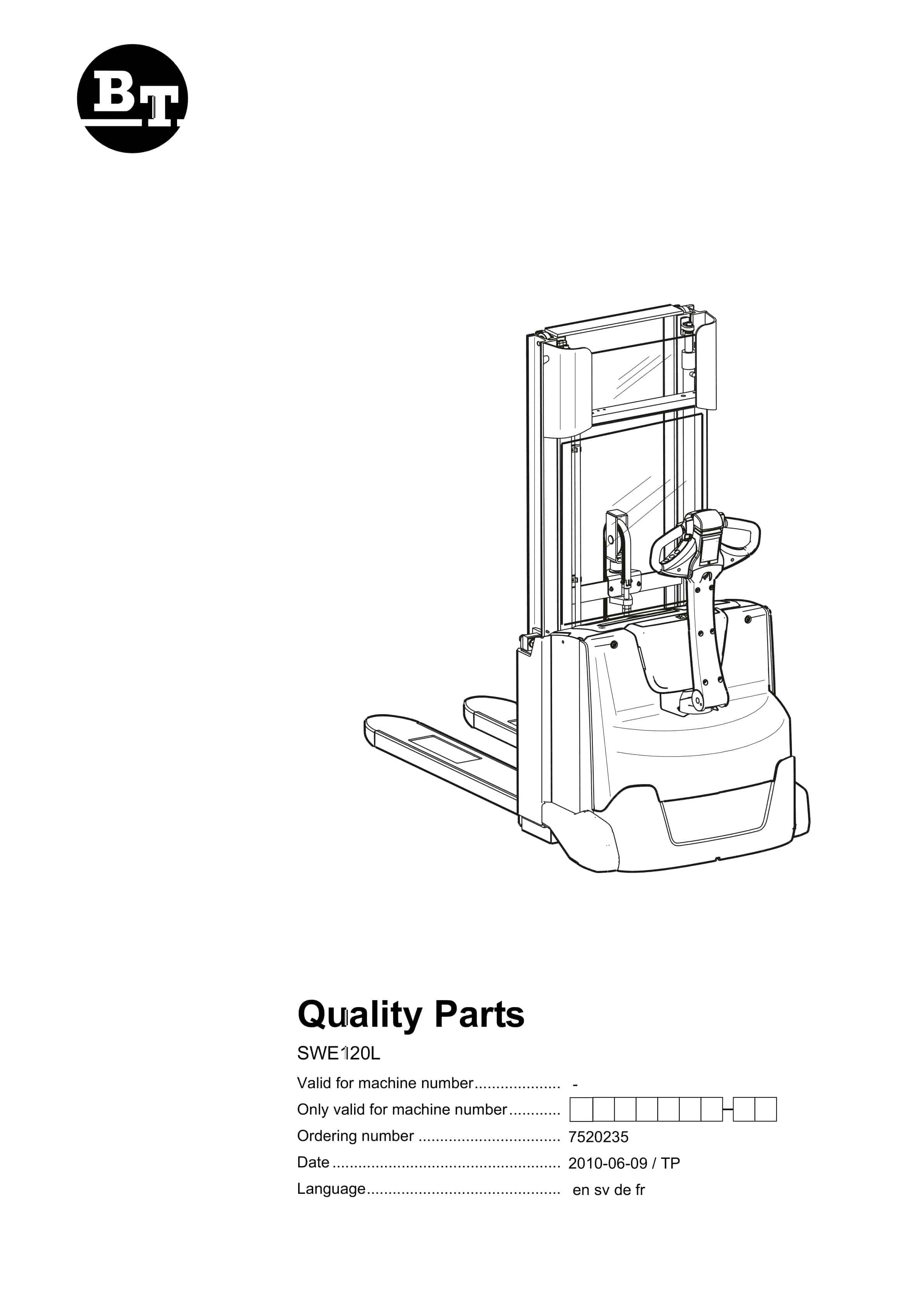

BT SWE120L Quality Parts 7520235

$30.00

Type Of Manual: Quality Parts
Manual ID: 7520235
: Parts Manual PDF
Number of Pages: 173
Size: 14.9MB
Format: PDF

Category: BT Parts Manual PDF

Product details

Model List:
- SWE120L

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0032962
11. Inspection covers 2010-05-11
12. P0034945
13. Inspection covers 2010-05-11
14. P0036239
15. Support arms, stabilizers 2010-02-23
16. P0032354
17. Battery compartment parts 2010-03-03
18. P0032355
19. Battery compartment parts 2010-03-03
20. P0034916
21. Battery compartment parts 2010-03-09
22. P0034917
23. Battery compartment parts 2010-03-08
24. P0034918
25. Battery compartment parts 2010-03-04
26. P0036661
27. Battery compartment parts 2010-06-03
28. P0031524
29. Boom/mast fixing points 2010-01-21
30. P0034086
31. Motor fixing points 2010-01-21
32. P0036241
33. Platform incl. fixing points 2010-02-23
34. P0036113
35. Finger/foot guards 2010-02-17
36. P0036115
37. Finger/foot guards 2010-02-17
38. P0036119
39. Finger/foot guards 2010-02-17
40. P0036120
41. Finger/foot guards 2010-02-17
42. P0036121
43. Finger/foot guards 2010-02-17
44. P0036122
45. Finger/foot guards 2010-02-17
46. P0036765
47. Finger/foot guards 2010-06-03
48. P0033011
49. Signs, warnings, decals 2010-03-09
50. P0033991
51. Electric pump motor 2010-01-21
52. P0034036
53. Electric drive motor 2010-01-25
54. P0036243
55. Mechanical drive gear unit 2010-02-23
56. P0030567
57. Electrically controlled travel brake 2010-03-10
58. P0030540
59. Drive wheel 2010-05-11

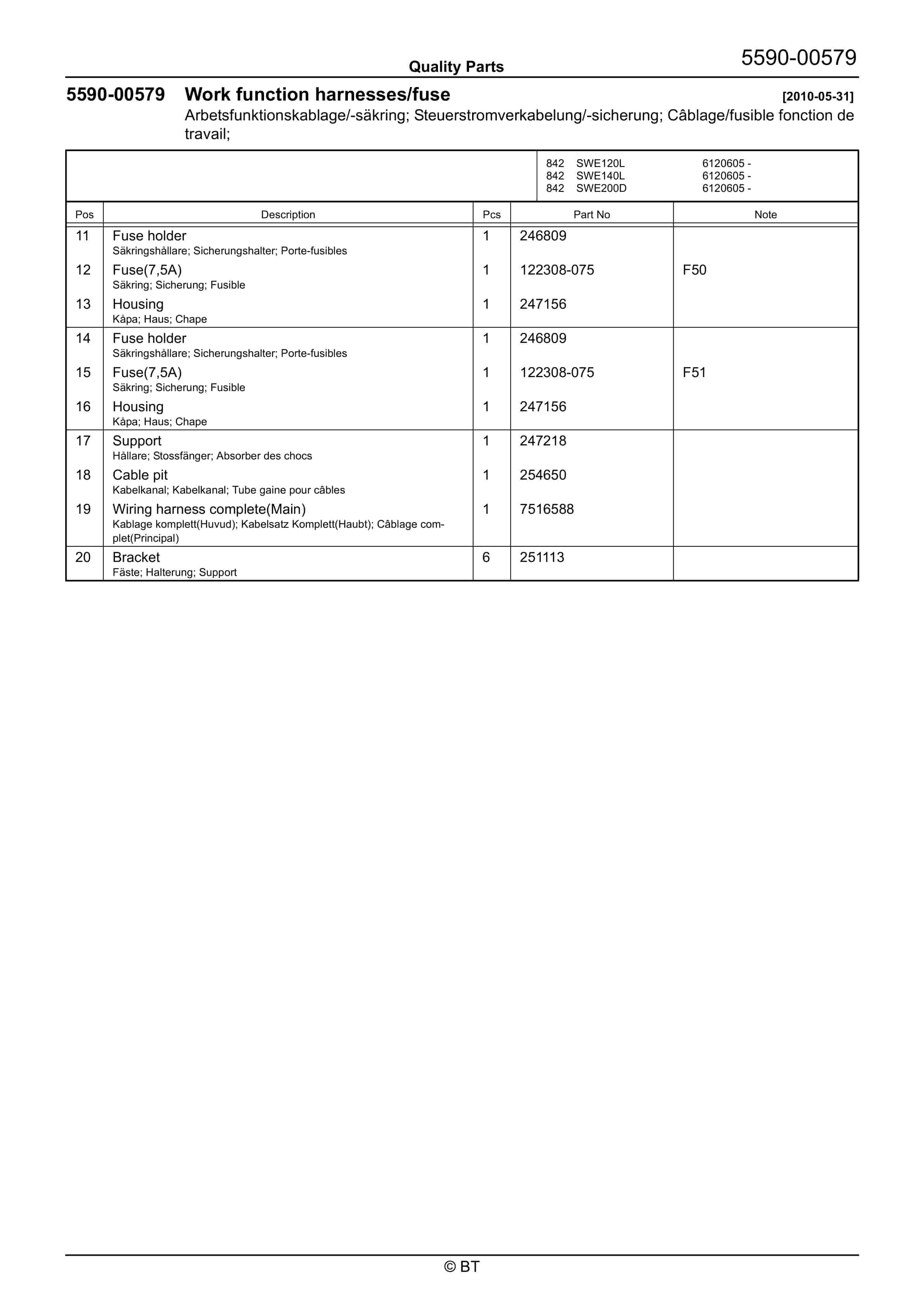

60. P0033935
61. Support/castor wheels 2009-02-02
62. P0032082
63. Fork/support arm wheels 2010-01-21
64. P0031399
65. Steering arm/wheel/lever 2010-05-11
66. P0031400
67. Steering arm/wheel/lever 2010-05-11
68. P0031408
69. Steering arm/wheel/lever 2010-05-11
70. P0031409
71. Steering arm/wheel/lever 2010-05-11
72. P0036971
73. Steering arm/wheel/lever 2010-06-09
74. P0036745
75. General alarm signals (audible/visual) 2010-06-01
76. P0030586
77. Battery cut out connector/contactor 2010-01-25
78. P0030580
79. Driving function harnesses/fuse 2010-01-25
80. P0032964
81. Driving function harnesses/fuse 2010-01-25
82. P0032393
83. Transistor panel 2010-05-11
84. P0036753
85. Work function harnesses/fuse 2010-05-31
86. P0034082
87. Battery/motor cables, fuse 2010-01-25
88. P0030669
89. Drive/multi-function PCBs 2010-03-08
90. P0034047
91. Lift/lowering/reach movement probes/sensors 2010-01-21
92. P0034049
93. Lift/lowering/reach movement probes/sensors 2010-01-21
94. P0034050
95. Lift/lowering/reach movement probes/sensors 2009-09-23
96. P0036127
97. Lift/lowering/reach movement probes/sensors 2010-02-17
98. P0036128
99. Lift/lowering/reach movement probes/sensors 2010-02-17
100. P0036129
101. Lift/lowering/reach movement probes/sensors 2010-02-17
102. P0036130
103. Lift/lowering/reach movement probes/sensors 2010-02-17
104. P0030581
105. Safety probes/sensors 2010-01-25
106. P0032079
107. Safety probes/sensors 2010-01-25
108. P0033990
109. Hydraulic unit 2010-01-21
110. P0031679
111. Hydraulic lines chassis 2010-01-21
112. P0031462

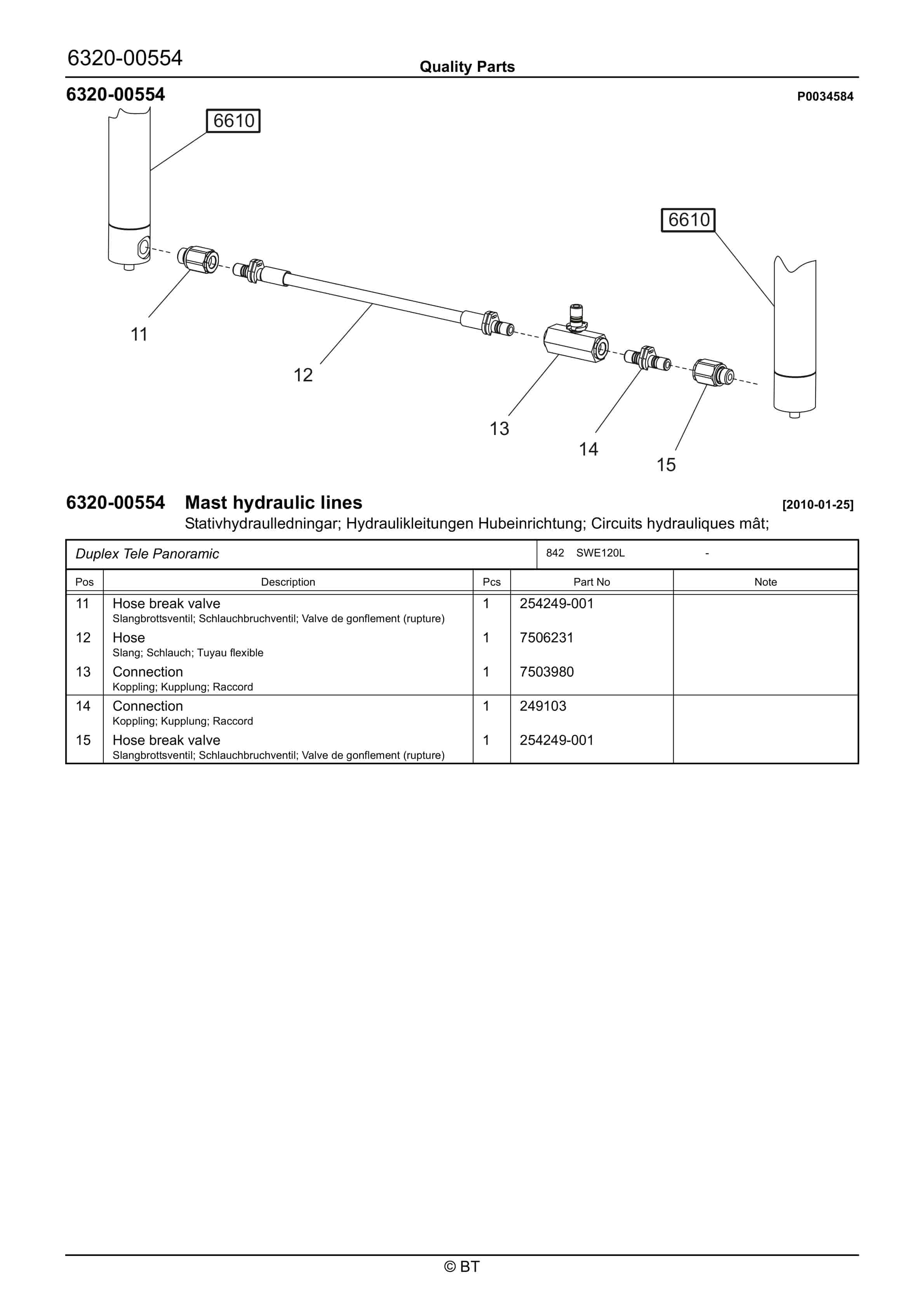

113. Mast hydraulic lines 2010-01-25
114. P0034583
115. Mast hydraulic lines 2010-01-25
116. P0034584
117. Mast hydraulic lines 2010-01-25
118. P0034586
119. Mast hydraulic lines 2010-01-25
120. P0036975
121. Main lift cylinders 2010-06-09
122. P0036976
123. Main lift cylinders 2010-06-09
124. P0036247
125. Support arm/initial lift cylinders 2010-02-23
126. P0031485

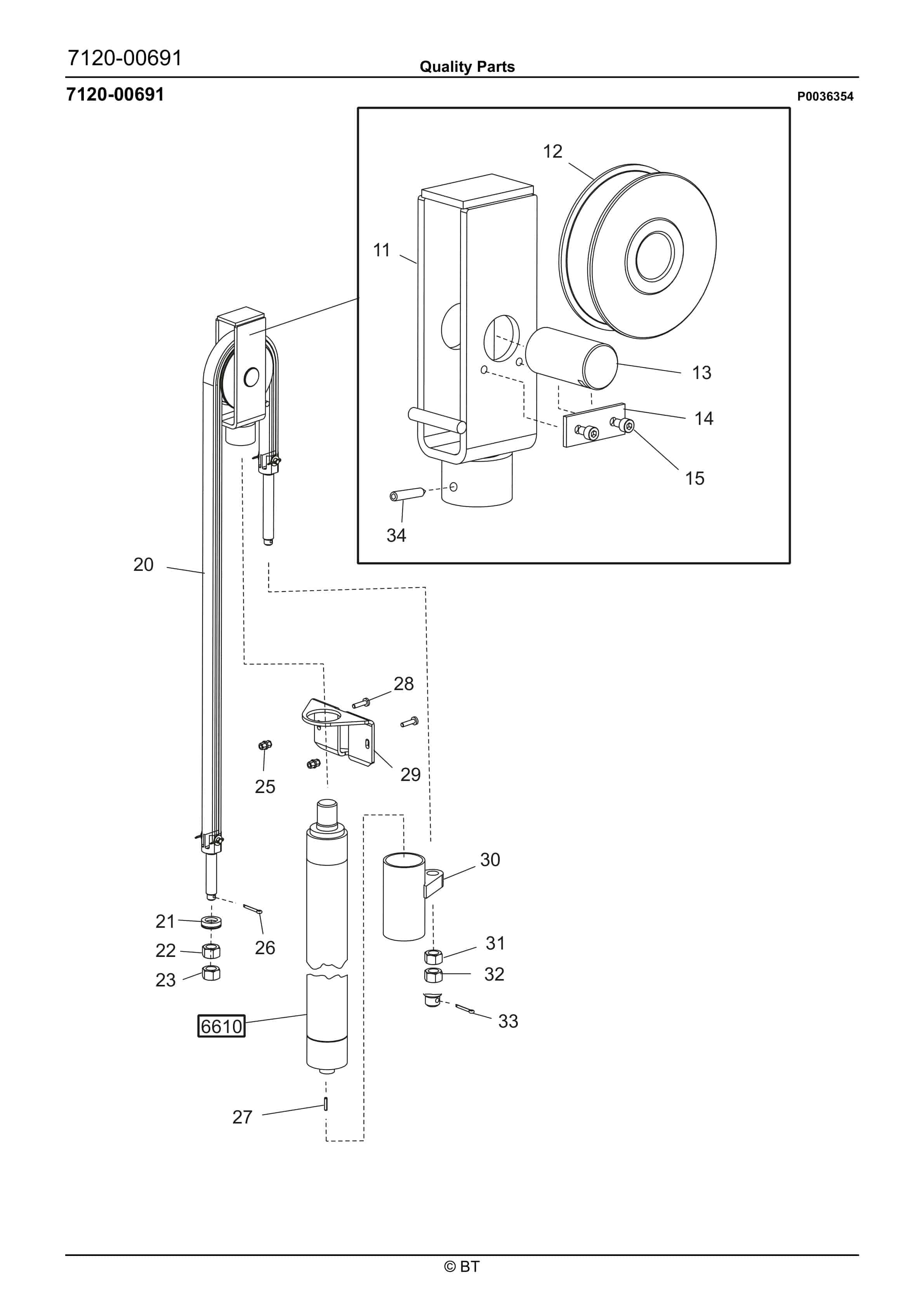

127. Main lift chain system 2010-01-25
128. P0036353
129. Main lift chain system 2010-03-23
130. P0036354
131. Main lift chain system 2010-03-26
132. P0036355
133. Main lift chain system 2010-03-23
134. P0032780

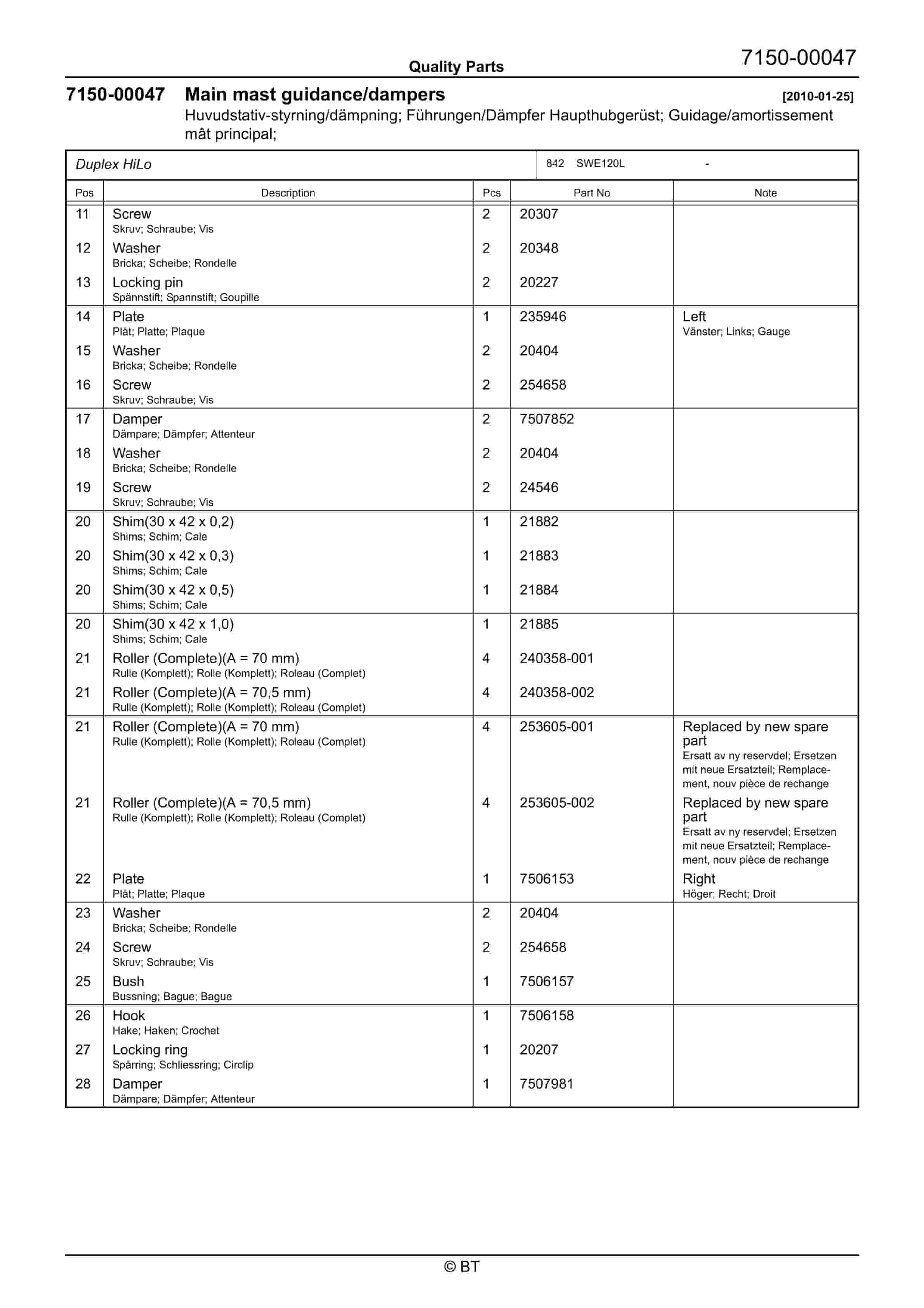

135. Main mast fork carriage 2010-01-25
136. P0031469
137. Main mast guidance/dampers 2010-01-25
138. P0034582
139. Main mast guidance/dampers 2010-01-25
140. P0034941
141. Main mast guidance/dampers 2010-01-25
142. P0034943
143. Main mast guidance/dampers 2010-01-25
144. P0015872
145. Fork, carpet boom, lift hook 2010-01-25
146. P0036977
147. Fork carriage unit, integrated sideshift, fork spread 2010-06-09
148. P0033086
149. Extra warning lights/alarm 2010-03-08
150. P0033422
151. Extra warning lights/alarm 2010-03-08
152. P0035819
153. Charger attachment 2010-03-09
154. P0031234
155. Extra electrical equipment 2010-01-25
156. P0031243
157. Extra electrical equipment 2010-03-08
158. P0034924
159. Extra electrical equipment 2010-02-03
160. P0012396
161. Truck log device, code locking device 2010-03-08
162. P0026077
163. Truck log device, code locking device 2010-03-10
164. P0033140
165. Truck log device, code locking device 2010-03-08
166. P0033141
167. Truck log device, code locking device 2010-03-08
168. P0031110
169. Other extra equipment 2010-03-08
170. P0031111
171. Other extra equipment 2010-01-25
172. P0032686
173. Other extra equipment 2010-01-25
174. P0033424
175. Other extra equipment 2010-03-08
176. P0033425
177. Other extra equipment 2010-03-08
178. P0033429
179. Other extra equipment 2010-01-25
180. P0034762
181. Other extra equipment 2010-01-25
