BT SWE120S Quality Parts 244851
BT SWE120S Quality Parts 244851 - Image 2
BT SWE120S Quality Parts 244851 - Image 3

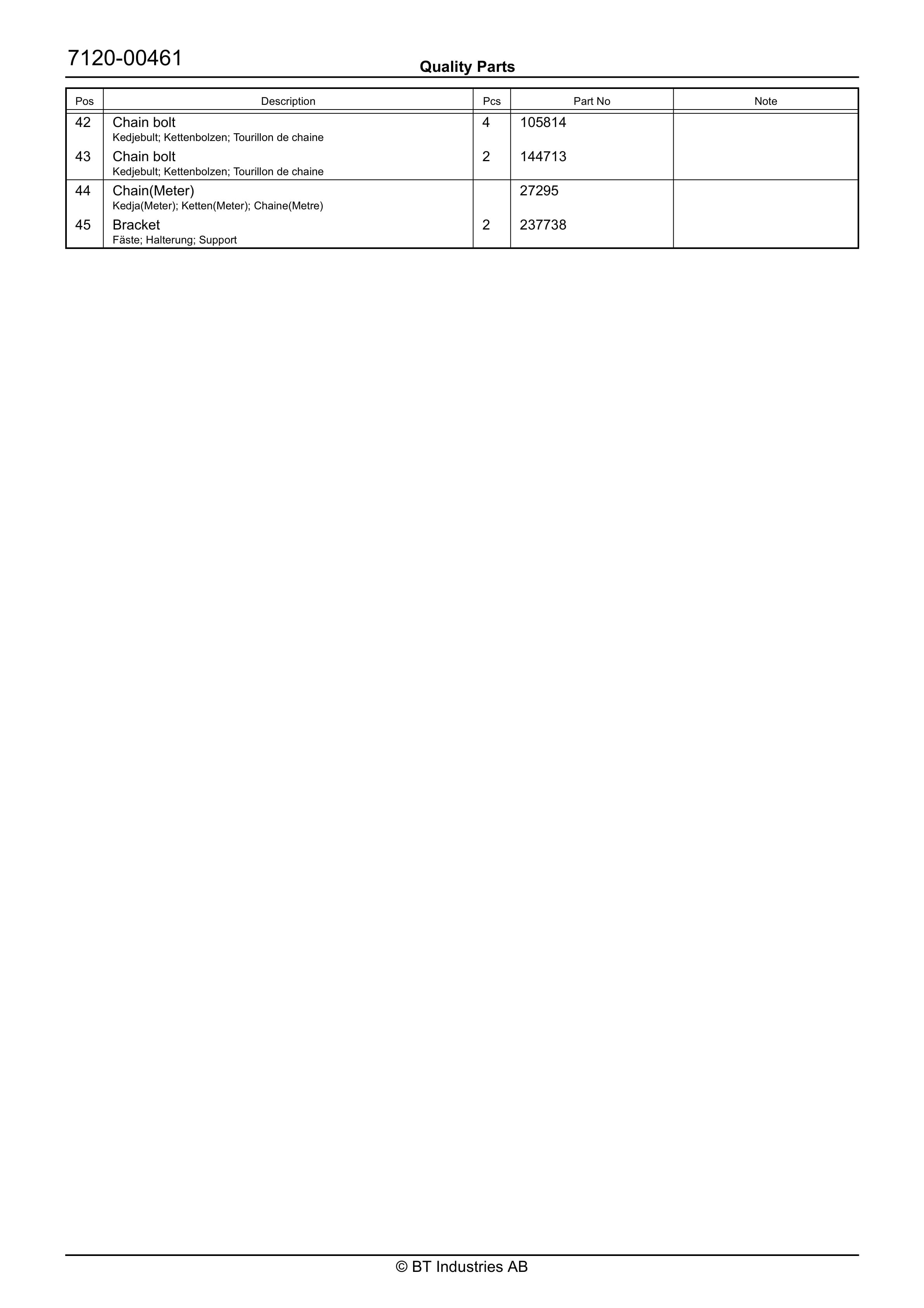

BT SWE120S Quality Parts 244851 - Image 4
BT SWE120S Quality Parts 244851 - Image 5

BT SWE120S Quality Parts 244851

$30.00

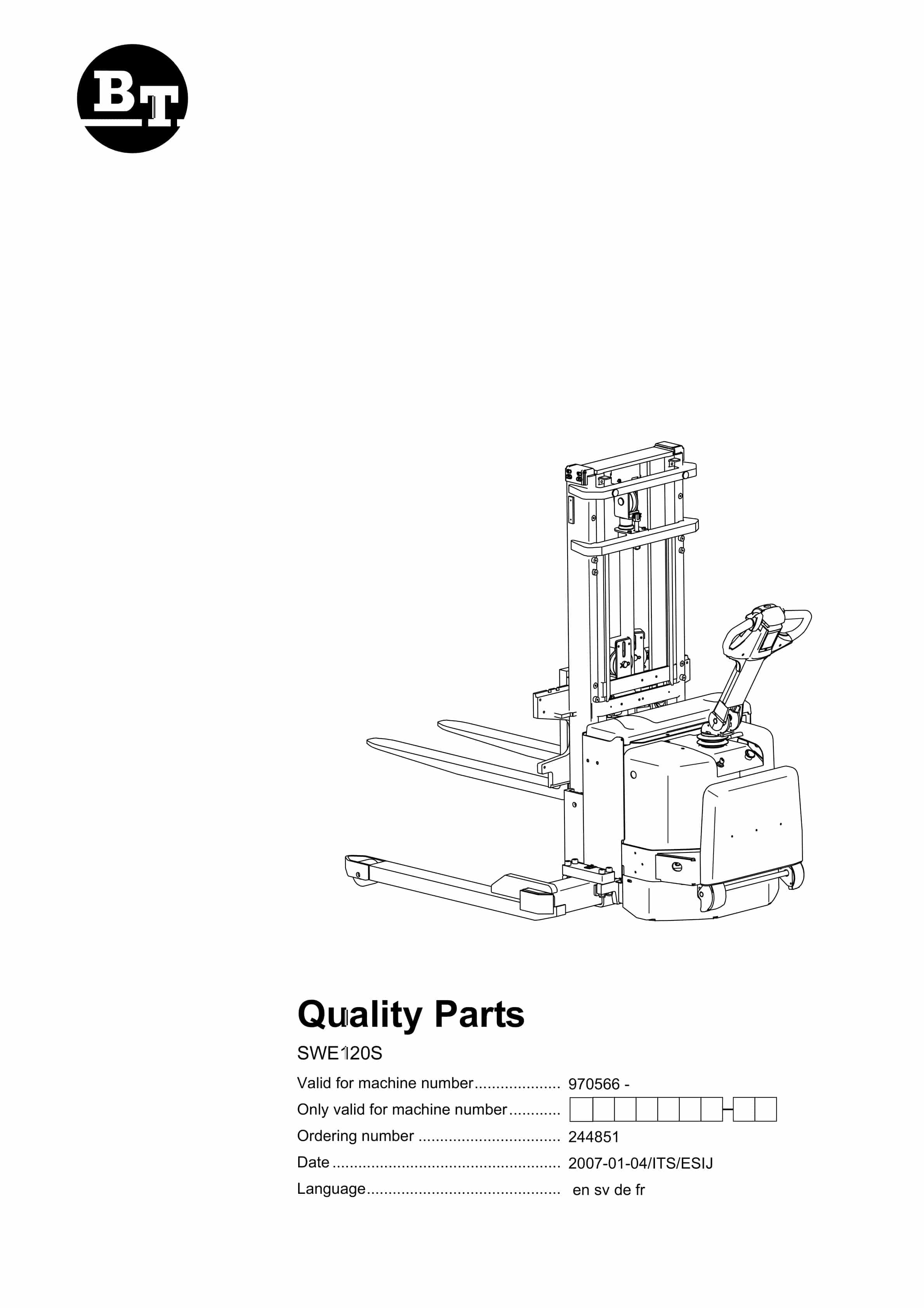

  • Type Of Manual: Quality Parts
  • Manual ID: 244851
  • : Parts Manual PDF
  • Number of Pages: 95
  • Size: 4.7MB
  • Format: PDF
Category:

Product details

  • Model List:

    • SWE120S
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0015807
  • 11. Inspection covers 2004-06-16
  • 12. P0015660
  • 13. Support arms, stabilizers 2004-06-16
  • 14. P0015904
  • 15. Battery compartment parts 2004-06-16
  • 16. P0028519
  • 17. Frame/chassis components 2007-01-04
  • 18. P0020456
  • 19. Platform incl. fixing points 2006-04-10
  • 20. P0015760
  • 21. Driver controls ( mechanical ) 2006-04-10
  • 22. P0015759
  • 23. Finger/foot guards 2004-06-16
  • 24. P0015884
  • 25. Finger/foot guards 2005-04-06
  • 26. P0015885
  • 27. Finger/foot guards 2005-04-06
  • 28. P0017697
  • 29. Signs, warnings, decals 2004-06-16
  • 30. P0015822
  • 31. Electric pump motor 2006-10-27
  • 32. P0020441
  • 33. Electric drive motor 2007-01-03
  • 34. P0027237
  • 35. Mechanical drive gear unit 2006-09-21
  • 36. P0017735
  • 37. Electromagnetic parking brake 2006-04-10
  • 38. P0020790
  • 39. Drive wheel 2006-04-10
  • 40. P0028572
  • 41. Fork/support arm wheels 2007-01-04
  • 42. P0024252
  • 43. Steering arm/wheel/lever 2006-12-29
  • 44. P0024257
  • 45. Steering arm/wheel/lever 2006-12-29
  • 46. P0013830
  • 47. Steering bearings, radial bearing 2004-08-26
  • 48. P0017660

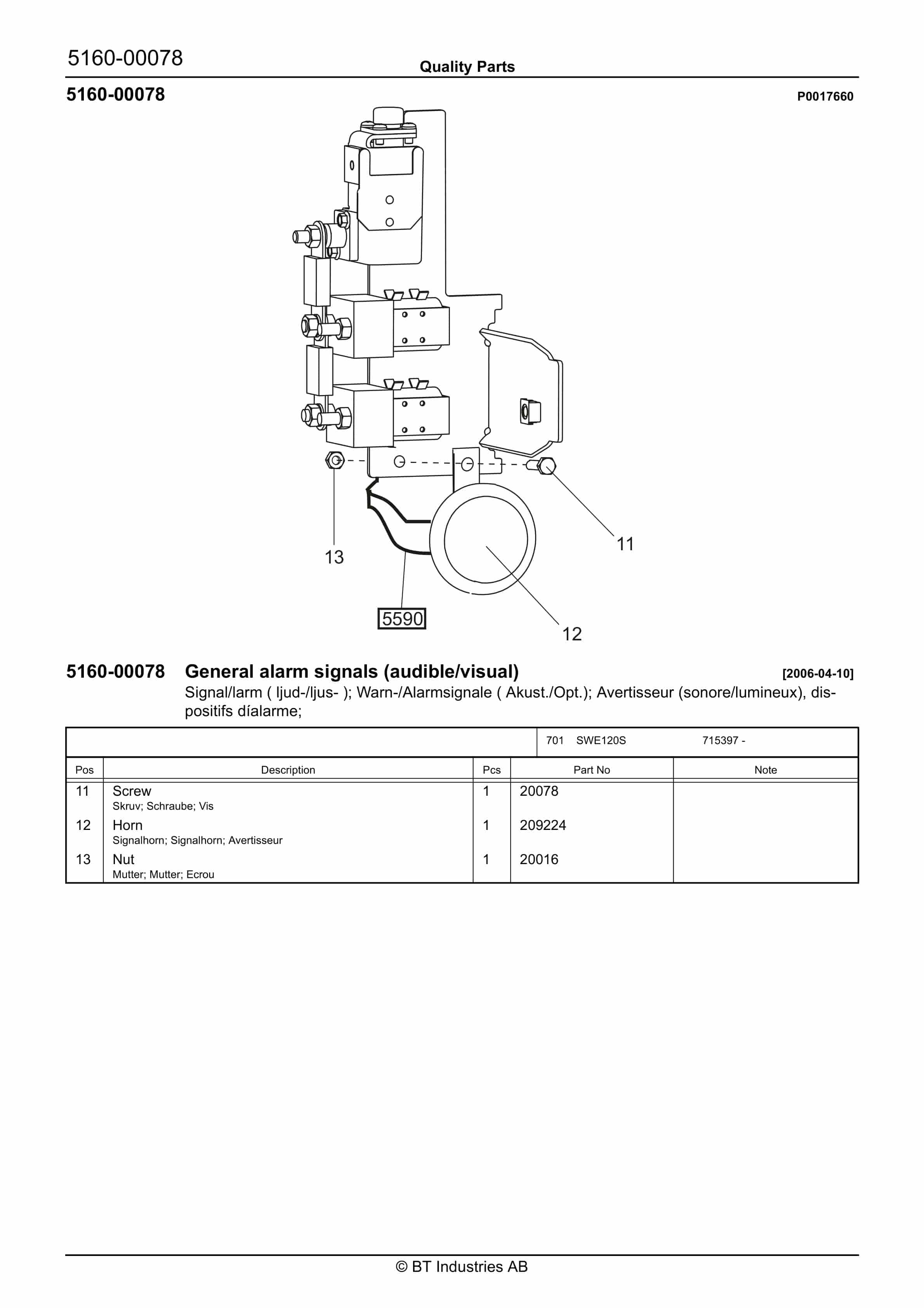

  • 49. General alarm signals (audible/visual) 2006-04-10
  • 50. P0012438
  • 51. Battery cut out connector/contactor 2006-04-10
  • 52. P0015846
  • 53. Battery cut out connector/contactor 2006-04-10
  • 54. P0015763
  • 55. Start/stop switch 2006-04-10
  • 56. P0015764
  • 57. Transistor panel 2006-12-18
  • 58. P0021568
  • 59. Work function harnesses/fuse 2006-11-02
  • 60. P0016866
  • 61. Pump contactor 2006-05-17
  • 62. P0012445
  • 63. Safety probes/sensors 2006-04-10
  • 64. P0024285
  • 65. Safety probes/sensors 2005-08-12
  • 66. P0028065
  • 67. Hydraulic unit 2006-11-08
  • 68. P0015858
  • 69. Hydraulic lines chassis 2005-04-06
  • 70. P0017755
  • 71. Hydraulic lines chassis 2005-04-06

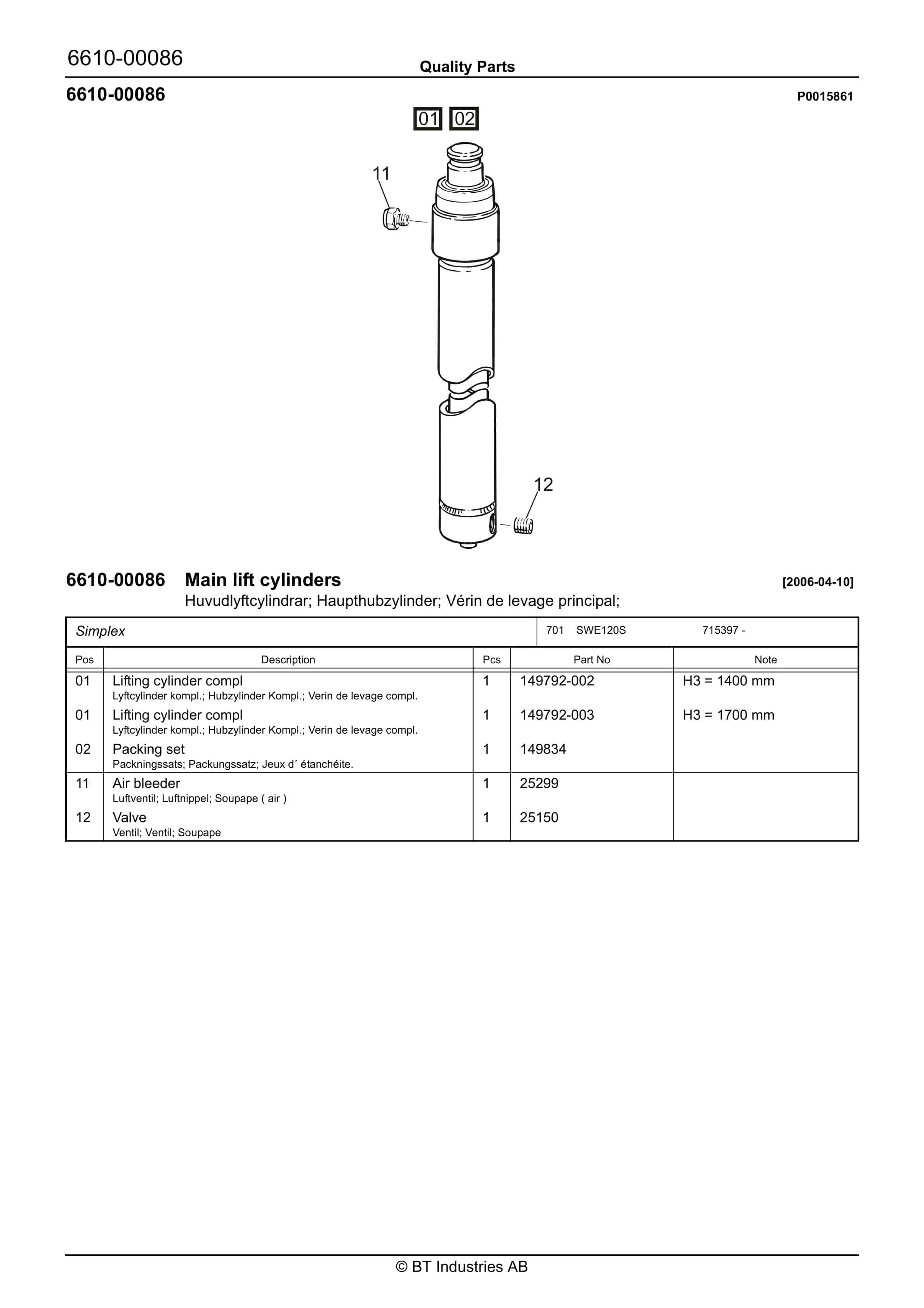

  • 72. P0015861
  • 73. Main lift cylinders 2006-04-10
  • 74. P0015866
  • 75. Main lift cylinders 2006-04-10
  • 76. P0015867
  • 77. Main lift cylinders 2005-04-06
  • 78. P0028080
  • 79. Main lift chain system 2006-11-09
  • 80. P0028084
  • 81. Main lift chain system 2006-11-09
  • 82. P0015869
  • 83. Main mast fork carriage 2006-01-10
  • 84. P0015870
  • 85. Main mast guidance/dampers 2006-05-18
  • 86. P0015872
  • 87. Fork, carpet boom, lift hook 2005-04-06

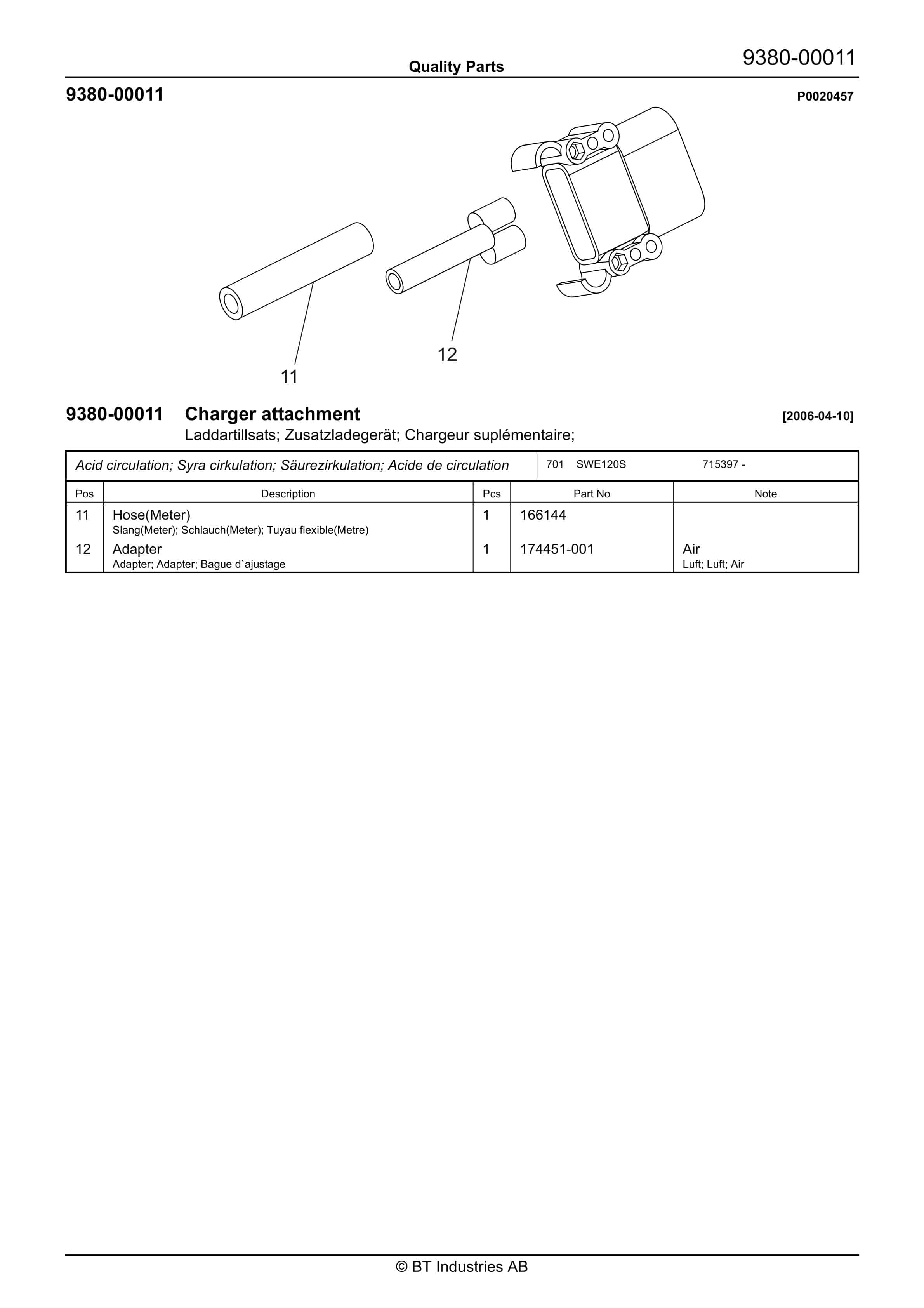

  • 88. P0017731
  • 89. Charger attachment 2006-04-10
  • 90. P0020457
  • 91. Charger attachment 2006-04-10
  • 92. P0015420
  • 93. Extra electrical equipment 2006-04-10
  • 94. P0028552
  • 95. Extra electrical equipment 2007-01-04
  • 96. P0028554
  • 97. Extra electrical equipment 2007-01-04
  • 98. P0028555
  • 99. Extra electrical equipment 2007-01-04
  • 100. P0012396
  • 101. Truck log device, code locking device 2006-09-29
  • 102. P0022173
  • 103. Truck log device, code locking device 2006-04-10
  • 104. P0026077
  • 105. Truck log device, code locking device 2006-09-29
  • 106. P0015899
  • 107. Other extra equipment 2004-06-16
  • 108. P0024328
  • 109. Other extra equipment 2006-06-30
  • 110. P0024329
  • 111. Other extra equipment 2006-04-10
