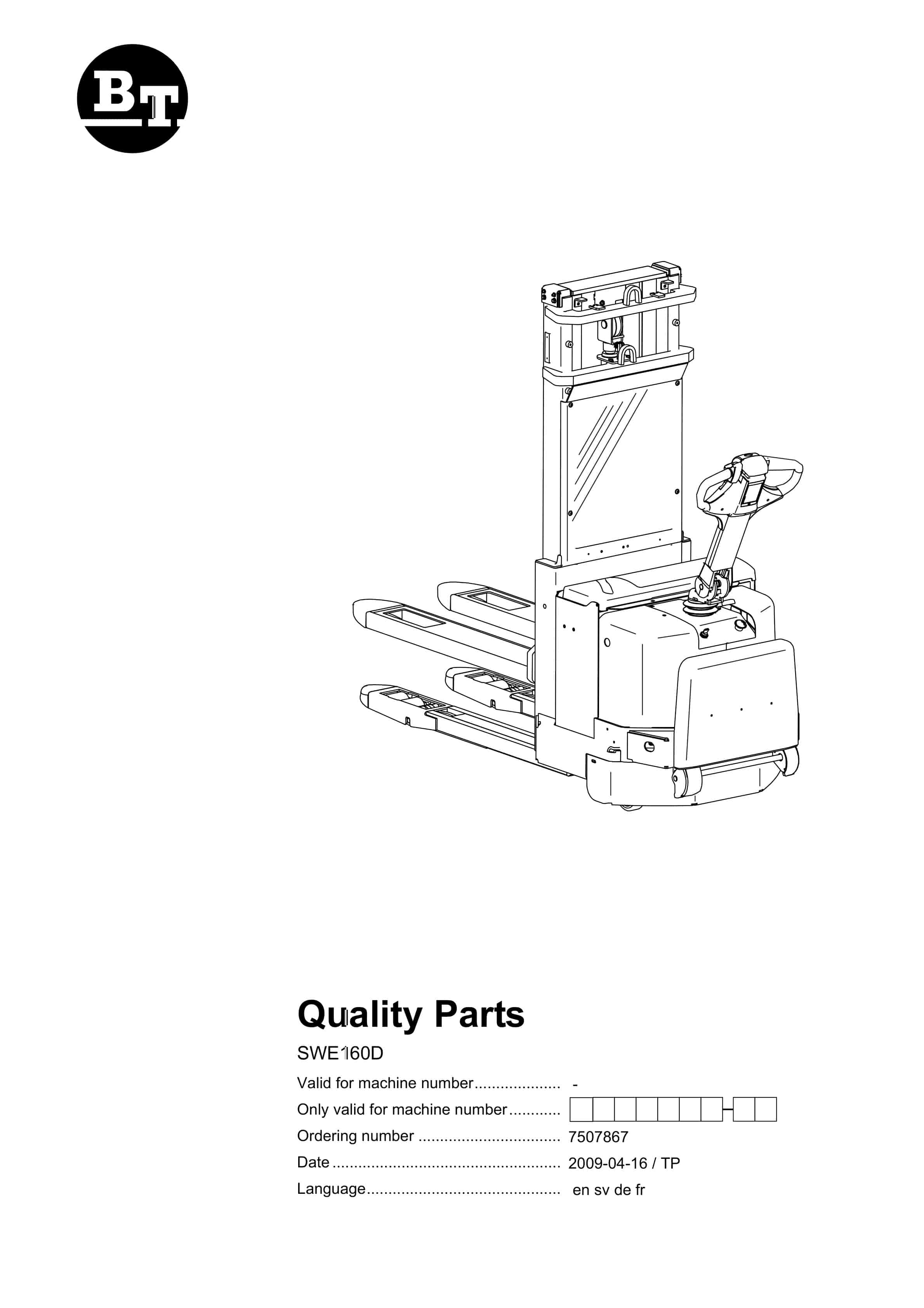

BT SWE160D Quality Parts 7507867
BT SWE160D Quality Parts 7507867 - Image 2
BT SWE160D Quality Parts 7507867 - Image 3
BT SWE160D Quality Parts 7507867 - Image 4
BT SWE160D Quality Parts 7507867 - Image 5

BT SWE160D Quality Parts 7507867

$30.00

  • Type Of Manual: Quality Parts
  • Manual ID: 7507867
  • : Parts Manual PDF
  • Number of Pages: 105
  • Size: 5.7MB
  • Format: PDF
Category:

Product details

  • Model List:

    • SWE160D
  • 1. Chassis
  • 1.1. Chassi Chassis Châssis
  • 2. Motors
  • 2.1. Motorer Motoren Moteurs
  • 3. Transmission/Drive gear
  • 3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
  • 4. Brake/Wheel/Caterpillar system
  • 4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
  • 5. Steering system
  • 5.1. Styrsystem Steuer-/Lenksystem Système de direction
  • 6. Electrical system
  • 6.1. Elektriskt system Elektroanlage Système électrique
  • 7. Hydraulic/pneumatic system
  • 7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
  • 8. Work function – lifting masts
  • 8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
  • 9. Options/attachments
  • 9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
  • 10. P0015809
  • 11. Inspection covers 2006-04-10
  • 12. P0024120
  • 13. Support arms, stabilizers 2005-11-10
  • 14. P0015902
  • 15. Battery compartment parts 2006-04-10
  • 16. P0017724
  • 17. Battery compartment parts 2006-04-10
  • 18. P0028519
  • 19. Frame/chassis components 2007-01-04
  • 20. P0020784
  • 21. Motor fixing points 2008-01-16
  • 22. P0028993
  • 23. Platform incl. fixing points 2007-09-17
  • 24. P0015760
  • 25. Driver controls ( mechanical ) 2006-04-10
  • 26. P0015758
  • 27. Finger/foot guards 2005-04-06
  • 28. P0015877
  • 29. Finger/foot guards 2005-04-06
  • 30. P0024740
  • 31. Driver protection 2005-09-20
  • 32. P0017702
  • 33. Signs, warnings, decals 2006-04-10
  • 34. P0015822
  • 35. Electric pump motor 2007-08-15
  • 36. P0029930
  • 37. Electric drive motor 2007-10-01
  • 38. P0027237
  • 39. Mechanical drive gear unit 2006-09-21
  • 40. P0017735
  • 41. Electromagnetic parking brake 2006-04-10
  • 42. P0020790
  • 43. Drive wheel 2008-03-05
  • 44. P0015651
  • 45. Support/castor wheels 2006-04-10
  • 46. P0024122
  • 47. Fork/support arm wheels 2005-11-10
  • 48. P0030934
  • 49. Steering arm/wheel/lever 2008-03-05
  • 50. P0030936
  • 51. Steering arm/wheel/lever 2008-03-05
  • 52. P0013829
  • 53. Steering bearings, radial bearing 2007-10-01
  • 54. P0017660
  • 55. General alarm signals (audible/visual) 2006-04-10
  • 56. P0012438
  • 57. Battery cut out connector/contactor 2007-10-01
  • 58. P0015846
  • 59. Battery cut out connector/contactor 2006-04-10
  • 60. P0017732
  • 61. Battery cut out connector/contactor 2006-04-10
  • 62. P0015763
  • 63. Start/stop switch 2006-04-10
  • 64. P0015764
  • 65. Transistor panel 2006-12-18
  • 66. P0021573
  • 67. Work function harnesses/fuse 2006-11-02
  • 68. P0029409
  • 69. Pump contactor 2008-11-04
  • 70. P0031541
  • 71. Lift/lowering/reach movement probes/sensors 2008-04-08
  • 72. P0012445
  • 73. Safety probes/sensors 2007-10-01
  • 74. P0024285
  • 75. Safety probes/sensors 2005-08-12
  • 76. P0028995

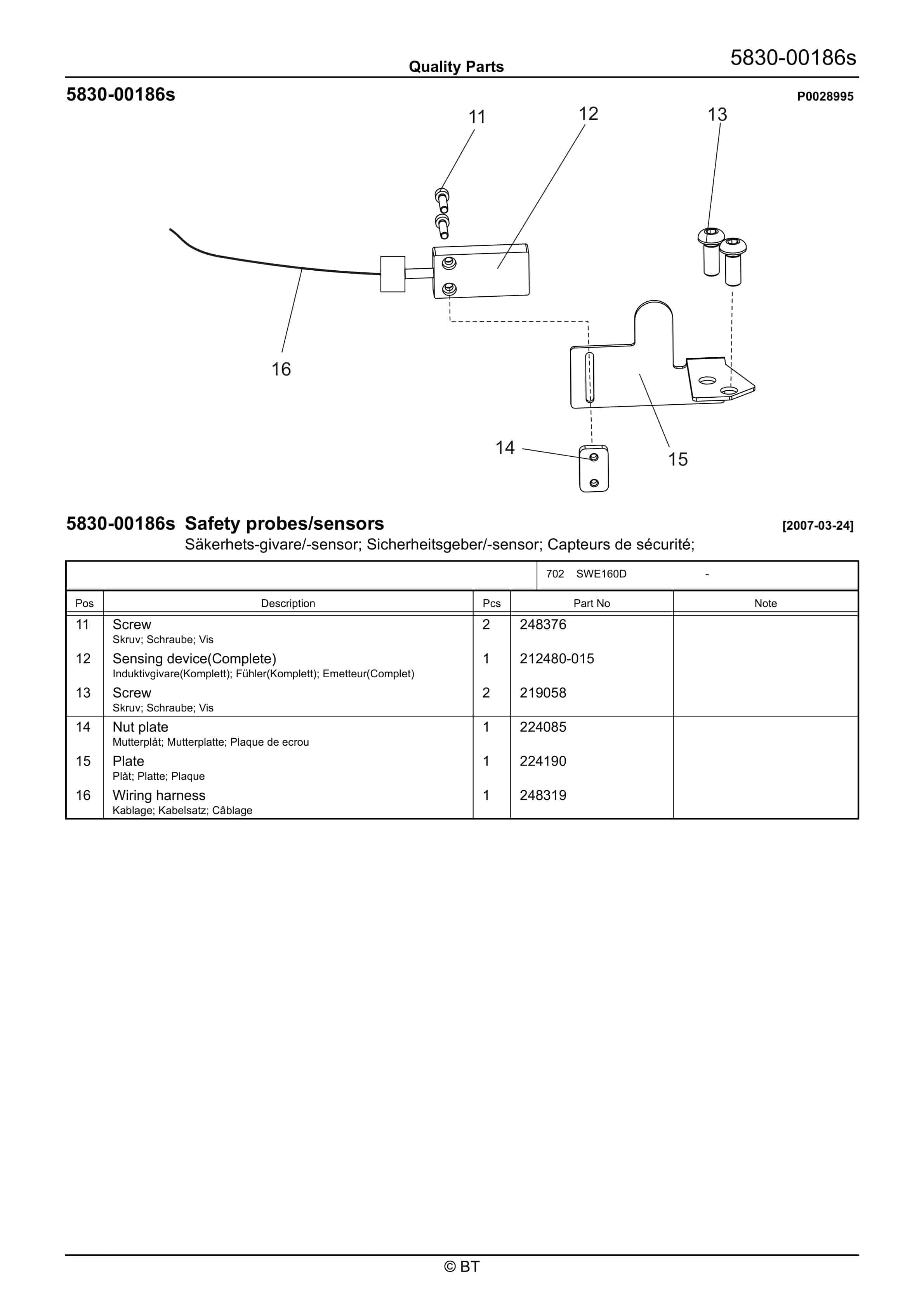

  • 77. Safety probes/sensors 2007-03-24
  • 78. P0028071
  • 79. Hydraulic unit 2007-12-04
  • 80. P0015856
  • 81. Hydraulic lines chassis 2006-04-10
  • 82. P0015868
  • 83. Main lift cylinders 2005-04-06
  • 84. P0015833
  • 85. Support arm/initial lift cylinders 2006-04-10
  • 86. P0028098
  • 87. Main lift chain system 2006-11-08

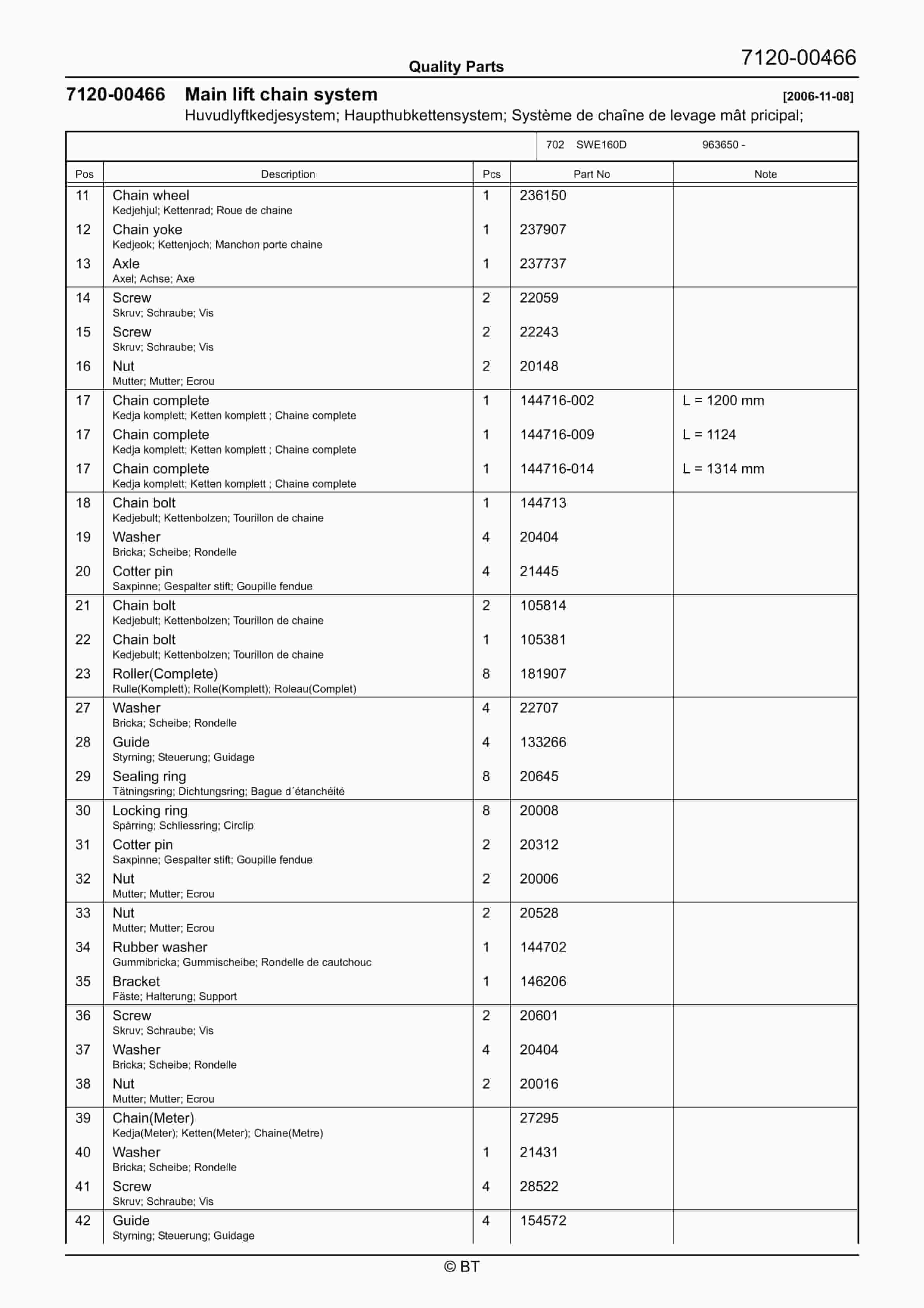

  • 88. P0015870
  • 89. Main mast guidance/dampers 2006-05-18
  • 90. P0021438
  • 91. Fork carriage unit, integrated sideshift, fork spread 2006-05-18
  • 92. P0017729

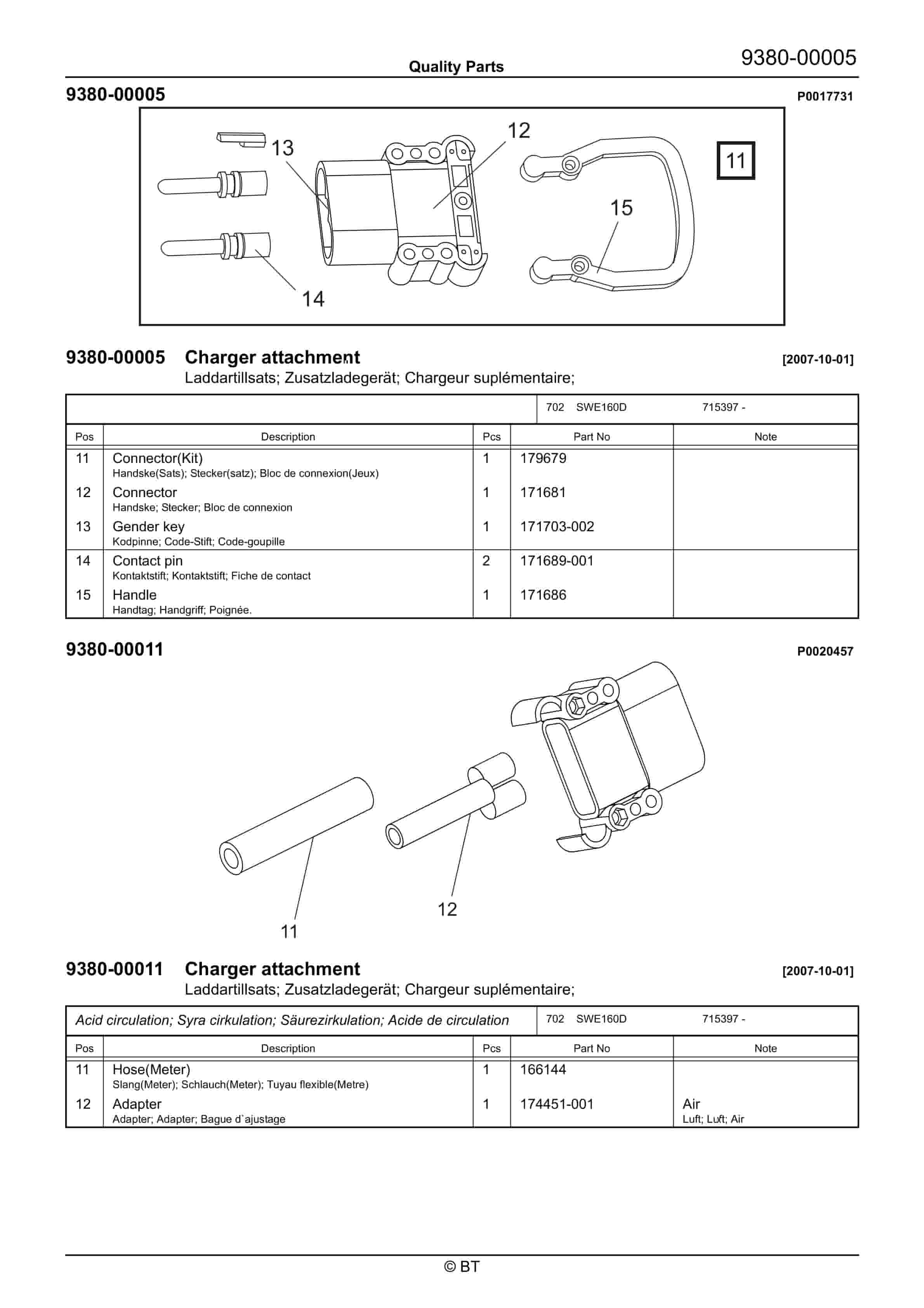

  • 93. Charger attachment 2007-10-01
  • 94. P0017731
  • 95. Charger attachment 2007-10-01
  • 96. P0020457
  • 97. Charger attachment 2007-10-01
  • 98. P0015420

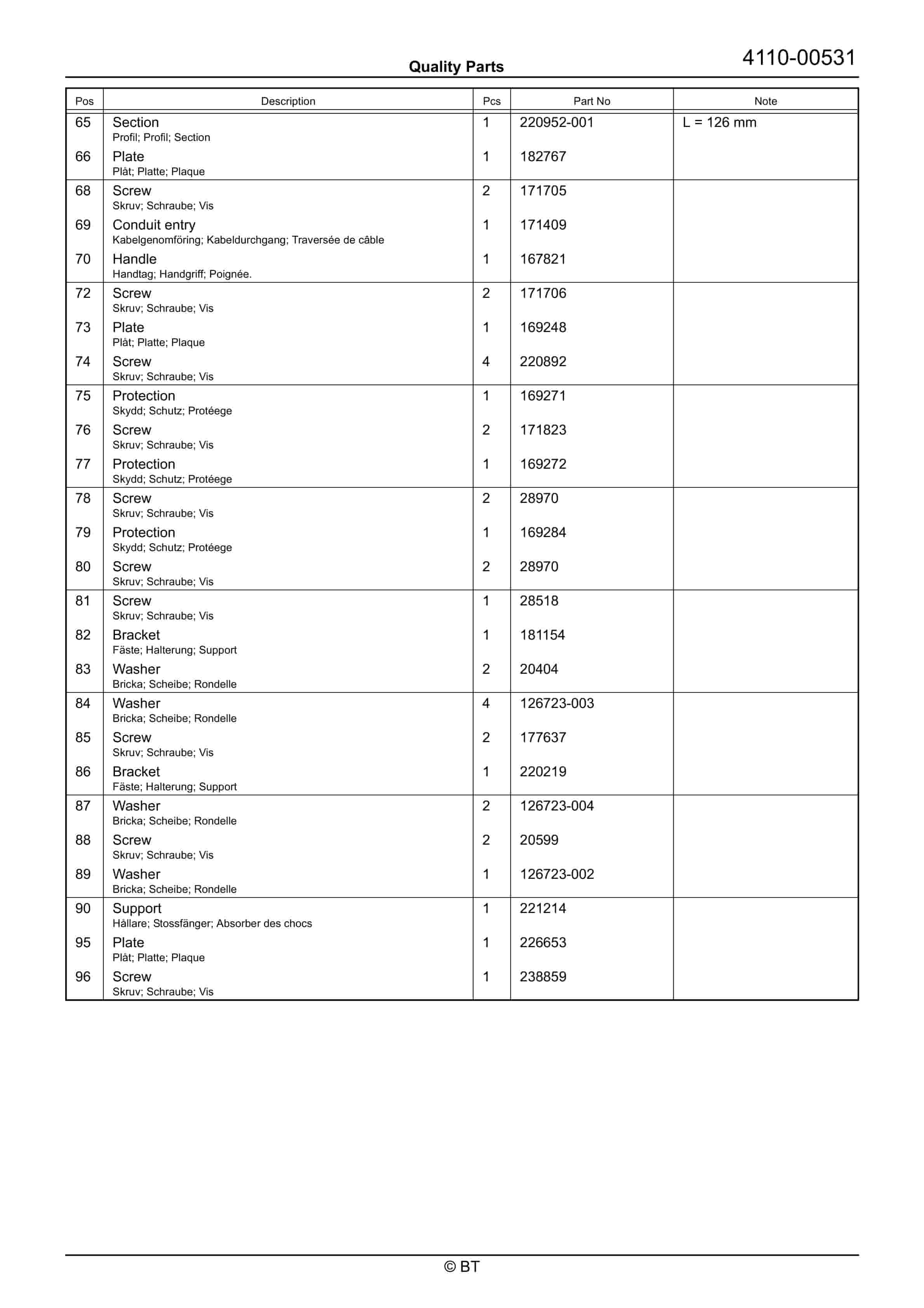

  • 99. Extra electrical equipment 2006-04-10
  • 100. P0028552
  • 101. Extra electrical equipment 2008-02-11
  • 102. P0028554
  • 103. Extra electrical equipment 2008-02-11
  • 104. P0028555
  • 105. Extra electrical equipment 2007-01-04
  • 106. P0012396
  • 107. Truck log device, code locking device 2008-02-29
  • 108. P0022173
  • 109. Truck log device, code locking device 2006-04-10
  • 110. P0026077
  • 111. Truck log device, code locking device 2008-02-29
  • 112. P0015897
  • 113. Other extra equipment 2006-04-10
  • 114. P0024329
  • 115. Other extra equipment 2007-10-01
  • 116. P0029190
  • 117. Other extra equipment 2007-05-02
  • 118. P0029191
  • 119. Other extra equipment 2007-05-02
