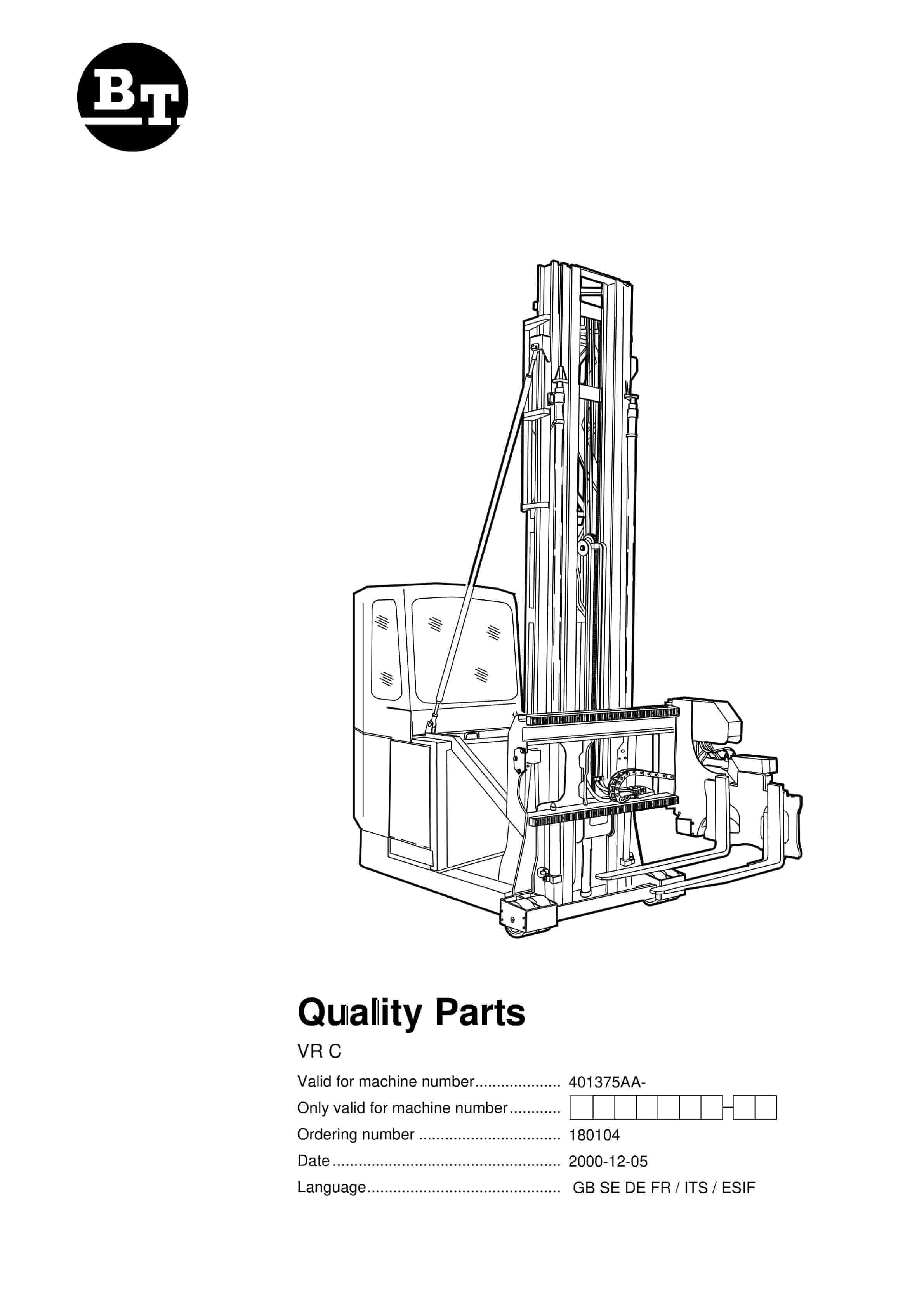

BT VR C Quality Parts 180104

$30.00

Type Of Manual: Quality Parts
Manual ID: 180104
: Parts Manual PDF
Number of Pages: 208
Size: 10.0MB
Format: PDF

Category: BT Parts Manual PDF

Product details

Model List:
- VR C

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/ Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique

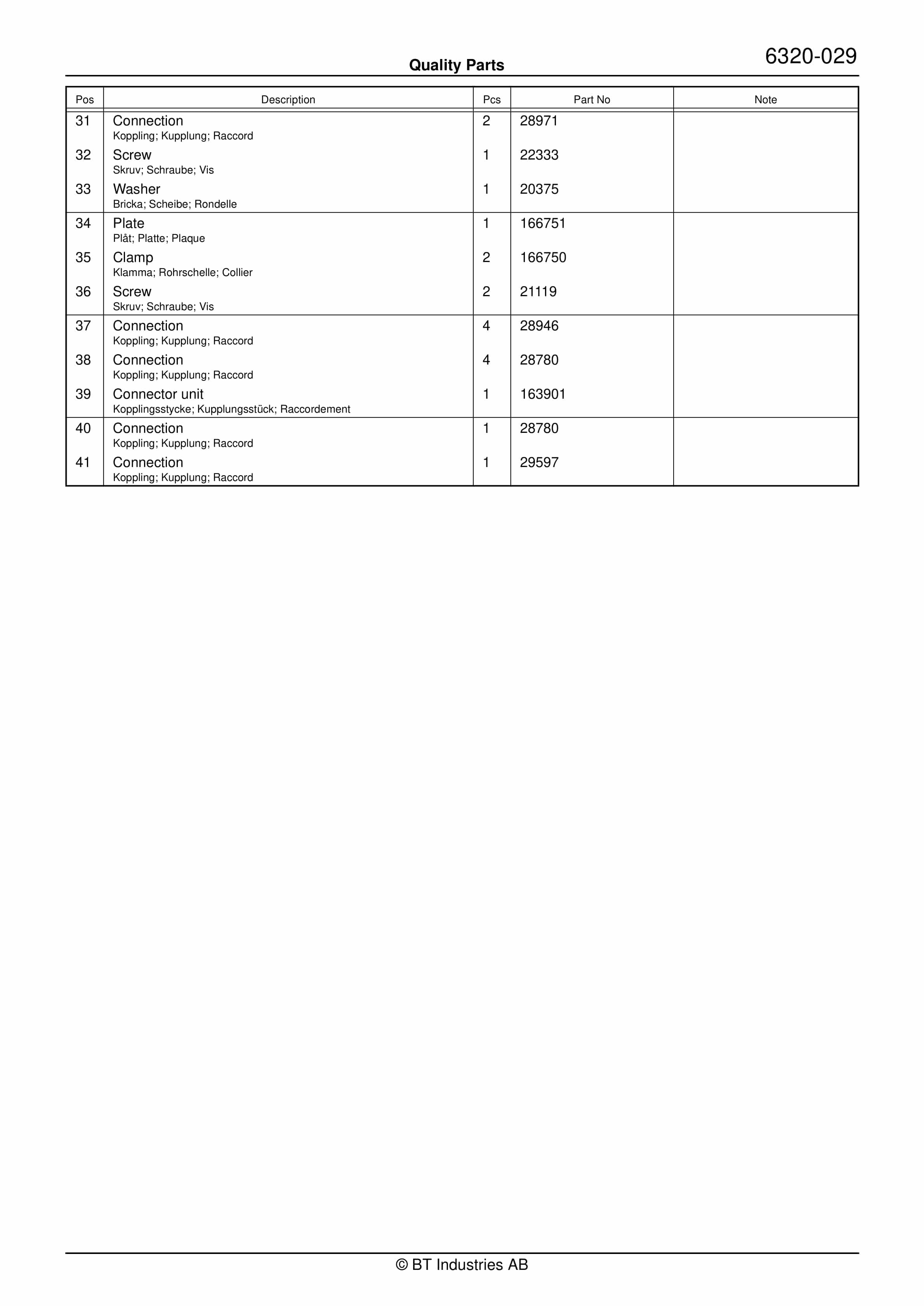

7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör /Zusatzausrüstung Equipement supplémentaire/Options
10.
11. Inspection covers 1999-12-01
12.
13. Inspection covers 2000-06-06
14.
15. Battery compartment parts 2000-06-06
16.
17. Motor fixing points 1999-04-26
18.
19. Cabin fixing points 1999-10-12
20.
21. Cabin windows 1998-03-06
22.
23. Cabin door 1998-02-26
24.
25. Seat, cushions 2000-11-29
26.
27. Cabin heating/ventilation 1998-11-05
28.
29. Driver controls ( mechanical ) 1997-10-07
30.
31. Internal fittings 1999-11-30
32.
33. Mirrors 1999-10-27
34.
35. Collision bumper/guards 1998-03-06
36.
37. Driver protection 2000-04-12
38.
39. Driver protection 1999-06-03
40.
41. Signs, warnings, decals 1999-11-30
42.
43. Electric pump motor 2000-10-10
44.
45. Electric steering motor 2000-04-26
46.
47. Electric fan motor, electric fan 1999-02-23
48.
49. Electric fan motor, electric fan 1999-11-03
50.
51. Electric drive motor 1999-06-08
52.
53. Mechanical drive gear unit 1999-10-06
54.
55. Travel brake controls 1997-10-28
56.
57. Electrically controlled travel brake 1999-02-24
58.
59. Electrically controlled travel brake 2000-06-19
60.
61. Drive wheel 1997-10-07
62.
63. Fork/support arm wheels 2000-05-29
64.
65. Fork/support arm wheels 2000-05-29
66.
67. Fork/support arm wheels 2000-05-29
68.
69. Electric steering wheel/lever 2000-10-09
70.
71. Steering angle sensor 1999-06-10
72.
73. Steering bearings 1999-02-23
74.
75. Auto guidance equipment (on board) 2000-10-11
76.
77. Auto guidance PCBs 2000-10-11
78.
79. Auto guidance antennas 1999-11-10
80.
81. Auto guidance harness/cables 1999-11-10
82.
83. Lighting 1998-03-09
84.
85. General alarm signals (audible/visual) 1999-12-20
86.
87. Battery cut out connector/contactor 1997-09-09
88.
89. Instrument panel, display 1997-10-14
90.
91. Level/position transducers/lamps 1999-05-18
92.
93. Level/position transducers/lamps 2000-03-21
94.
95. Level/position transducers/lamps 2000-03-29
96.
97. Start/stop switch 1996-05-21
98.
99. Travel direction switch (separate) 1997-11-20
100.
101. Travel direction switch (separate) 1997-01-31
102.
103. Speed control 1997-10-28
104.
105. Driving function harnesses/ fuse 2000-05-30
106.
107. Driving function harnesses/ fuse 2000-06-06
108.
109. Drive motor cables/resistors/fuses 1999-11-03
110.
111. Transistor panel 2000-10-09
112.
113. Work function micro switches, potentiometers 1999-05-18
114.
115. Work function micro switches, potentiometers 1999-11-30
116.
117. Work function harnesses/ fuse 1999-12-01
118.
119. Work function harnesses/ fuse 2000-06-06
120.
121. Battery/motor cables, fuse 2000-06-06
122.
123. Drive/multi-function PCBs 2000-06-06
124.
125. Work function PCBs 2000-03-30
126.
127. Safely electronics harnesses, fuse 1997-01-31
128.
129. Lift/lowering/reach movment probes/sensors 1999-05-18
130.
131. Safety probes/ sensors 1999-02-23
132.
133. Safety probes/ sensors 1999-03-03
134.
135. Safety probes/ sensors 1999-06-03
136.
137. Aisle probes/sensors 2000-11-09
138.
139. Hydraulic unit 2000-10-18
140.
141. Hydraulic tank 1999-06-08
142.
143. Hydraulic tank lines 1999-12-21
144.
145. Hydraulic tank lines 2000-02-08
146.
147. Filters and housing 1999-05-10
148.
149. Filters and housing 1999-06-21
150.
151. Hydraulic pump 2000-10-18
152.
153. Main valve unit lift/reach/tilt 1999-05-20
154.
155. Main valve unit lift/reach/tilt 1999-11-30
156.
157. Hydraulic lines chassis 2000-11-14
158.
159. Hydraulic lines chassis 2000-10-16
160.
161. Mast valve units 2000-10-19
162.
163. Mast hydraulic lines 2000-05-04
164.
165. Mast hydraulic lines 1999-11-22
166.
167. Mast hydraulic lines 2000-05-17
168.
169. Mast hydraulic lines 2000-05-24
170.
171. Main lift cylinders 1999-10-27
172.
173. Free lift cylinder 1999-04-28
174.
175. Tilt cylinders 1999-03-03
176.
177. Tilt cylinders 2000-05-29
178.
179. Other hydraulic cylinders 1999-05-20
180.
181. Other hydraulic cylinders 2000-06-20
182.
183. Main mast 1999-05-04
184.
185. Main lift chain system 2000-06-08
186.
187. Main mast guidance/ dampers 1999-11-02
188.
189. Main mast guidance/ dampers 1999-10-27
190.
191. Main mast suspension 1999-11-10
192.
193. Fork, carpet boom, lift hook 1999-04-14
194.
195. Fork, carpet boom, lift hook 1999-11-02
196.
197. Fork, carpet boom, lift hook 2000-05-25
198.
199. Turret head/three-way fork unit 2000-05-23
200.
201. Traversing function fork unit 1999-11-22
202.
203. Swivel/rotation function 2000-05-17
204.
205. Swivel/rotation function 2000-05-24
206.
207. Swivel/rotation function 2000-05-29
208.
209. Extra electrical equipment 1999-11-15
210.
211. Extra electrical equipment 2000-04-17
212.
213. Radio/recorder 2000-04-18
214.
215. Extra lighting 2000-03-29
216.
217. Extra warning lights/alarm 2000-03-14
218.
219. Extra warning lights/alarm 2000-04-18
220.
221. Charger attachment 1999-10-12
222.
223. Extra electrical equipment 2000-06-15
224.
225. Truck log device, code locking device 2000-10-18
226.
227. Truck log device, code locking device 2000-10-18
228.
229. Other extra equipment 1996-11-21
230.
231. Other extra equipment 1998-10-26
232.
233. Other extra equipment 1999-10-26
234.
235. Other extra equipment 2000-05-17
236.
237. Other extra equipment 2000-06-07
