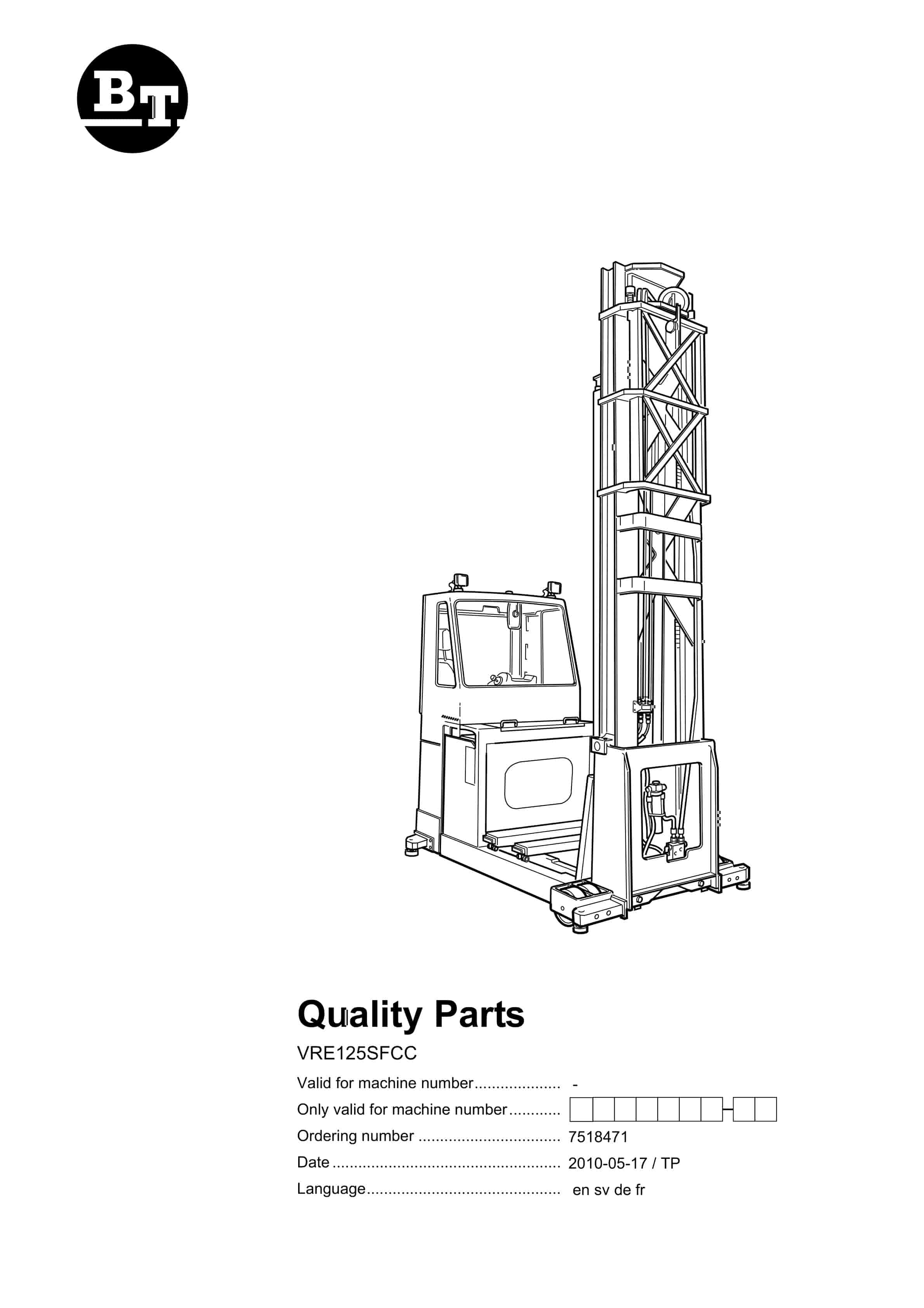

BT VRE125SFCC Quality Parts 7518471

$30.00

Type Of Manual: Quality Parts
Manual ID: 7518471
: Parts Manual PDF
Number of Pages: 191
Size: 11.4MB
Format: PDF

Category: BT Parts Manual PDF

Product details

Model List:
- VRE125SFCC

1. Chassis
1.1. Chassi Chassis Châssis
2. Motors
2.1. Motorer Motoren Moteurs
3. Transmission/Drive gear
3.1. Kraftöverföring/Drivväxel Kraftübertragung/Fahrgetriebe Transmission/Groupe de traction
4. Brake/Wheel/Caterpillar system
4.1. Broms-/Hjul-/Bandsystem Brems-/Rad-/Bandsystem Freins/Roues/ Chenilles
5. Steering system
5.1. Styrsystem Steuer-/Lenksystem Système de direction
6. Electrical system
6.1. Elektriskt system Elektroanlage Système électrique
7. Hydraulic/pneumatic system
7.1. Hydraulik/pneumatik Hydraulikanlage/Pneumatik Système hydraulique/pneumatique
8. Work function – lifting masts
8.1. Arbetsfunktion – lyftstativ Arbeitsfunktion – Hubgerüste Fonction de travail – mâts de levage
9. Options/attachments
9.1. Tillbehör/extrautrustning Zubehör/Zusatzausrüstung Equipement supplémentaire/Options
10. P0033334
11. Inspection covers 2008-11-24
12. P0033339
13. Inspection covers 2009-11-19
14. P0011855
15. Battery compartment parts 2009-11-19
16. P0010055
17. Motor fixing points 2009-11-19
18. P0033335
19. Cabin fixing points 2008-12-03
20. P0036746
21. Cabin windows 2010-05-10
22. P0033398
23. Cabin door 2008-12-03
24. P0021641
25. Seat, cushions 2007-11-28
26. P0027061
27. Cabin heating/ventilation 2007-11-28
28. P0019264
29. Driver controls ( mechanical ) 2009-11-19
30. P0033332
31. Internal fittings 2008-11-24
32. P0029605
33. Collision bumper/guards 2007-08-27
34. P0010303
35. Driver protection 2009-11-19
36. P0010410
37. Driver protection 2009-11-19
38. P0029357
39. Signs, warnings, decals 2007-08-27
40. P0020723
41. Electric pump motor 2009-11-19
42. P0022836
43. Electric steering motor 2009-11-19
44. P0011293
45. Electric fan motor, electric fan 2010-03-10
46. P0033431
47. Electric fan motor, electric fan 2009-11-19
48. P0020721
49. Electric drive motor 2009-11-19
50. P0009744
51. Mechanical drive gear unit 2009-11-19
52. P0007232
53. Travel brake controls 2010-03-10
54. P0012281
55. Electrically controlled travel brake 2009-11-19
56. P0026959
57. Electrically controlled travel brake 2009-11-19
58. P0029608
59. Drive wheel 2009-11-19
60. P0008933
61. Fork/support arm wheels 2009-11-19
62. P0009400
63. Fork/support arm wheels 2009-11-19
64. P0012280
65. Fork/support arm wheels 2009-11-19
66. P0029437
67. Electric steering wheel/lever 2007-08-27
68. P0029444
69. Steering angle sensor 2009-11-19
70. P0016555
71. Steering bearings 2009-11-19
72. P0011344
73. Auto guidance equipment (on board) 2007-11-28
74. P0012927
75. Auto guidance PCBs 2007-11-28
76. P0011851
77. Auto guidance antennas 2009-08-12
78. P0011853
79. Auto guidance harness/cables 2007-11-28
80. P0007932
81. Lighting 2007-11-28
82. P0029486
83. General alarm signals (audible/visual) 2010-04-13
84. P0026037
85. Battery cut out connector/contactor 2009-11-24
86. P0007136
87. Instrument panel, display 2010-03-10
88. P0011916
89. Level/position transducers/lamps 2007-11-28
90. P0011955
91. Level/position transducers/lamps 2009-11-24
92. P0036437
93. Level/position transducers/lamps 2010-04-21
94. P0000257
95. Travel direction switch (separate) 2010-03-10
96. P0007232
97. Speed control 2010-03-10
98. P0012282
99. Driving function harnesses/fuse 2009-11-24
100. P0033430
101. Driving function harnesses/fuse 2010-04-14
102. P0029499
103. Drive motor cables/resistors/fuses 2009-11-24

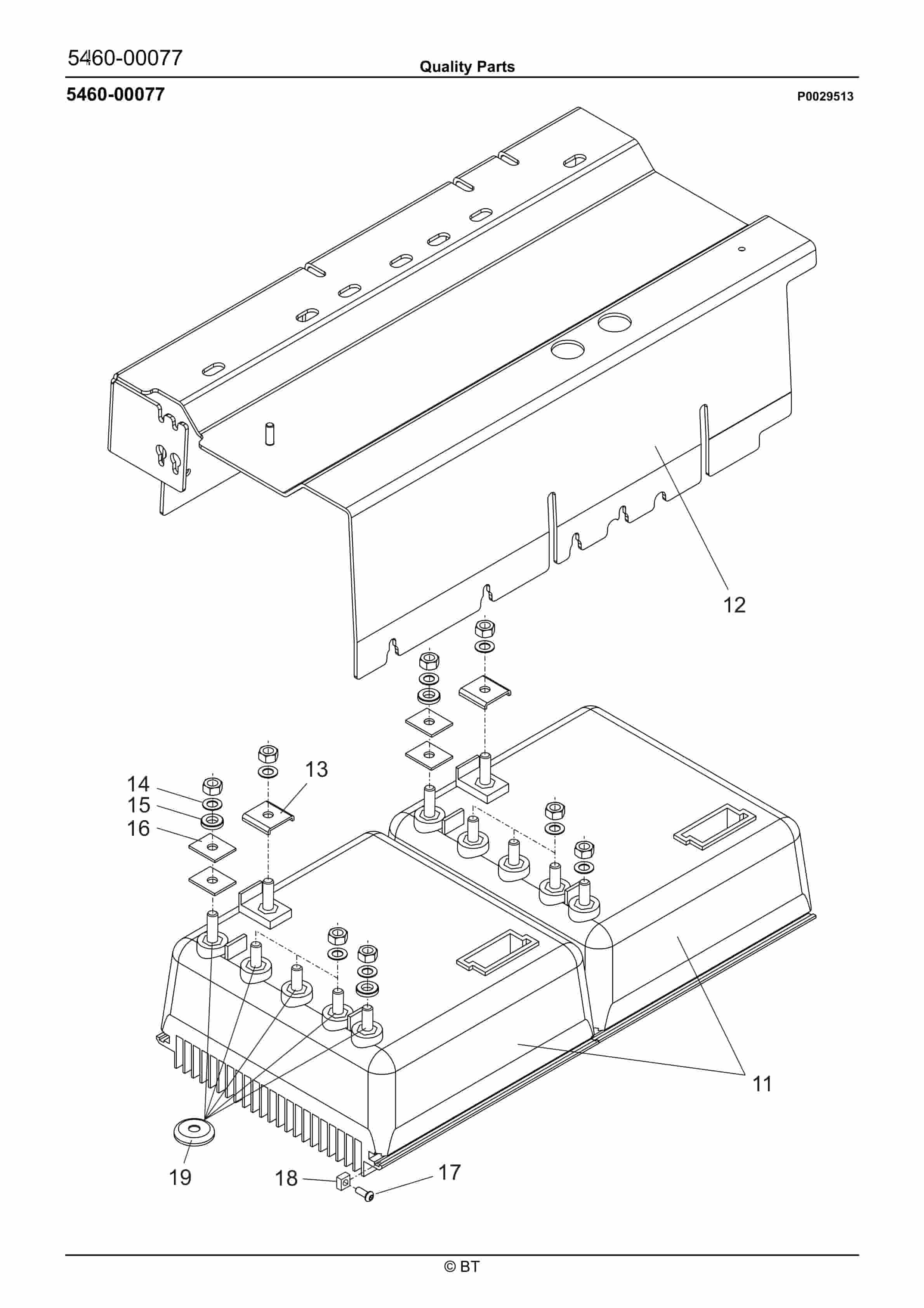

104. P0029513
105. Transistor panel 2009-11-24
106. P0010293
107. Work function micro switches, potentiometers 2007-11-28
108. P0025293
109. Work function micro switches, potentiometers 2007-11-28
110. P0011463
111. Work function harnesses/fuse 2007-11-28
112. P0028048
113. Work function harnesses/fuse 2009-11-24
114. P0036787
115. Work function harnesses/fuse 2010-05-17
116. P0012303
117. Battery/motor cables, fuse 2009-11-24
118. P0029355
119. Drive/multi-function PCBs 2009-11-24
120. P0011952
121. Work function PCBs 2009-11-24
122. P0003334
123. Safety electronics harnesses, fuse 2007-11-28
124. P0010298
125. Lift/lowering/reach movement probes/sensors 2007-11-28
126. P0010378
127. Safety probes/sensors 2009-11-24
128. P0029487
129. Safety probes/sensors 2010-03-10
130. P0029518
131. Safety probes/sensors 2007-08-27
132. P0019391
133. Aisle probes/sensors 2009-11-24
134. P0024602
135. Hydraulic tank 2009-11-24
136. P0010337
137. Hydraulic tank lines 2009-11-24
138. P0031481
139. Hydraulic tank lines 2008-10-15
140. P0010610
141. Filters and housing 2010-03-10
142. P0011856
143. Filters and housing 2010-03-30
144. P0019208
145. Hydraulic pump 2009-11-24
146. P0028043
147. Main valve unit lift/reach/tilt 2009-11-24
148. P0030419
149. Main valve unit lift/reach/tilt 2007-12-05
150. P0011467
151. Hydraulic lines chassis 2007-11-28

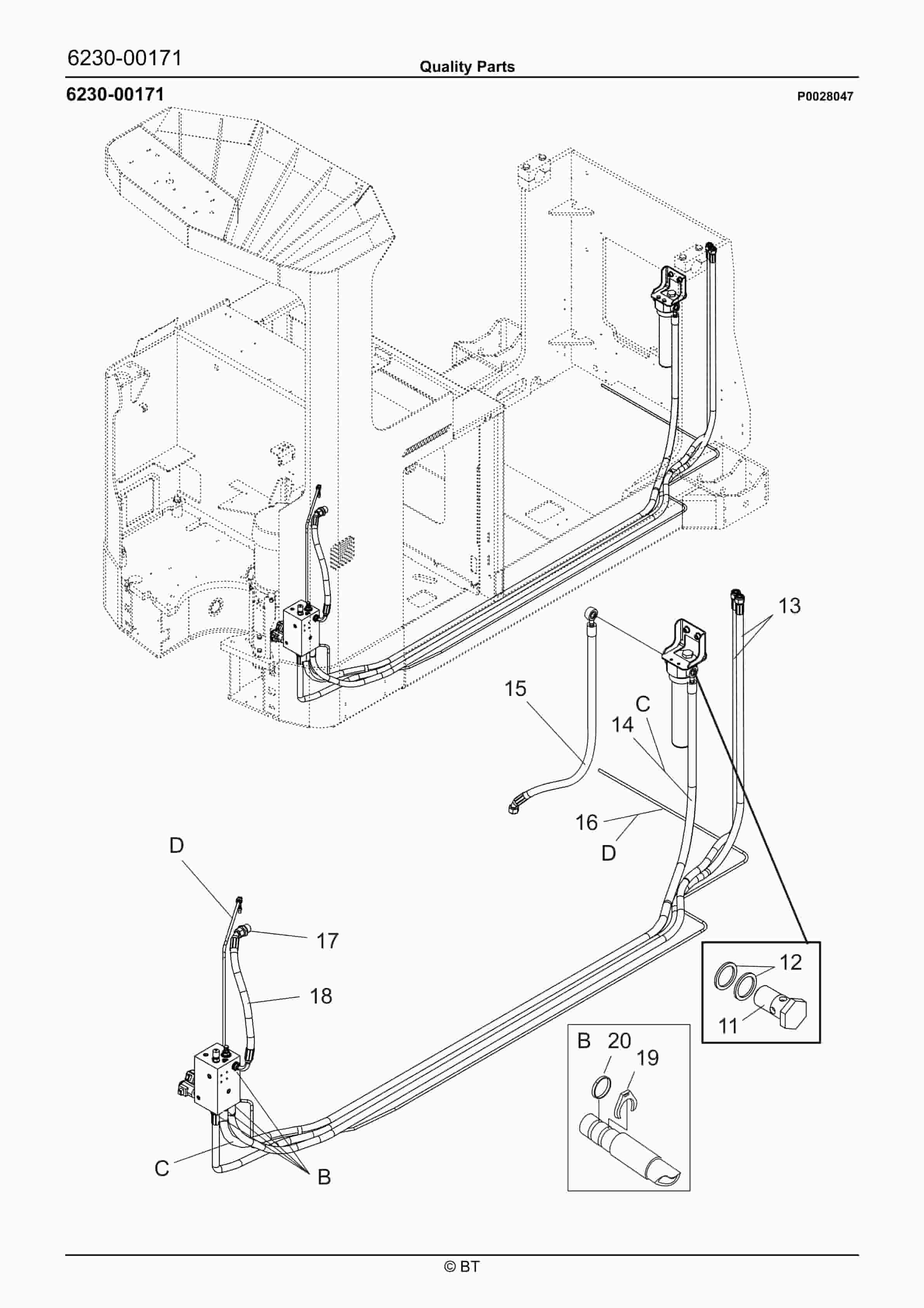

152. P0028047
153. Hydraulic lines chassis 2009-11-24
154. P0012311
155. Mast valve units 2009-11-24
156. P0011827
157. Mast hydraulic lines 2009-11-24
158. P0031741
159. Mast hydraulic lines 2009-11-24
160. P0031738
161. Main lift cylinders 2009-11-24
162. P0033474
163. Free lift cylinders 2009-11-24

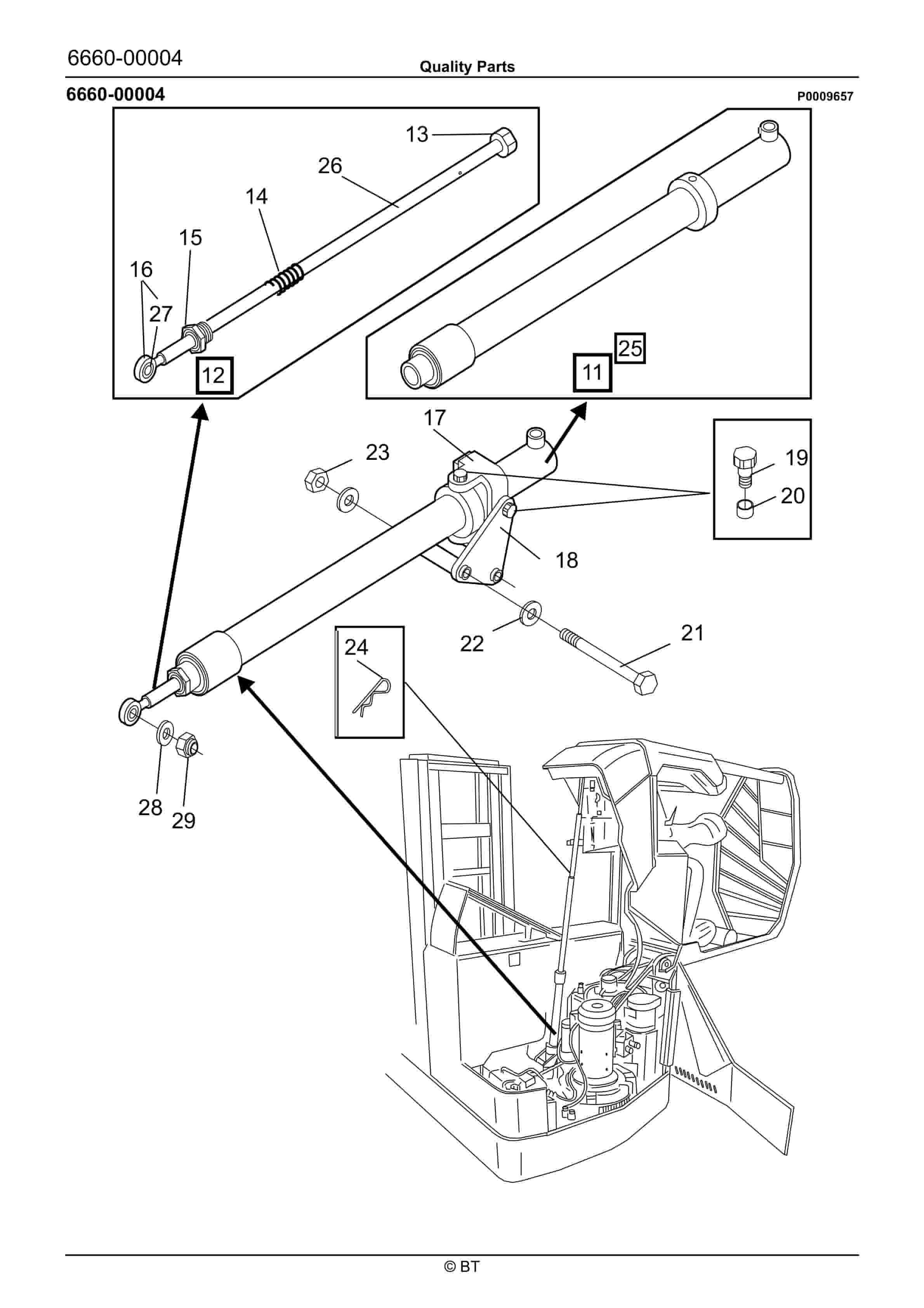

164. P0009657
165. Tilt cylinders 2008-10-15
166. P0010143
167. Main mast 2009-11-24
168. P0019995
169. Main lift chain system 2009-11-24
170. P0000171
171. Main mast guidance/dampers 2010-03-10
172. P0029618
173. Main mast guidance/dampers 2009-11-24
174. P0011832
175. Main mast suspension 2009-11-24
176. P0011960
177. Other load carriers 2009-11-24
178. P0036642
179. Shuttle fork unit 2010-04-27
180. P0036433
181. Shuttle fork power unit 2010-04-21
182. P0012046
183. Extra electrical equipment 2007-11-28
184. P0031353
185. Extra electrical equipment 2009-11-24
186. P0029620
187. Radio/recorder 2008-12-02
188. P0029623
189. Extra lighting 2007-08-27
190. P0014721
191. Extra warning lights/alarm 2009-11-24
192. P0019576
193. Extra warning lights/alarm 2007-11-28
194. P0011102
195. Charger attachment 2010-03-10
196. P0022831
197. Positioning/TV equip., height preselector 2007-11-28
198. P0029624
199. Positioning/TV equip., height preselector 2009-11-24
200. P0011315
201. Extra electrical equipment 2009-11-24
202. P0022833
203. Extra electrical equipment 2009-11-24
204. P0023037
205. Truck log device, code locking device 2009-11-24
206. P0031749
207. Truck log device, code locking device 2008-05-07
208. P0035066
209. Truck log device, code locking device 2009-12-15
210. P0029625
211. Other extra equipment 2010-03-10
212. P0031352
213. Other extra equipment 2008-05-07
214. P0036643
215. Other extra equipment 2010-04-27
