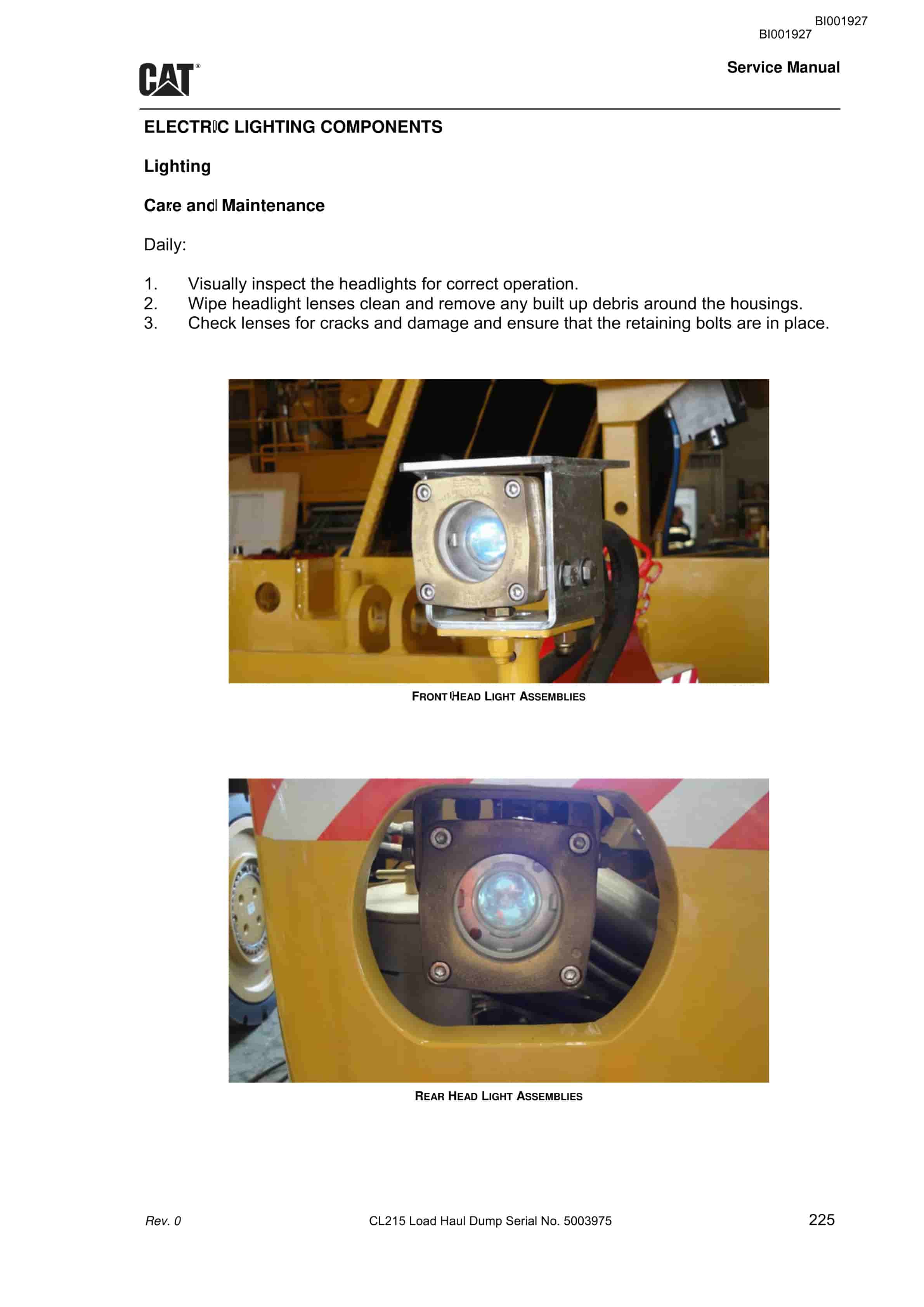

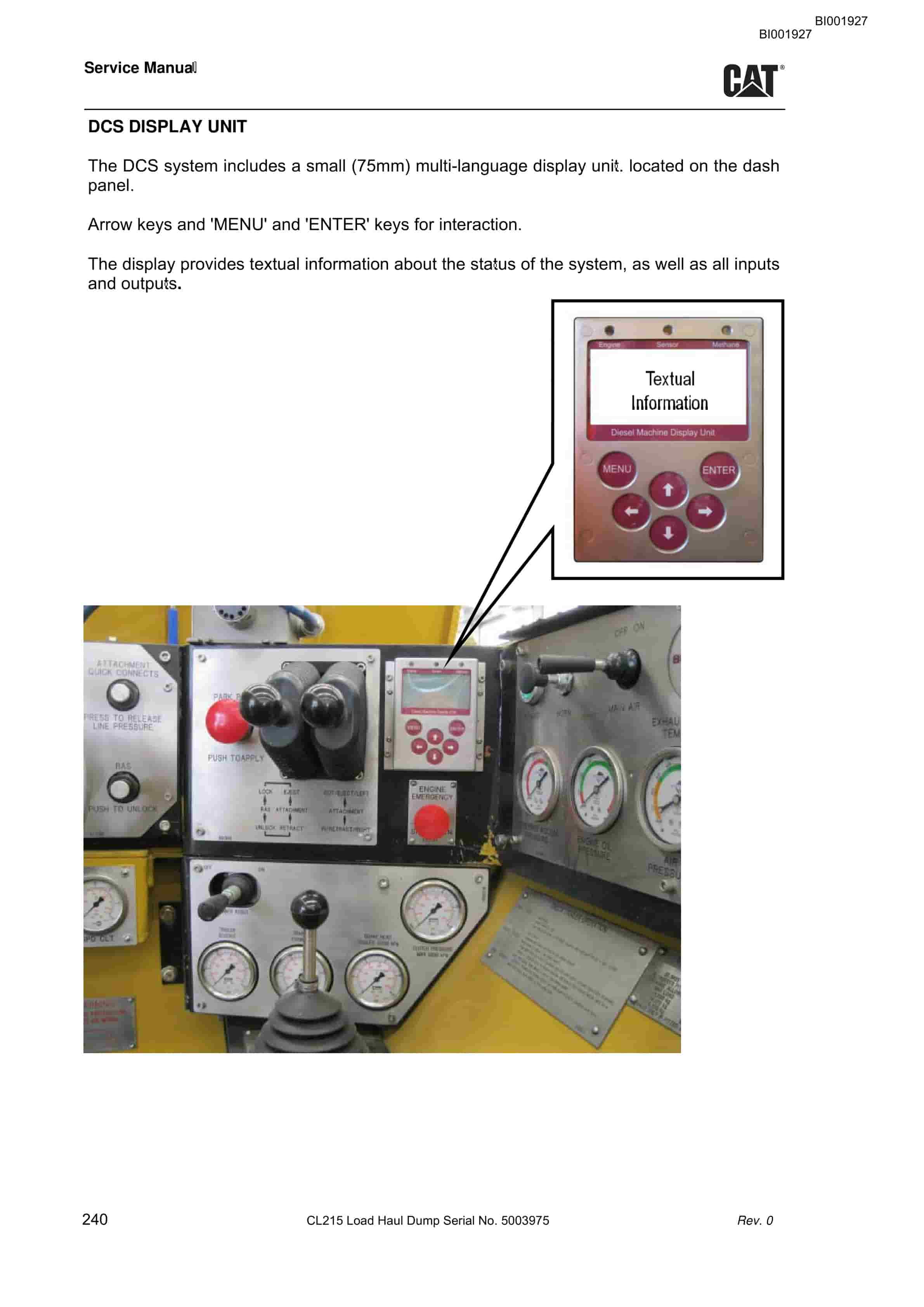

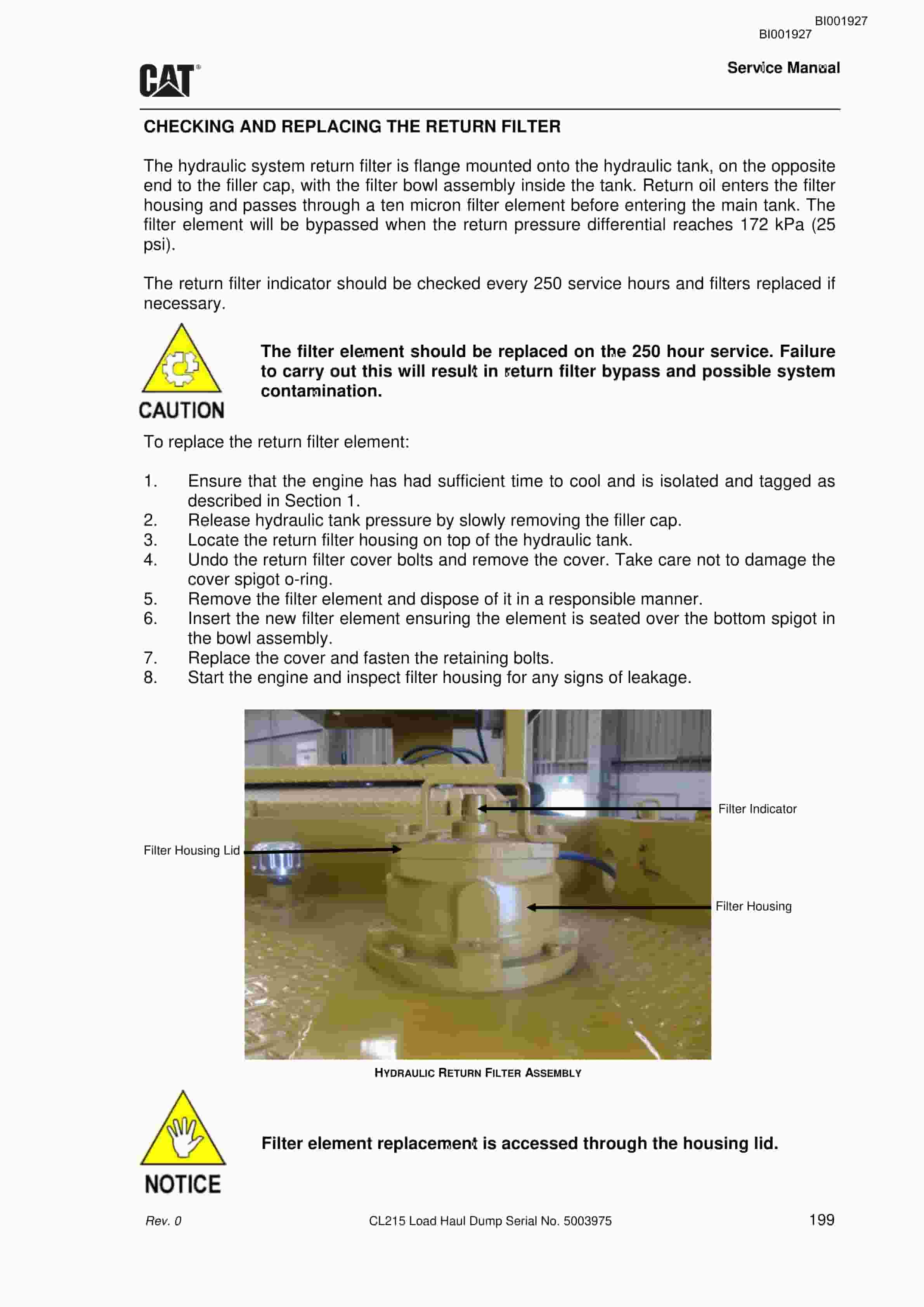

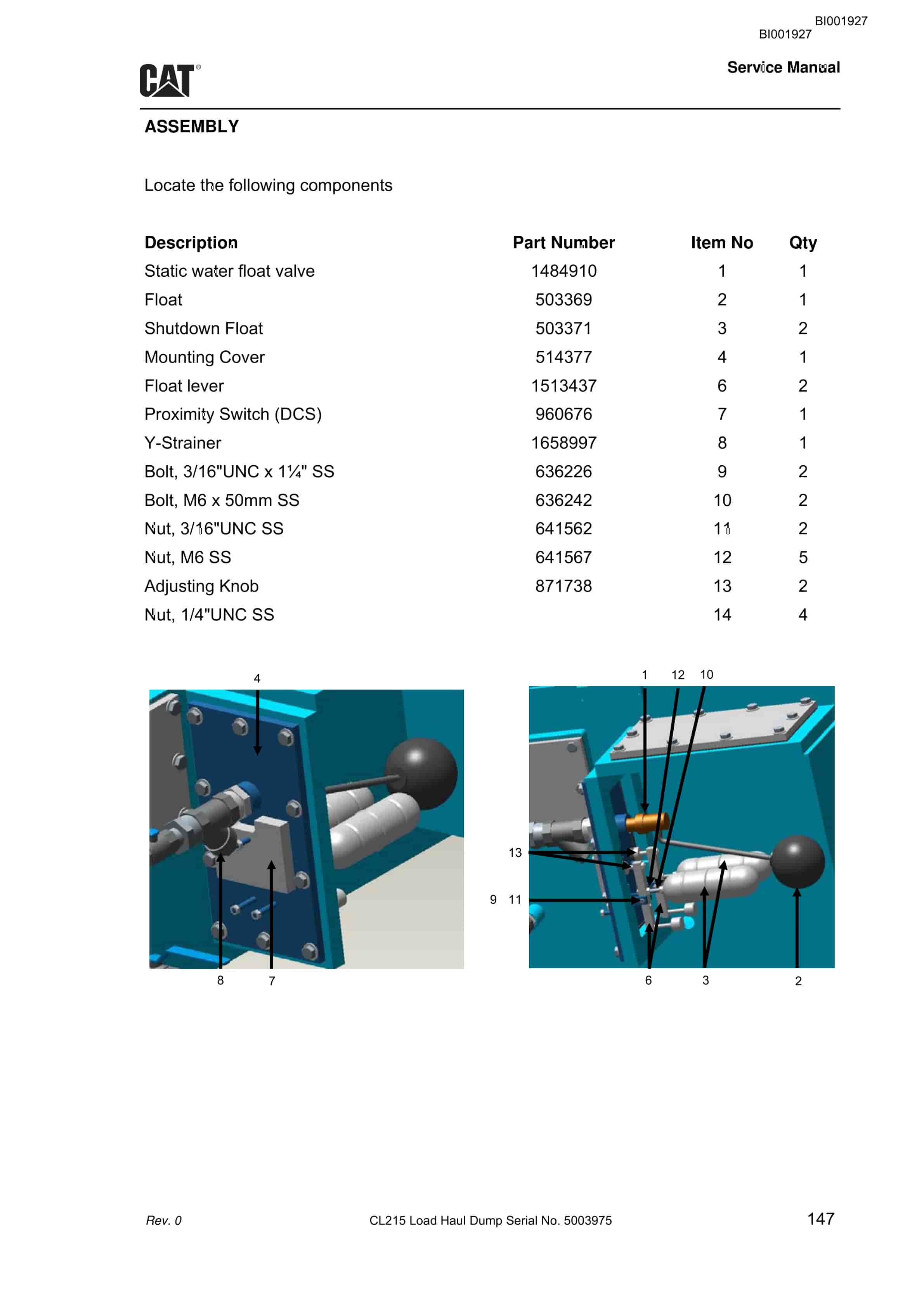

Bucyrus CL215 Load Haul Dump Technical Manual BI001927 - Image 2
Bucyrus CL215 Load Haul Dump Technical Manual BI001927 - Image 3
Bucyrus CL215 Load Haul Dump Technical Manual BI001927 - Image 4
Bucyrus CL215 Load Haul Dump Technical Manual BI001927 - Image 5

Bucyrus CL215 Load Haul Dump Technical Manual BI001927

$30.00

  • Type Of Manual: Technical Manual
  • Manual ID: BI001927
  • Number of Pages: 311
  • Size: 13.8MB
  • Format: PDF
Category:

Product details

  • Model List:

    • CL215 Load Haul Dump
  • 1. BI001927-00-00-EN_BODY.pdf
  • 1.1. Table of Contents
  • 1.2. Section 1 General Information
  • 1.3. Section 2 Engine System
  • 1.4. Section 3 Transmission and Drive Train
  • 1.5. Section 4 Hydraulic System
  • 1.6. Section 4 Hydraulic Schematic
  • 1.7. Section 5 Electrical
  • 1.8. Section 6 Frame Components
  • 1.9. Section 7 Pneumatic System
  • 1.10. Section 8 Attachments
