Bucyrus Continuous Miner Traction Operation And Maintenance Manual A6474X377

$30.00

Type Of Manual: Operation And Maintenance Manual
Manual ID: A6474X377
Number of Pages: 52
Size: 4.9MB
Format: PDF

Category: Bucyrus Operator Manual PDF

Product details

Model List:
- Continuous Miner Traction

1. Safety Instructions………………………………………………………………….. 4
2. Tram motor……………………………………………………………………………. 6
3. Tram primary planetary gear……………………………………………………. 12
4. Tram secondary planetary gear ……………………………………………….. 15
5. Tram case …………………………………………………………………………….. 20

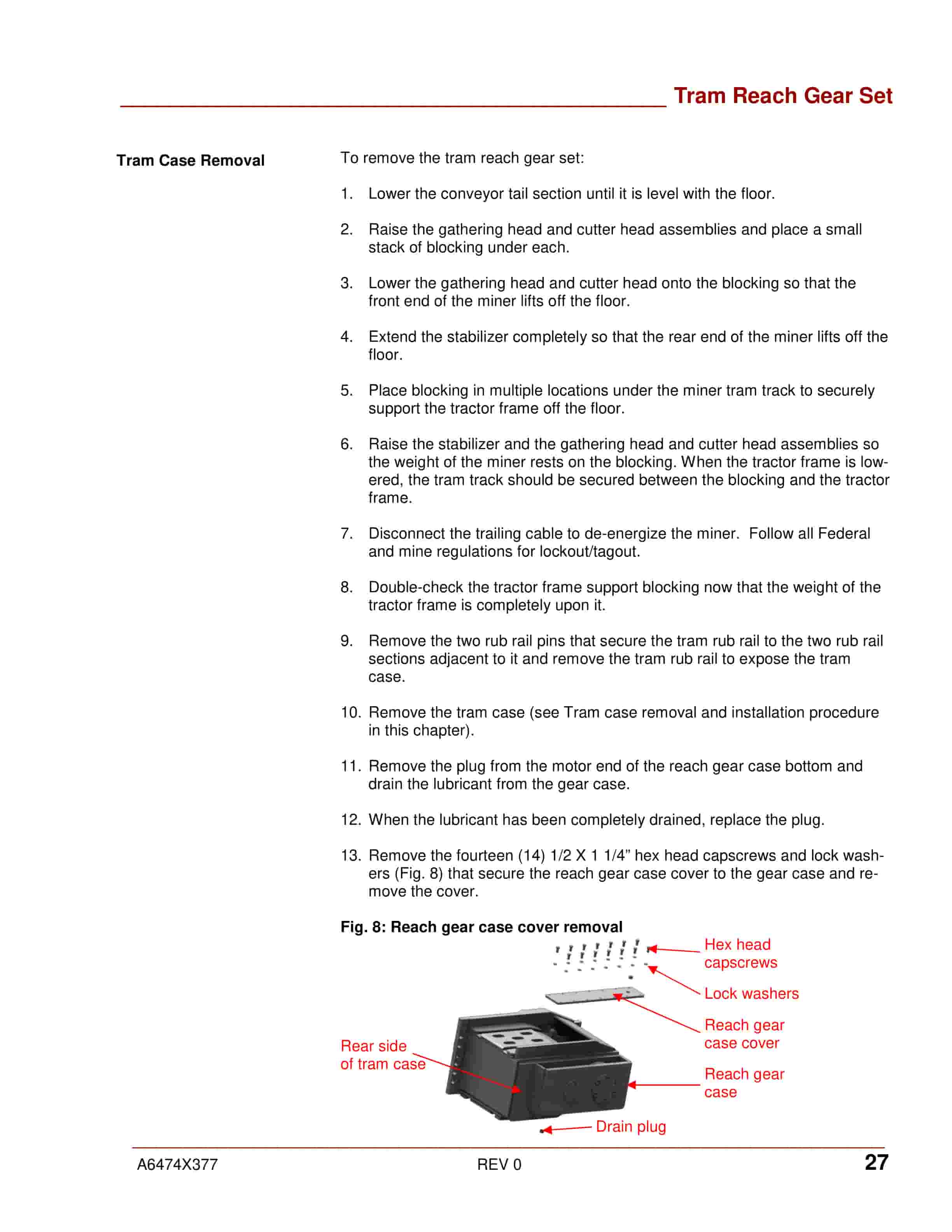

6. Tram reach gear set……………………………………………………………….. 26

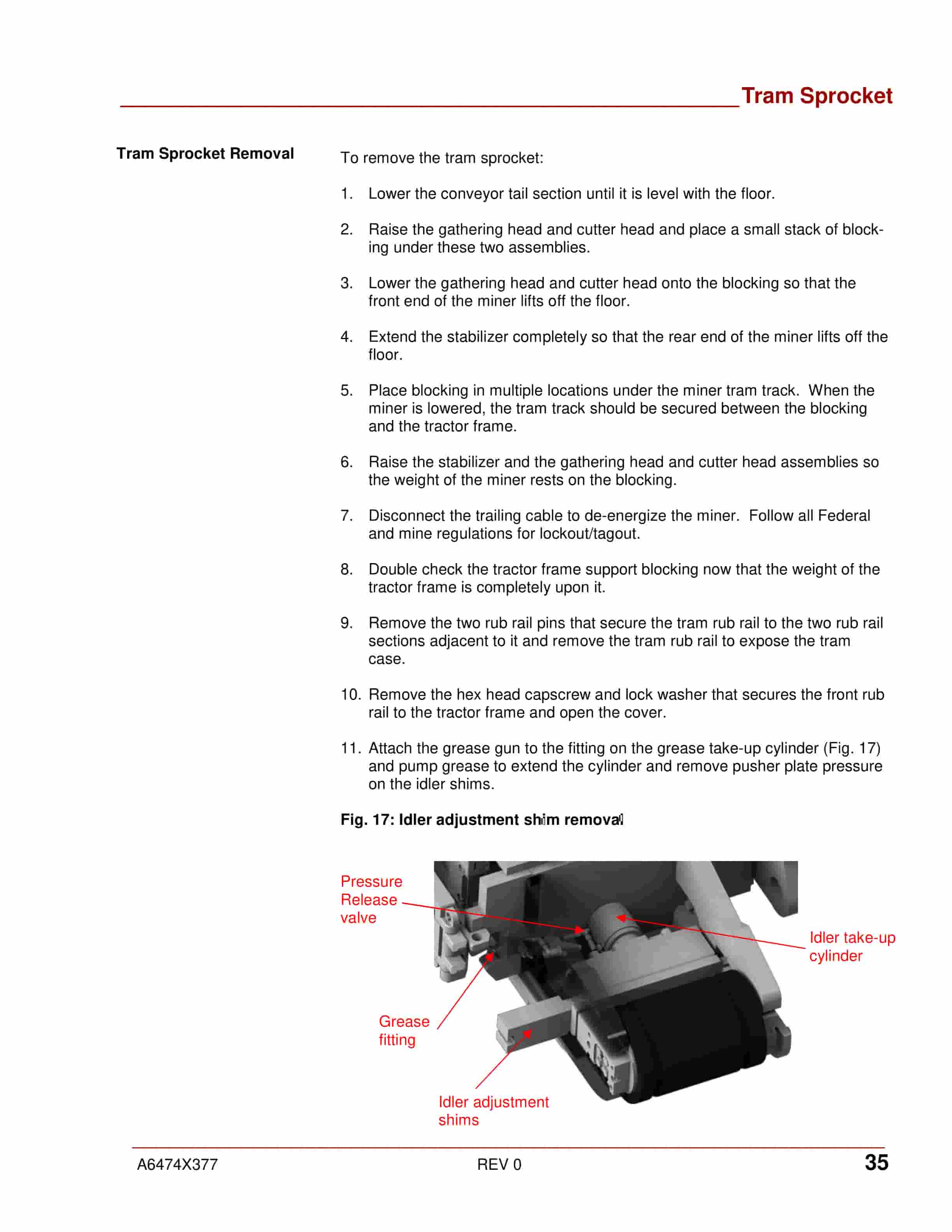

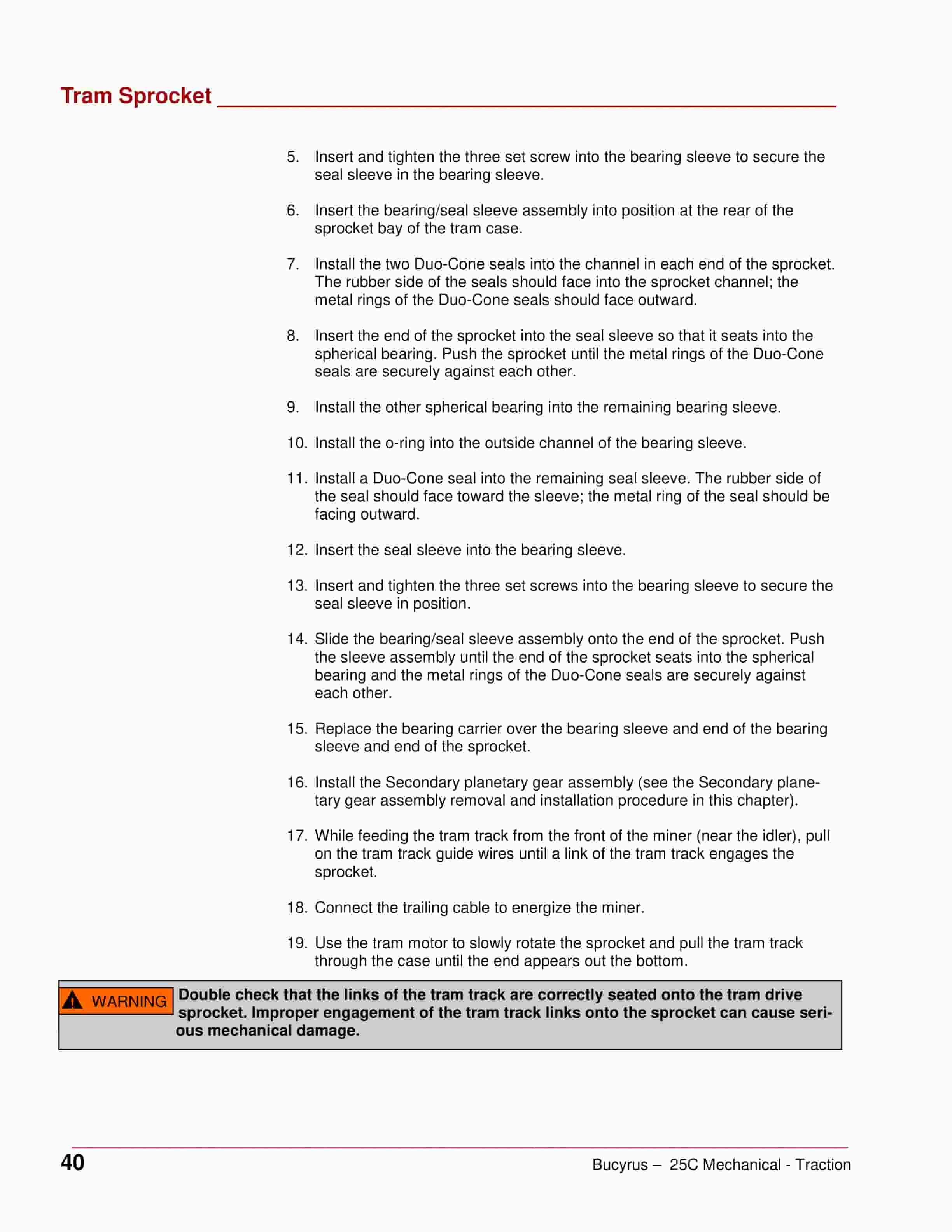

7. Tram sprocket ……………………………………………………………………….. 35

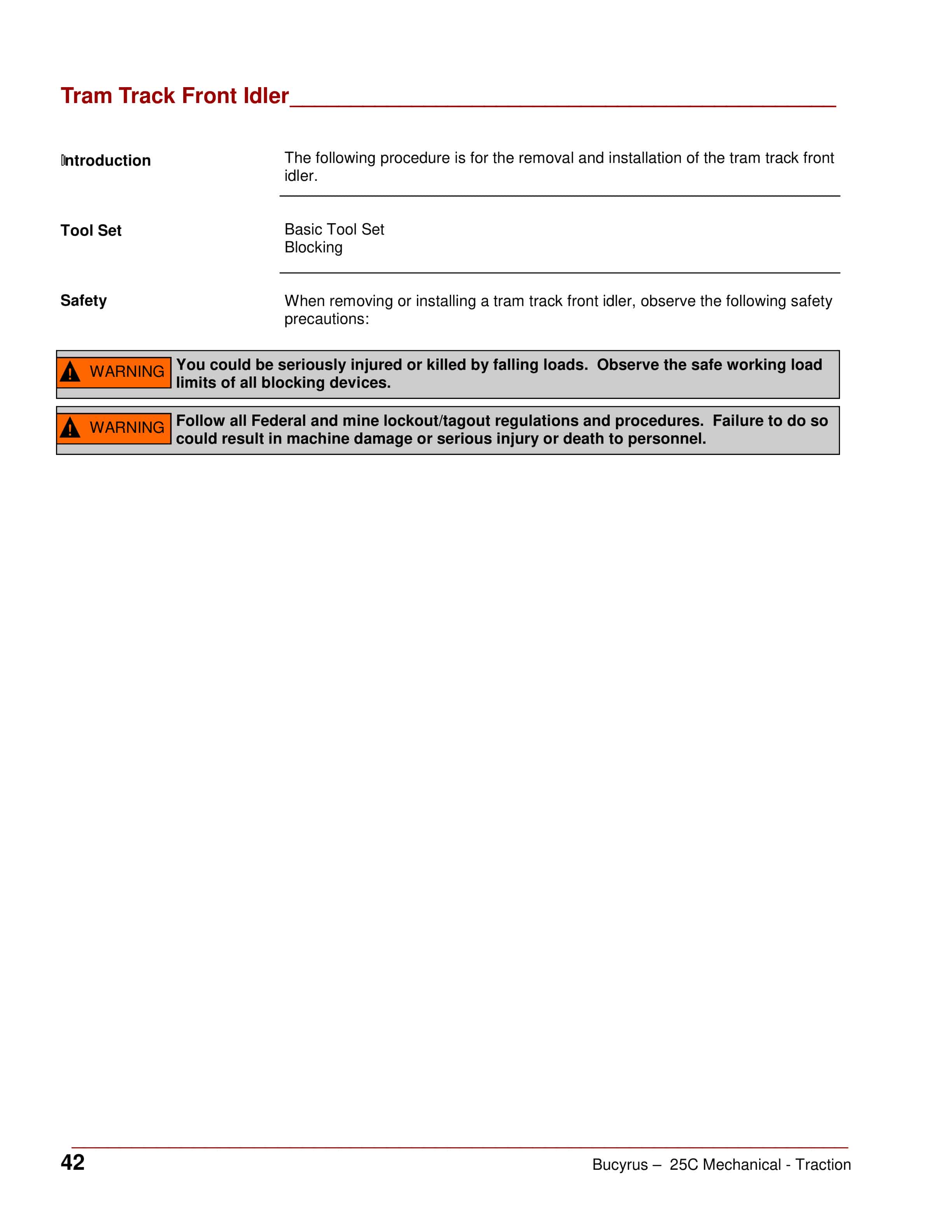

8. Tram track front idler ………………………………………………………………. 43
9. Stabilizer cylinder …………………………………………………………………… 50
