Bucyrus RH170 BH Excavator 77013 Parts Catalog BI638275

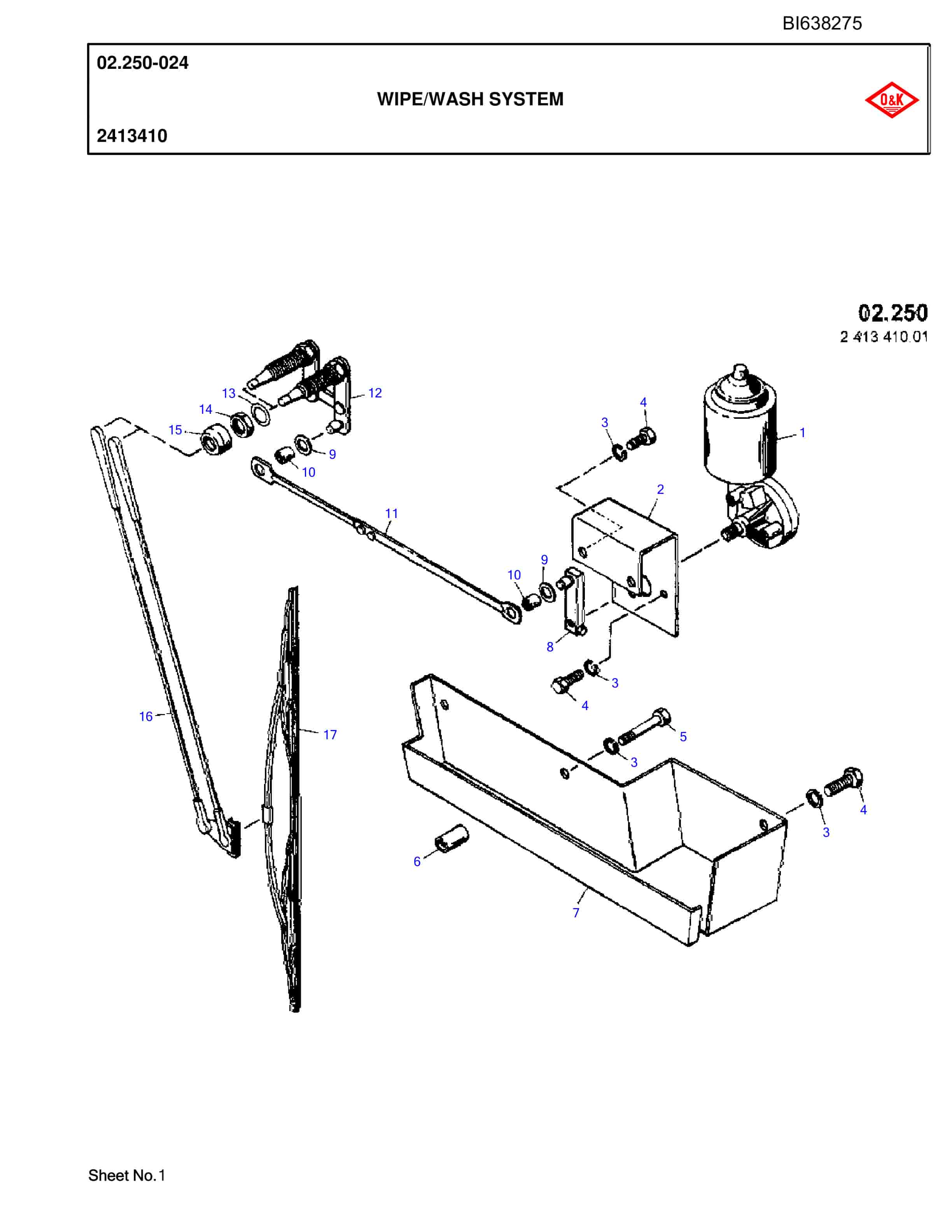

Bucyrus RH170 BH Excavator 77013 Parts Catalog BI638275 - Image 2

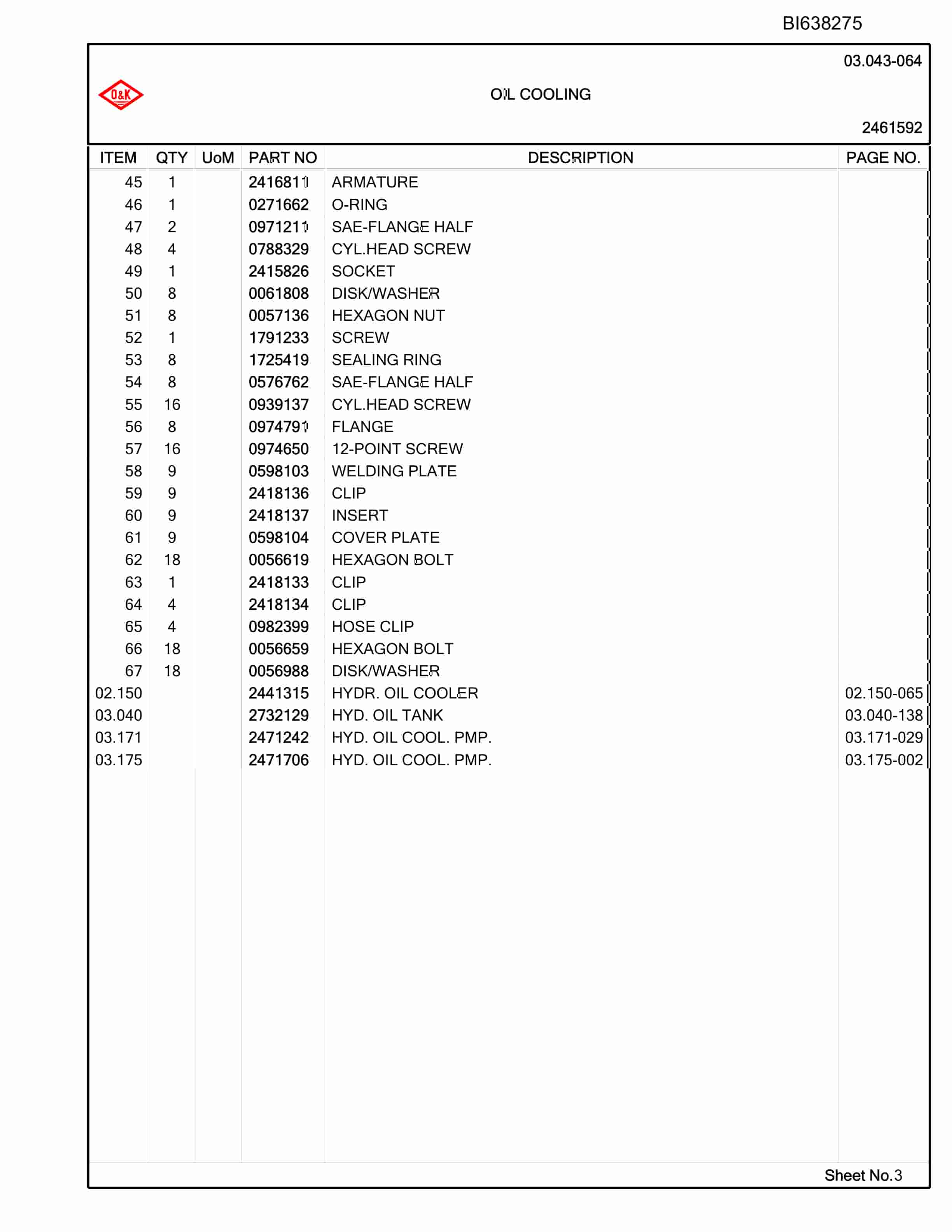

Bucyrus RH170 BH Excavator 77013 Parts Catalog BI638275 - Image 3

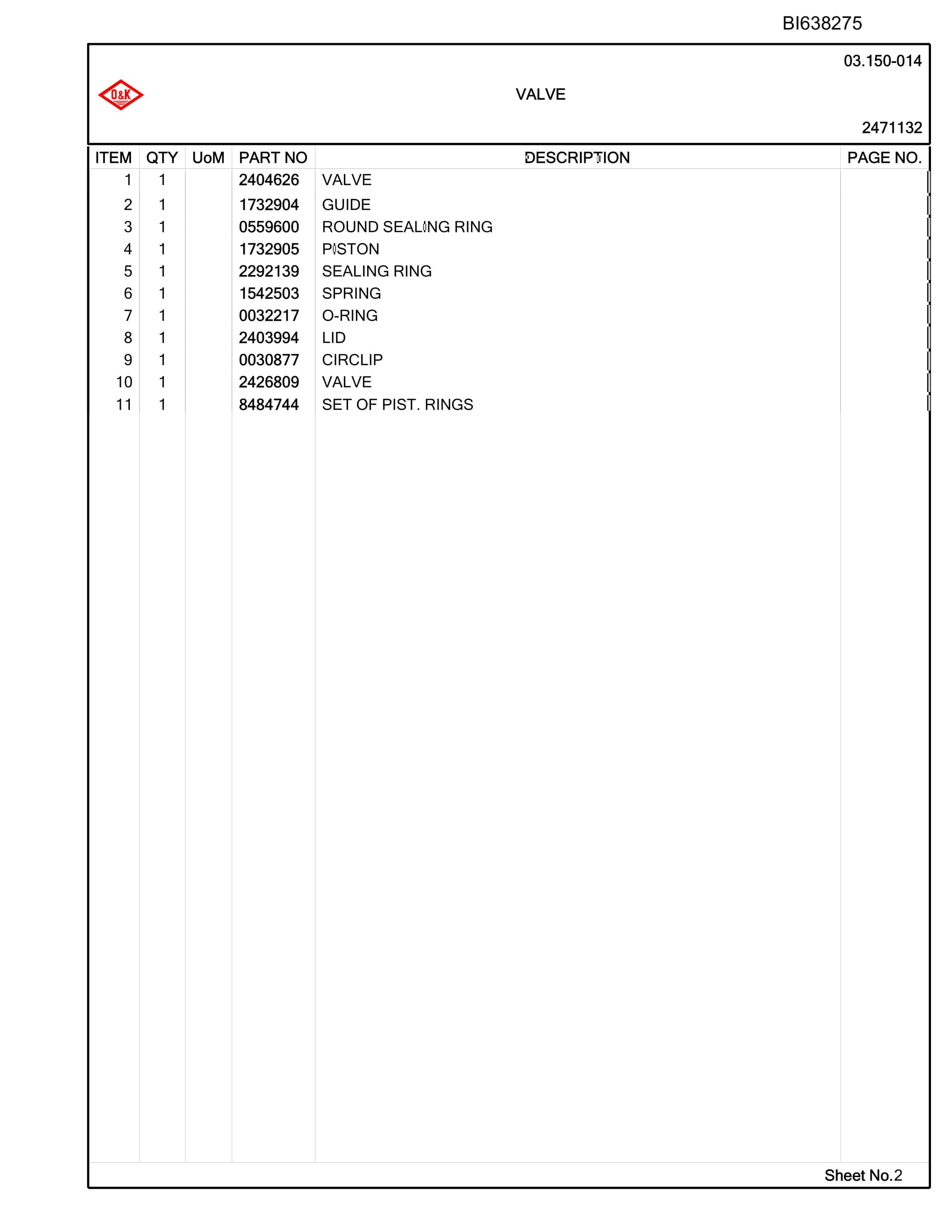

Bucyrus RH170 BH Excavator 77013 Parts Catalog BI638275 - Image 4

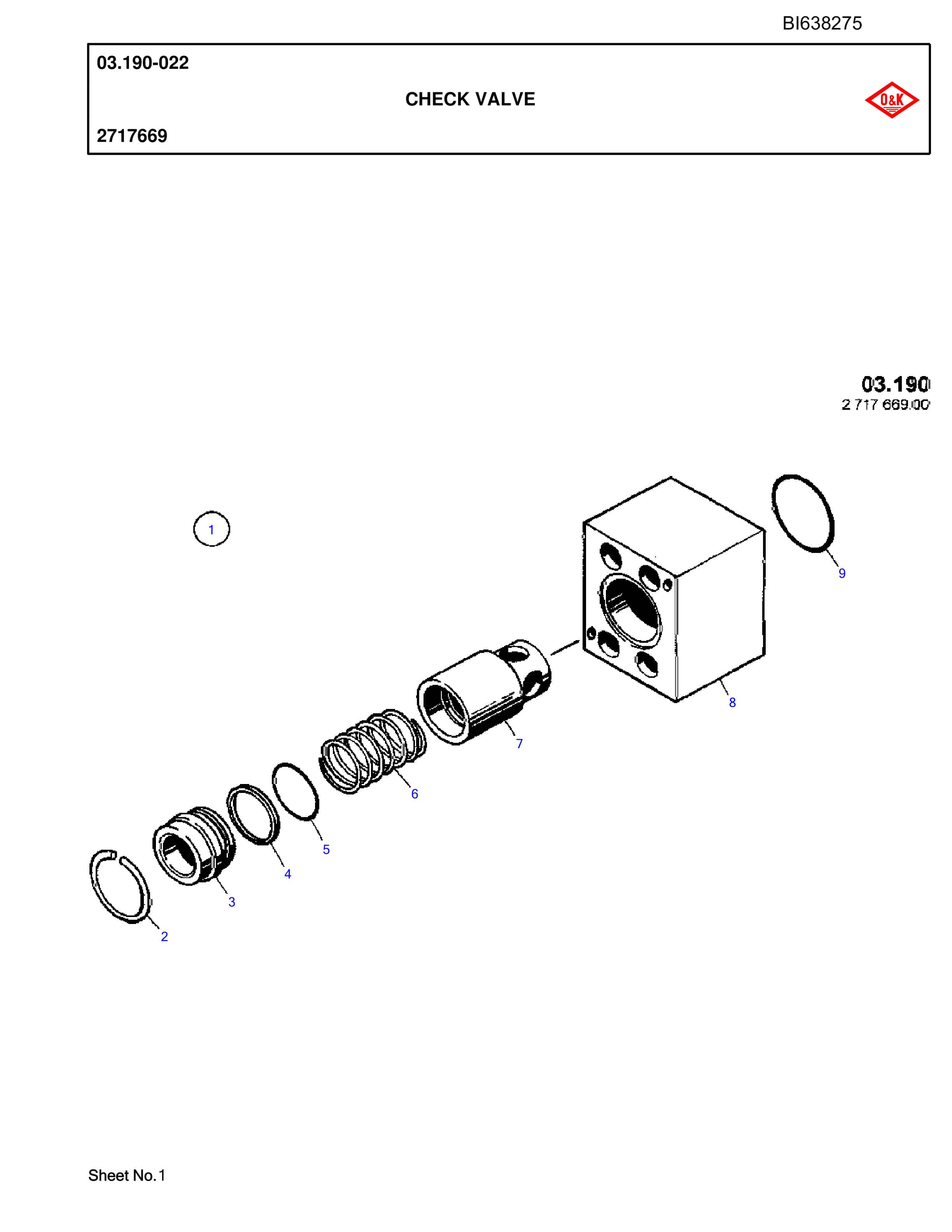

Bucyrus RH170 BH Excavator 77013 Parts Catalog BI638275 - Image 5

Bucyrus RH170 BH Excavator 77013 Parts Catalog BI638275

$30.00

  • Type Of Manual: Parts Catalog
  • Manual ID: BI638275
  • Number of Pages: 275
  • Size: 3.1MB
  • Format: PDF
Category:

Product details

  • Model List:

    • RH170 BH Excavator 77013
  • 1. RH170 BH Excavator 77013 – Drayton Coal Pty Ltd
  • 2. UNDERCARRIAGE
  • 3. UPPER CARRIAGE
  • 4. CONTENTS – EQUIPMENT
  • 5. LOWER CARRIAGE
  • 6. SPROCKET
  • 7. TRAVEL GEAR
  • 8. HYDRAULIC MOTOR
  • 9. TENSIONING DEVICE
  • 10. DRIVING CHAIN
  • 11. IDLER ROLLER
  • 12. HYDRAULIC SYSTEM
  • 13. ROTOR
  • 14. SUPPORT ROLLER
  • 15. CHAIN TENSIONER
  • 16. FILTER
  • 17. UPPER CARRIAGE
  • 18. GREASING SYSTEM
  • 19. OPERATORS CAB
  • 20. OPERATORS CAB
  • 21. CATWALK
  • 22. FOPS
  • 23. OPERATORS SEAT
  • 24. OPERATORS SEAT
  • 25. PLATFORM PLATE
  • 26. ENGINE PARTS
  • 27. ENGINE MOUNTINGS
  • 28. ENGINE MOUNTINGS
  • 29. EXHAUST SYSTEM
  • 30. INTAKE SYSTEM
  • 31. COOLING SYSTEM
  • 32. COOLING SYSTEM
  • 33. ENGINE CASING
  • 34. TOOL BOX
  • 35. COUPLING CLUTCH
  • 36. FUEL SYSTEM
  • 37. FUELLING SYSTEM
  • 38. FUELLING SYSTEM
  • 39. FILLER SYSTEM
  • 40. CRANE SUPPORT
  • 41. SLEWING GEAR
  • 42. HYDRAULIC MOTOR
  • 43. SWING BRAKE
  • 44. HYDRAULIC OIL COOLER
  • 45. SWITCHBOARD
  • 46. BATTERY INSTALLATION
  • 47. PLATES
  • 48. TOOL
  • 49. ACCESSORIES
  • 50. COOLER CAB MODULE
  • 51. WASHER
  • 52. WIPE WASH SYSTEM
  • 53. PUMP GOVERNING
  • 54. VALVE CONTROL
  • 55. HYDRAULIC SYSTEM
  • 56. HYDRAULIC SYSTEM
  • 57. HYDRAULIC SYSTEM
  • 58. HYDRAULIC SYSTEM
  • 59. HYDRAULIC OIL TANK
  • 60. HYDRAULIC SYSTEM
  • 61. OIL COOLING
  • 62. TRANSFER GEAR
  • 63. HYDRAULIC SYSTEM
  • 64. HYDRAULIC SYSTEM
  • 65. WORKING PUMP
  • 66. SERVO PUMP
  • 67. SPOOL BLOCK
  • 68. VALVE
  • 69. VALVE
  • 70. FLOAT VALVE
  • 71. VALVE
  • 72. VALVE
  • 73. FAN MOTOR
  • 74. HYDRAULIC OIL COOL PUMP
  • 75. SWING PUMP
  • 76. HYDRAULIC OIL COOLING PUMP
  • 77. REPLENISHING PUMP
  • 78. CHECK VALVE
  • 79. CHECK VALVE
  • 80. CHECK VALVE
  • 81. CHECK VALVE
  • 82. CHECK VALVE
  • 83. PUMP DISTRIBUTOR
  • 84. PUMP DISTRIBUTOR
  • 85. PUMP GOV
  • 86. PUMP GOV
  • 87. SHIFT VALVE
  • 88. BLOCKING VALVE
  • 89. MONOBLOC BOOM
  • 90. HYDRAULIC SYSTEM
  • 91. STICK
  • 92. HYDRAULIC SYSTEM
  • 93. TOGGLE LINKAGE
  • 94. BEARING NO
  • 95. CATWALK
  • 96. BACKHOE
  • 97. BOOM CYLINDERS
  • 98. STICK CYLINDER
  • 99. BACKHOE CYLINDER
  • 100. GREASING SYSTEM
  • 101. GREASING SYSTEM
  • 102. GREASING SYSTEM
  • 103. top page-catalog – Copy.pdf
