Bucyrus SKS-W Infinity Blasthole Drill Technical Manual BI011820
Bucyrus SKS-W Infinity Blasthole Drill Technical Manual BI011820 - Image 2
Bucyrus SKS-W Infinity Blasthole Drill Technical Manual BI011820 - Image 3
Bucyrus SKS-W Infinity Blasthole Drill Technical Manual BI011820 - Image 4
Bucyrus SKS-W Infinity Blasthole Drill Technical Manual BI011820 - Image 5

Bucyrus SKS-W Infinity Blasthole Drill Technical Manual BI011820

$30.00

  • Type Of Manual: Technical Manual
  • Manual ID: BI011820
  • Number of Pages: 571
  • Size: 20.2MB
  • Format: PDF
Category:

Product details

  • Model List:

    • SKS-W Infinity Blasthole Drill
  • 1. PARTS MANUAL SECTION LOCATOR
  • 2. PARTS ORDERING AND BASE MACHINE
  • 3. PARTS ORDERING PRODUCT SUPPOR
  • 4. Binder1
  • 4.1. SECTION 1 DECALS FILTER ELEME
  • 4.2. FILTER ELEMENTS
  • 4.3. ASSEMBLY INFORMATION DECAL RU
  • 4.4. DECAL KIT STANDARD ENGLISH
  • 4.5. DECAL KIT WARNING RUSSIAN
  • 5. Binder2
  • 5.1. SECTION 2 OPERATOR S CAB
  • 5.2. CAB ASSEMBLY W GAUGES AND ATTAC
  • 5.3. ROTARY OPERATOR S SEAT
  • 5.4. SEAT BELT W TETHER
  • 5.5. SEAT AIR ACCUMULATOR INSTALLATI
  • 5.6. SEAT WITH ATTACHING HARDWARE
  • 5.7. PANEL GAUGES ENGINE MODIFIE
  • 5.8. PANEL GAUGES HYDRAULIC
  • 5.9. PANEL SWITCHES DRILL FUNCTIO
  • 5.10. CONTROL MAST JACKS
  • 5.11. PANEL W ATTACHMENTS ENGINE STA
  • 5.12. CAB HOSE PLUMBING
  • 5.13. CAB MODIFICATION ELECTRIC HAND
  • 5.14. AIR CONDITIONING HEATER PRESSUR
  • 5.15. HEATER AIR CONDITIONER PACKAGE
  • 5.16. AIR CLEANER ASSY A C HEATER PR
  • 5.17. CONDENSER 24 V
  • 5.18. WALL MOUNT UNIT W ANGLE LOUVERS
  • 5.19. BLOWER ASSEMBLY A C HEATER PRE
  • 5.20. HOSE KIT AIR CONDITIONER
  • 5.21. CAB HEATER INSTALLATION
  • 5.22. WIPER WASHER INSTALLATION LE
  • 5.23. WIPER WASHER ASSEMBLY OPERATOR
  • 5.24. WIPER WASHER INSTALLATION RE
  • 5.25. WIPER WASHER INSTALLATION RI
  • 6. Binder3
  • 6.1. SECTION 3 MAINFRAME CRAWLER
  • 6.2. MAINFRAME CRAWLER INSTALLATION
  • 6.3. UNDERCARRIAGE ASSEMBLY
  • 6.4. FINAL DRIVE ASSEMBLY W MOTOR T
  • 6.5. HYDRAULIC MOTOR SPARE PARTS
  • 6.6. IDLER ASSEMBLY W FORK COMPLETE
  • 6.7. TENSIONER TRACK NITROGEN
  • 6.8. TENSIONER TRACK HYDRAULIC
  • 6.9. TRACK ASSEMBLY W SHOES
  • 6.10. HYDRAULIC CYLINDER ASSEMBLY
  • 6.11. PROPEL PLUMBING
  • 6.12. FLOOR COVERING DUST SEALS
  • 6.13. COUNTER BALANCE VALVE ASSY W AT
  • 6.14. FUEL TANK INSTALLATION TWO TAN
  • 6.15. JACK INSTALLATION
  • 6.16. JACK CYLINDER ASSEMBLY 48 INCH
  • 6.17. FILTER VALVES AND ATTACHMENTS
  • 6.18. CONTROL VALVE ASSEMBLY 8 SECTI
  • 6.19. HYDRAULIC FILTER ASSEMBLY CHAR
  • 6.20. DIVERTER VALVE ASSEMBLY 2 POS
  • 6.21. DOOR VIEWING HATCH DRILL DEC
  • 6.22. VIEWING HATCH PLUMBING
  • 6.23. GRATING R H REAR JACK DECKING
  • 6.24. GRATING L H REAR JACK DECKING
  • 6.25. TUBE L H AND REAR DECKING
  • 7. Binder4
  • 7.1. SECTION 4 ENGINES COMPRESSO
  • 7.2. ENGINE GROUP LIST CUMMINS QST3
  • 7.3. ENGINE WITH ATTACHMENTS QST30
  • 7.4. COUPLING PUMP DRIVE GEARBOX TO
  • 7.5. GUARD INSTALLATION DRIVELINE
  • 7.6. ALTERNATOR W BELT SHEAVE
  • 7.7. TACHOMETER HOURMETER
  • 7.8. AIR CLEANER INSTALLATION ENGIN
  • 7.9. AIR CLEANER ASSEMBLY
  • 7.10. AIR CLEANER RAIN SHIELD ASSEMBL
  • 7.11. WATER PIPING INSTALLATION ENGI
  • 7.12. ENGINE EXHAUST BLANKET INSTALLA
  • 7.13. MUFFLER INSTALLATION ENGINE
  • 7.14. AIR COMPRESSOR GROUP LIST
  • 7.15. AIR COMPRESSOR WITH ATTACHMENTS
  • 7.16. AIR COMPRESSOR PACKAGE SERVICE
  • 7.17. COMPRESSOR AIR END ATTACHMENTS
  • 7.18. RECEIVER TANK ASSEMBLY COMPRES
  • 7.19. REGULATOR CONTROL PANEL ASSEMBL
  • 7.20. DISCHARGE VALVE ASSEMBLY
  • 7.21. TORSIONAL DRIVE COUPLING
  • 7.22. AIR CLEANER INSTALLATION COMPR
  • 7.23. AIR CLEANER ASSEMBLY1
  • 7.24. AIR CLEANER RAIN SHIELD ASSEMBL1
  • 7.25. COMPRESSOR AIR RECEIVER PIPING
  • 7.26. MAIN AIR MANIFOLD ASSEMBLY
  • 7.27. HYDRAULIC FILTER ASSEMBLY COMP
  • 7.28. COMPRESSOR HOSE PLUMBING
  • 7.29. COOLER INSTALLATION COMPRESSOR
  • 7.30. COOLER ASSEMBLY ENGINE HYDR S
  • 7.31. RADIATOR ASSEMBLY ENGINE
  • 7.32. COOLER ASSEMBLY SYSTEM HYDRAUL
  • 7.33. COOLER ASSEMBLY COMPRESSOR OIL
  • 7.34. MOTOR FAN
  • 7.35. VALVE THERMOSTAT
  • 7.36. PUMP DRIVE ASSEMBLY LINDE
  • 7.37. PUMP DRIVE GEARBOX 4 PAD
  • 7.38. LINESHAFT ASSEMBLY INPUT GEAR
  • 7.39. PUMP GEAR FAN
  • 7.40. PUMP GEAR DOUBLE
  • 7.41. MAIN PUMP CLOSED LOOP
  • 7.42. HIGH PRESSURE END FLANGE PLUGS
  • 7.43. CONTROL ASSEMBLY MAIN PUMP
  • 7.44. FILTER ELIMINATION BLOCK SPARE
  • 7.45. CHARGE PILOT PUMP SPARE PARTS L
  • 7.46. LUBRICANTS ROTARY COLD WEAT
  • 8. Binder5
  • 8.1. SECTION 5 DUST CONTROL
  • 8.2. WATER INJECTION INSTALLATION
  • 8.3. WATER PUMP INSTALLATION
  • 8.4. HOUSING ASSEMBLY WATER PUMP PR
  • 8.5. WATER PUMP ASSEMBLY
  • 8.6. MOTOR HYDRAULIC
  • 8.7. WATER PUMP ENCLOSURE HOSE PLUMB
  • 8.8. VALVE FLOW CONTROL
  • 8.9. WATER INJECTION PLUMBING
  • 8.10. DUST CURTAIN INSTALLATION
  • 8.11. DUST CURTAIN HOSE PLUMBING
  • 8.12. CHIP REMOVAL BLOWER SYSTEM ASSE
  • 8.13. BLOWER SYSTEM PLUMBING
  • 9. Binder6
  • 9.1. SECTION 6 MAST
  • 9.2. MAST ASSEMBLY 35 FT

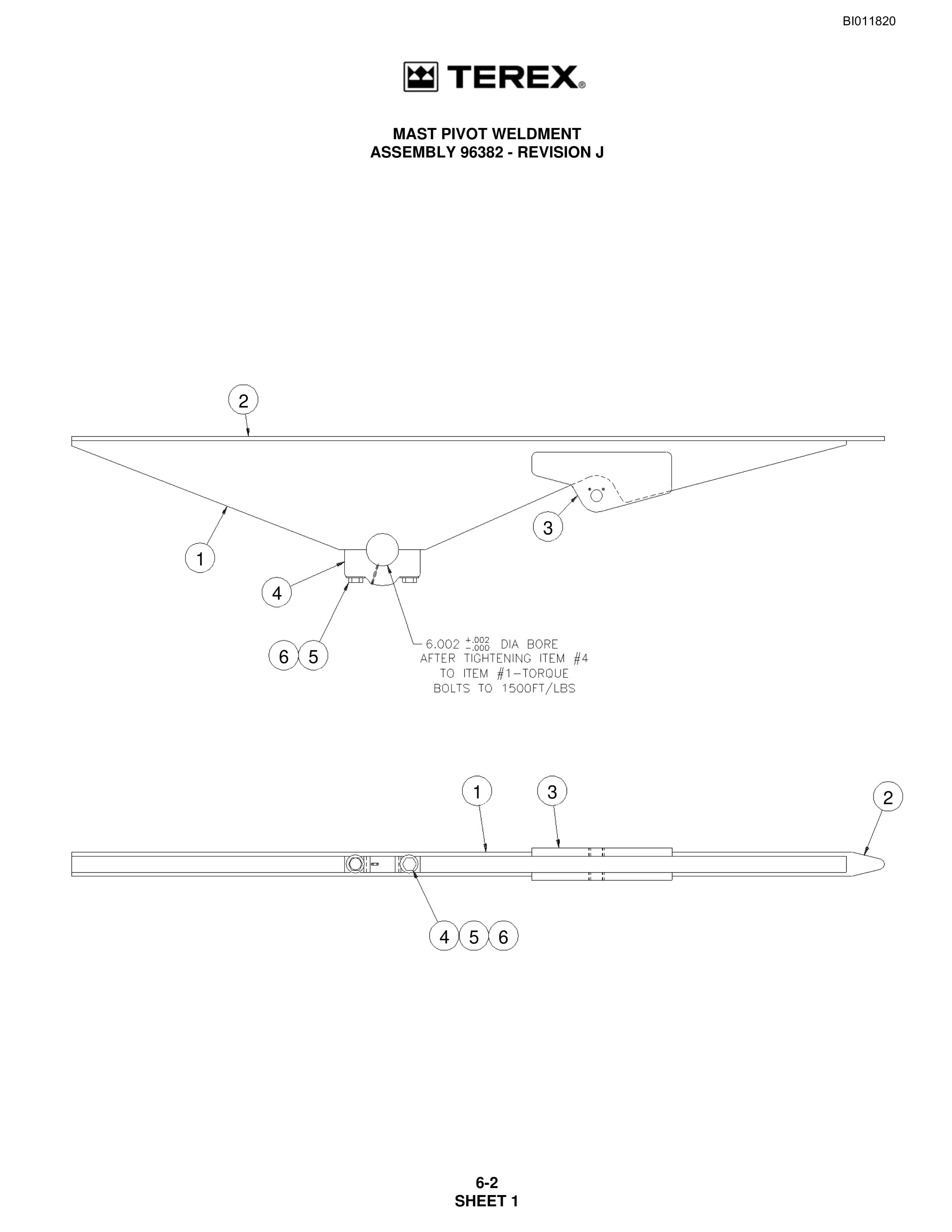

  • 9.3. MAST PIVOT WELDMENT
  • 9.4. SUPPORT WELDMENT PIPE RACK PIV
  • 9.5. CYLINDER ASSEMBLY HOIST PULLDO
  • 9.6. MAST HOSE PLUMBING
  • 9.7. DUST SEAL KIT
  • 9.8. AUTO TOOL WRENCH INSTALLATION
  • 9.9. HYDRAULIC OPERATED BREAKOUT WRE
  • 9.10. HYDRAULIC OPERATED BREAKOUT WRE1
  • 9.11. HYDRAULIC OPERATED BREAKOUT WRE2
  • 9.12. CYLINDER 4 1 2 INCH BORE
  • 9.13. CYLINDER 5 INCH BORE
  • 9.14. CYLINDER 4 INCH BORE
  • 9.15. MAST LOCK INDICATOR
  • 9.16. WINCH INSTALLATION
  • 9.17. WINCH ASSEMBLY
  • 9.18. BRAKE VALVE ASSEMBLY WINCH
  • 9.19. PIPE POSITIONER INSTALLATION
  • 9.20. HYDRAULIC CYLINDER ASSEMBLY
  • 9.21. PIPE POSITIONER SENSOR COMPONEN
  • 9.22. PIPE POSITIONER SENSOR INSTALLA
  • 9.23. ROTARY DRIVE ASSEMBLY
  • 9.24. ROTARY DRIVE GEARCASE ASSEMBLY
  • 9.25. MOTOR HYDRAULIC
  • 9.26. PIPE RACK INSTALLATION
  • 9.27. CYLINDER PIPE RACK
  • 9.28. CYLINDER INDEX PIPE RACK
  • 9.29. MAST PLUMBING LIST
  • 9.30. AUTO TOOL WRENCH PLUMBING
  • 9.31. PIPE POSITIONER PLUMBING
  • 9.32. PIPE RACK SWING PLUMBING
  • 9.33. PIPE RACK ROTATE PLUMBING
  • 9.34. PIPE RACK LOCK PLUMBING
  • 9.35. WINCH PLUMBING
  • 10. Binder7
  • 10.1. SECTION 7 DRILLING TOOLS ACC
  • 10.2. DRILLING ACCESSORIES 7 5 8
  • 10.3. SHOCK SUB 5 1 2 API REG PIN x
  • 10.4. ANGLE DRILL MAST LOCK INSTALL
  • 10.5. RAPID FILL INSTALLATION
  • 10.6. CONNECTOR KIT RAPID FILL SYSTE
  • 10.7. RAPID FILL PLUMBING

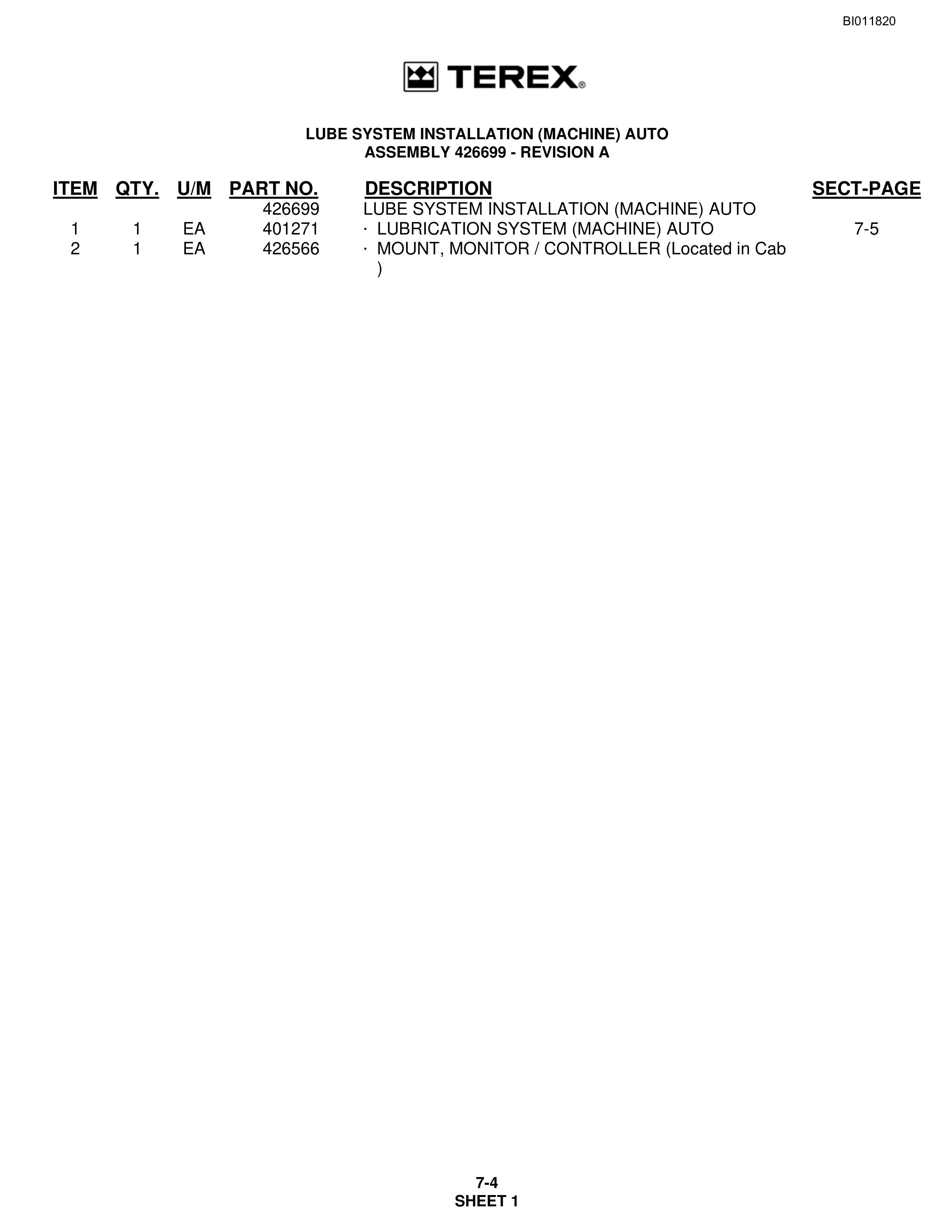

  • 10.8. LUBE SYSTEM INSTALLATION MACHI
  • 10.9. LUBRICATION SYSTEM MACHINE AU
  • 10.10. AIR MOTOR ASSEMBLY MACHINE LUB
  • 10.11. TUBE ASSY AIR MOTOR MACHINE L
  • 10.12. MONITOR CONTROLLER LUBRICATI
  • 10.13. FILTER REGULATOR LUBRICATOR
  • 10.14. LUBRICATOR INSTALLATION DRILL
  • 10.15. VALVE AIR 3 WAY
  • 10.16. VALVE AIR PART OF ITEM 1
  • 10.17. VALVE AIR SOLENOID W JUNCTION
  • 10.18. LUBRICATOR ASSEMBLY DRILL STEM
  • 10.19. PUMP ASSEMBLY BASIC DRILL STE
  • 10.20. FILTER REGULATOR LUBRICATOR1
  • 10.21. LUBRICATOR HOSE PLUMBING KIT
  • 10.22. PIPE RACK INTERLOCK
  • 10.23. STEM DRILL 7 5 8 IN O D X
  • 10.24. TRAM INTERLOCK JACK

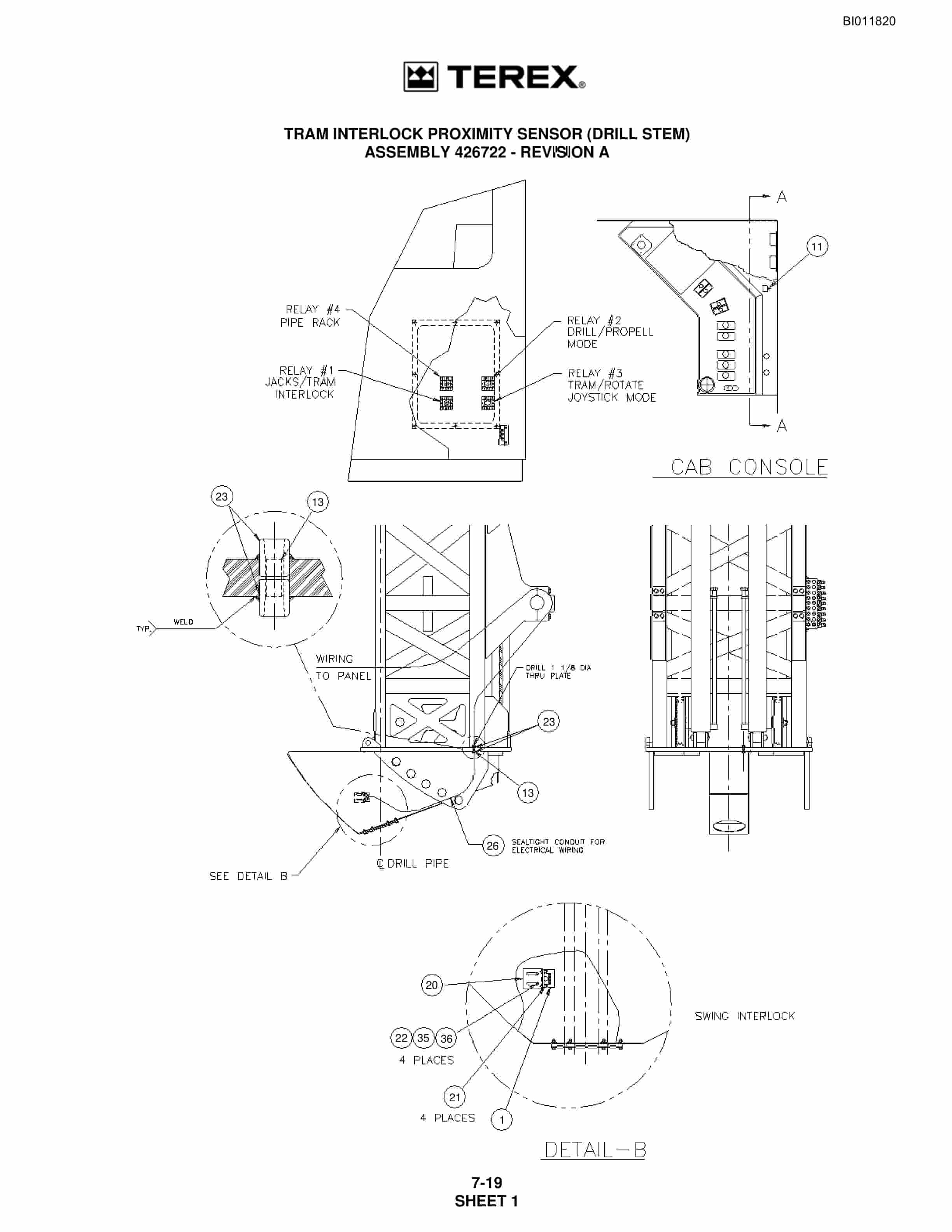

  • 10.25. TRAM INTERLOCK PROXIMITY SENSOR
  • 10.26. ROTARY TORQUE CONTROL INSTALLAT
  • 10.27. ROTORY TORQUE CONTROL HOSE PLUM
  • 10.28. ROTARY TORQUE MODIFICATION KIT
  • 10.29. FIRE SUPPRESSION
  • 10.30. FIRE SUPPRESSION INSTLN MANUA
  • 10.31. HYDRAULIC TEST SYSTEM LINDE
  • 10.32. HOSE KIT HYDRAULIC TEST STATI
  • 10.33. GLASS INSTALLATION CAB COLD W
  • 10.34. BLOWDOWN AIR HOSE ASSEMBLY
  • 10.35. ROTATING BEACON INSTALLATION
  • 10.36. SLOPE DEGREE INDICATOR ASSEMBLY
  • 10.37. REMOTE TRAM KIT

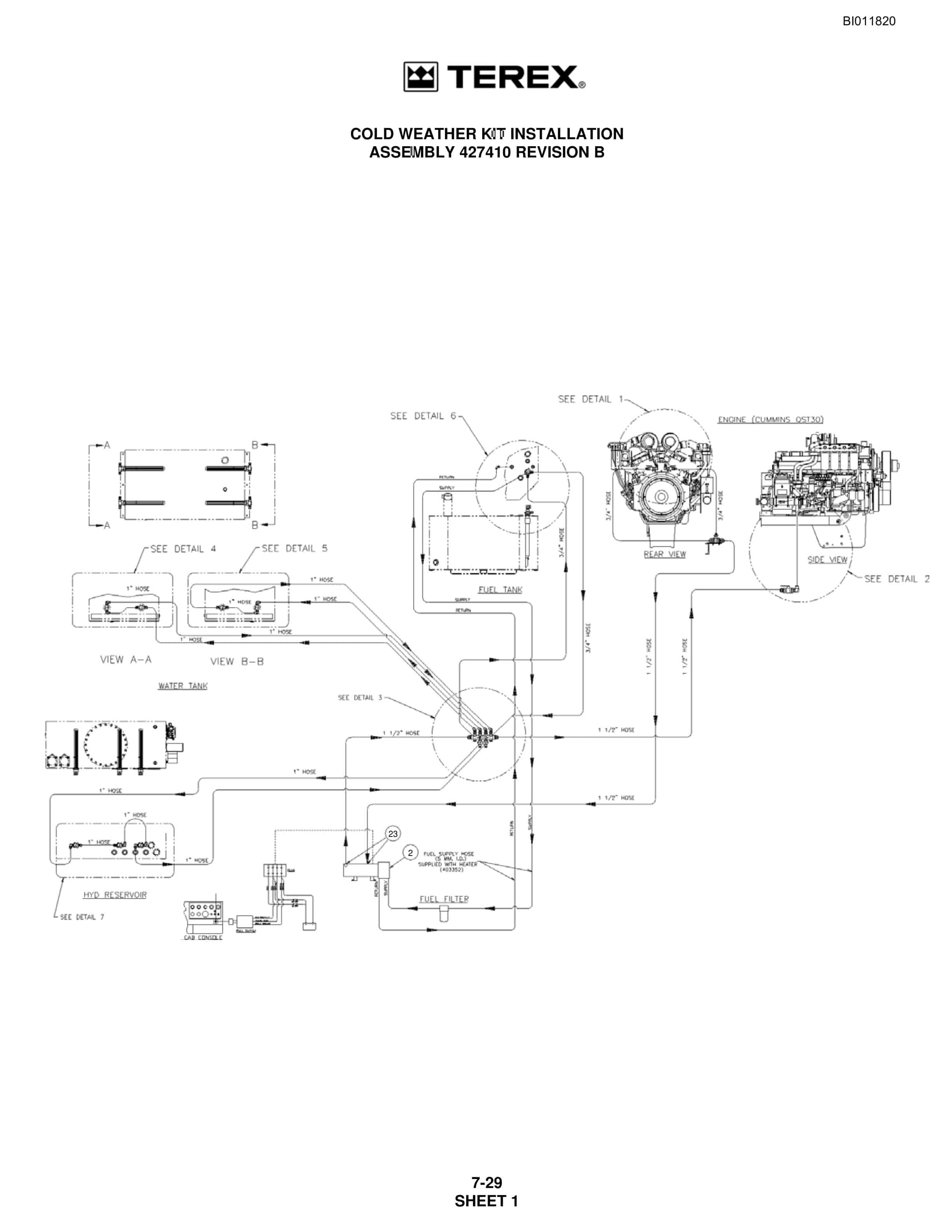

  • 10.38. COLD WEATHER KIT INSTALLATION
  • 10.39. HEATER COLD WEATHER KIT 30 D
  • 10.40. HEATER ENGINE WATER PREHEAT KI
  • 10.41. HEATER ASSEMBLY WATER PREHEAT
  • 10.42. PUMP WATER HEATER PREHEAT KIT
  • 10.43. SPARE PARTS KIT HEATER ENGINE
  • 11. Binder8
  • 11.1. SECTION 8 HYDRAULICS PLUMBI
  • 11.2. MAST ELEVATING PLUMBING
  • 11.3. MAIN AIR PLUMBING
  • 11.4. FAN PLUMBING COOLER
  • 11.5. SUCTION AND RETURN PLUMBING L
  • 11.6. HOSE KIT JACK PLUMBING
  • 11.7. MAST LOCK PLUMBING
  • 11.8. PILOT PLUMBING W CHARGE RETUR
  • 11.9. HOSE KIT CHARGE AND PILOT PLU
  • 11.10. PILOT PLUMBING L H CHARGE
  • 11.11. PILOT PLUMBING R H CHARGE
  • 11.12. LOOP FILTER ASSEMBLY LINDE
  • 11.13. FILTER ASSEMBLY LOOP
  • 11.14. LOOP FILTER PLUMBING
  • 11.15. HYDRAULIC RESERVOIR INSTALLATIO
  • 11.16. CONTROL VALVE ASSEMBLY 4 SECTI
  • 11.17. FILTER ASSEMBLY MAIN RETURN
  • 11.18. FILTER ASSEMBLY CASE RETURN
  • 11.19. CONTROL VALVE ASSEMBLY 6 SECTI
  • 11.20. HYDRAULIC HAND PUMP INSTALLATIO
  • 11.21. HYDRAULIC HAND PUMP ASSEMBLY
  • 11.22. FLUSHING VALVE INSTALLATION
  • 12. Binder9
  • 12.1. SECTION 9 ELECTRICAL
  • 12.2. WIRING DIAGRAMS COMPONENTS
  • 12.3. CAB WIRING HARNESS COLD WEATHE
  • 12.4. ENGINE SKID CAB WIRING HARNESS
  • 12.5. CAB VALVE BANK WIRING HARNESS
  • 12.6. MAST WIRING HARNESS COLD WEATH
  • 12.7. CAB DRILL PROPEL VALVE WIRING
  • 12.8. ENGINE SKID ENGINE AIR CONDITIO
  • 12.9. LIGHTS FRONT OF MACHINE WIRIN
  • 12.10. DUST COLLECTOR TO ENGINE WIRING
  • 12.11. BATTERY BOX ASSEMBLY
  • 12.12. BATTERY ENGINE DISCONNECT INS
  • 12.13. KILL SWITCH INSTALLATION GROUN
  • 12.14. FILTER INDICATOR WIRING
  • 12.15. CONVERTER INSTALLATION 24 VDC
  • 12.16. CONVERTER ELECTRONIC DC DC 1
  • 12.17. ADDITIONAL LIGHTING KIT
  • 12.18. ELECTRIC HORN
  • 12.19. REMOTE ENGINE START ASSEMBLY
