Caterpillar 320D to 336D MHPU Excavator Hydraulic System – Attachment Schematic KENR6122-09

$30.00

  • Type Of Manual: Schematic
  • Manual ID: KENR6122-09
  • Number of Pages: 12
  • Size: 1.3MB
  • Format: PDF
Category:
  • Model List:

    • 320D, 321D, 323D, 324D, 325D, 329D, 330D, 336D, 336D MHPU Excavator Hydraulic System – Attachment
  • 1. Features

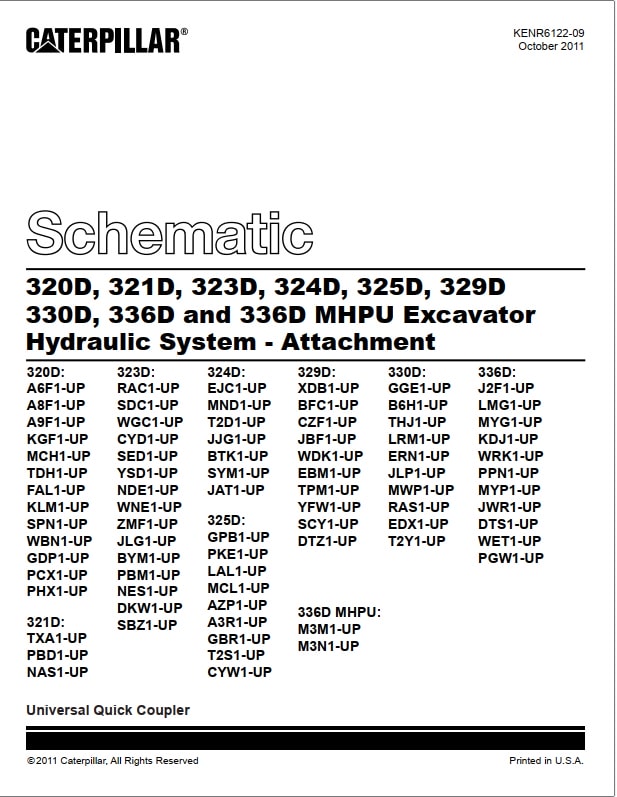

  • 2. Cover Page
  • 3. Information
  • 3.1. Component Location
  • 3.2. Tap Location
  • 3.3. Fluid Power Symbols
  • 3.4. Electrical Symbols
  • 4. Schematic
  • 5. Machine Views
  • 5.1. Machine Component Location

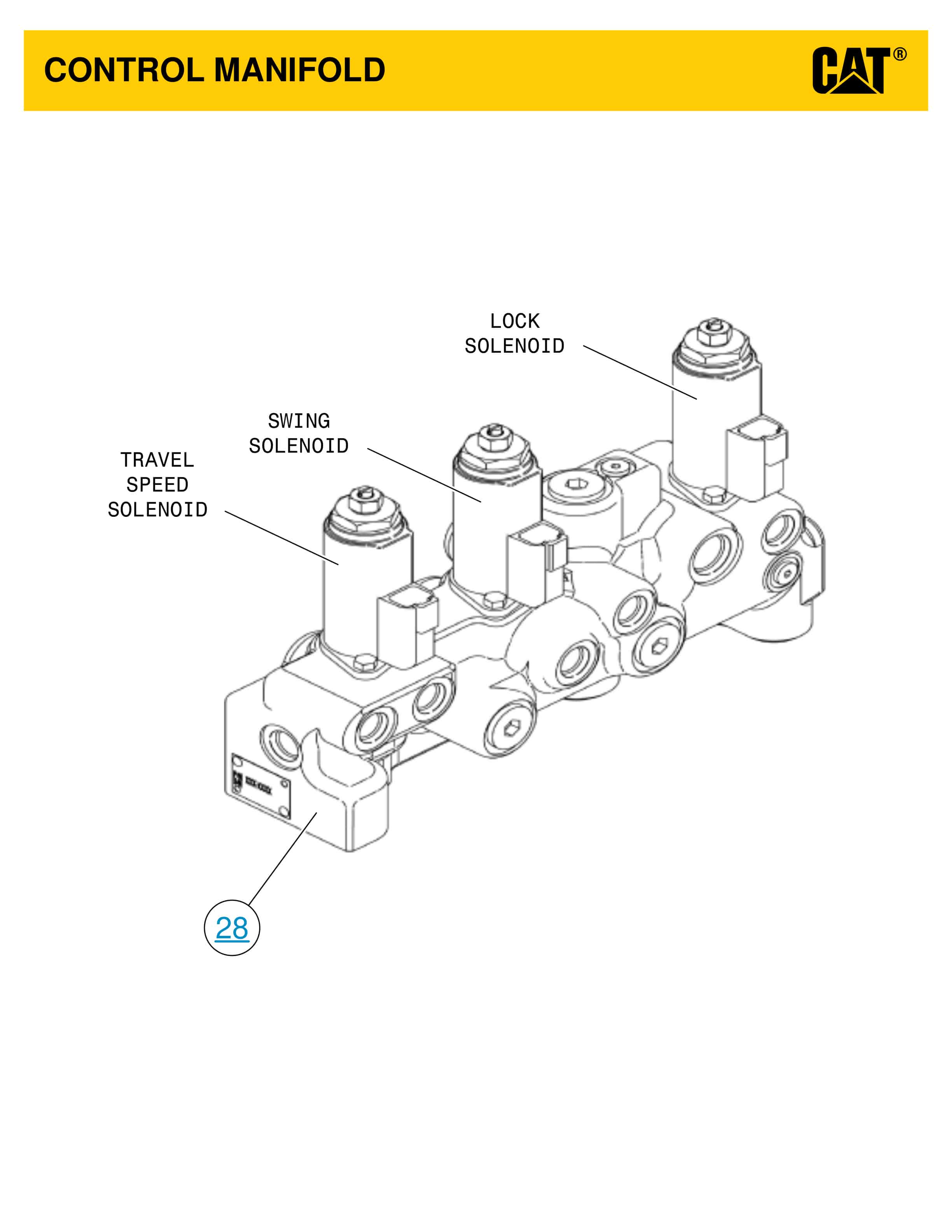

  • 5.2. Control Manifold

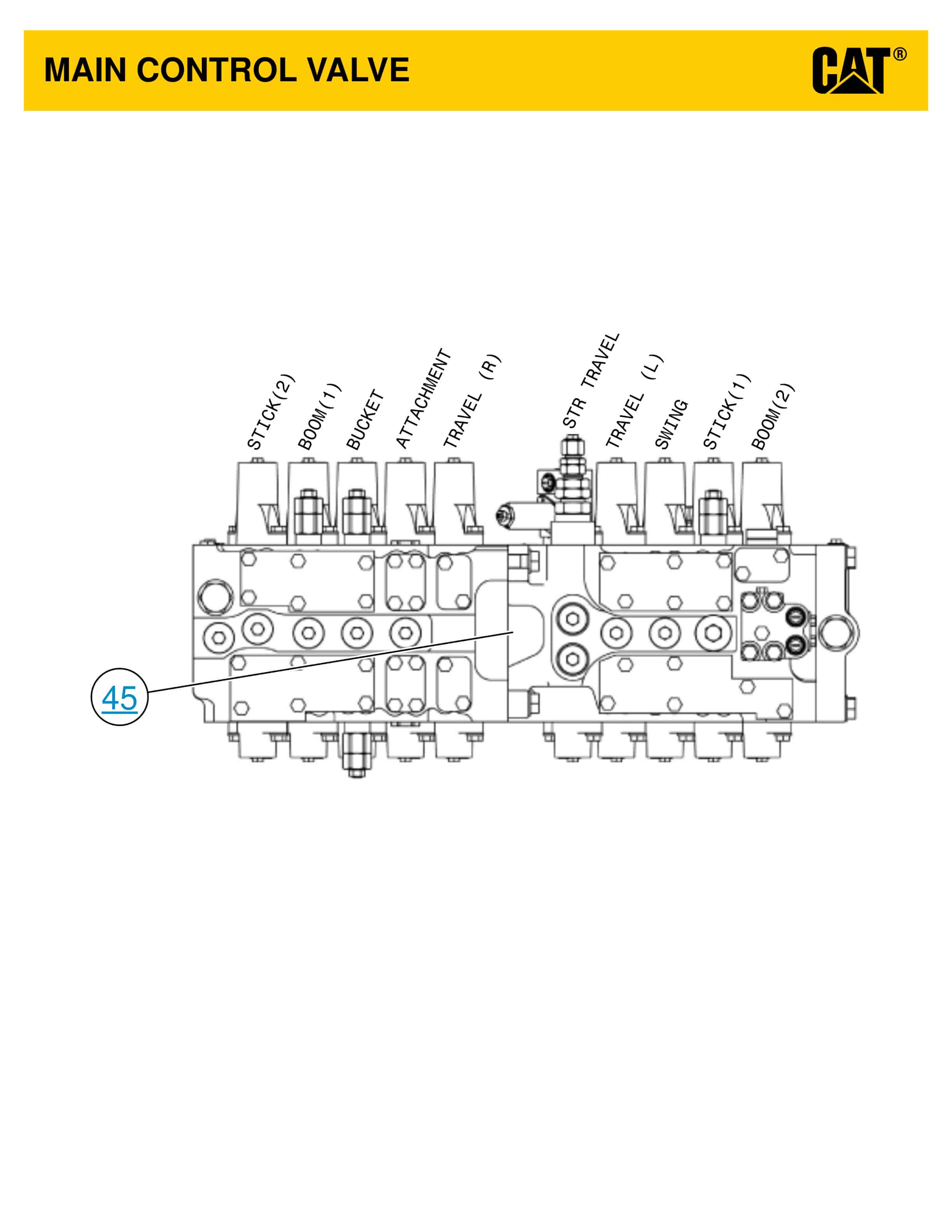

  • 5.3. Main Control Valve
  • 5.4. Main Pump And Filter Circuits
  • 5.5. Quick Coupler Circuit
