Caterpillar 938K Small Wheel Loader Parts Manual SEBP6895

Caterpillar 938K Small Wheel Loader Parts Manual SEBP6895 - Image 2

Caterpillar 938K Small Wheel Loader Parts Manual SEBP6895 - Image 3

Caterpillar 938K Small Wheel Loader Parts Manual SEBP6895

$30.00

Type Of Manual: Parts Manual
Manual ID: SEBP6895
Number of Pages: 618
Size: 15.9MB
Format: PDF

Category: Caterpillar Parts Manual PDF

Product details

Model List:
- 938K Small Wheel Loader

1. GENERAL INFORMATION
2. REPAIR ALTERNATIVES
3. SUPPLEMENTAL COOLANT ADDITIVES
4. MAINTENANCE PARTS
5. MACHINE ARRANGEMENT
5.1. CHASSIS AR
5.2. COMMON AR
5.3. OPTION AR-COLD WEATHER
5.4. OPTION AR-COLD WEATHER
5.5. OPTION AR-MACHINE
5.6. OPTION AR-MACHINE
5.7. OPTION AR-MACHINE
5.8. OPTION AR-MACHINE
6. ENGINE ARRANGEMENT
6.1. ENGINE AR-PRIMARY
6.2. INSTALLATION AR-ENGINE
7. BASIC ENGINE
7.1. AIR COMPRESSOR GP
7.2. BELT TENSIONER GP
7.3. CAMSHAFT GP
7.4. COVER GP-SOUND SUPPRESSION
7.5. COVER GP-VALVE MECHANISM
7.6. CRANKSHAFT GP
7.7. CYLINDER BLOCK AS
7.8. CYLINDER BLOCK GP
7.9. CYLINDER HEAD AS
7.10. CYLINDER HEAD GP
7.11. DRAIN GP-ENGINE OIL
7.12. DRAIN GP-ENGINE OIL
7.13. DRIVE GP-FAN
7.14. FLYWHEEL GP
7.15. HOUSING GP-FLYWHEEL
7.16. HOUSING GP-FRONT
7.17. JET GP-PISTON COOLING
7.18. LIFTING GP-ENGINE
7.19. MOUNTING GP-ALTERNATOR
7.20. MOUNTING GP-ENGINE
7.21. MOUNTING GP-ENGINE FLEXIBLE
7.22. PAN GP-OIL
7.23. PAN GP-OIL
7.24. PISTON ROD GP
7.25. PULLEY GP-AUXILIARY DRIVE
7.26. PULLEY GP-CRANKSHAFT
7.27. ROCKER ARM GP
7.28. ROCKER ARM GP
7.29. SUPPORT GP-POWER TAKE-OFF
8. LUBRICATION SYSTEM
8.1. BREATHER GP
8.2. FILLER GP-ENGINE OIL
8.3. FILLER GP-ENGINE OIL
8.4. FILTER GP-ENGINE OIL
8.5. GAUGE GP-OIL LEVEL (DIPSTICK)
8.6. LINES GP-TURBOCHARGER OIL
8.7. PUMP GP-ENGINE OIL
8.8. VALVE GP-FLUID SAMPLING
9. COOLING SYSTEM
9.1. BASE GP-OIL COOLER FILTER
9.2. CONNECTION GP-HEATER
9.3. CONNECTION GP-WATER
9.4. COOLER GP-ENGINE OIL
9.5. FAN GP-SUCTION
9.6. LINES GP-RADIATOR
9.7. PUMP GP-WATER
9.8. RADIATOR HYD OIL COOLER GP
9.9. RADIATOR HYD OIL COOLER GP
9.10. TANK GP-COOLANT
10. AIR INLET AND EXHAUST SYSTEM
10.1. AIR CLEANER GP
10.2. AIR CLEANER GP
10.3. EXTENSION GP-EXHAUST
10.4. LINES GP-AIR
10.5. LINES GP-TURBOCHARGER AIR
10.6. MANIFOLD GP-EXHAUST
10.7. MANIFOLD GP-INLET
10.8. MUFFLER GP
10.9. PRECLEANER GP
10.10. PRECLEANER GP
10.11. PRECLEANER GP
10.12. TURBOCHARGER GP
11. FUEL SYSTEM
11.1. FILTER GP-FUEL
11.2. FILTER GP-FUEL
11.3. FILTER GP-FUEL
11.4. FILTER GP-FUEL
11.5. FILTER GP-FUEL
11.6. FILTER GP-FUEL
11.7. FILTER GP-WATER SEP FUEL
11.8. INJECTOR GP-FUEL
11.9. LINES GP-FUEL
11.10. LINES GP-FUEL
11.11. LINES GP-FUEL
11.12. LINES GP-FUEL
11.13. LINES GP-FUEL
11.14. LINES GP-FUEL INJECTION
11.15. PUMP GP-FUEL INJECTION
11.16. RAIL GP-FUEL
11.17. TANK MTG GP-FUEL
11.18. TANK GP-FUEL
12. ELECTRICAL AND STARTING SYSTEM
12.1. ALTERNATOR GP-CHARGING
12.2. ALTERNATOR GP-CHARGING
12.3. ALTERNATOR GP-CHARGING
12.4. BATTERY WIRING GP
12.5. BATTERY WIRING GP
12.6. BATTERY WIRING GP
12.7. BATTERY WIRING GP
12.8. BATTERY GP
12.9. BATTERY GP
12.10. BRACKET GP-MOUNTING
12.11. CONTROL GP-ENGINE ELECTRONIC
12.12. CONTROL GP-UNPROGRAMMED
12.13. CONTROL GP-UNPROGRAMMED
12.14. ELECTRONICS AR-MACHINE
12.15. ELECTRONICS GP-COMMUNICATION
12.16. ELECTRONICS GP-IMPLEMENT
12.17. ELECTRONICS GP-MACHINE
12.18. ELECTRONICS GP-MONITOR
12.19. ELECTRONICS GP-MONITOR
12.20. ELECTRONICS GP-POWER TRAIN
12.21. HARNESS AS-CAB
12.22. HARNESS AS-CHASSIS
12.23. HARNESS AS-CONSOLE
12.24. HARNESS AS-CONSOLE
12.25. HARNESS AS-CONTROL
12.26. HARNESS AS-CONTROL
12.27. HARNESS AS-ENGINE
12.28. HARNESS AS-ENGINE
12.29. HARNESS AS-FRONT
12.30. HARNESS AS-HEATER AIR COND
12.31. HARNESS AS-HEATER AIR COND
12.32. HARNESS AS-LIGHTING
12.33. HARNESS AS-LIGHTING
12.34. HARNESS AS-OPERATOR CONTROLS
12.35. HARNESS AS-SENSOR
12.36. HARNESS AS-STARTING AID
12.37. HARNESS AS-STEERING
12.38. HARNESS AS-TRANSMISSION
12.39. HARNESS AS-WINDOW WIPER
12.40. HARNESS AS-WIRING
12.41. HARNESS AS-WIRING
12.42. HEATER GP-JACKET WATER
12.43. HEATER GP-JACKET WATER
12.44. INSTALLATION GP-COMMUNICATION
12.45. INSTALLATION GP-COMMUNICATION
12.46. INSTALLATION GP-SECURITY
12.47. LAMP GP-FLOOD
12.48. LAMP GP-FLOOD
12.49. LAMP GP-FLOOD
12.50. LAMP GP-HEAD SIGNAL
12.51. LAMP GP-HEAD SIGNAL
12.52. LAMP GP-WARNING BEACON
12.53. LIGHTING AR-ROADING
12.54. LIGHTING GP-AUXILIARY
12.55. LIGHTING GP-FLOOD
12.56. LIGHTING GP-FLOOD
12.57. LIGHTING GP-ROADING
12.58. MOUNTING GP-ELECTRONIC CONTROL
12.59. RADIO GP-COMMUNICATION
12.60. SENSOR GP-ENGINE
12.61. SENSOR GP-POSITION
12.62. SENSOR GP-POSITION
12.63. STARTING AID GP
12.64. STARTING AID GP-ETHER
12.65. STARTING AID GP-ETHER
12.66. STARTING MOTOR GP-ELECTRIC
12.67. SWITCH GP-DISCONNECT
12.68. SWITCH GP-MAGNETIC
12.69. SWITCH GP-START
12.70. SWITCH GP-TOGGLE
12.71. VALVE GP-ETHER STARTING
12.72. WIRING GP-CAB
12.73. WIRING GP-CAMERA
12.74. WIRING GP-CHASSIS
12.75. WIRING GP-CONSOLE
12.76. WIRING GP-ENGINE
12.77. WIRING GP-ENGINE
12.78. WIRING GP-FRONT
12.79. WIRING GP-FUEL PUMP
12.80. WIRING GP-KICKOUT POSITIONER
12.81. WIRING GP-SEAT
12.82. WIRING GP-START CONTROL
12.83. WIRING GP-TRANSMISSION CONTROL
13. POWER TRAIN
13.1. ACCUMULATOR GP-HYDRAULIC
13.2. ACCUMULATOR GP-HYDRAULIC
13.3. AXLE AR-OSCILLATING
13.4. AXLE AR-OSCILLATING
13.5. AXLE GP-FIXED
13.6. BAFFLE GP-OIL
13.7. CLUTCH GP
13.8. DIFFERENTIAL GP
13.9. DIFFERENTIAL GP-REAR
13.10. FILLER GP-POWER TRAIN OIL
13.11. FILTER GP-OIL
13.12. HOUSING GP-FIXED AXLE
13.13. HOUSING GP-FIXED AXLE
13.14. HOUSING GP-FIXED AXLE
13.15. HOUSING GP-OSCILLATING AXLE
13.16. HOUSING GP-OSCILLATING AXLE
13.17. LINES GP-DIFFERENTIAL LOCK
13.18. LINES GP-HYDROSTATIC
13.19. LINES GP-HYDROSTATIC
13.20. LINES GP-TRANSMISSION FILTER
13.21. MOTOR MTG GP-HYDROSTATIC
13.22. MOTOR MTG GP-HYDROSTATIC
13.23. MOTOR GP-PISTON
13.24. MOTOR GP-PISTON
13.25. MOUNTING GP-AXLE
13.26. MOUNTING GP-HYDROSTATIC PUMP
13.27. MOUNTING GP-TRANSMISSION
13.28. POWER TRAIN AR
13.29. PUMP MTG GP-GEAR
13.30. PUMP MTG GP-HYDROSTATIC
13.31. PUMP GP-PISTON
13.32. RIM AR
13.33. RIM GP-DEMOUNTABLE
13.34. RIM GP-DEMOUNTABLE
13.35. RIM GP-DEMOUNTABLE
13.36. ROTATING GP-MOTOR
13.37. ROTATING GP-MOTOR
13.38. SHAFT GP-DRIVE
13.39. SHAFT GP-DRIVE
13.40. SHAFT GP-DRIVE
13.41. SHAFT GP-OUTPUT
13.42. SLIP JOINT GP
13.43. SLIP JOINT GP
13.44. TIRE RIM AR
13.45. TIRE RIM AR
13.46. TIRE RIM AR
13.47. TIRE RIM AR
13.48. TIRE RIM AR
13.49. TIRE RIM AR
13.50. TIRE RIM AR
13.51. TIRE RIM AR
13.52. TIRE RIM AR
13.53. TIRE RIM AR
13.54. TIRE RIM AR
13.55. TIRE RIM AR
13.56. TIRE RIM AR
13.57. TIRE RIM AR
13.58. TIRE RIM AR
13.59. TIRE RIM AR
13.60. TIRE RIM AR
13.61. TIRE RIM AR
13.62. TRANSMISSION AR
13.63. TRUNNION GP-AXLE
13.64. TRUNNION GP-AXLE
13.65. VALVE MTG GP-SOLENOID
13.66. VALVE GP-CHECK
13.67. VALVE GP-FLUSHING
13.68. VALVE GP-MODULATING
13.69. VALVE GP-PILOT
13.70. VALVE GP-PUMP CONTROL
13.71. VALVE GP-SOLENOID RELIEF
13.72. VALVE GP-TIRE
13.73. WHEEL FINAL DRIVE GP
13.74. WHEEL FINAL DRIVE GP
13.75. WHEEL TIRE GP
13.76. WHEEL TIRE GP
13.77. YOKE AS
14. FRAME AND BODY
14.1. BOX GP-BATTERY
14.2. BOX GP-BATTERY
14.3. CONVERSION AR-ROADING
14.4. COUNTERWEIGHT GP
14.5. COUNTERWEIGHT GP
14.6. COUNTERWEIGHT GP
14.7. DOOR GP-ACCESS
14.8. EXTENSION GP-FENDER
14.9. FENDER AR
14.10. FENDER GP-FRONT

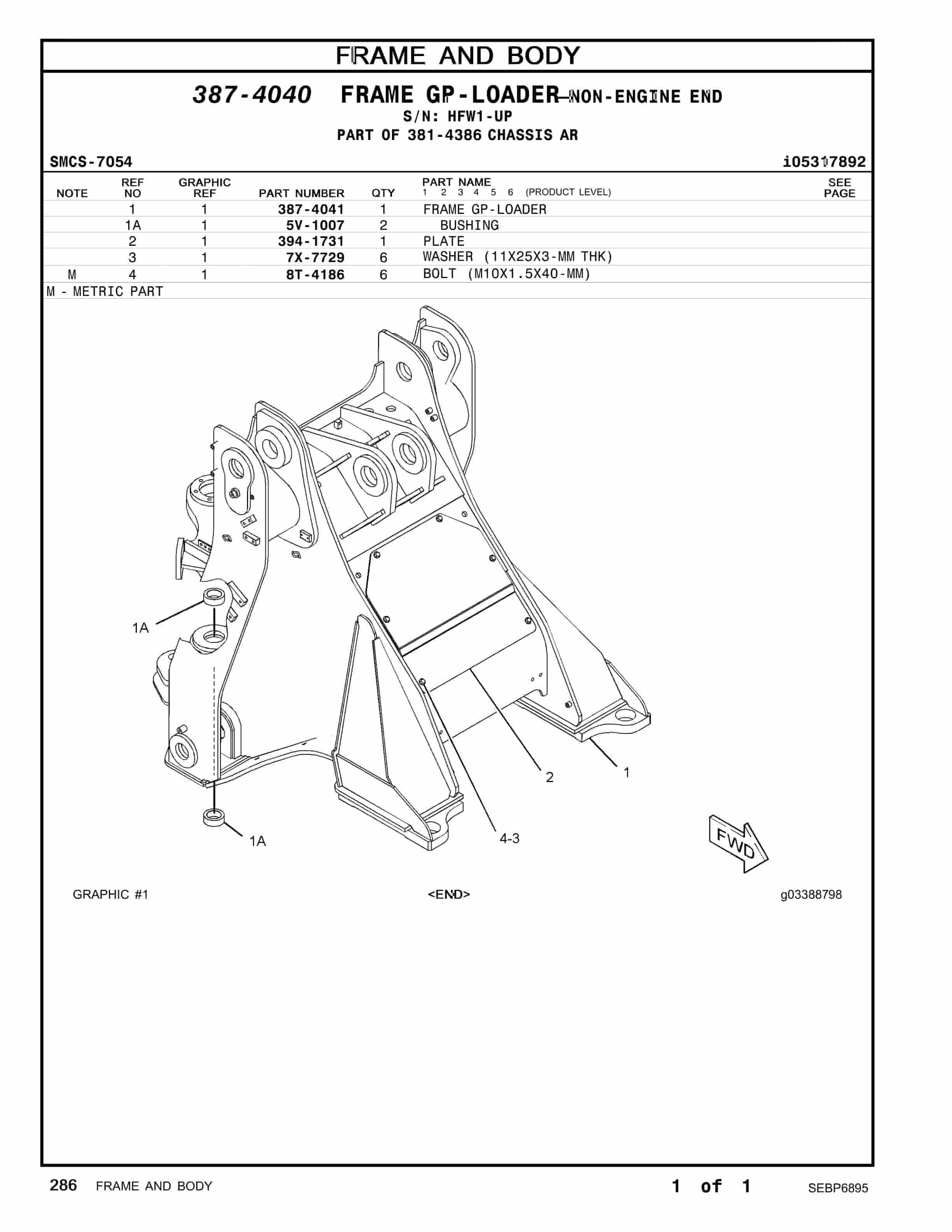

14.11. FRAME GP-LOADER
14.12. FRAME GP-REAR
14.13. GUARD GP-CRANKCASE
14.14. GUARD GP-DRIVE SHAFT
14.15. GUARD GP-FRAME
14.16. GUARD GP-LIGHTING
14.17. GUARD GP-POWER TRAIN
14.18. GUARD GP-RADIATOR
14.19. GUARD GP-REAR
14.20. HITCH GP-ARTICULATING
14.21. HOOD GP-ENGINE
14.22. LADDER GP
14.23. LINES GP-GREASE
14.24. LINK GP-STEERING FRAME LOCK
14.25. MOUNTING GP-BRACKET
14.26. PLATE GP-MOUNTING
15. BRAKING SYSTEM
15.1. ACCUMULATOR GP-BRAKE
15.2. ACCUMULATOR GP-BRAKE
15.3. BRAKE GP-HYDRAULIC CALIPER
15.4. BRAKE GP-PARKING
15.5. BRAKE GP-SERVICE
15.6. CONTROL GP-SERVICE BRAKE
15.7. LINES GP-BRAKE
15.8. LINES GP-SERVICE BRAKE
16. STEERING SYSTEM
16.1. CYLINDER MTG GP-STEERING
16.2. CYLINDER GP-STEERING
16.3. KIT-STEERING CYLINDER GUARD
16.4. LINES GP-STEERING
16.5. PUMP GP-METERING
16.6. STEERING AR-STANDARD
17. HYDRAULIC SYSTEM
17.1. ACCUMULATOR GP-PILOT OIL
17.2. ACCUMULATOR GP-PILOT OIL
17.3. ACCUMULATOR GP-RIDE CONTROL
17.4. ACCUMULATOR GP-RIDE CONTROL
17.5. CONTROL AR-RIDE
17.6. CONTROL GP-RIDE
17.7. CYLINDER MTG GP-LIFT
17.8. CYLINDER MTG GP-TILT
17.9. CYLINDER GP-COUPLER
17.10. CYLINDER GP-LIFT
17.11. CYLINDER GP-TILT
17.12. FILTER GP-OIL
17.13. FILTER GP-OIL
17.14. FILTER GP-OIL
17.15. HYDRAULIC AR
17.16. HYDRAULIC AR-2 VALVE
17.17. HYDRAULIC AR-2 VALVE
17.18. HYDRAULIC AR-2 VALVE
17.19. HYDRAULIC AR-2 VALVE
17.20. HYDRAULIC AR-3 VALVE
17.21. HYDRAULIC AR-3 VALVE
17.22. LINES GP-COUPLER
17.23. LINES GP-COUPLER
17.24. LINES GP-COUPLER
17.25. LINES GP-COUPLER
17.26. LINES GP-FRONT
17.27. LINES GP-HYDRAULIC
17.28. LINES GP-HYDRAULIC
17.29. LINES GP-HYDRAULIC FAN
17.30. LINES GP-LIFT CYLINDER
17.31. LINES GP-RIDE CONTROL
17.32. LINES GP-TILT CYLINDER
17.33. MOTOR MTG GP-HYDRAULIC FAN
17.34. MOTOR MTG GP-HYDRAULIC FAN
17.35. MOTOR GP-GEAR
17.36. MOTOR GP-GEAR
17.37. MOTOR GP-GEAR
17.38. MOTOR GP-GEAR
17.39. MOUNTING GP-BANK VALVE
17.40. PUMP MTG GP-BRAKE HYD FAN
17.41. PUMP MTG GP-IMPL STEERING
17.42. PUMP GP-GEAR
17.43. PUMP GP-GEAR
17.44. PUMP GP-PISTON
17.45. PUMP GP-PISTON
17.46. PUMP GP-PISTON
17.47. ROTATING GP-PUMP
17.48. ROTATING GP-PUMP
17.49. TANK MTG GP-HYDRAULIC

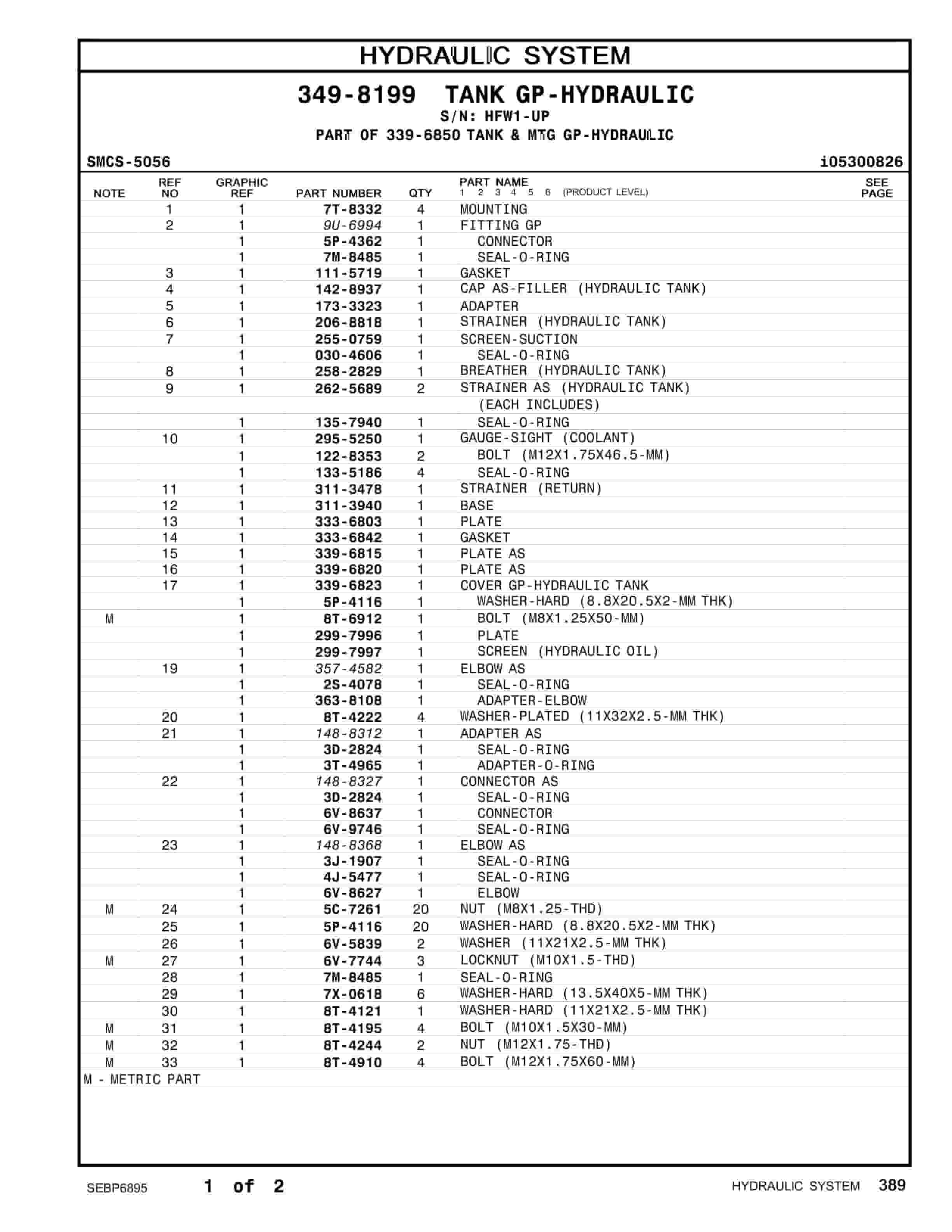

17.50. TANK GP-HYDRAULIC
17.51. VALVE MTG GP-COUPLER
17.52. VALVE MTG GP-HYDRAULIC
17.53. VALVE MTG GP-RIDE CONTROL
17.54. VALVE GP-CONTROL
17.55. VALVE GP-CONTROL
17.56. VALVE GP-CONTROL
17.57. VALVE GP-CONTROL
17.58. VALVE GP-DRAIN
17.59. VALVE GP-MAIN CONTROL
17.60. VALVE GP-MAIN CONTROL
17.61. VALVE GP-MANIFOLD RELIEF
17.62. VALVE GP-MANIFOLD RELIEF
17.63. VALVE GP-PILOT
17.64. VALVE GP-PRESSURE REDUCING
17.65. VALVE GP-PUMP CONTROL
17.66. VALVE GP-PUMP CONTROL
17.67. VALVE GP-SOLENOID
17.68. VALVE GP-SOLENOID
17.69. VALVE GP-SOLENOID
18. IMPLEMENTS
18.1. ARM BEARING AS-LIFT
18.2. CONTROL AR-BUCKET
18.3. CONTROL GP-BUCKET
19. OPERATOR STATION
19.1. AIR CONDITIONER AR
19.2. AIR CONDITIONER GP
19.3. ARM GP-WINDOW WIPER
19.4. ARMREST GP
19.5. CAB AR-ENCLOSED ROPS
19.6. CAB GP-ENCLOSED ROPS
19.7. CAB GP-ENCLOSED ROPS
19.8. COMPRESSOR GP-REFRIGERANT
19.9. CONDENSER MTG GP-REFRIGERANT
19.10. CONSOLE GP-OPERATOR
19.11. CONSOLE GP-OPERATOR
19.12. CONTROL MTG GP-ELHYD
19.13. CONTROL GP-AIR TEMPERATURE
19.14. CONTROL GP-ELECTROHYDRAULIC
19.15. CONTROL GP-ELECTROHYDRAULIC
19.16. CONTROL GP-JOYSTICK
19.17. CONTROL GP-JOYSTICK

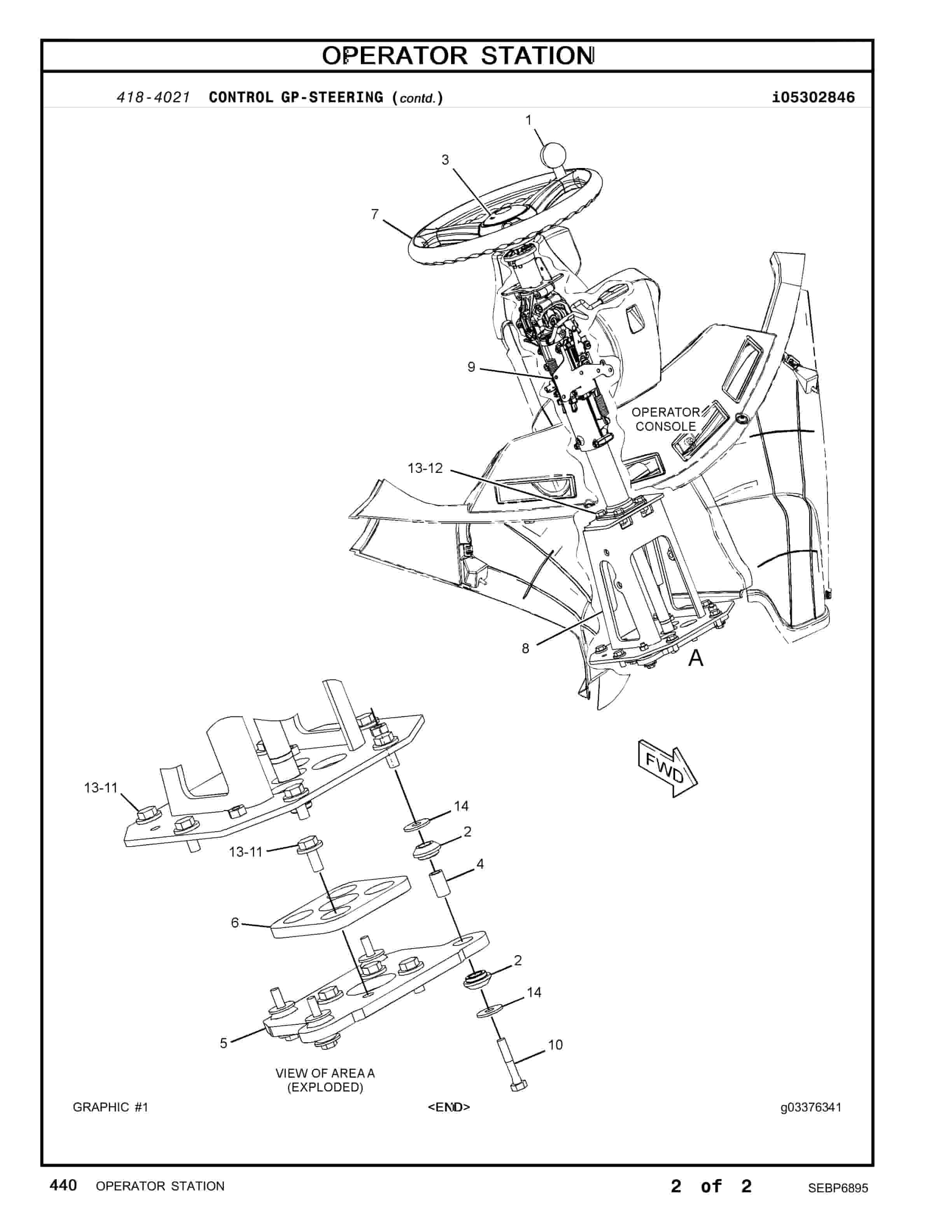

19.18. CONTROL GP-STEERING
19.19. COVER GP-CAB
19.20. COVER GP-TANK
19.21. DOOR GP-CAB
19.22. DOOR GP-CAB
19.23. DOOR GP-CAB
19.24. DUCT GP-CAB AIR
19.25. FLOOR MAT GP
19.26. GUARD GP-WINDOW
19.27. HANDHOLD GP
19.28. HEATER AIR CONDITIONER GP
19.29. INSTALLATION GP-RADIO
19.30. INSTALLATION GP-RADIO
19.31. LINER GP-CAB
19.32. LINER GP-CAB
19.33. LINER GP-CAB
19.34. LINES GP-AIR CONDITIONER
19.35. LINES GP-HEATER
19.36. MIRROR GP-REAR VIEW
19.37. MIRROR GP-REAR VIEW
19.38. MONITOR MOUNTING GP

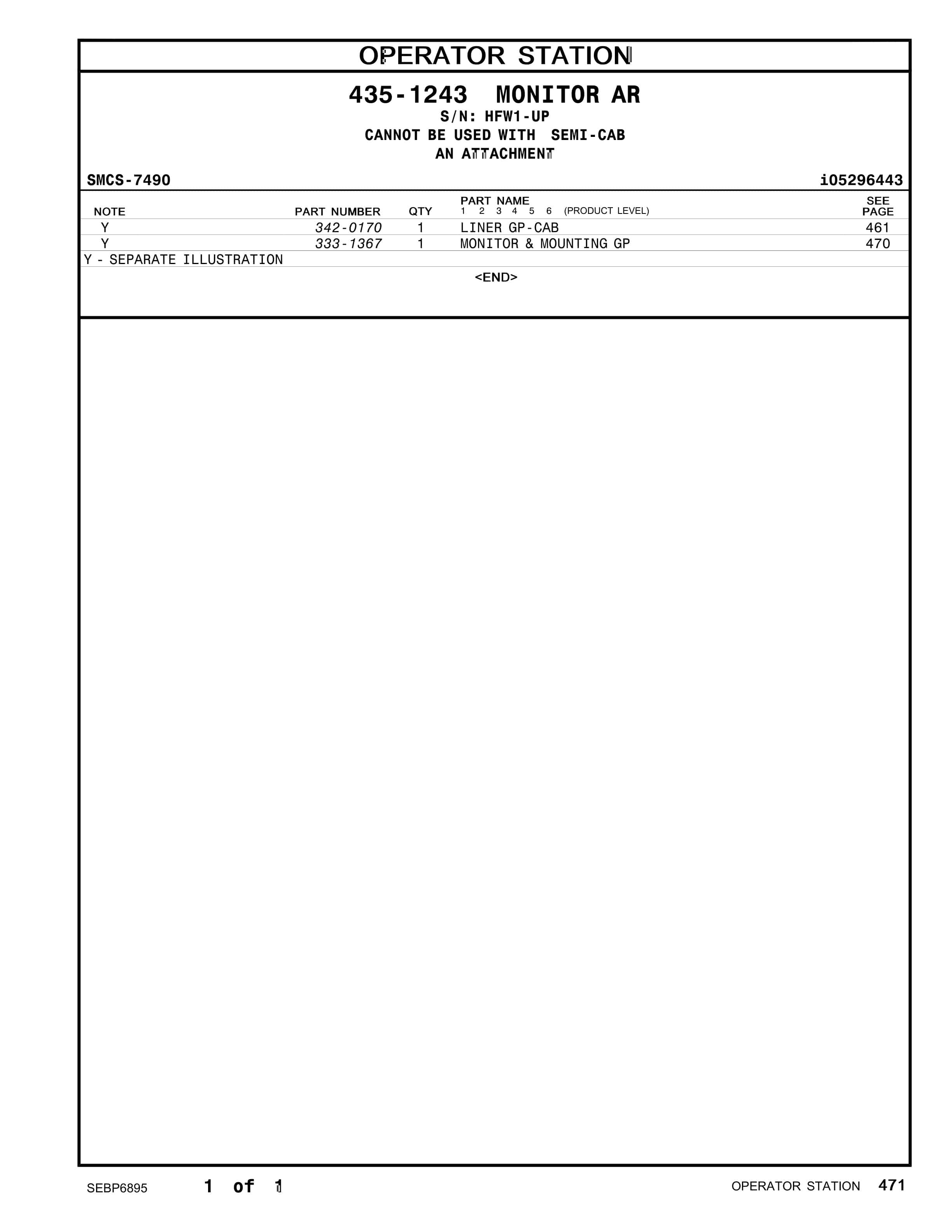

19.39. MONITOR AR
19.40. MOTOR GP-WINDOW WIPER
19.41. MOUNTING GP-CAB
19.42. PAN GP-BACKREST
19.43. PANEL GP-INSTRUMENT
19.44. PEDAL GP-BRAKE
19.45. PEDAL GP-GOVERNOR
19.46. RADIO GP
19.47. RADIO GP
19.48. RADIO GP
19.49. SEAT MOUNTING GP
19.50. SEAT MOUNTING GP
19.51. SEAT BELT GP
19.52. SEAT GP
19.53. SEAT GP-SUSPENSION
19.54. SEAT GP-SUSPENSION
19.55. SKIRT GP-CAB
19.56. SUSPENSION GP-SEAT
19.57. VALVE GP-WATER
19.58. VISOR GP-CAB
19.59. WINDOW GP-CAB
19.60. WINDOW GP-DOOR

Rate this product

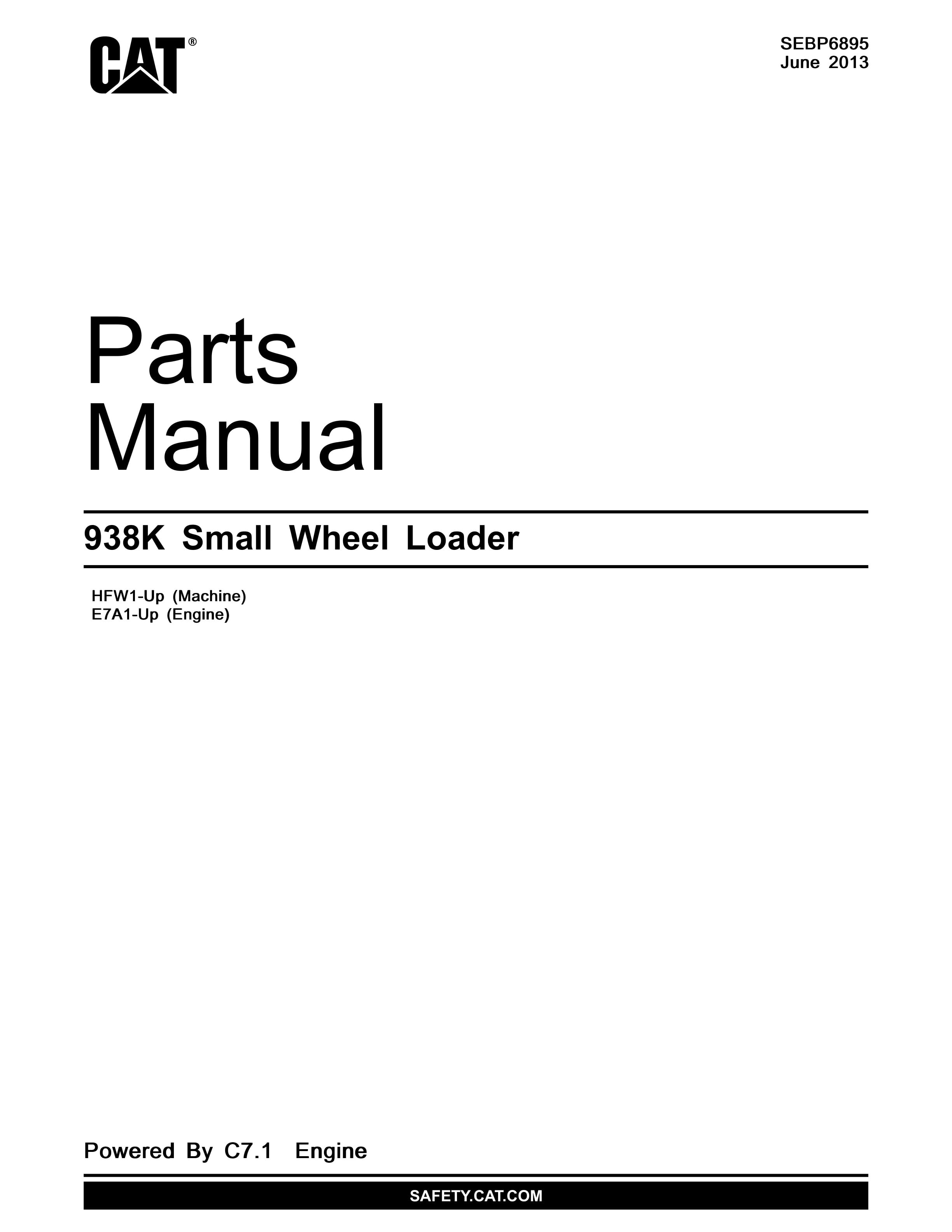

Caterpillar 938K Small Wheel Loader Parts Manual SEBP6895

Product details

Related products

Caterpillar GP20N Parts Manual 98725-45100

Caterpillar GP20N Parts Manual 98717-950S0

Caterpillar GP20N Parts Manual 98713-86000

Caterpillar GP20N Parts Manual 98717-950T0

Caterpillar GP20N Parts Manual 98713-85100
